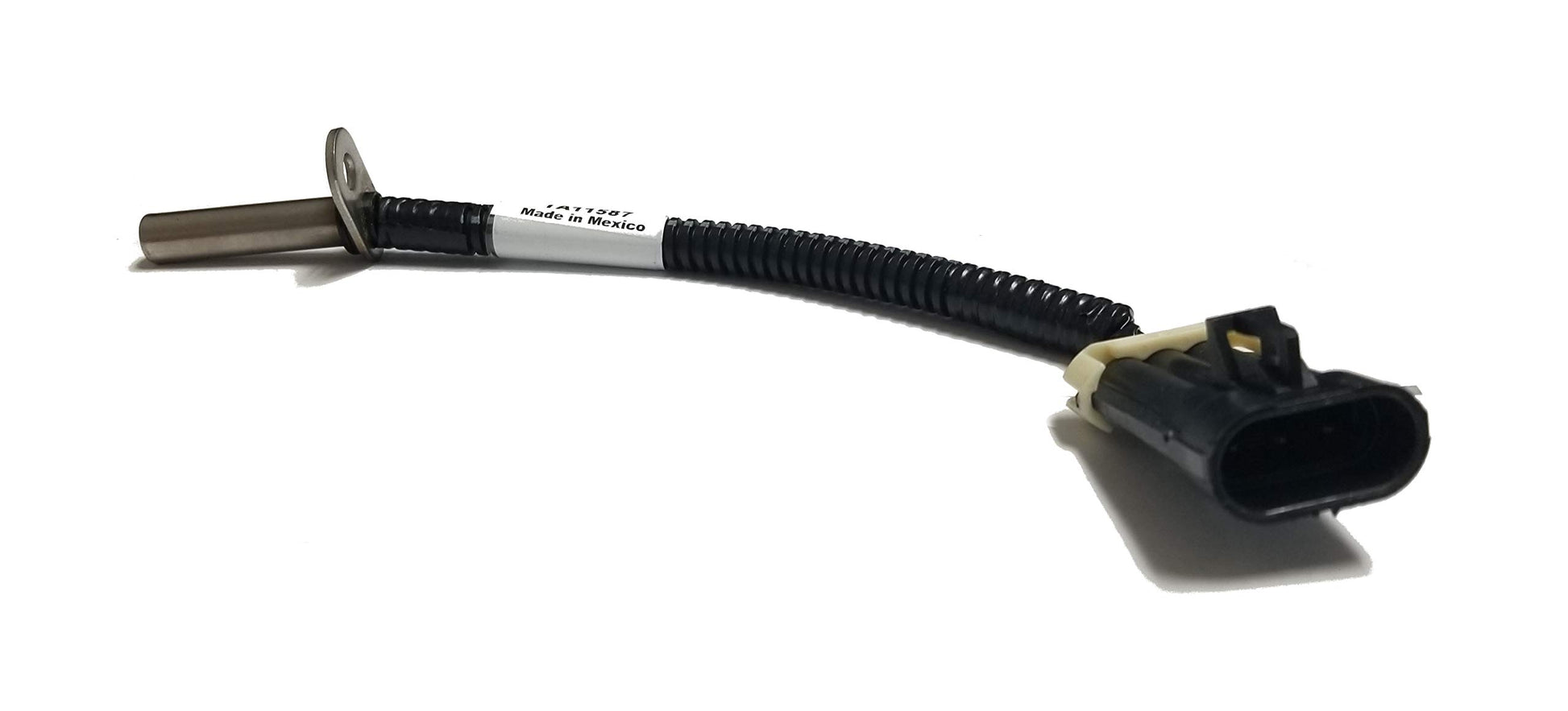

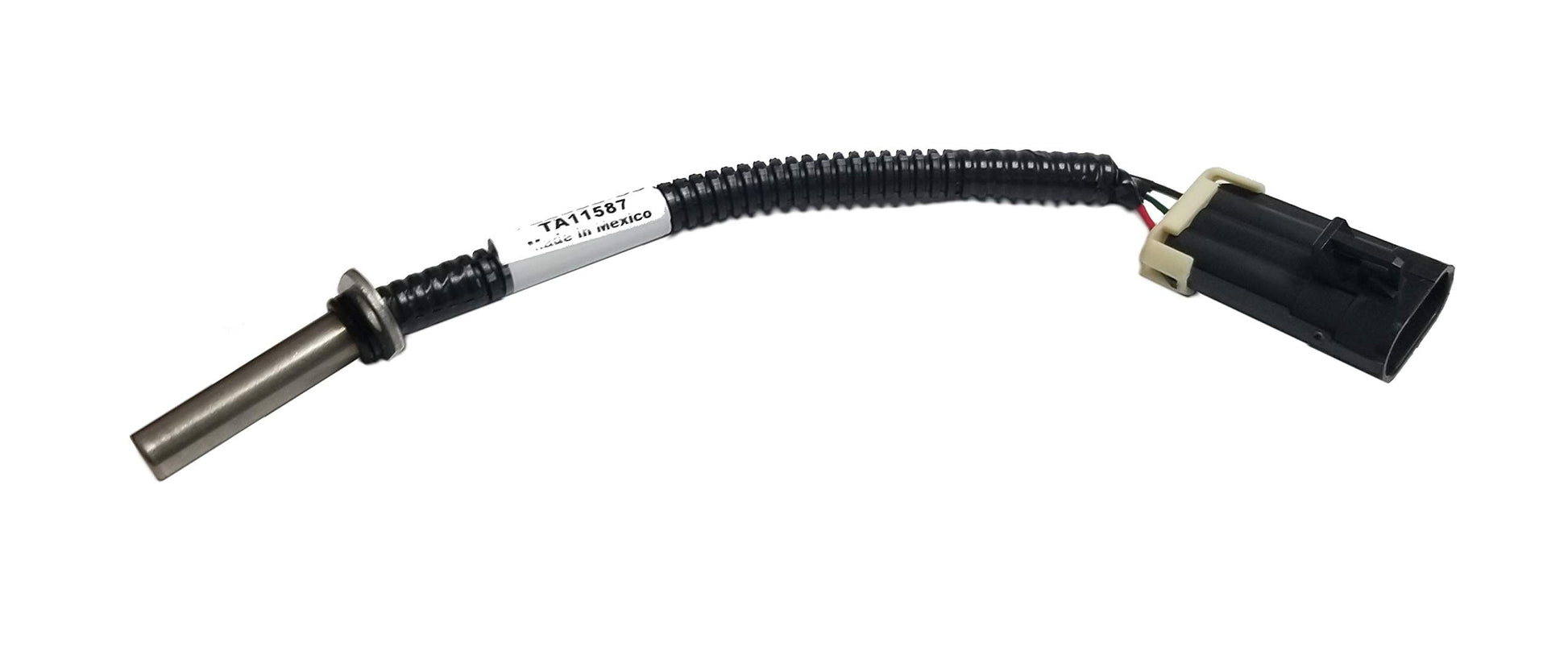

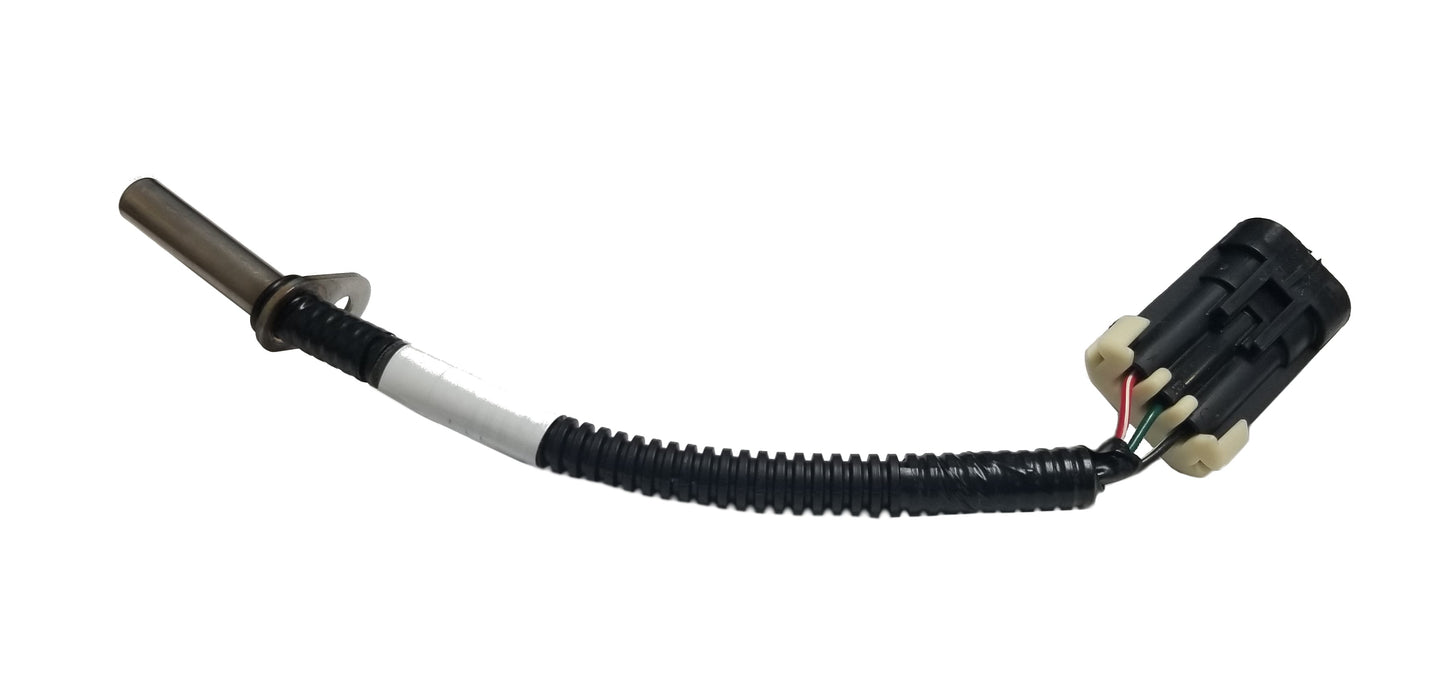

John Deere Original Equipment Sensor - TA11587
John Deere Original Equipment Sensor - TA11587
Sensor - SENSOR, HALL, GEAR
Specification -
Technology: HALL
Number of Outputs: SINGLE
Maximum Temperature: 100.000UNITY
Minimum Temperature: -40
Air Gap: 0.030IN
Length: 1.580IN
Diameter - Tip: 0.375IN
Mounting Diameter: 0.260IN
Thread Type: NONE
Mounting Style: FLANGE
Connector Type: PIGTAIL
Fits the following John Deere models: 1023E Compact Utility Tractor ( -1LV1023ELHJ100000)(Front PTO 210001-310000), 1025R Compact Utility Tractor ( -1LV1025RLHJ100000), 1026R Compact Utility Tractor ( -1LV1026RAHJ200000)(Front PTO 210001-310000), 2025R Compact Utility Tractor (1LV2025RCHH100001- ), 2026R Compact Utility Tractor (1LV2026RTHH200003- ), 2032R Tractor (GH100008- ), 2038R Tractor (GH100009- )(North America Edition), 3033R Compact Utility Tractor, 3039R Compact Utility Tractor (1LV3039R*HJ100001- )(North America Edition), 3046R Compact Utility Tractor, 3120, 3320(132058-), 3520, 3720, 4320(-620000), 4520, 4720, X710 2WD(040001-), X730 2WD, X7342WD(040001-), X750 2WD(040001-), X754 2WD(040001-).
Replaces part number LVA17409 and LVA11184
This is a OEM John Deere part. Thanks for looking!
