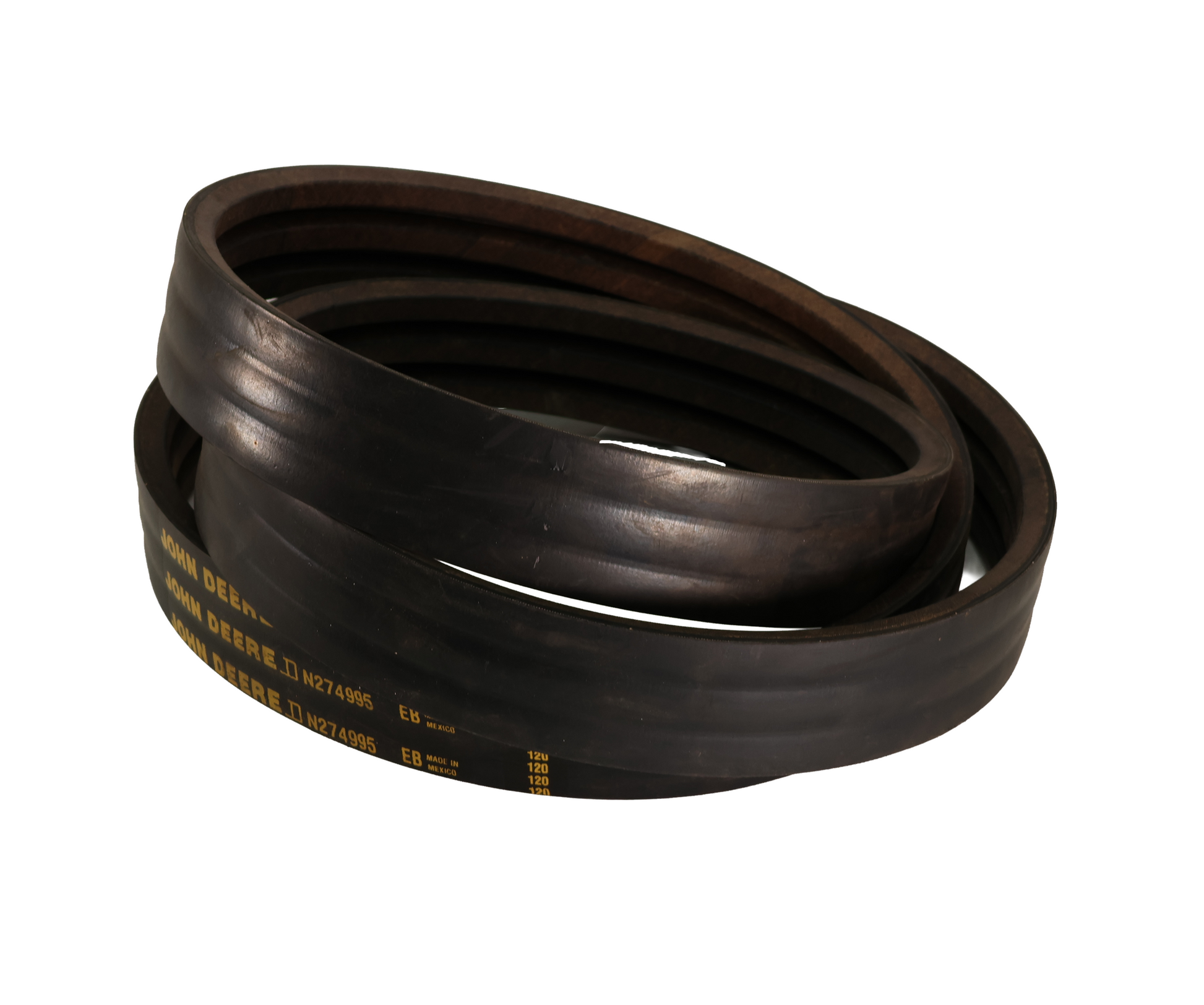

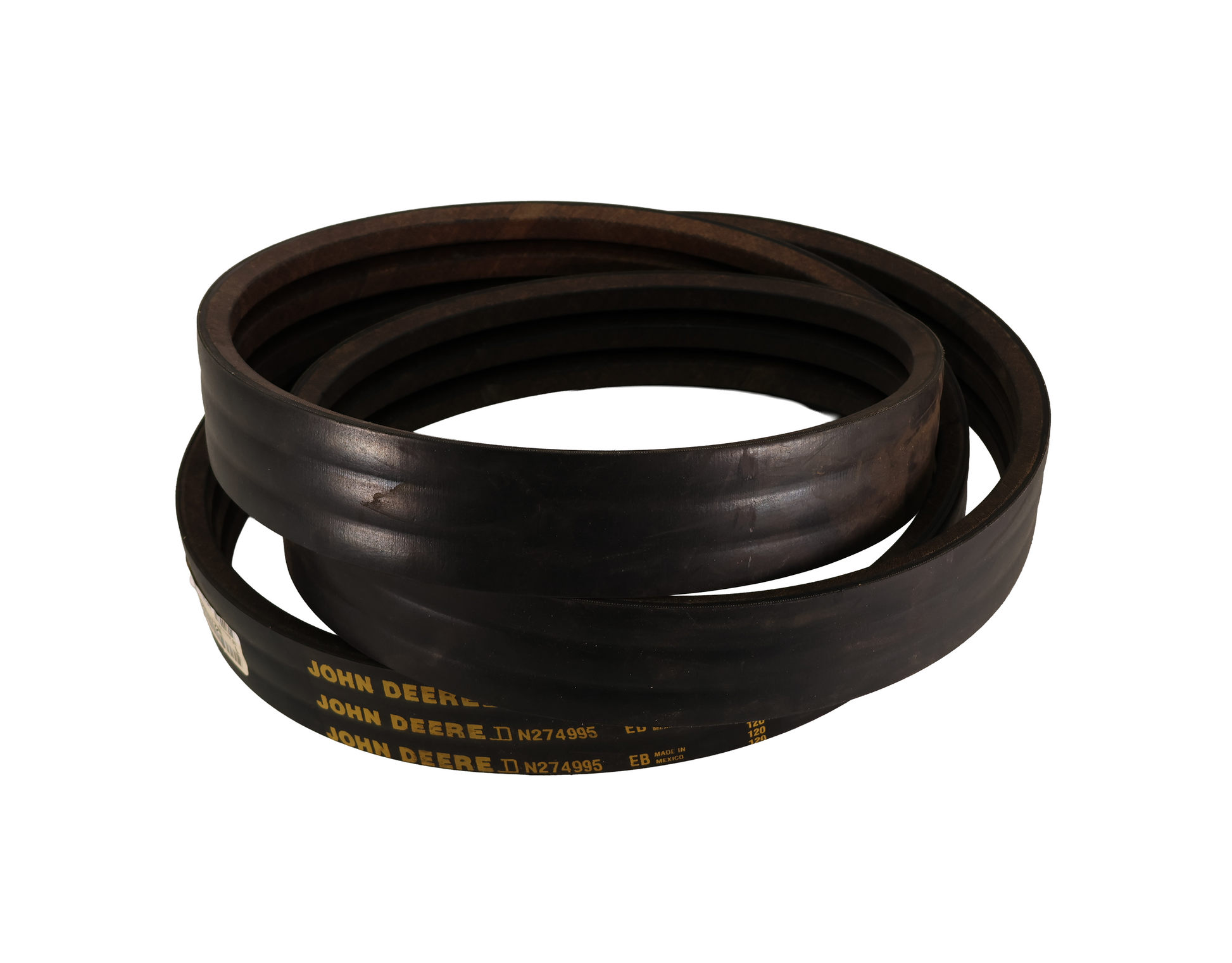

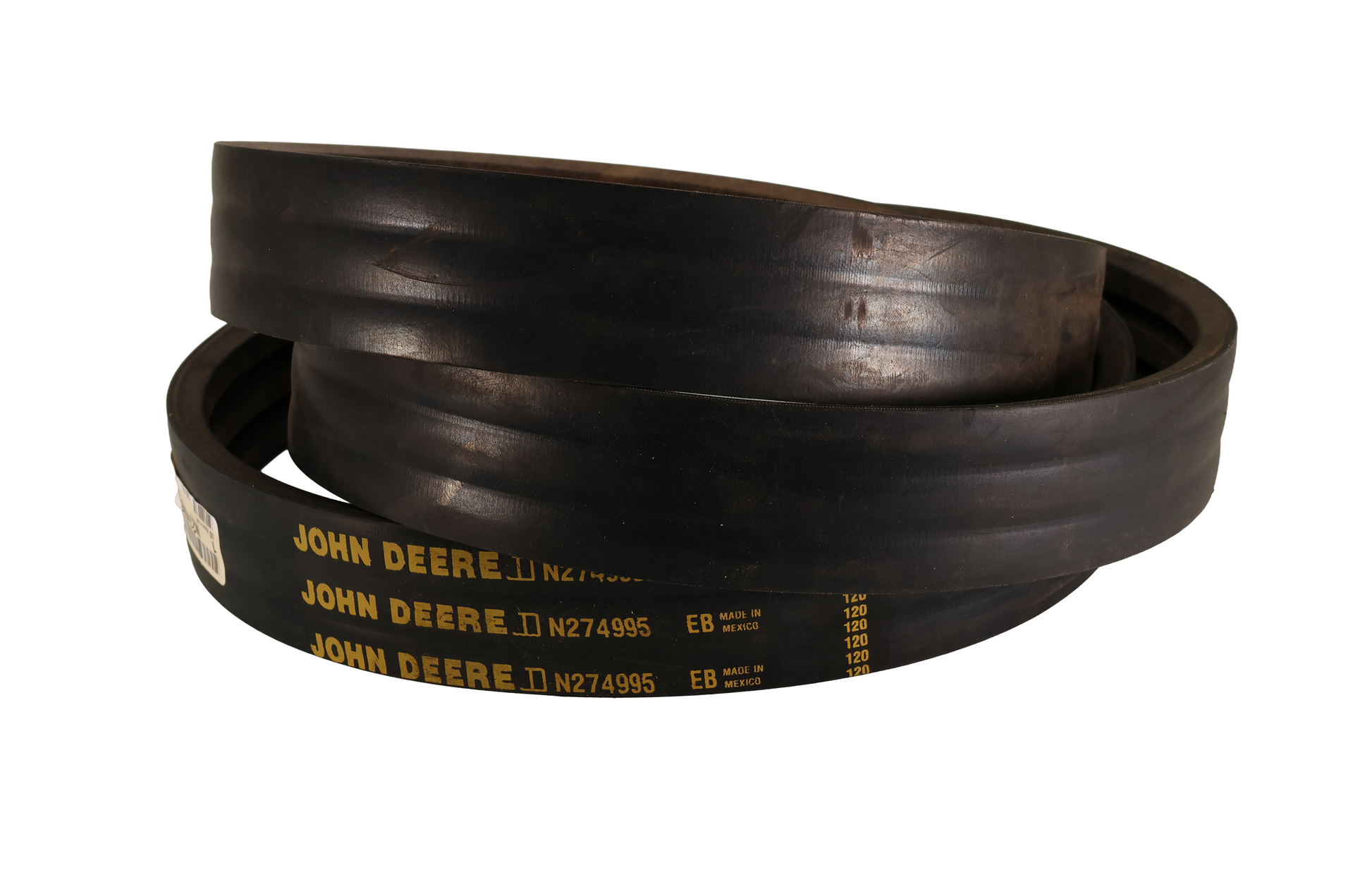

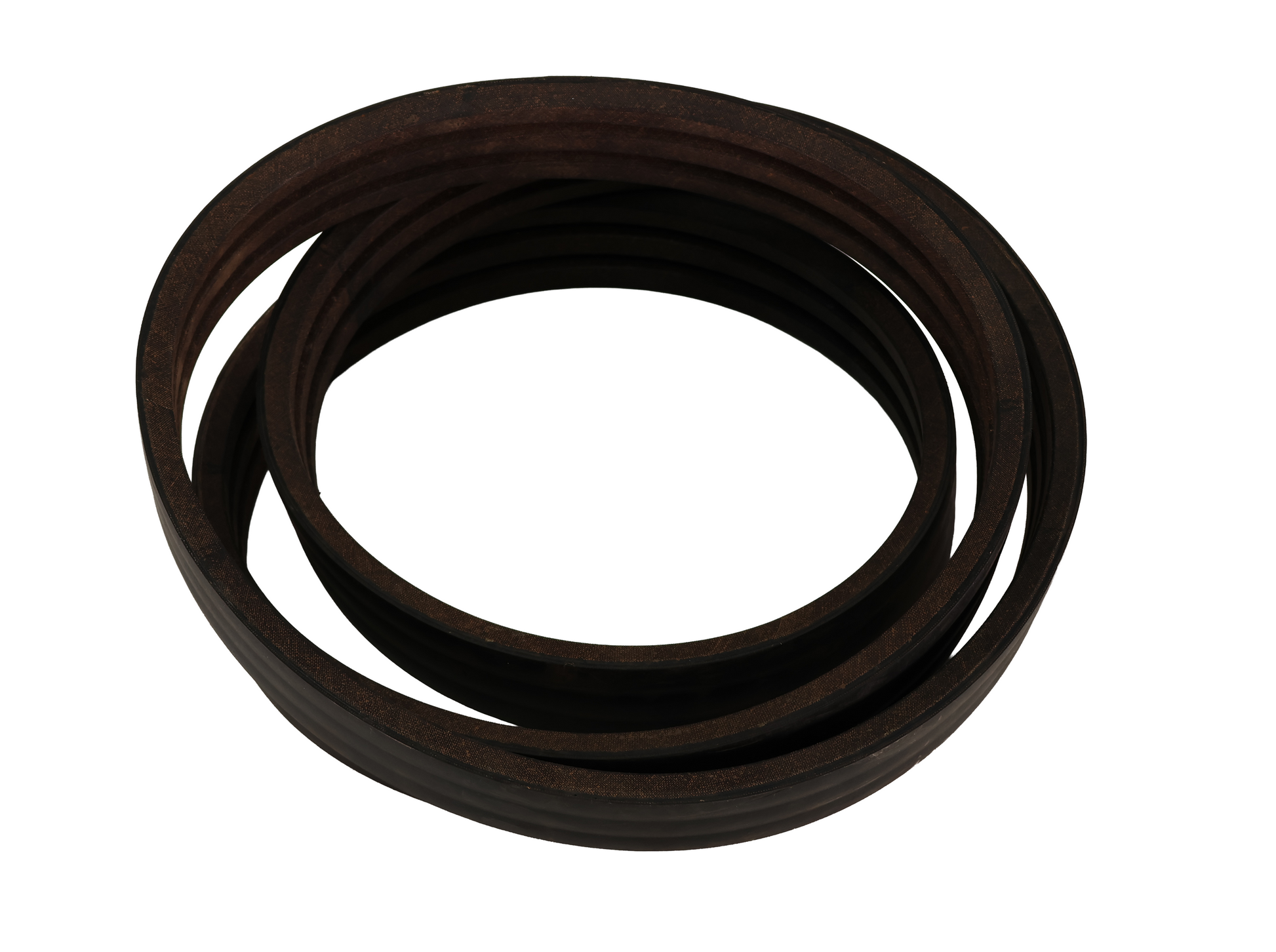

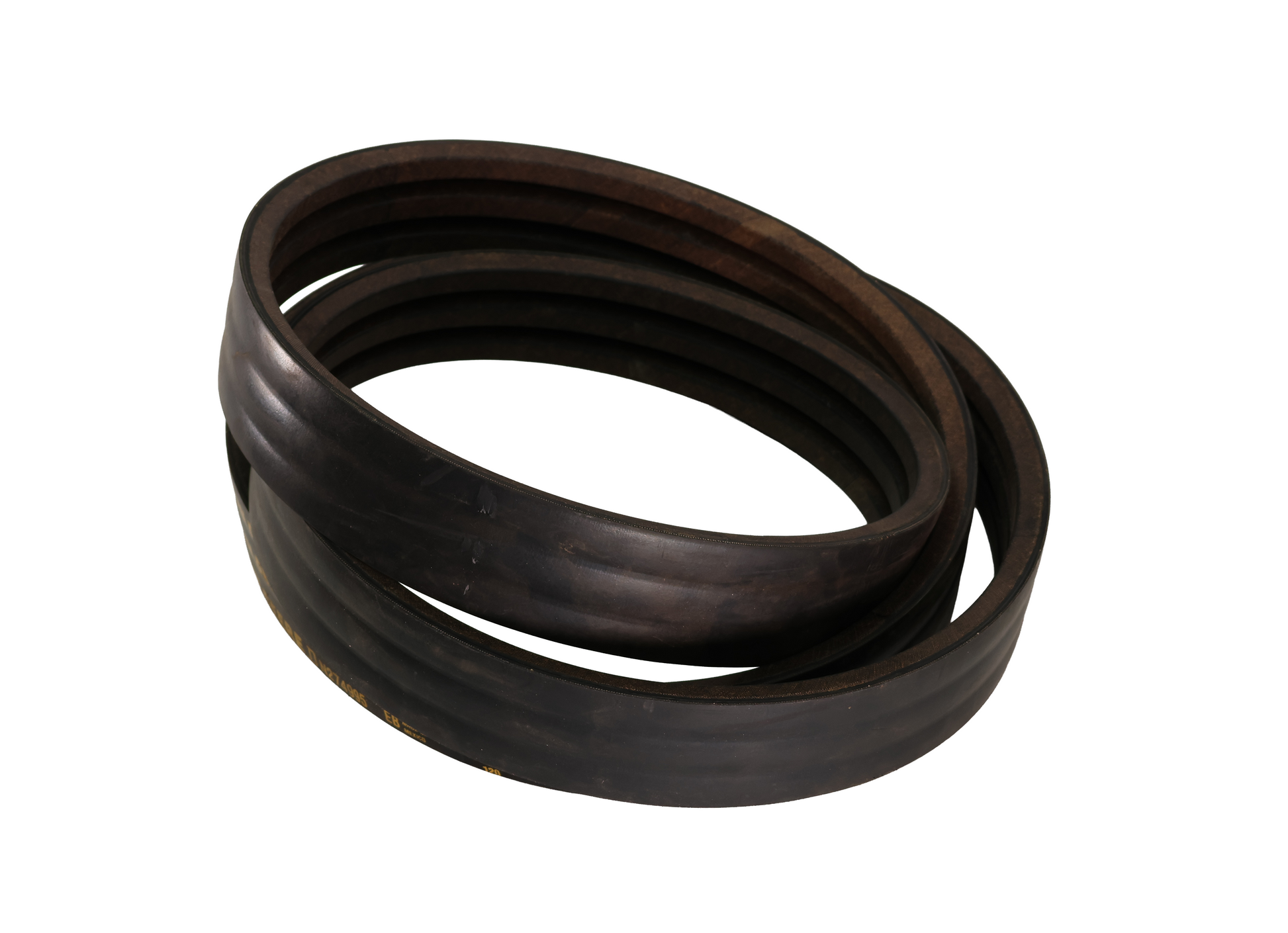

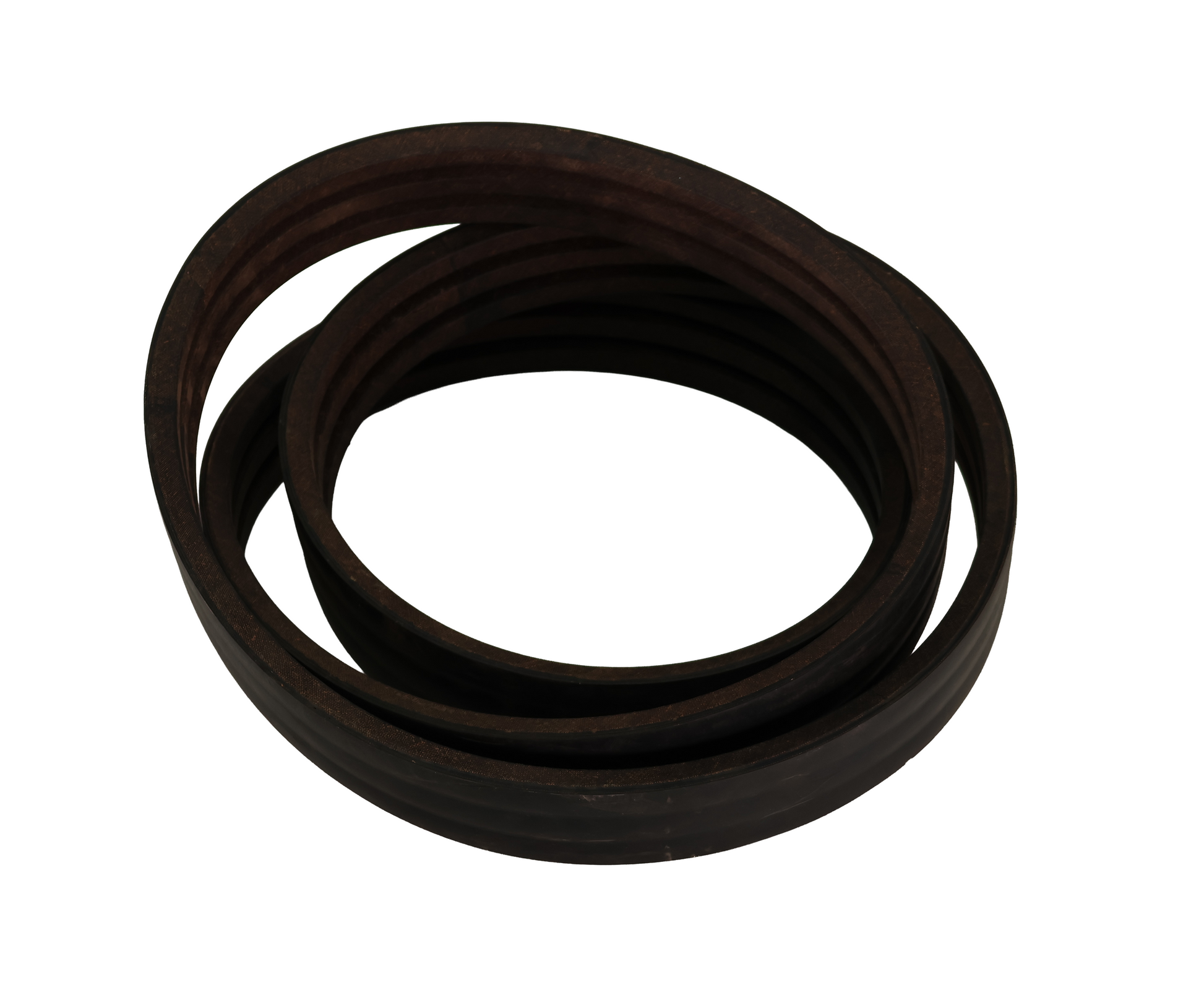

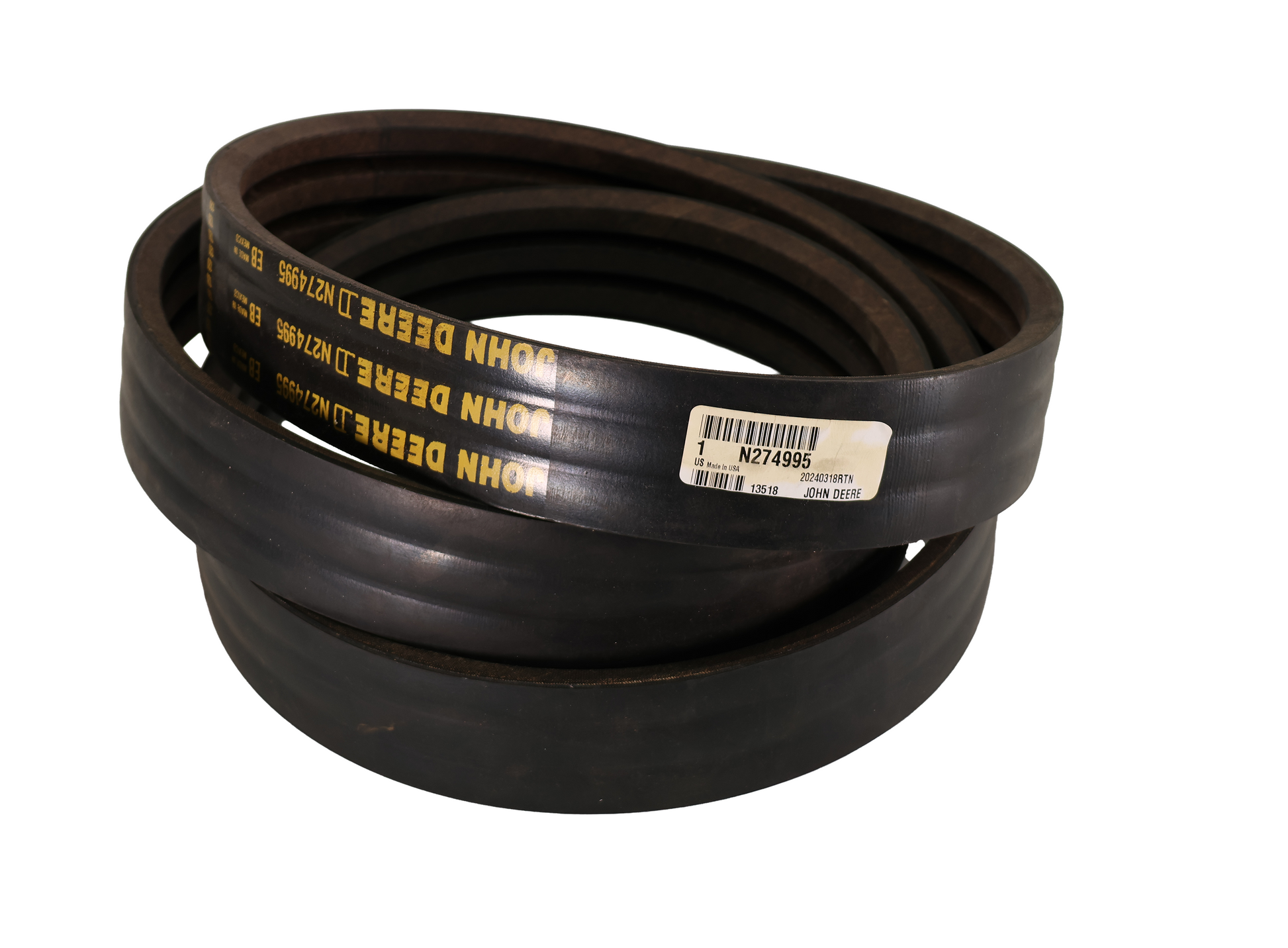

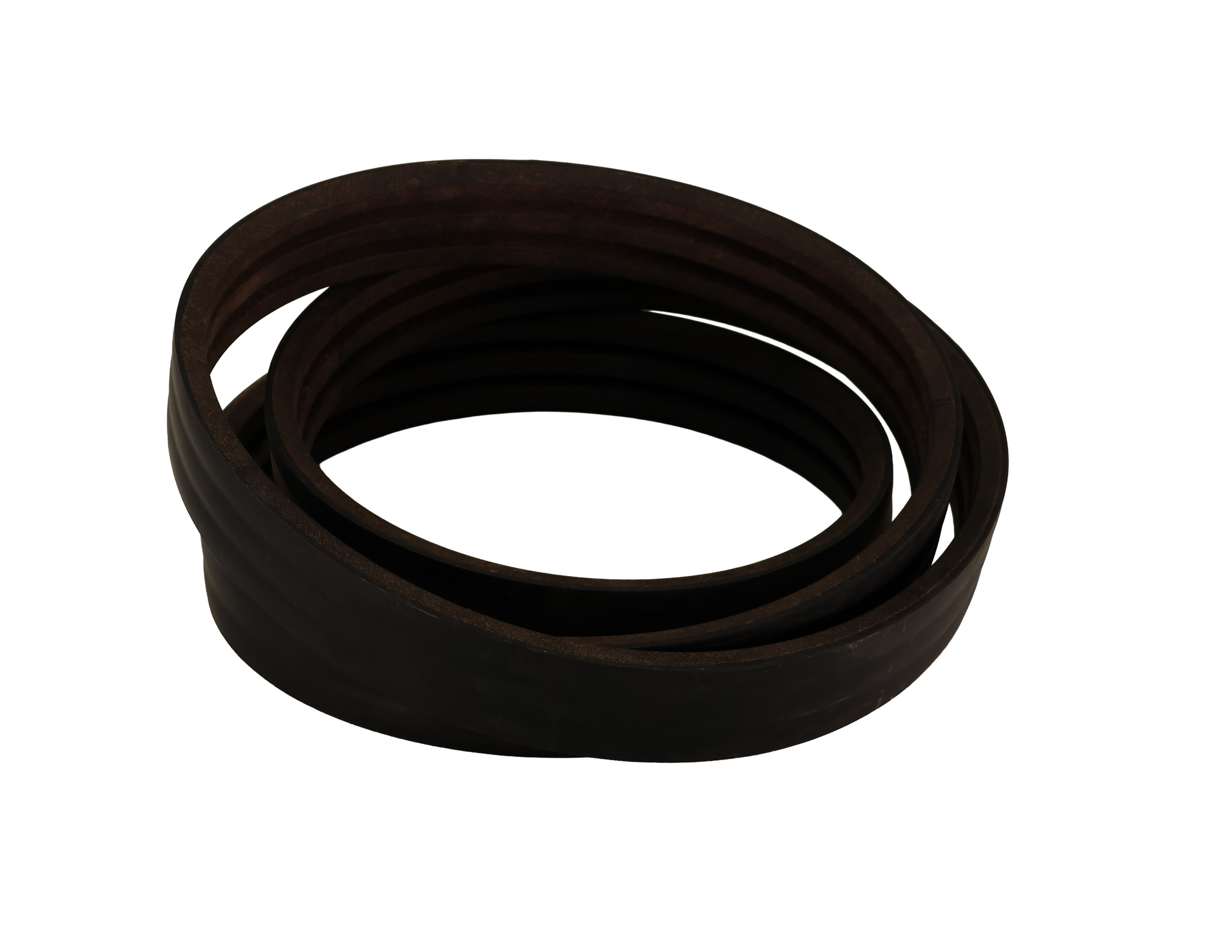

John Deere Original Equipment V-Belt - N274995

John Deere Original Equipment V-Belt - N274995

Fan Drive V-Belt, Effective Length 2798.6 mm (110.2 inch)

Part Specifications:
Belt Section (ALPHA) HB
Effective Length (IN) 110.1800
Number of Bands (UNITY) 3.0000
Width (IN) 0.6600
Thickness (IN) 0.4100
Angle (ALPHA) 32
Material Spec (ALPHA) ARAMID
Note (A) There is more information on the engineering blue print that is not shown in detail here.

Fits the following John Deere models:
Cotton Picker: 9976, 9986, 9996.

This is an O.E.M. John Deere part.
