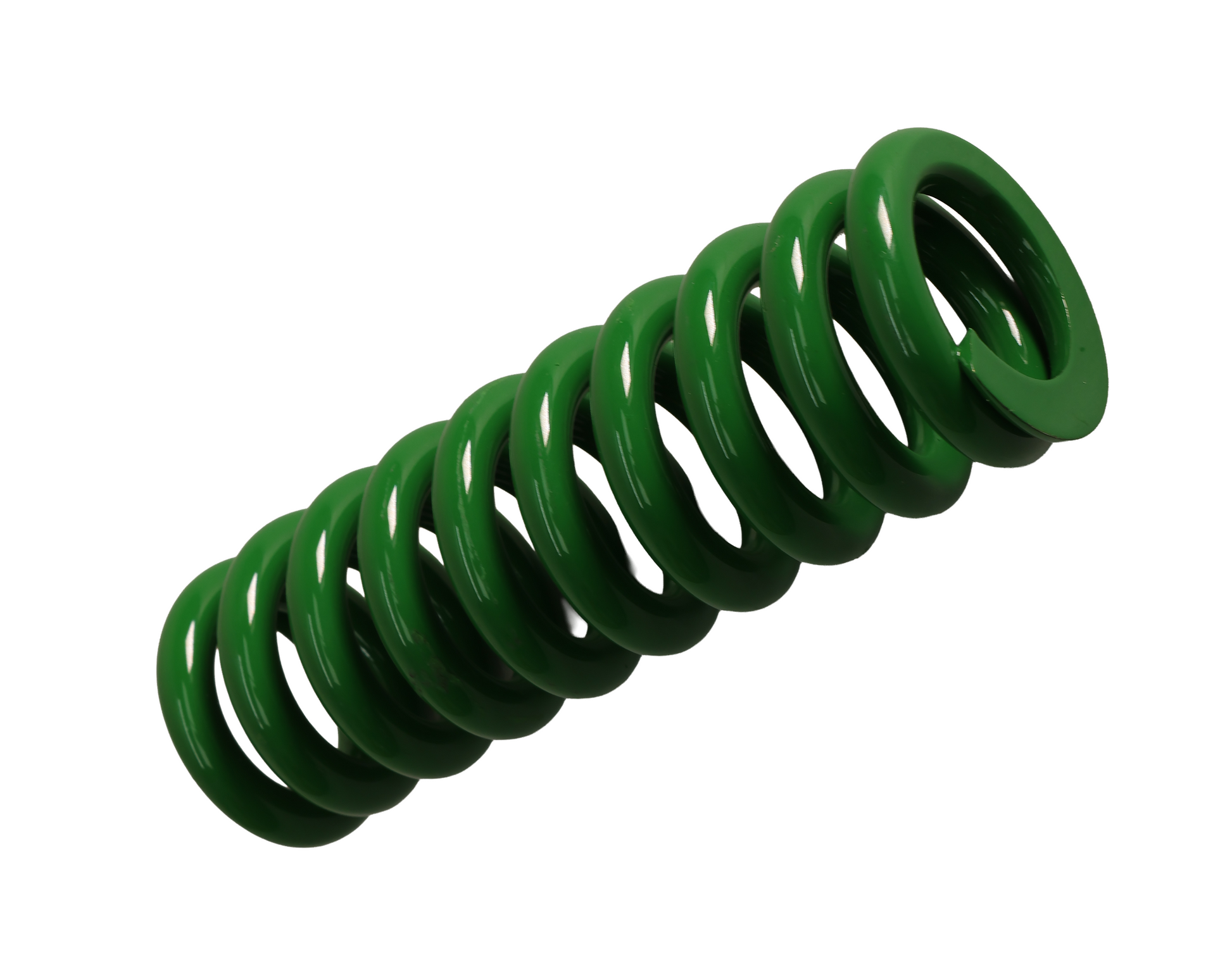

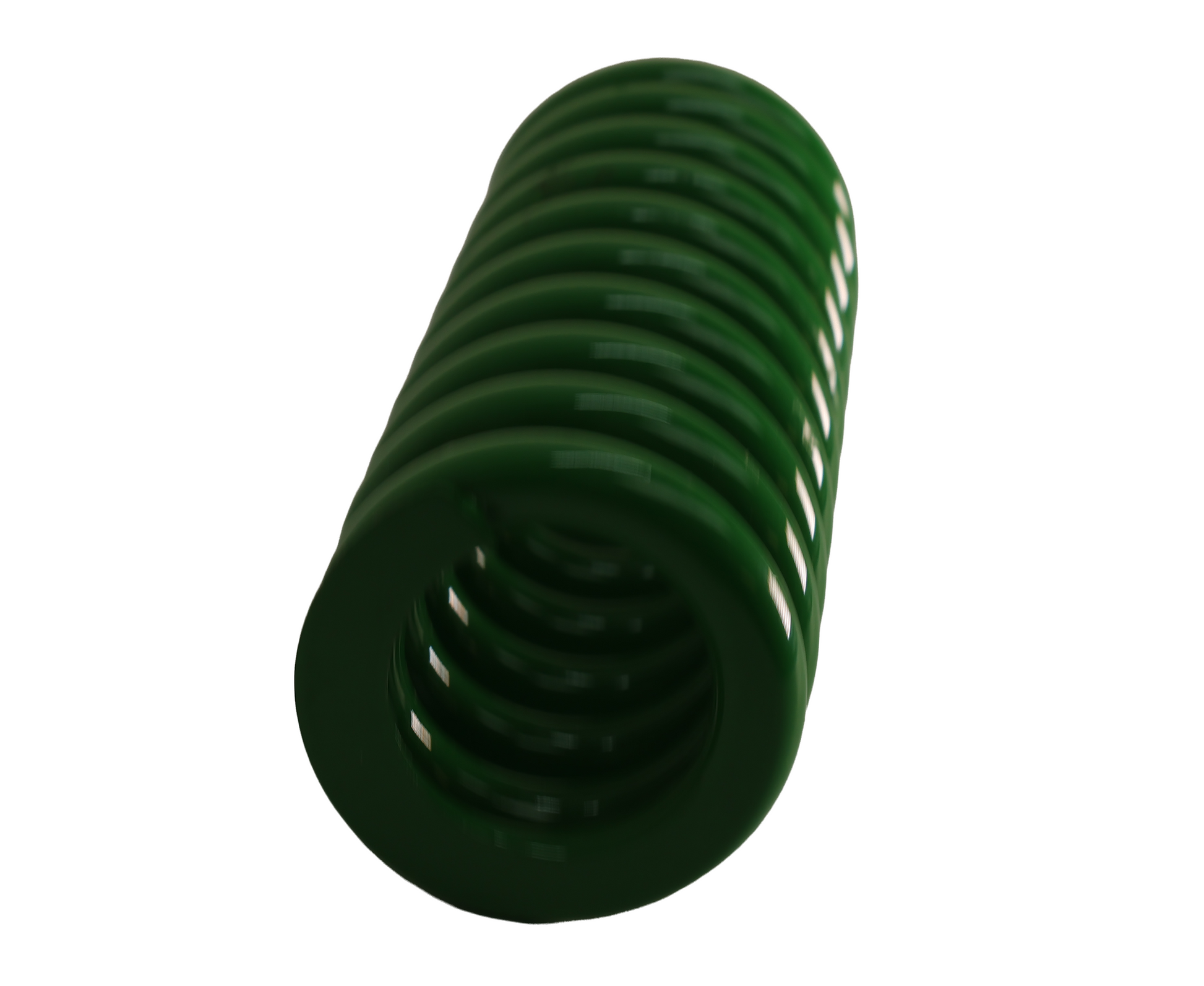

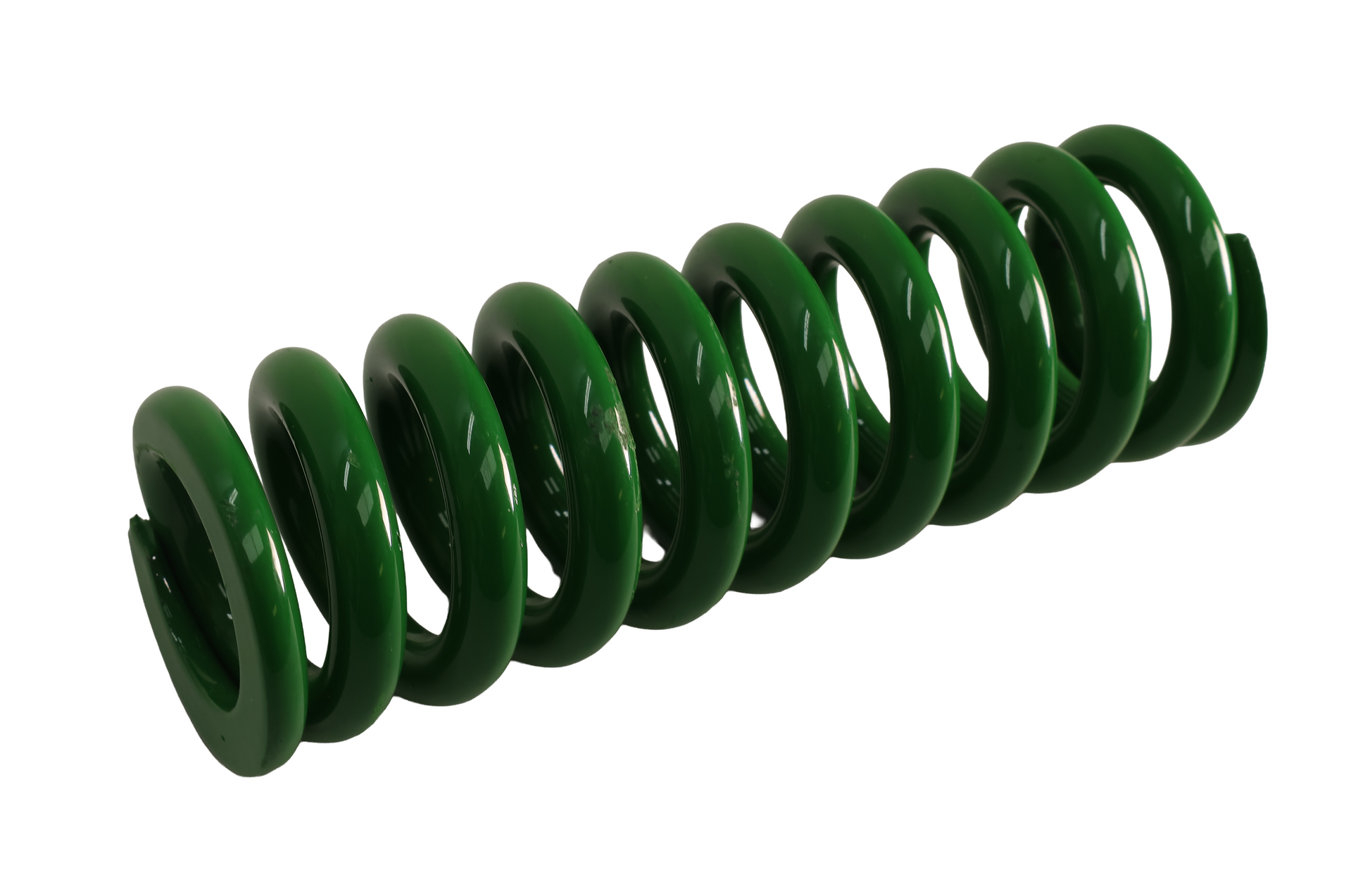

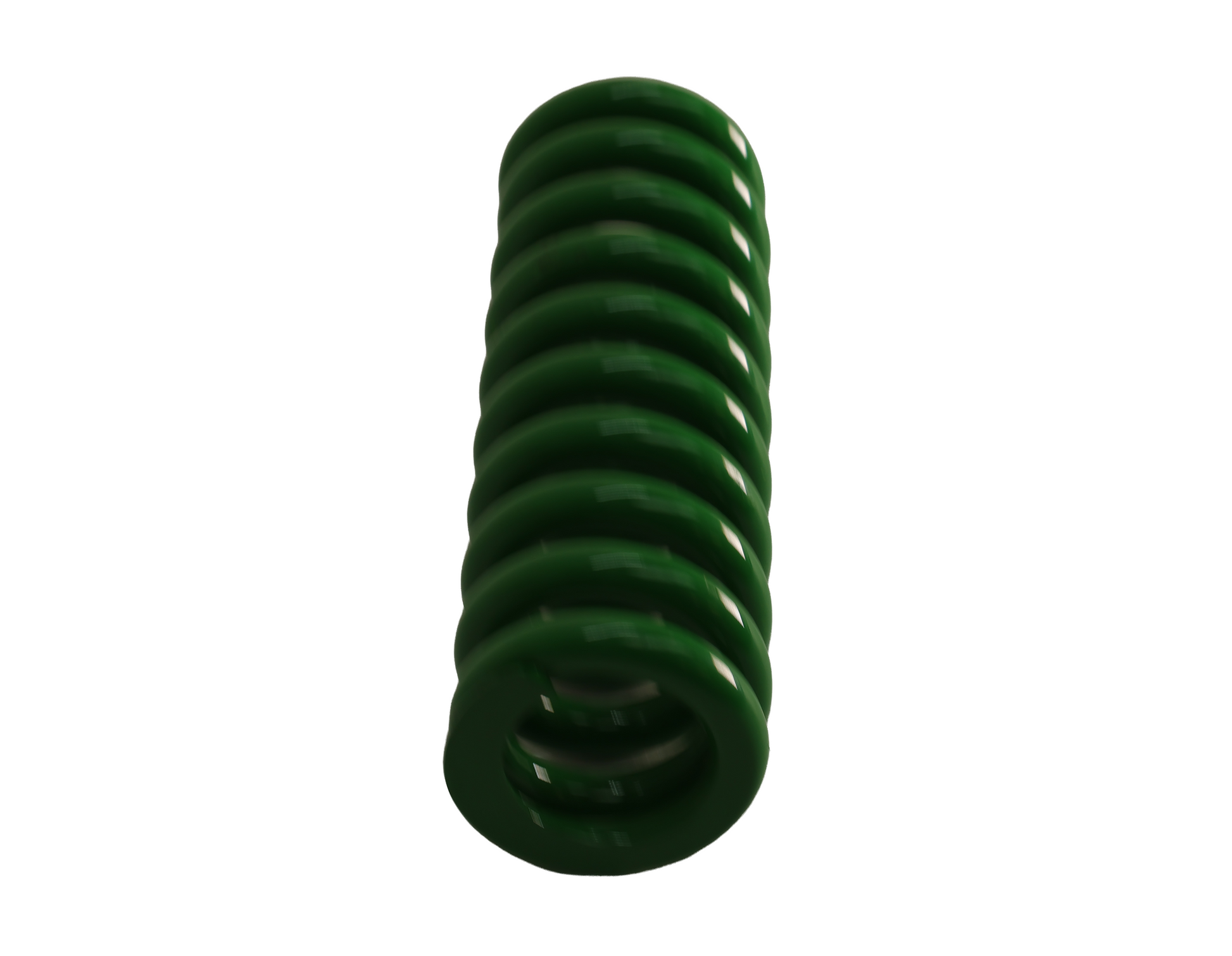

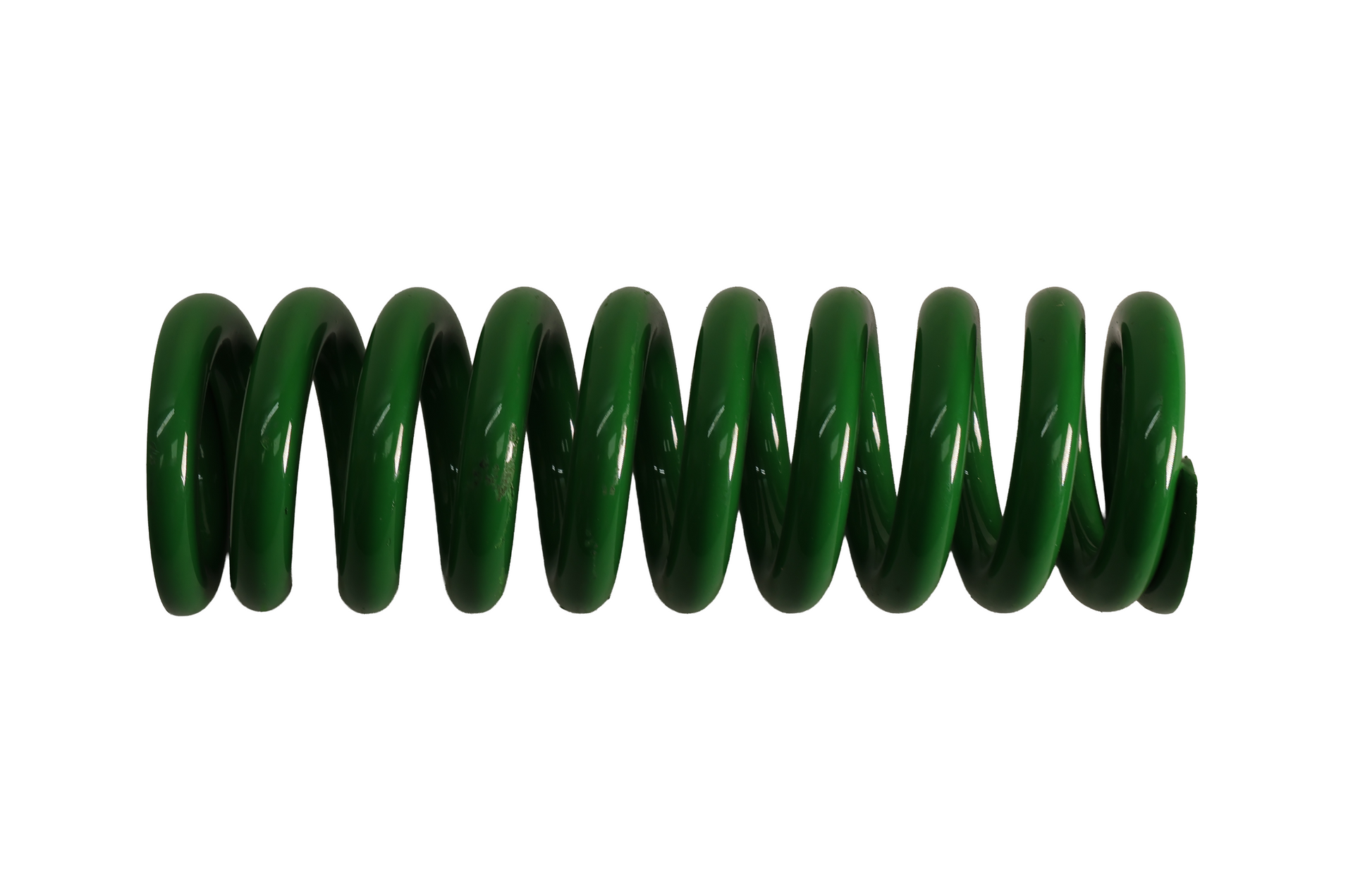

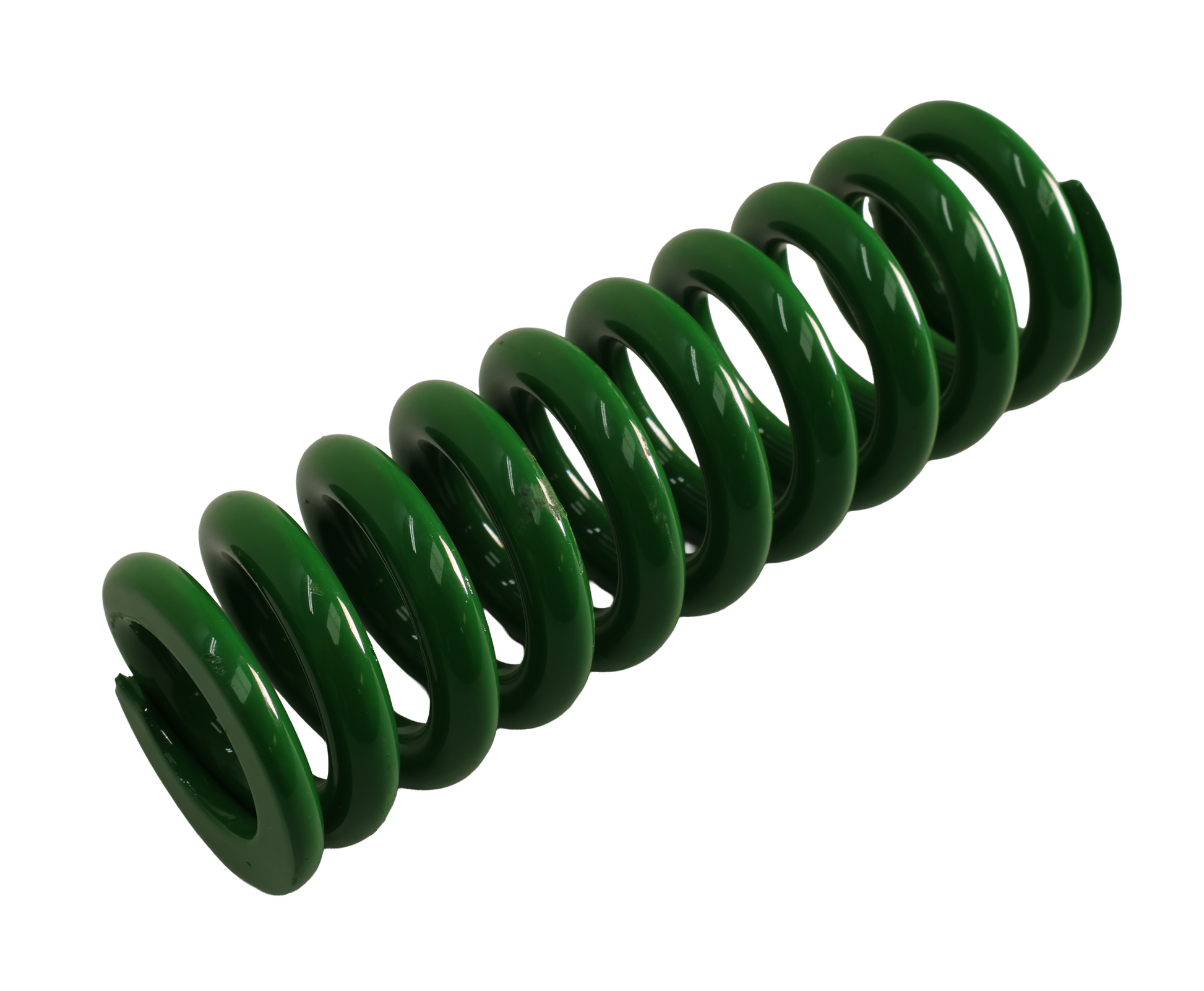

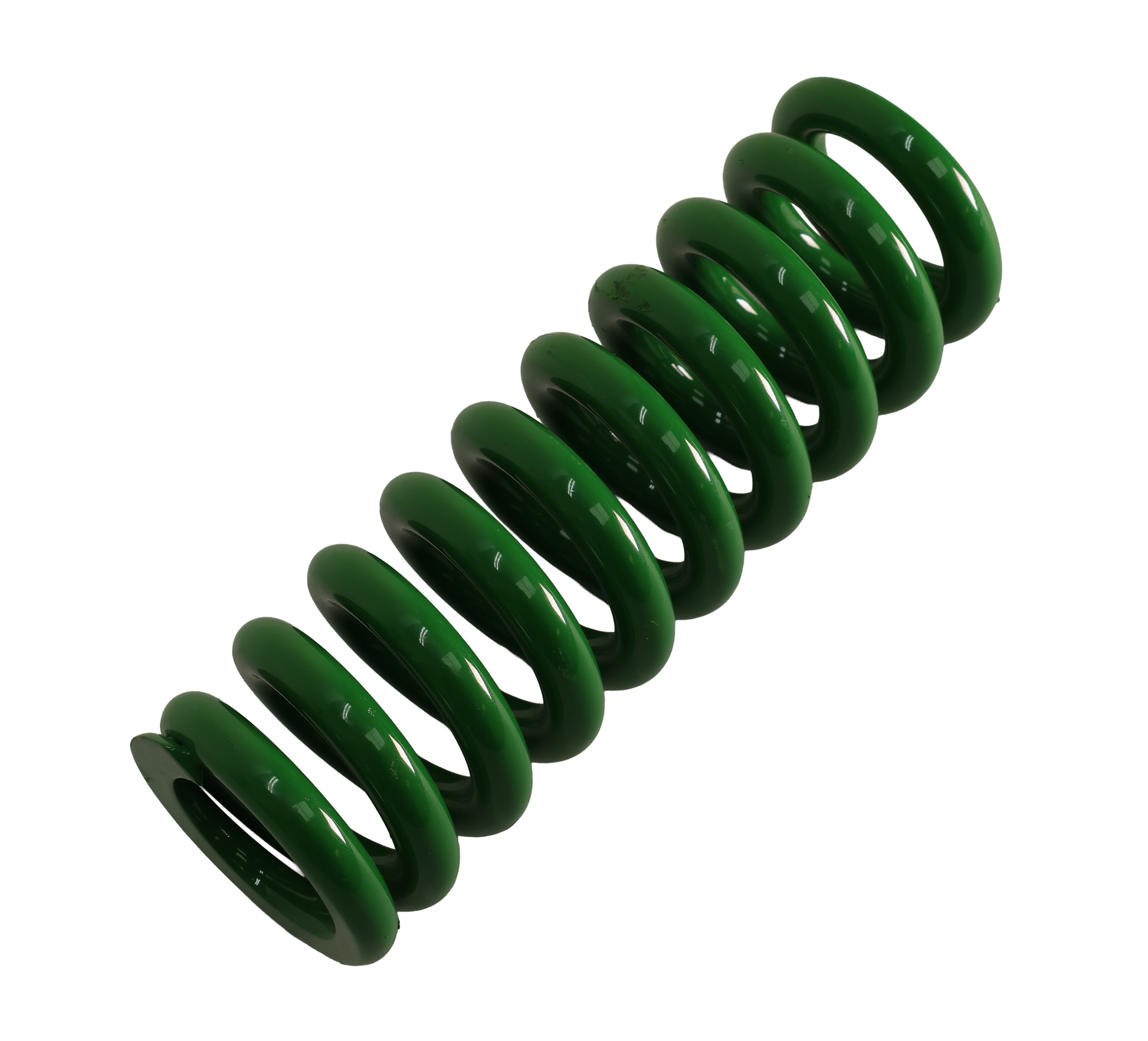

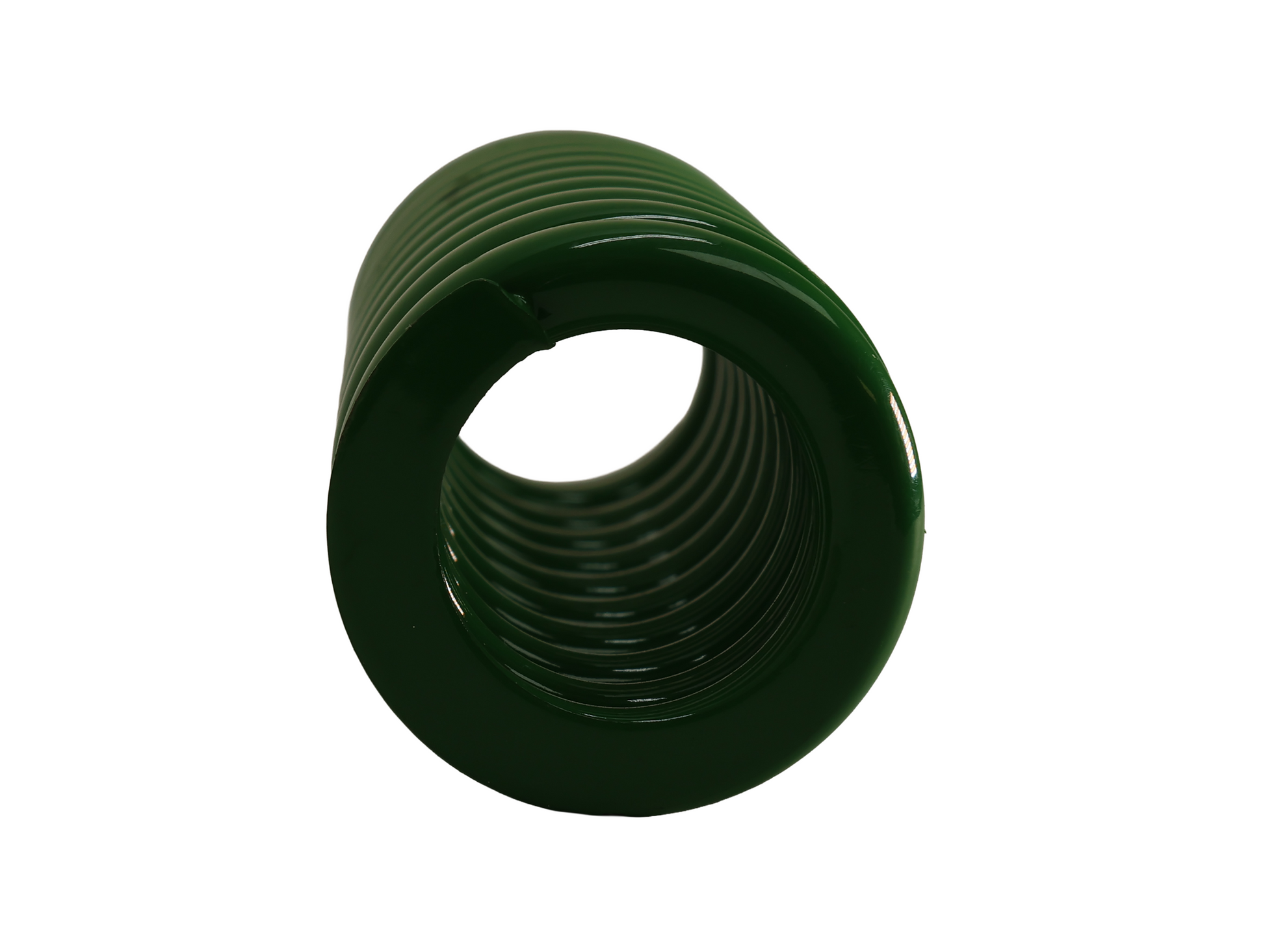

John Deere Original Equipment Trip Spring - 19023

John Deere Original Equipment Trip Spring - 19023

Part Specifications:
Wire Diameter (IN) 0.3130
Outside Diameter (IN) 1.7200
Free Length (IN) 5.3800
Spring Rate (LBF/in or N/mm)(LBF/IN) 576.5999
Solid Length (IN) 3.2760
Number of Coils (UNITY) 11.0000
Material (ALPHA) A15-2
Finish (ALPHA) K-Painted

Fits the following John Deere models:
Planter: 1770, 24-ROW, 7200, 12-WIDE, 16-NARROW, 7200.
Platform: 606SH, 608SH.
Cotton Stripper: 7460, 748.
Applicator: 800R, AB30, AB485, F4365.
Combine: S660, S670HM, S690, S7 600, S7 700, S7 800, S7 900, 9670 STS, 9770 STS, 9870 STS, S650, S660, S670, S680, S680H, S690, S690HM, S760, S770, S780, S785, S790, 1000, X9 1000, 1100, X9 1100.
Toolbar Carrier: 569.
Row-Crop Cultivator: 75, 85, 46, RG, RM.
Field Cultivator: 8.
Roller Harrow: 950.
Beet-Bean Vegetable Cultivator: A20.

This is an O.E.M. John Deere part.
