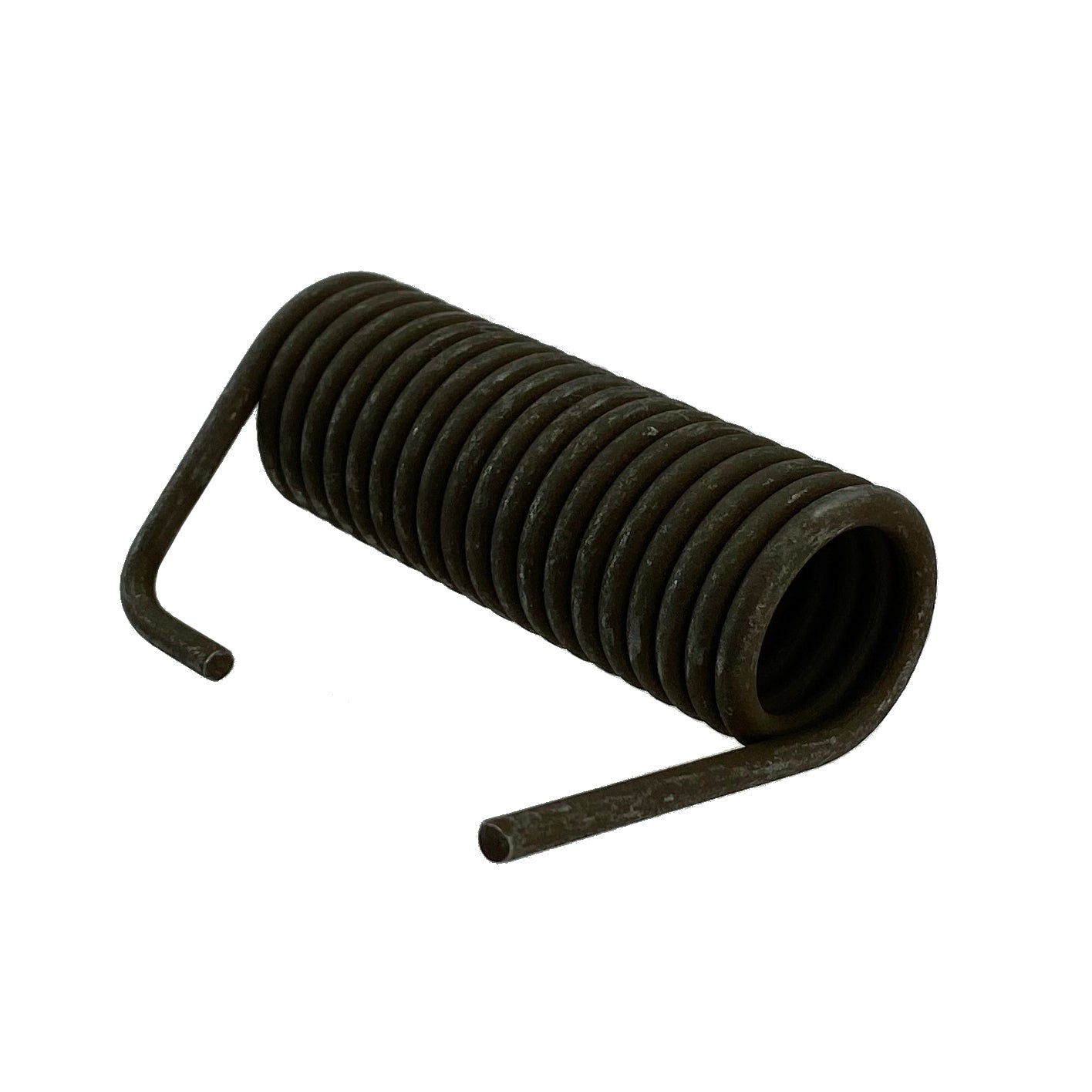

John Deere Original Equipment Torsion Spring - M112246

Regular price $ 14.60 USD
Regular price Sale price $ 14.60 USD
Sale Sold out
Shipping calculated at checkout.

John Deere Original Equipment Torsion Spring - M112246

Chute Guard Spring

Specifications: End Type 01/03, Inside Diameter 0.802IN, Wire Size 3.76000, Working Range 110.000UNITY, Maximum Load (LBF/in or N/mm) 0.00IN-LBF, Height 1.772IN, Number of Coils (Dir. Coil) 19/LH, Material A15-2, Finish B.

Fits the following John Deere models: 180, 320, 240, 265, 245, 260, 285, 48, FC420V, FC400V, FC401V, FC540V, FC420V, 54, F710 (S.N. 010001-030000), F725 (S.N. 010001-030000), FD590V (S.N. 010001-030000), CV15T, G15, GS30, GS75, GS25, GS45, GT242, GT262, GT275, 45, HD75, 75, HD45, LX173, LX172, LX188, LX186, LX178, LX176. This is an O.E.M. John Deere part. Thanks for looking!
