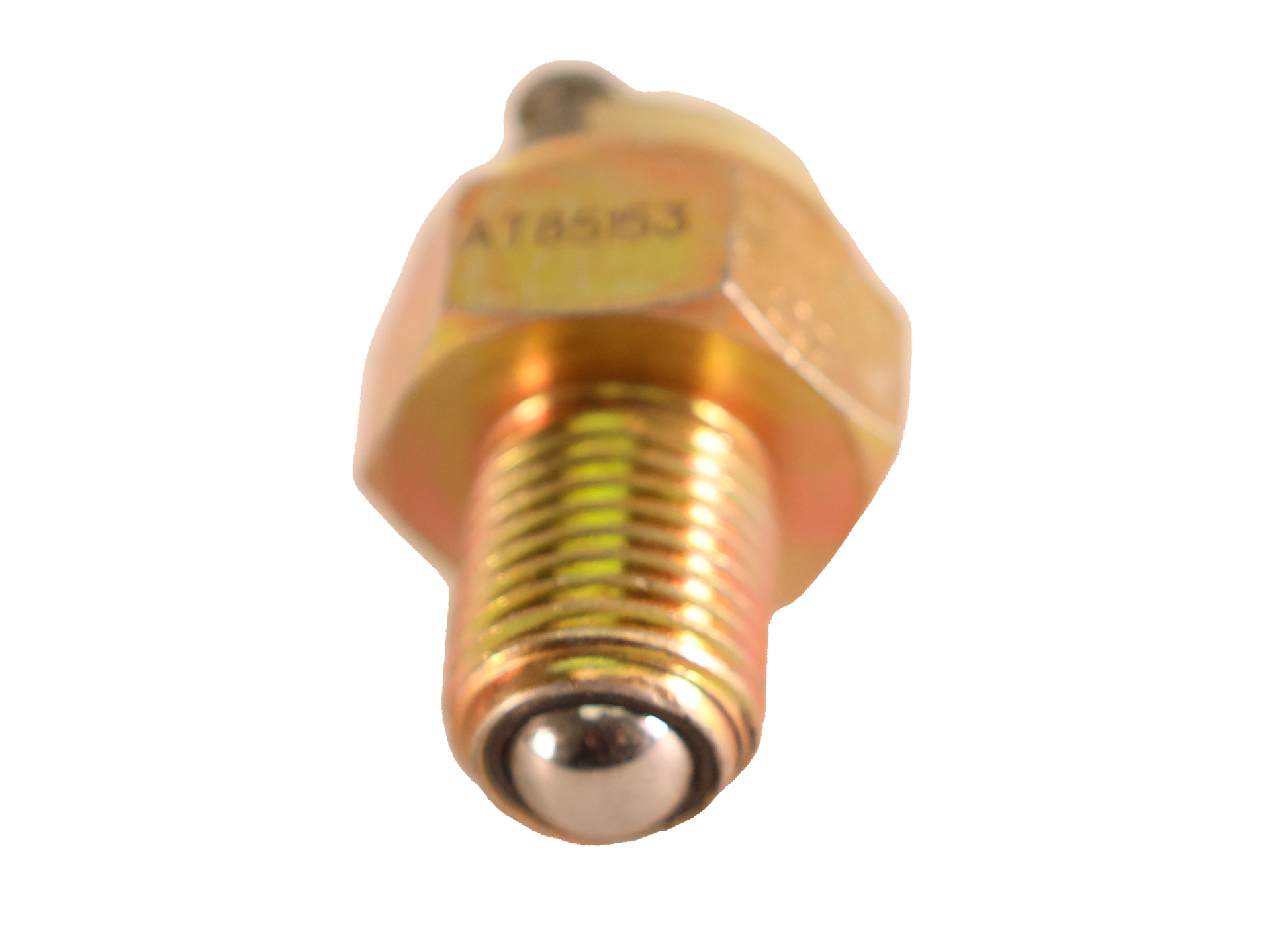

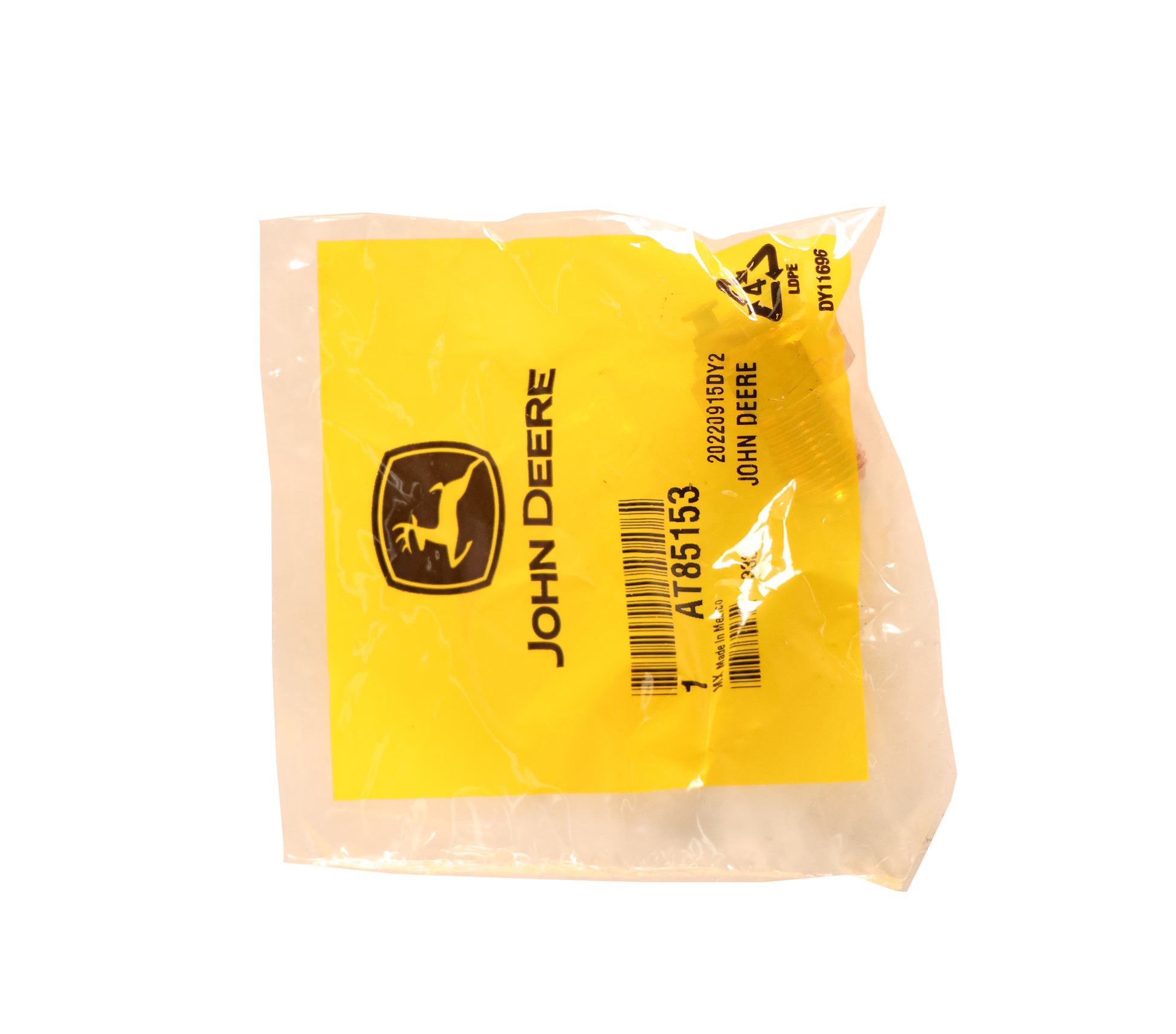

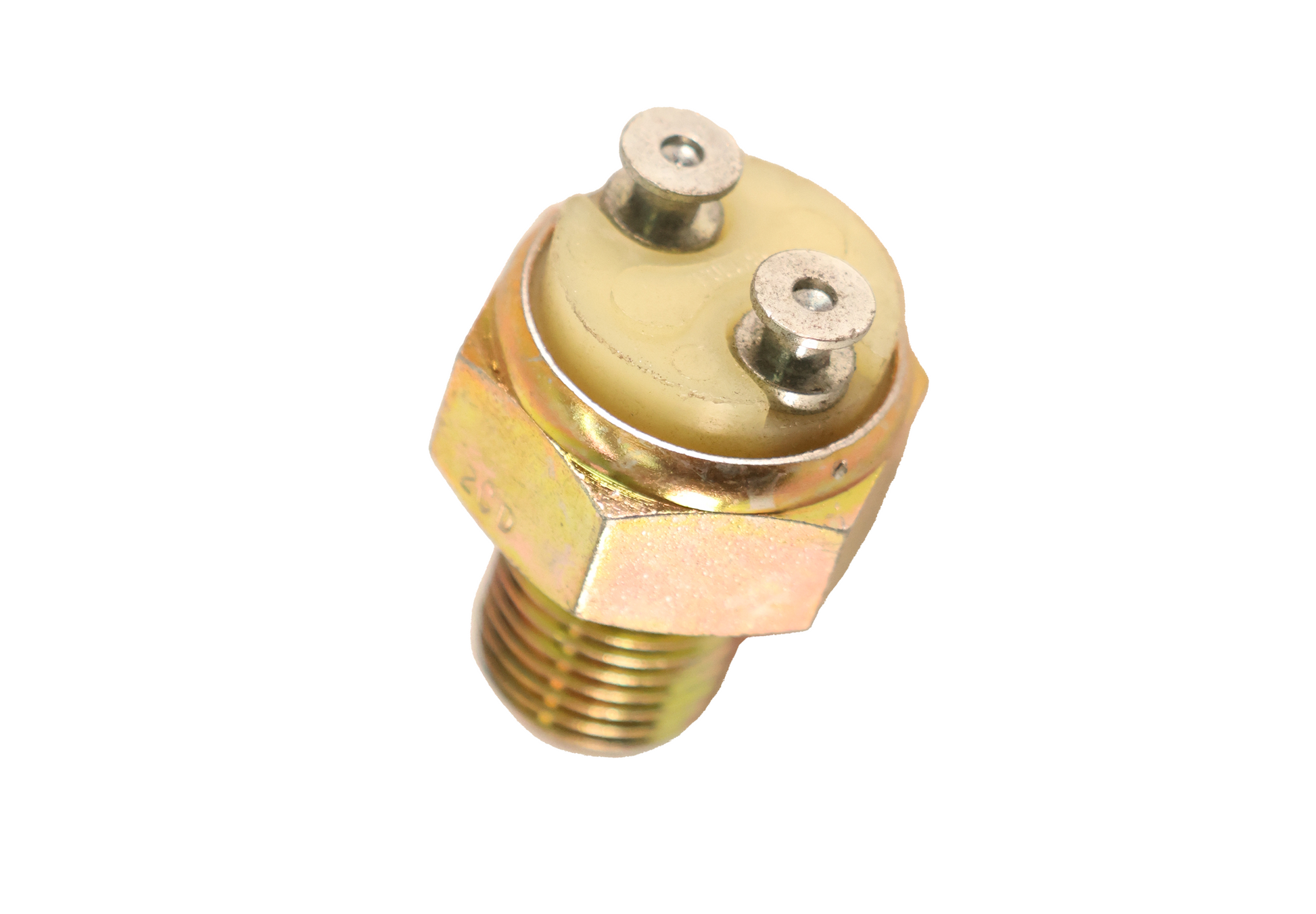

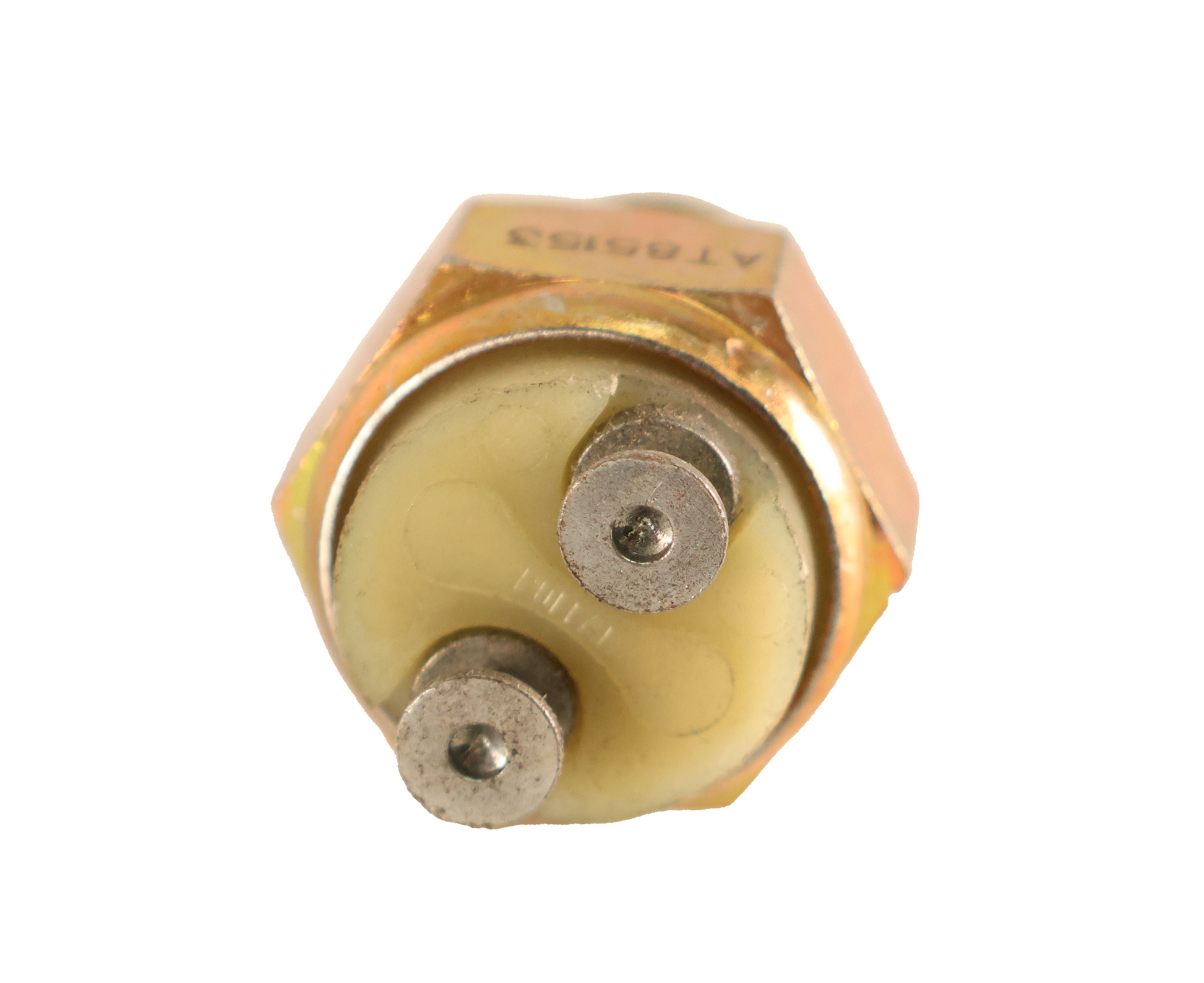

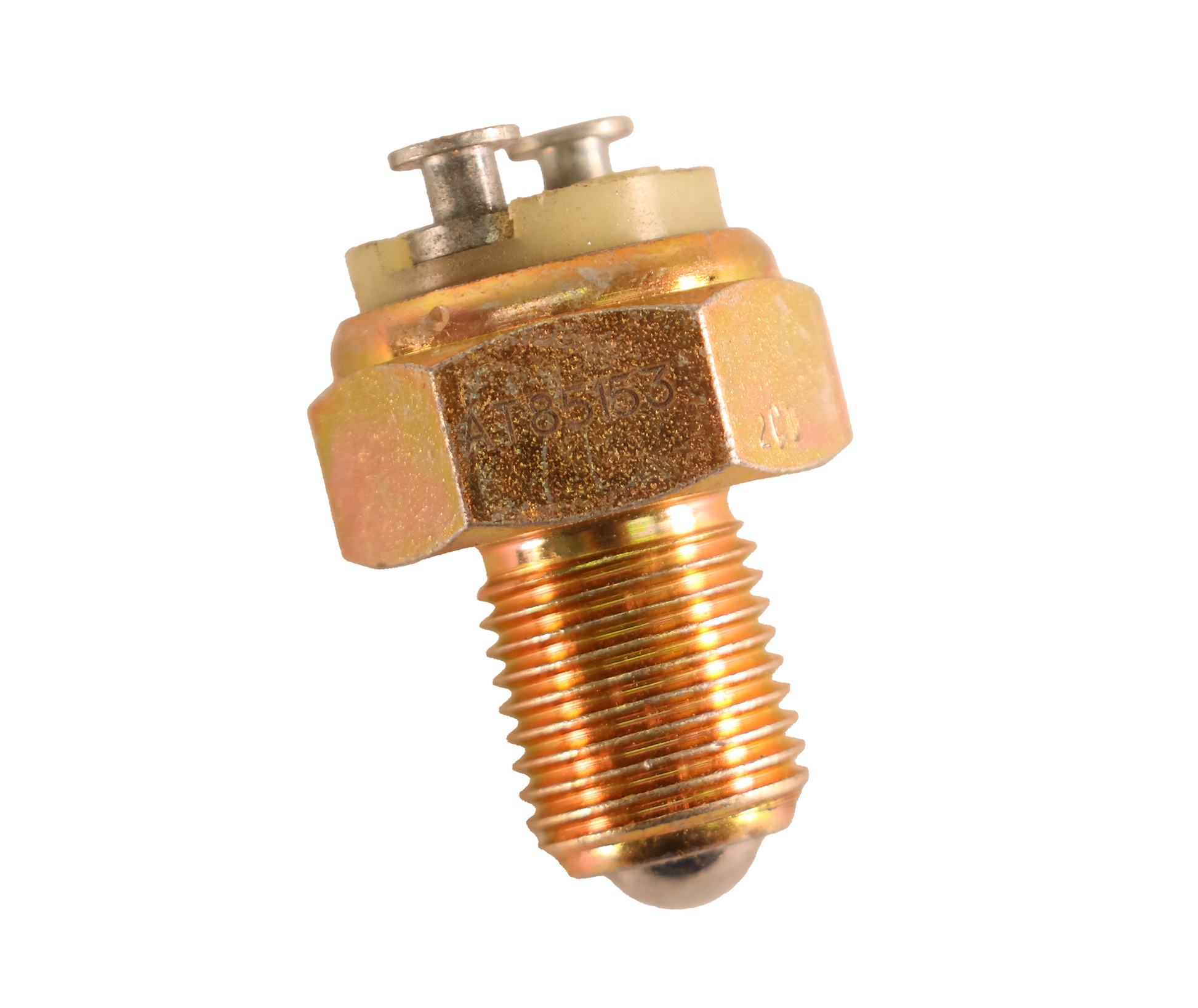

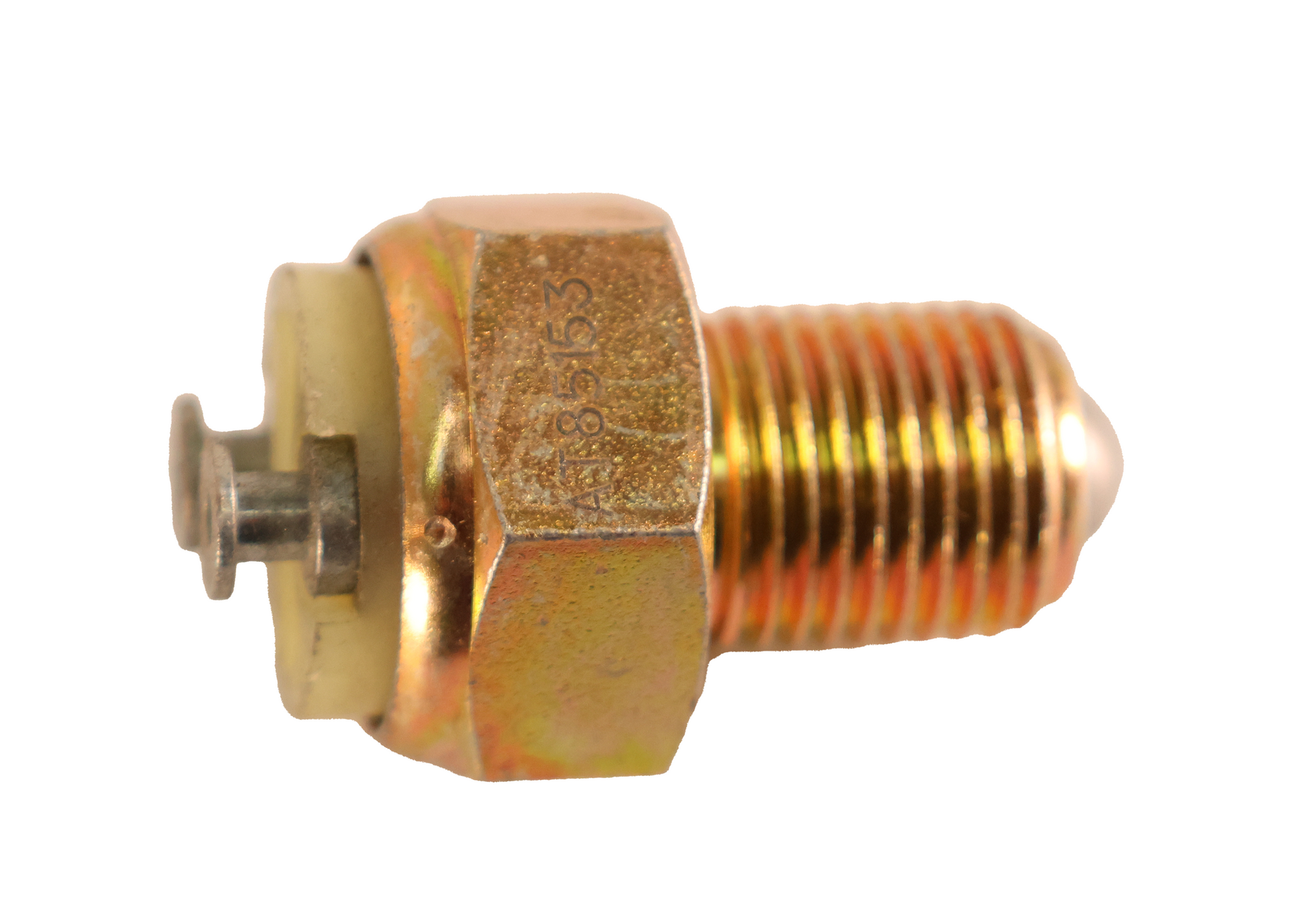

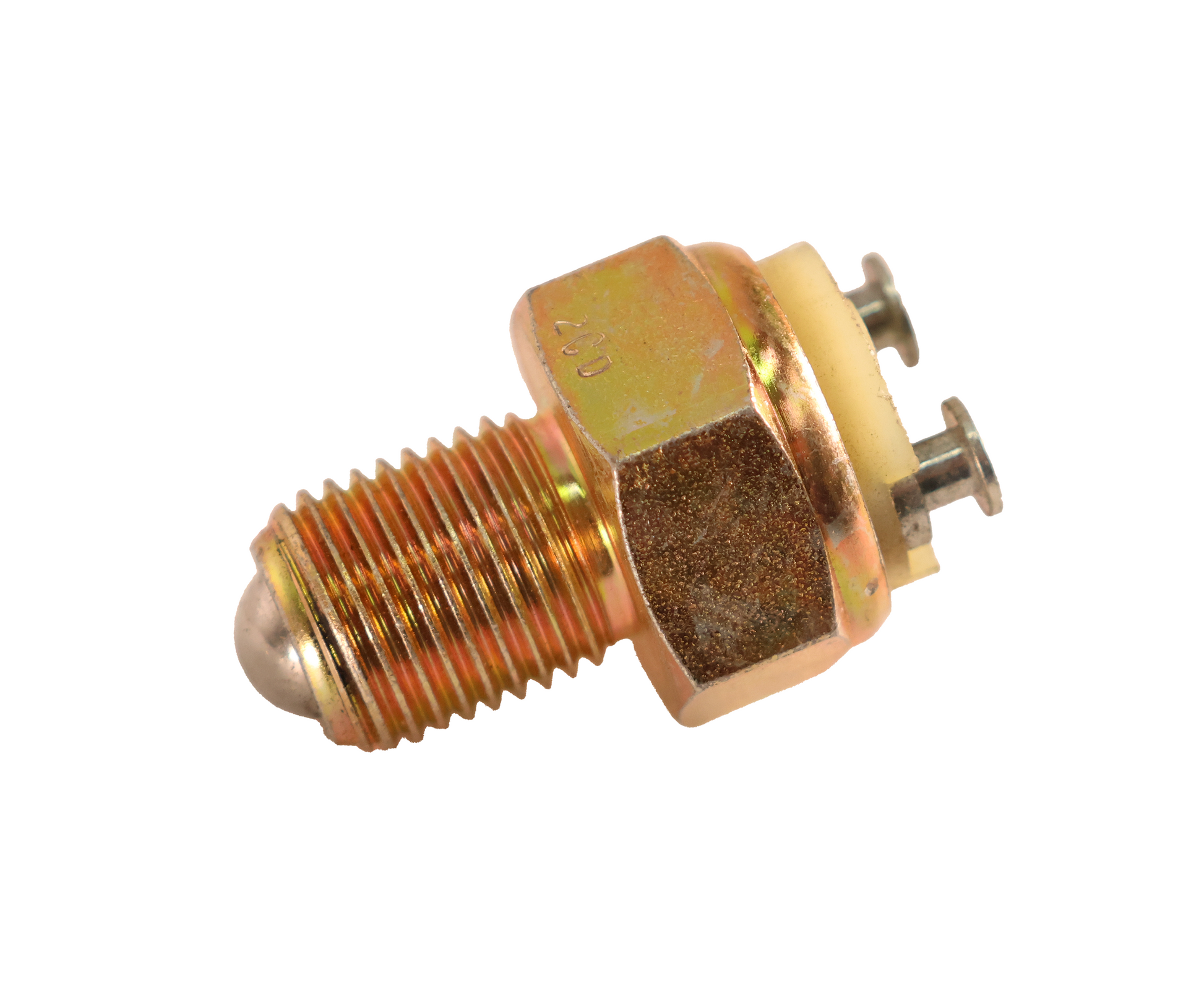

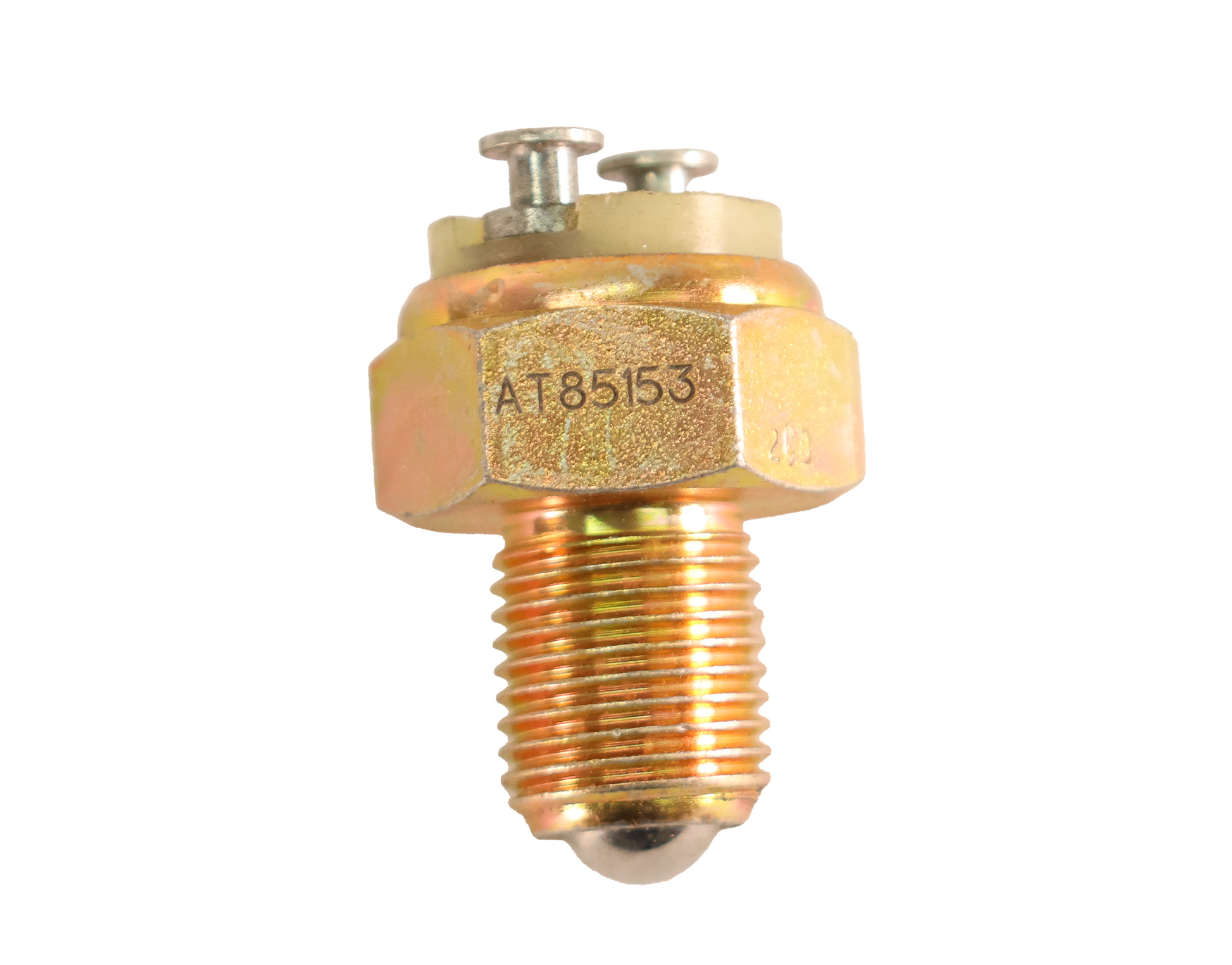

John Deere Original Equipment Switch - AT85153

John Deere Original Equipment Switch - AT85153

Part Specifications:
Switch Function (ALPHA) SPST_NO
Thread Size (ALPHA) 14.2748
Thread Type (ALPHA): UNF
Length (MM): 19.2400
Length (MM): 41.2400
Actuating Force (N): 20.0000
Voltage (UNITY): 32.0000
Amperage (UNITY) 4.0000
Terminal Type (ALPHA): INTEGRAL
Length (MM): 41.2400

Fits the following John Deere models:
Tractor: 2150, 2255, 2155, 2355N, 2350, 2550, 2355, 2555, 2750, 2950, 1030, 1130, 1630,1640, 2040S, 2040, 1641F, 1641, 1830, 2030, 2130, 2140, 2755, 301A, 3030, 3130, 3040, 3140, 401B, 401D, 4040S, 4240S, 4350.
Loader Backhoe: 300B, 302A, 310A, 310B, 401C, 410, 500C, 510, 610B, 710B, 710C.
Two-Wheel Drive: 300B, 301A, 302, 302A, 401B.
Windrower: 2280.
Log Skidder: 440C, 540B, 640, 740.
Four-Wheel Drive Loader: 444D, 544B, 544C, 544D, 644B, 644C, 644D.
Compactor:  646C.
Motor Grader: 570, 670, 670A, 672A, 770, 770AH, 770A, 772AH, 772.
Forklift: 480C, 380, 480A, 480B.
Tree Harvester: 743, 743A.

This is an O.E.M. John Deere part.
