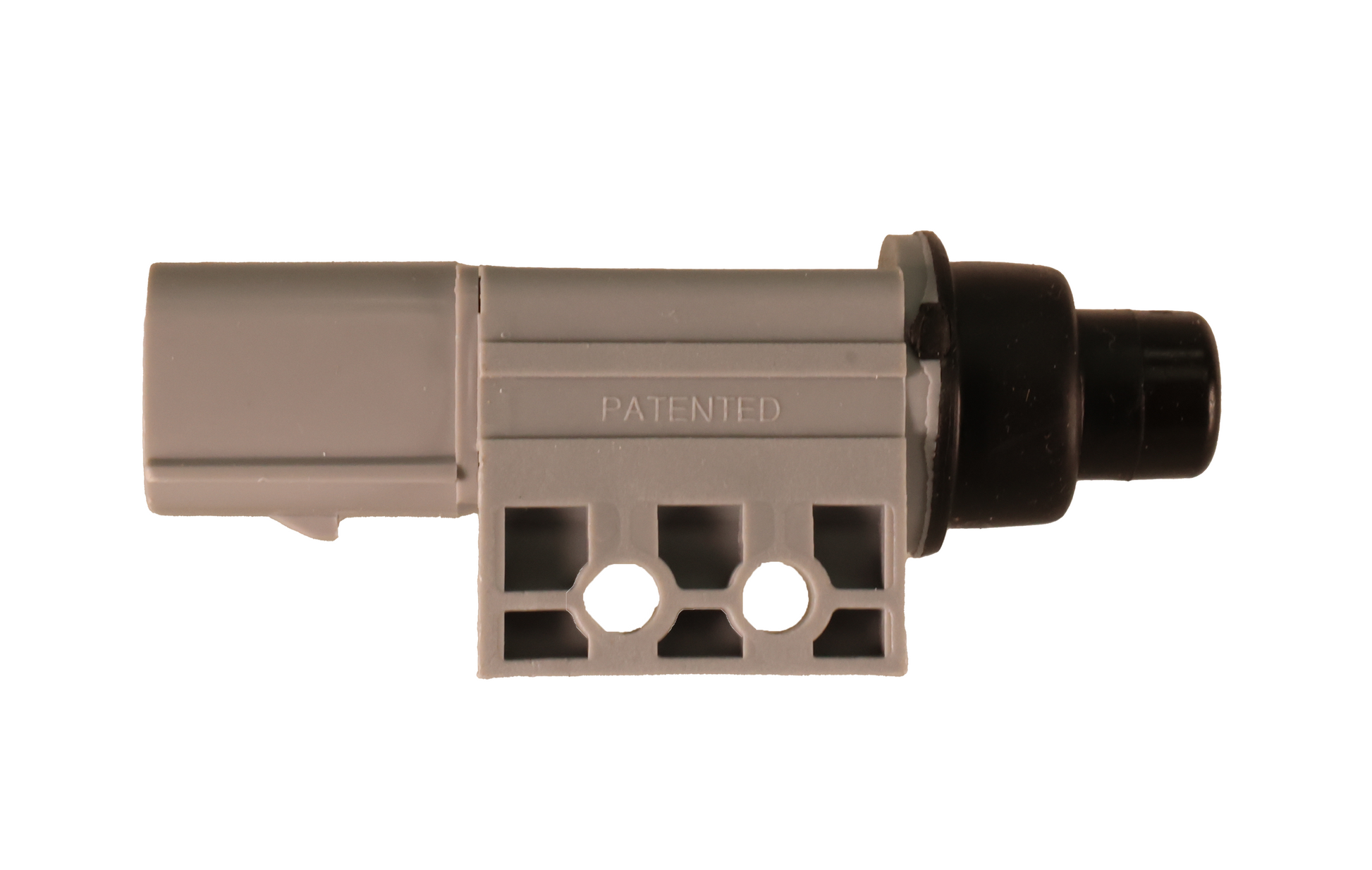

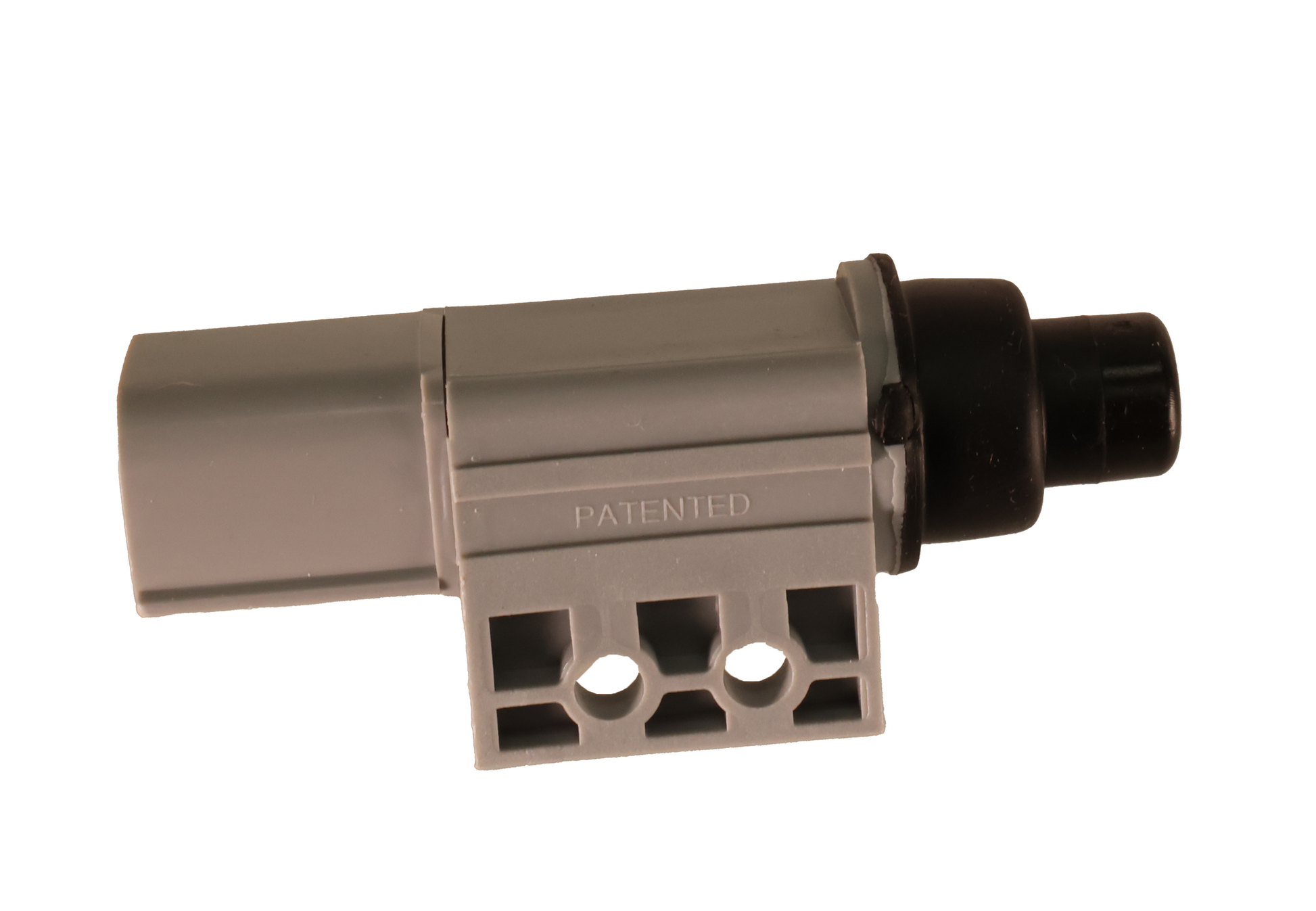

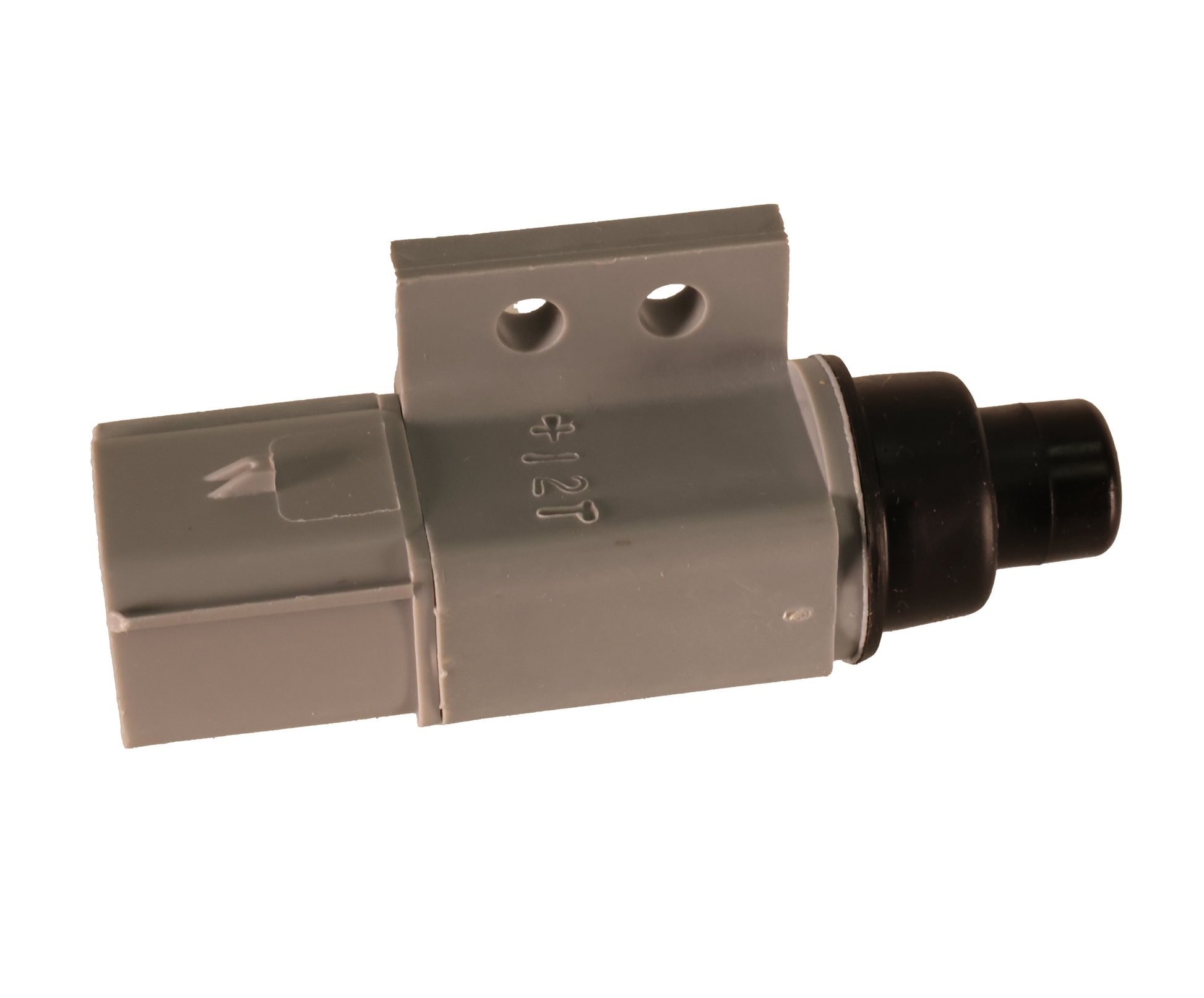

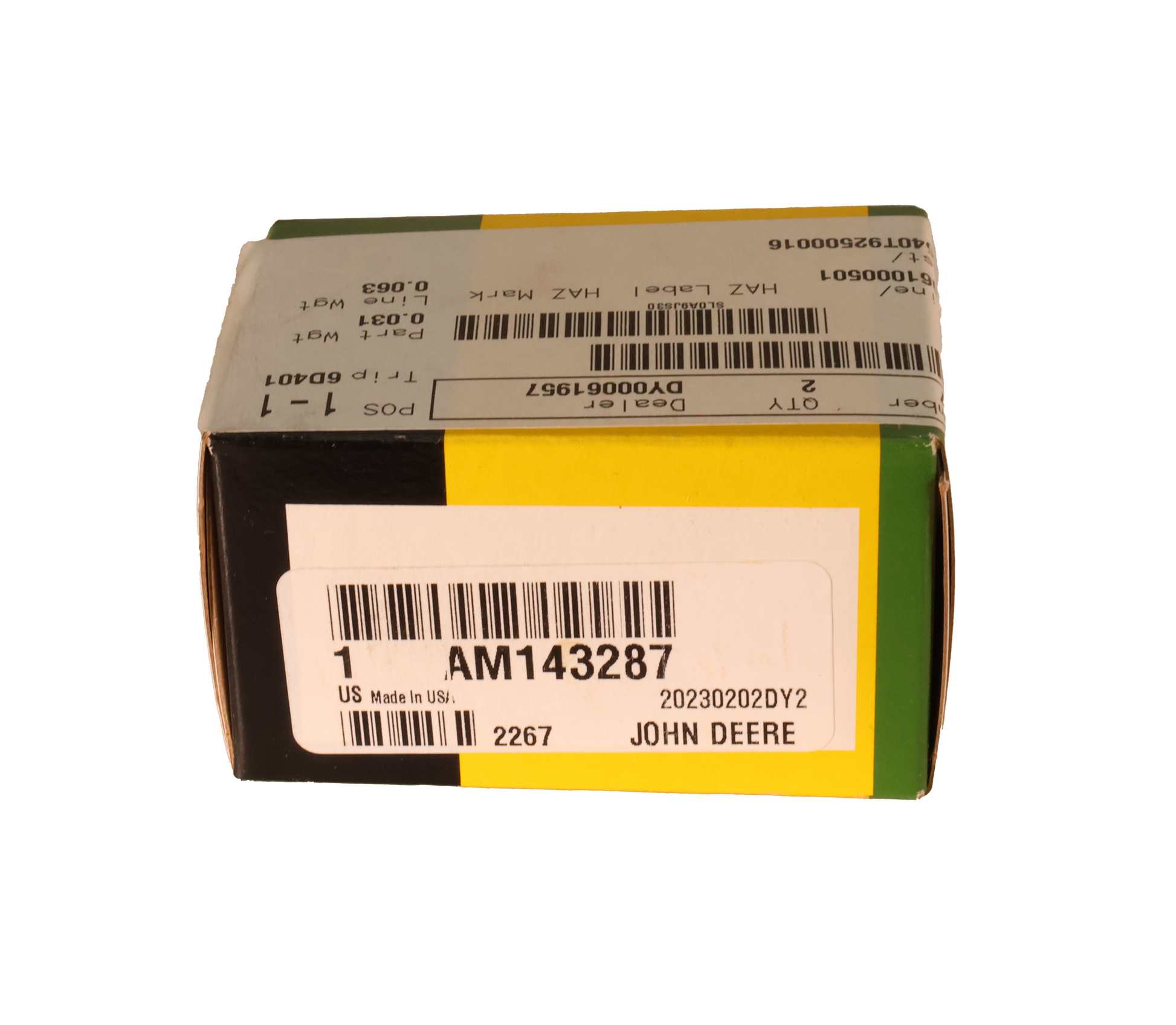

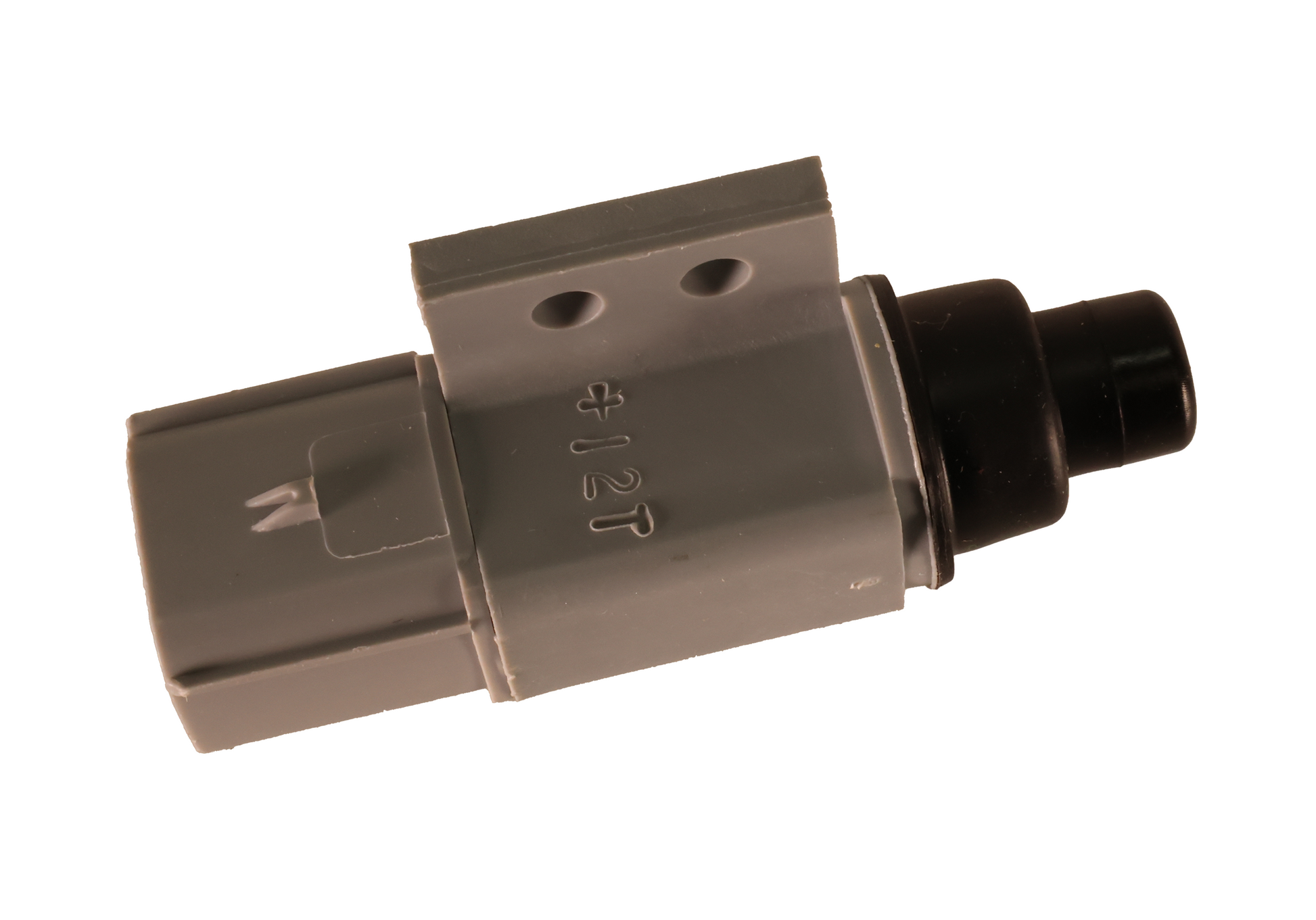

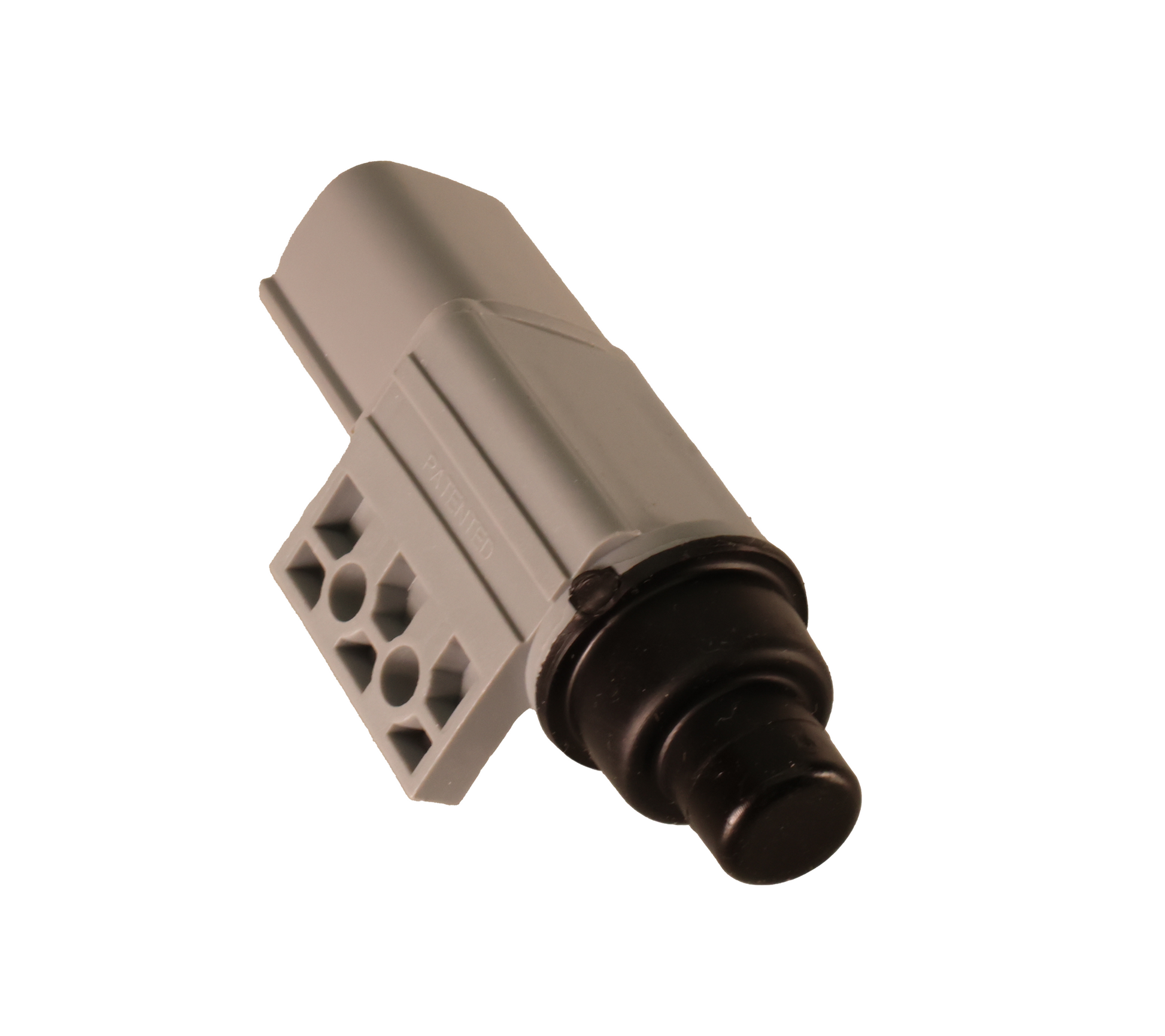

John Deere Original Equipment Switch - AM143287
John Deere Original Equipment Switch - AM143287
Part Specifications: Button Style (ALPHA) A, Mounting Style (ALPHA) B, Thread Size/Size (MM) 4.9530, Thread Type (ALPHA) NONE, Switch Function (ALPHA) NO_NC, Length (MM) 77.4700, Voltage (UNITY) 14.7000, Amperage-Inductive (MM) 0.7000, Terminal Type_(ALPHA) INTERGRAL, Graphics Y/N(ALPHA) N, Sealed (ALPHA) N, Momentary Y/ND (ALPHA) ND, Note (A) There is more information on the engineering blue print that is not shown in detail here.
Fits the following John Deere models:
Tractor: 1023E, 1025R, 2025R, 5100E, 1025R, 260, 2026R.
Mower: X710, X730, X734, X738, X739, X750, X754, X758, X940, X948, X949, X950R.
This is an O.E.M. John Deere part.
