John Deere Original Equipment Spring - UC18422
John Deere Original Equipment Spring - UC18422

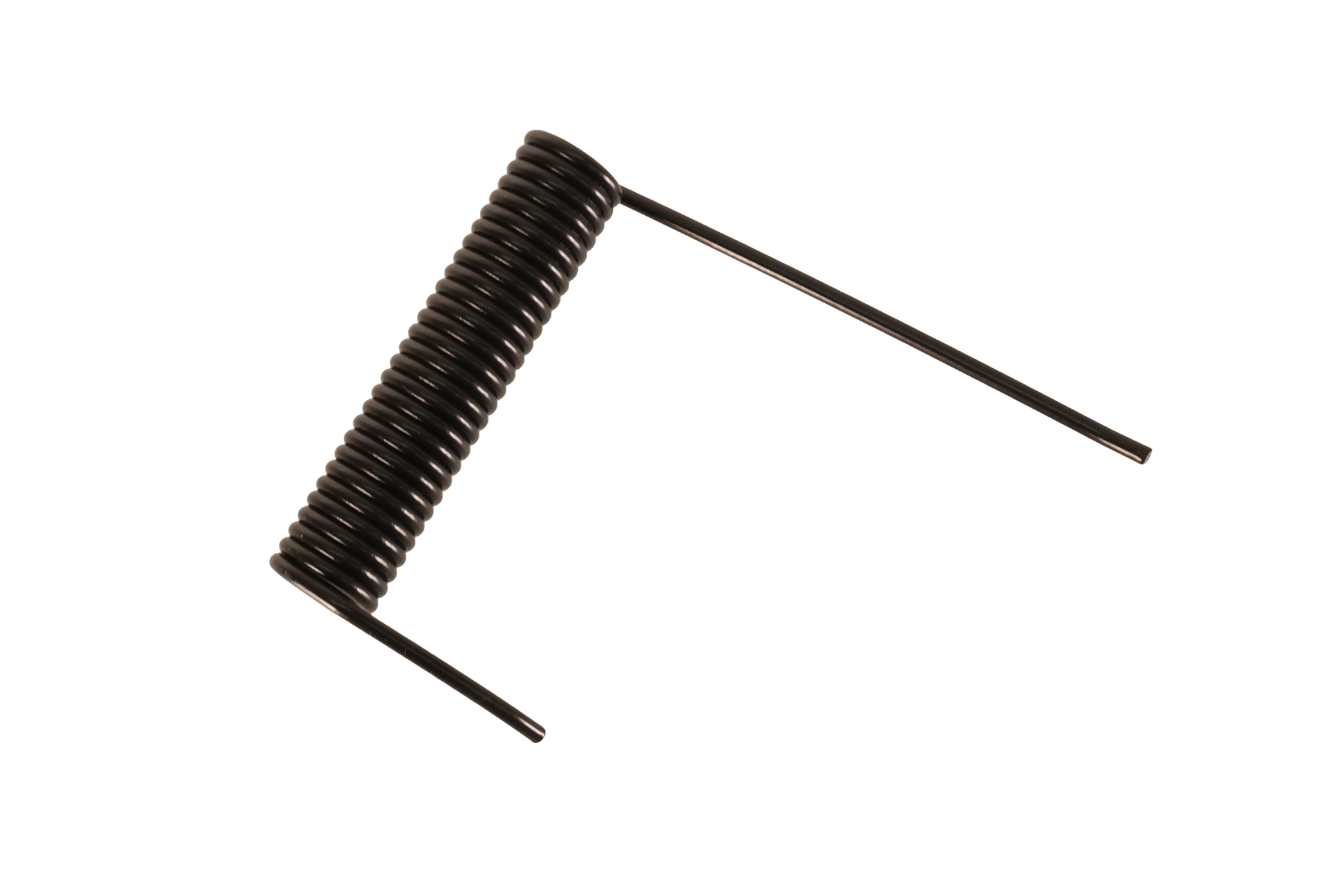

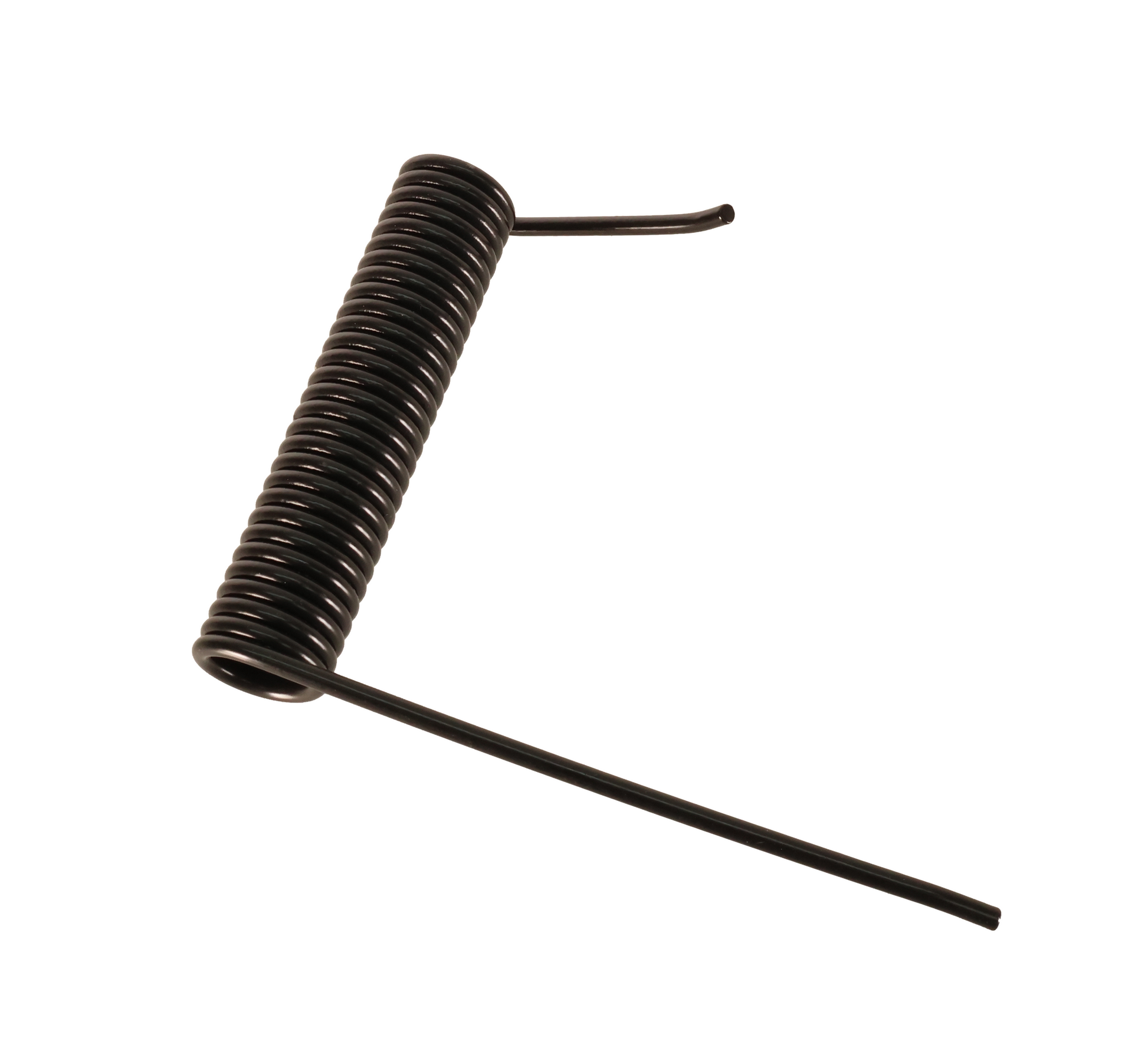

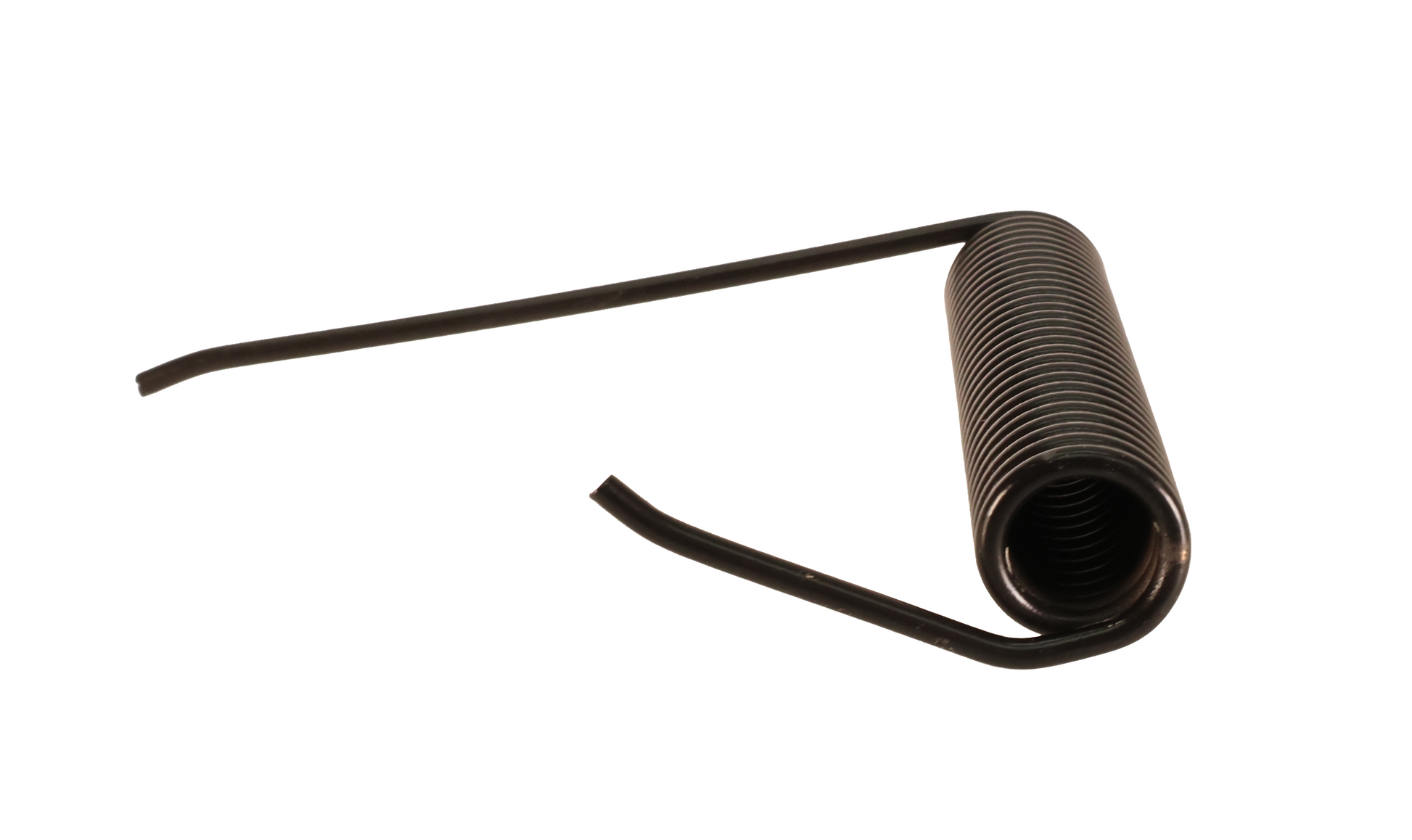

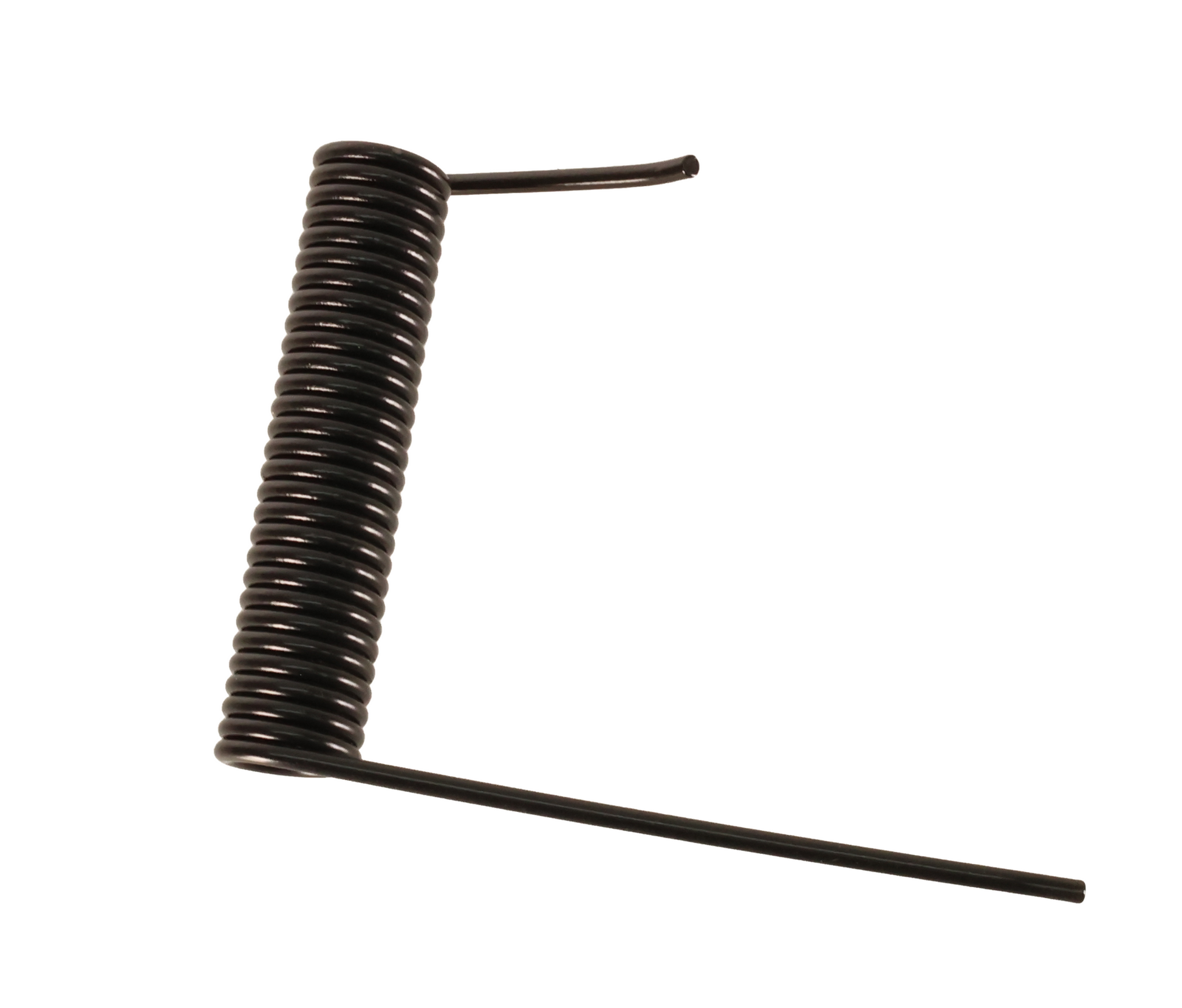

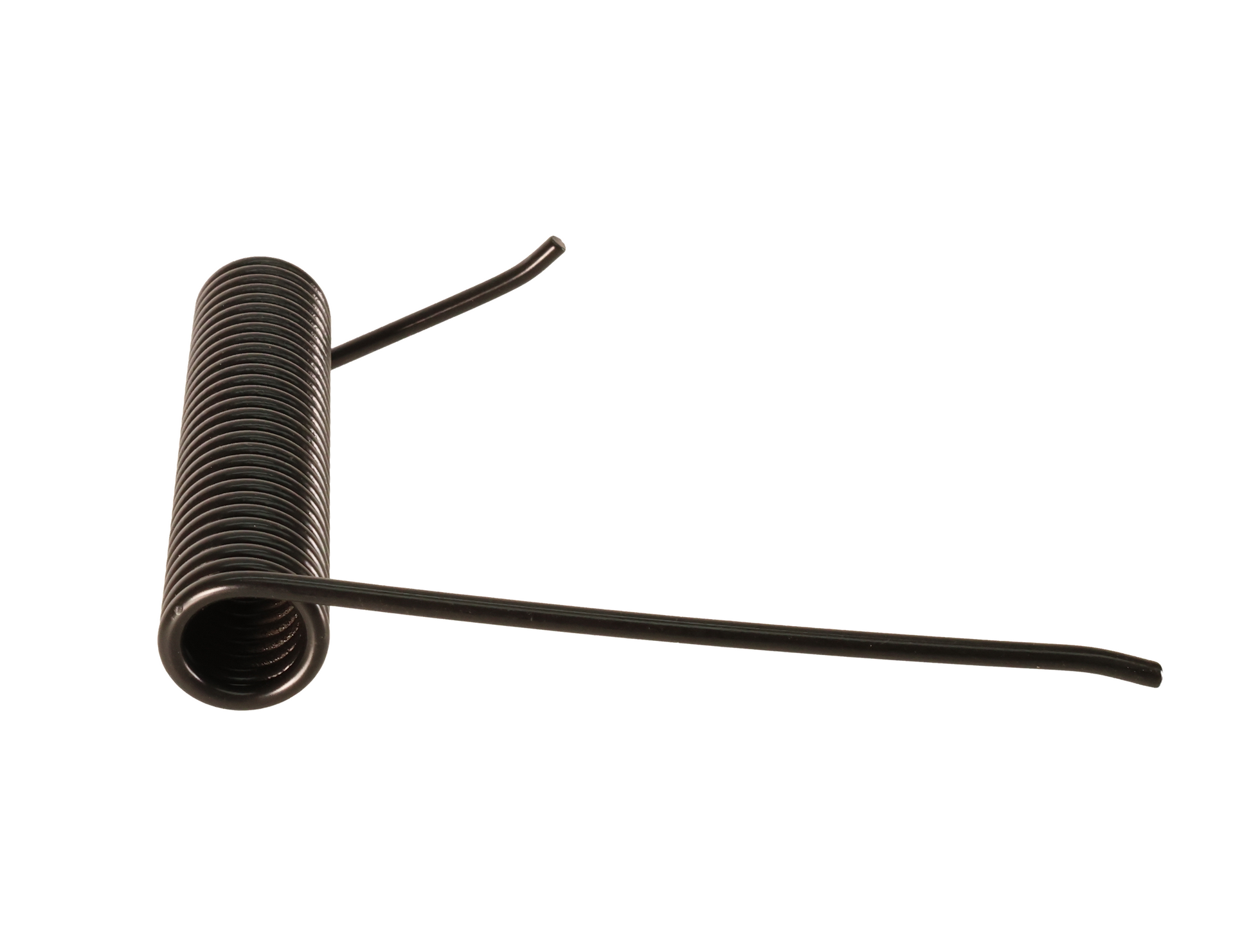

Torsion Spring
Part Specifications: End Type (ALPHA) 32/39, Inside Diameter (MM) 12.0000, Wire Size (ALPHA) 2.6700, Working Range (UNITY) 0.0000, Maximum Load (LBF/in or N/mm)(N-M) 0.0000, Height (MM) 90.5000, Number of Coils (Dir. Coil)(ALPHA) 28.53L, Material (ALPHA) A15-7, Finish (ALPHA) K-Painted.
Fits the following John Deere models:
Tractor: 1023E, 1025R.
Mower: Q810E, Q820E, Q820M, Q850M, Q850R, Q865R, Z355R, Z370R, Z375R, Z720A, 1550, 1570, 1575, 1580, 1585, 636M, 647A, 648M, 648R, 652E, 652M, 652R, 657A, 661R, 667A, 727A, 737, 757, 997, X744, X748, X724, X728, X465, X575, X700, X720, X595, X495, X485, X585, X740, X475, X749, X729, S240, W36M, W36R, W48M, W48R, W52R, W61R, X300, X304, X310, X320, X324, X330, X340, X350, X354, X360, X370, X380, X384, X390, X394, X500, X520, X530, X534, X540, X570, X580, X584, X590, X710, X730, X734, X738, X739, X750, X754, X758, Z315E, Z320M, Z320R, Z325E, Z330M, Z330R, Z355E, Z365R, Z425, Z435, Z445, Z465, Z510A, Z515E, Z520A, Z525E, Z530M, Z530R, Z535M, Z535R, Z540M, Z540R, Z545R, Z625, Z645, Z655, Z665, Z710A, Z720E, Z730M, Z735E, Z735M, Z740R, Z760R, Z810A, Z820A, Z830A, Z840A, Z850A, A860A, Z910A, Z915B, Z915E, Z920A, Z920M, Z925A, Z925M, Z930A, Z930M, Z930R, Z945M, Z950A, Z950M, Z950R, Z955M, Z955R, Z960A, Z960M, 960R, Z970R, Z994R, Z997R.
Combine: S7 600, S7 700, S7 800, S7 900, S7 850.

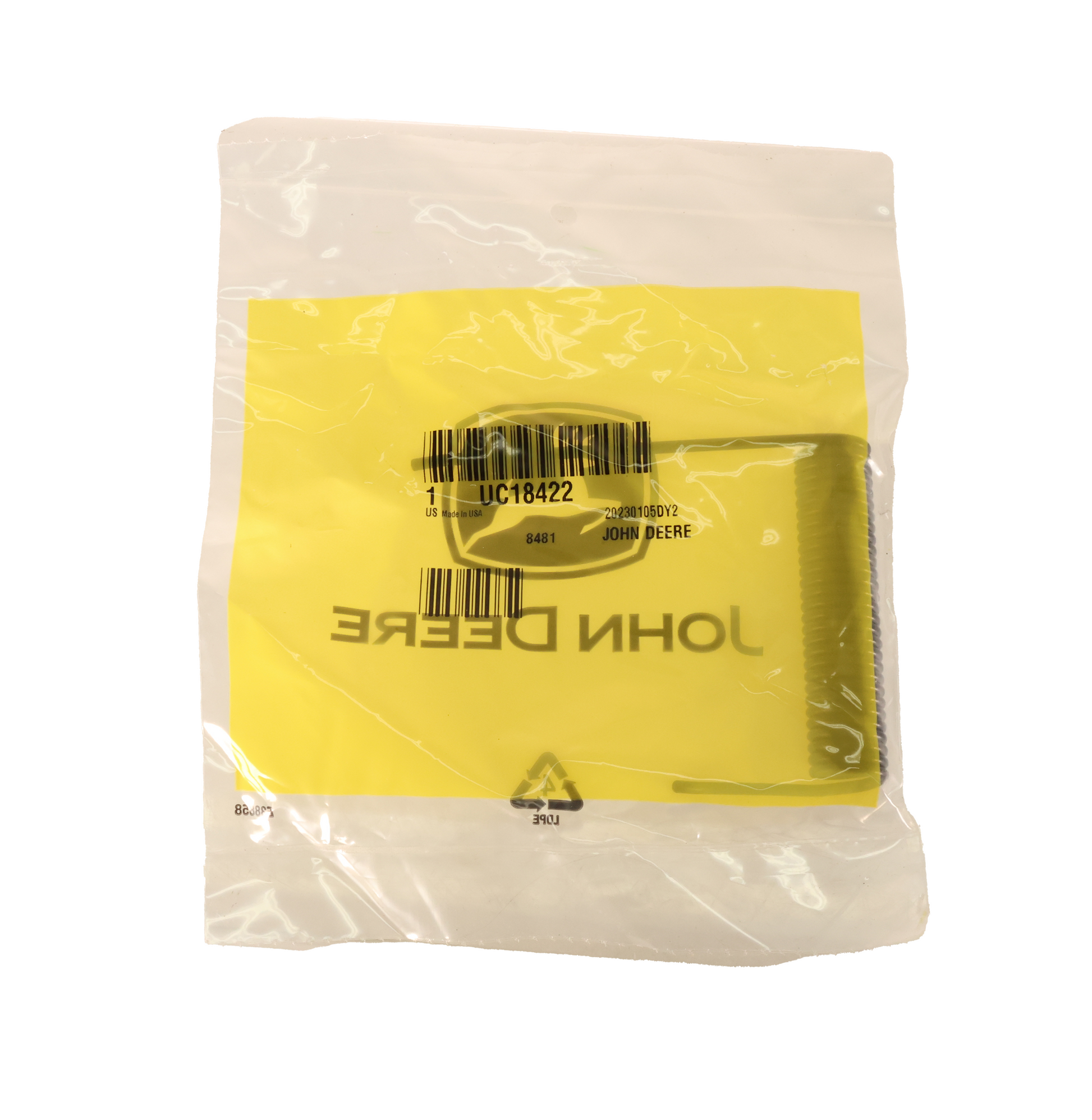

This is an O.E.M. John Deere part.
