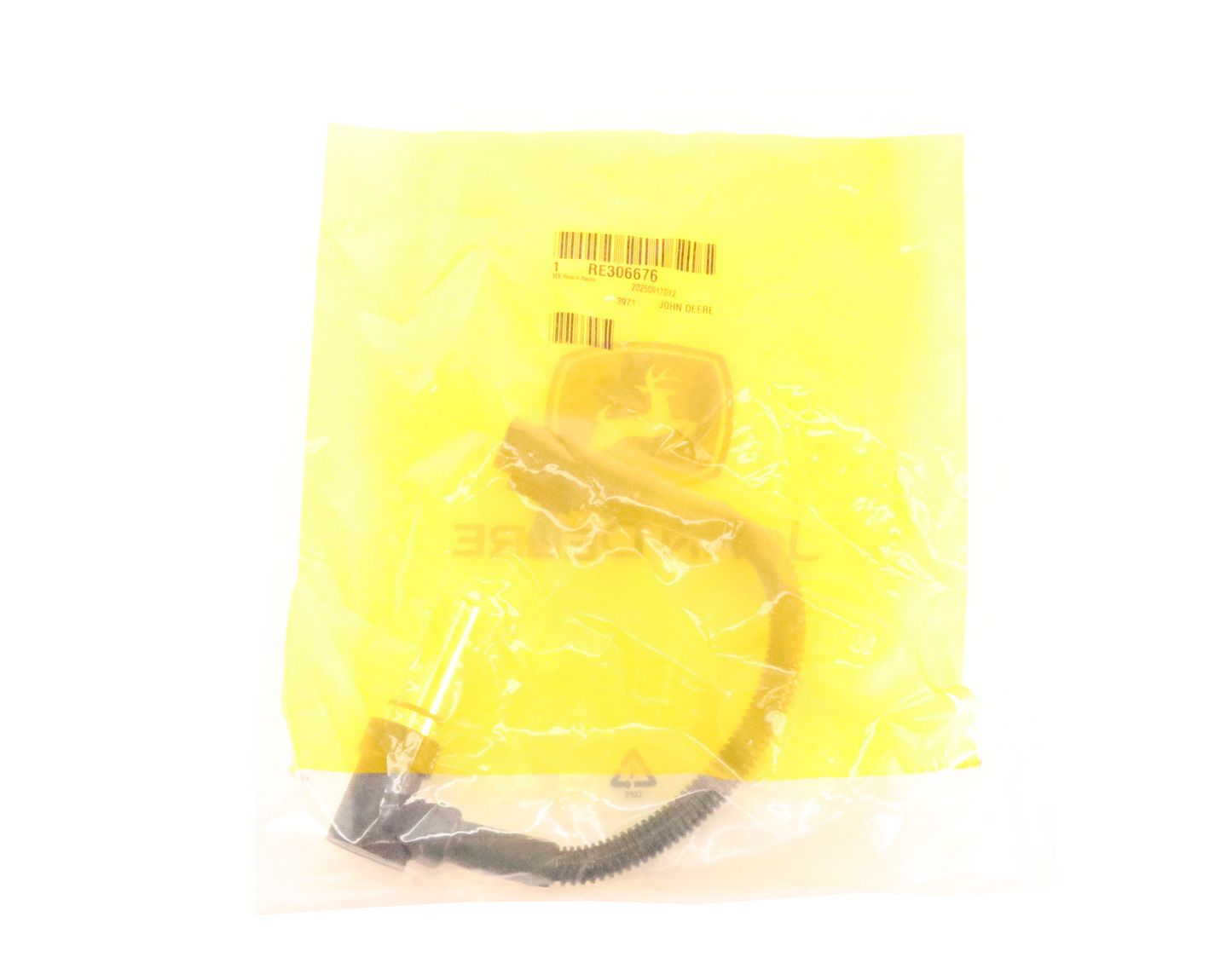

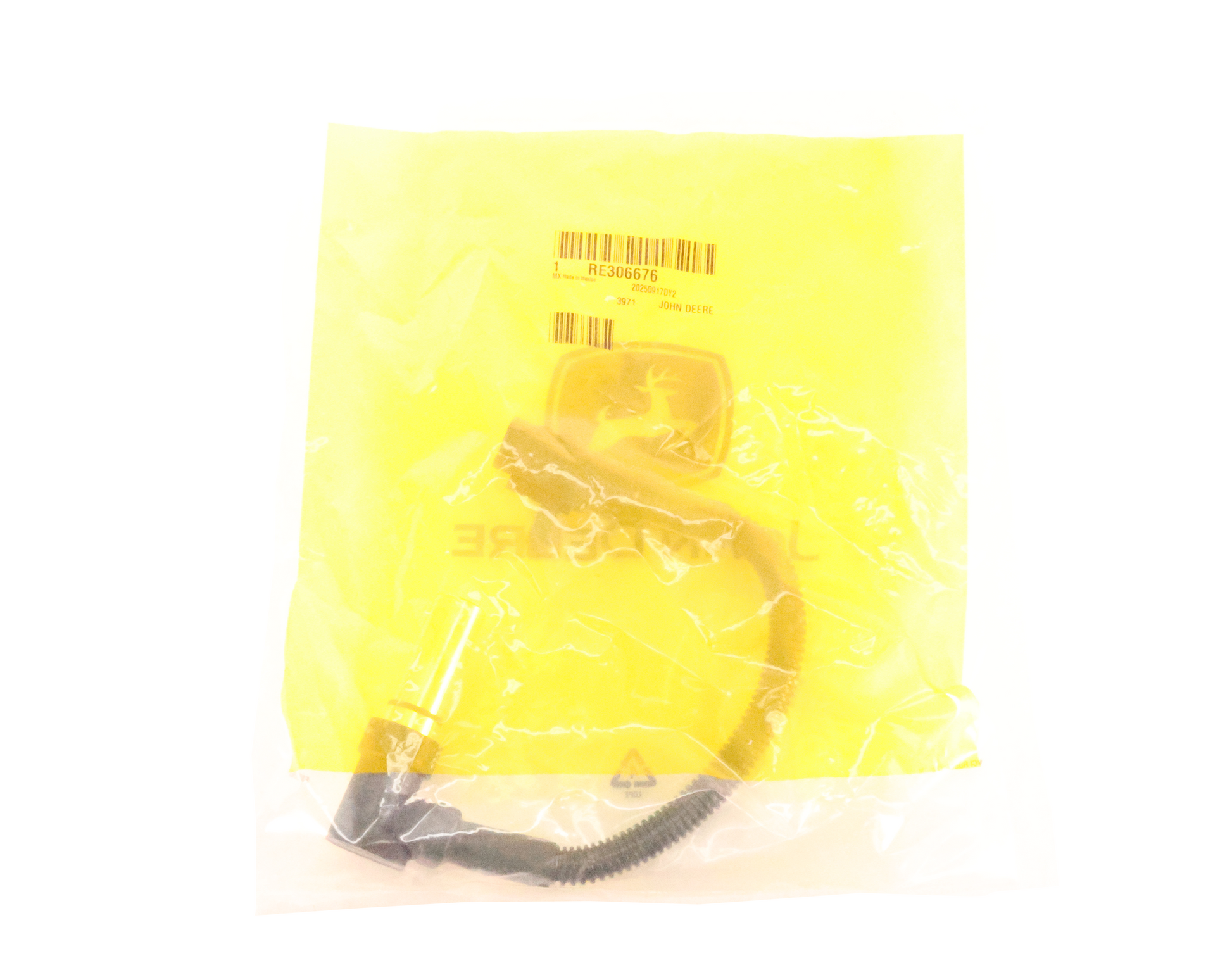

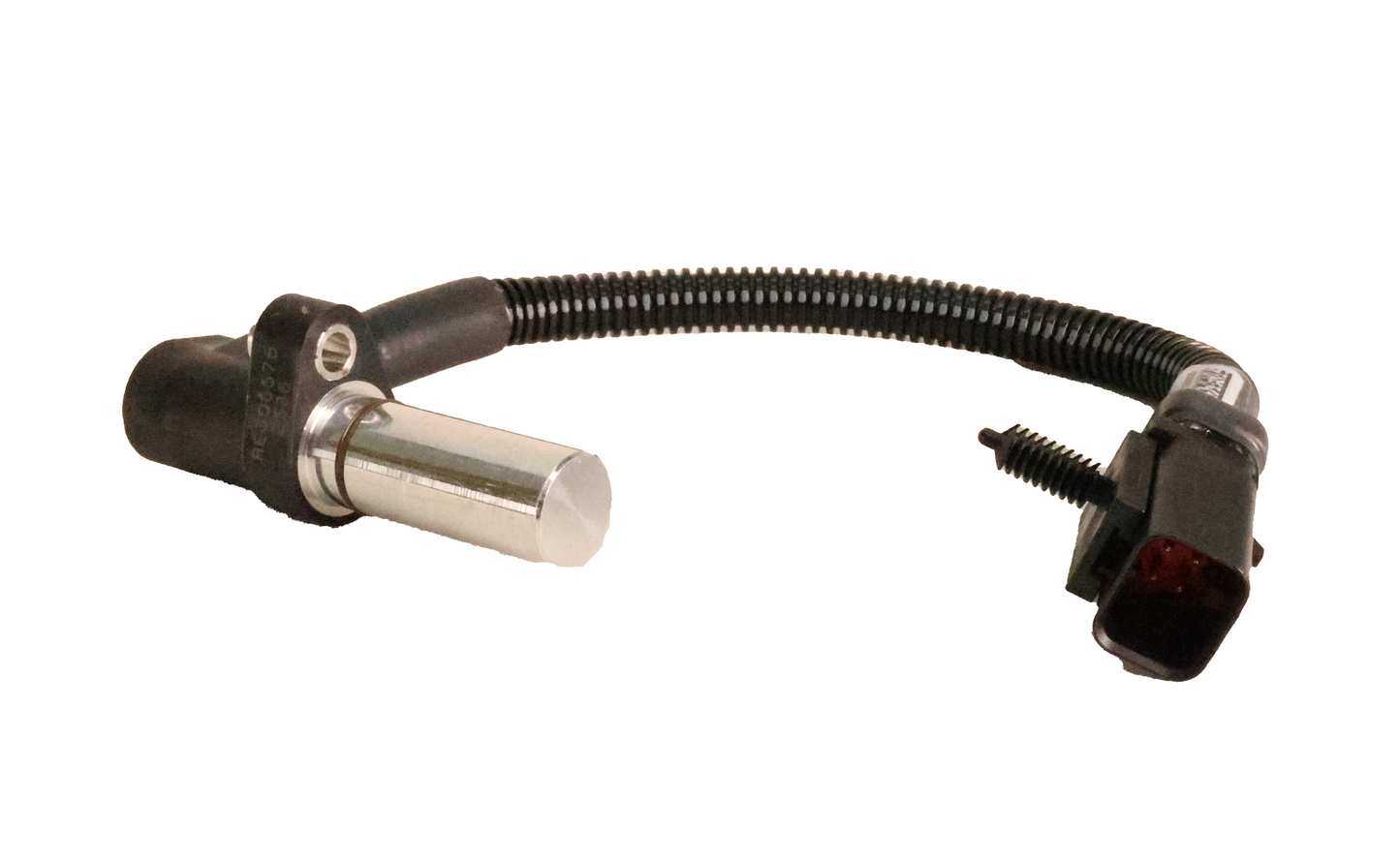

John Deere Original Equipment Speed Sensor - RE306676

John Deere Original Equipment Speed Sensor - RE306676

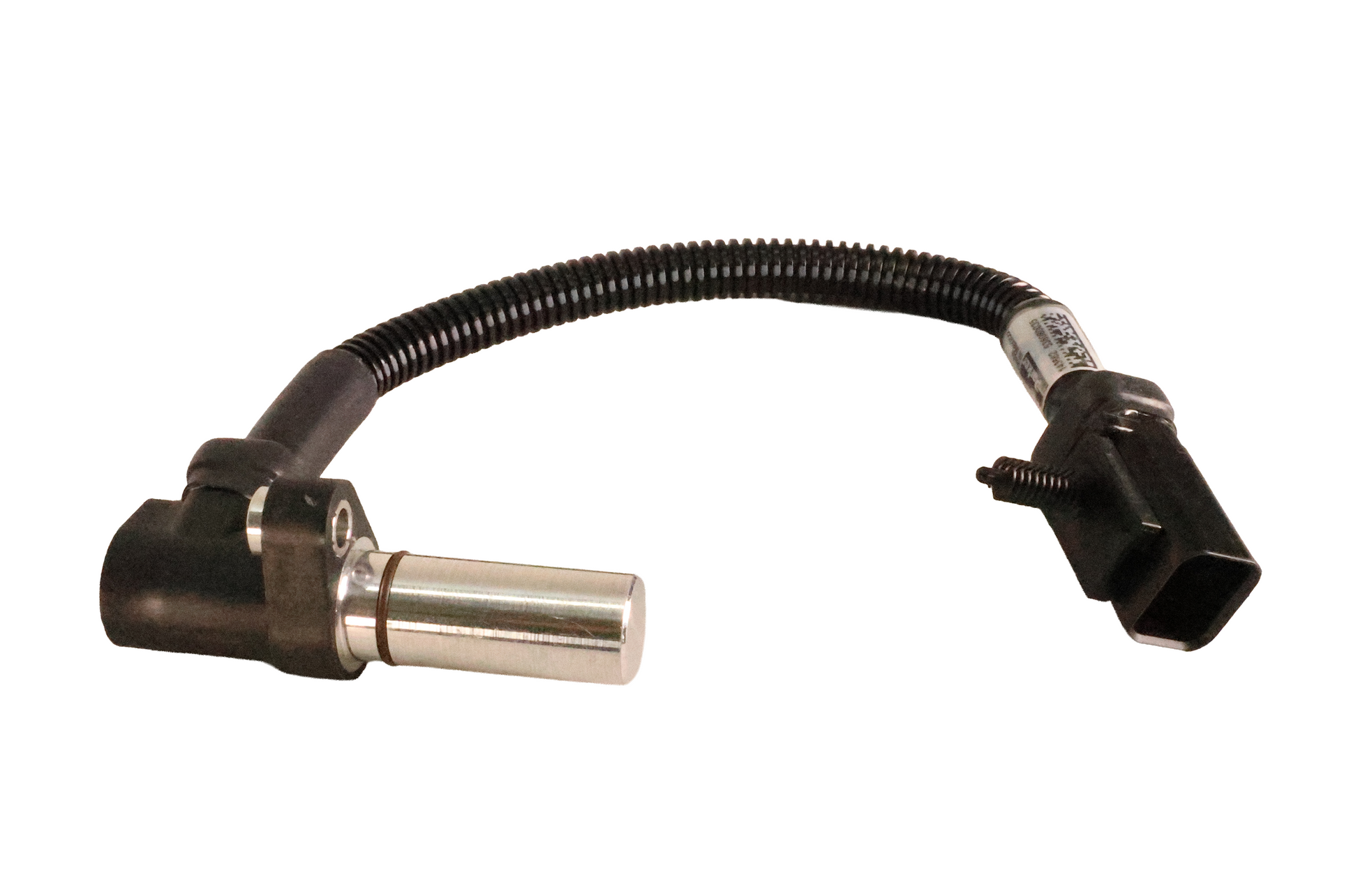

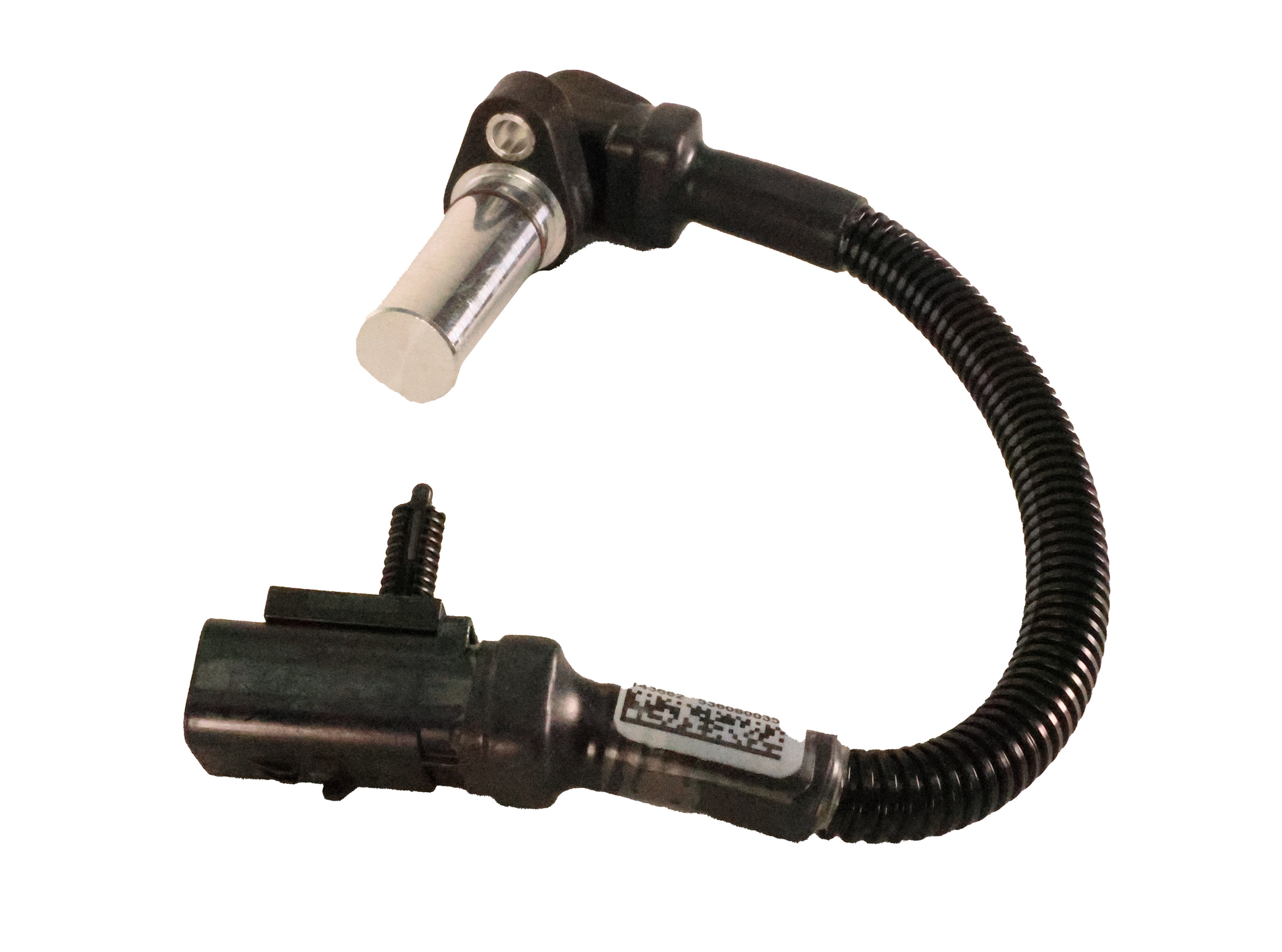

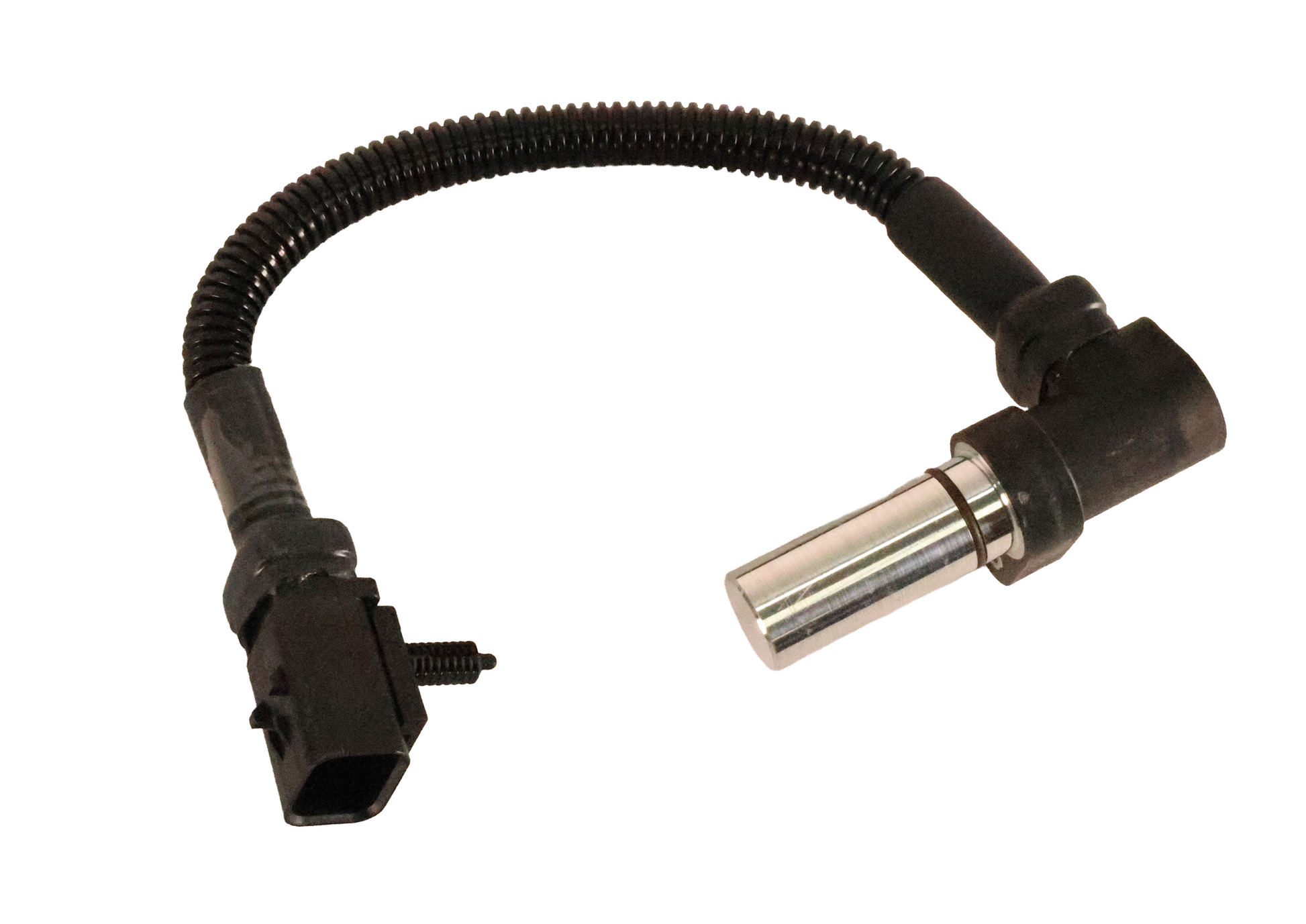

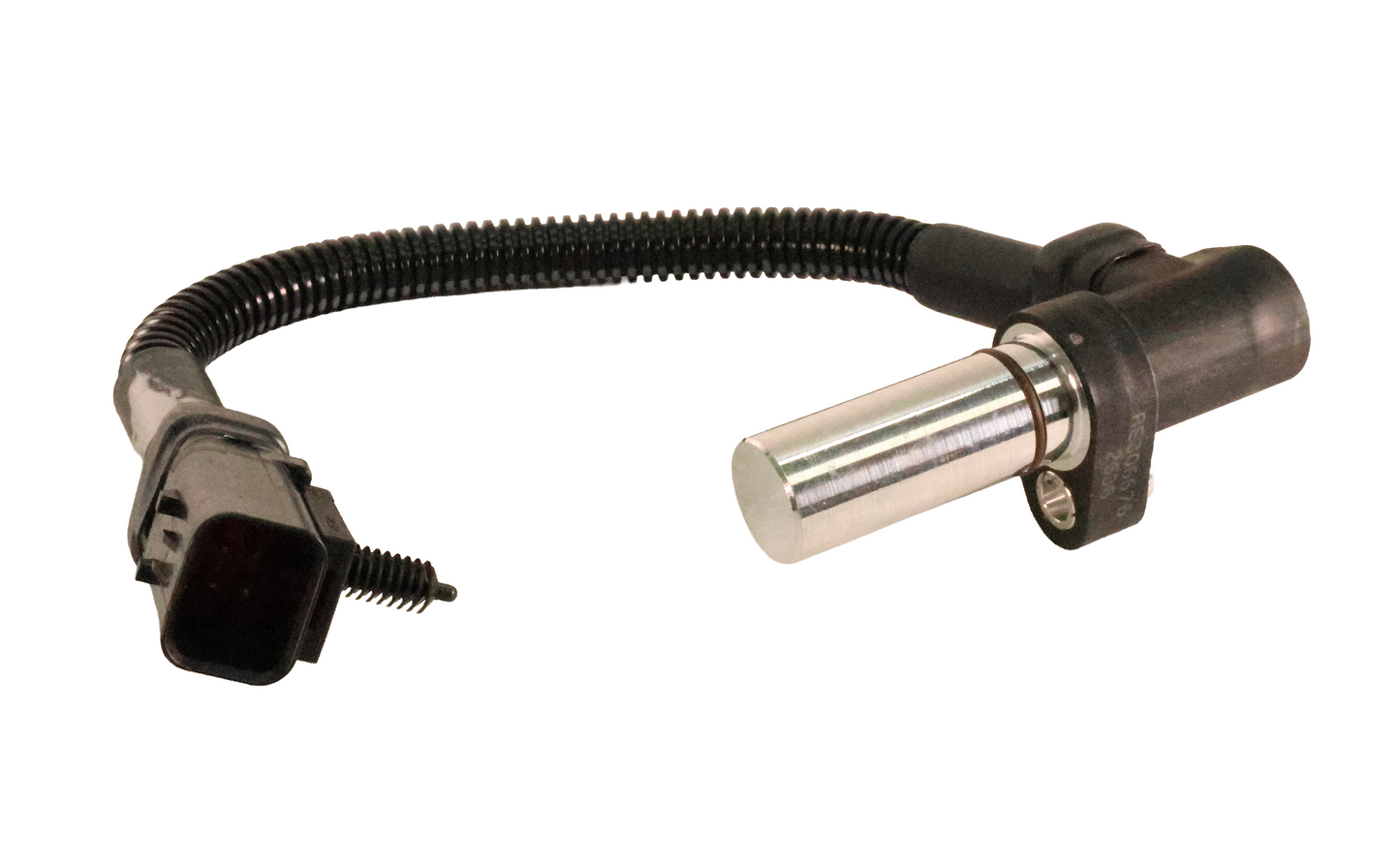

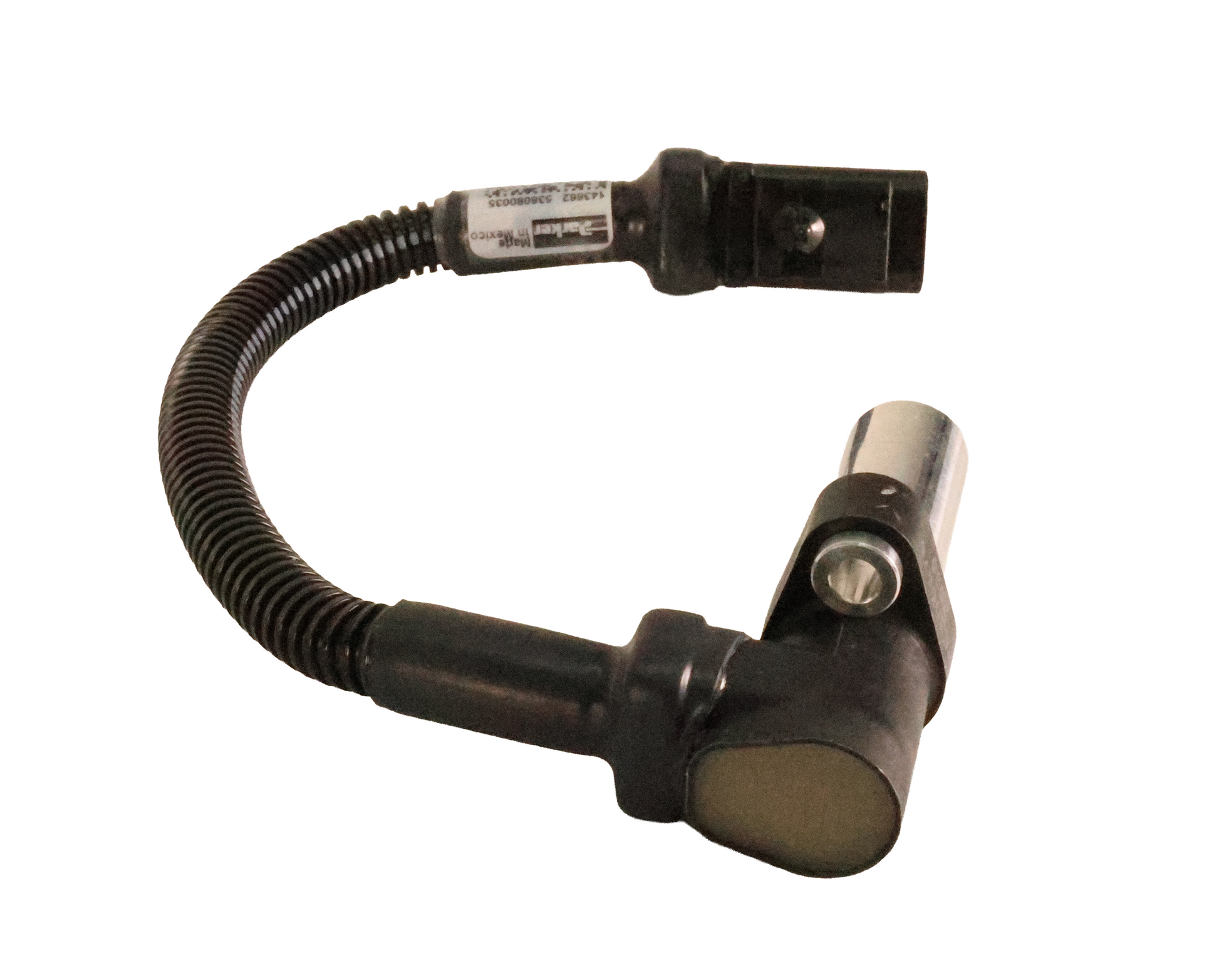

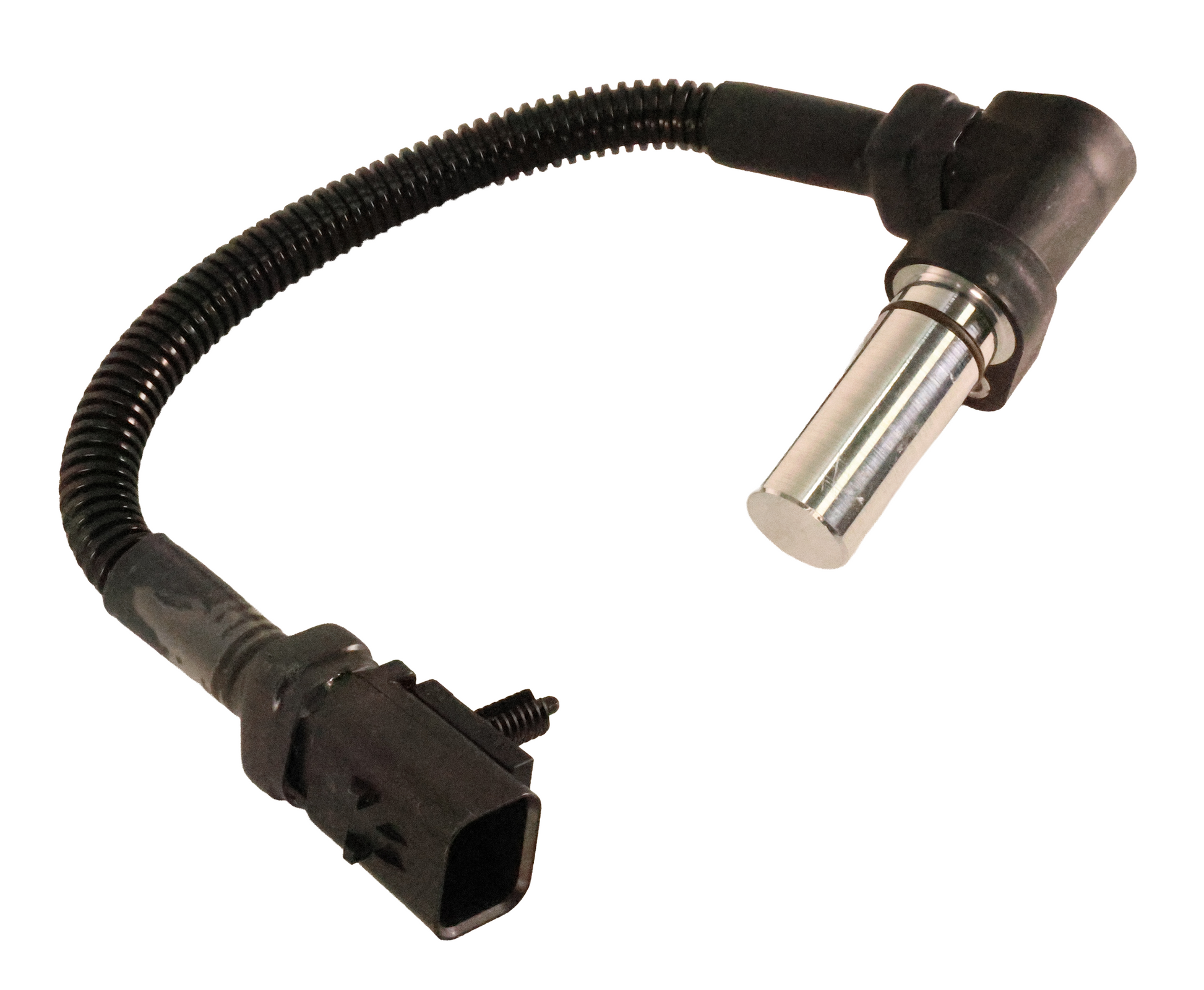

Dual Output Speed Sensor

Part Specifications:
Technology (ALPHA) HALL
Number of Outputs (ALPHA) DUAL
Maximum Temperature (UNITY) 125.0000
Minimum Temperature (ALPHA) -40
Air Gap (IN) 0.0492
Length (IN) 1.8669
Diameter - Tip (IN) 0.7449
Mounting Diameter (IN) 0.2559
Thread Type (ALPHA) NONE
Mounting Style (ALPHA) FLANGE
Connector Type (ALPHA) PIGTAIL
Note (G) With O-Ring

Fits the following John Deere models:
Tractors: 5090M, 5090R, 5095M, 5100M, 5100MH, 5100ML, 5100R, 5105M, 5115M, 5115ML, 5115R, 5115RH, 5120M, 5120ML, 5125M, 5125ML, 5125R, 5130M, 5130ML, 7215R, 9470RT, 9520RT, 9570RT, 5105ML, 5120ML, 5130ML, 7200R, 7210R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 310, 7R 330, 7R 350, 8310RT, 8320RT, 8335RT, 8345RT, 8360RT, 8370RT, 8RT 310, 8RT 340, 8RT 370, 8RT 410, 9460RT, 9510RT, 9RT 470, 9RT 490, 9RT 520, 9RT 540, 9RT 570, 9RT 590.

This is an O.E.M. John Deere part.
