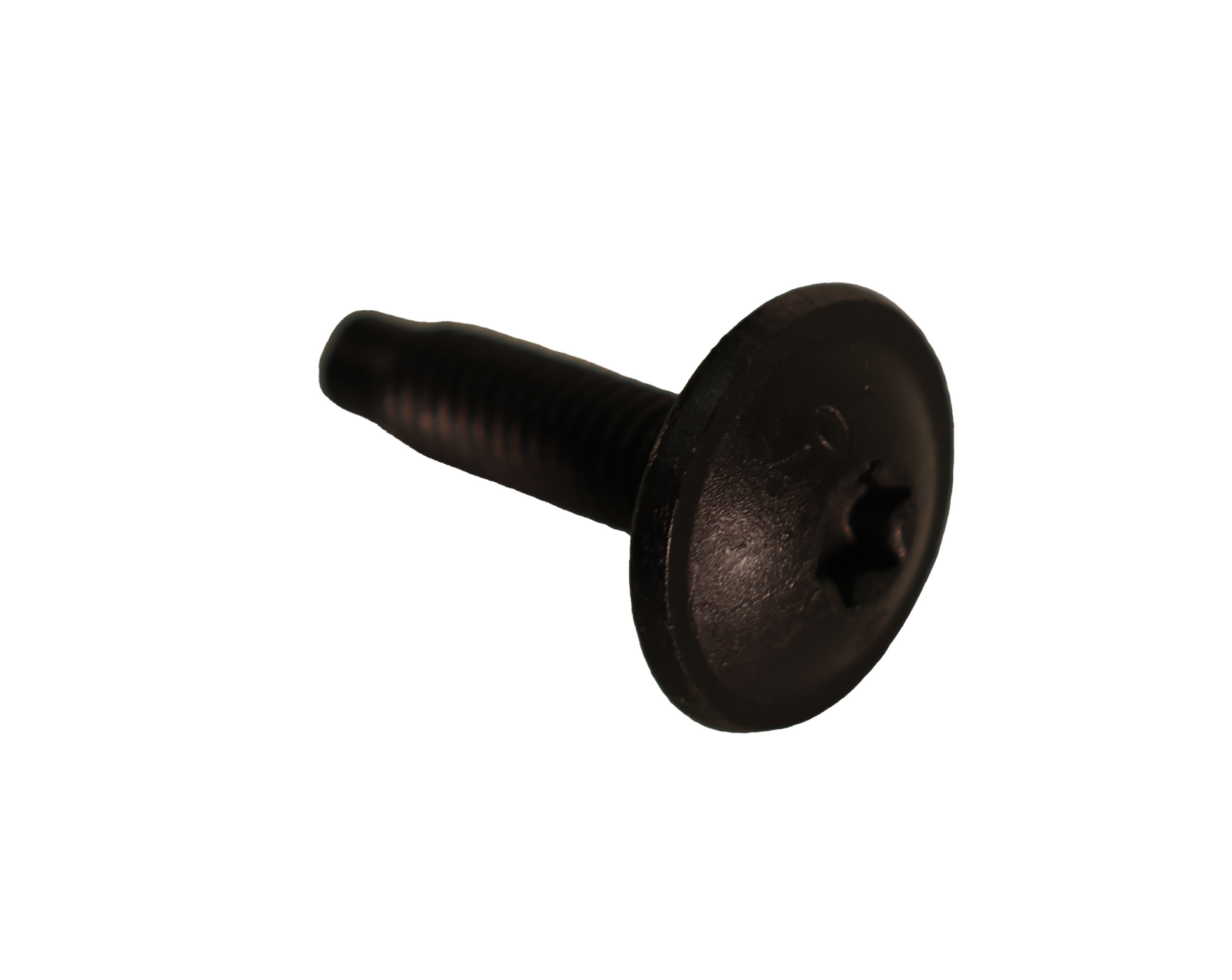

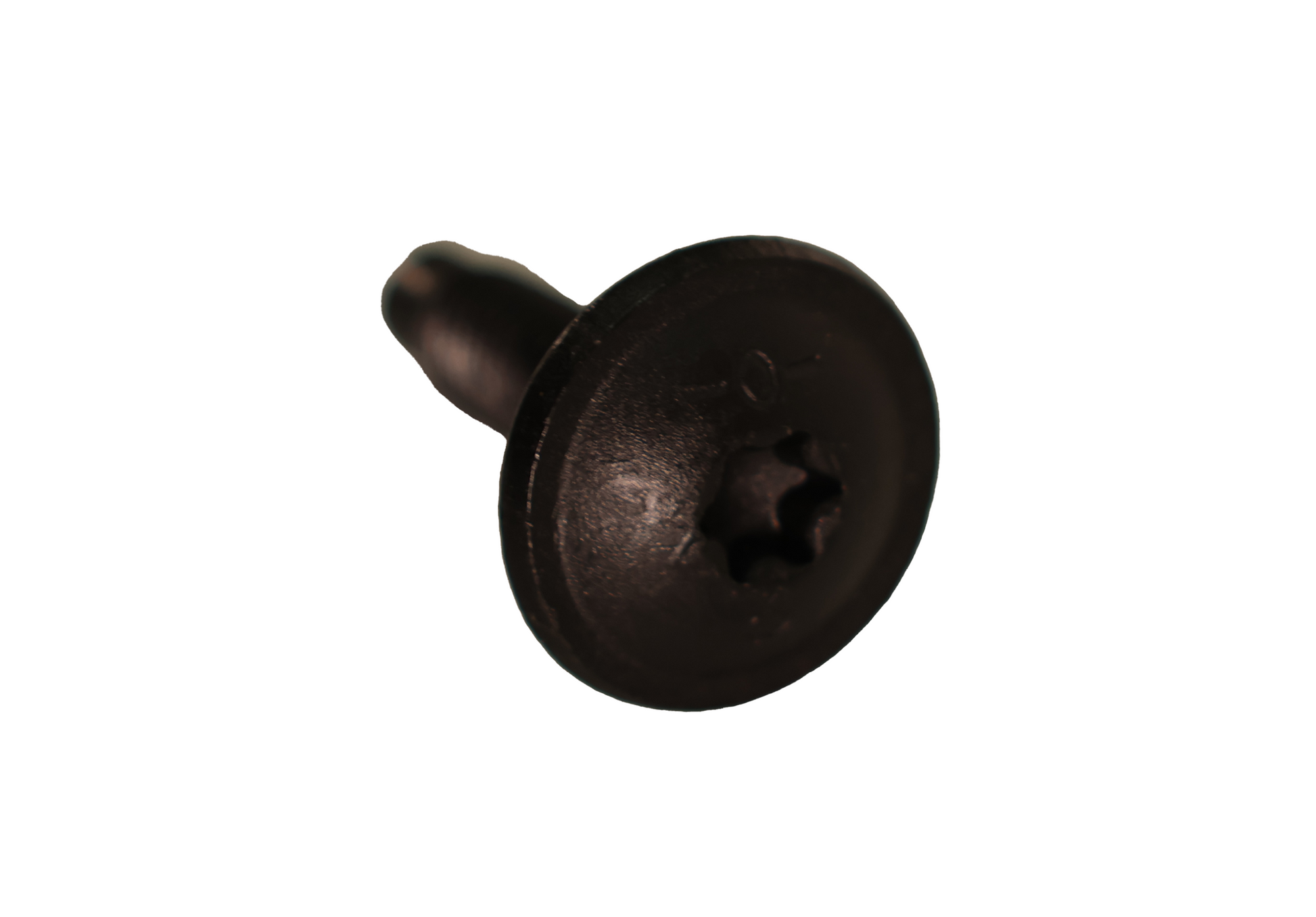

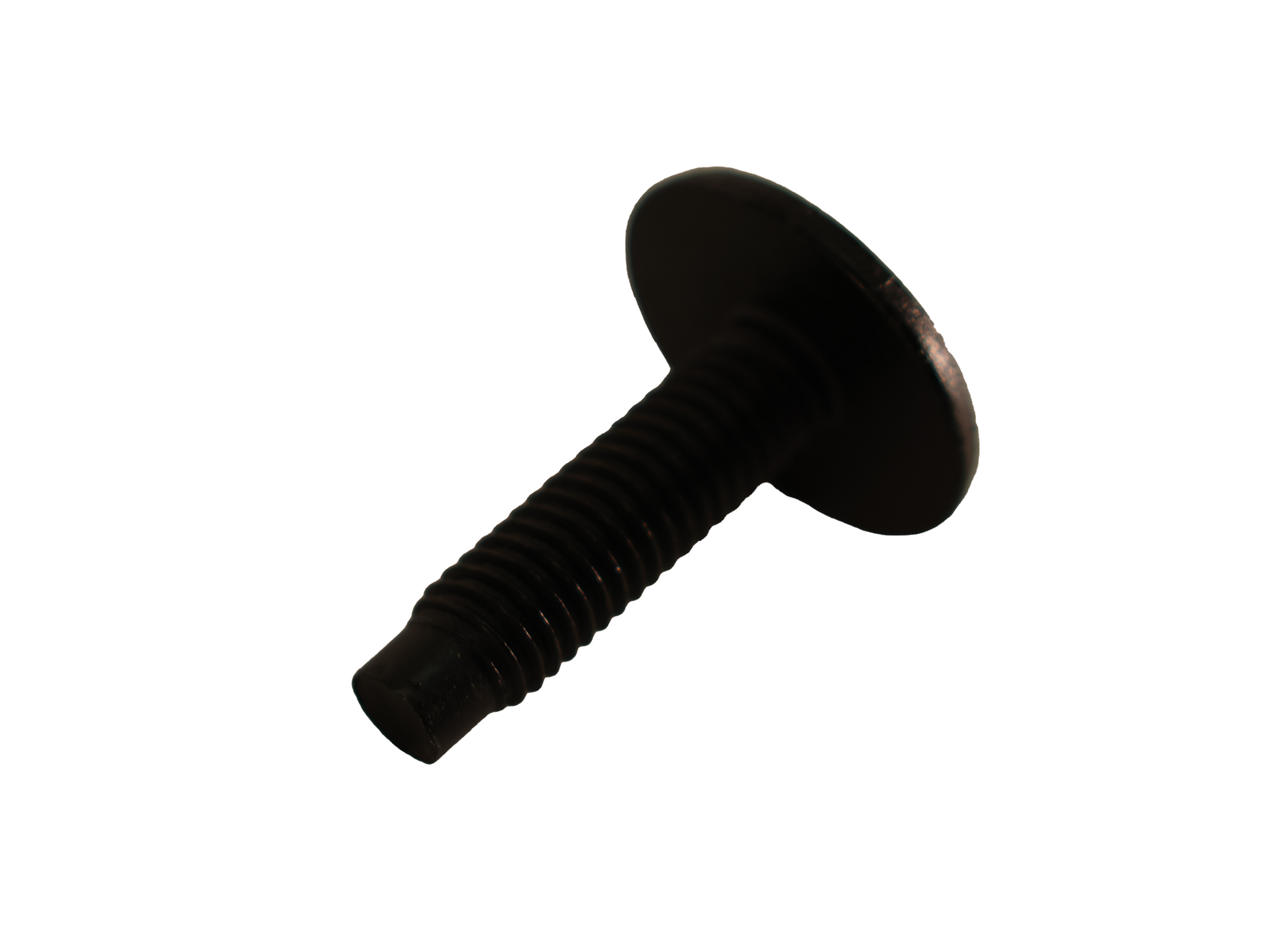

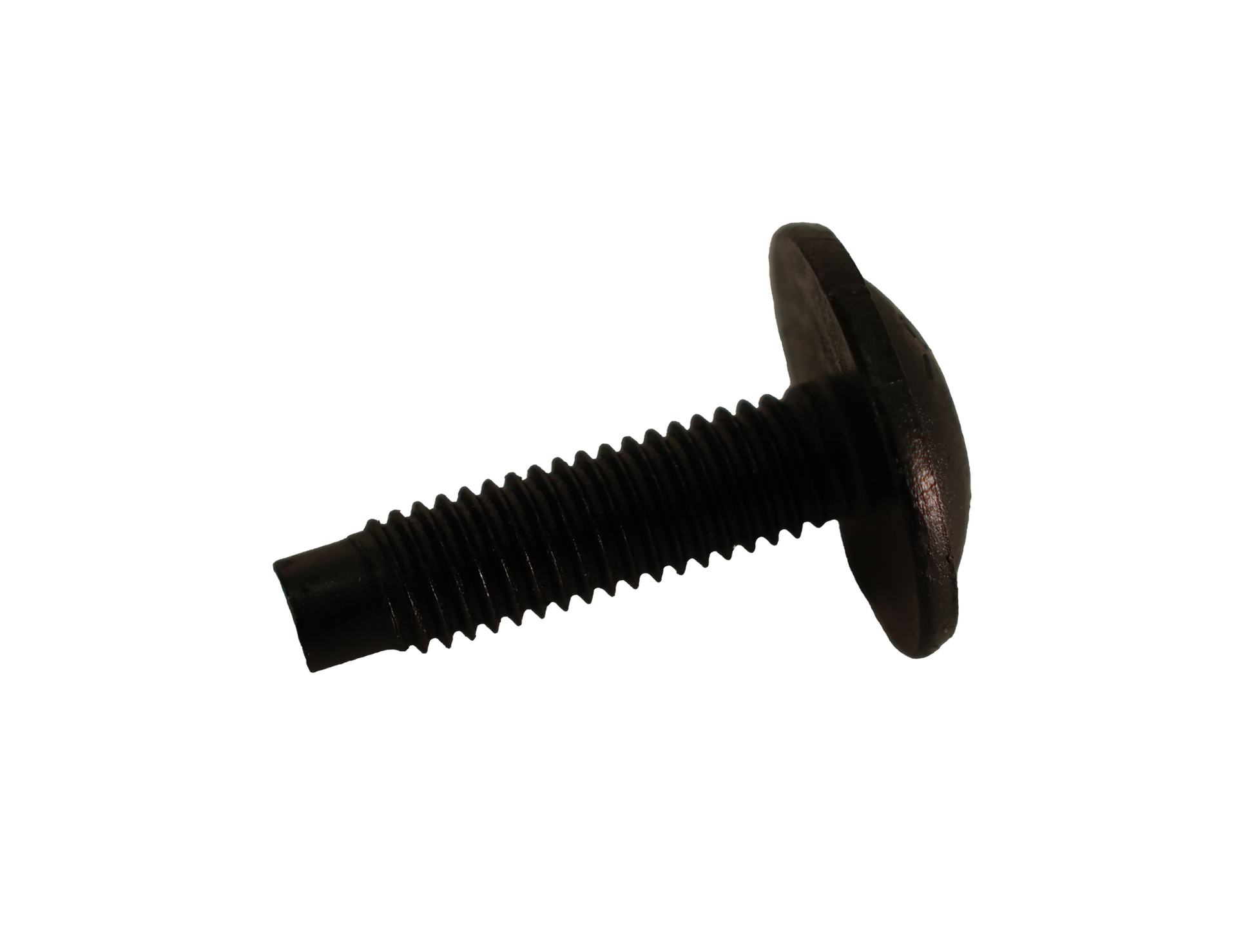

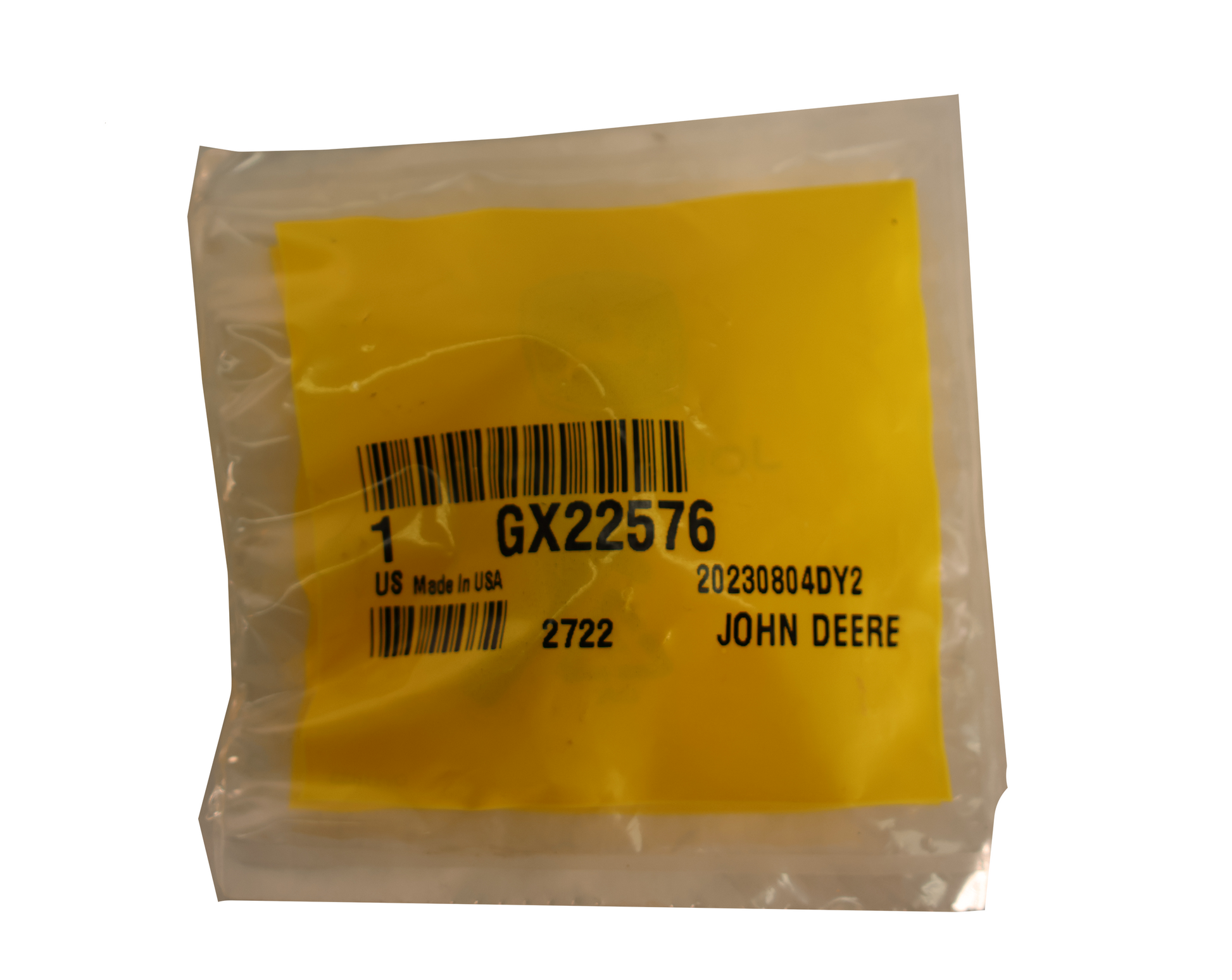

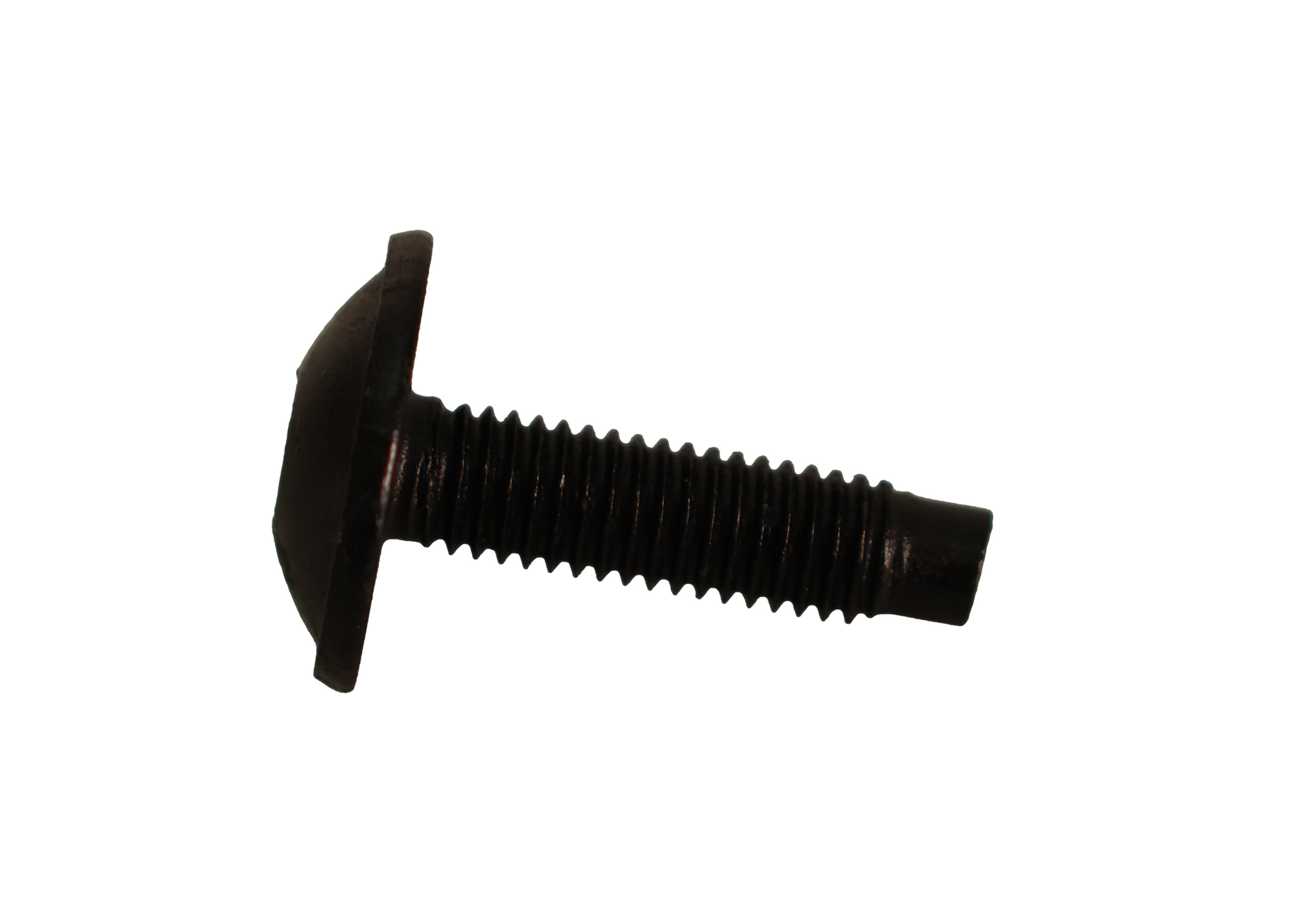

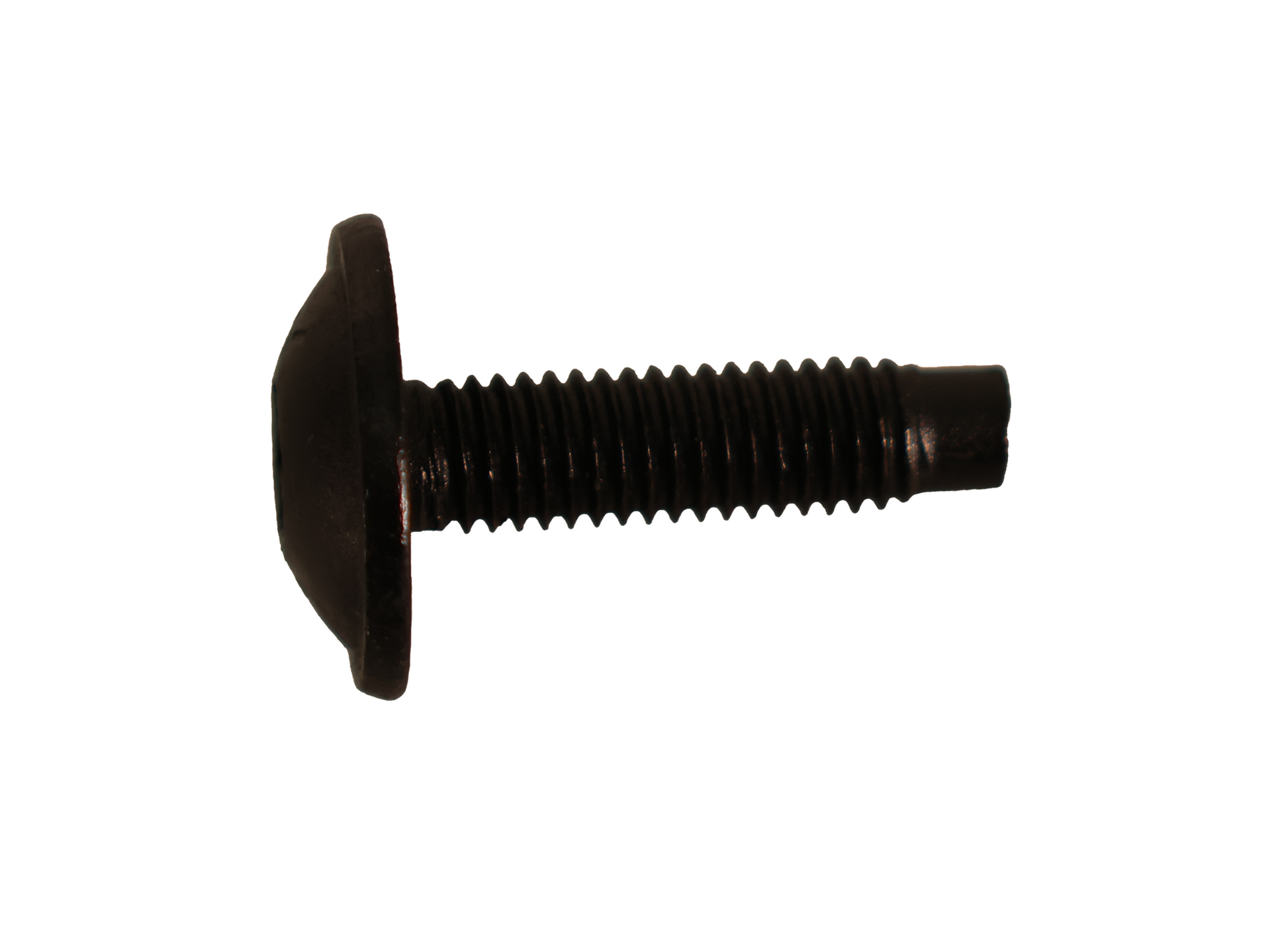

John Deere Original Equipment Screw - GX22576

Cylindrical Head Self-Tapping Screw, M5 X 19

Part Specification:
Thread Diameter (MM) 5.0000
Thread Pitch (MM) 0.8000
Length (MM) 19.0000
Thread and Point Type (ALPHA) DOG
Drive Type (ALPHA) TR25
Head Size (MM) 15.0000
Head Height (MM) 3.4000
Material or Grade (ALPHA) STEEL
Finish (ALPHA) K-Painted
Note (A) There is more information on the engineering blue print that is not shown in detail here.

Fits the following John Deere models:

Lawn Tractor: 105, 102, 108-14.5, 285H07, 108-17HS, 17HS, 115, 125, 135, 145, 155C, 1642HS, 1742HS, 31F707, 17.542HS, CV490S, 190C, D105, G100, G110, L105, L107, L108, L110, L111, L118, L120, L130, 17542, L1742, L2048, L2548, LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175, 1948GV, 1948HV, 2148HV, 2354HV, 2554HV, S2554, CV15S, SST15, SST16, X105, X110, X120, X125, X130R, X135R, X140, X145, X155R, X165.

Tractor: 7215R, 9370R, 9420R, 9470R, 9470RT, 9520R, 9520RT, 9570R, QSX15, 9620R, QSX15, 7200R, 7210R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8370R, 8370RT, 8400, 9420RX, 9470RX, 9520RX, 9570RX, 9620RX.

Walk-Behind Mower: JS63C, JS63, SA1020, SA1021, SA801, SA802, SA803, SA804, SA227019, JS63VC, SA1714, 53-Pro, SA1769, SA322120, SA1789JA62, JS60H, JS61, JX75.

Fairway Mower: 1550, 1570, 1575, 1580, 1585.

Mower: JS63, SA1720, SA222019, JS63, SA1721, SA222119, JS63V, SA1713, SA227119, SA1779, SA1879, PRO 53MV, SA1789.

Utility Vehicle: HPX615E, HPX815E, RSX850i, RSX860E, RSX860i, RSX860M, XUV845E, XUV845M, XUV845R, XUV875MXUV875R, XUV550, XUV550 S4, XUV560, XUV560 S4, XUV560E, XUV560E S4, XUV590E, XUV590E S4, XUV590i, XUV590i S4, XUV590M, XUV590M S4, XUV590M S4, XUV825E, XUV825M, XUV825M S4, XUV835E, XUV835M, XUV835R, XUV855E, XUV855M, XUV855M S4, XUV865E, XUV865M, XUV865R.

ZTRAK: Z997R.

This is an O.E.M. John Deere part.
