John Deere Original Equipment Screw - 19M8761

John Deere Original Equipment Screw - 19M8761

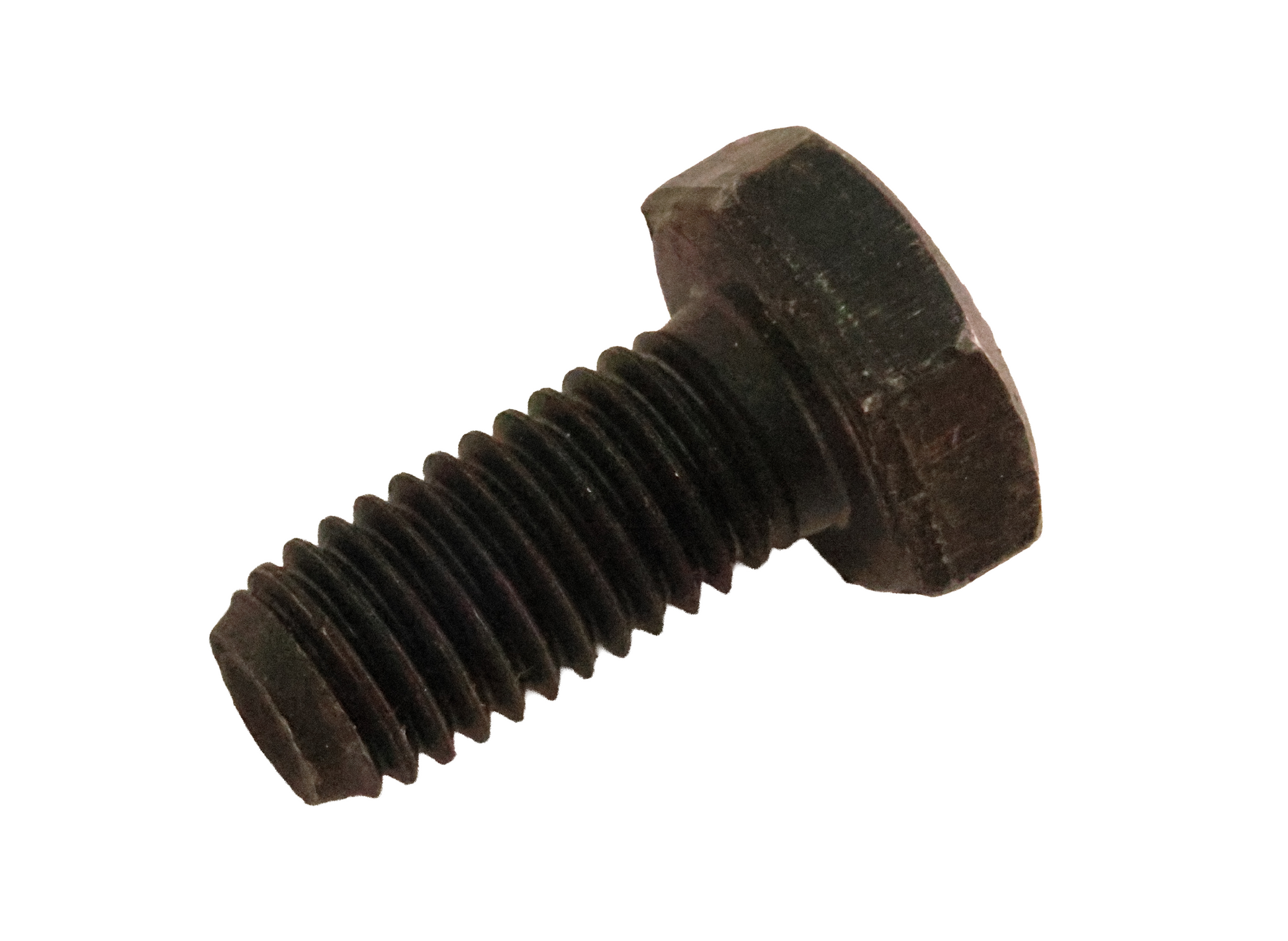

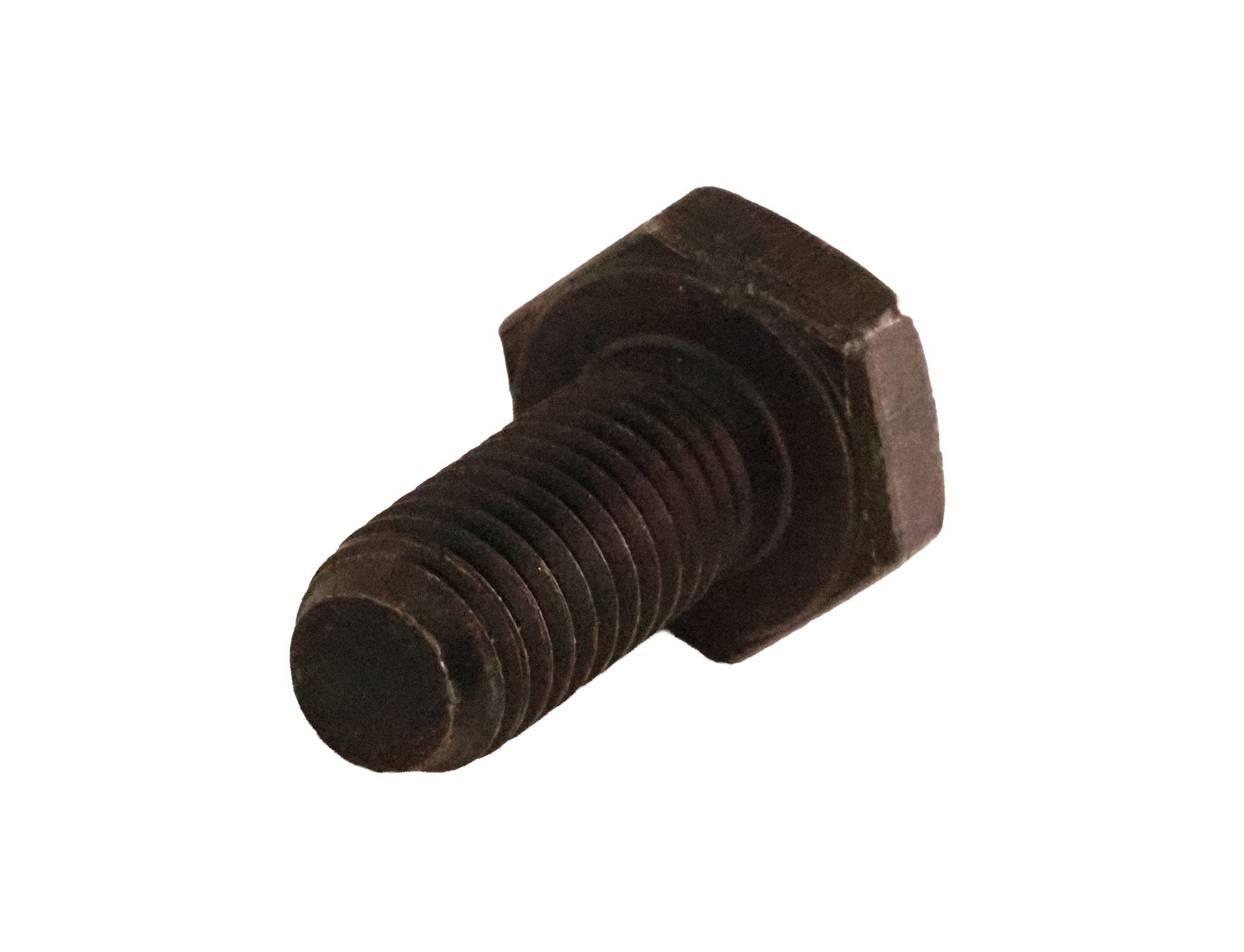

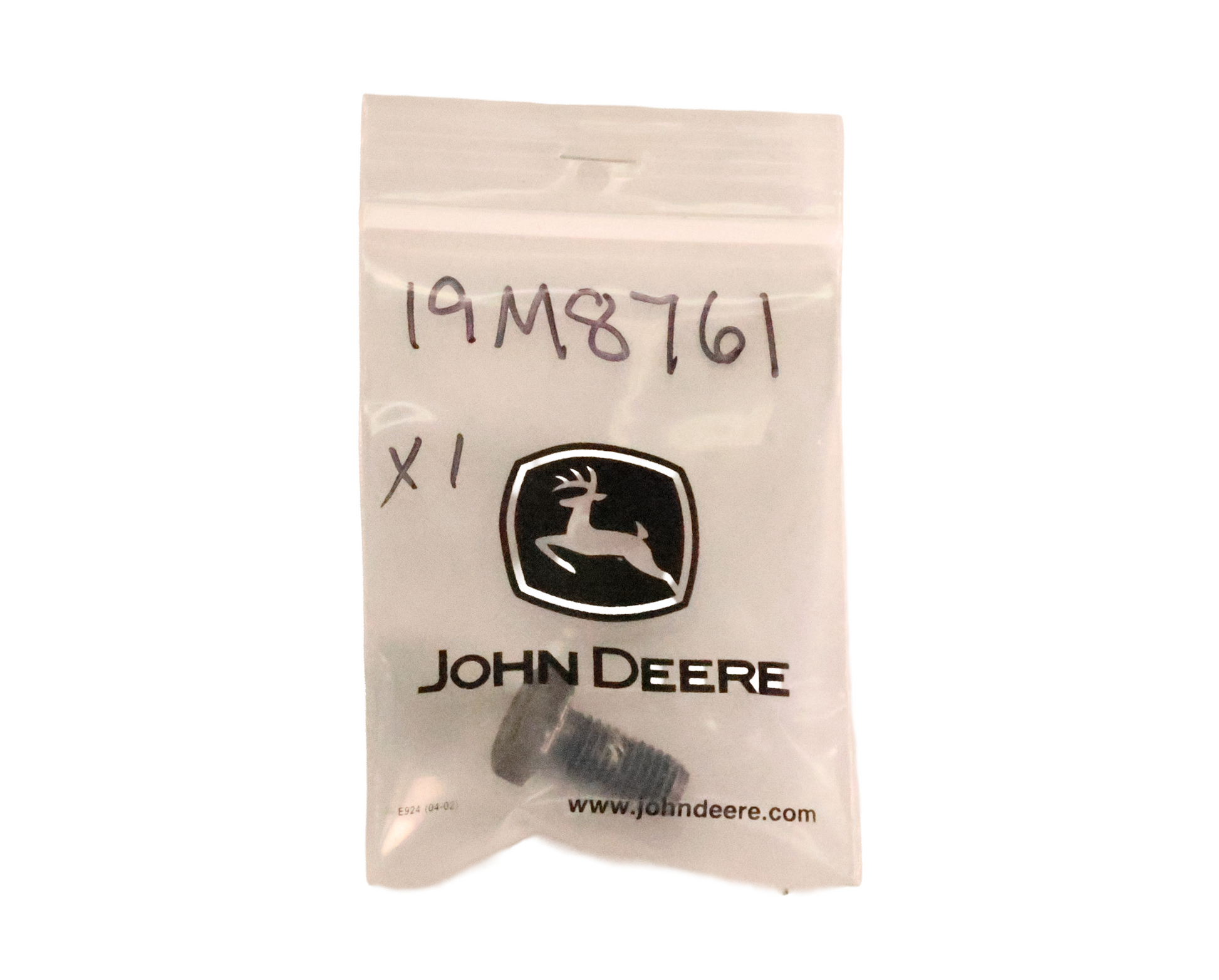

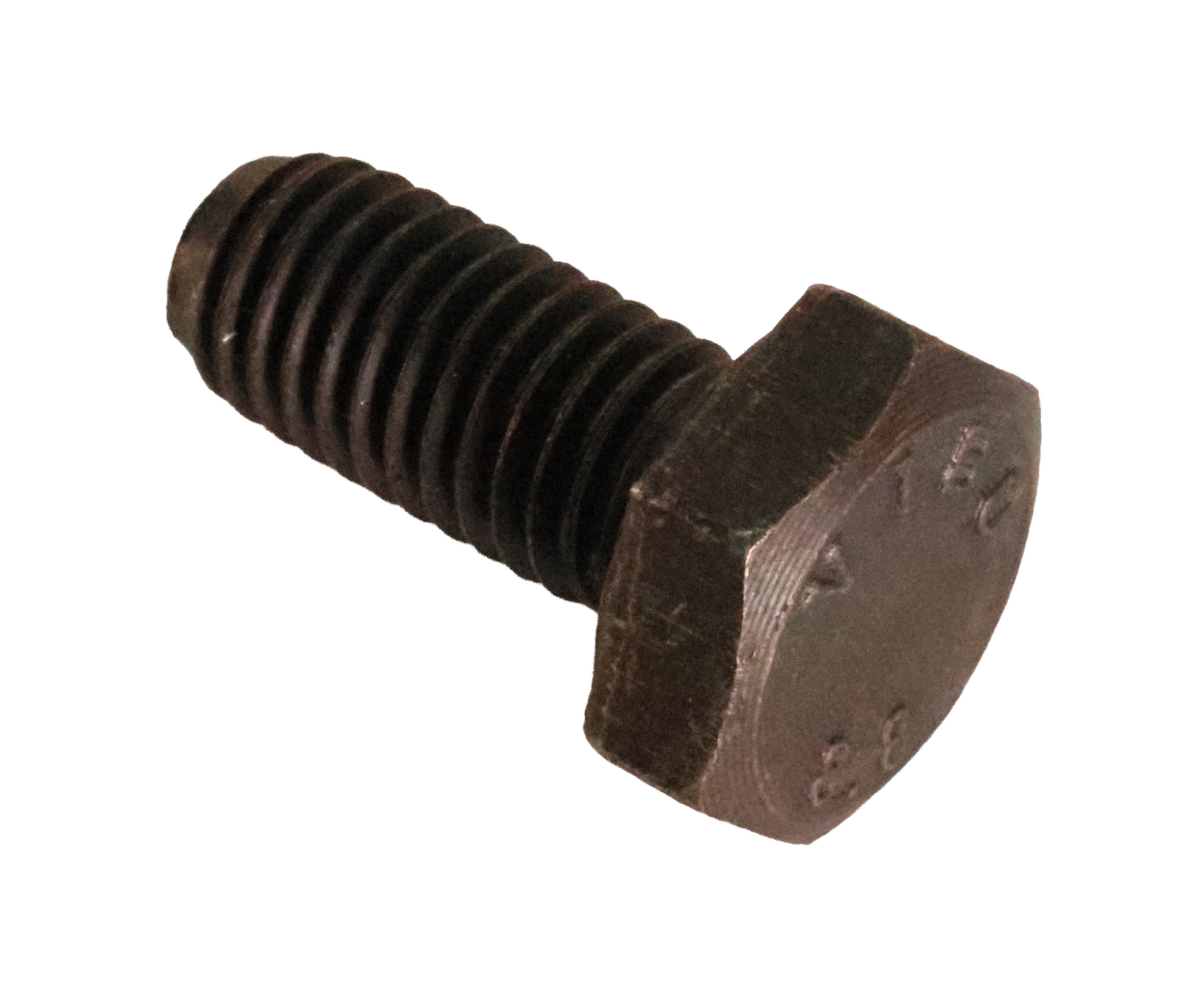

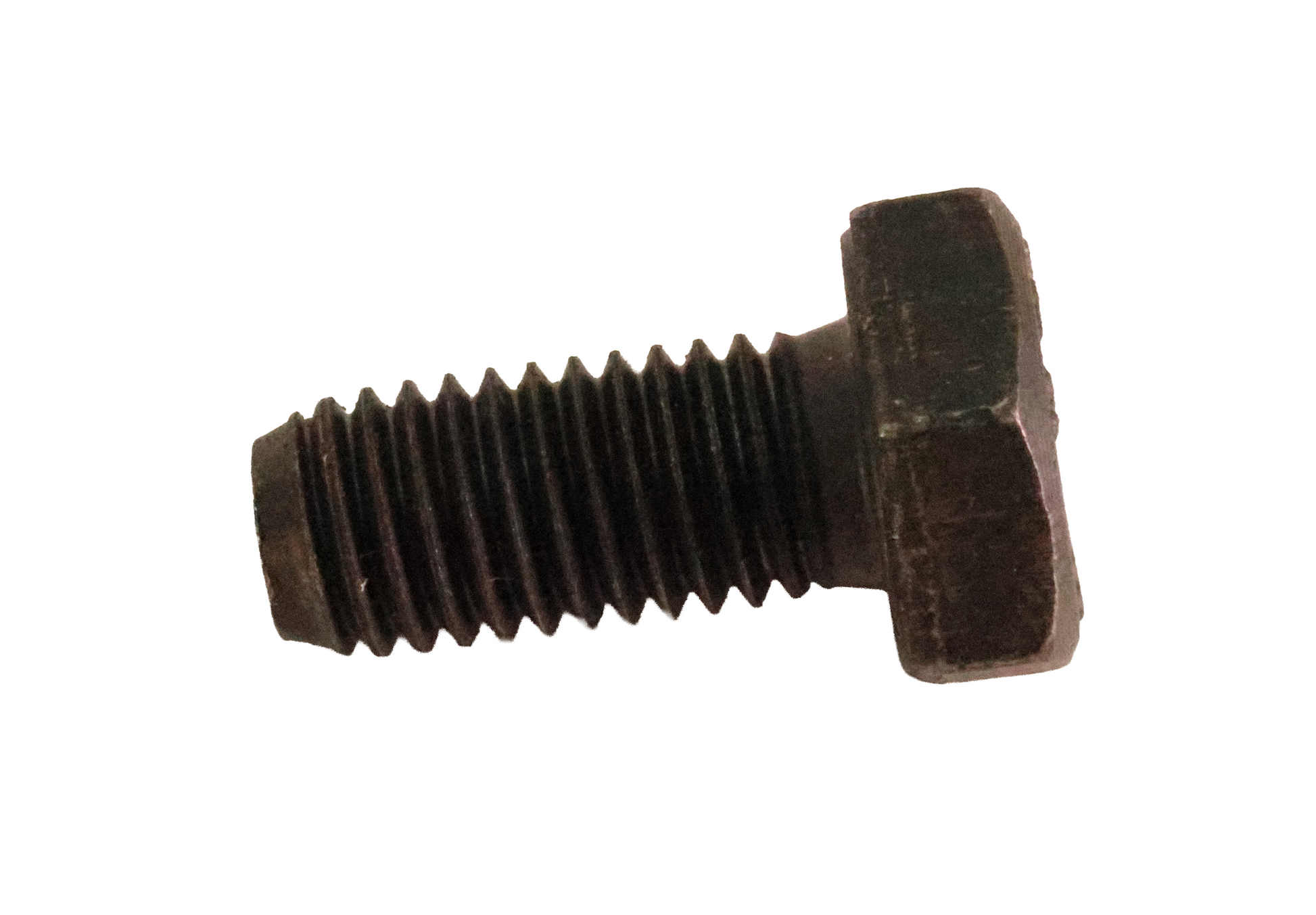

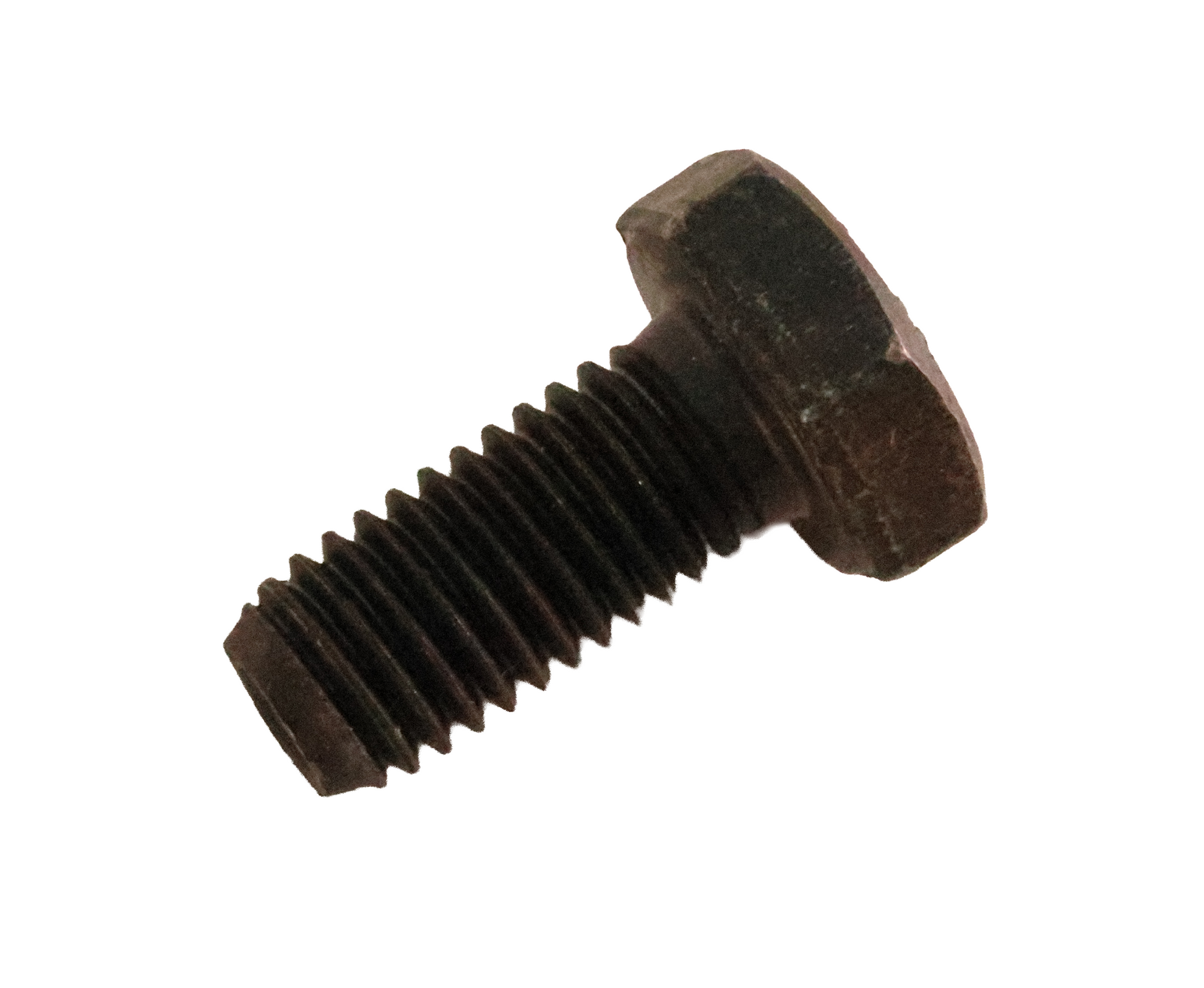

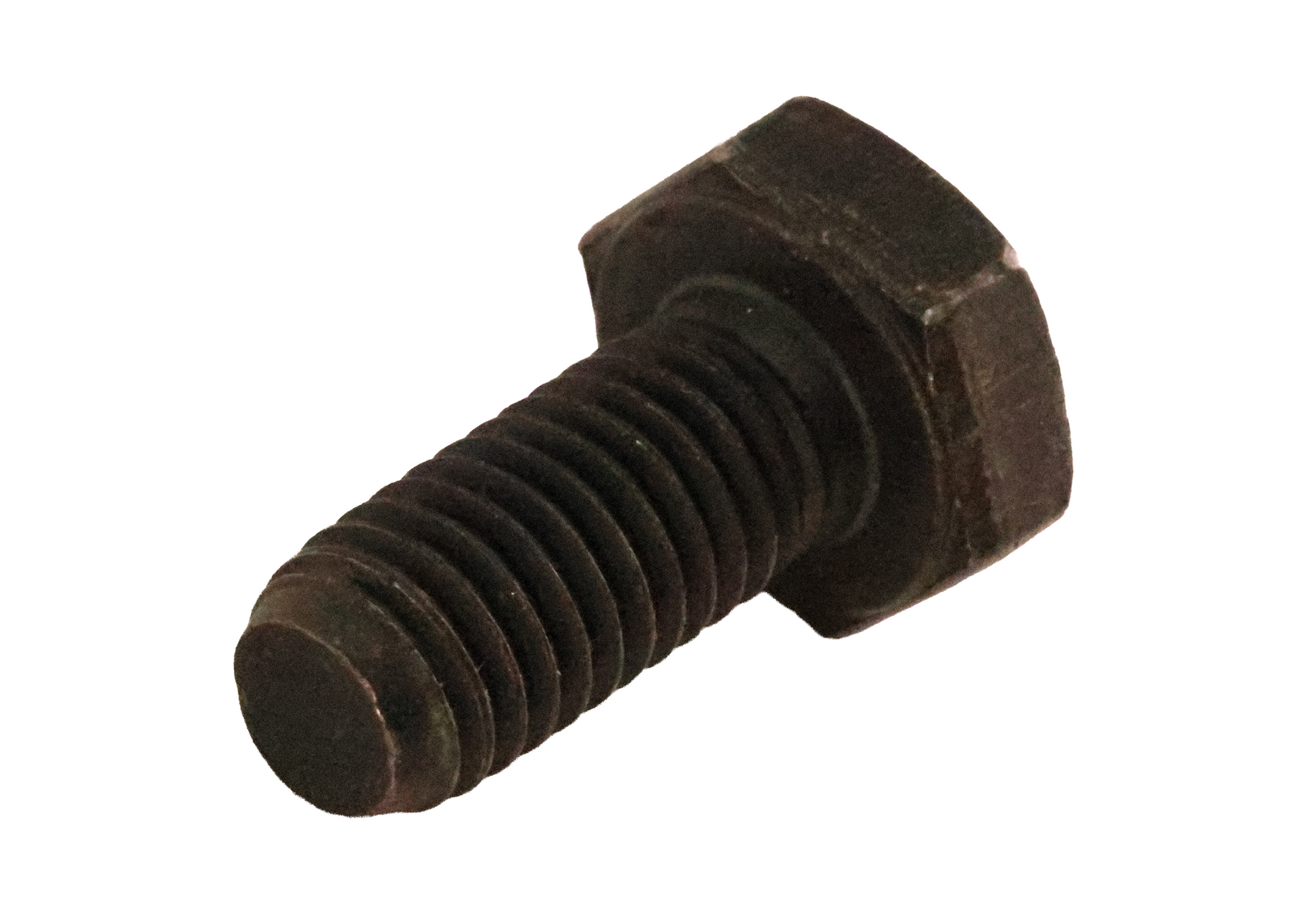

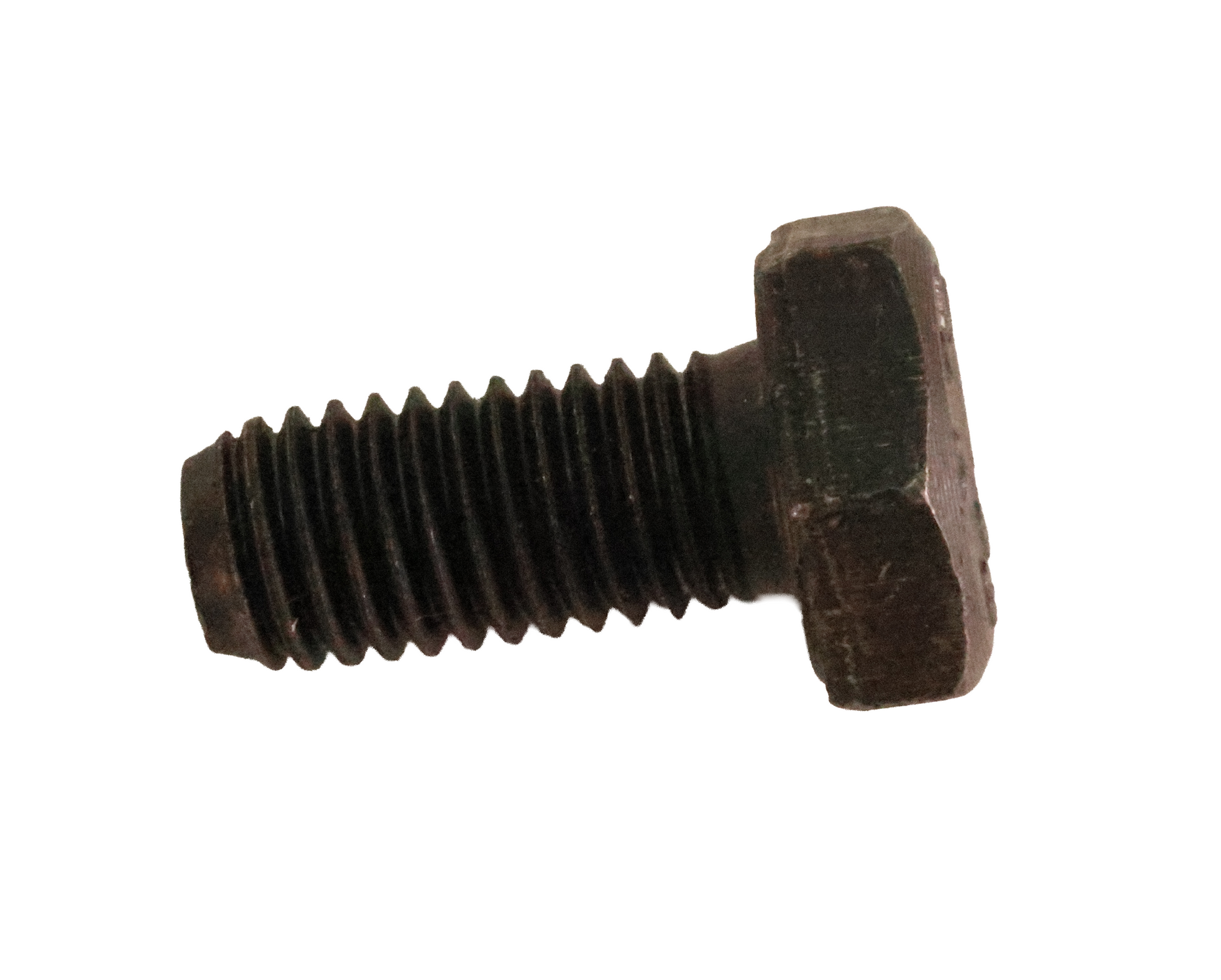

M10X22 Hexagonal Head Screw

Part Specifications:
Thread Size (MM) 10.0000
Thread Pitch (MM) 1.5000
Length (MM) 22.0000
Thread Length (MM) 17.5000
Head Width (MM) 16.0000
Material or Grade (ALPHA) 8.8000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Articulated Dump Truck: 250D, 300D, 350D, 400D, B25C.
Manure Spreader: 450, 455, 780, 785.
Tractor: 6200, 6300, 6400, 6500, 6200L, 6300L, 6400L, 6500L, 7720, 7820, 7920, 7500, 7630, 7730, 7815, 7830, 7830, 7930.
Ensilage and Forage Harvester: 690, 692, 696, 698, 770, 770plus, 345plus, 345, 345pro, 360plus, 360, 360pro, 375plus, 375, 375pro, 390plus, 390, 390pro, 475, 475plus, 475pro.
Cotton Picker: 7260.
Mower Conditioner: 926, 936, 946, 920, 930, 925, 935, C450, C500.
Excavator: 120, 160LC, 180CW, 180, 290D, 330LC, 370, 330LCR, 450CLC, 450LC, 490, 490D, 495D, 550LC, 590D, 595D, 690DR, 690D, 70D, 750, 790, 792, 790D, 793D, 790ELC, 792DLC, 892DLC, 892 ELC, 892 EL, 892 E, 892, 992D LC, 992D.
Forwarder: 1410D, 1510E, 1710D, 1711D, 1910E.
Loader: 210LE.
Loader Backhoe: 310SE, 315SE, 310G,  310SG, 315SG, 410E, 410G.
Excavator Logger: 330LC, 370.
Logger Components: 330LC, 370.
Four-Wheel Drive Loader: 344E, 444E.
Forklift: 485E, 486E, 488E.
Feller Buncher: 493D, 493, 693D, 793D.
Crawler Loader: 655C.
Crawler Dozer: 950C.

This is an O.E.M. John Deere part.
