John Deere Original Equipment Screw - 19M7830

John Deere Original Equipment Screw - 19M7830

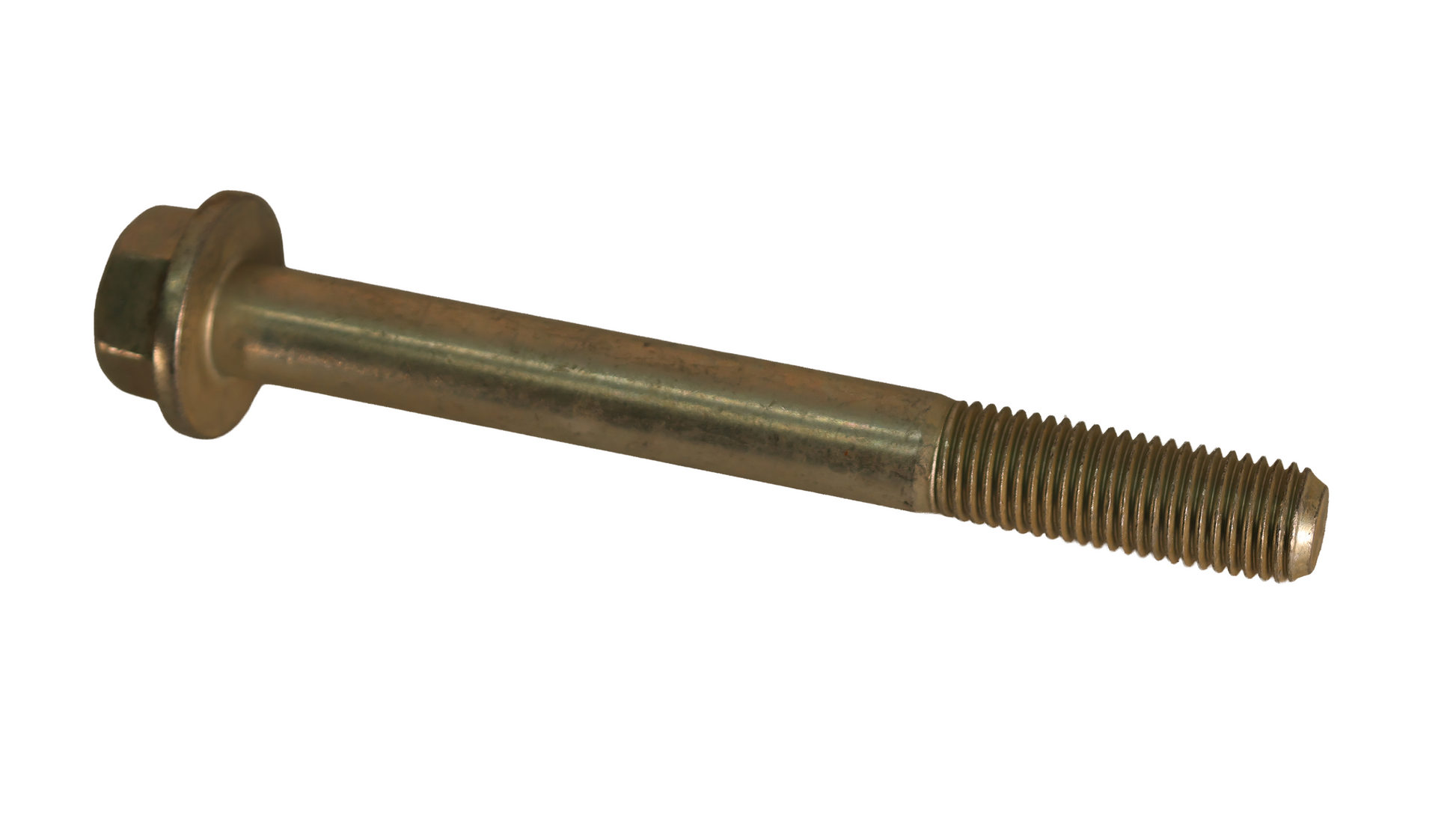

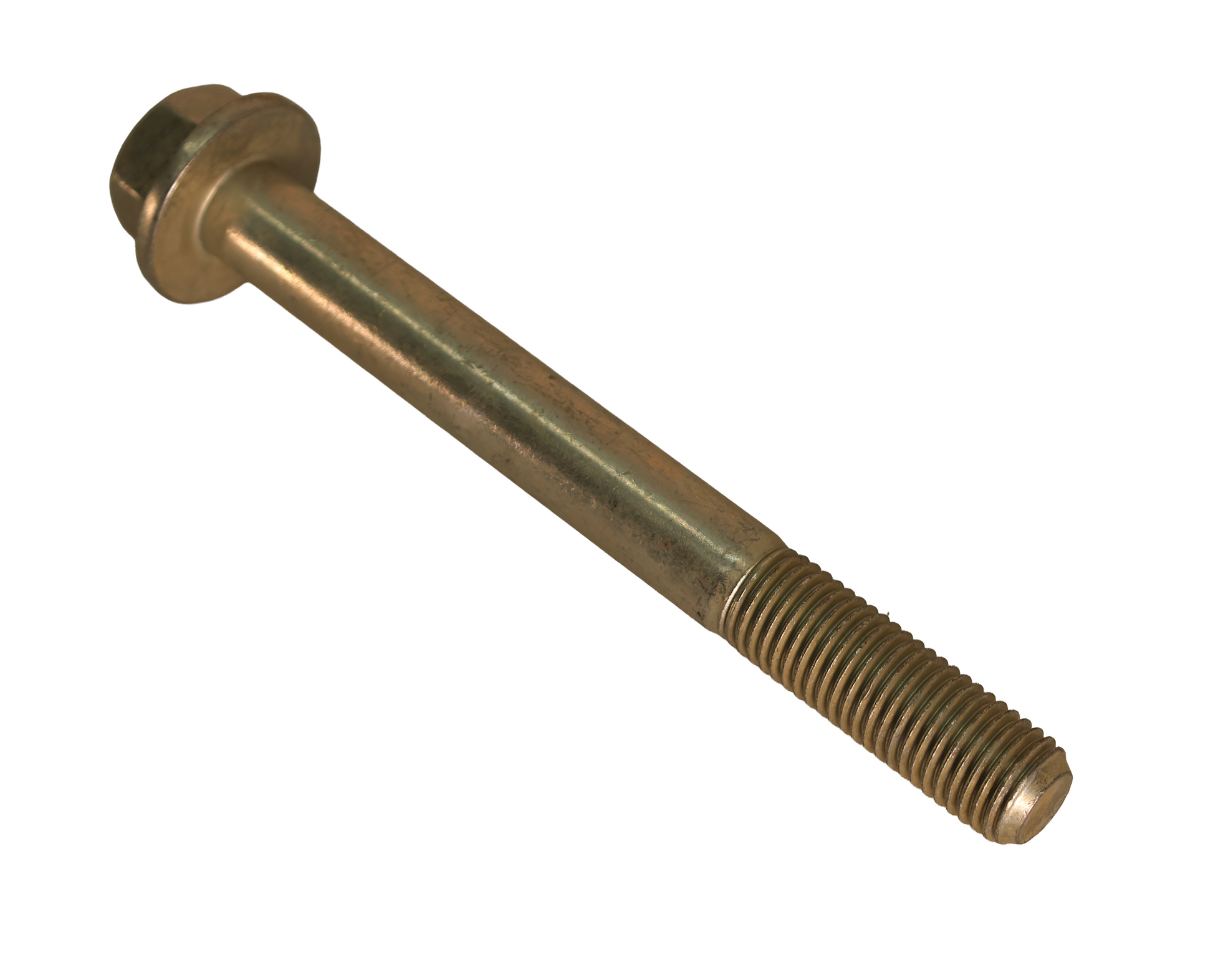

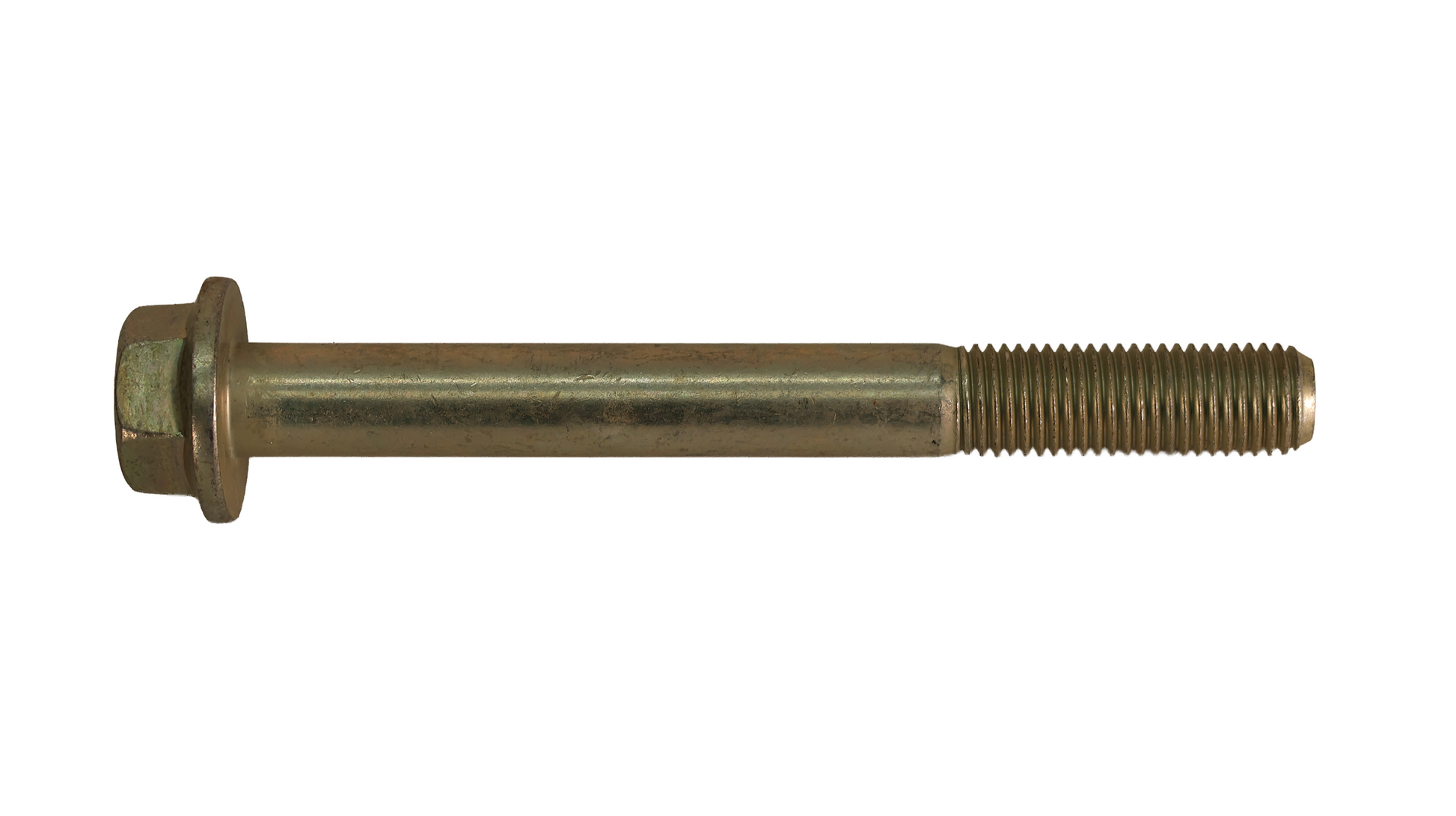

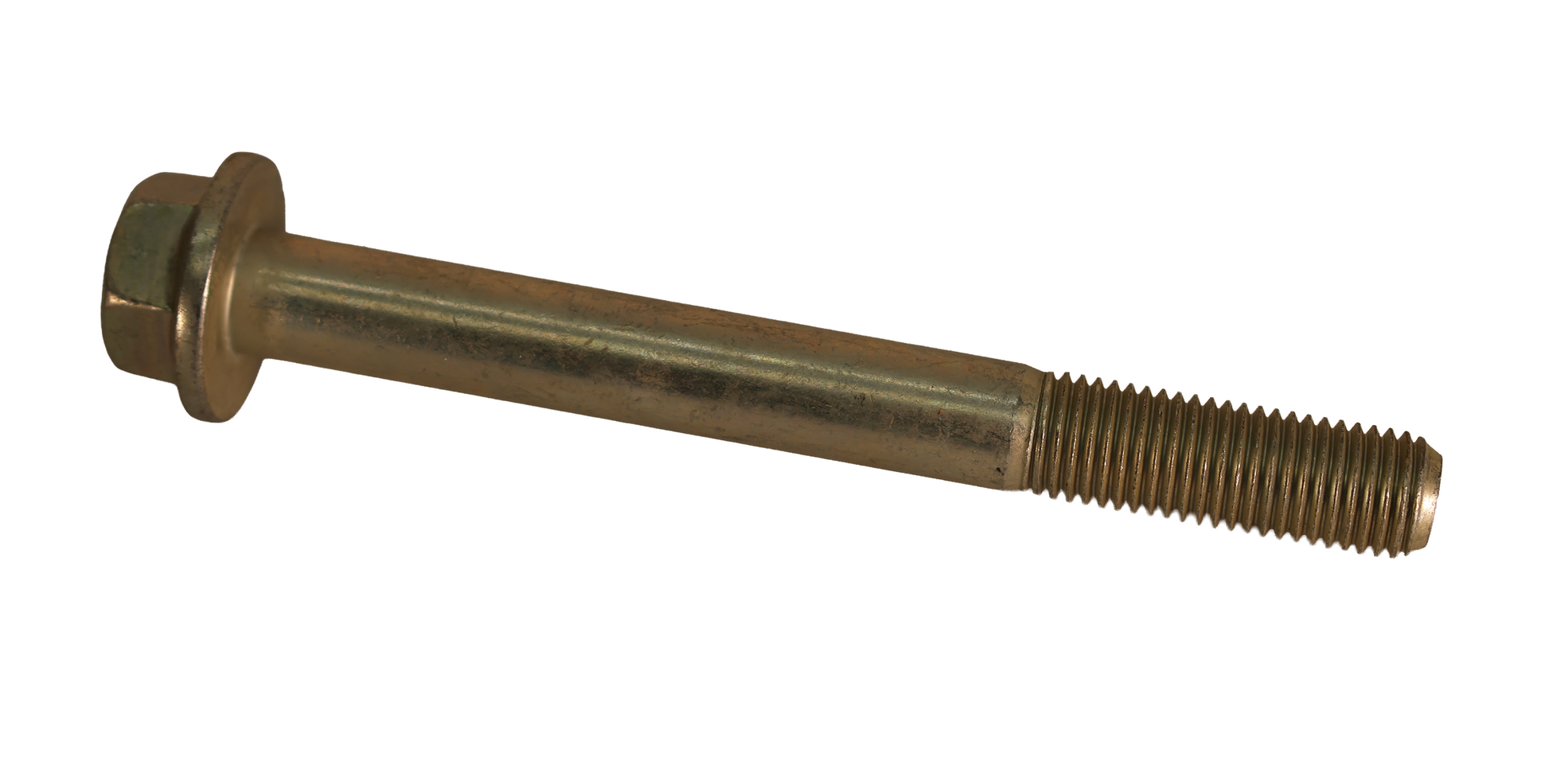

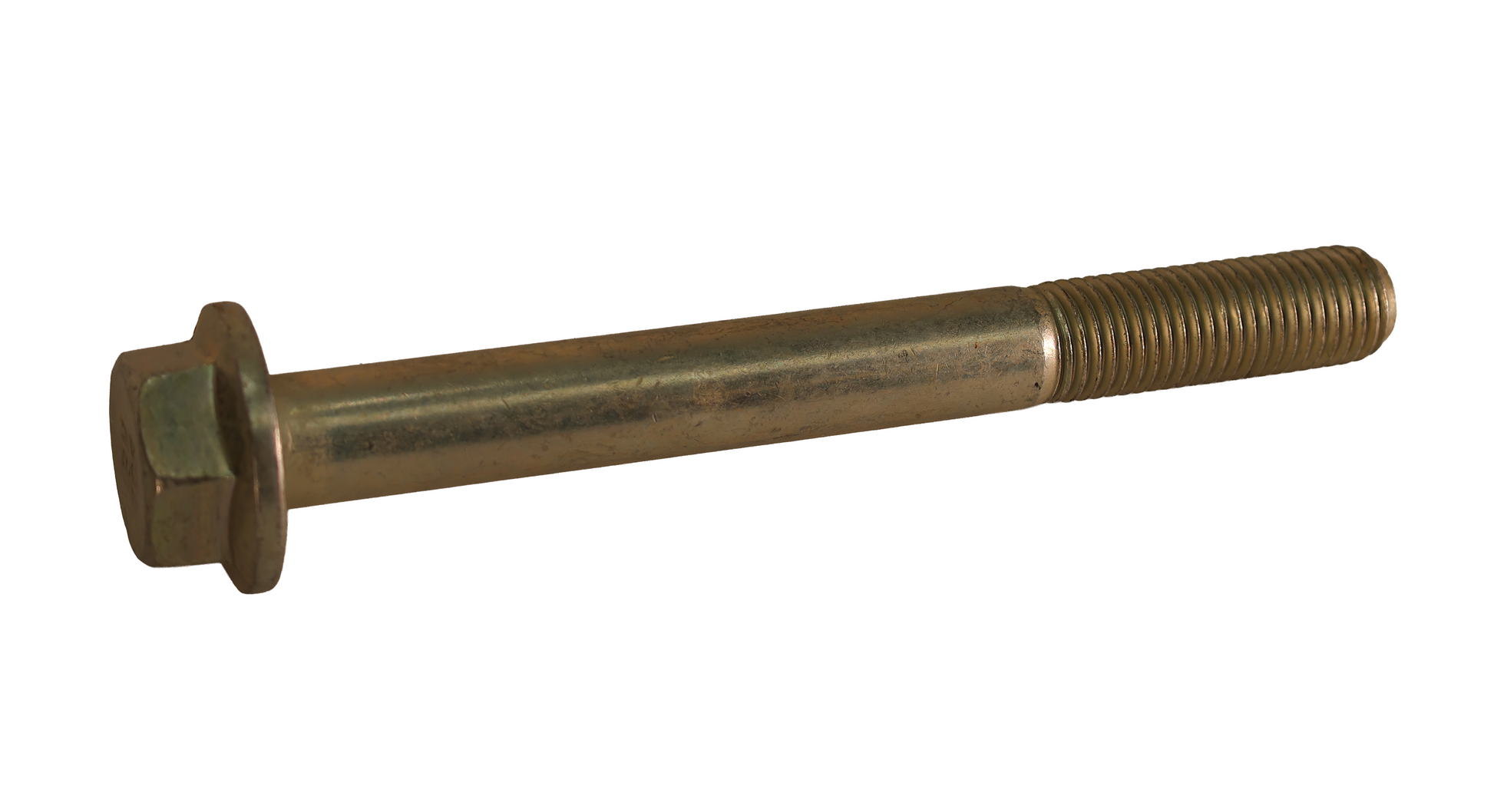

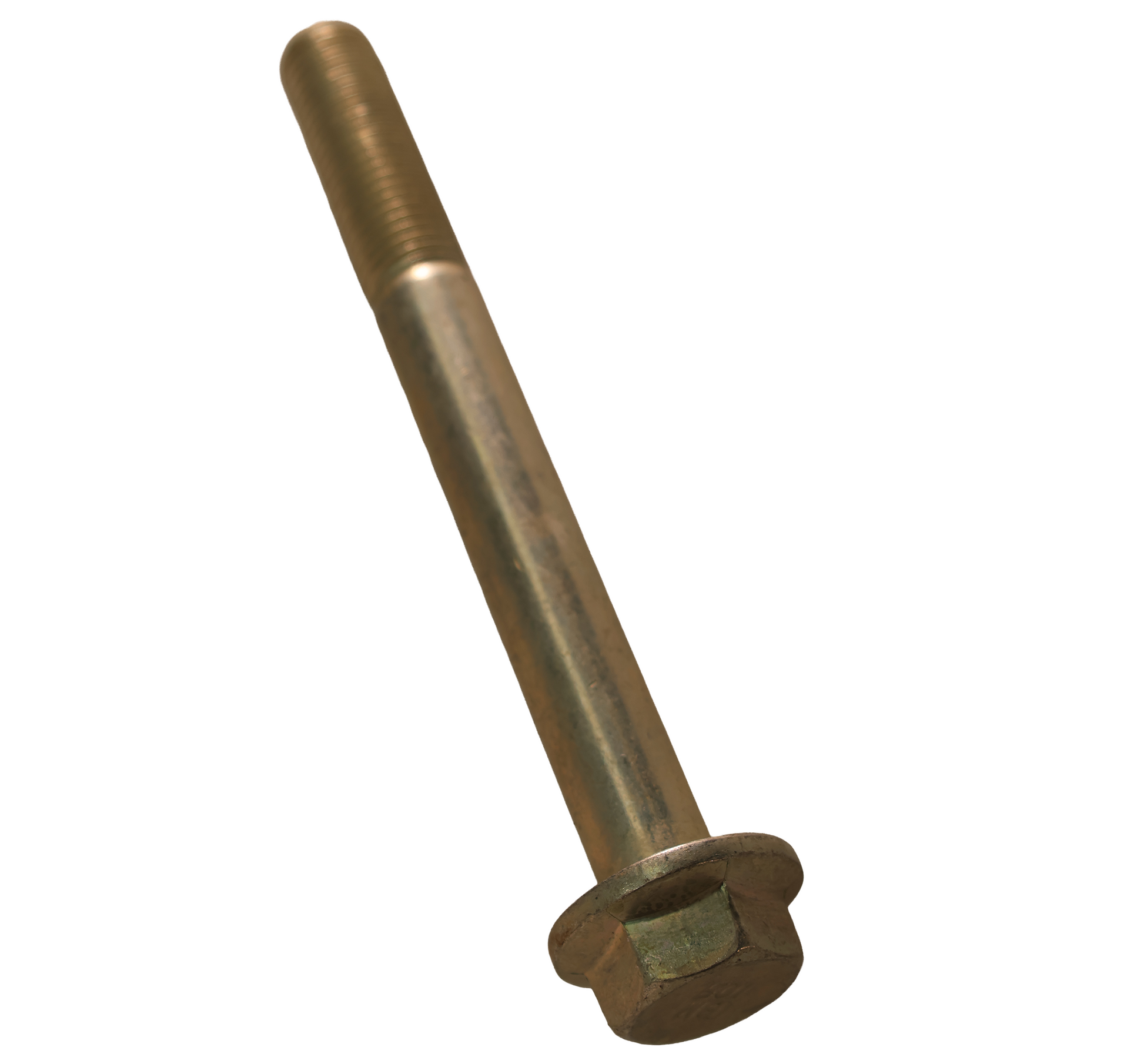

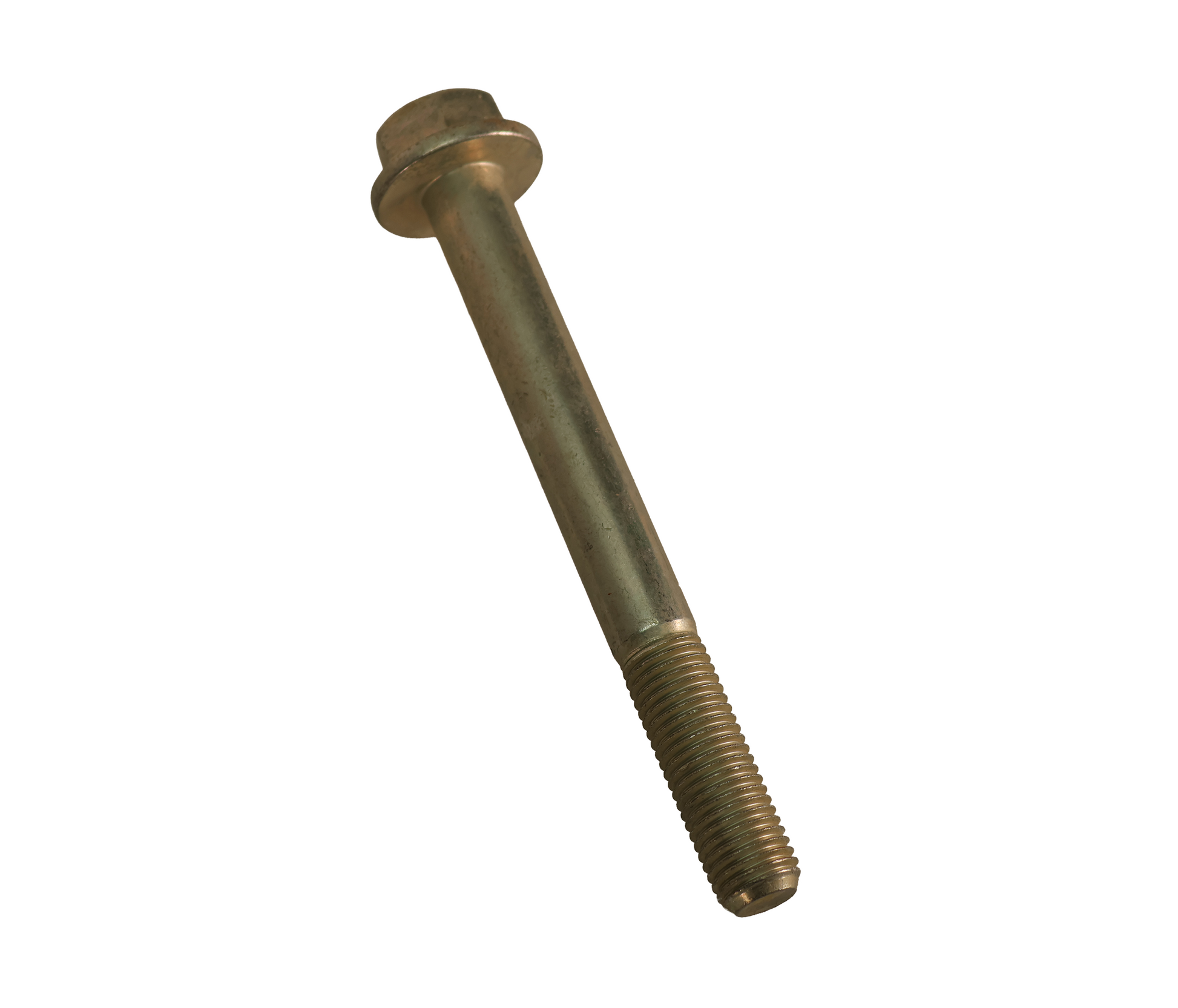

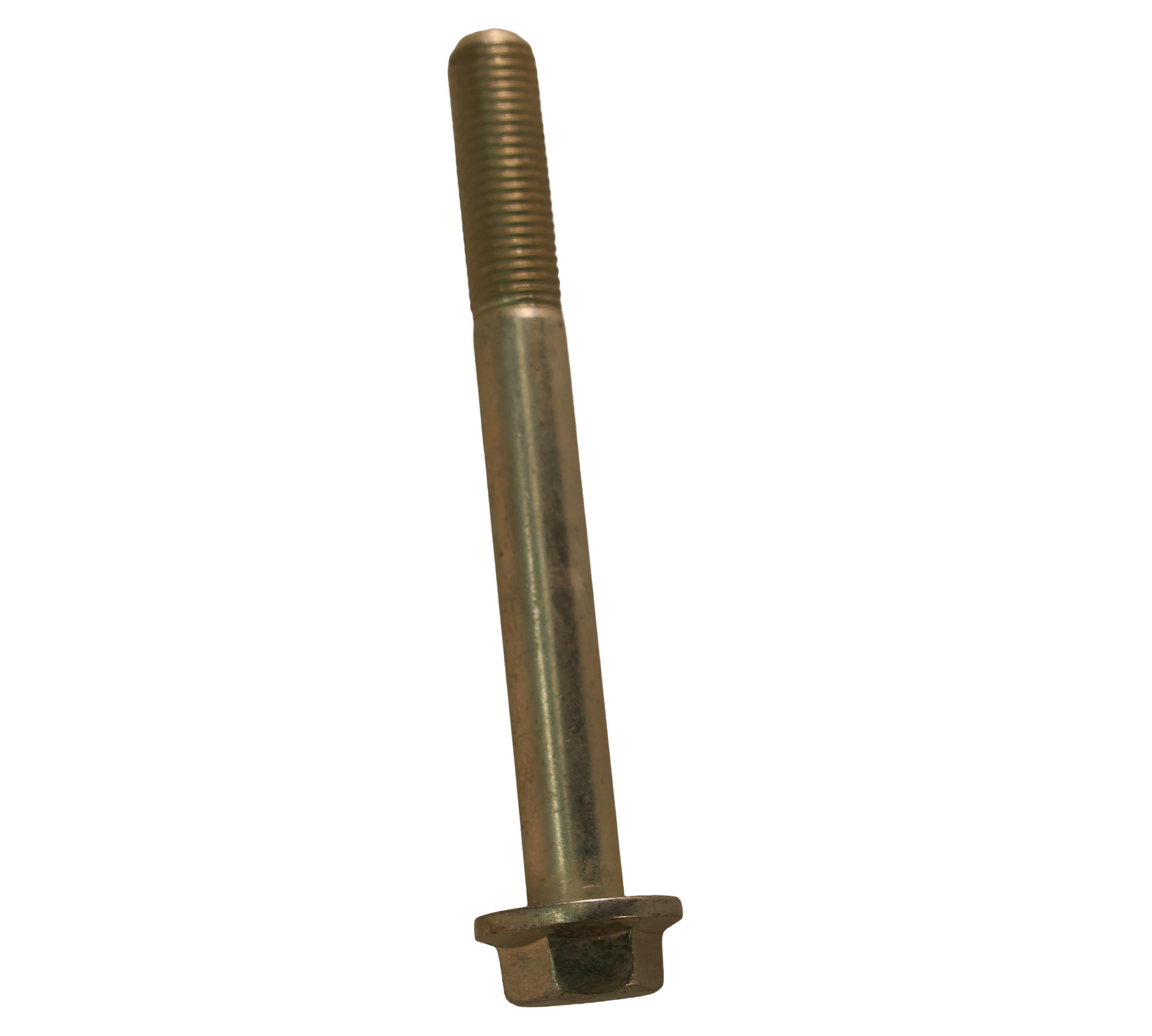

M16X150 Hexagonal Head Flanged Screw

Part Specifications:
Thread Size (MM) 16.0000
Thread Pitch (MM) 2.0000
Length (MM) 150.0000
Flange Diameter (MM) 35.0000
Head Height (MM) 15.4000
Material or Grade (ALPHA) 10.9000
Drive Size (MM) 24.0000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Planter: 1790, 1795, DB120, DB44, DB58, DB60, DB66, DB80, DB88, DB90, DB120, DB37C, DB41, DB41C, DB50C, DB55, DB60DB74, DB74C, DB80, DB83, 1795, DB37, DB90.
Air Drill: 1870.
Applicator: 2510S.
Disk: 2620, 2623, 2625.
Round Baler: 447, 448, 449, 457, 557, 458, 458S, 459, 459SS, 459STD, 459E, 467, 567, 468, 468S, 469PR, 469, 469SS, 547, 558, 559, 559SS, 568, 569PR, 568, 569PR, 569, 569SS, 440E, 450E, 450M, 451E, 451M, 451R, 460M, 460R, 461M, 461R, 550M, 551M, 560M, 560R, 561M, 561R.
Sprayer: 4710, 4720.
Row-Crop Head Combine: 1253A, 453A, 454A, 50A, 653A, 654A, 655A, 853A, 854A.
Platform Combine: 635FD, 640FD, 925D, 930D, 936D, 630FD.
Cotton Stripper: 7455, 606SH, 608SH, CS690.
Cotton Picker: 7660, 7760, 9970, CP690, 9970, CP550.
Combine: 9560STS, 9570STS, 9650STS, 9750STS, 9660STS, 9760STS, 9860STS, S550, S660, S690, S7 600, S7 700, S7 800, S7 900, 9670STS, 9770STS, 9870STS, S650, S660, S670, S680, S680H, S690, S690HM, S7 600, S7 700, S7 800, S7 900, S760, S770, S780, S785, S790, T5 400, T5 500, T5 600, T5 700, T550, T560, T6 500, T6 600, T6 700, T6 800, T660, T670, W540, W550, W650, W660, 1000, X9 1000, 1100, X9 100.
Large Square Baler: L330, L340, L331, L331R, L341, L341R.
Windrower: 3430, 3830.
Ensilage and Forage Harvester: 7180, 7200, 7300, 7400, 7500, 7250, 7350, 7450, 7480, 7550, 7580, 7700, 7800, QSX15, 7750, 7780, 7850, 7950, QSK19, 7980, F8 100, F8 200, F8 300, F8 400, F8 500, F8 600, F9 100, D9512, F9 500, F9 600, F9 700, F9 900.
Fairway Mower: 7200, 7400, 8000.
Turf System Mower: 8000.
Front Mower: 8400.
Track Feller Buncher: 853J, 903J, 909J, 959J, 953J.
Harvester: 853JH, 903JH, 909J, 959J, 909JH.
Crawler Dozer: 950P, 950K.

This is an O.E.M. John Deere part.
