John Deere Original Equipment Screw - 19M7798

John Deere Original Equipment Screw - 19M7798

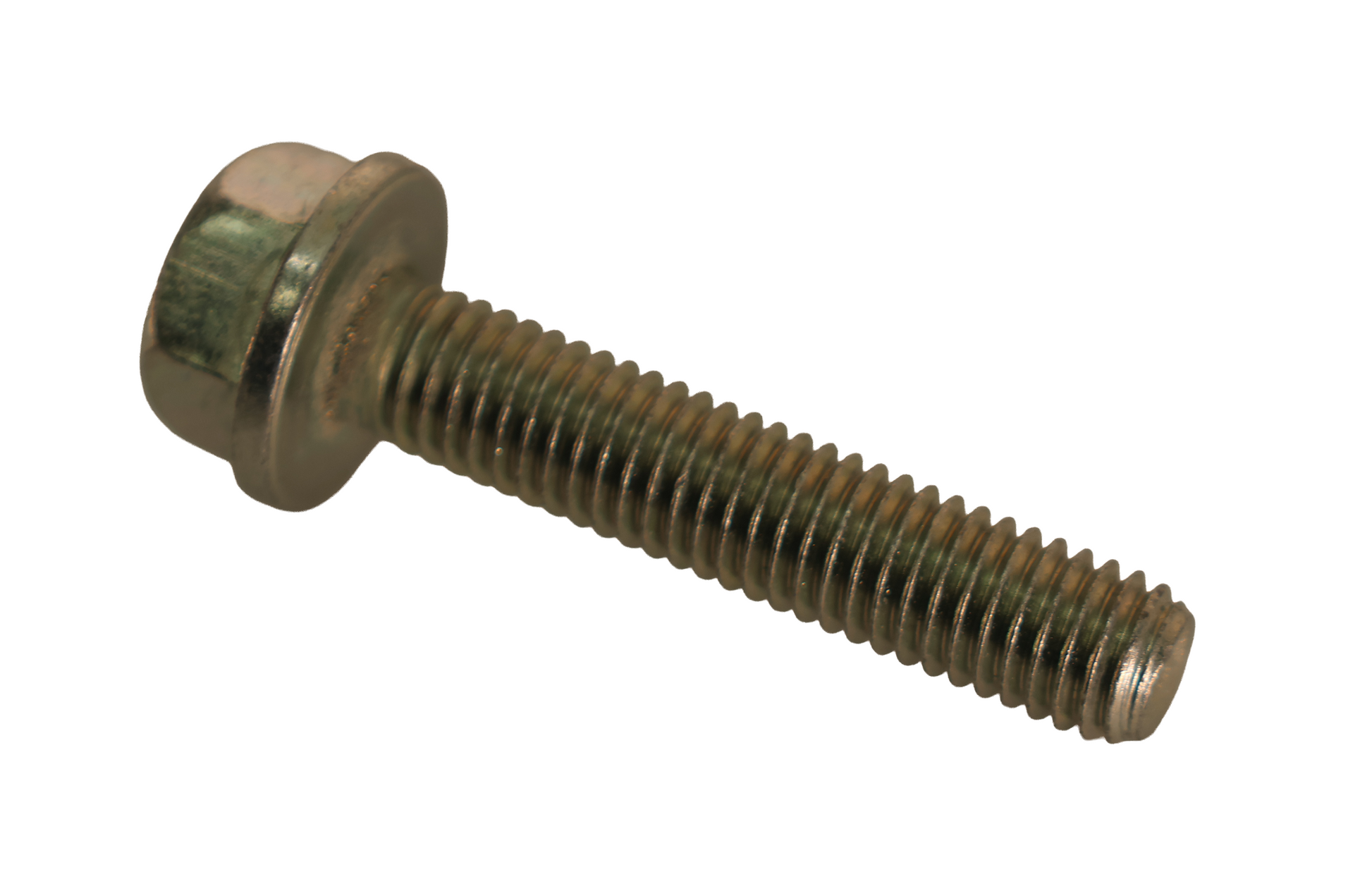

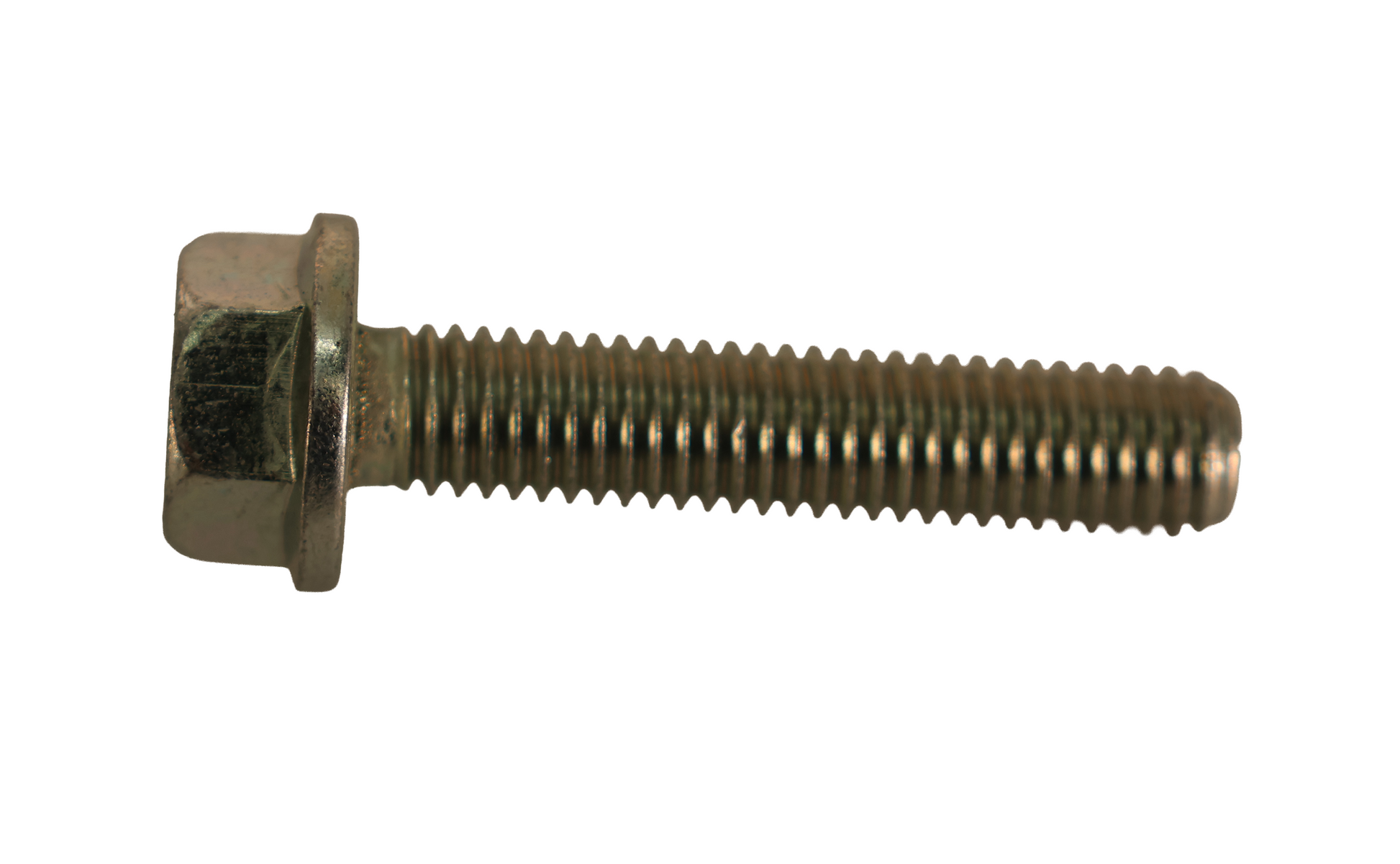

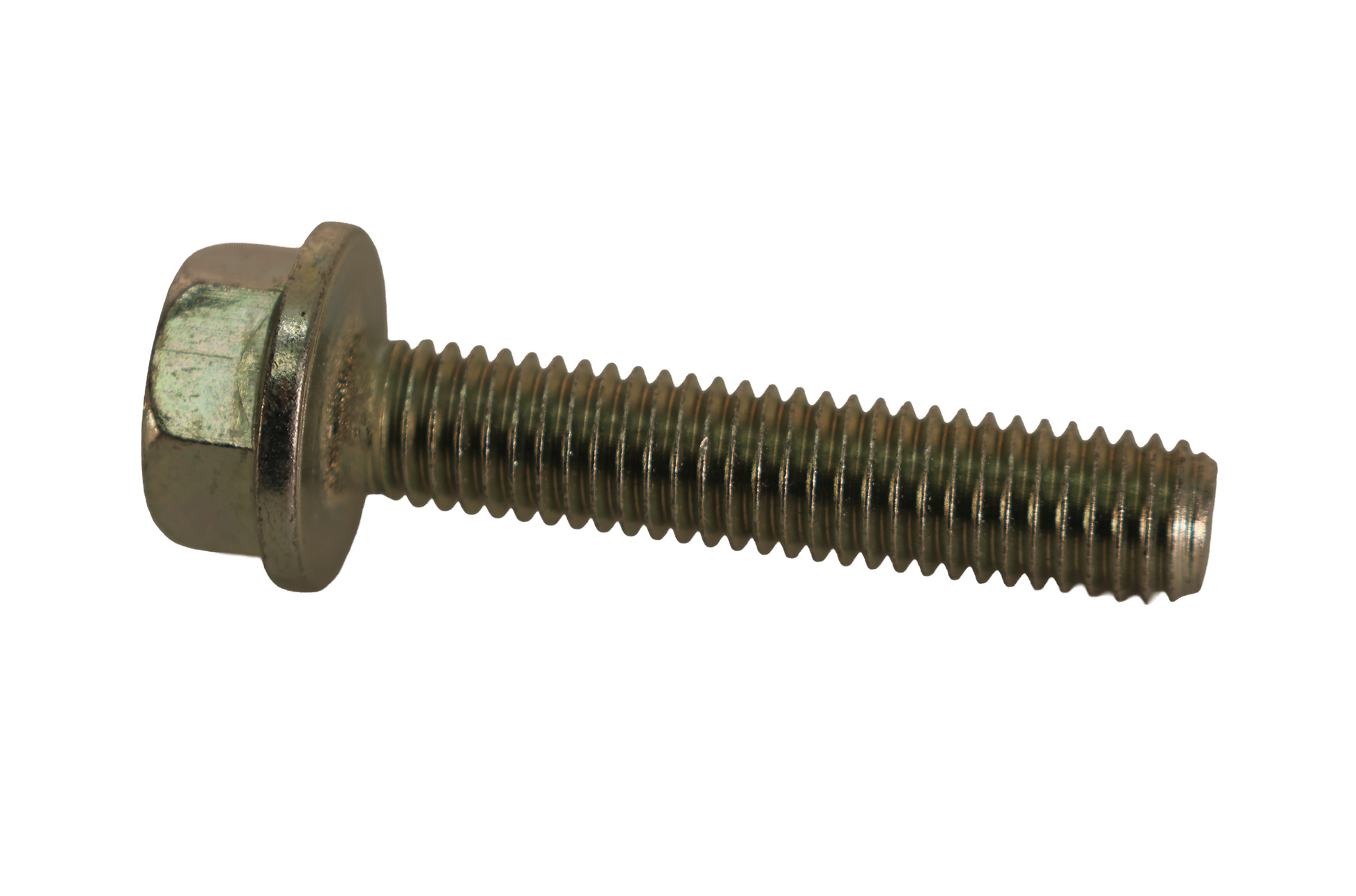

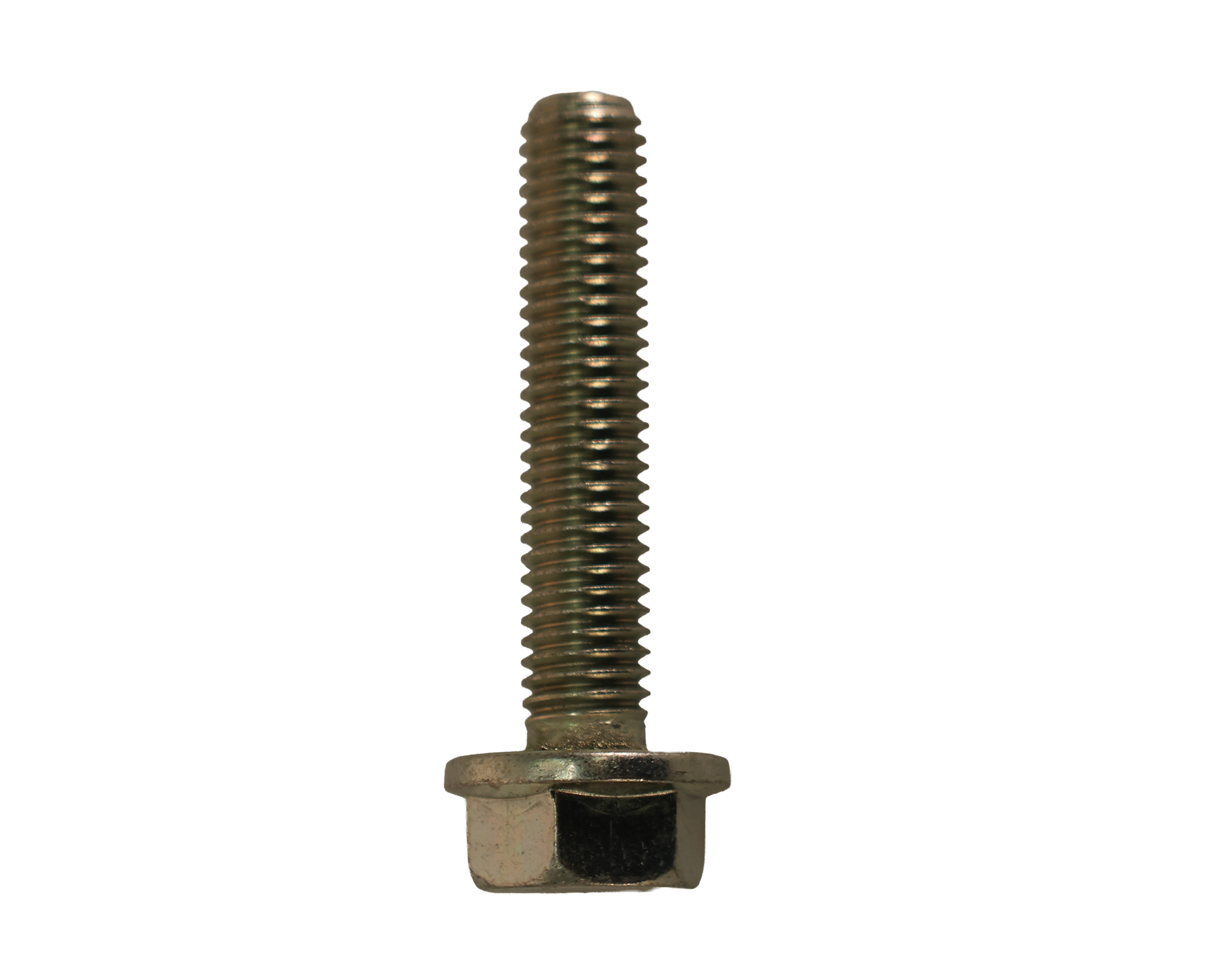

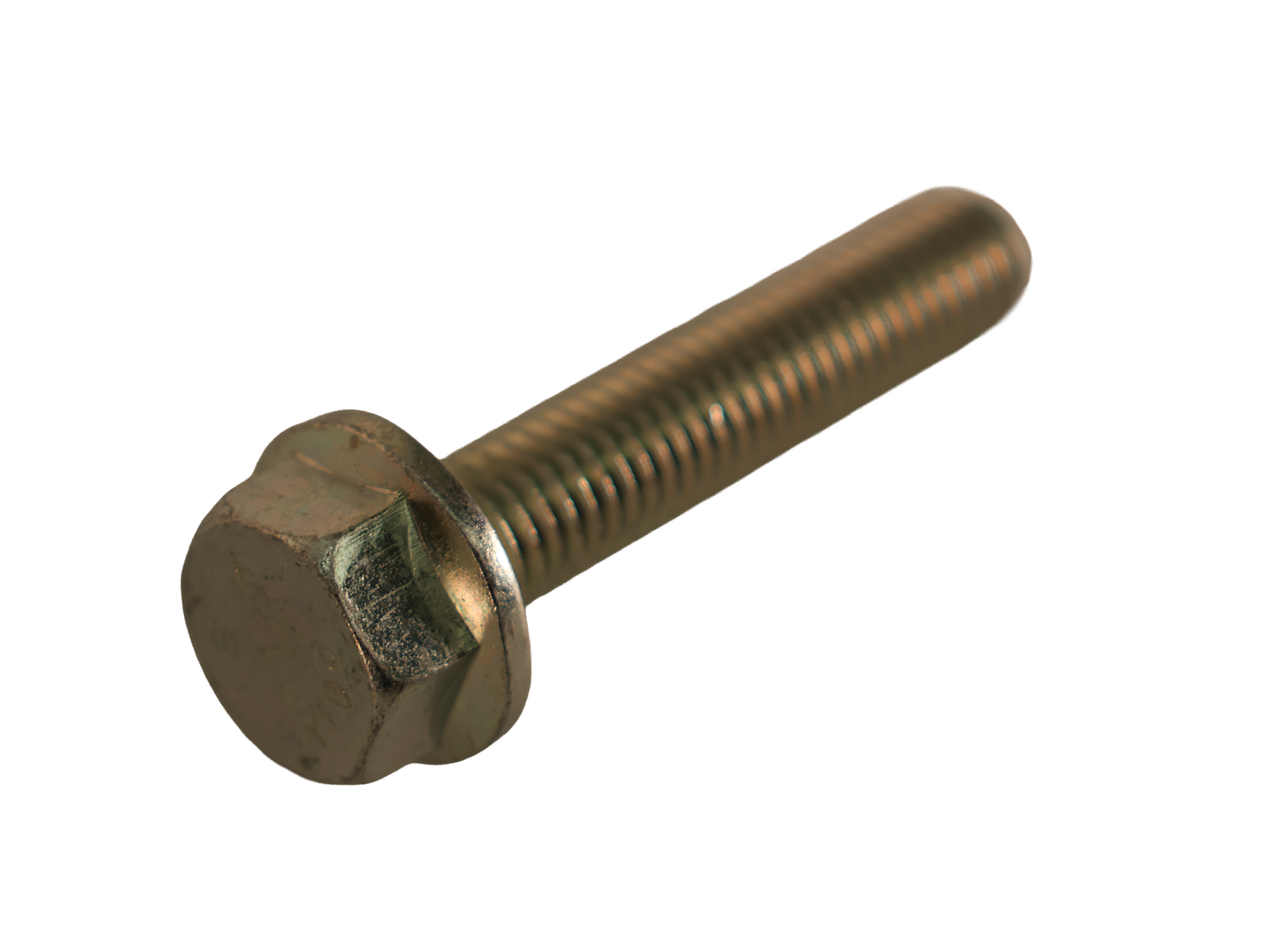

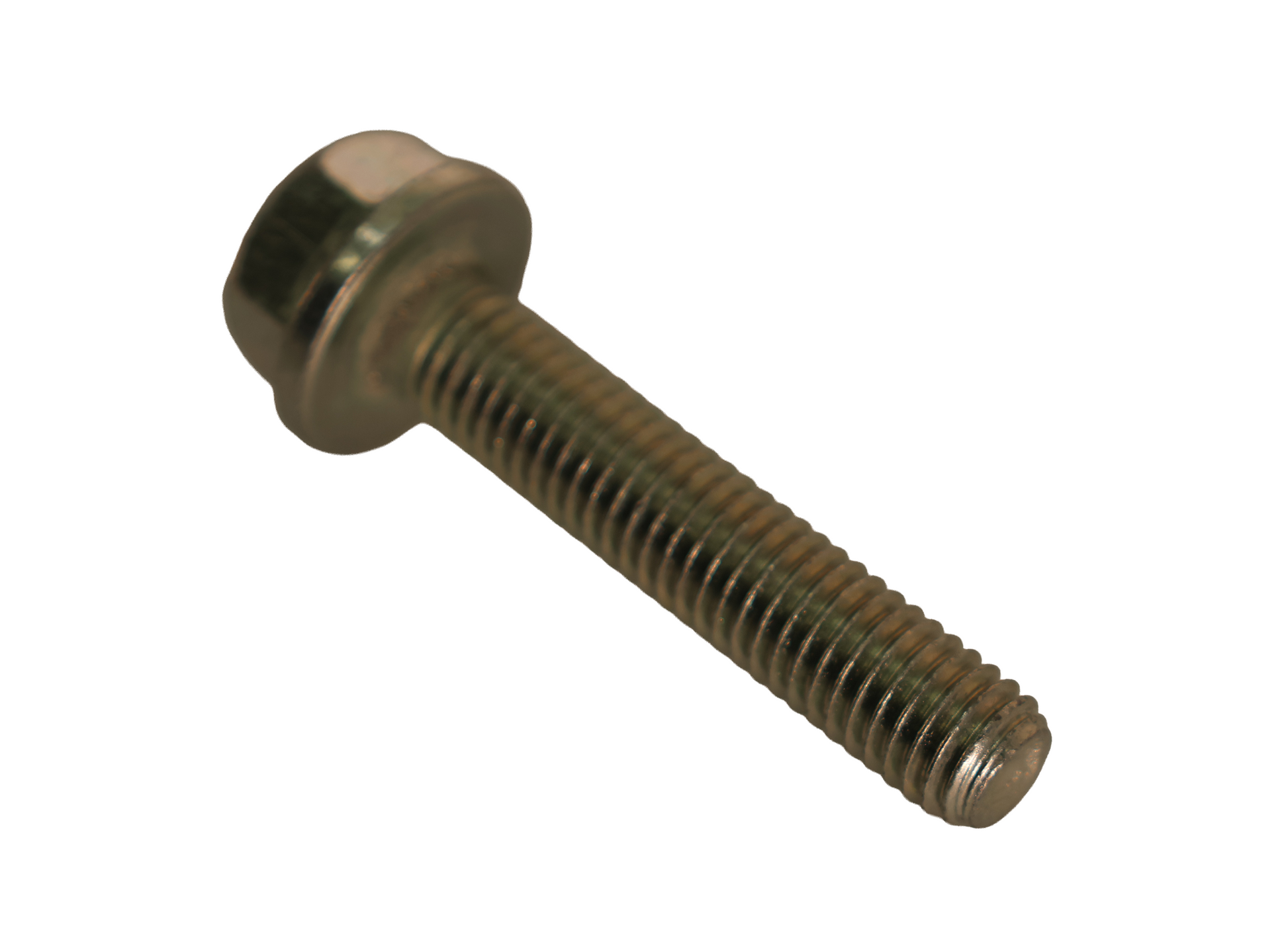

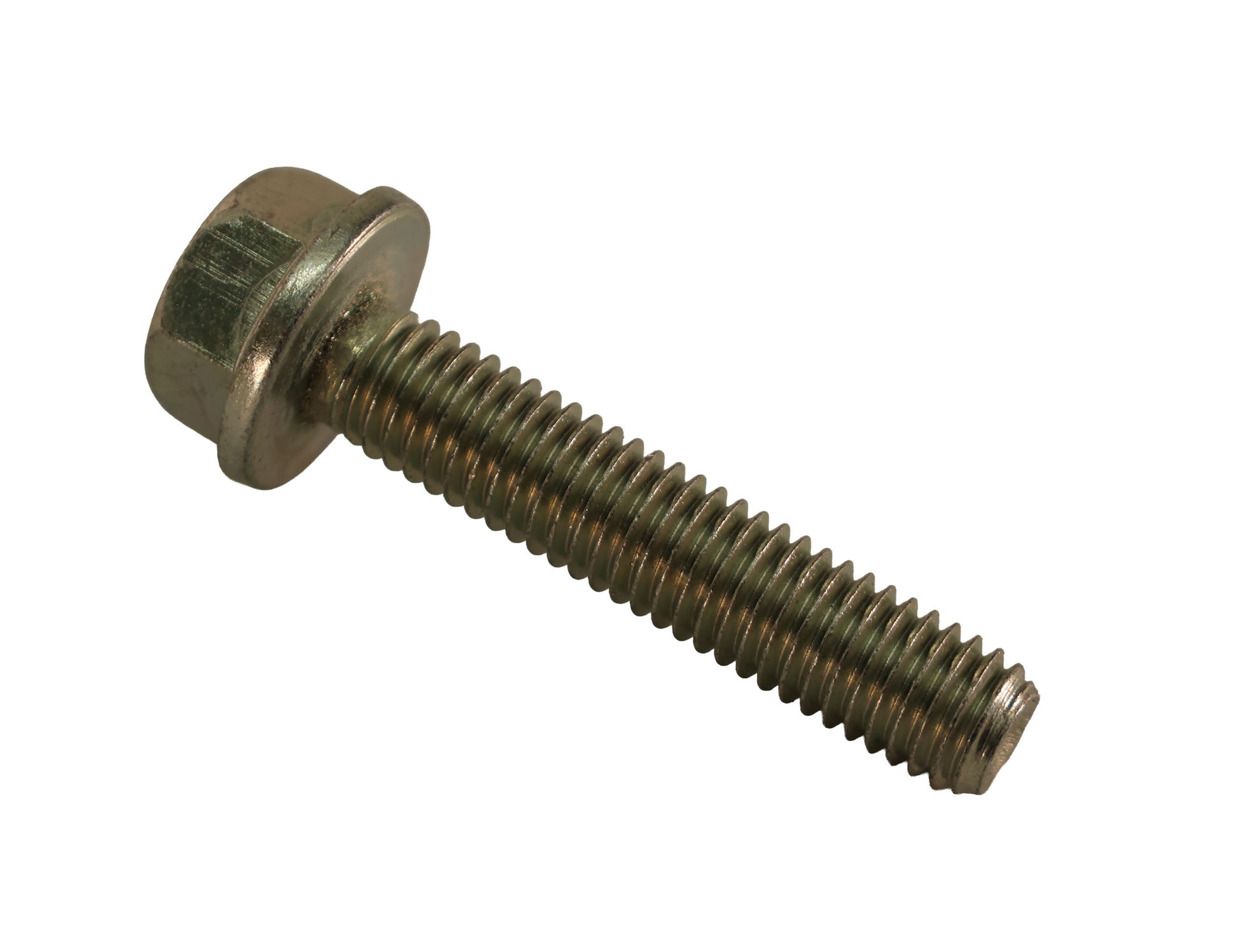

M8 X 40 Hexagonal Head Flanged Screw

Part Specifications:
Thread Size (MM) 8.00000
Thread Pitch (MM) 1.2500
Length (MM) 40.0000
Thread Length (MM) 36.2500
Flange Diameter (MM) 18.0000
Head Height (MM) 8.1000
Material or Grade (ALPHA) 10.9000
Drive Size (MM) 13.0000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Planter: 1720, 1725C, CH530, DB37C, DB41, DB55C, DB60, DB62, DB74, DB83, MP512, MP516, DB37, DB55.
Compact Utility Tractor: 3036E, 4052M, 2720, 3033R, 3039R, 3046R, 4044M, 4044R, 4052M, 4052R, 4066M, 4066R.
Round Baler: 447, 458, 458S, 468, 468S, 547, 558.
Sprayer: 4730, 4940.
Tractor: 5083E, 5093E, 5101E, 5130M, 6155M, 6155MH, 6175M, 6230R, 6250R, 6R 145, 6R 155, 6R 165, 6R 175, 6R 215, 6R 230, 6195M,  7630, 7730, 7830, 7930, 8130, 8225R, 8230, 8330, 8430, 8530, 9230, 9330, 9410R, 9430, 9430T, 9460R, 9460RT, 9510R, 9510RT, 9530, 9530T, 9560R, 9560RT, 9630, 9630T, 9RT 490, 9RT 540, 9RT 590.
Commodity Cart: Air Cart, C350T, 350L, C400L, C400T, C500L, C500T, C550L, C550T, C650L, C650T.
Harvester: CH530, 1070E, 1170E, 1270G, 1270G, 1470G.
Quik-Trak: Q810E, Q820E.
Combine: S550, S660, S670HM, S690, S7 600, S7 700, S7 800, S7 900, S670, S680, S680H, S690HM, S760, S770, S780, S785, S790, T550, T560, T660, W540, W550, W650, W660.
Forwarder: 1510E, 1910G.
Loader Backhoe: 410K TC, 710K.
Platform Combine: 625F.
Ensilage and Forage Harvester: 8100, 8200, 8300, 8400, 8500, 8600, 9600, 9700, D9512, 9800, 9900.
Four-Wheel Drive Loader: 824K, 844K.
Cotton Picker: 9970.
Large Square Baler: L331R, L341R.

This is an O.E.M. John Deere part.
