John Deere Original Equipment Pressed Flanged Housing - H103265

John Deere Original Equipment Pressed Flanged Housing - H103265

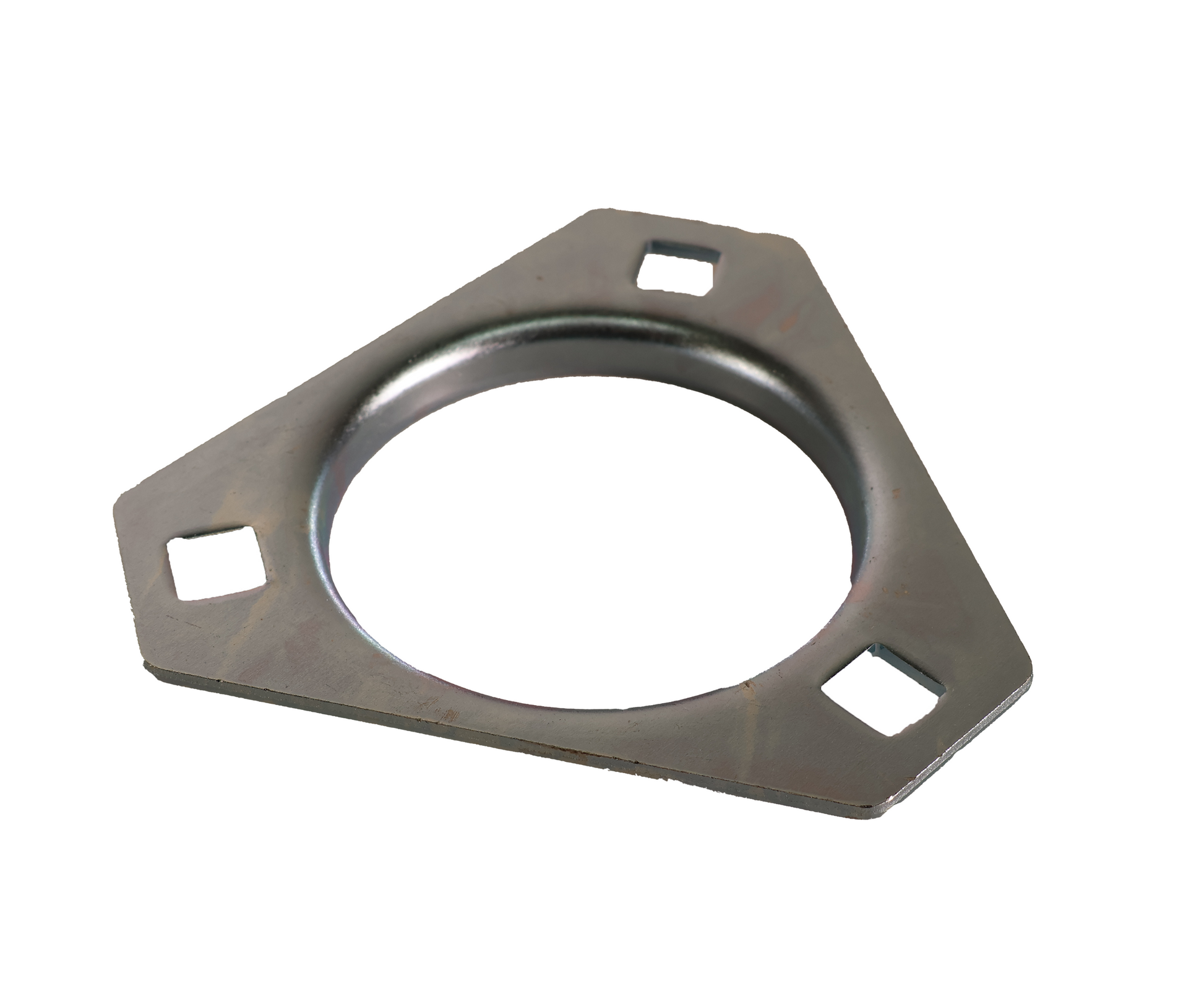

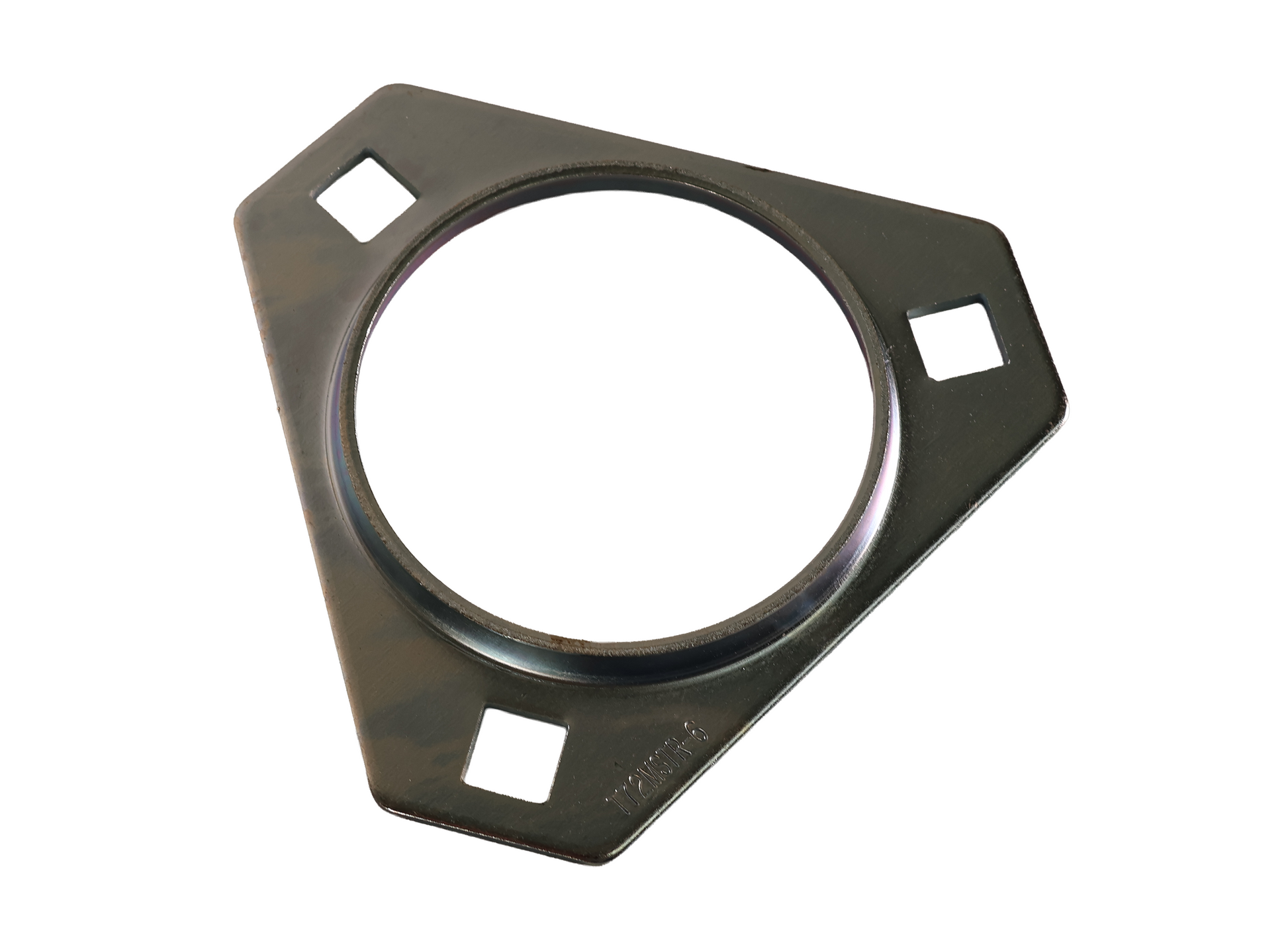

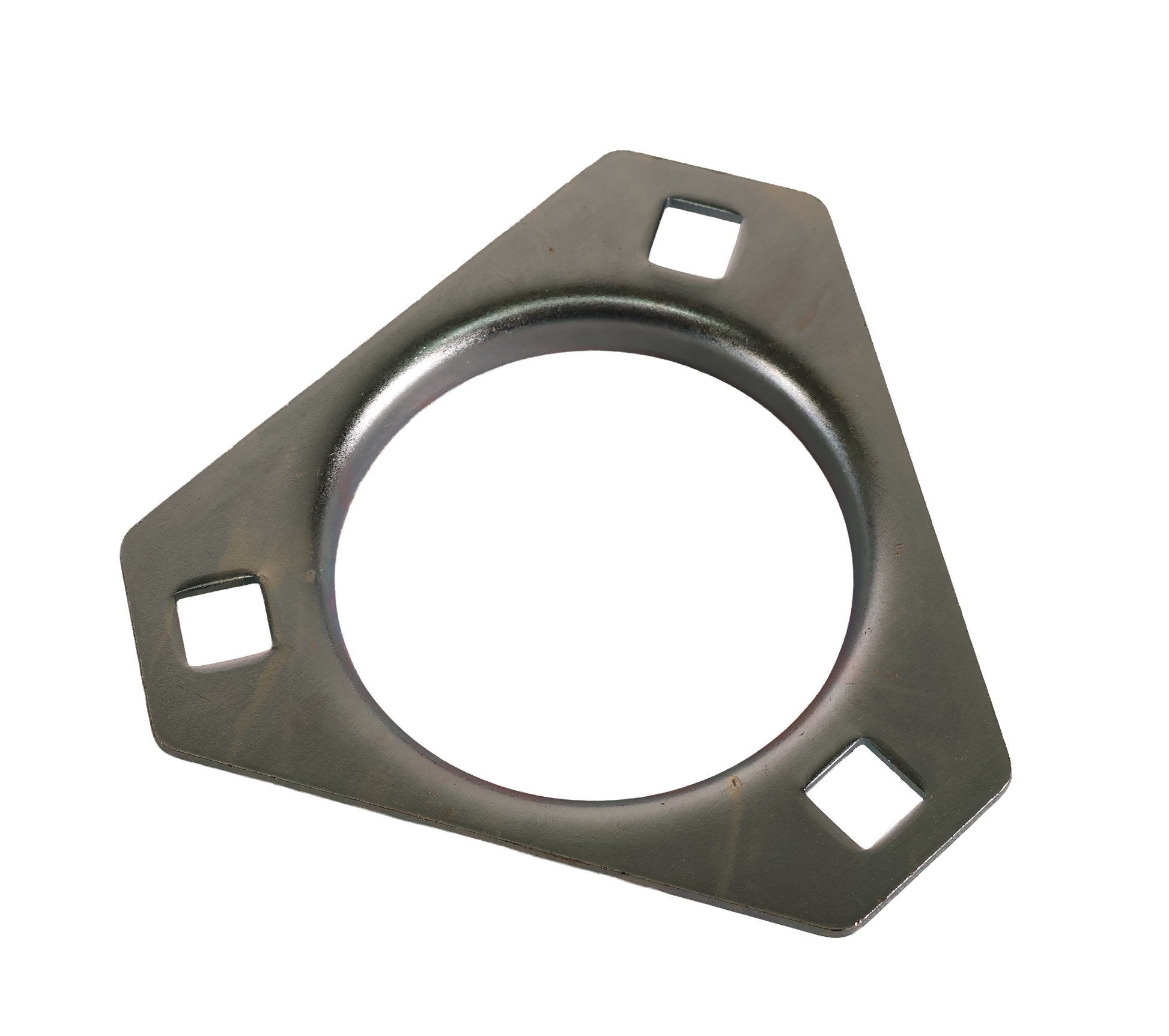

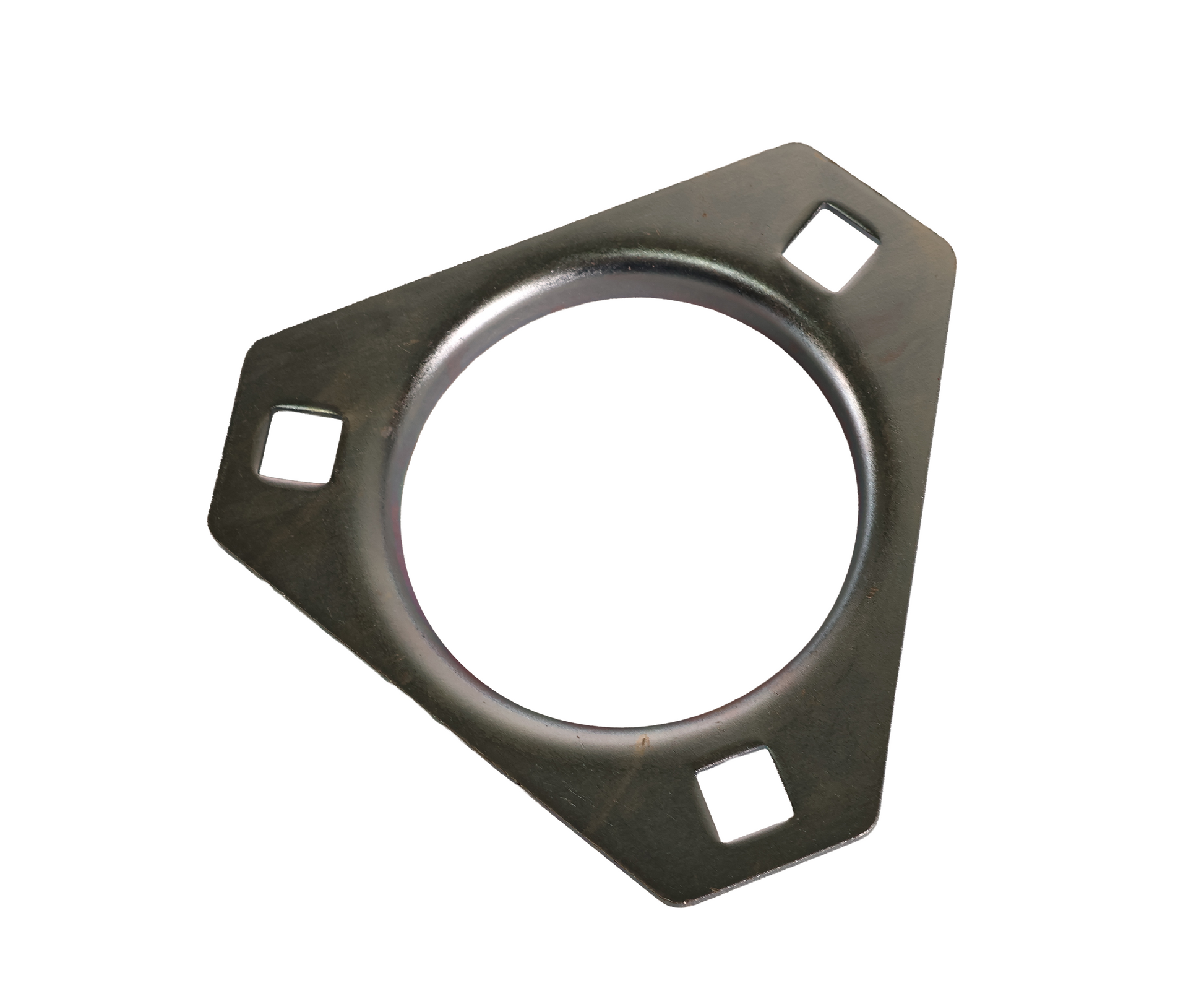

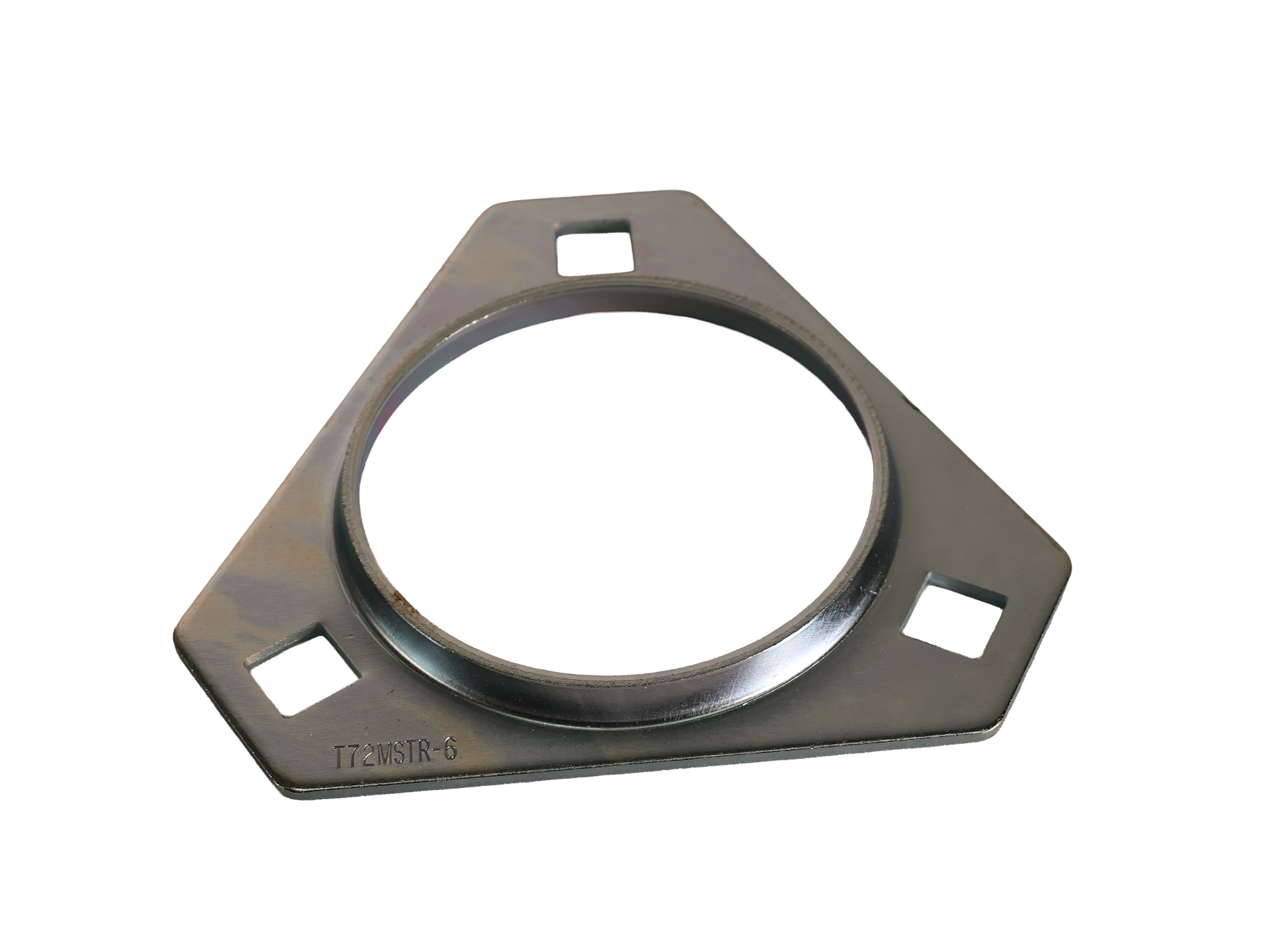

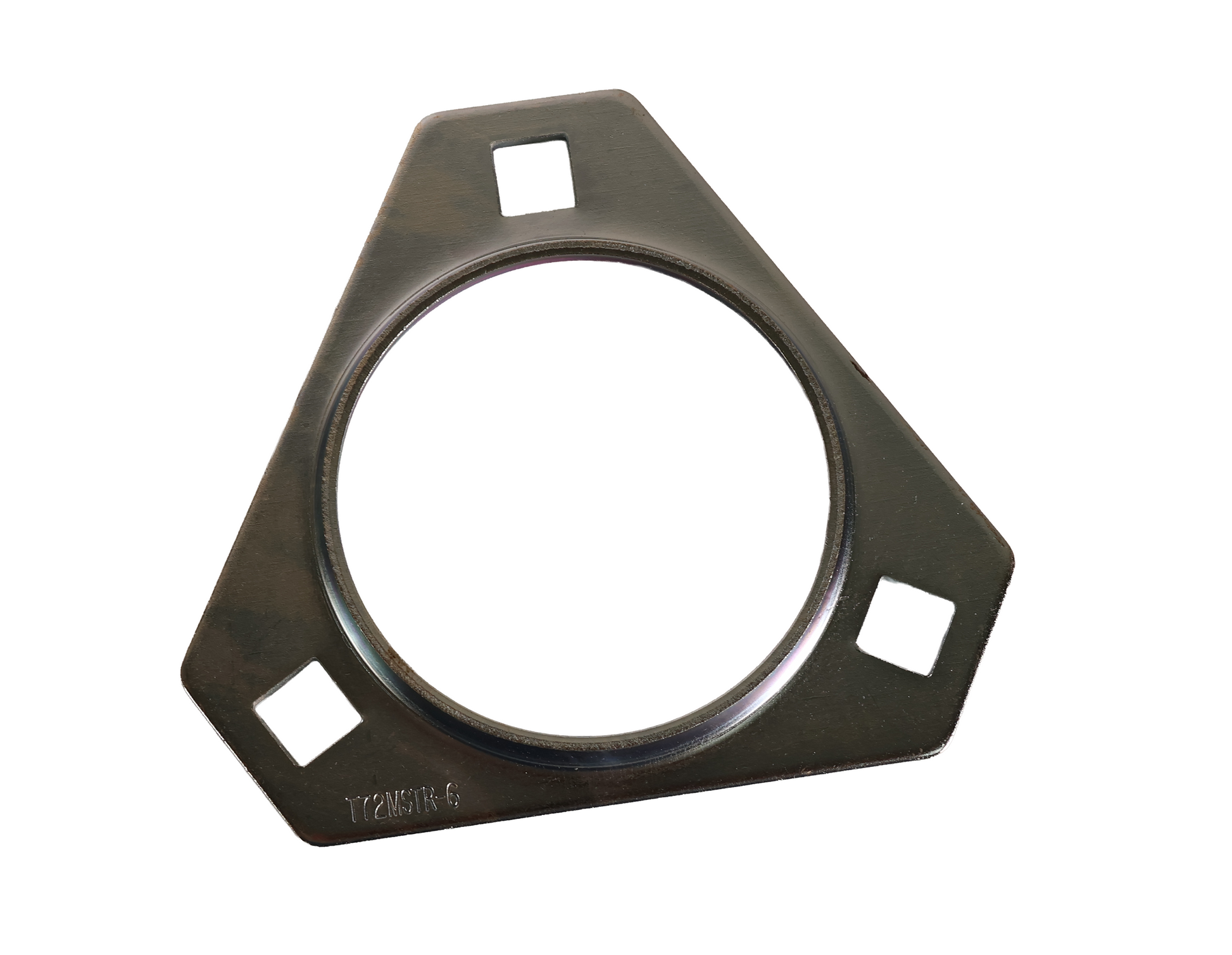

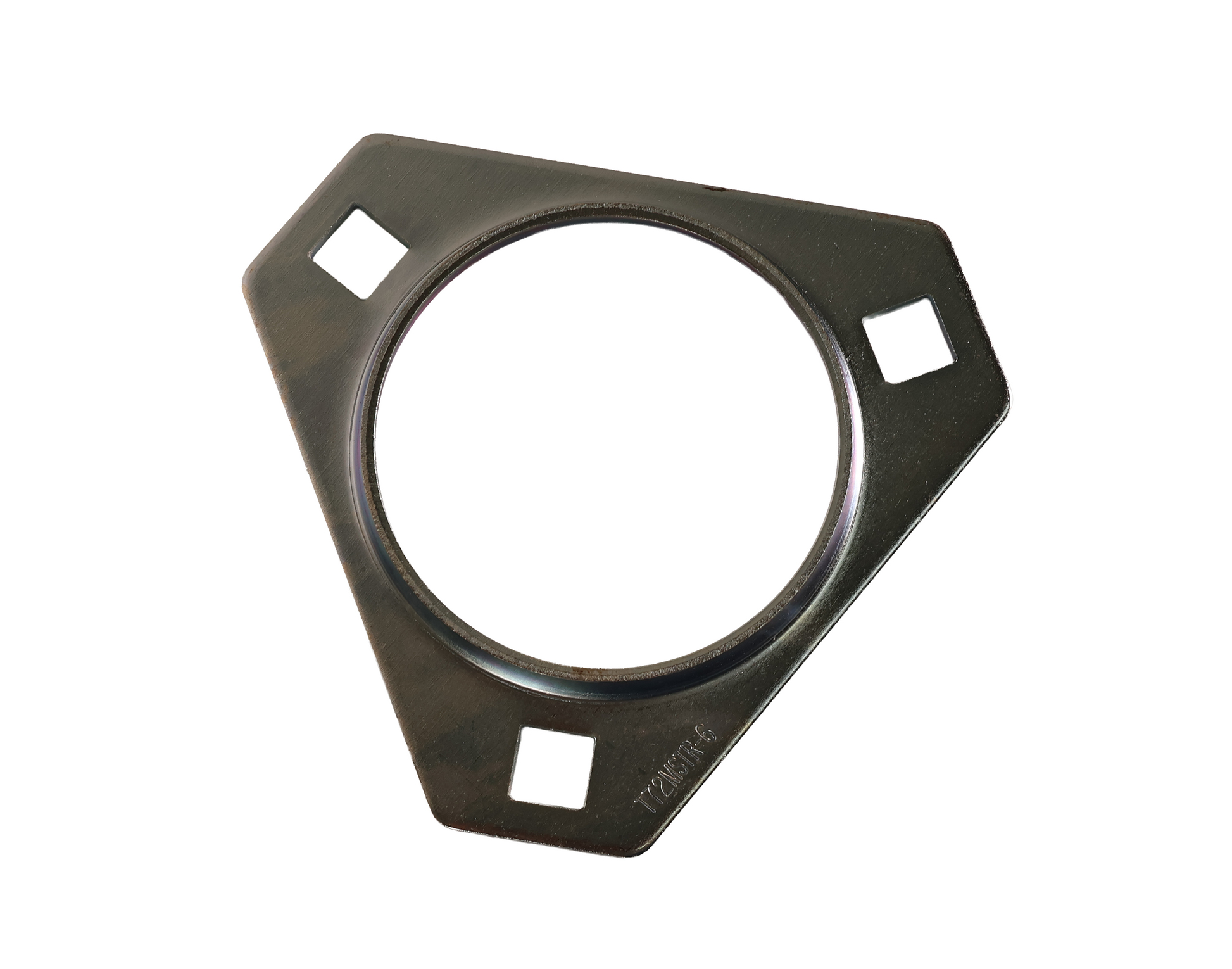

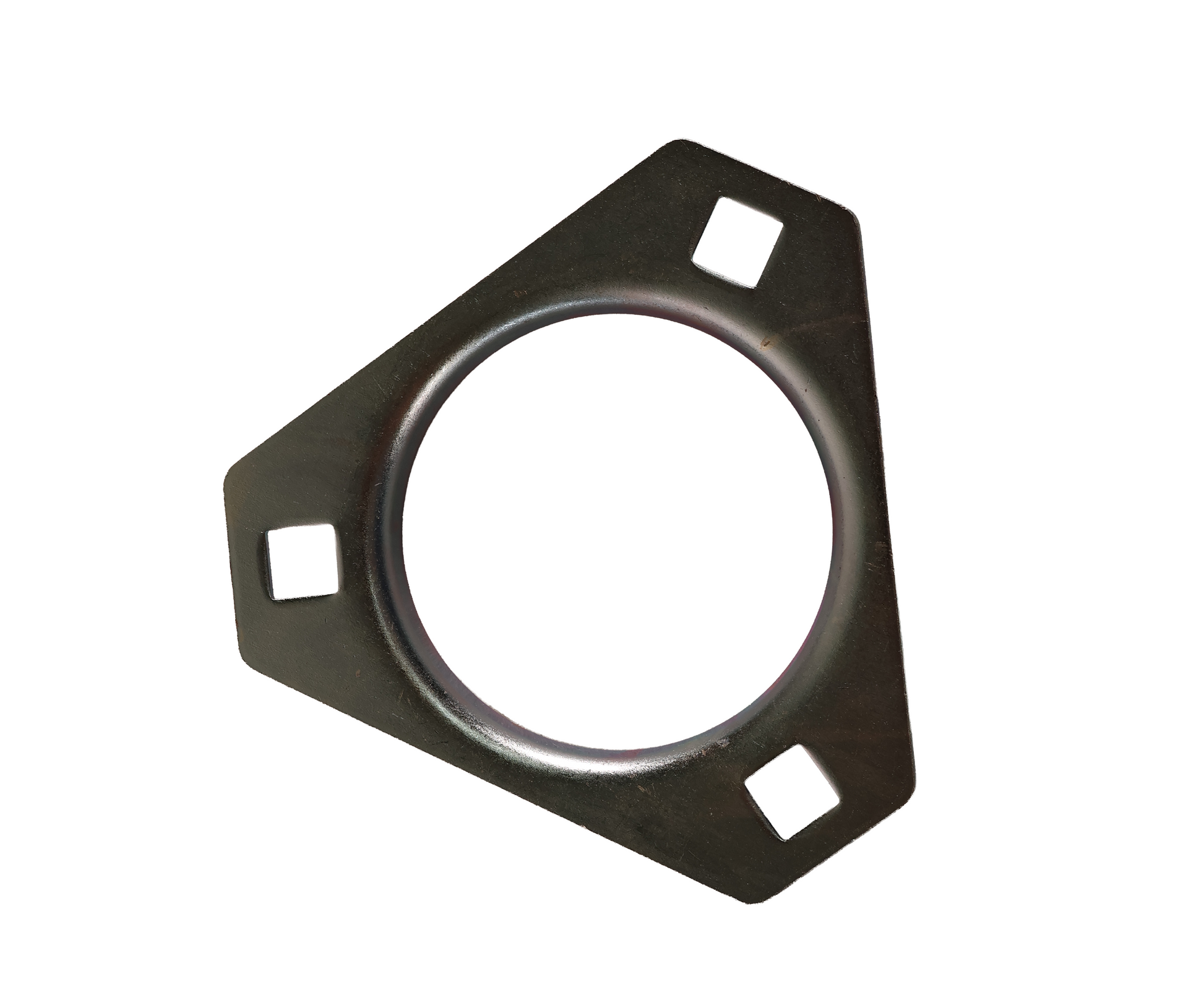

Flanged Bearing Housing

Part Specifications:
Spherical Diameter (IN) 2.8346
BC Diameter (IN) 3.9409
See Sketch (IN) 4.1890
Hole Size (IN) 0.4331
Thickness (IN) 0.1039
Trim Size (IN) 1.2520
Standout (IN) 0.3750
Material (ALPHA) A4-2
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models;
Rotary Cutter: 1008, 1018, 1418, 1508, 509, 609, 709, HX10, HX14, RC100R, RC14R.
Planter: 1780, 1785, 1790, DB120, DB44, DB58, DB60, DB66, DB80, DB88, DB90, DB37C, DB41, DB41C, DB53, DB55, DB55C, DB60, DB62, DB74, DB83, 7240.
Platform Combine: 200, 213, 215, 216, 218, 220, 222, 224, 230, 218, 625D, 630D, 635D, 635FD, 640D, 640FD, 725D, 730D, 735D, 740D, 900, 913 F, 913 R, 913, 915 F, 915 R, 915, 916 F, 916 R, 916, 918 F, 918 R, 918, 920 F, 920 R, 920, 922 F, 922 R, 922, 924 F, 924 R, 924, 925 F, 925 R, 925, 930F, 930R, 930, 900, 913, 915, 918, 920, 922, 924,925, 930, 918, 920, 925D, 930D, 936D, 615P,622X, 625X, 630FD, 630X, 635FD, 635X640FD, 640X, 645FD, 722X, 722, 725X, 725, 730X, 730, 730FD, 730X, 735X, 735, 735FD, 735X, 740X, 740, 740FD, 745FD.
Combine: 3300, 4420, 6601, 6620, 6622, 7720, 7721, 8820, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, SH9510, 9550SH, 9550, 9560SH, 9560, 9560 STS, 9570 STS, 9600, 9610, 9650CTS, 9650, 9650 STS, 9750 STS, 9660 CTS, 9660, 9660 STS, 9760 STS, 9750 STS, 9860 STS, S550, S660, S670HM, S690, S7 700, S7 800, S7 900, T560, W540, 9640WTS, 9640i WTS, 9660WTS, 9660i WTS, 9680WTS, 9680i WTS, 9670 STS, 9770 STS, 9780CTS, 9780iCTS, 9870 STS, C670, S650, S660, S670, S680, S680HM, S690, S690HM, S7 600, S7 700, S7 800, S7 900, S760, S770, S780, S785, S790, T5 400, T5 500, T5 600, T5 700, T550, T560, T6 500, T6 600, T6 700, T6 800, T660, T670, W540, W550, W650, W660.
Manure Spreader: 450, 455, 780, 785, 660, 680.
Row-Crop Head Combine: 453, 454, 50, 554, 653, 654, 853, 1253A, 453A, 454A, 50A, 653A, 654A, 655A, 853A, 854A.
Platform: 606SH, 608SH, HD35F, HD35R, HD35X, HD40F, HD40R, HD40X, HD45F, HD45X, HD50F, HD50R, HDF35, HDF40, HDF45, HDF50, HDR35, HDR40, HDR45, HDR50, HDX35, HDX40, HDX45, RDF 30, RDF 35, RDF 40, RDF45, SH12F, SH12R, SH8R, RD30F, RD35F, RD40F, RD45F.
Cotton Stripper: 7460, 748.
Belt Pickups & Pickup Platforms Combines: 900, 912, 914.
Mower Conditioner: W540, 1600, 1600A.
Snow Blower: 280, 666, 676.
Corn Head: 1092, 1290, 1291, 1293, 493, 494, 594, 692, 693SH, 693, 694, 892, 893, 894, 892, 893, 894.
Attachment Utility Vehicle: 403, TD100.

This is an O.E.M. John Deere part.
