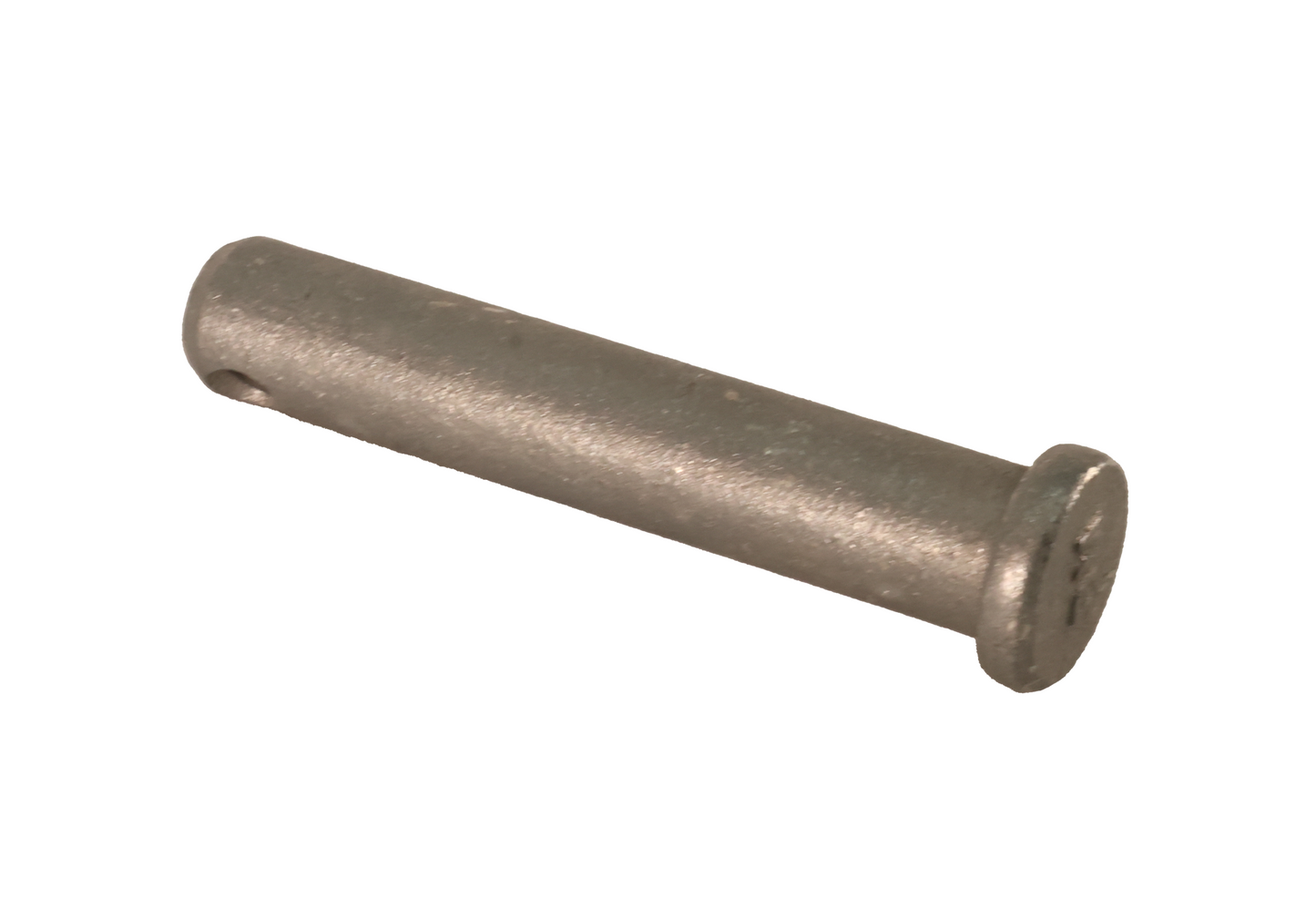

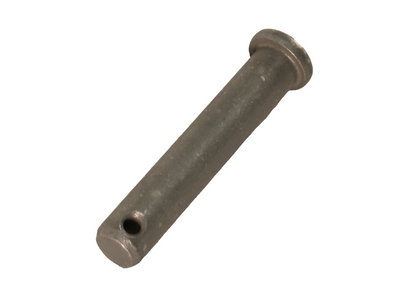

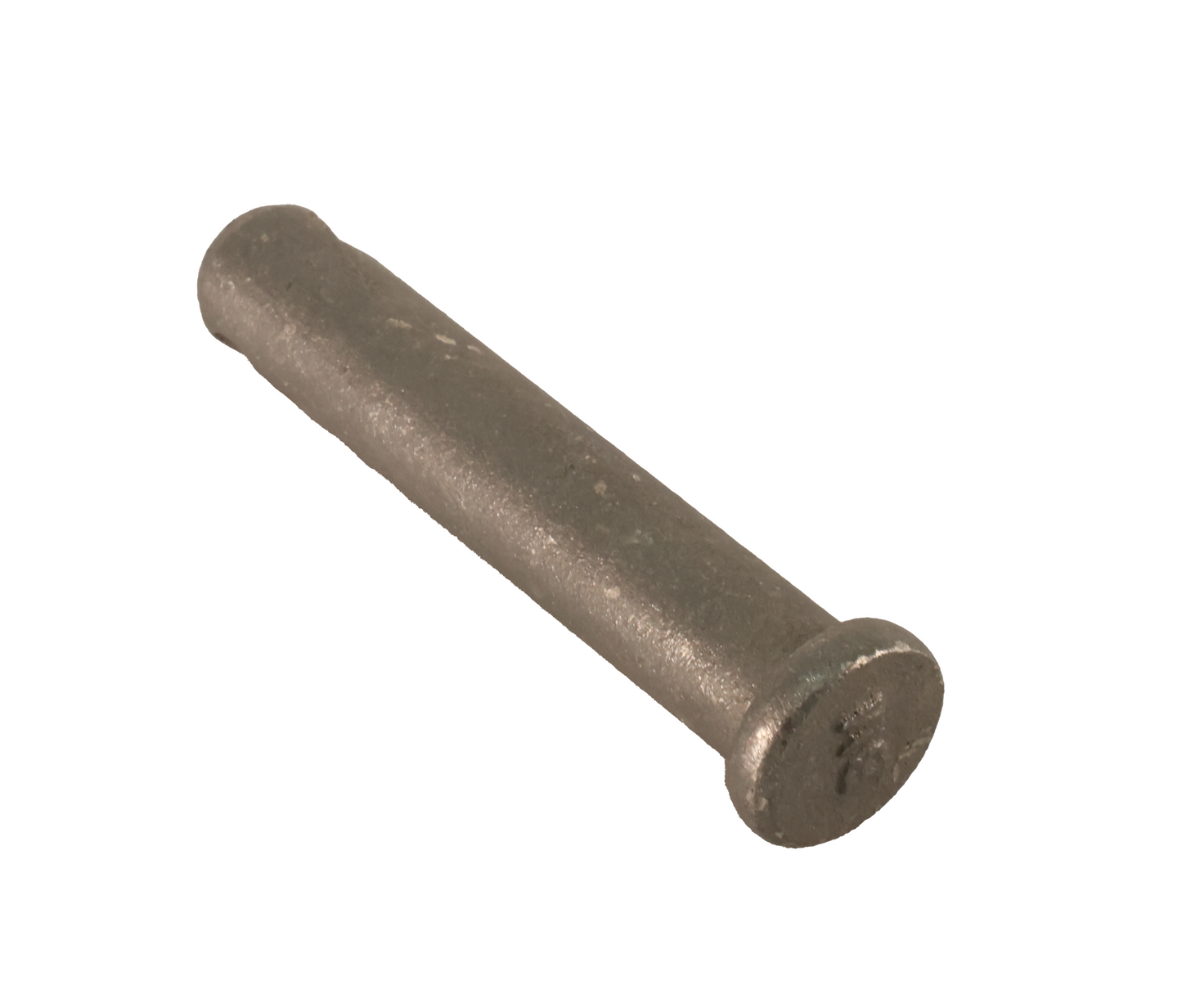

John Deere Original Equipment Pin Fastener - W33912

John Deere Original Equipment Pin Fastener - W33912

Part Specifications:

Diameter (MM) 10.0000
Length (MM) 53.0000
Length to Hole (MM) 48.5000
Hole Diameter (MM) 3.2000
Head Height (MM) 3.0000
Head Diameter (MM) 14.0000
Material (ALPHA) 8640
Finish (ALPHA) C-Heat Treated and Plated
Note (B) End Chamfer

Fits the following John Deere models:

Front Loader: 120E, 540R, 600R, 620R, 640R, 120R, 245M, 300E, 300R, 320R, 500M, 520M, 540M, 562, 660R, 680R, 700M, 740A, H130, H160, H165, H180, H260, H310, H340, H360, H380, H480.

Rotary Cutter: 1517, 1518, 2018, HX15, CX15, HX20, CX20, E12, E15, FC10R, FC12E, FC15E, FC15M, FC15R, FC20M, FC20R, M15, M20, MX15, R10, R15, R20.

Farm Loader: 260, 265, 280, 640, 725, 720, 245, 240, 740.

Loader: 721, 726, 840, 200C, 200X, 220R, 300, 300CX, 300X, 305, 400E, 400CX, 400X, 440R, 562, 673, 563, 741, 746, 843, D120, D160, D170, H120.

Compact Tractor: 721, 726, 200X, 200CX, 300, 300X, 400X, 400CX, 741.

Tractor Mounted Loader: 75.

Round Baler: 592, 582, 572.

This is an O.E.M. John Deere part.
