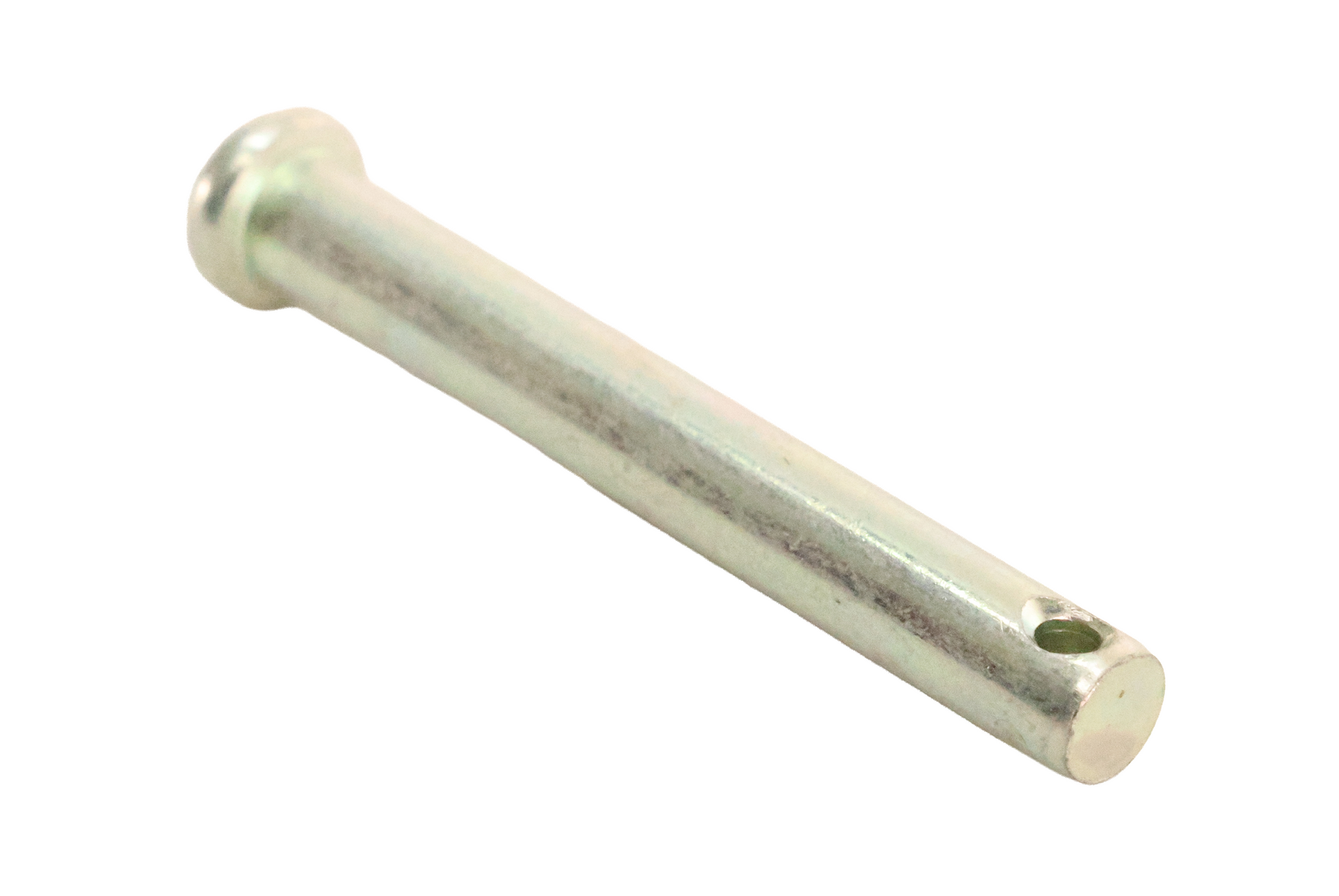

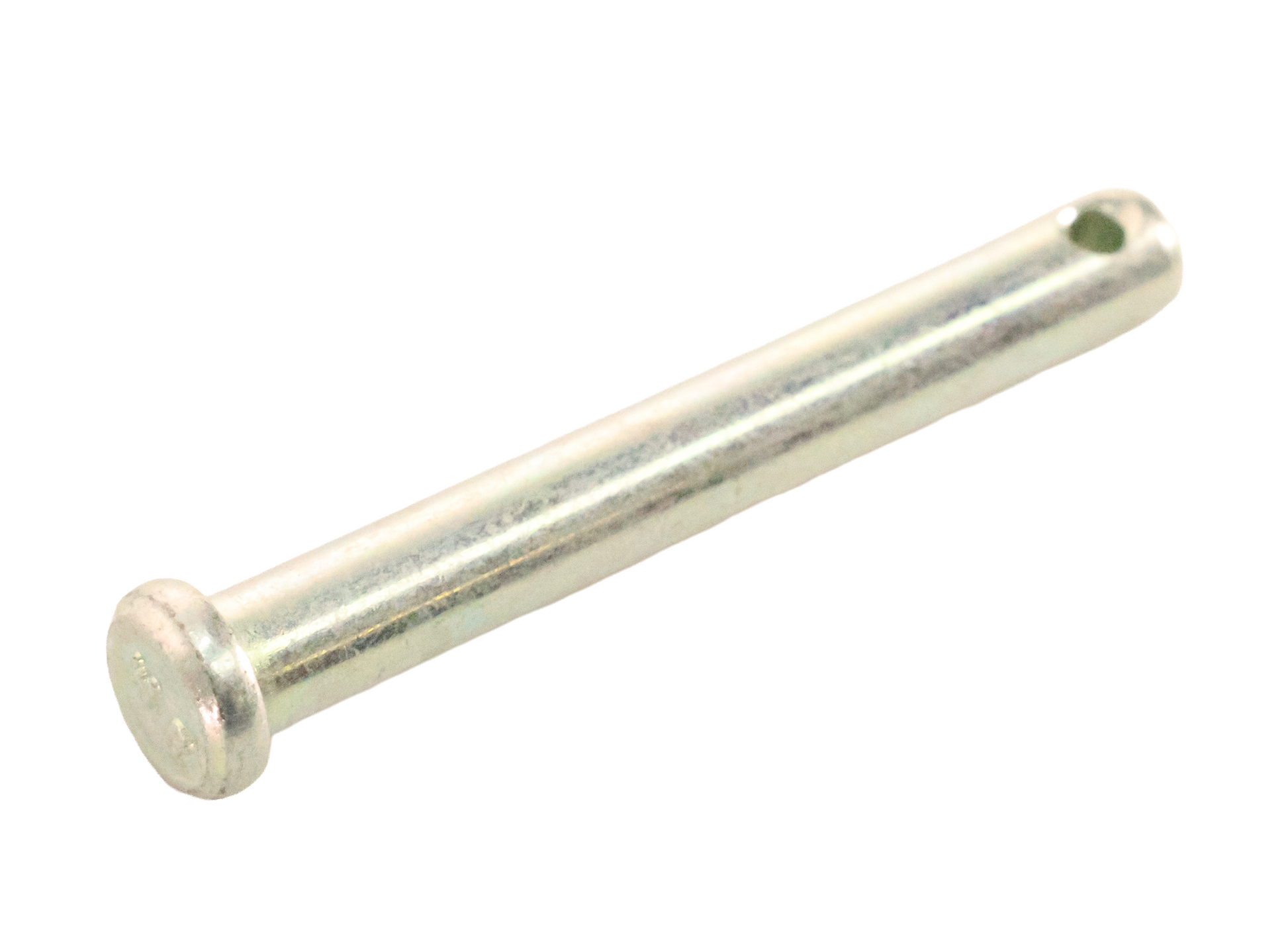

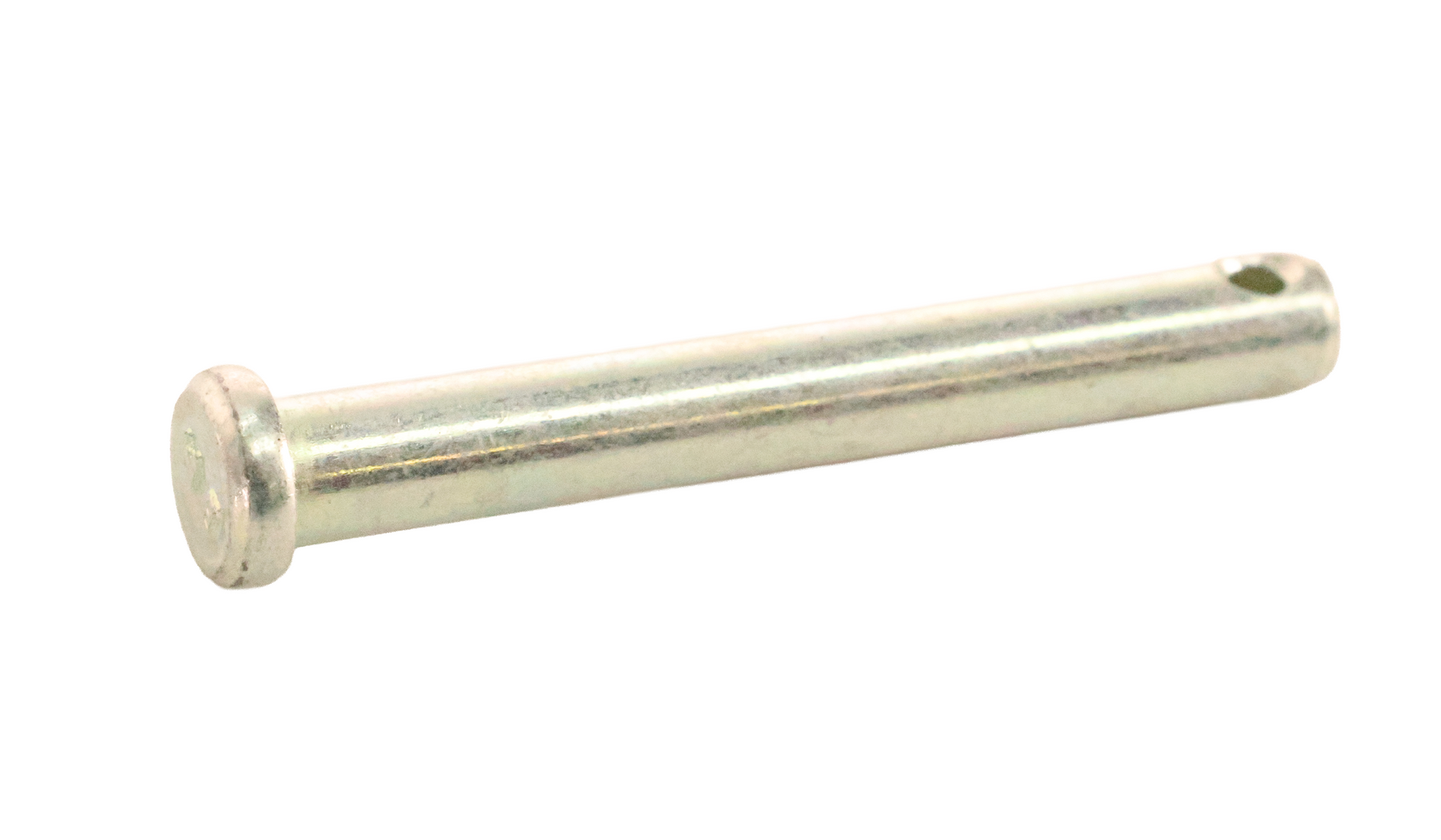

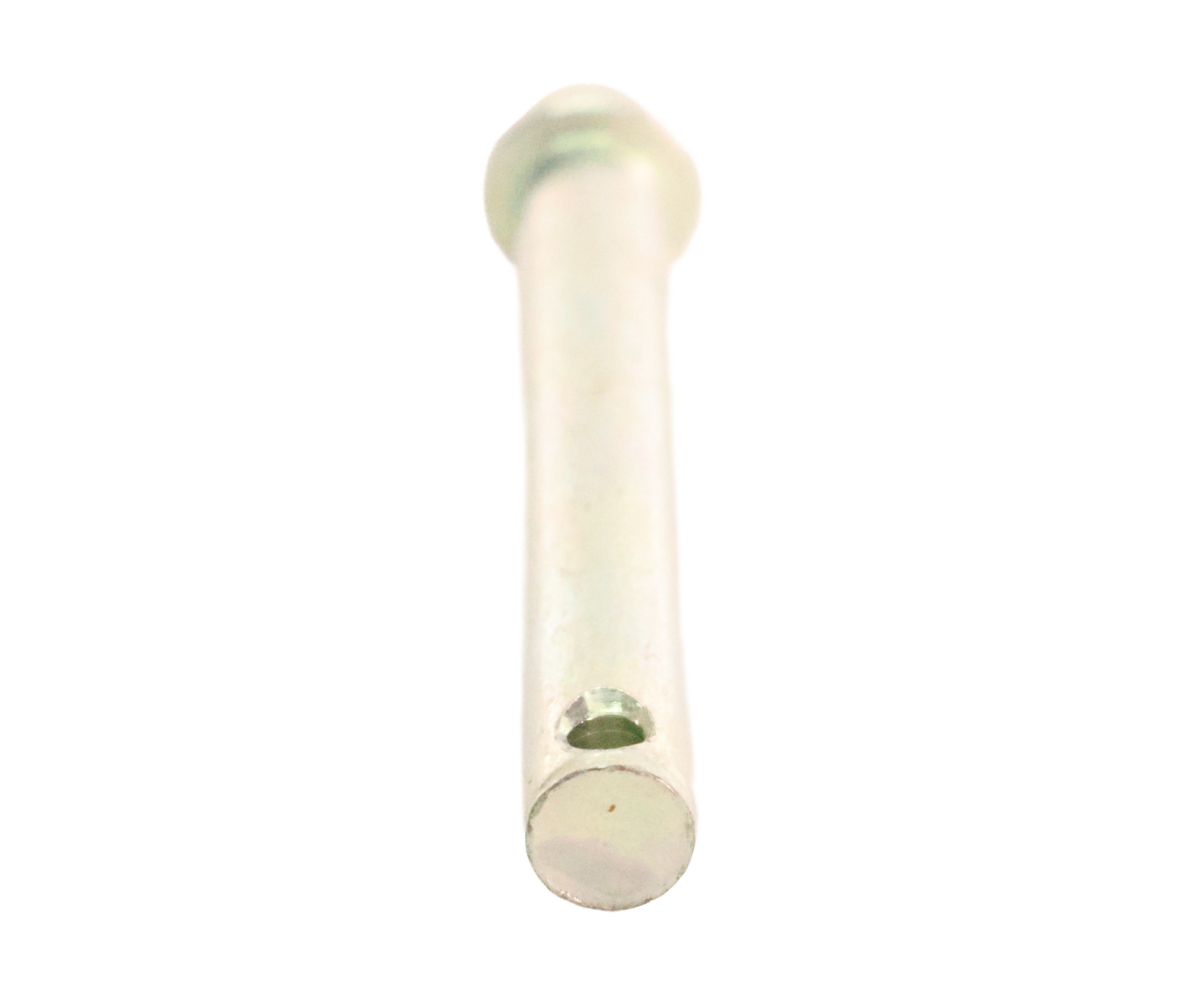

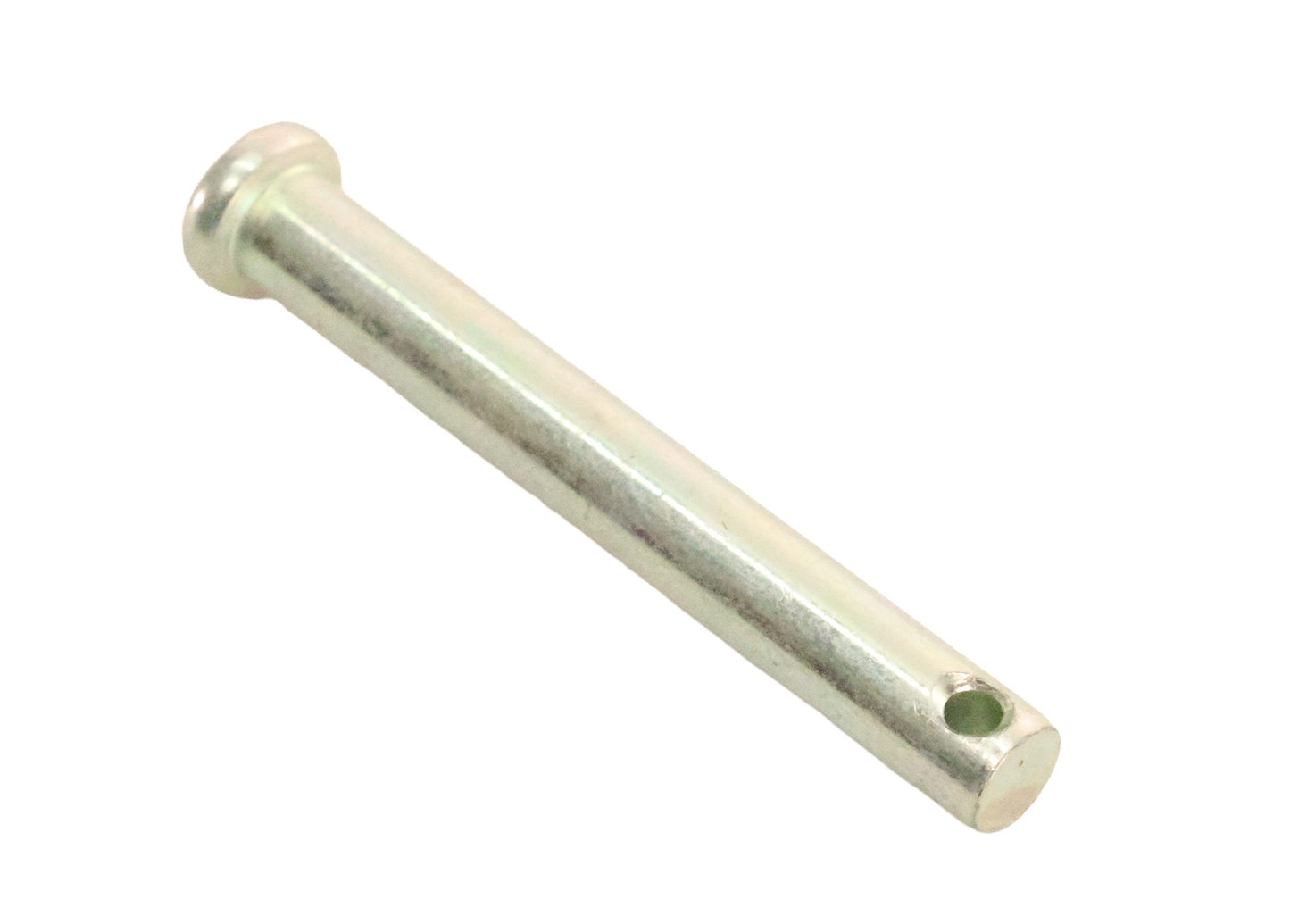

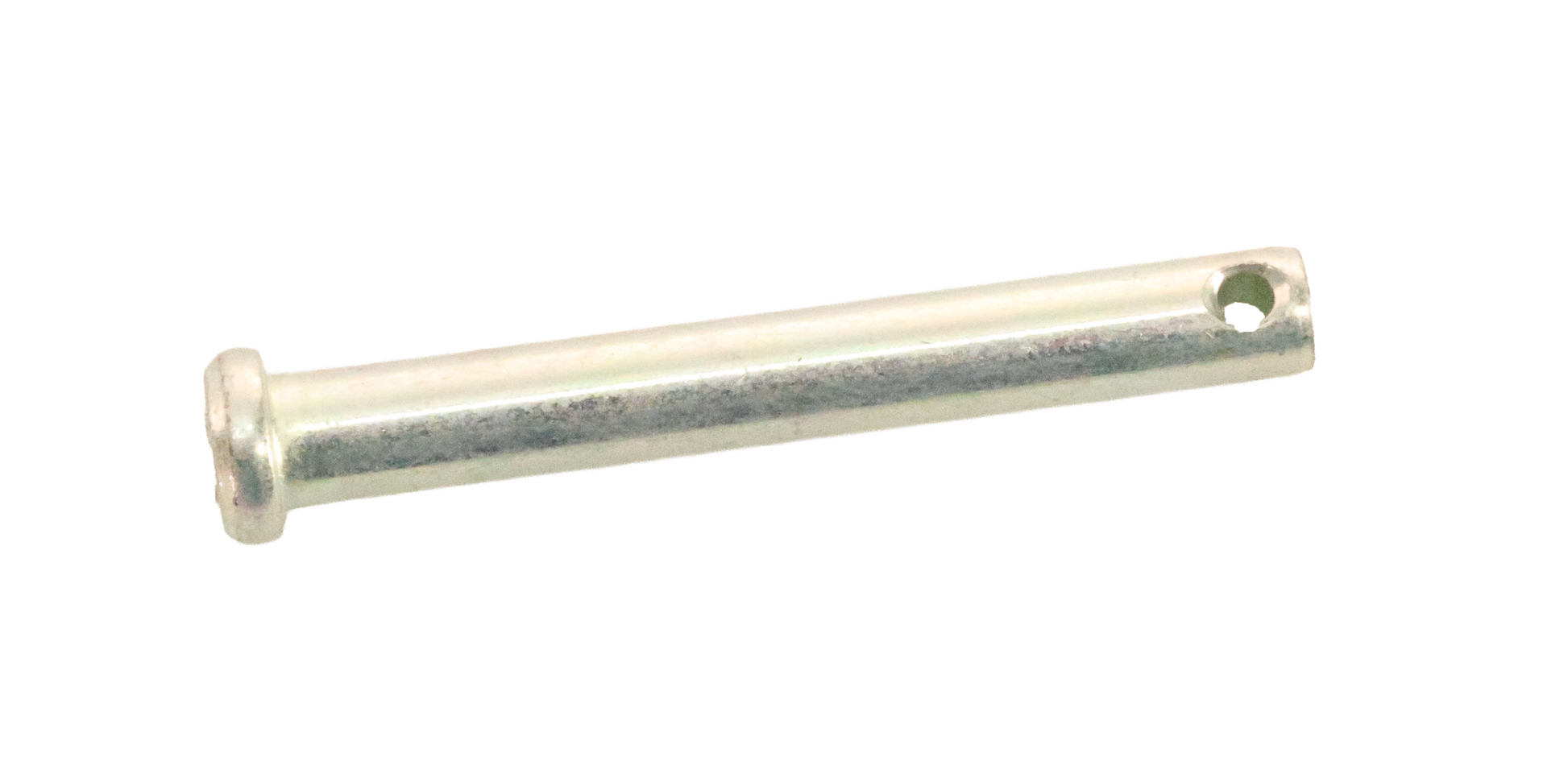

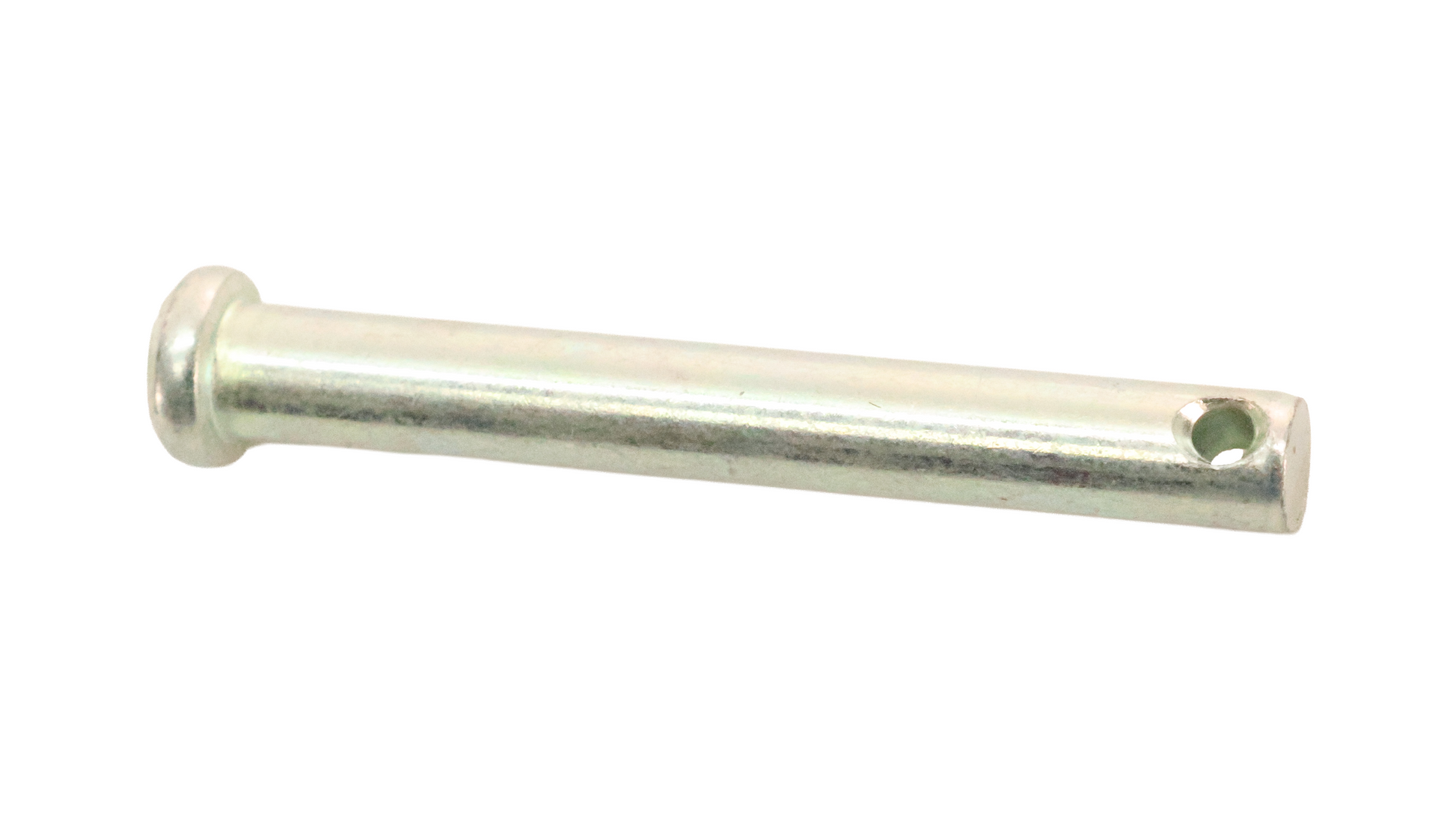

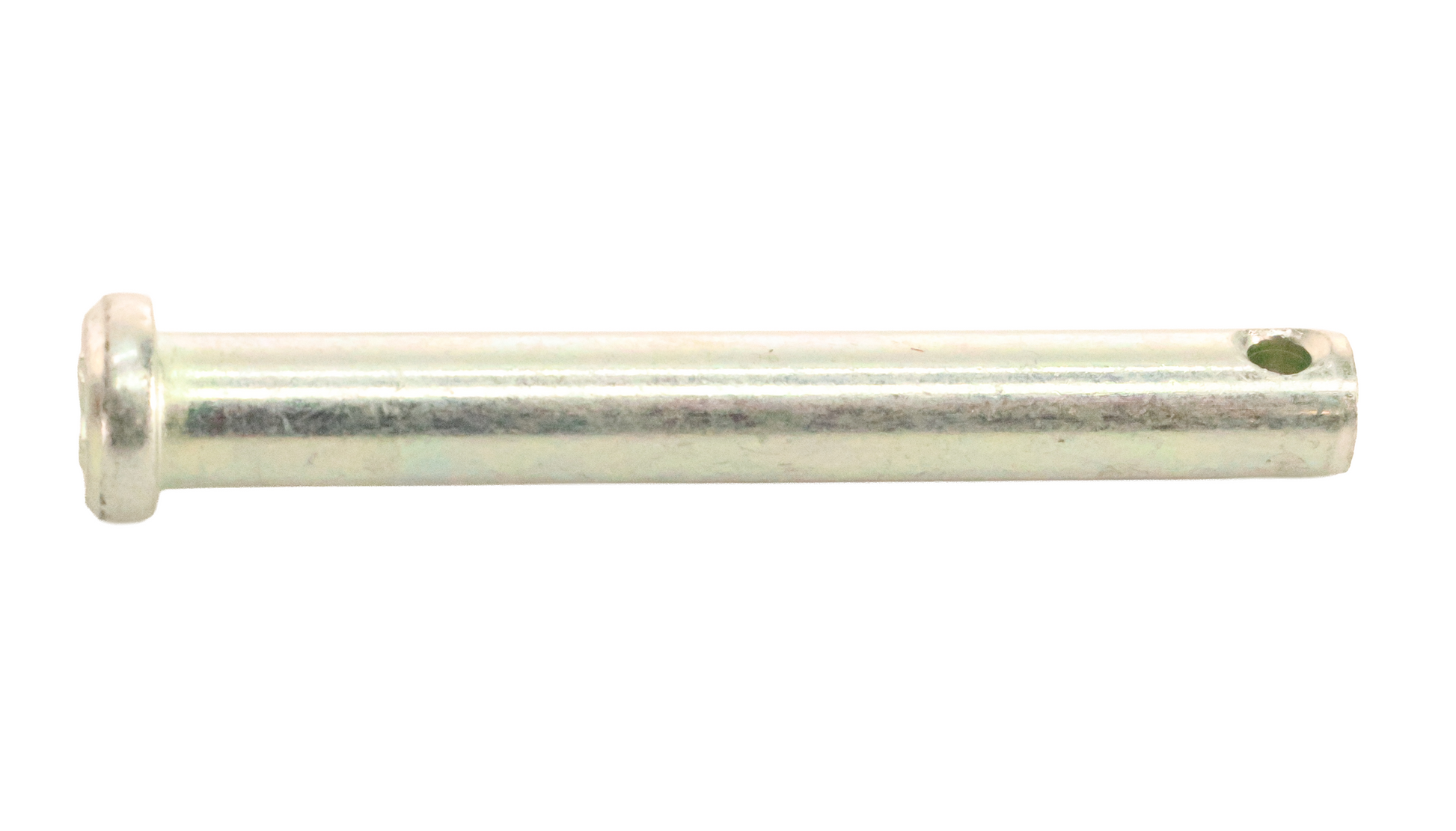

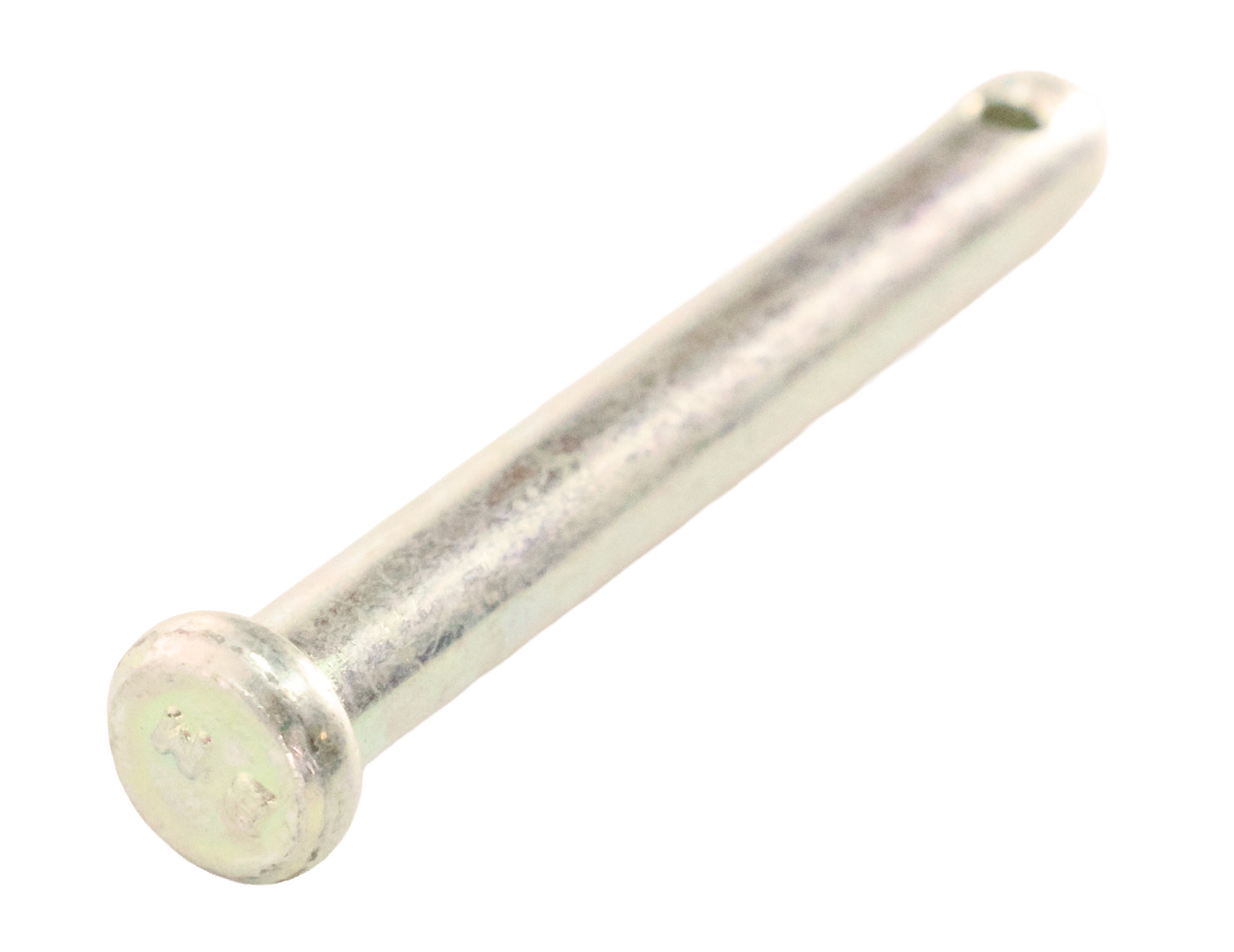

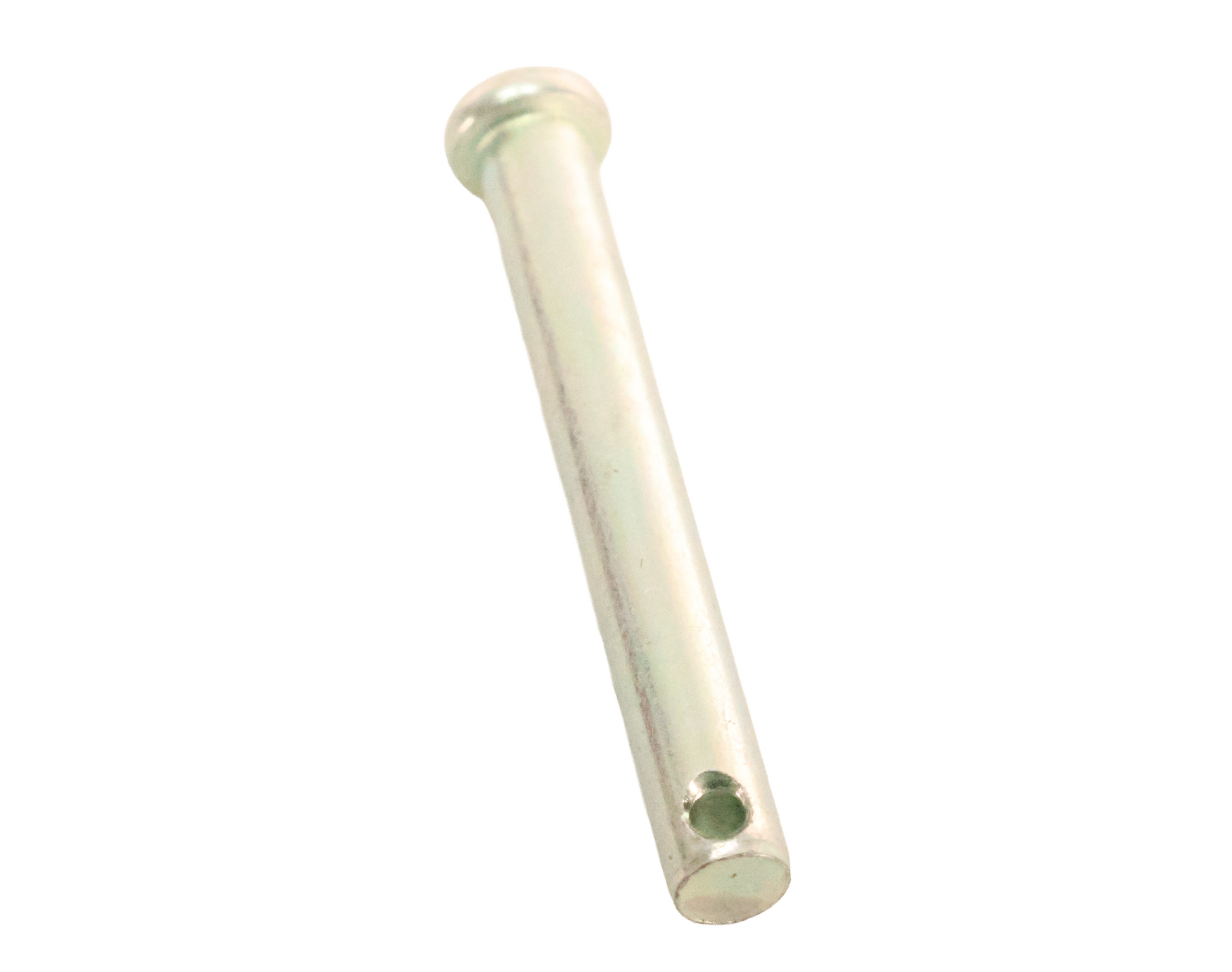

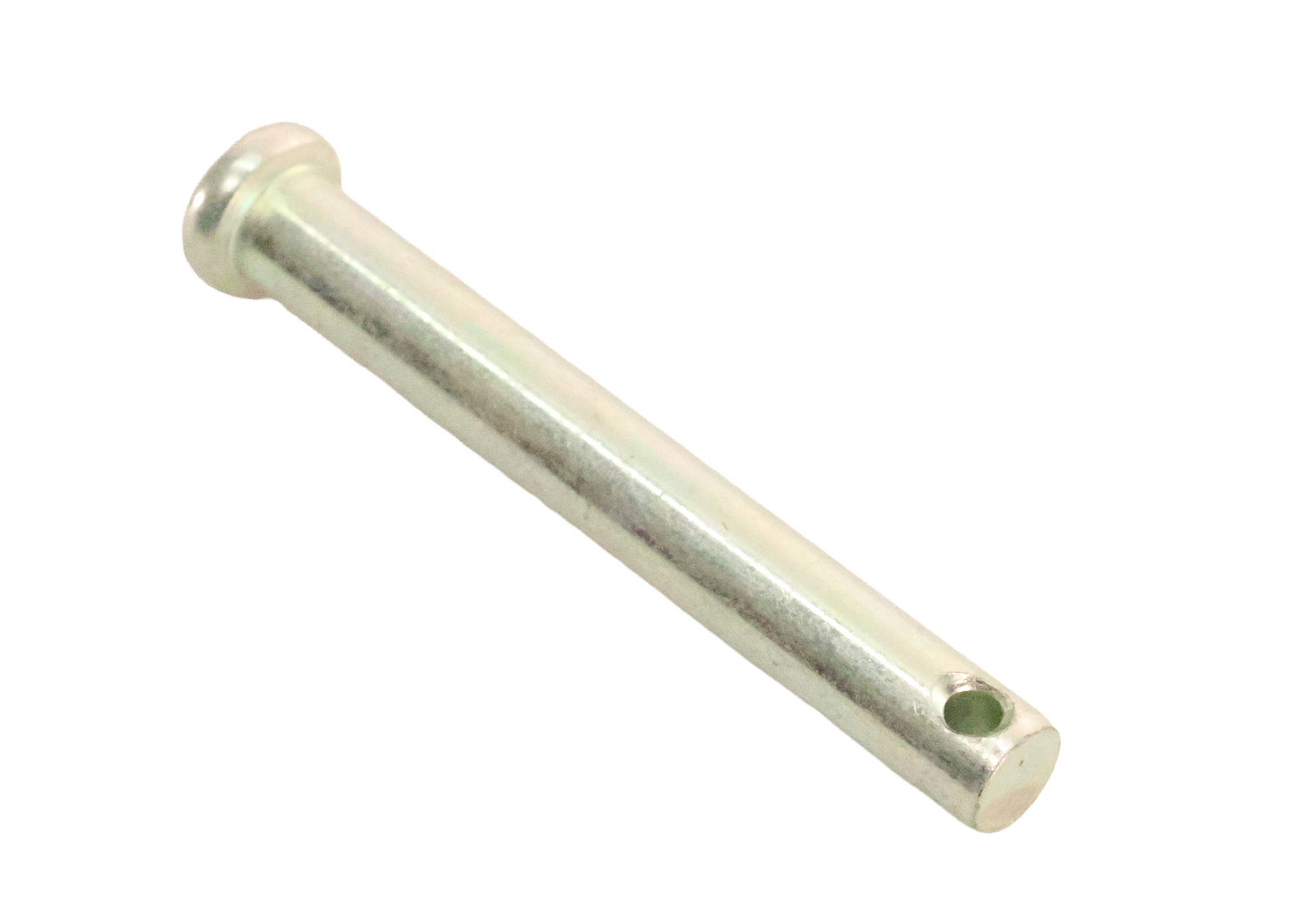

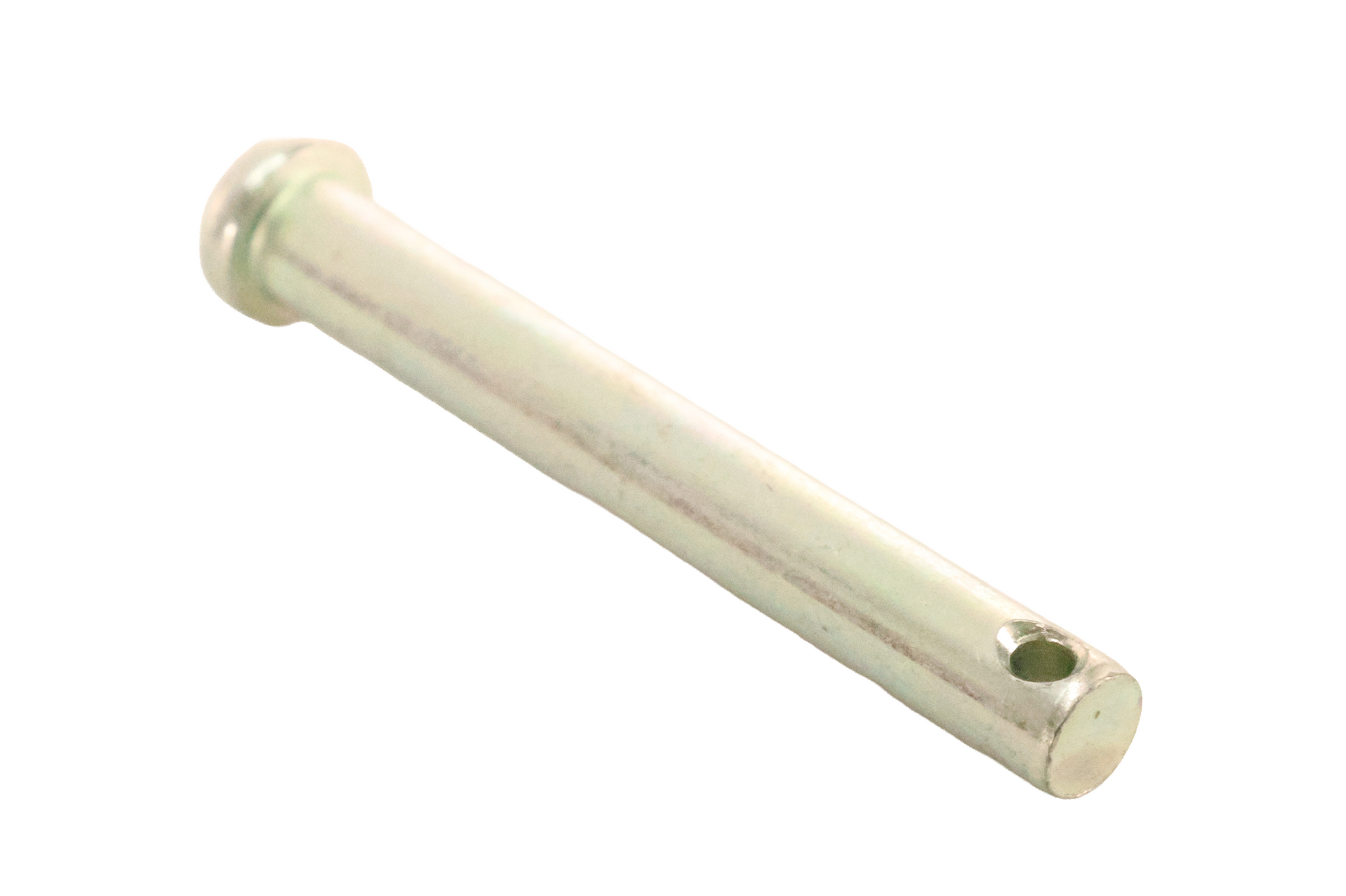

John Deere Original Equipment Pin Fastener - M88436

John Deere Original Equipment Pin Fastener - M88436

Part Specifications:
Diameter (IN) 0.2500
Length (IN) 1.9409
Length to Hole (IN) 1.8307
Hole Diameter (IN) 0.0996
Head Height (IN) 0.1181
Head Diameter (IN) 0.3740
Material (ALPHA) 8640
Finish (ALPHA) C-Heat Treated and Plated
Note (B) End Chamfer

Fits the following John Deere models:
Farm Loader: 145, 146, 148, 158, 168, 520, 540, 720, 725, 740.
Rotary Cutter: 1518.
Loader: 210, 420, 430, 460, 510, 521, 522, 542.
Compact Utility Tractor: 210, 410, 419, 420, 430, 460, 510, 541, 512, 522, 542.
Walk Behind Mower: 32, 36, 48, 52.
Tractor-Mounted Loader: 440.
Tractor-Mounted Mower: 60, 76, 80.
Combine: 9400, 9500, 9600.
Tractor: 1010, 2010.
Manure Spreader: 34, 40.
Front Mower: 50, 60, 72, 76, 500E.
Front Loader: 540A.
Lawn and Garden Tractor: CV15S, SST15, 16, SST16, SST18, 18, X300, X304, X310, X320, X324, X340, X360, X500, X520, X530, X534, X540, X590, X700, 48C, 54HC, 60HC, X710, X720, X724, X728, X729, X740, X744, X748, X749, X750, X754, X758.

This is an O.E.M. John Deere part.
