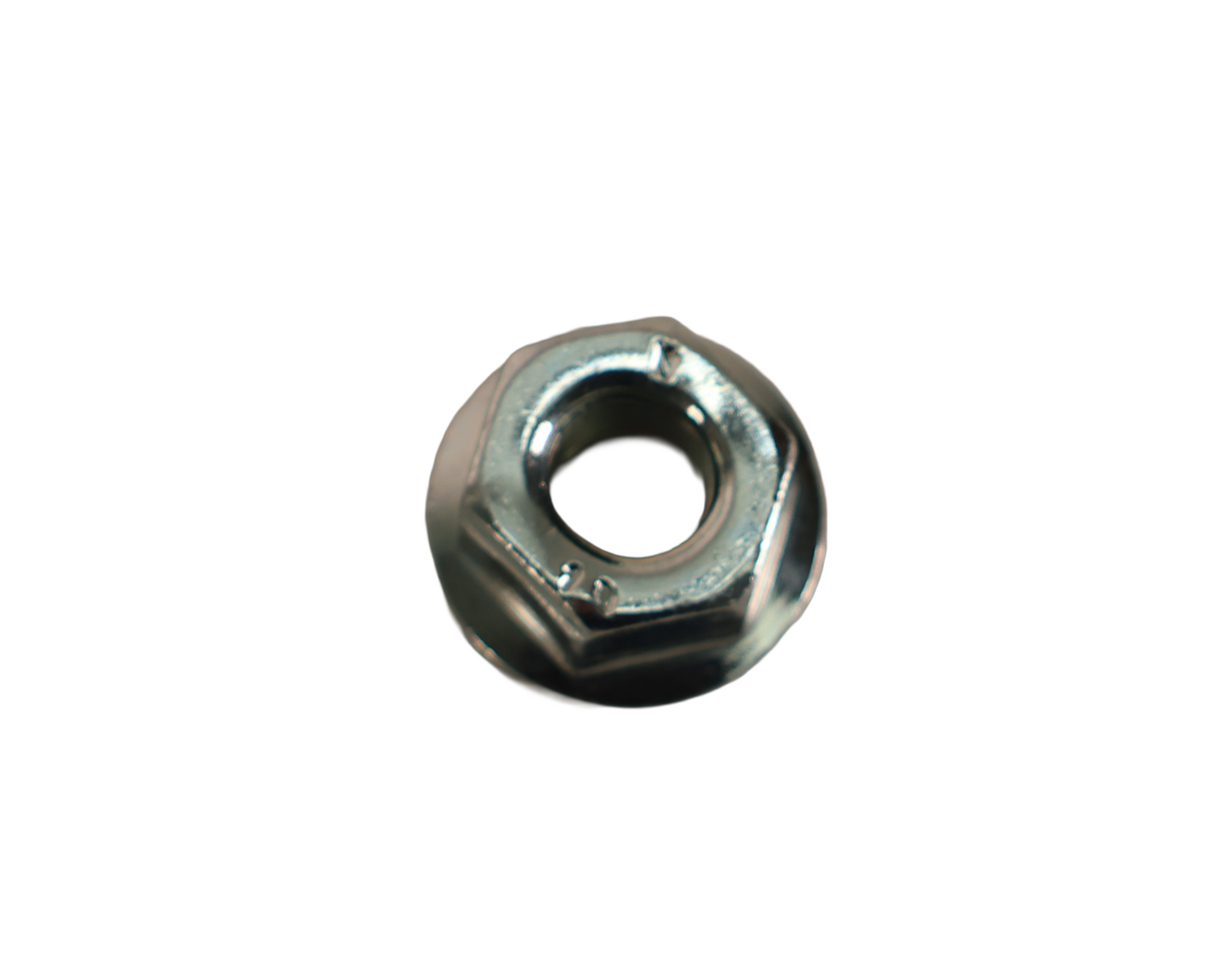

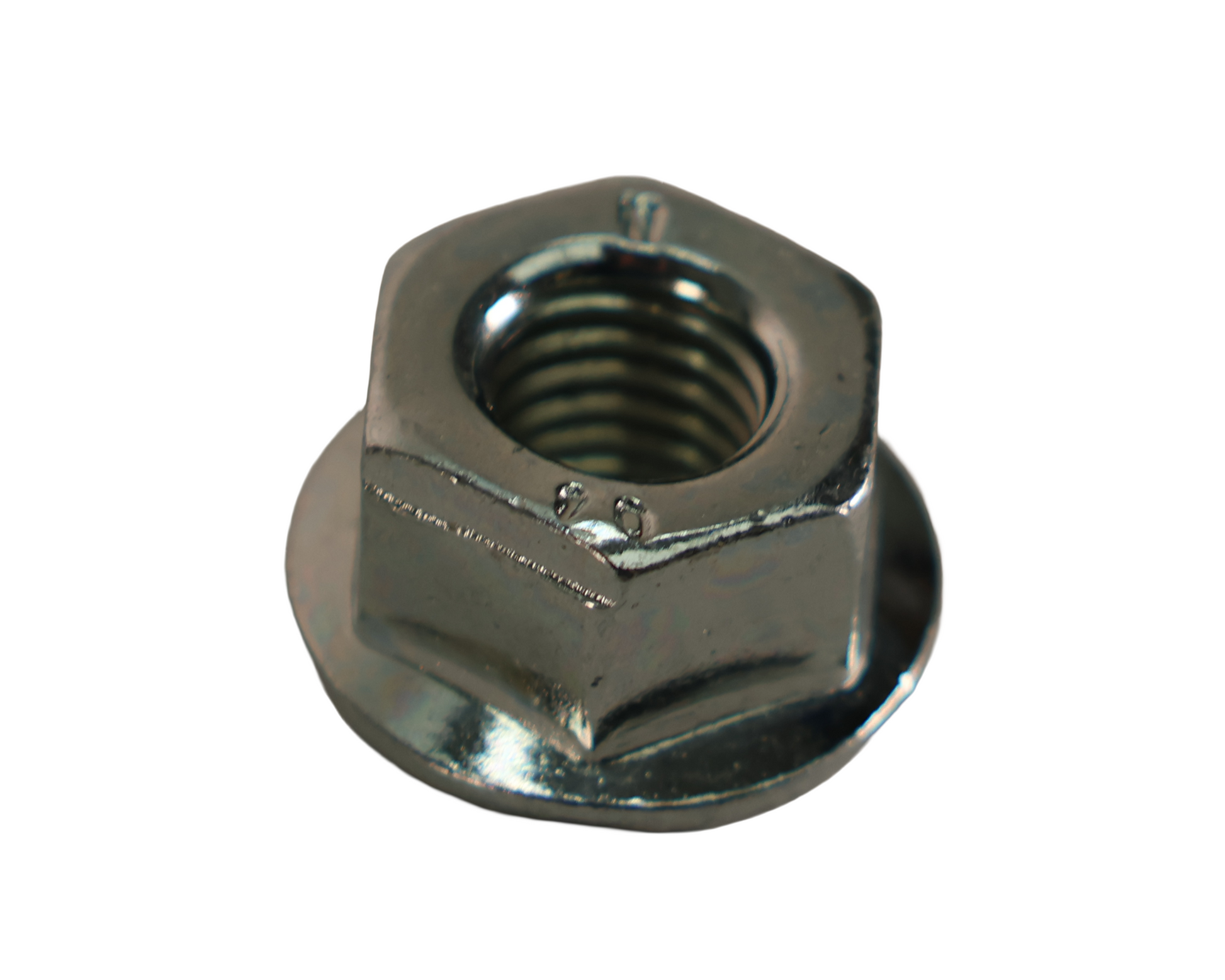

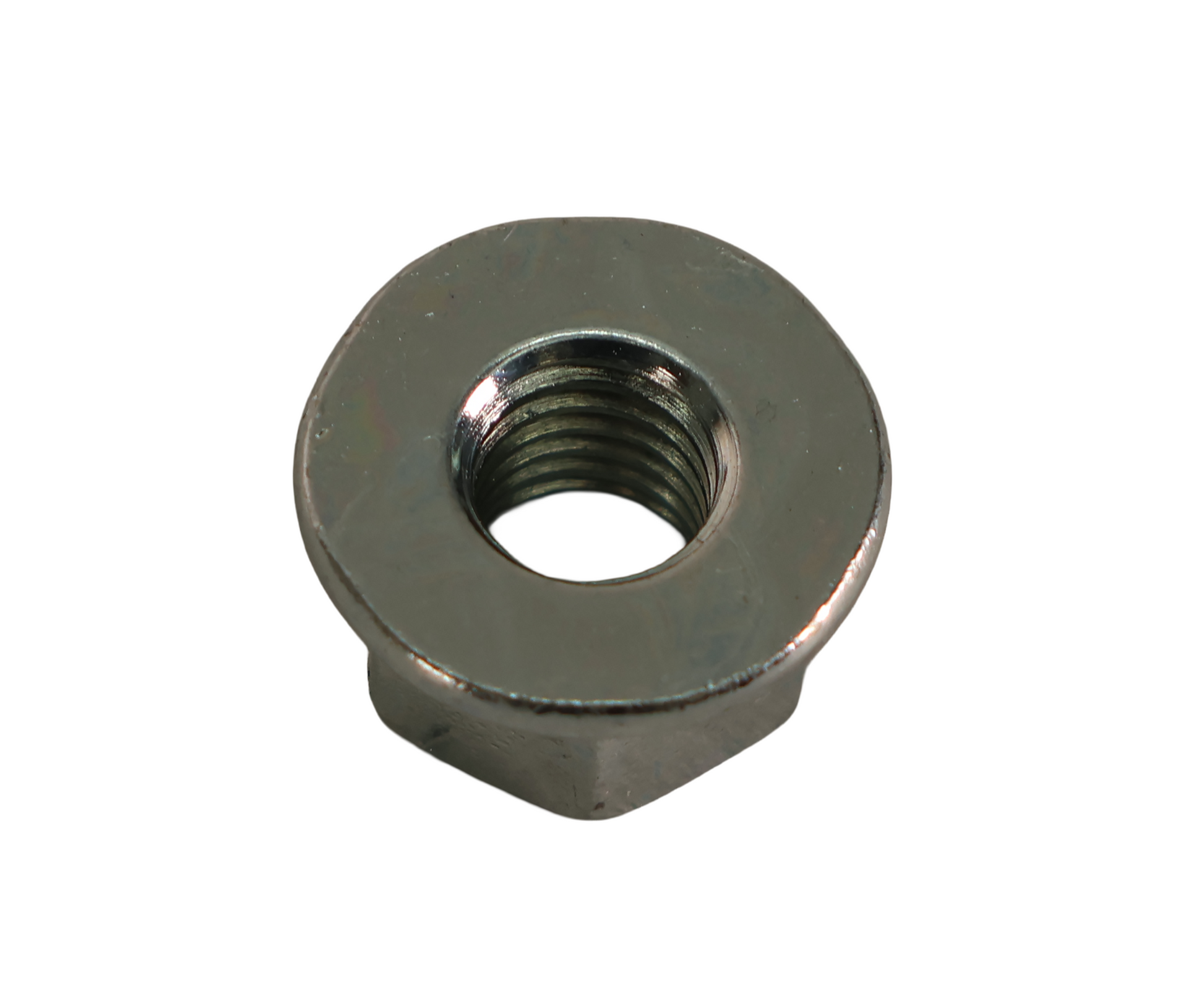

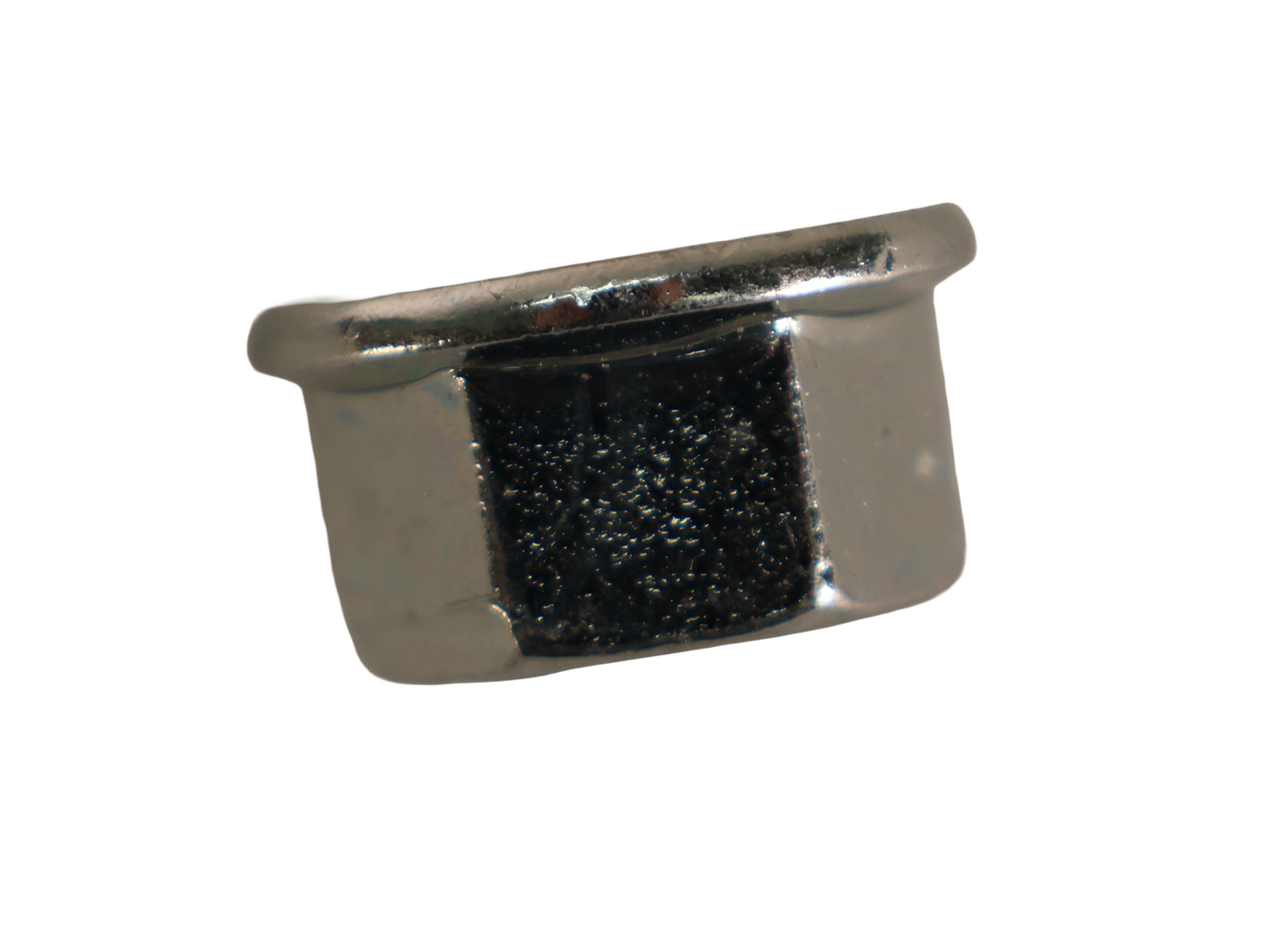

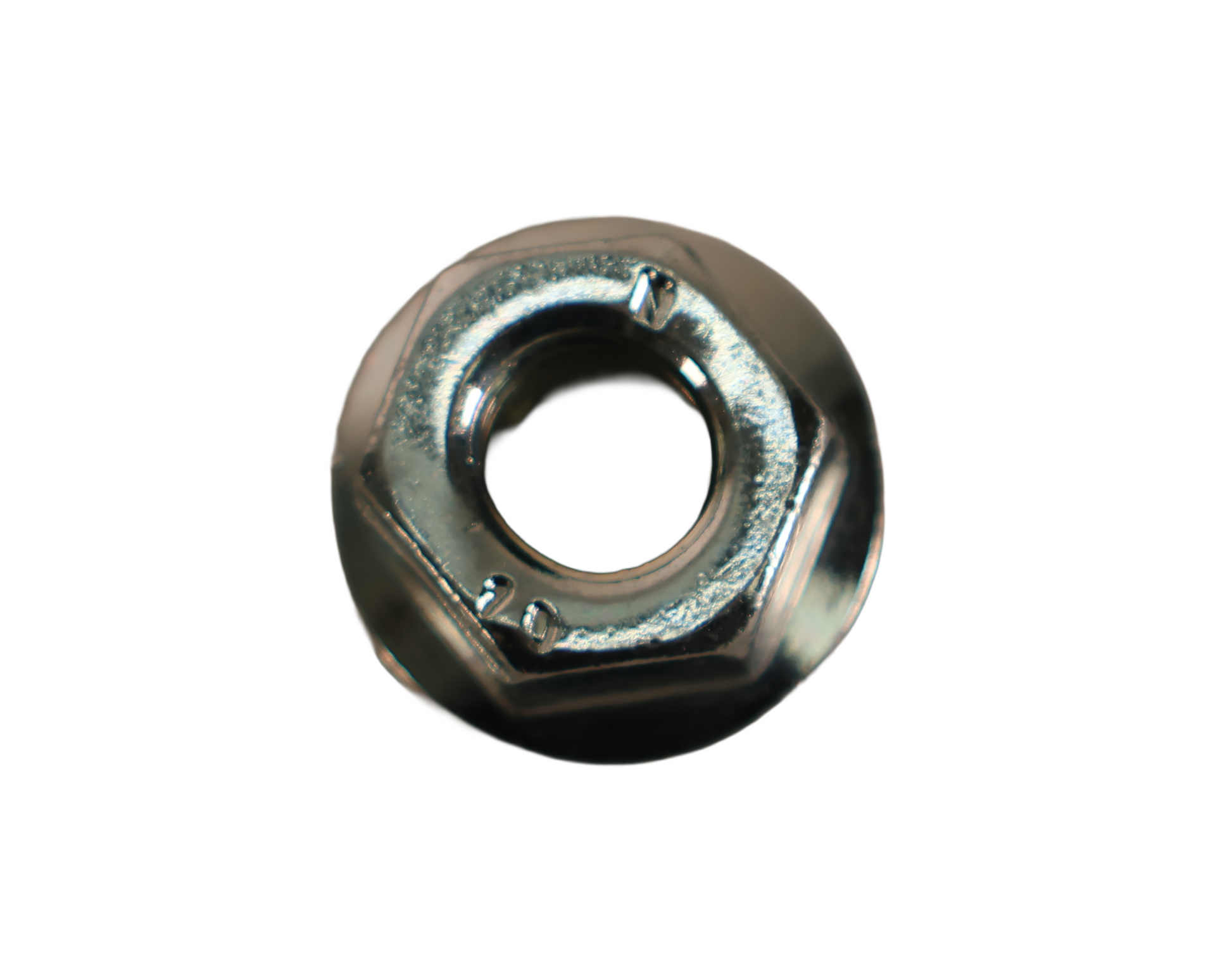

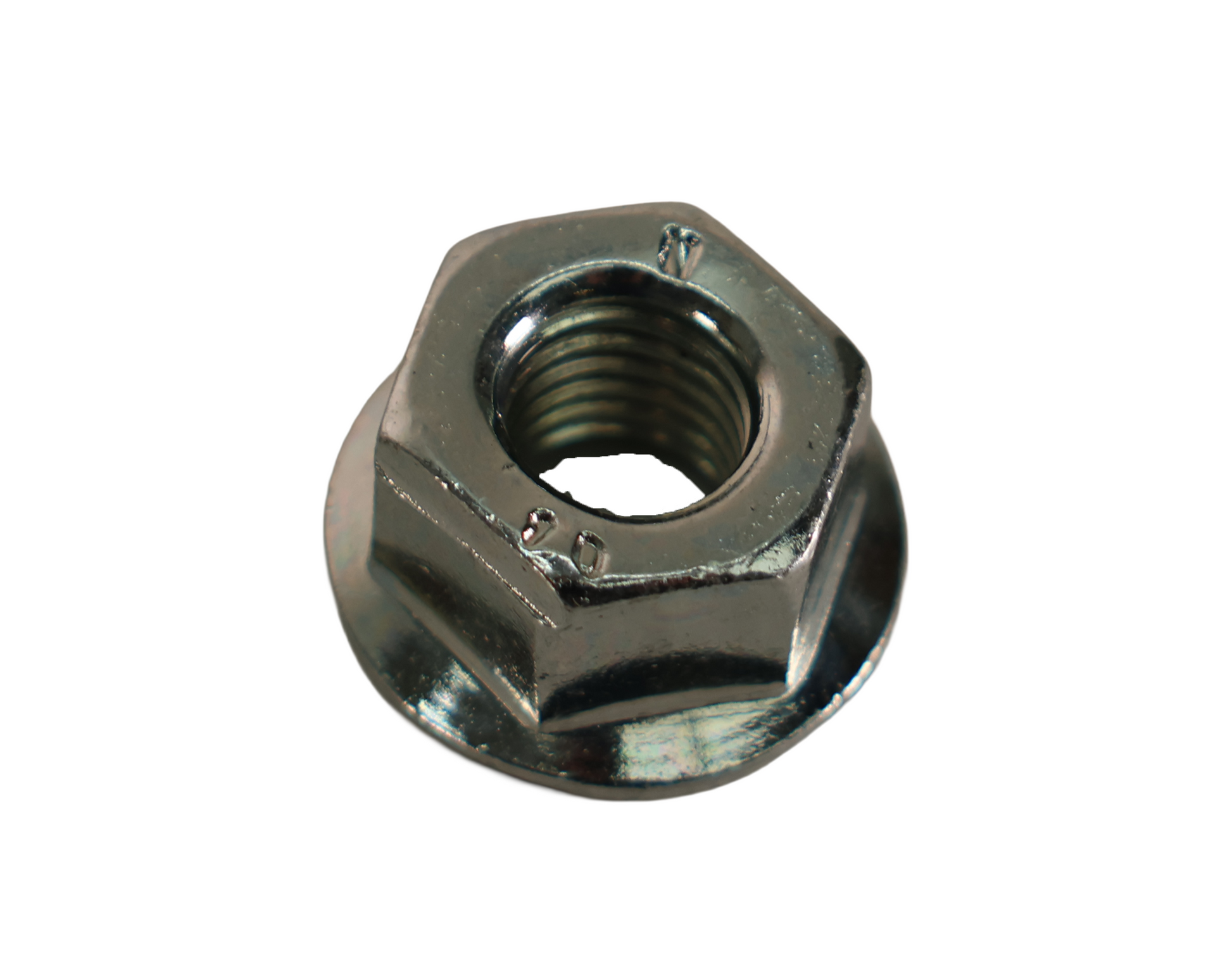

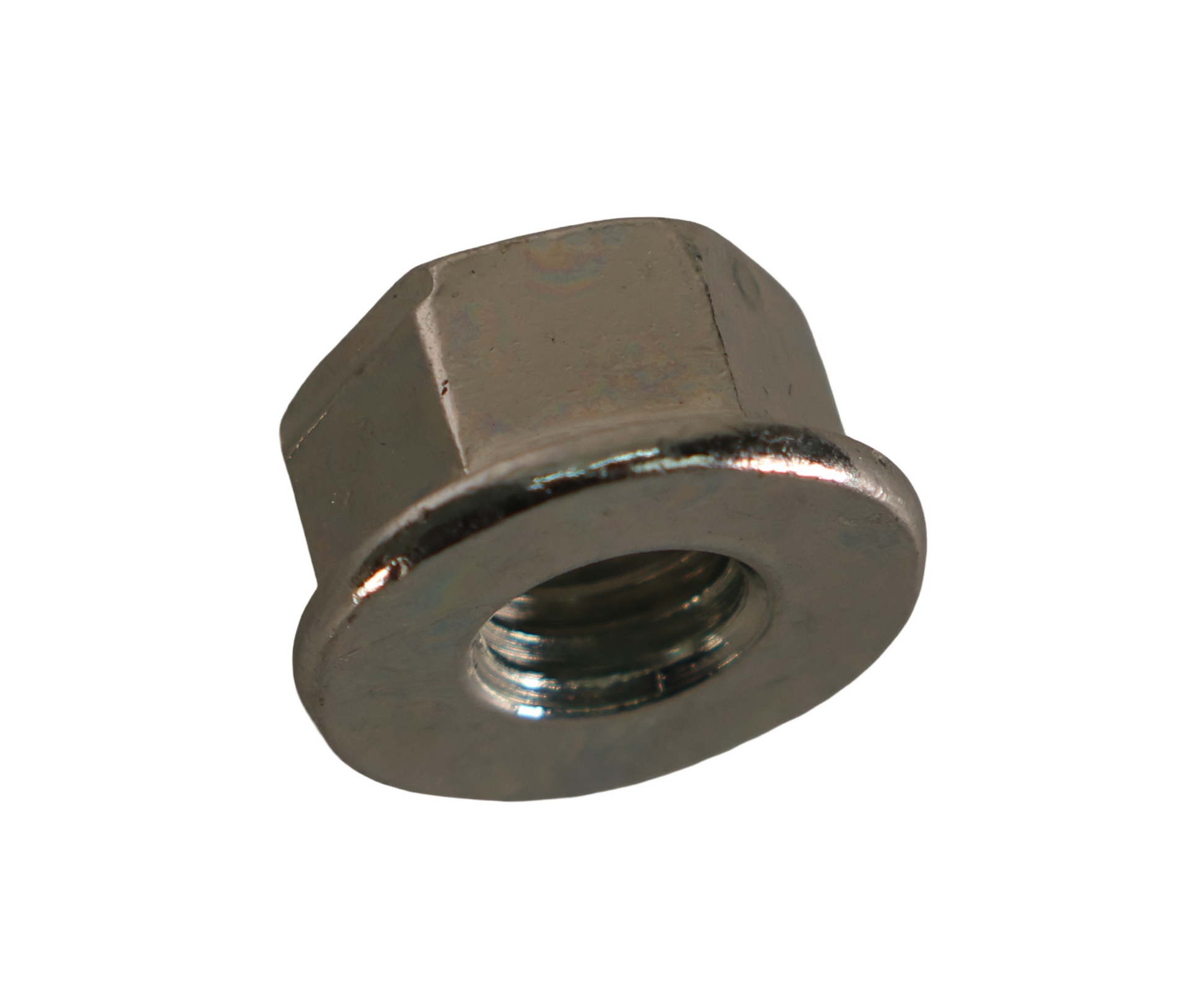

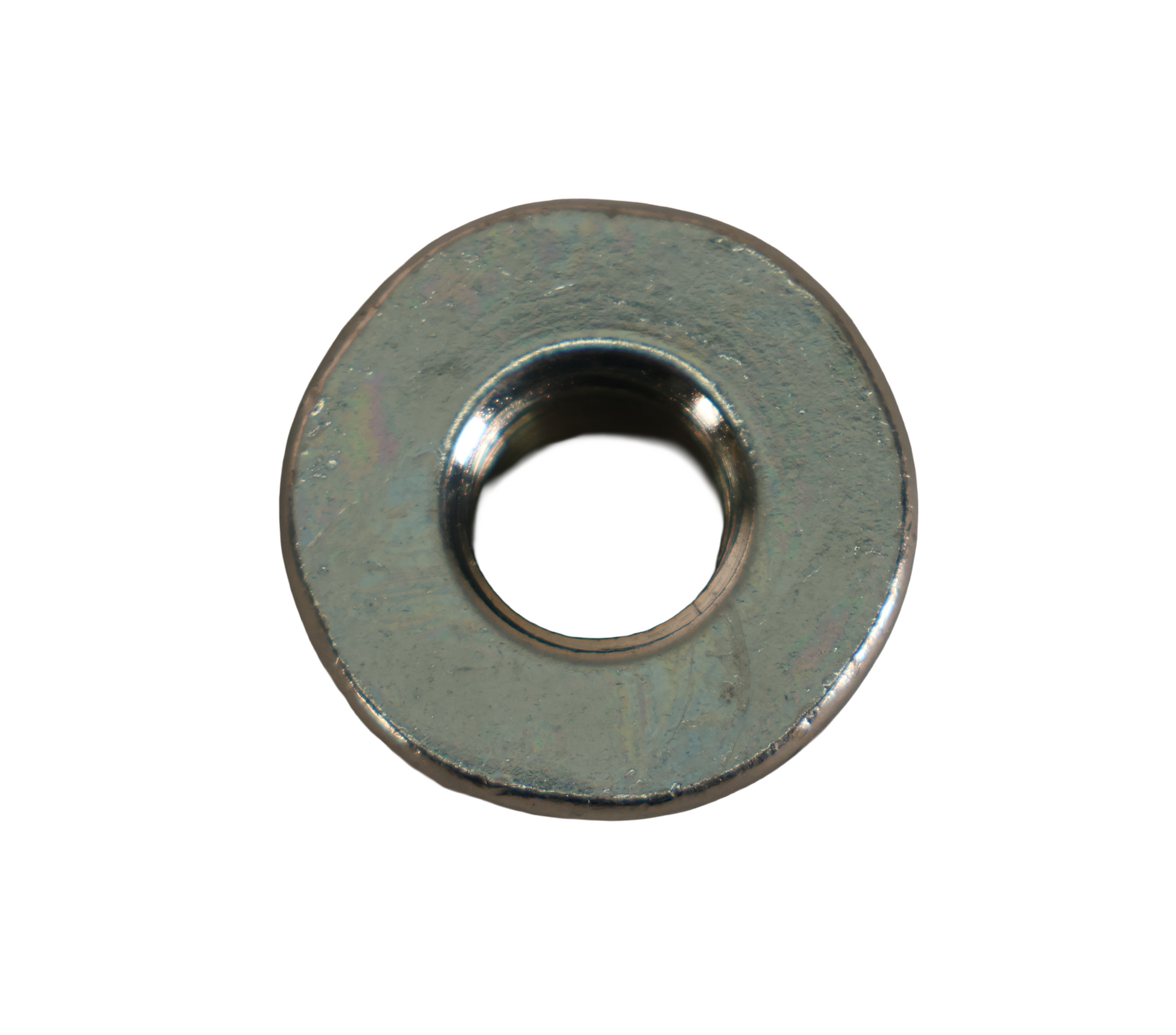

John Deere Original Equipment M8 Hex Flange Lock Nut - H137328

John Deere Original Equipment M8 Hex Flange Lock Nut - H137328

Part Specifications:
Thread Size (MM) 8.0000
Thread Pitch (MM) 1.2500
Thickness (MM) 9.40000
Width Across Flats (MM) 13.0000
Flange Diameter (MM) 17.3500
Wrench Height (MM) 0.0000
Locking Element (ALPHA) D
Material Grade (ALPHA) 10
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Compact Utility Tractor: 4052M, 4044M, 4044R, 4052M, 4052R, 4066M, 4066R.
Tractor: 5083E, 5093E, 5101E, 7630, 7730, 7830, 7930.
Row-Crop Head Combine: 1253A, 453A, 454A, 50A, 653A, 654A, 655A, 853A, 854A.
Platform Combine: 625D, 630D, 635D, 640D, 625F, 722X, 725X, 730X, 735X, 740X.
Combine: 6622, S550, S660, S670HM, S690, S670, S680, S680H, S690HM, S760, S770, S780, S785, S790, T550, T560, T660, T670, W540, W550, W650, W660.
Planter: 6622, DB60.
Quick-Trak: Q810E, Q820E,  652E.
Ensilage and Forage Harvester: 8100, 8200, 8300, 8400, 8500, 8600, 9600, 9700, D9512, 9800, 9900.
ZTRAK: Z915E.

This is an O.E.M. John Deere part.
