John Deere Original Equipment M12X90 Bolt - H154928

John Deere Original Equipment M12X90 Bolt - H154928

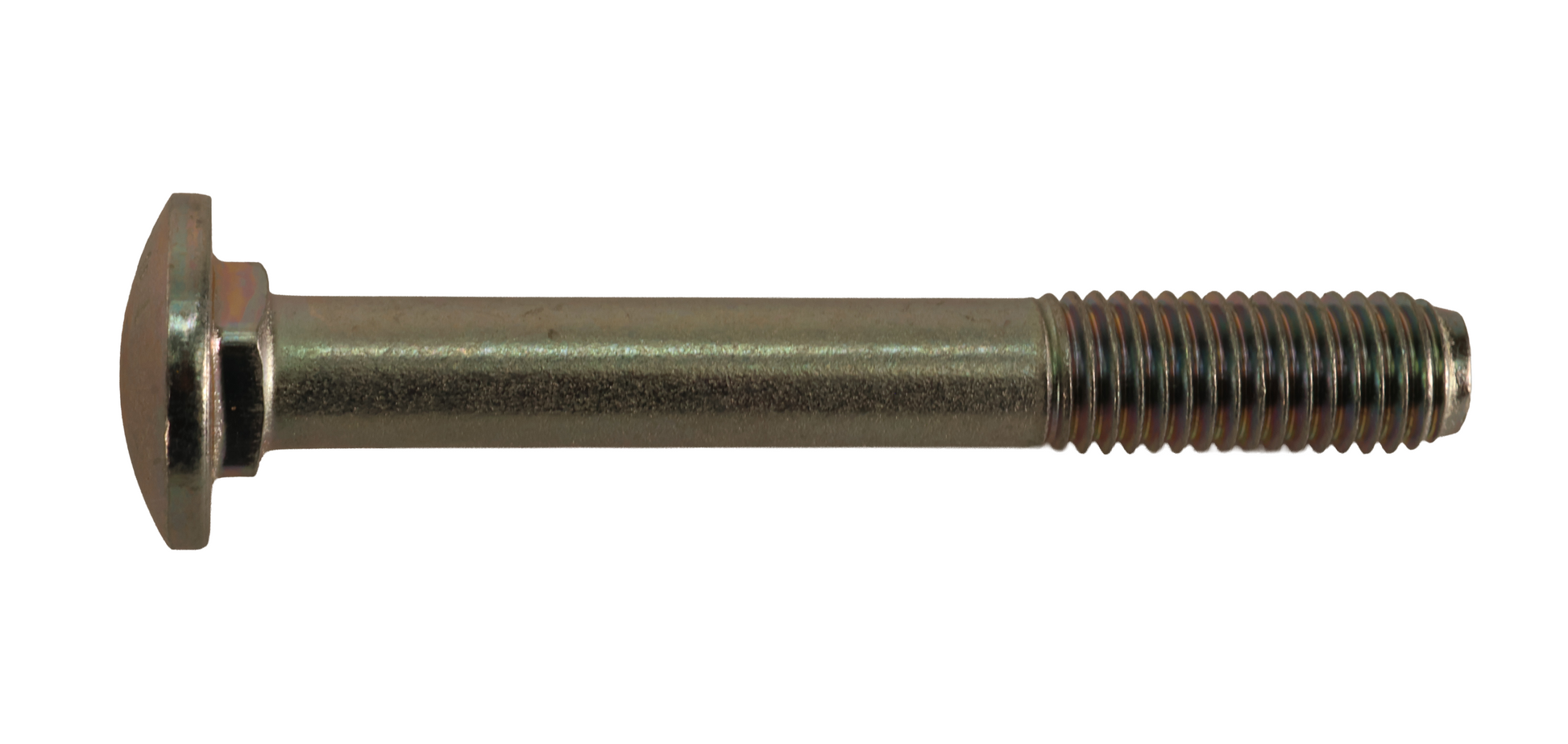

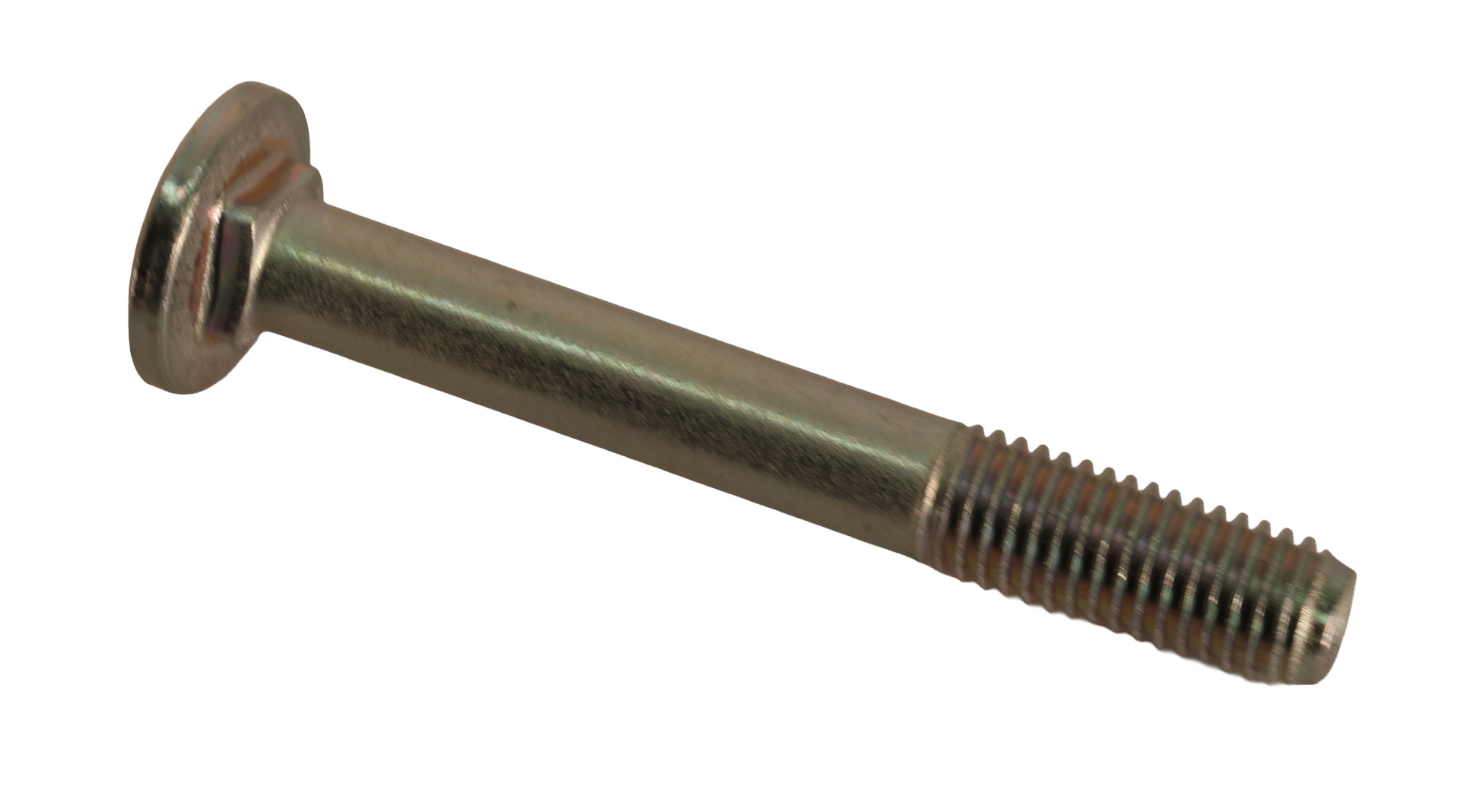

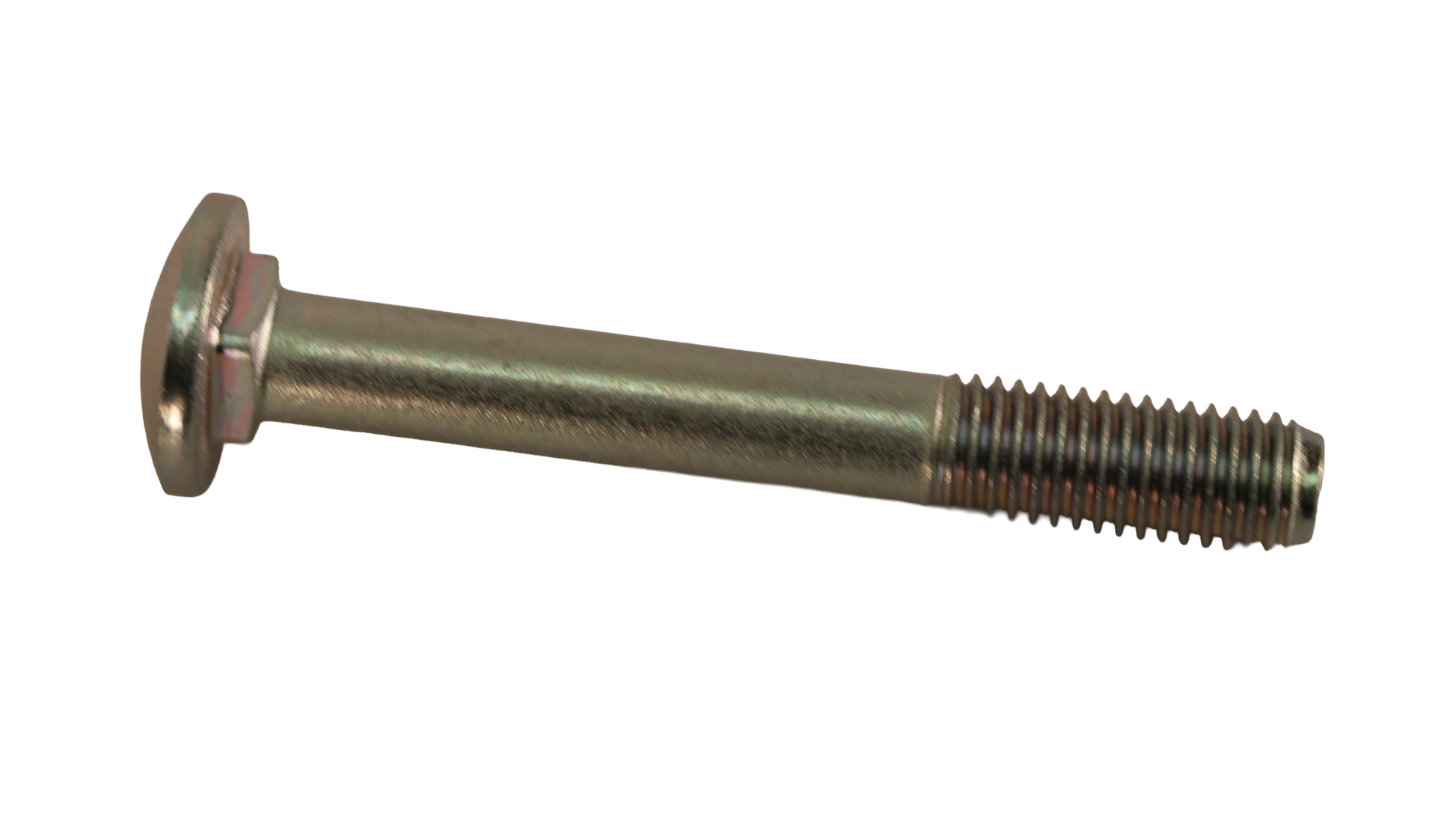

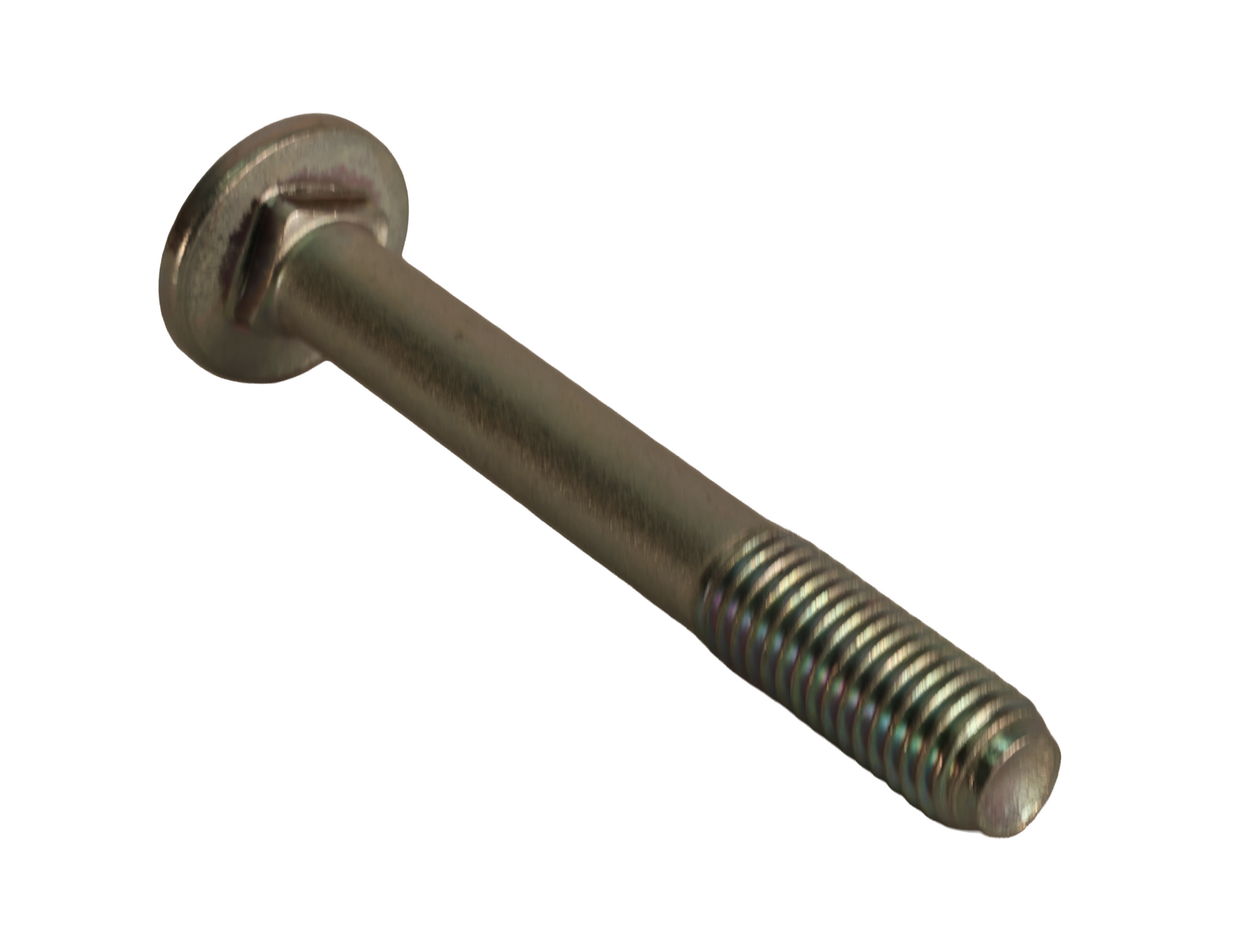

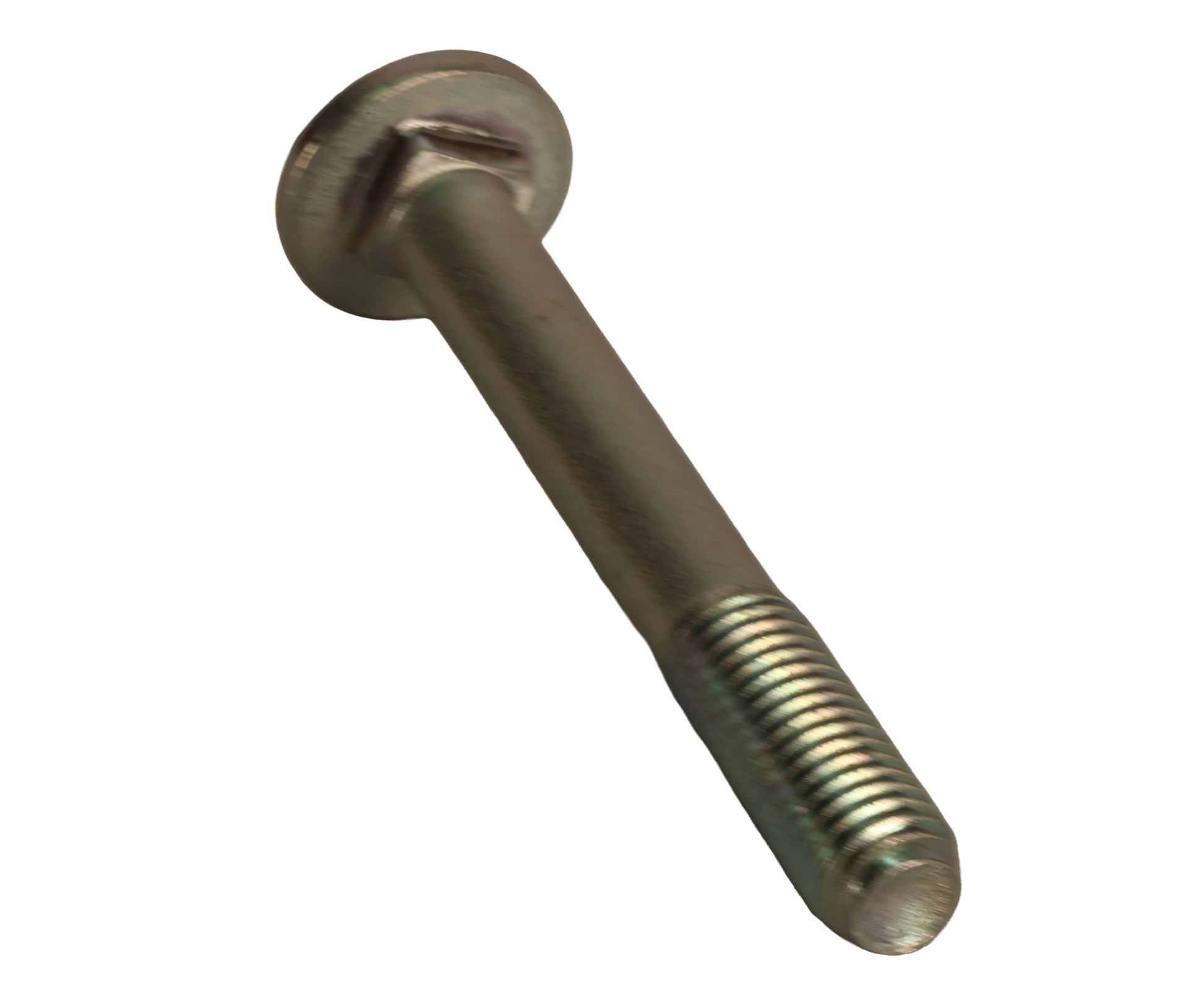

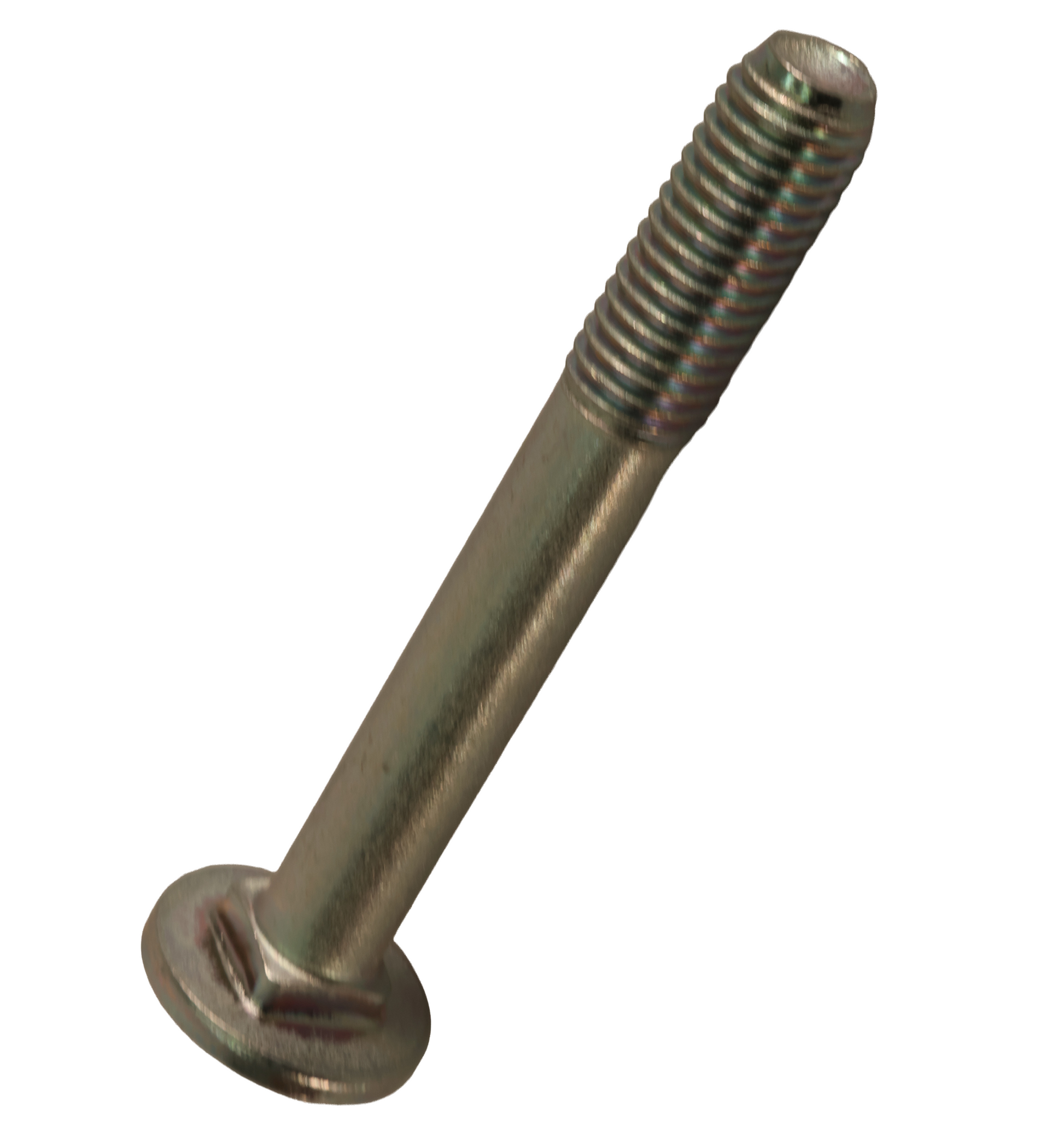

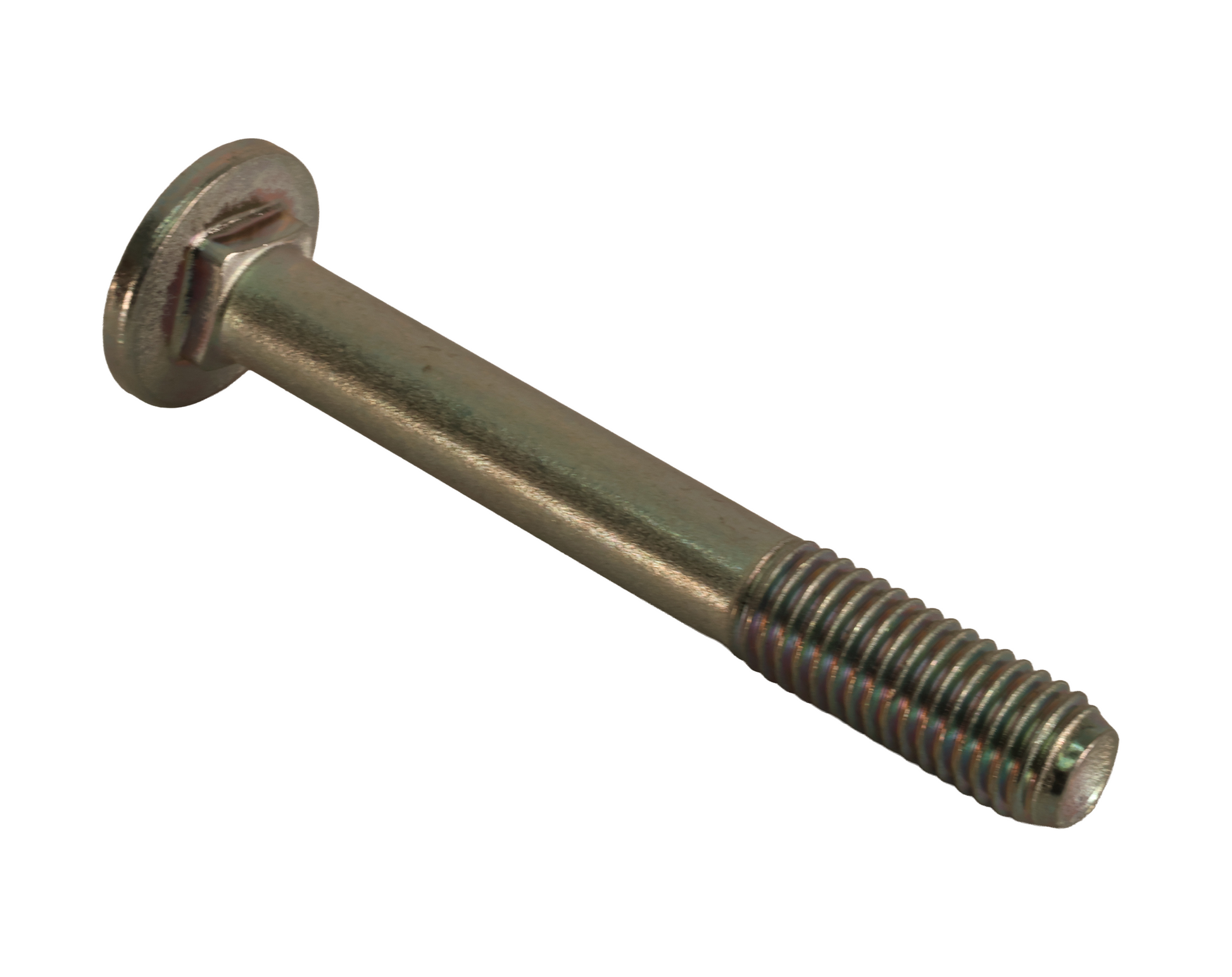

Round Head Square Neck Bolt

Part Specifications:
Thread Size (MM) 12.0000
Thread Pitch (MM) 1.7500
Length (MM) 90.0000
Thread Length (MM) 30.0000
Neck Depth (MM) 4.0000
Head Diameter (MM) 26.6000
Head Thickness (MM) 6.8000
Material or Grade (ALPHA) 10.9000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:

630FD, 635FD, 640FD, 748H, 848H, 2109, 2111, 2113, 2115, 2117, 2122, 2126, 2130, 2134, 2720, 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800, 9450, 9470 STS, 9500, 9540, 9550, 9560, 9560 STS, 9570 STS, 9580, 9600, 9640, 9650, 9650 STS, 9660, 9660 STS, 9660 WTS, 9670, 9670 STS, 9680, 9700, 9750 STS, 9760 STS, 9770 STS, 9780, 9800, 9860 STS, 9870 STS, 9880 STS, 9900, C670, CTS, CTS II, F8 100, F8 200, F8 300, F8 400, F8 500, F8 600, F9 500, F9 600, F9 700, F9 900, F9 1000, S5 500, S7 600, S7 700, S7 800, S7 850, S7 900, S430, S440, S540, S550, S560, S650, S660, S660 PRECISION UPGRADES, S670, S670 PRECISION UPGRADES, S670H, S680, S680 PRECISION UPGRADES, S680H, S685, S685H, S690, S690 PRECISION UPGRADES, S690H, S760, S760 PRECISION UPGRADES, S770, S770 RECISION UPGRADES, S780, S780 PRECISION UPGRADES, S785, S790, S790 PRECISION UPGRADES, T5 400, T5 500, T5 600, T5 700, T6 500, T6 600, T6 700, T6 800, T550, T560, T660, T670, W540, W550, W650, W660, X9 1000, X9 1000 PRECISION UPGRADES, X9 1100, X9 1100 PRECISION UPGRADES, Z994R.

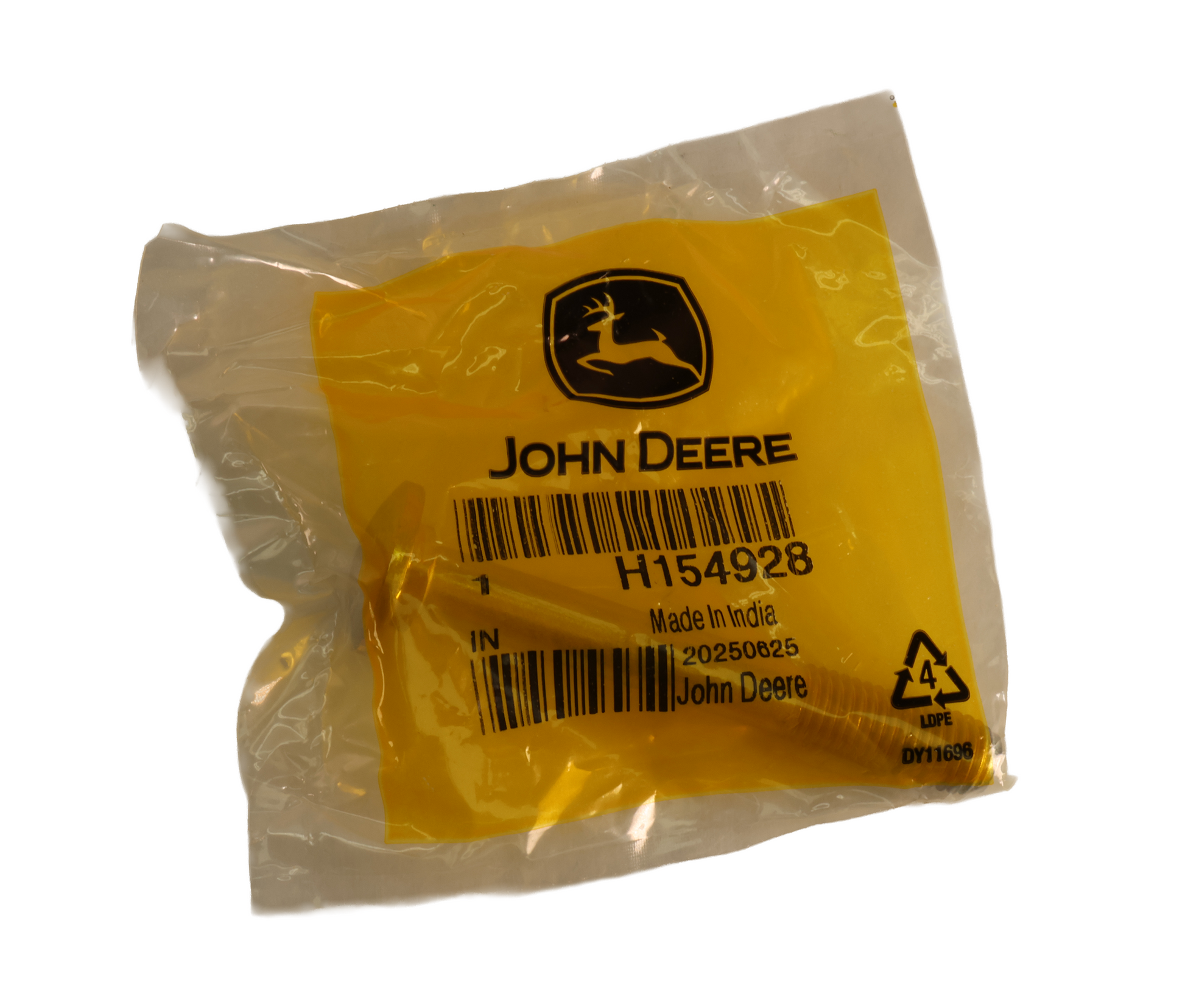

This is an O.E.M. John Deere part.
