John Deere Original Equipment M10x30 Bolt - H229875

John Deere Original Equipment M10x30 Bolt - H229875

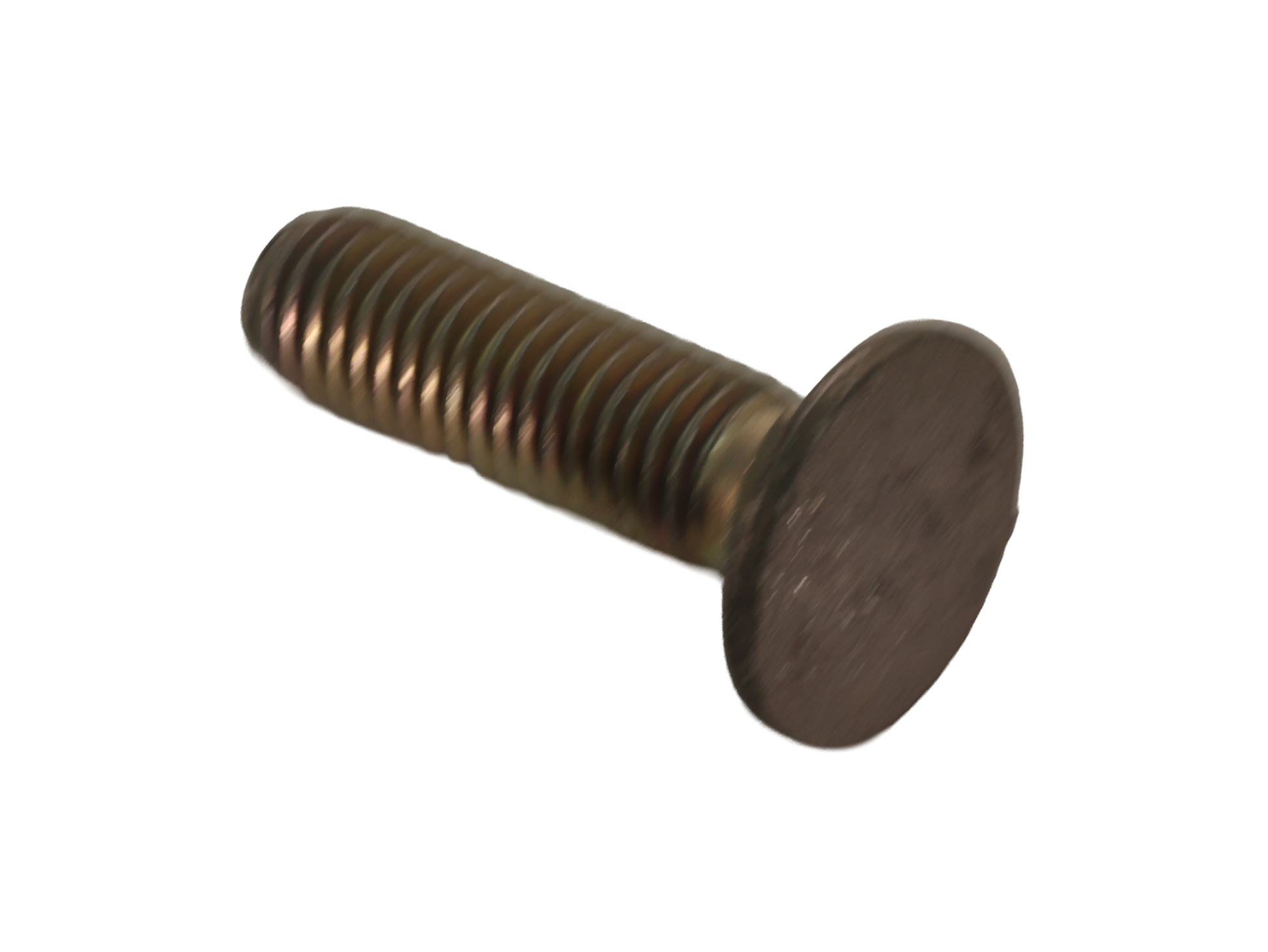

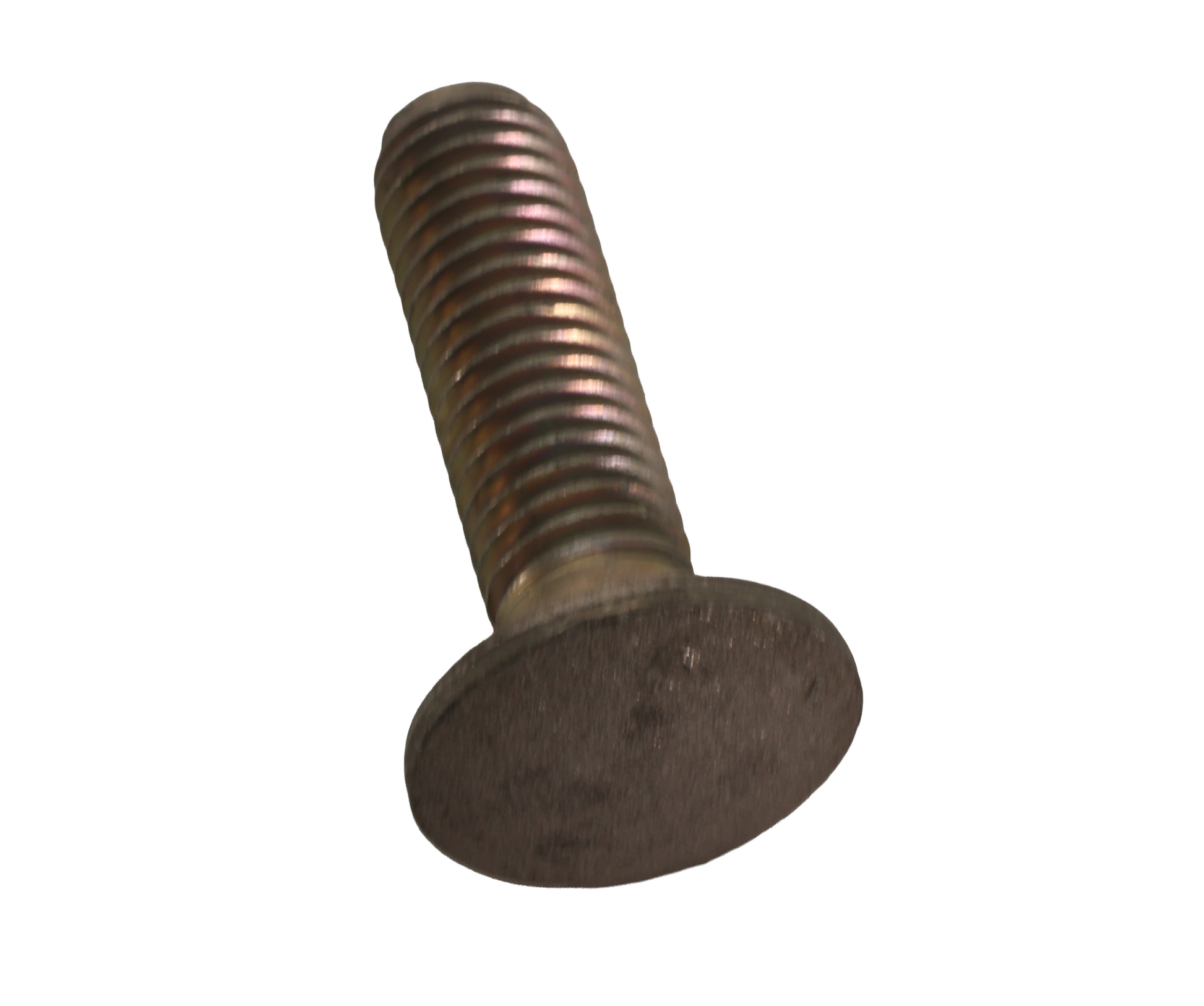

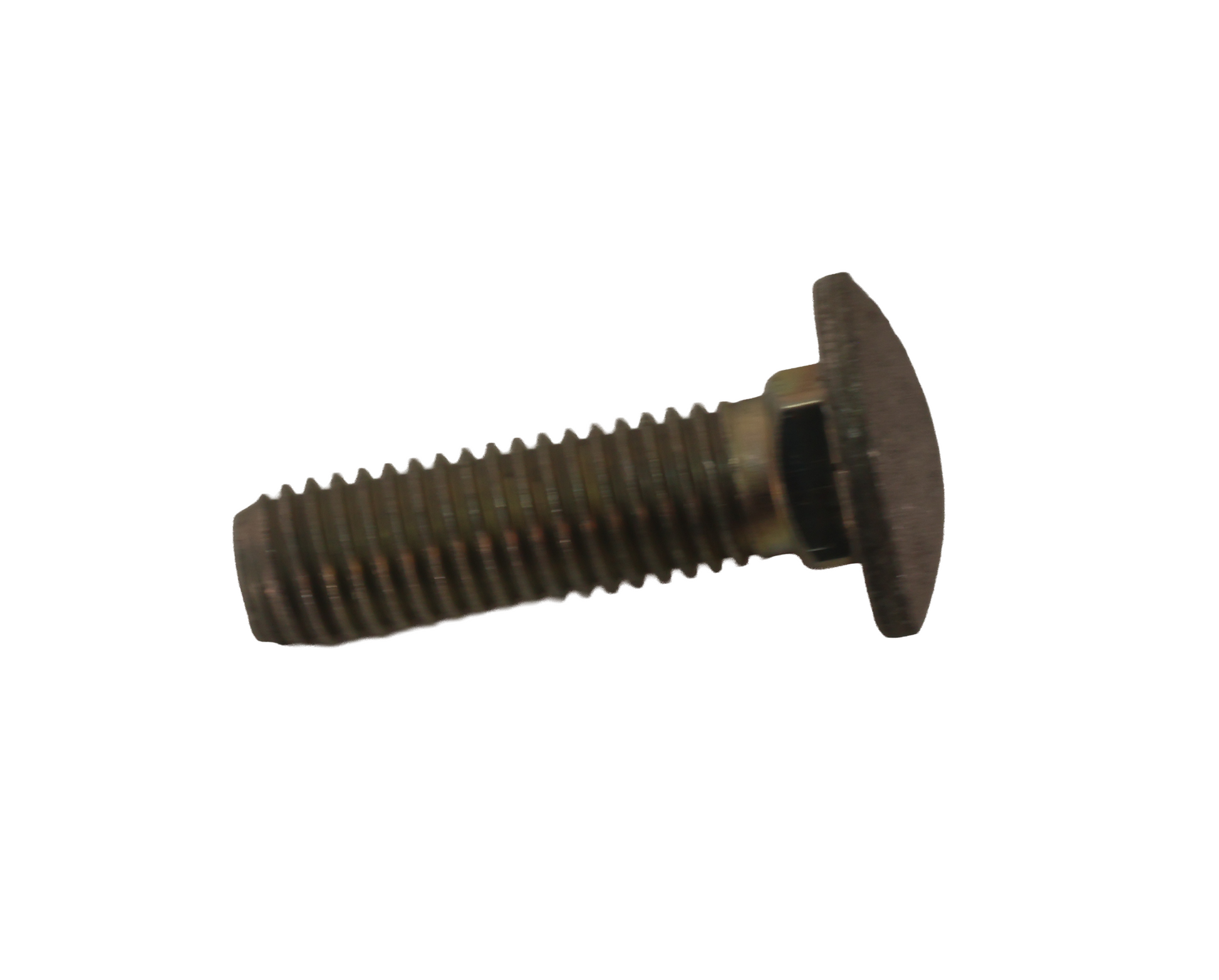

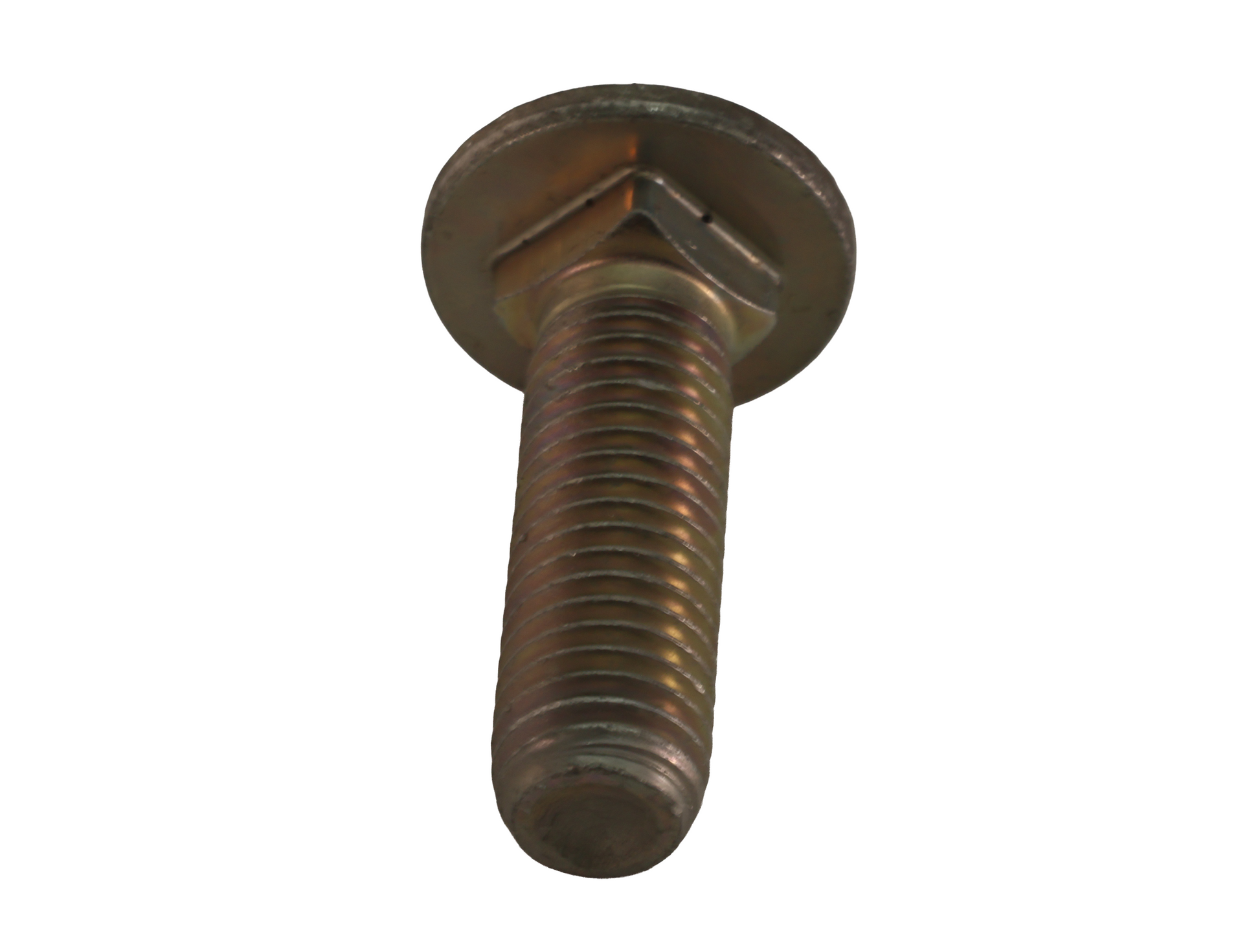

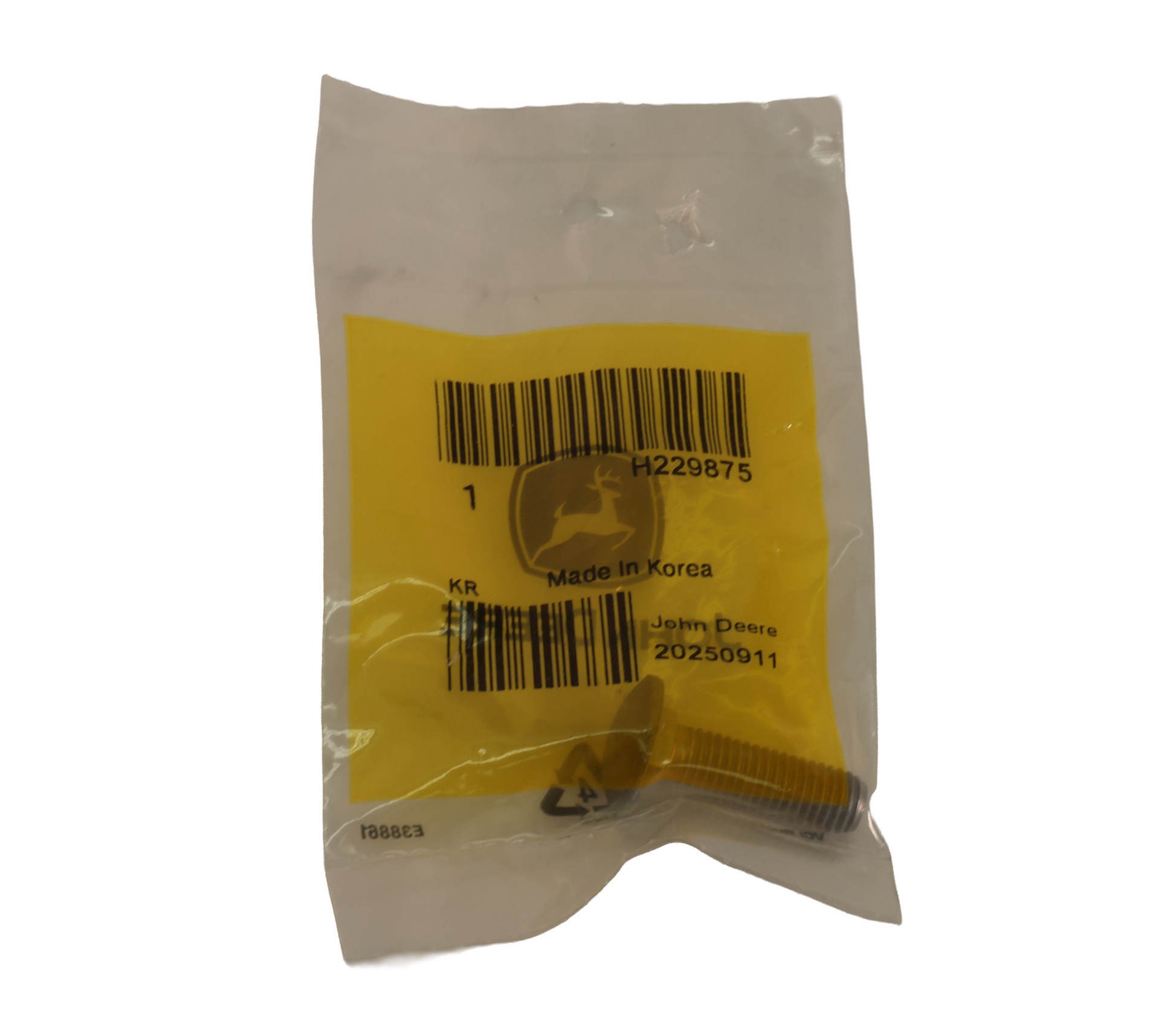

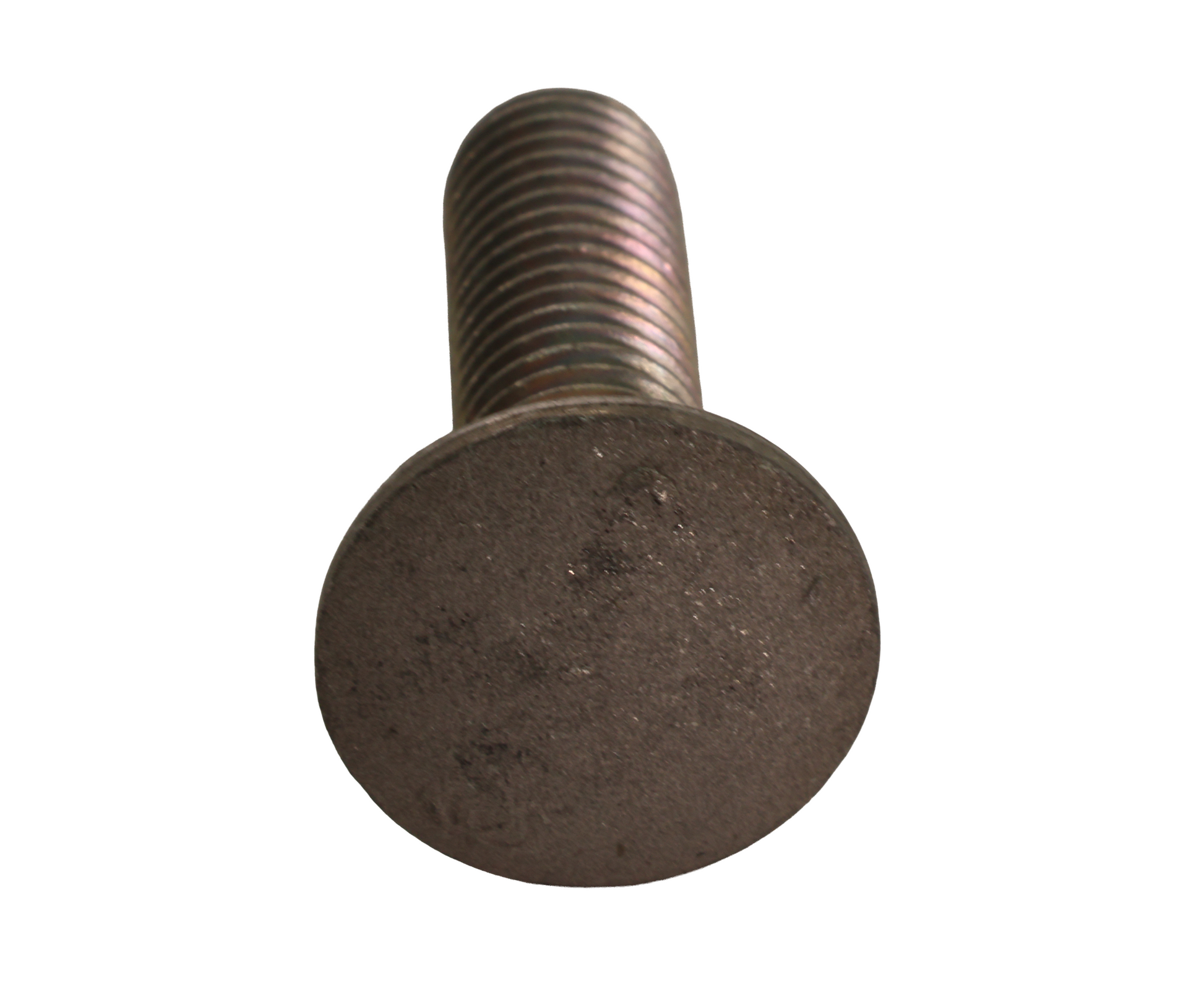

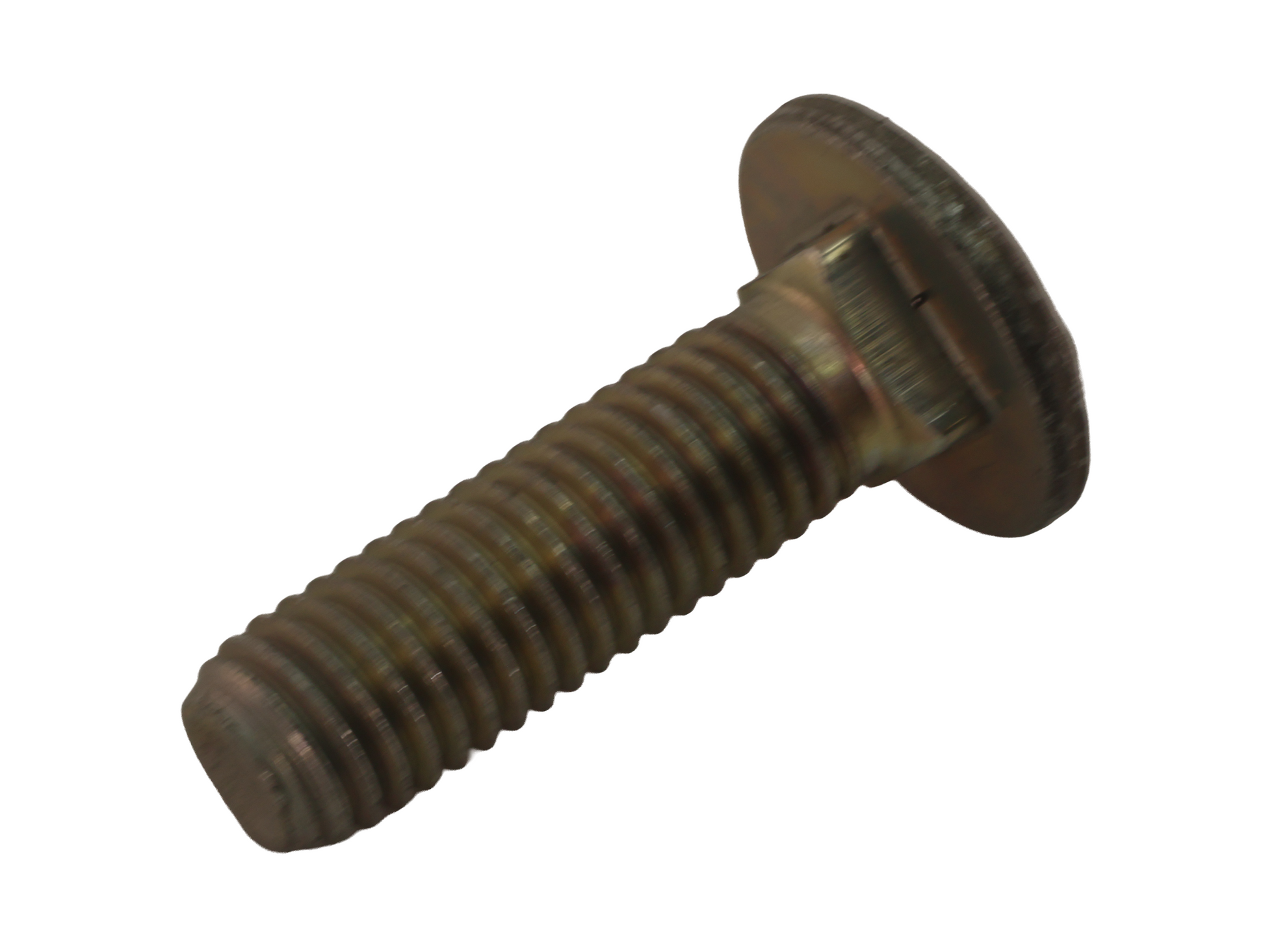

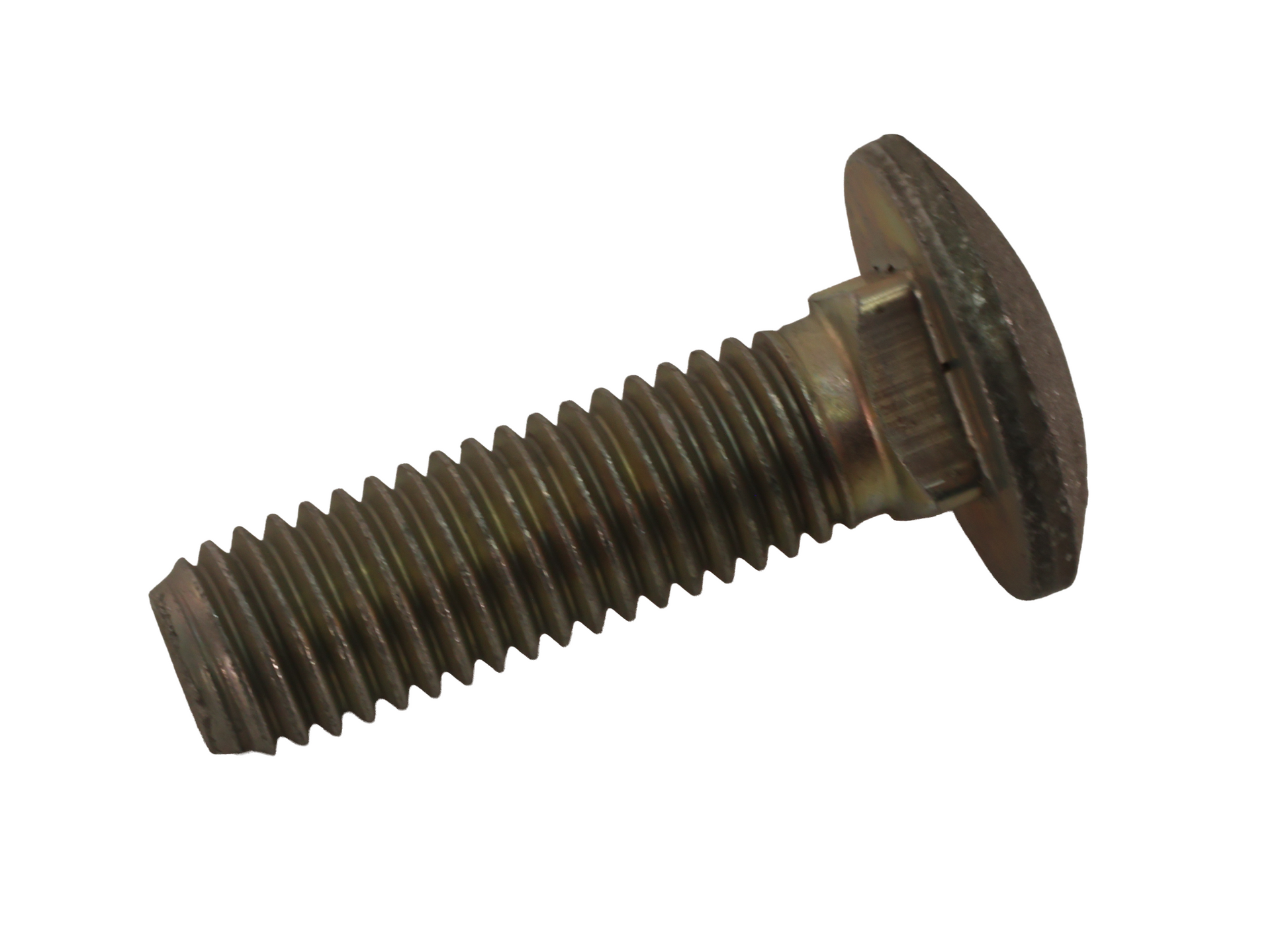

M10X30 Round Head Square Neck Bolt

Part Specifications:
Thread Size (MM) 10.0000
Thread Pitch (MM) 1.5000
Length (MM) 35.0000
Thread Length (MM) 28.0000
Neck Depth (MM) 4.0000
Head Diameter (MM) 22.3000
Head Thickness (MM) 5.8000
Material or Grade (ALPHA) 10.9000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Combine: 9660 STS, 9760 STS, 9860 STS, 9660, S690, S7 600, S7 700, S7 800, S7 900, 9870 STS, S650, S660, S670, S680, S690, S7 850, S760, S770, S780, S785, S790, 1000, X9 1000, 1100, X9 1100.

This is an O.E.M. John Deere part.
