John Deere Original Equipment Lock Nut - W50958

John Deere Original Equipment Lock Nut - W50958

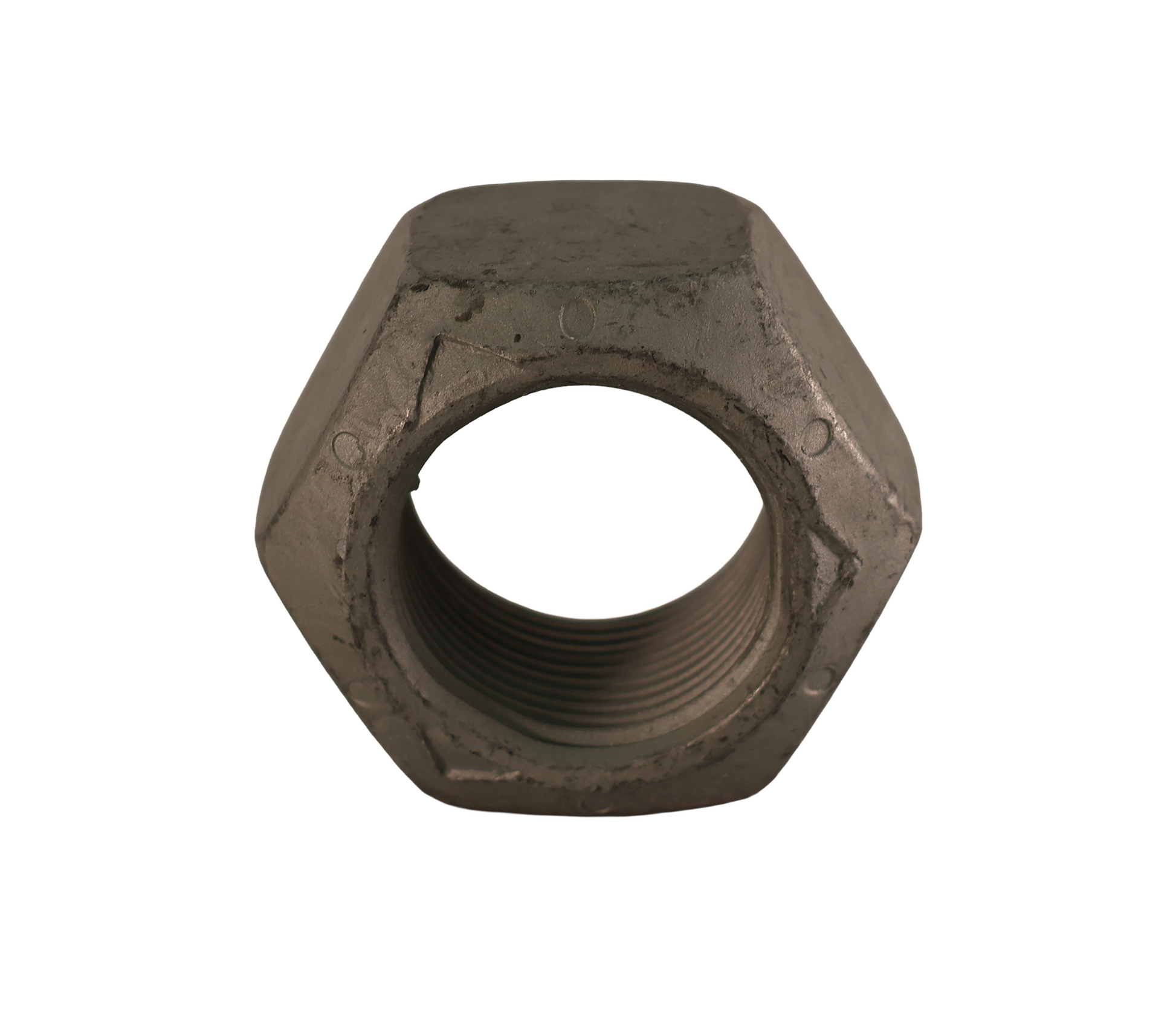

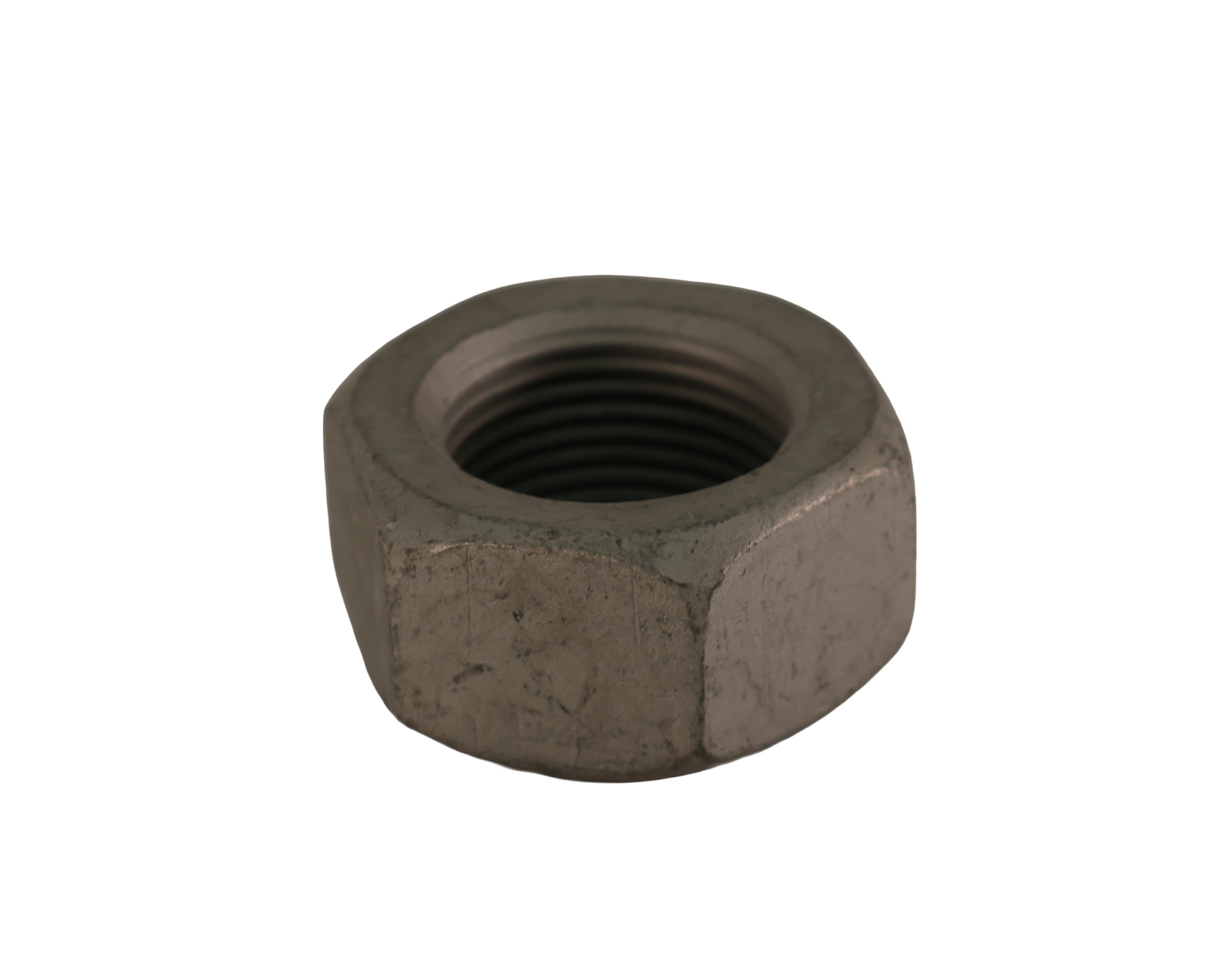

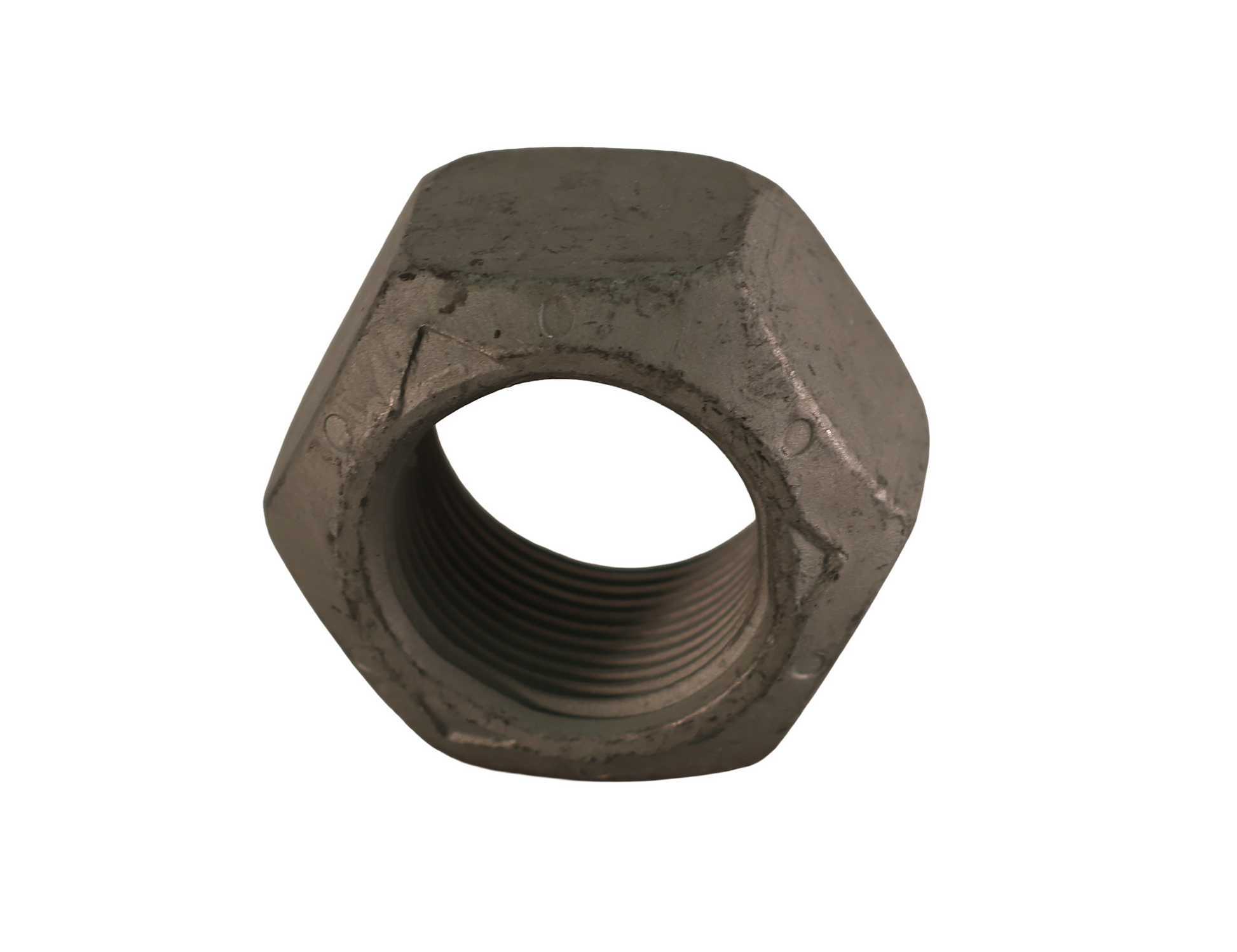

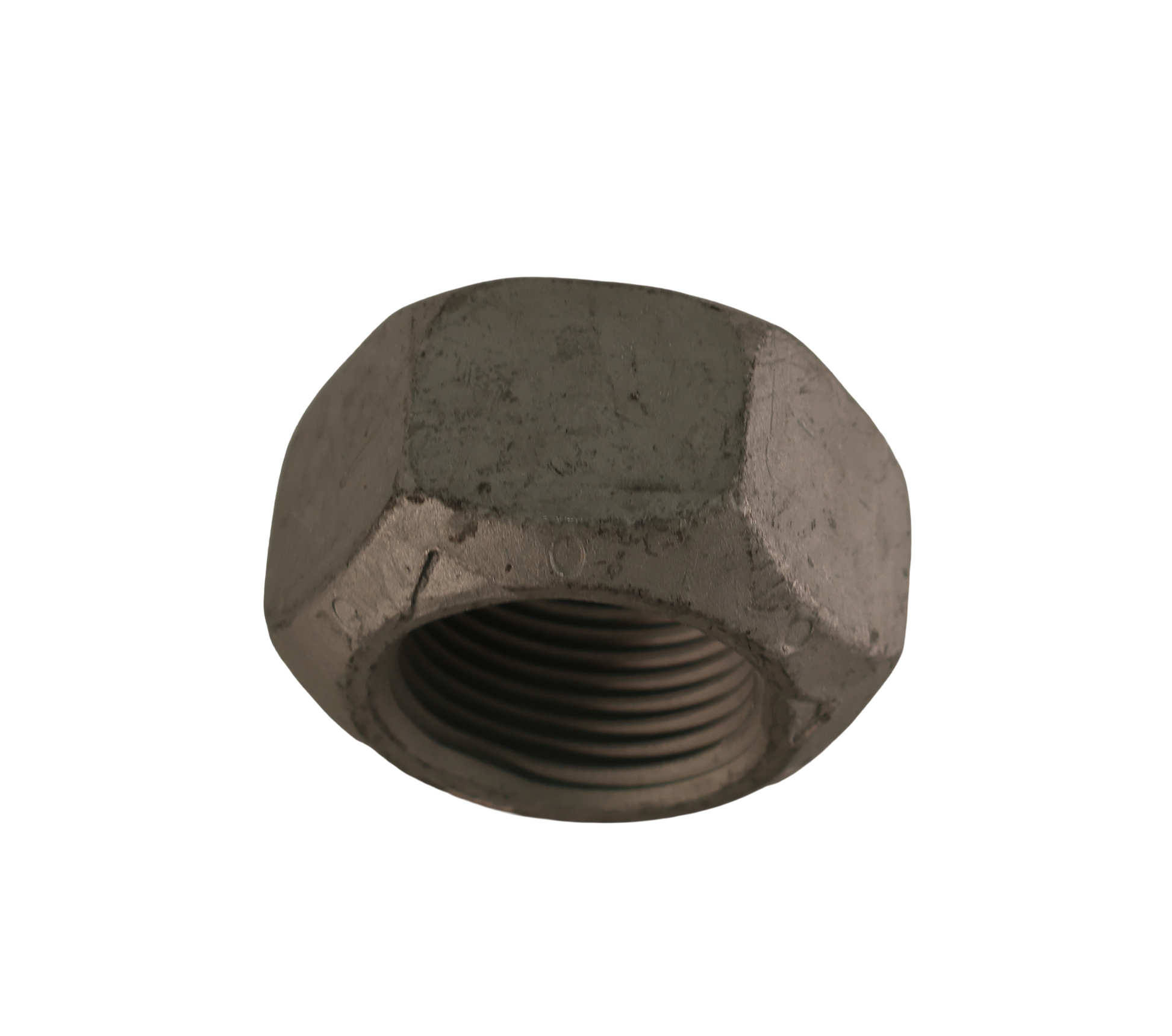

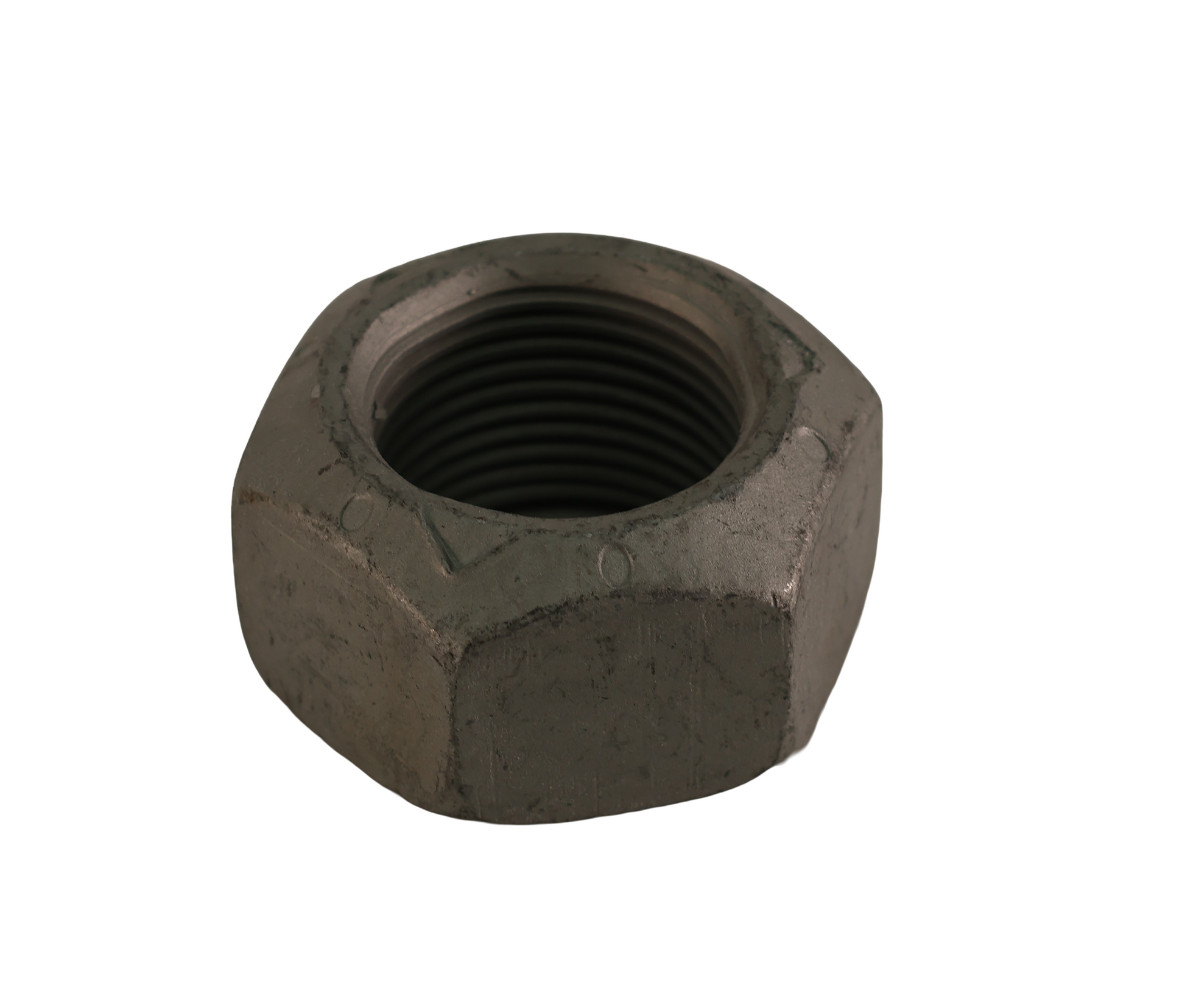

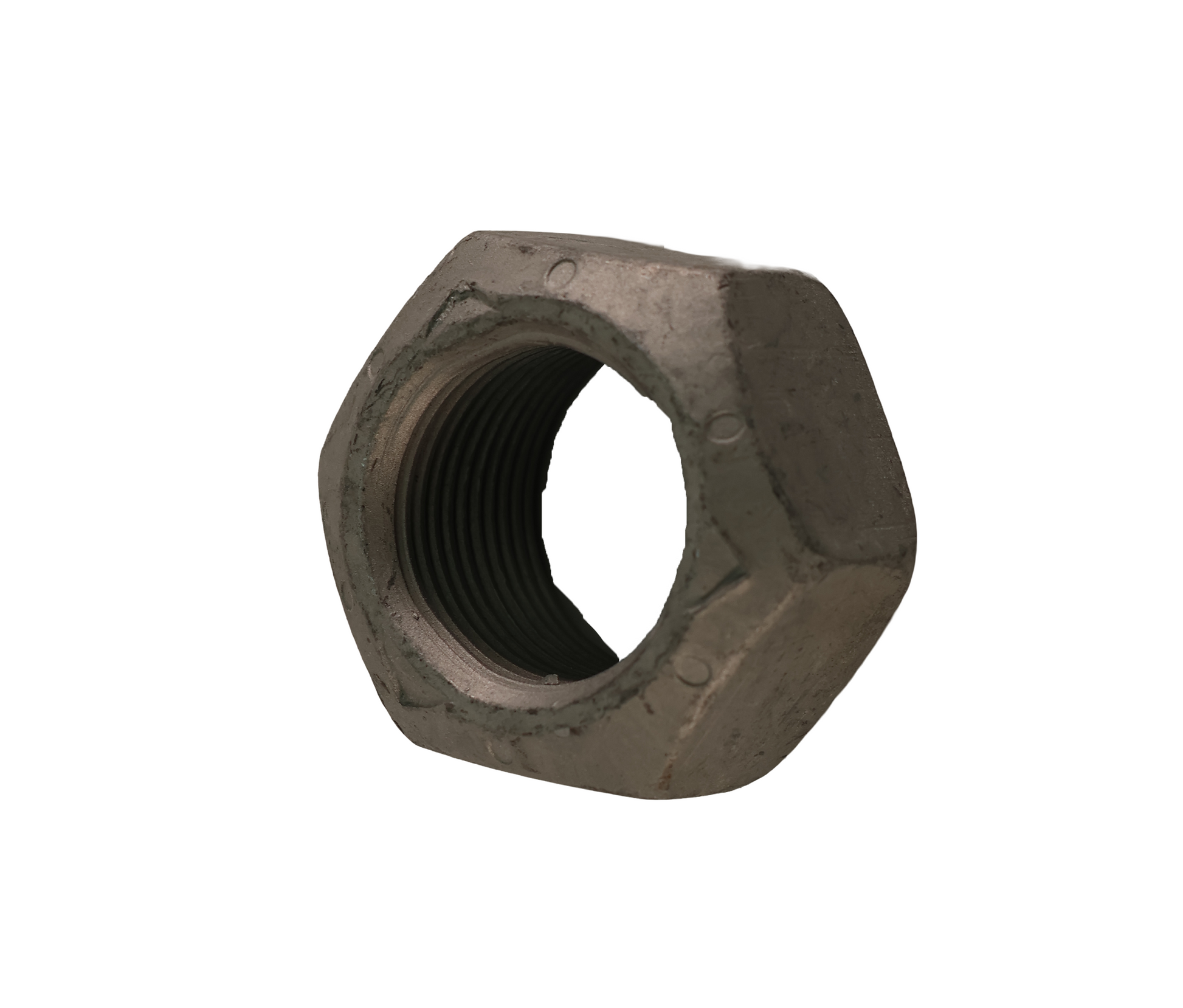

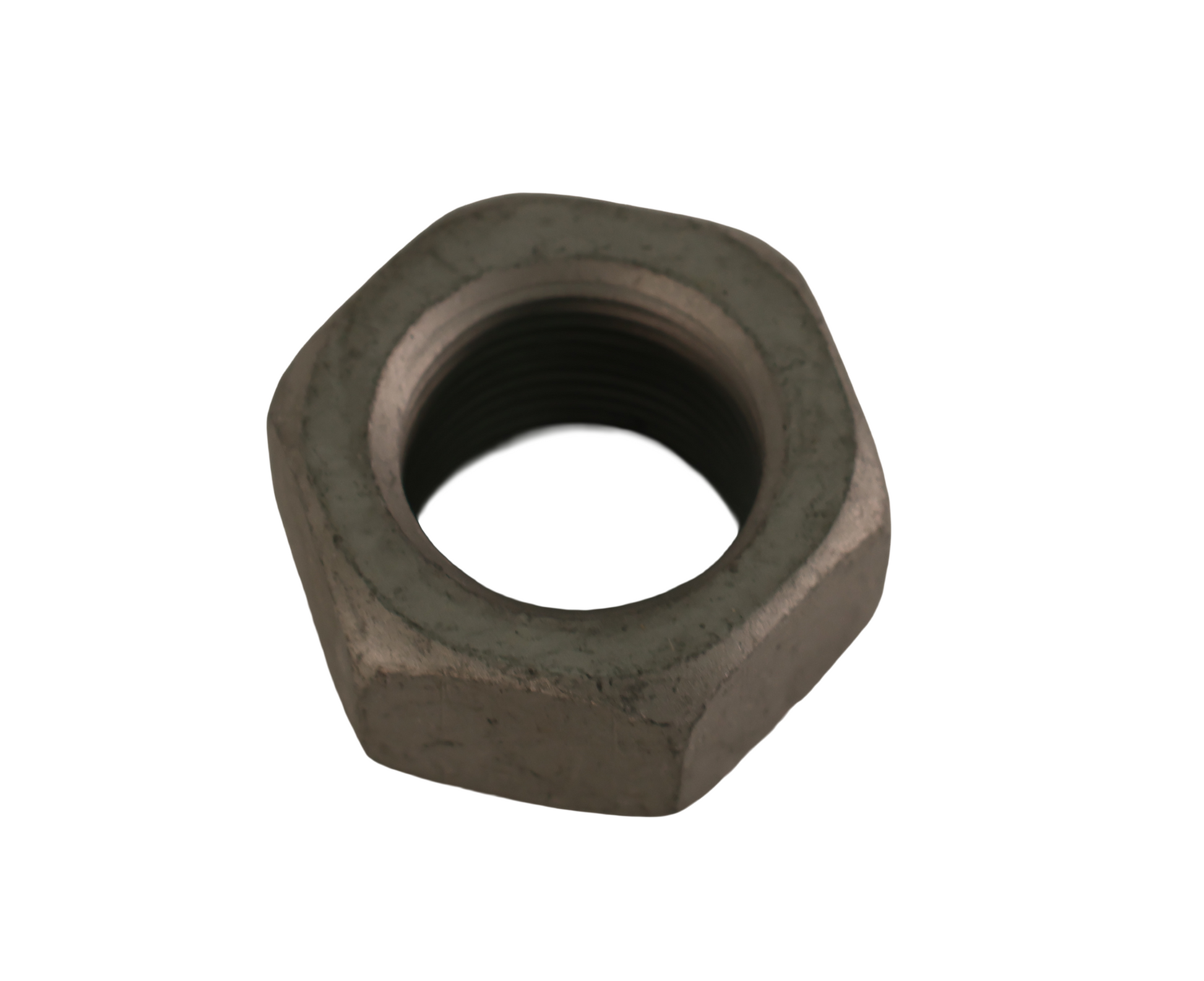

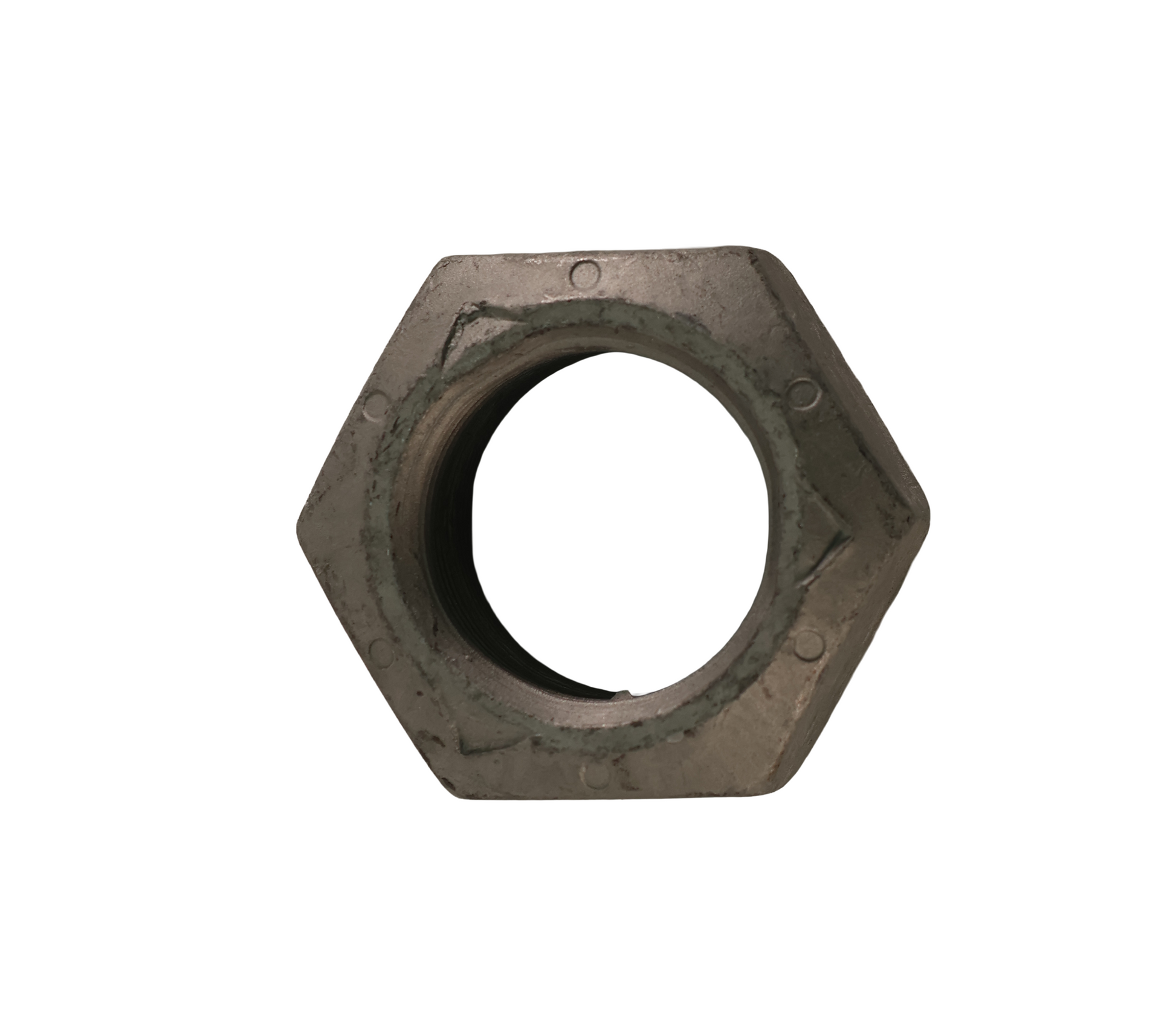

1" Hexagonal Lock Nut

Part Specifications:
Thread Size (IN) 1.0000
Thread / TPI Pitch (ALPHA) 14
Thickness (IN) 0.8870
Across Flats (IN) 1.5000
Height (IN) 0.0000
Locking Element Type (ALPHA) D
Material (ALPHA) C
Finish (ALPHA) T-Zinc Flake

Fits the following John Deere models:
Rotary Cutter: 1018, 1418, 1517, 1518, 2018, 509, 609, 709, CX15, HX15, CX20, HX20, HX10, E12, E15, FC10R, FC12E, HX14, LX4, LX5, LX6, FC15E, FC15M, FC15R, FC20M, FC20R, HX6, HX7, M15, M20, MX15, MX5, MX6, MX7, MX10, MX8, R10, R15, R20, RC10M, RC10R, RC14R, RC5M, RC6M, RC6R, RC6R, RC7M, RC7R, RC8M.
Felling Head: FS22B.
Harvester Head: FS22B.
Disk: 650, 630, 635, 640.
Disk Harrow: 680.
Harvester: CH570, CH670.

This is an O.E.M. John Deere part.
