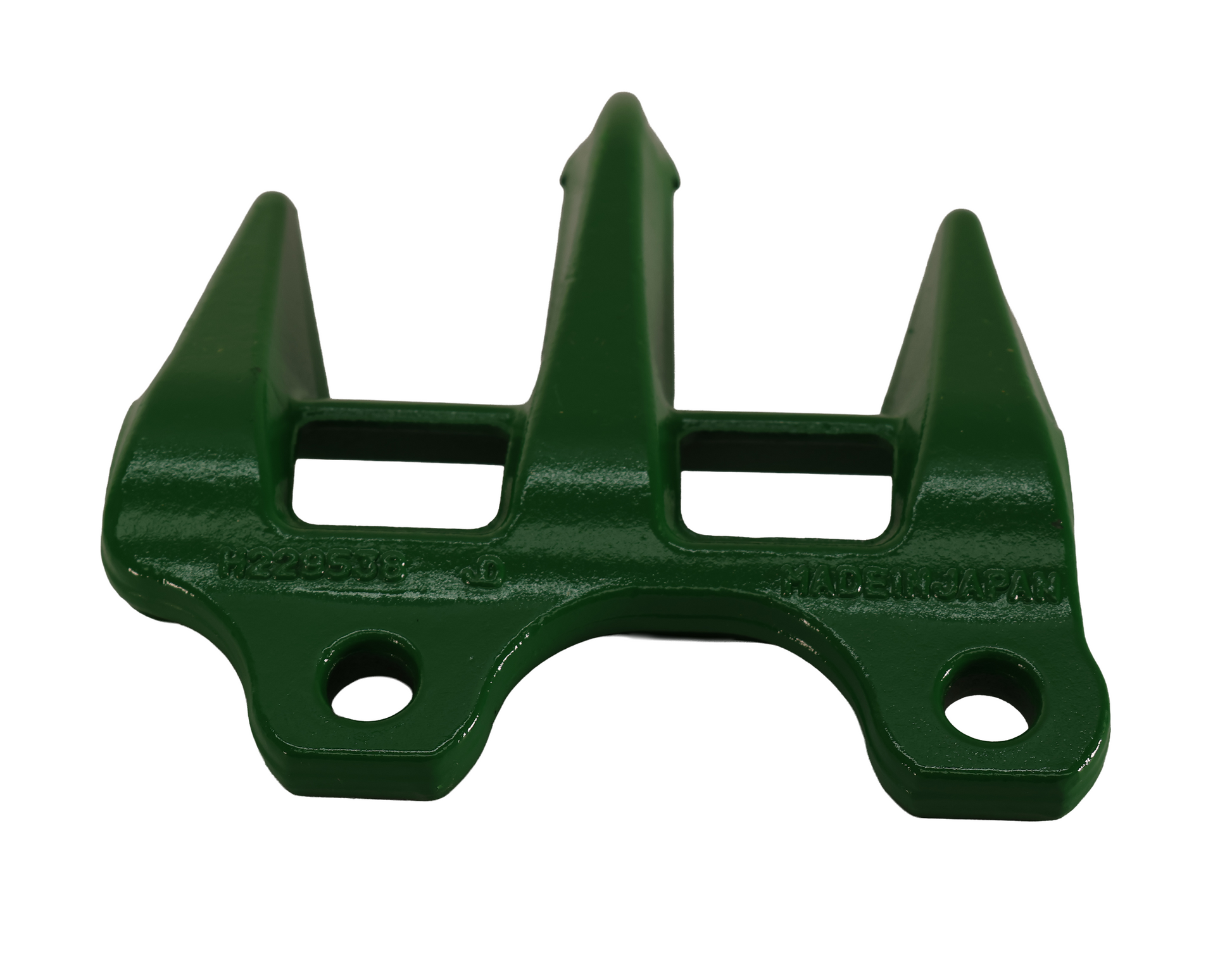

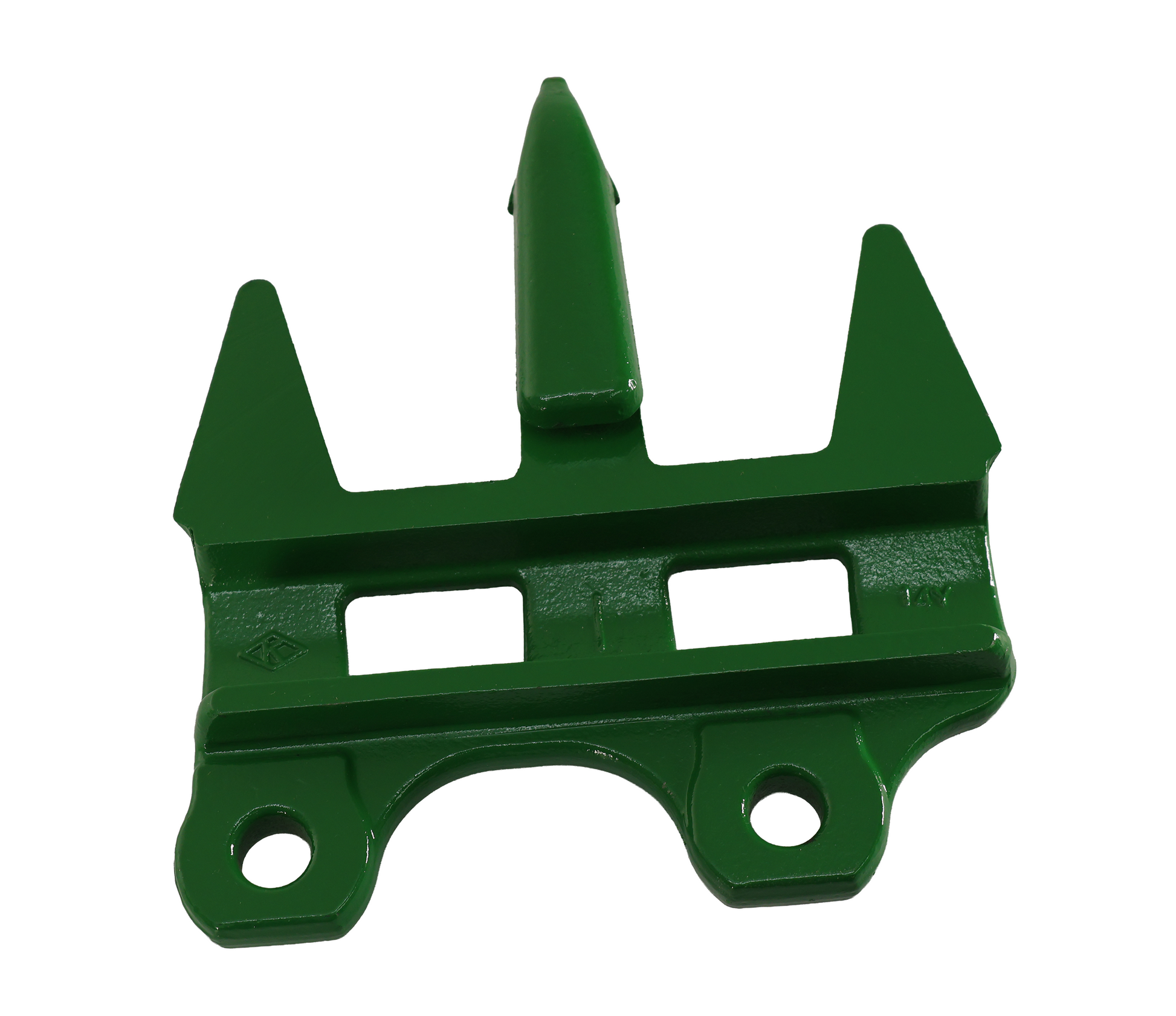

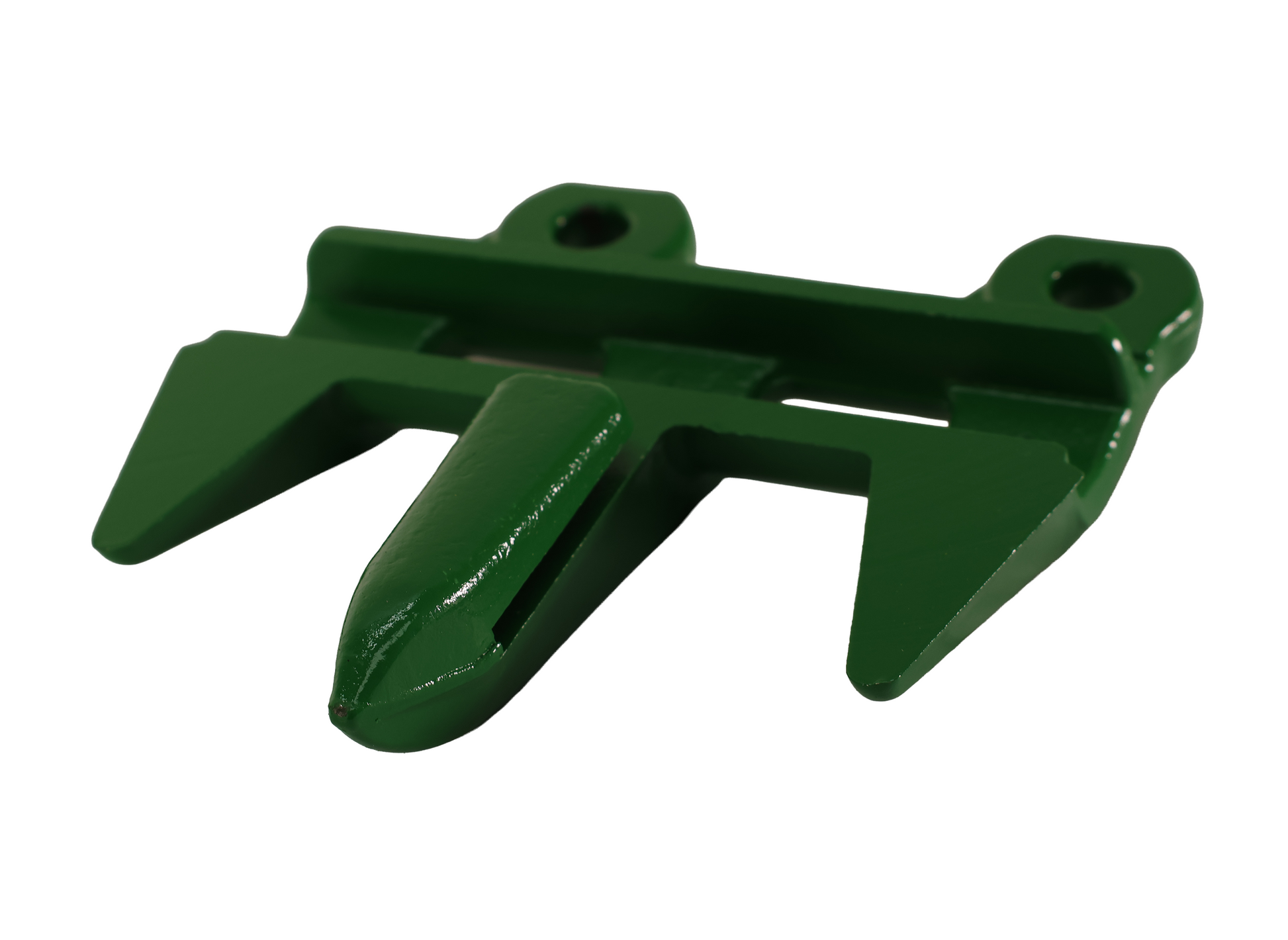

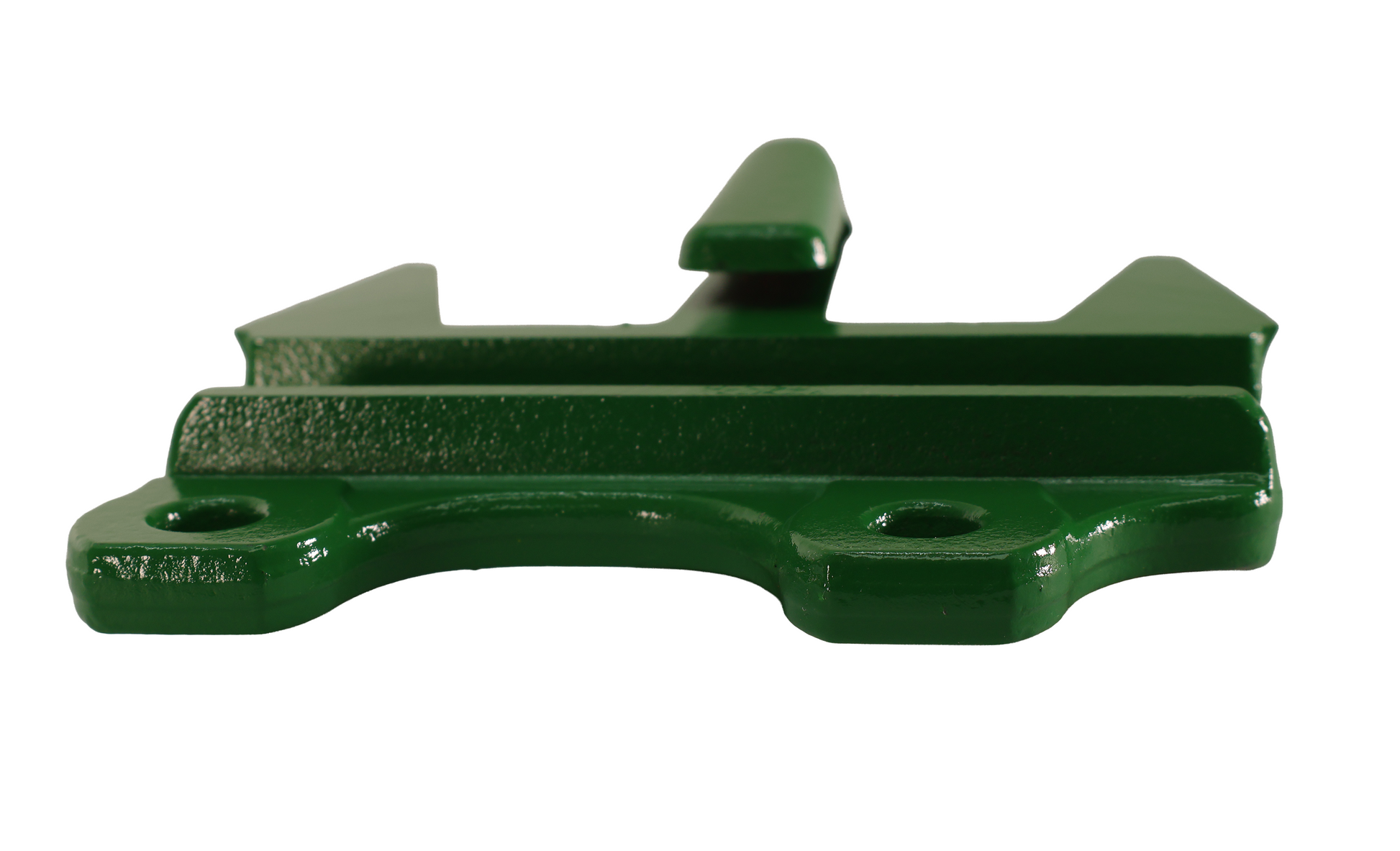

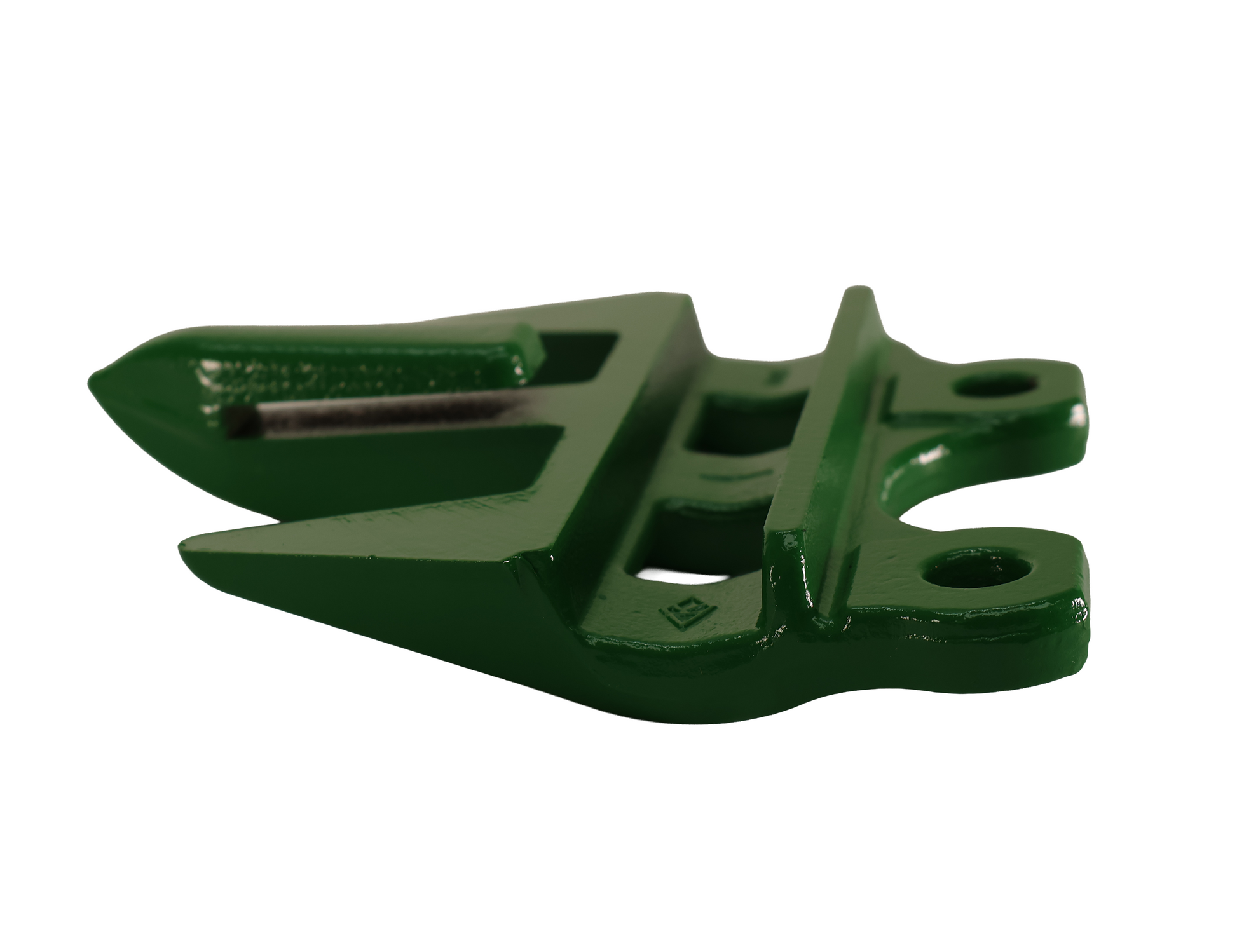

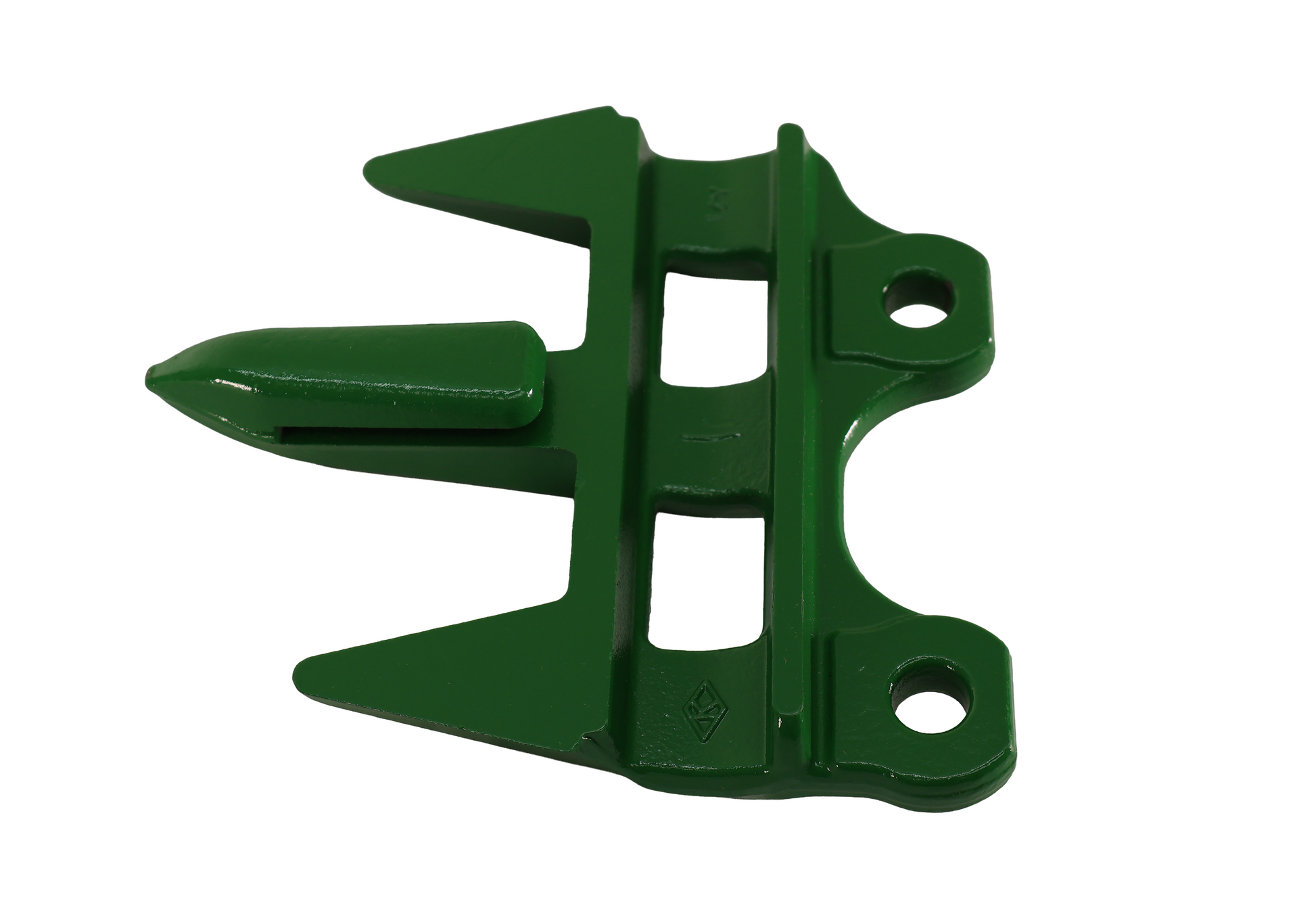

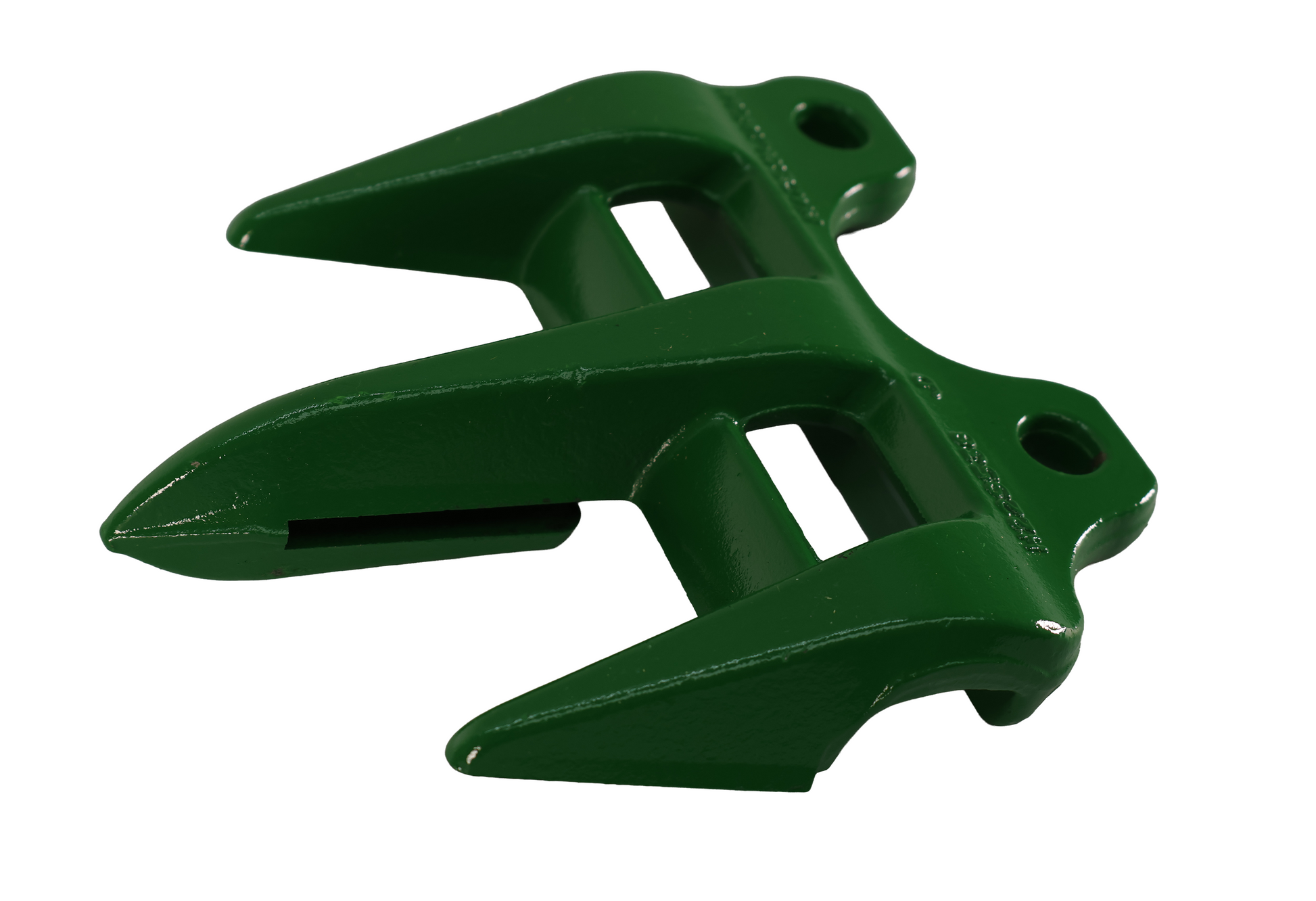

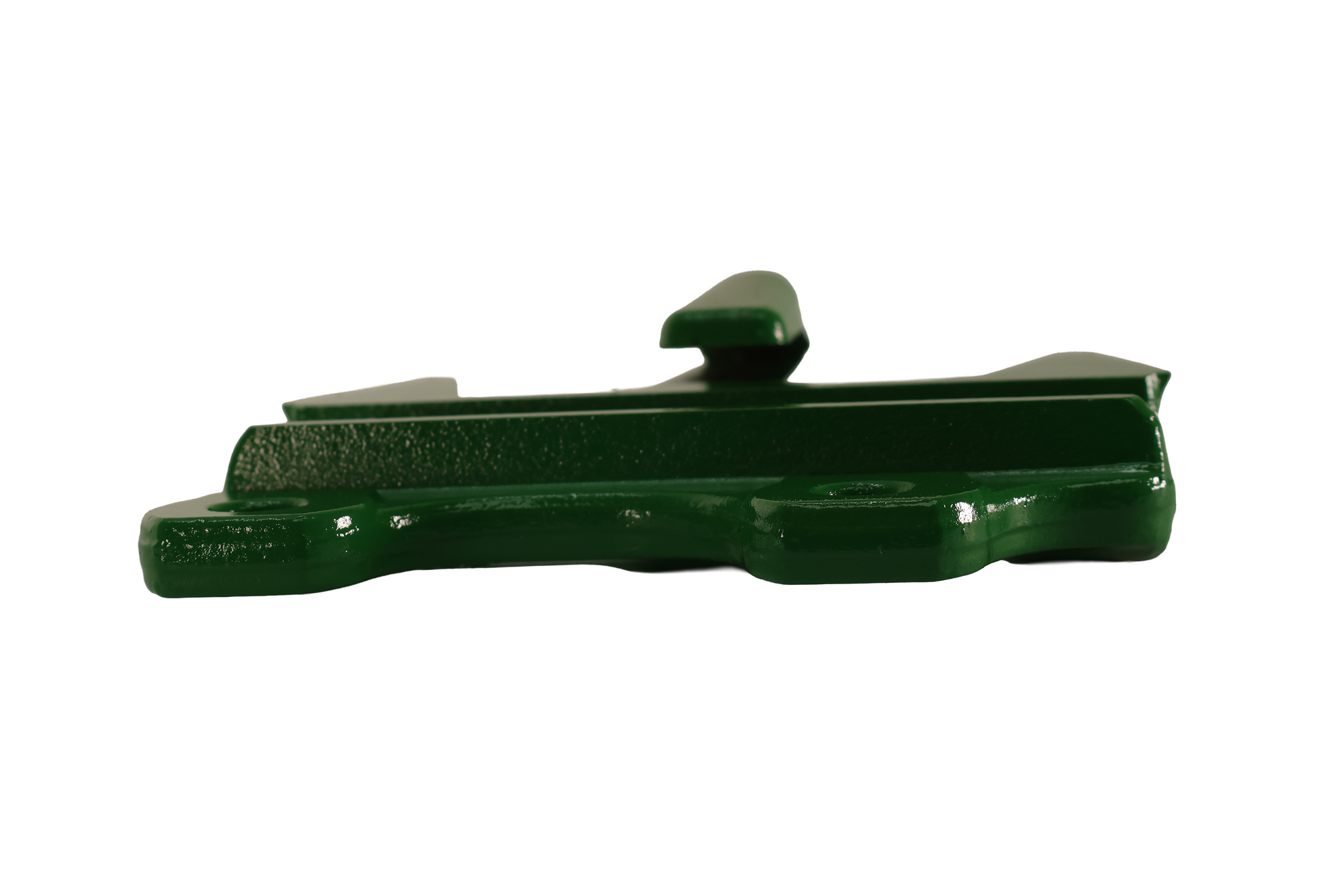

John Deere Original Equipment Knife Guard High Wear - H229538

John Deere Original Equipment Knife Guard High Wear - H229538

4 inch High Wear Knife Guard

Part Specifications:
Hole Spacing (IN) 3.0000
Length (IN) 4.8661
Bolt Size (IN) 0.4134
Slot Width (IN) 0.1850
Slot Depth (IN) 3.6496
Offset (IN) 0.3268
Offset Depth (IN) 0.0000
Material (ALPHA) STEEL
Finish (ALPHA) A-Heat Treated
Note (A) There is more information on the engineering blue print that is not shown in detail here.

Fits the following John Deere models:
Platform (Cutting) Combine: 600, 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625F, 625R, 630F, 630R, 635F, 635R, 635FD, 640FD, 616F, 618F, 618R, 620F, 620R, 622F, 622R, 625F, 625R, 630F, 630FD, 635F, 635FD, 640FD, 645FD, 730FD, 735FD, 740FD, 745FD, FA16, RA16, FA18, RA18, FA20, RA20, FA22, RA22, FA25, RA25, FA30.
Platform: HD35F, HD35R, HD35X, HD40F, HD40R, HD40X, HD45F, HD45R, HD45X, HD50F, HD50R, HDF35, HDF40, HDF45, HDF50, HDR35, HDR40, HDR45, HDR50, HDX35, HDX40, HDX45, RDF30, RDF35, RDF40, RDF45, RD30F, RD35F, RD40F, RD45F, RDF30, RDF35, RDF40, RDF45.

This is an O.E.M. John Deere part.
