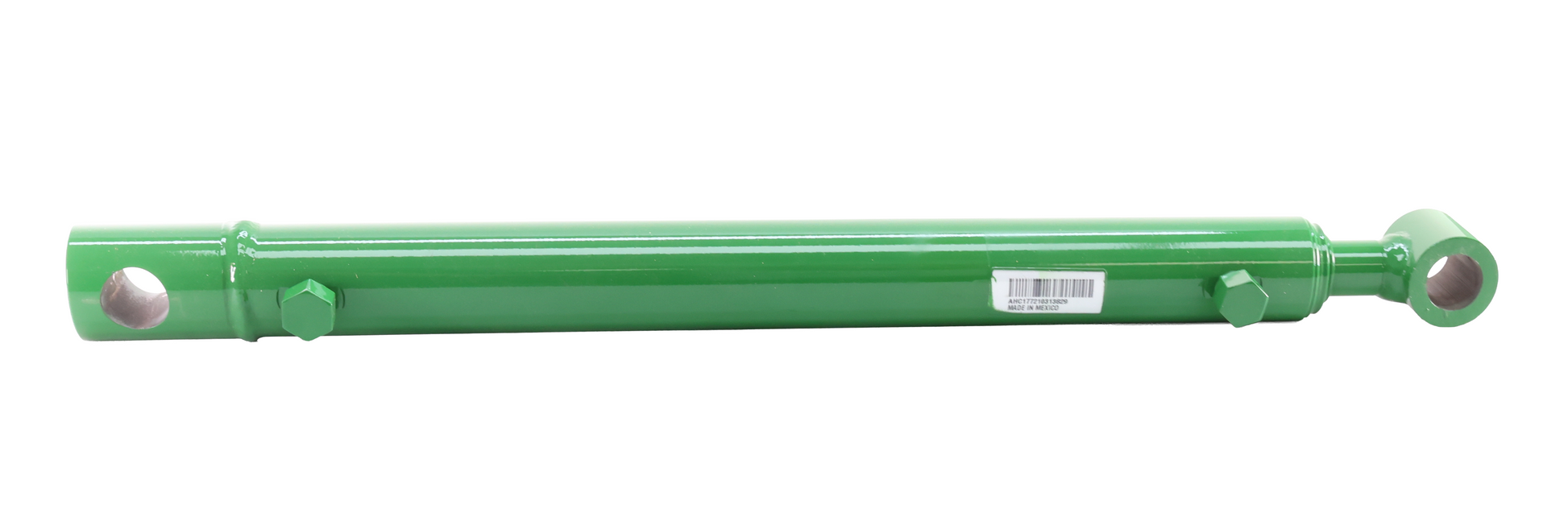

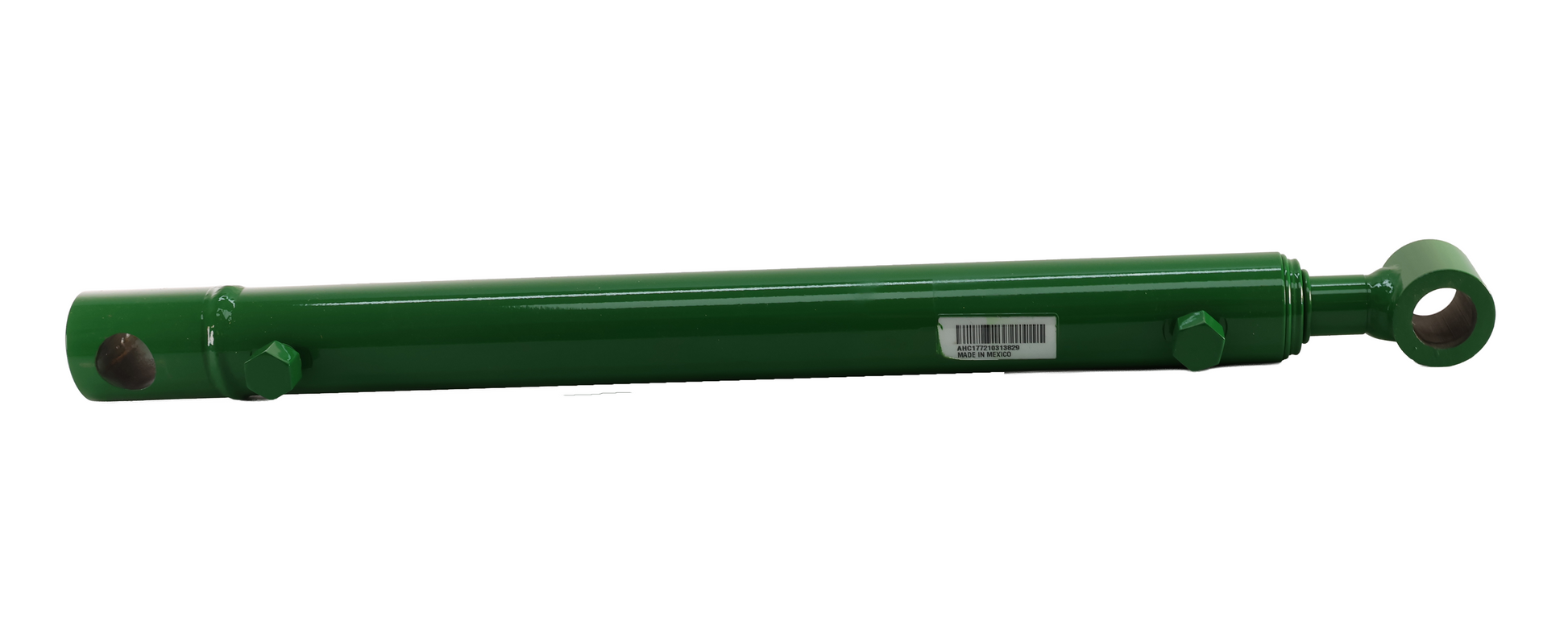

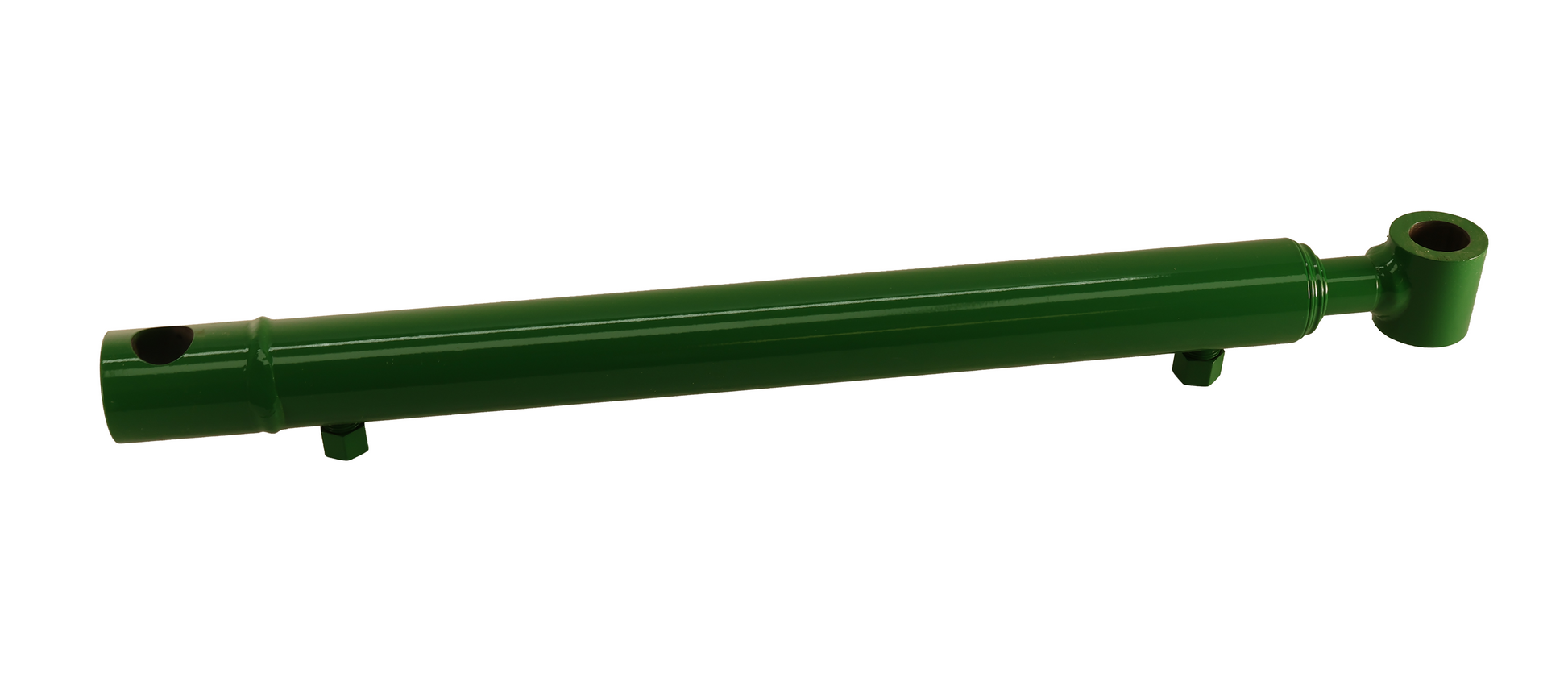

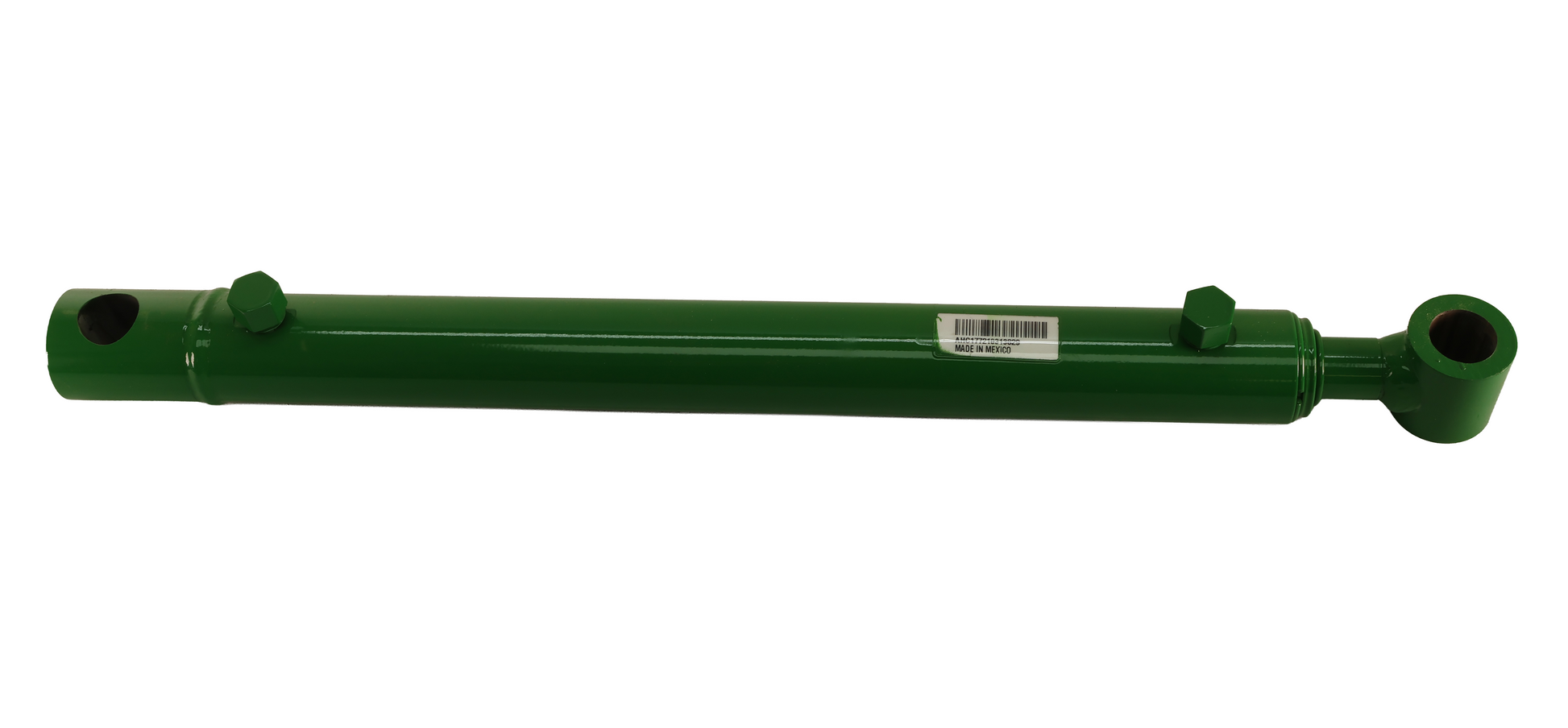

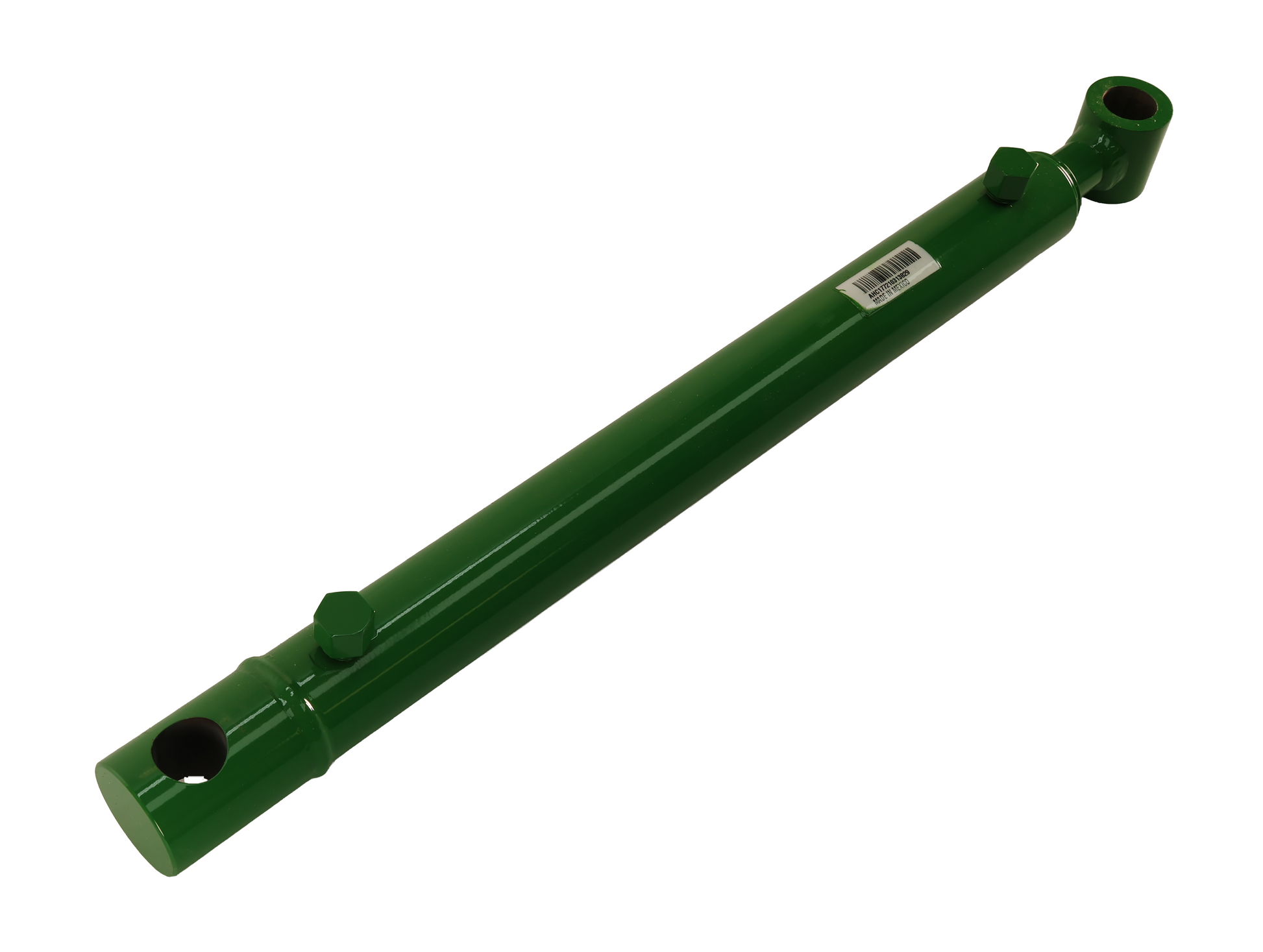

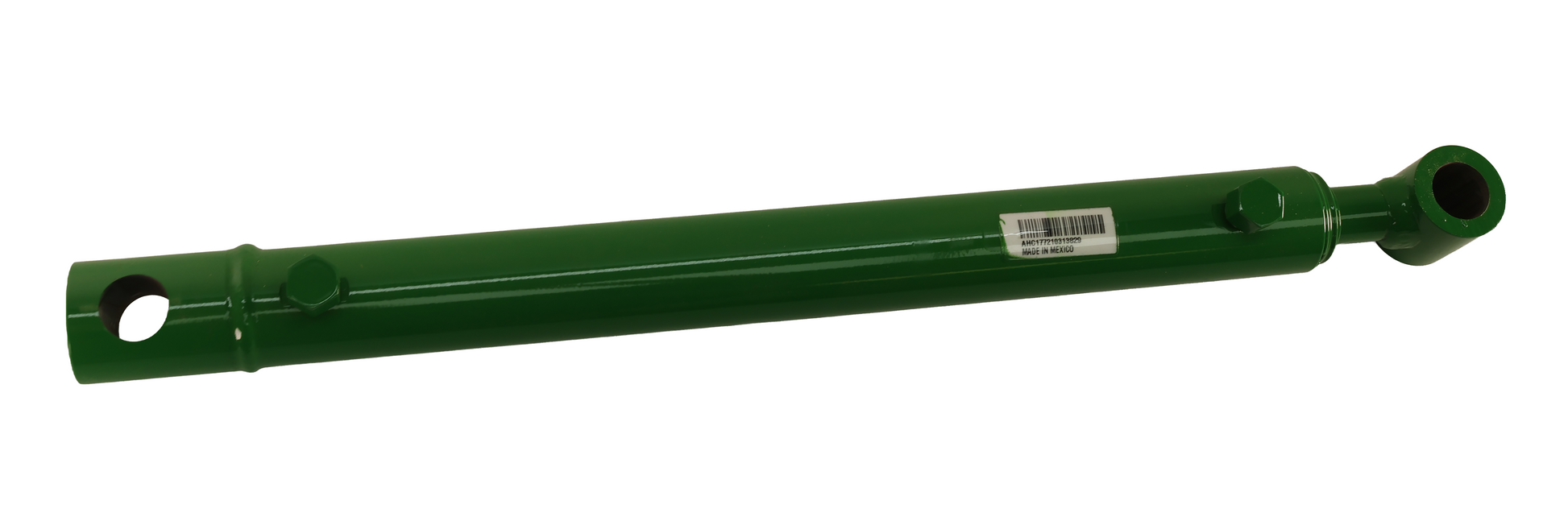

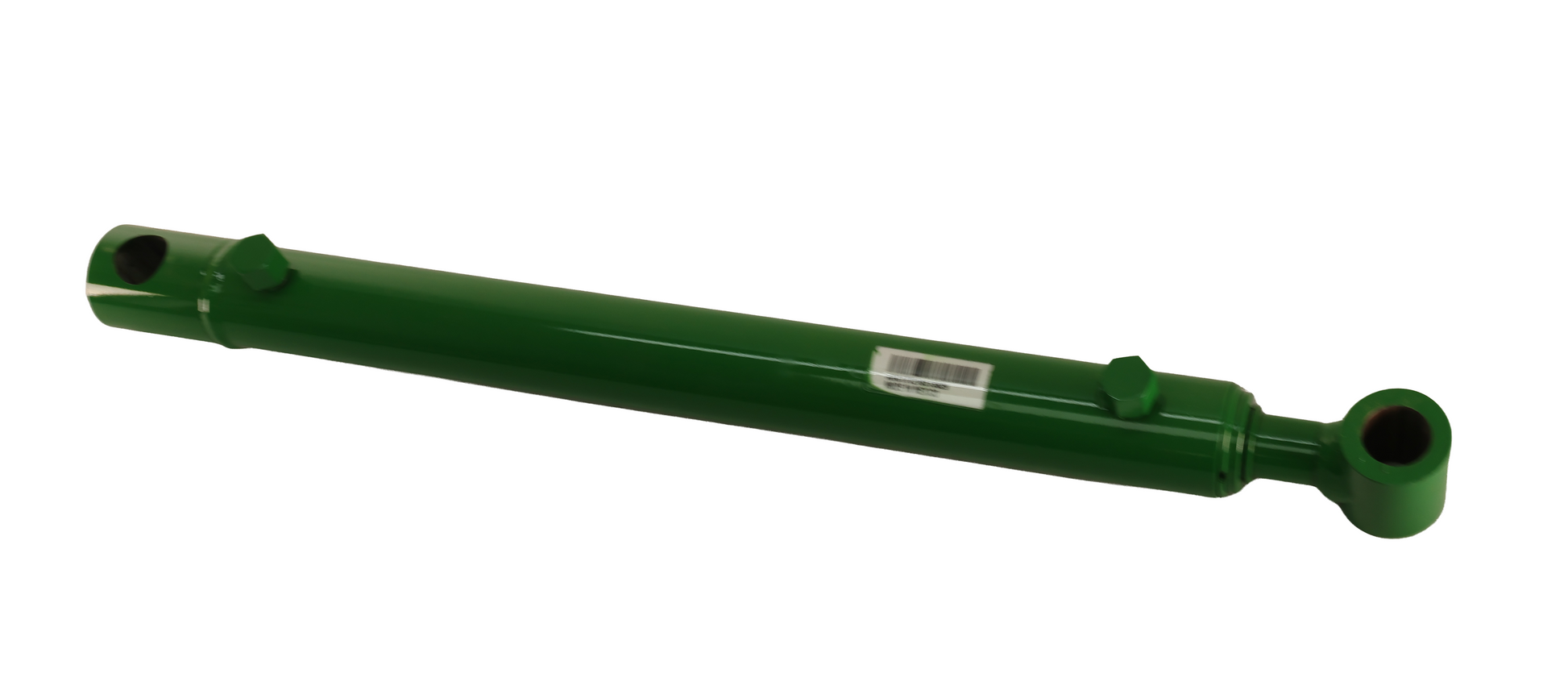

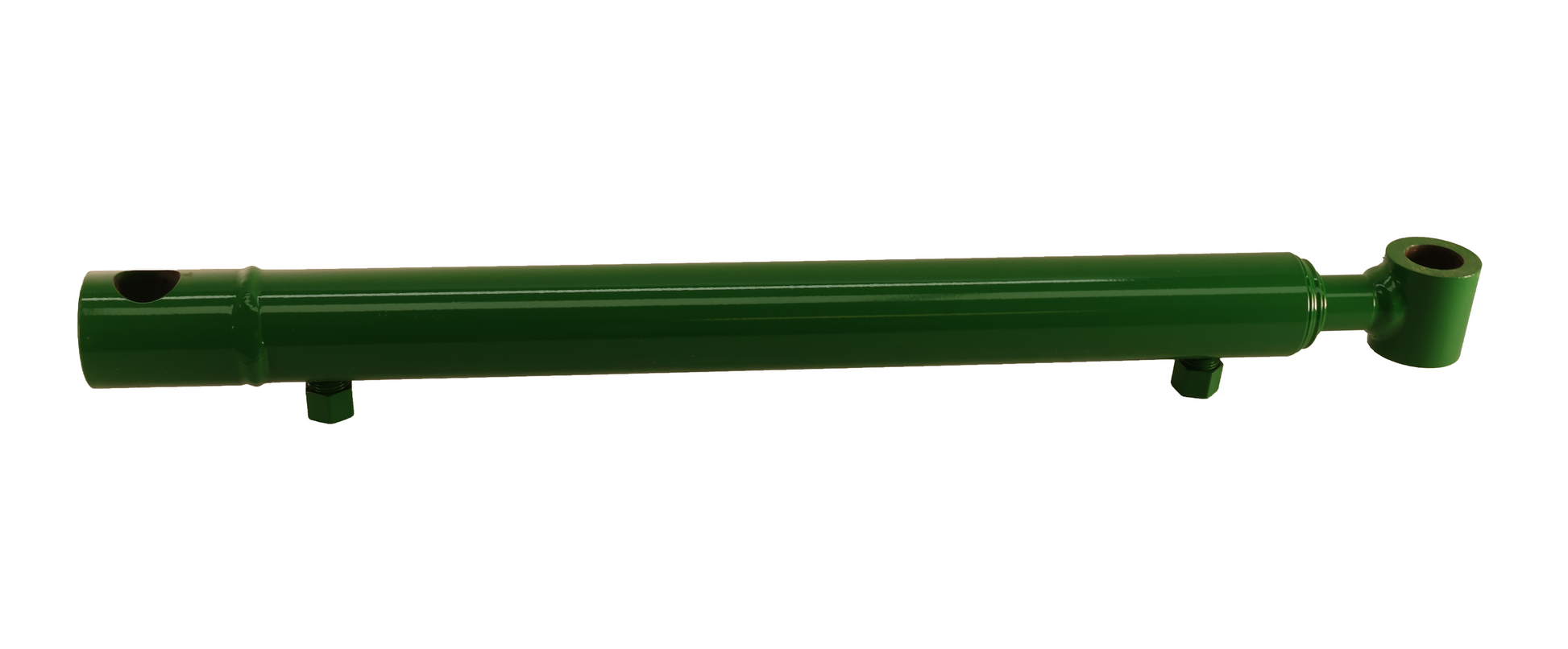

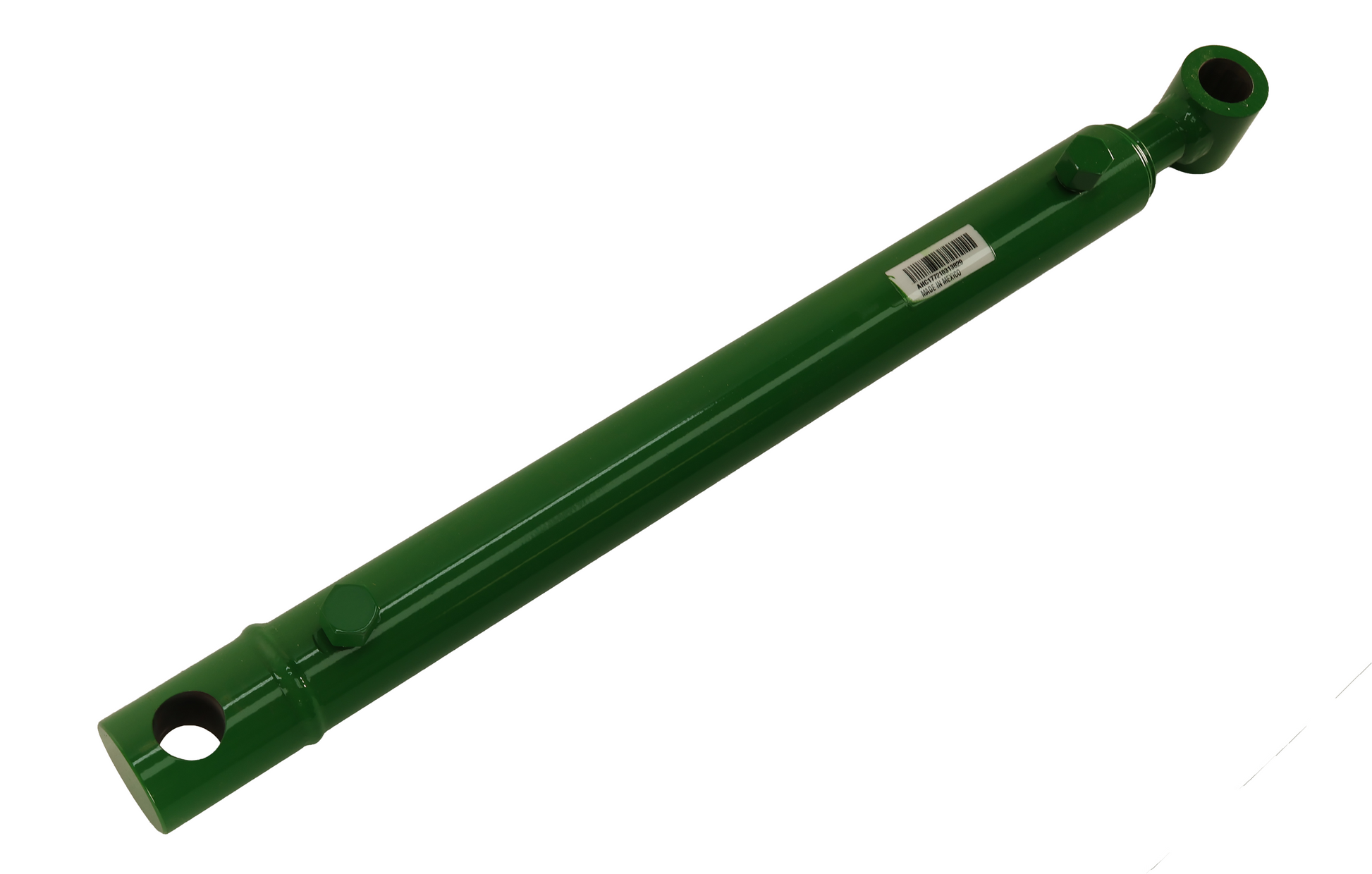

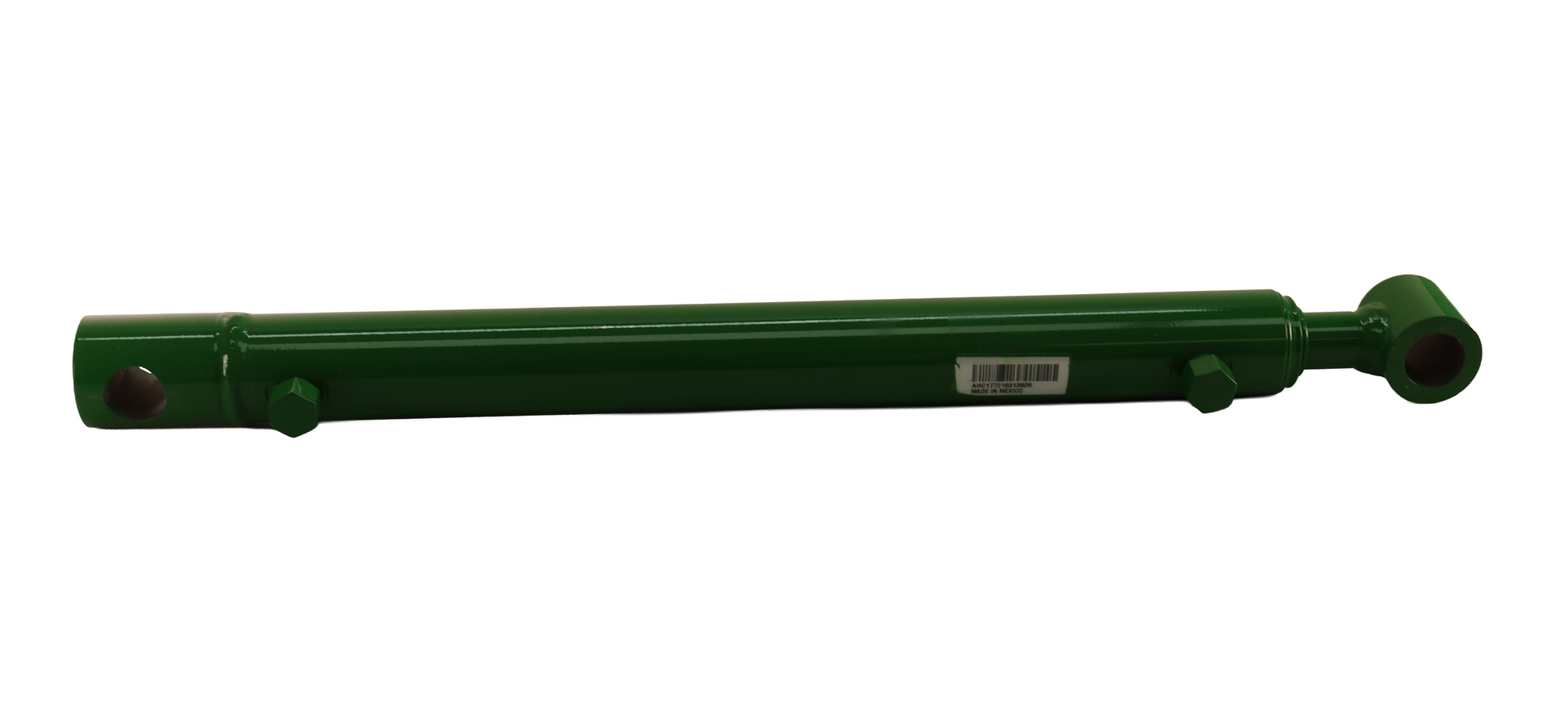

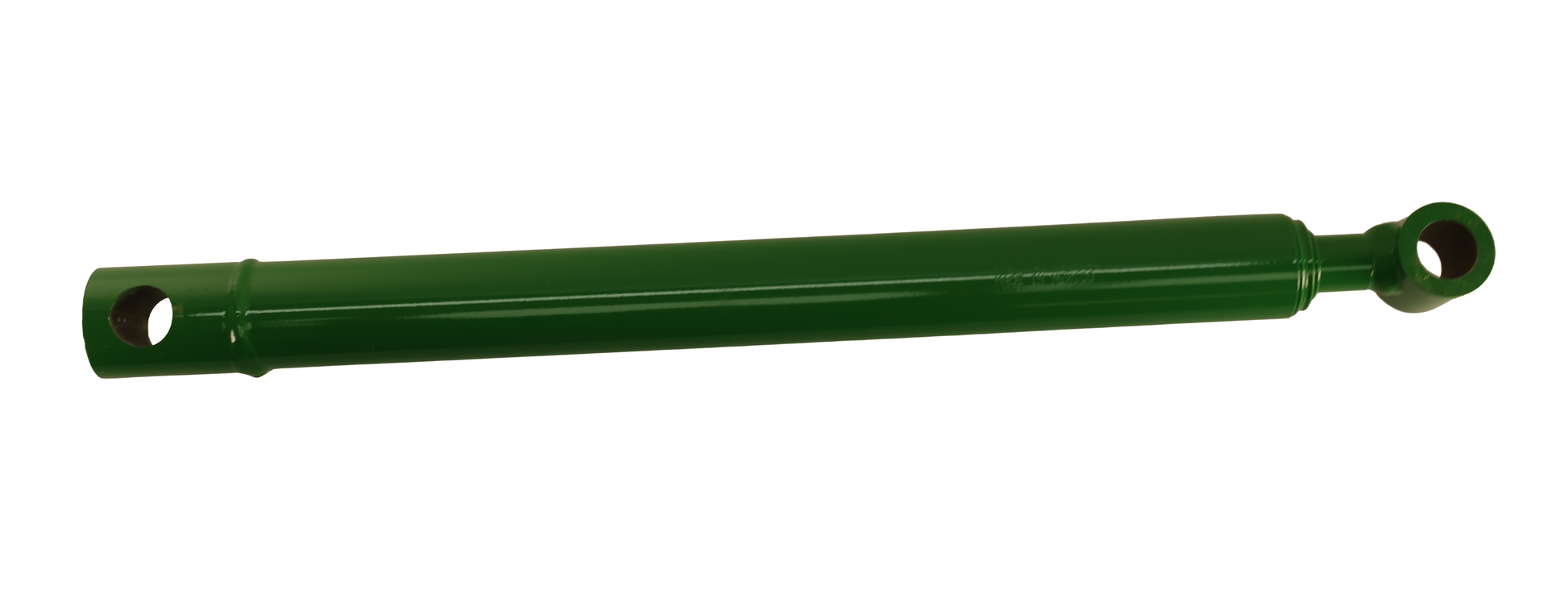

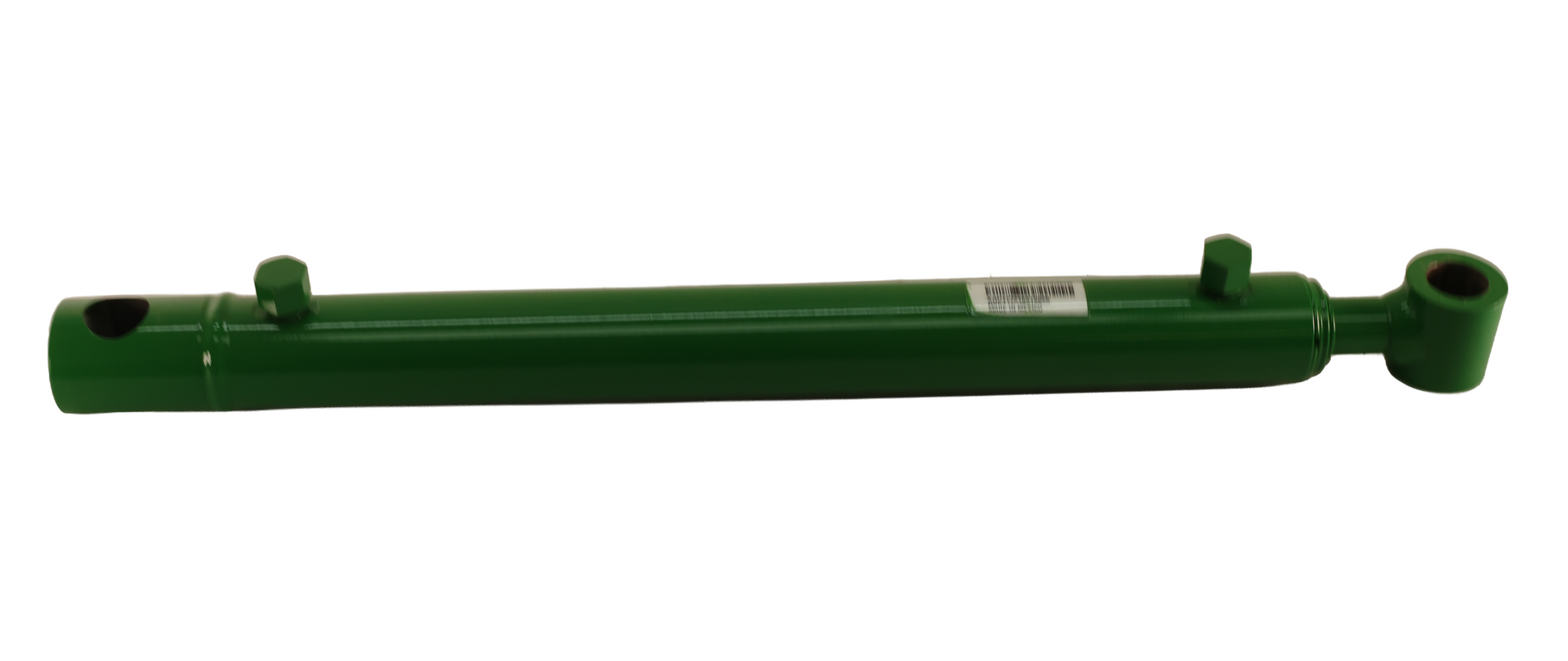

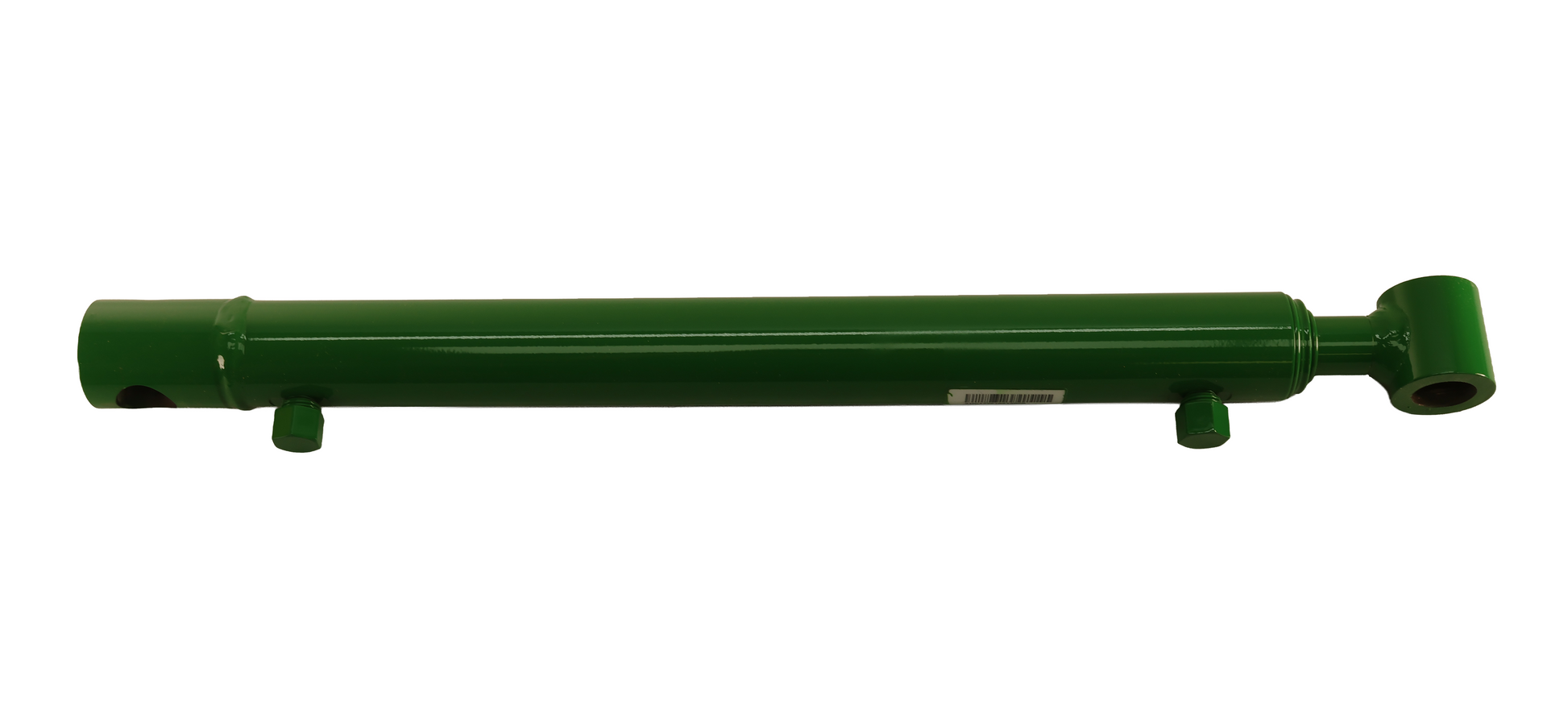

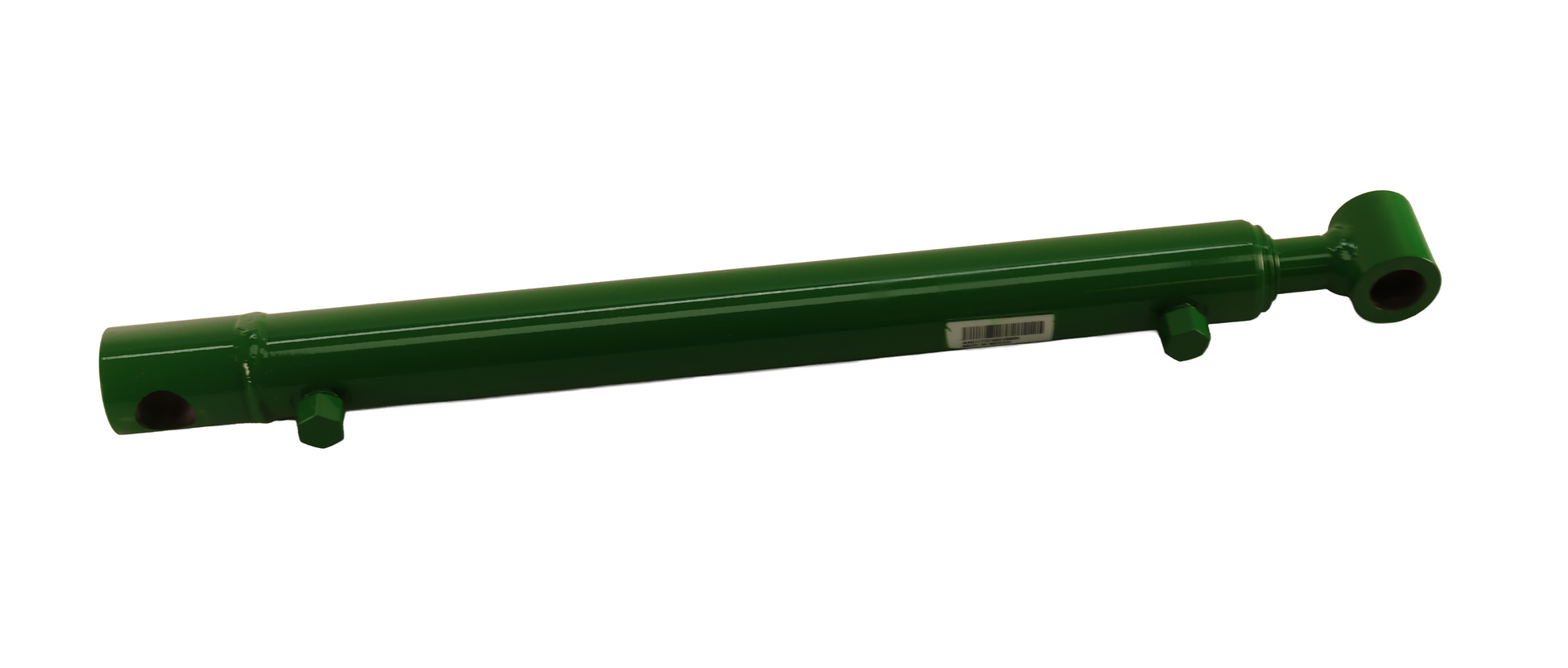

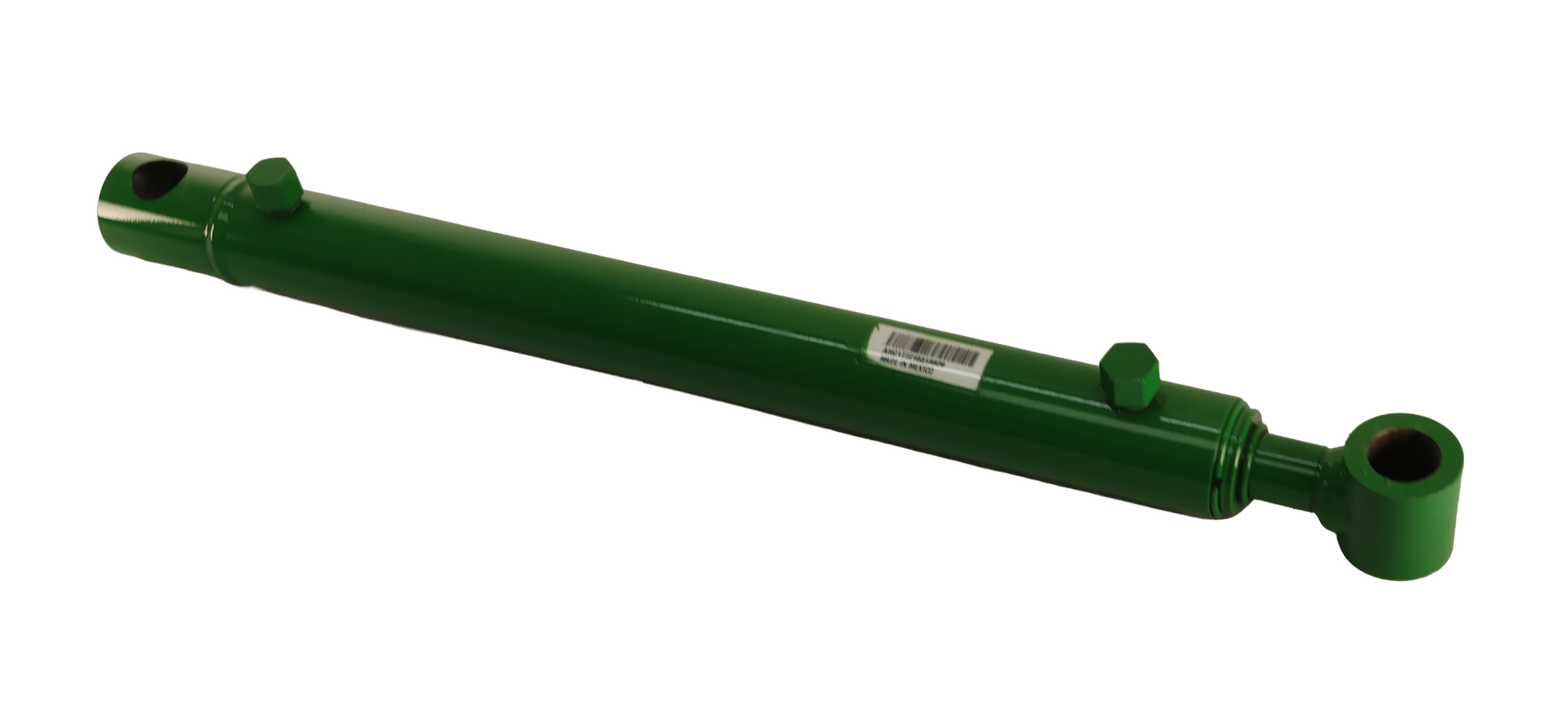

John Deere Original Equipment Hydraulic Cylinder - AHC17721

John Deere Original Equipment Hydraulic Cylinder - AHC17721

Part Specifications:
Bore Diameter (IN) 1.5748
Rod Diameter (IN) 0.9843
Stroke (IN) 13.9173
Closed Length (IN) 21.4764
Cap End Type Code (ALPHA) 01
Cap End Size 1 (IN) 1.0043
Cap End Size 2 (IN) 1.8740
Cap End Size 3 (IN) 0.0000
Rod End Type Code (ALPHA) 01
Rod End Size 1 (IN) 1.0039
Rod End Size 2 (IN) 1.7717
Rod End Size 3 (IN) 0.0000
Cap Cushion Y/N (ALPHA) N
Cap Rephasing Y/N (ALPHA) N
Rod Cushion Y/N (ALPHA) N
Rod Rephasing Y/N (ALPHA) N
Position Sense Y/N (ALPHA) N
Finish (ALPHA) K-Painted

Fits the following John Deere models:
Front Loader: 120E, 120R.
Loader: D120, H120.

This is an O.E.M. John Deere part.
