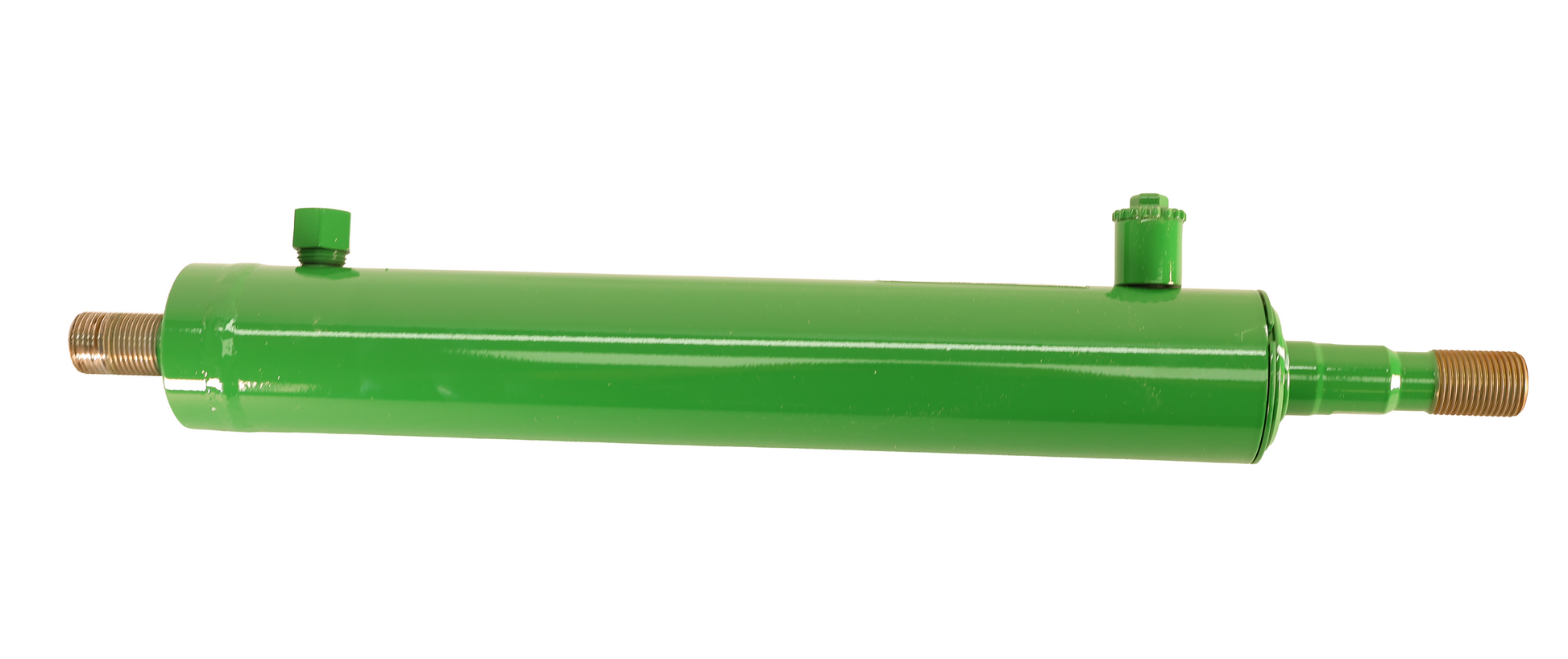

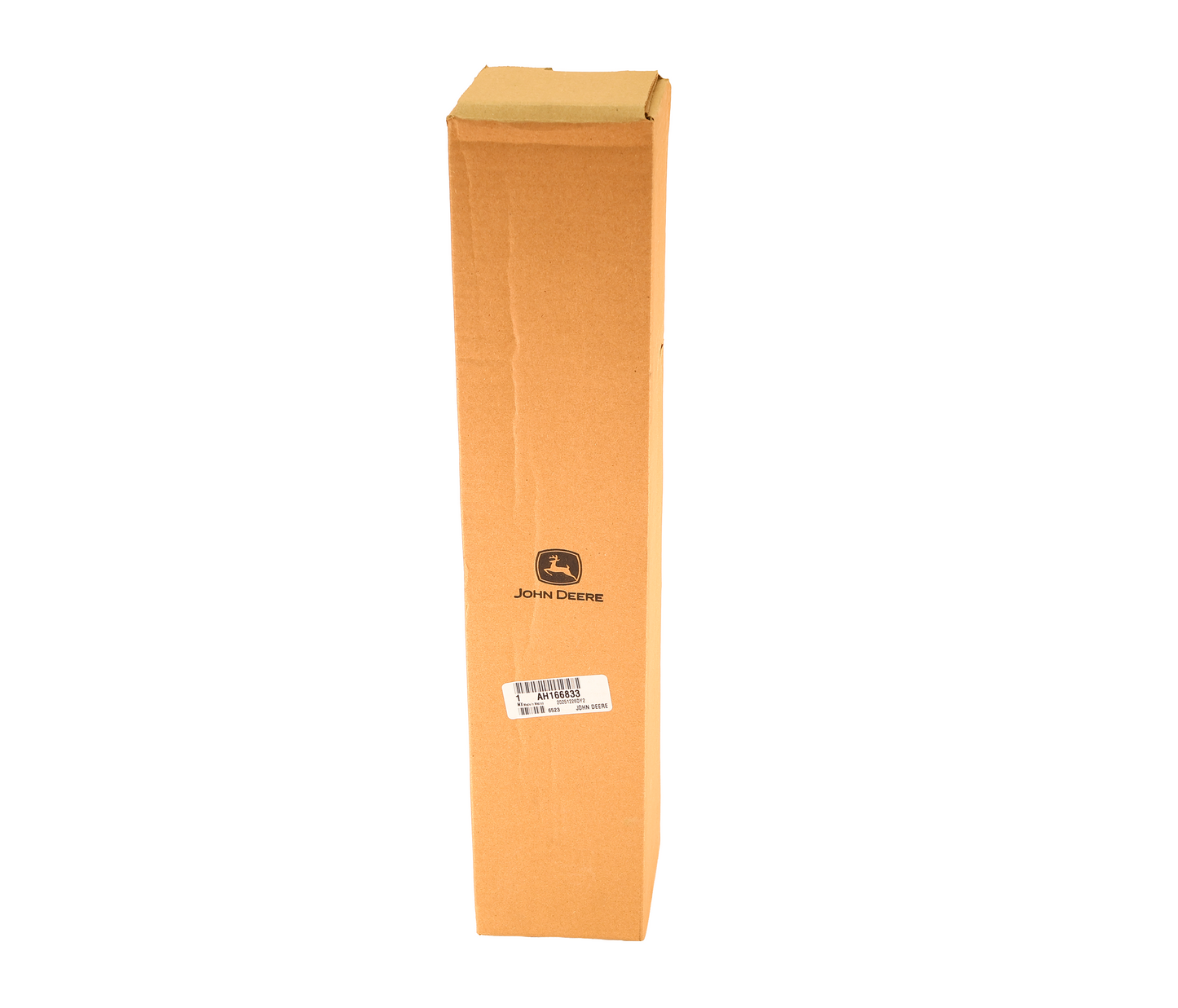

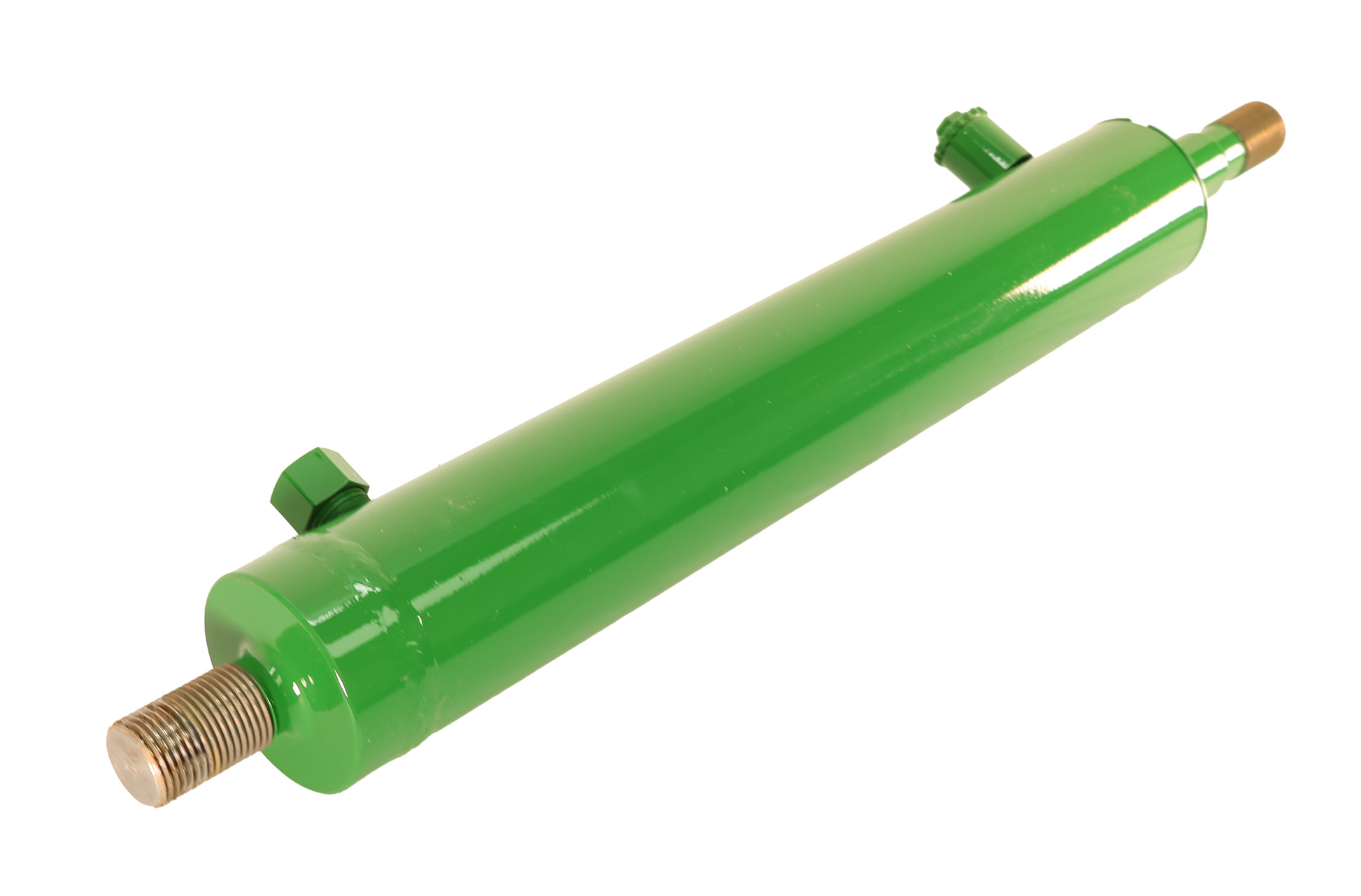

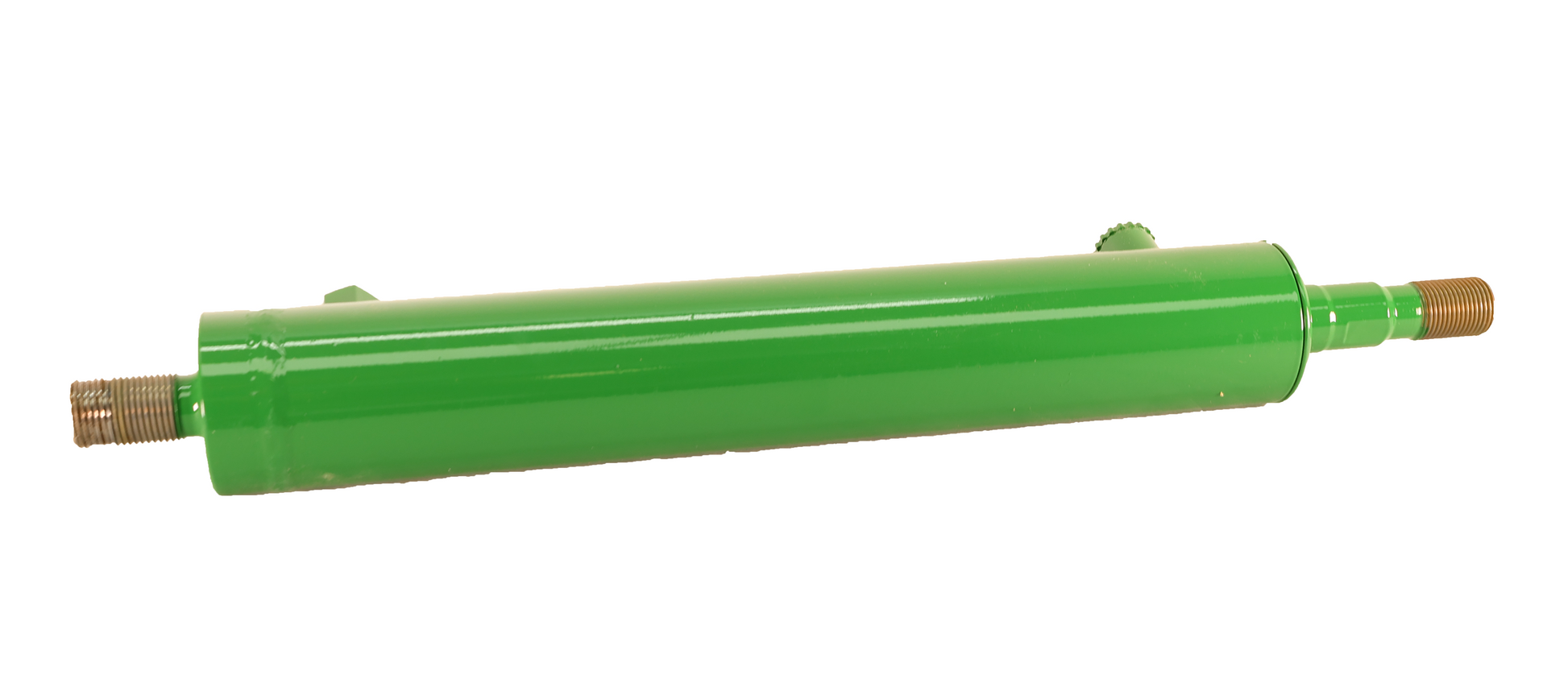

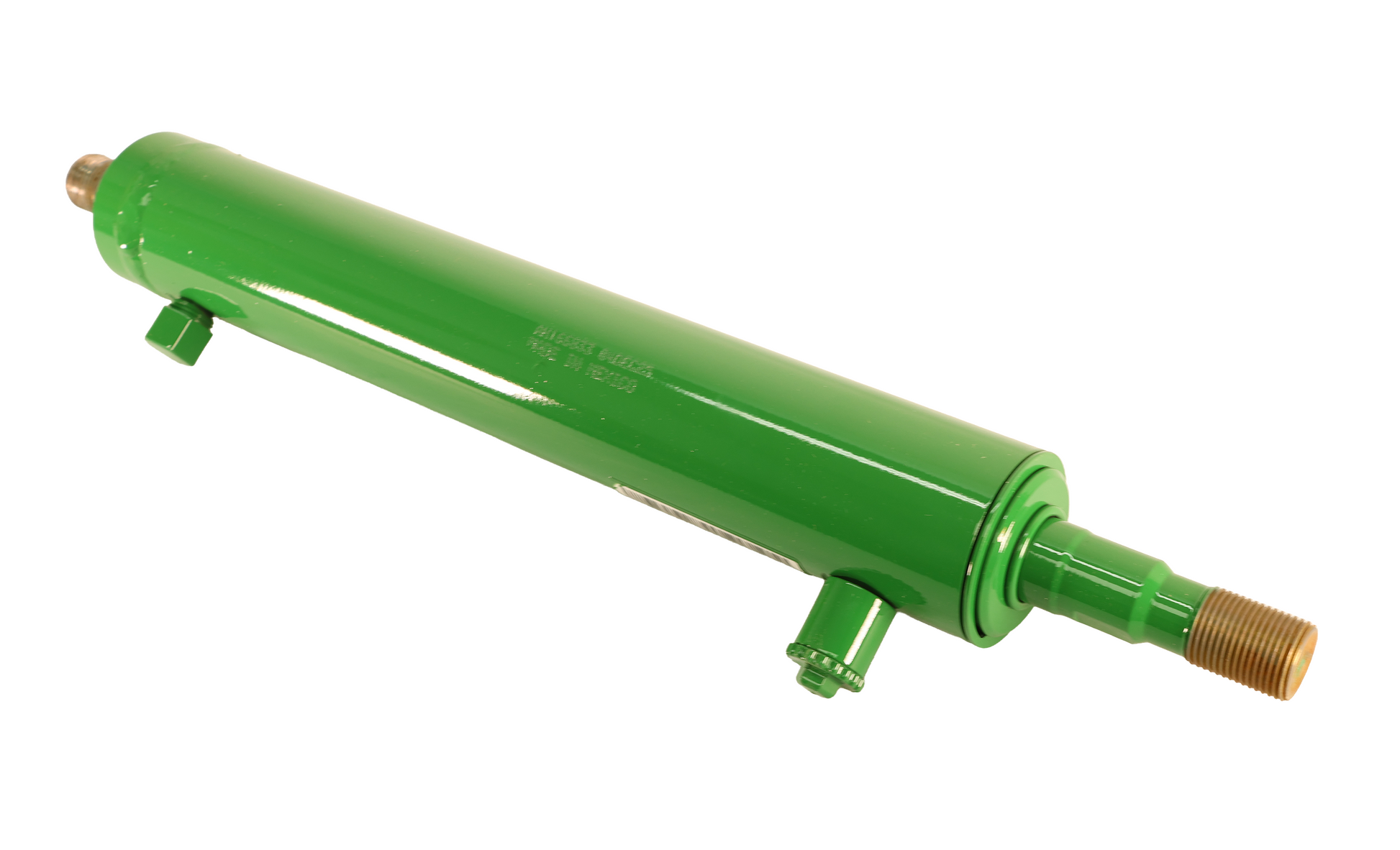

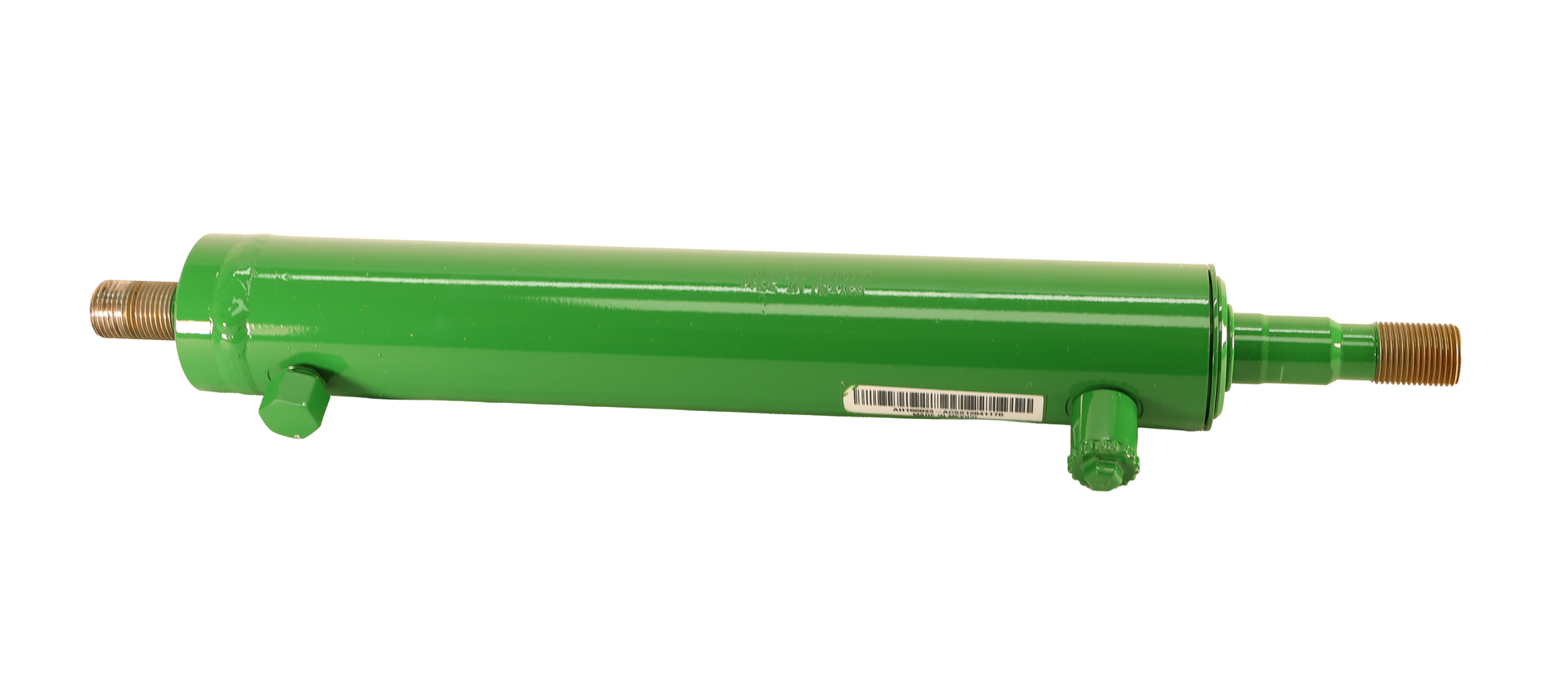

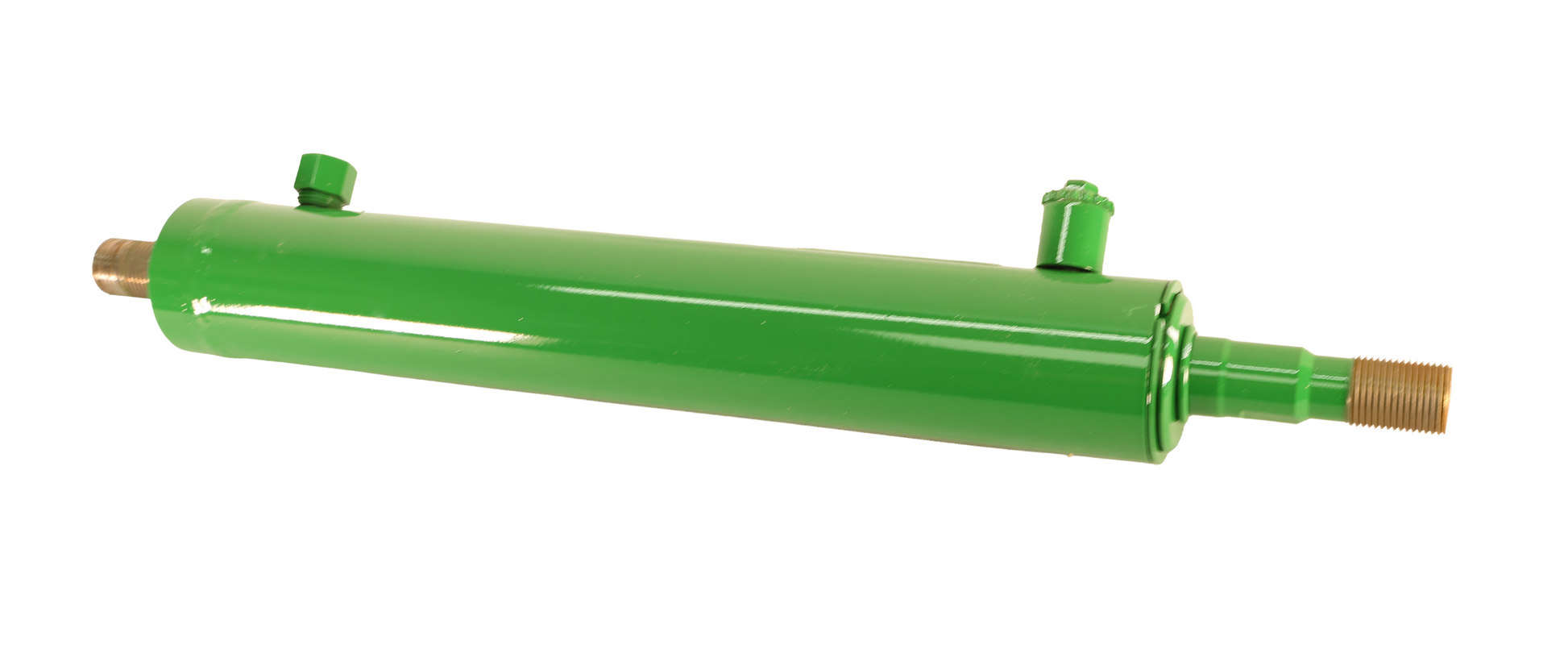

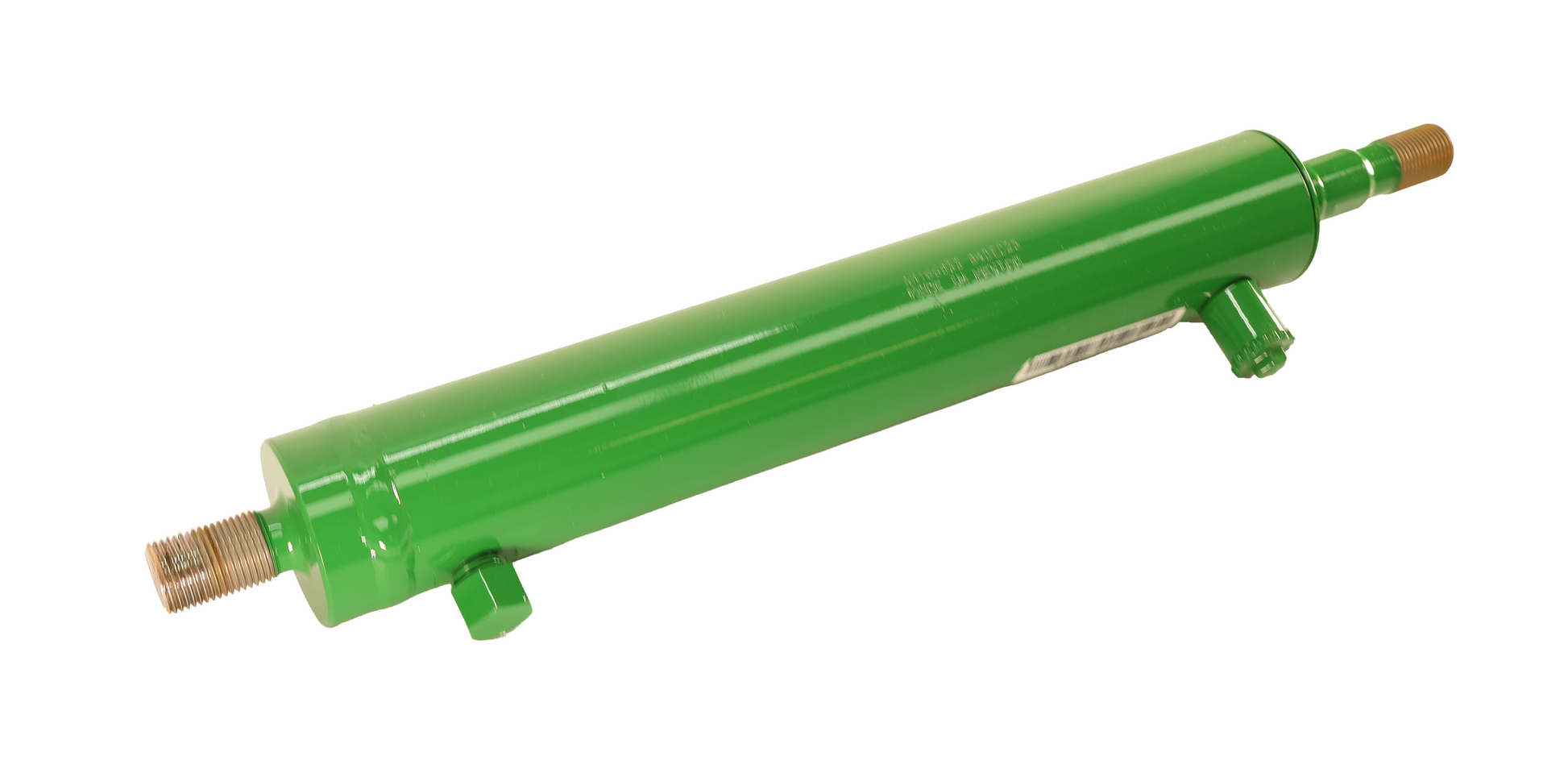

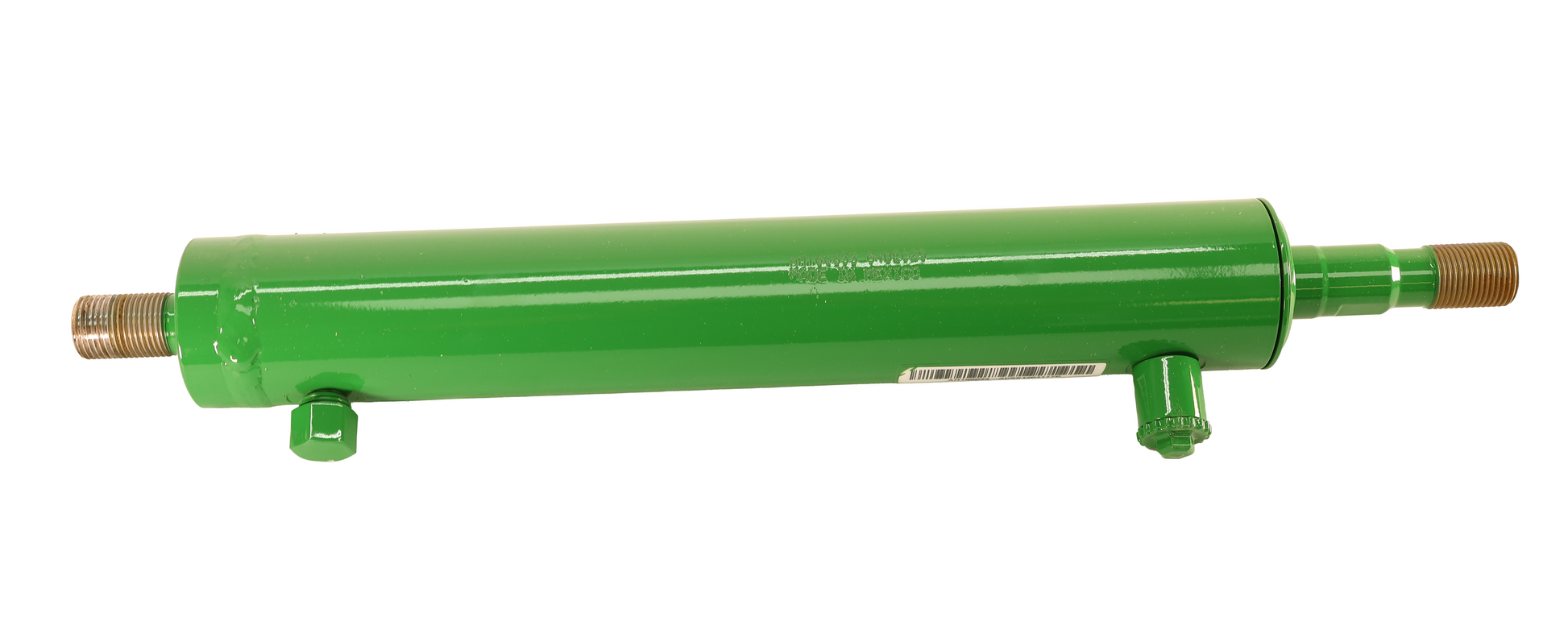

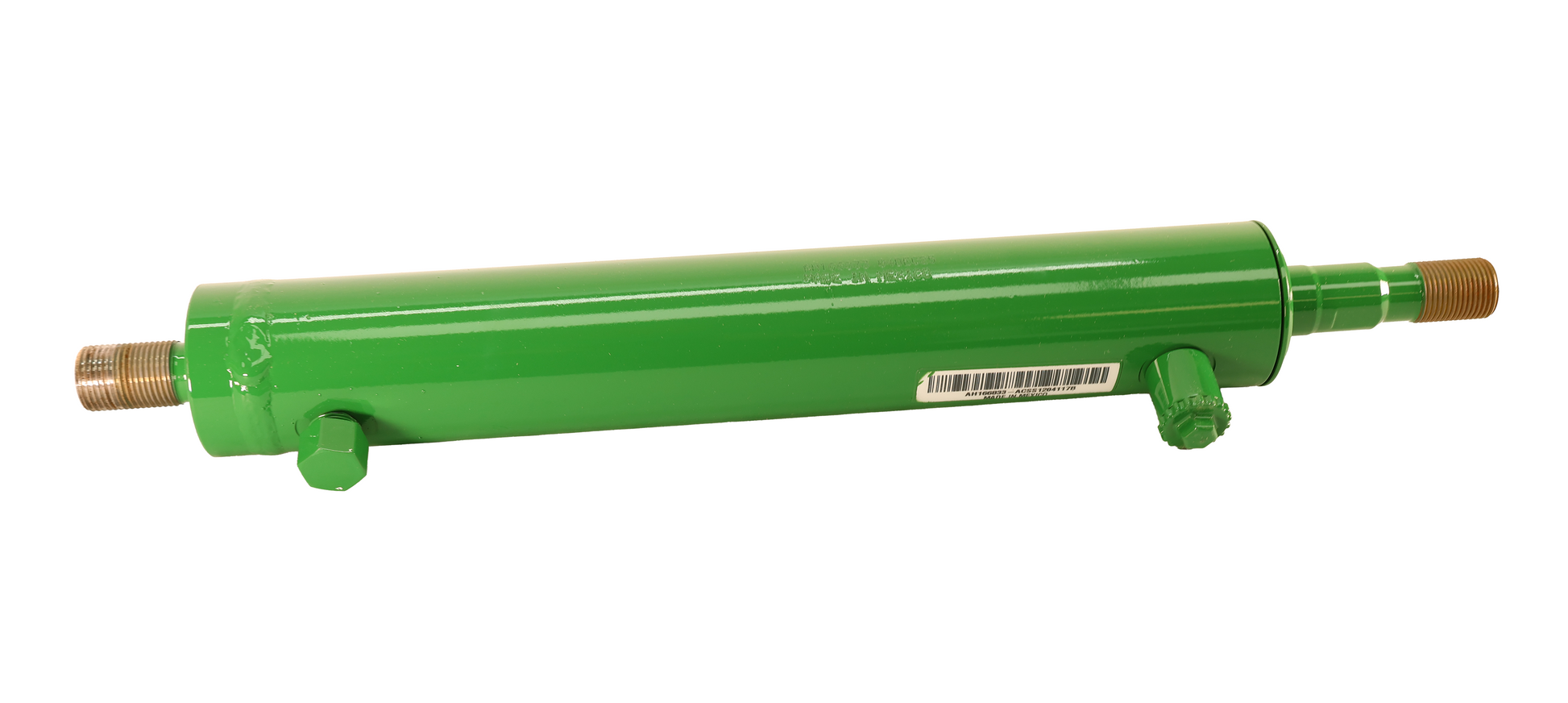

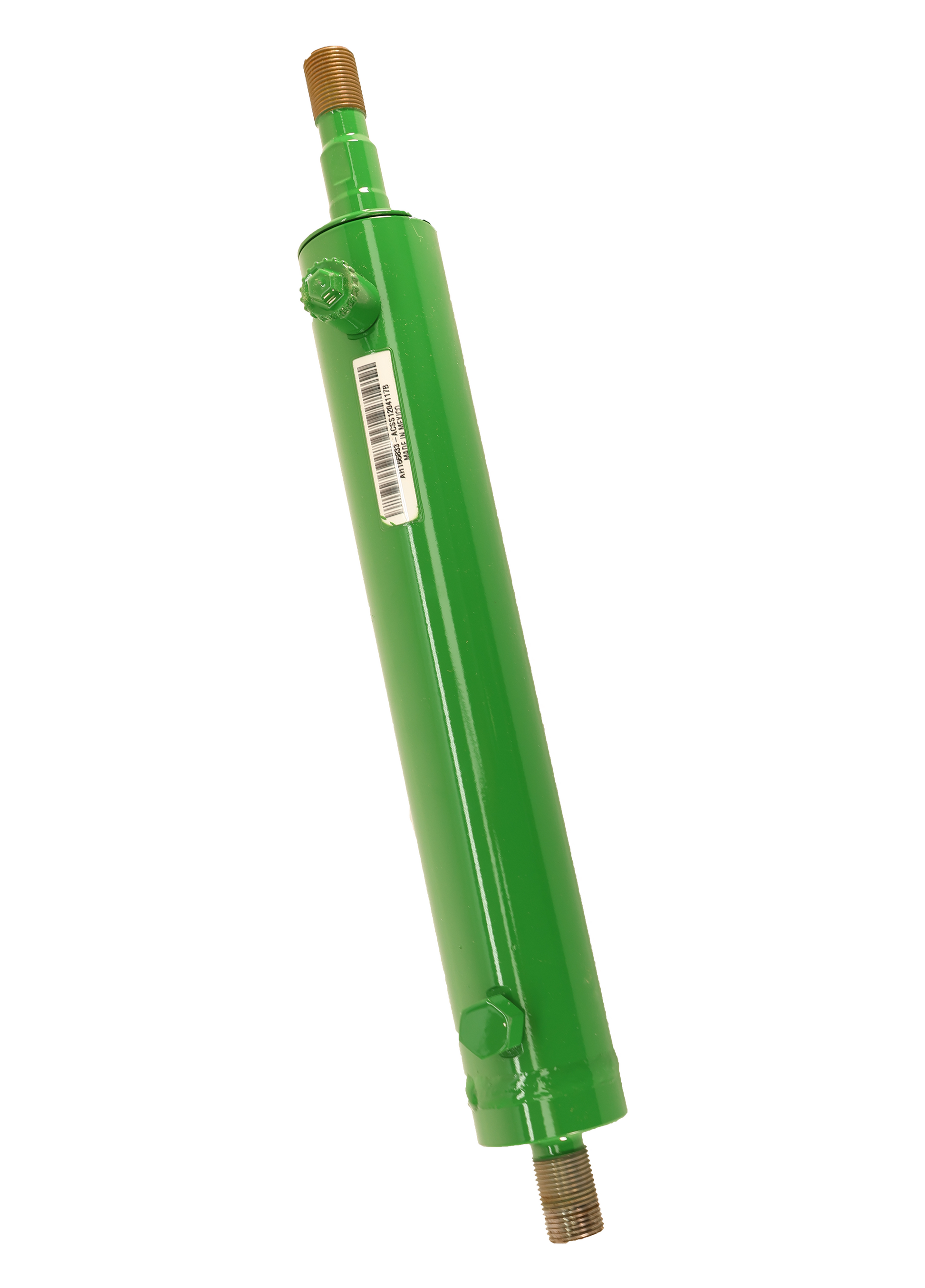

John Deere Original Equipment Hydraulic Cylinder - AH166833

John Deere Original Equipment Hydraulic Cylinder - AH166833

Part Specifications:
Bore Diameter (IN) 1.9685
Rod Diameter (IN) 0.9843
Stroke (IN) 10.0394
Closed Length (IN) 19.0354
Cap End Type Code (ALPHA) 03
Cap End Size 1 (IN) 0.8750
Cap End Size 2 (IN) 1.1811
Cap End Size 3 (IN) 0.0000
Rod End Type Code (ALPHA) 0.
Rod End Size 1(IN) 0.8750
Rod End Size 2(IN) 1.1811
Rod End Size 3(IN) 0.0000
Cap Cushion Y/N (ALPHA) N
Cap Rephasing Y/N (ALHPA) N
Rod Cushion Y/N (ALPHA) N
Rod Rephasing Y/N (ALPHA) N
Position Sense Y/N (ALPHA) N
Finish (ALPHA) K-Painted

Substitutes for: AH125658

Fits the following John Deere models:
Combine: 9400, 9410, 9450, 9500SH, 9500, 9510, SH9510, 9550SH, 9550, 9560SH, 9560, 9600, 9610, 9650CTS, 9650, 9660, 9660 CTS, CTS, CTSII, T560, W540, 9640WTS, 9640iWTS, 9660WTS, 9660iWTS, 9680WTS, 9680iWTS, 9780CTS, 9780iCTS, 9670, T550, T560, T660, T670, W540, W550, W650, W660.

This is an O.E.M. John Deere part.
