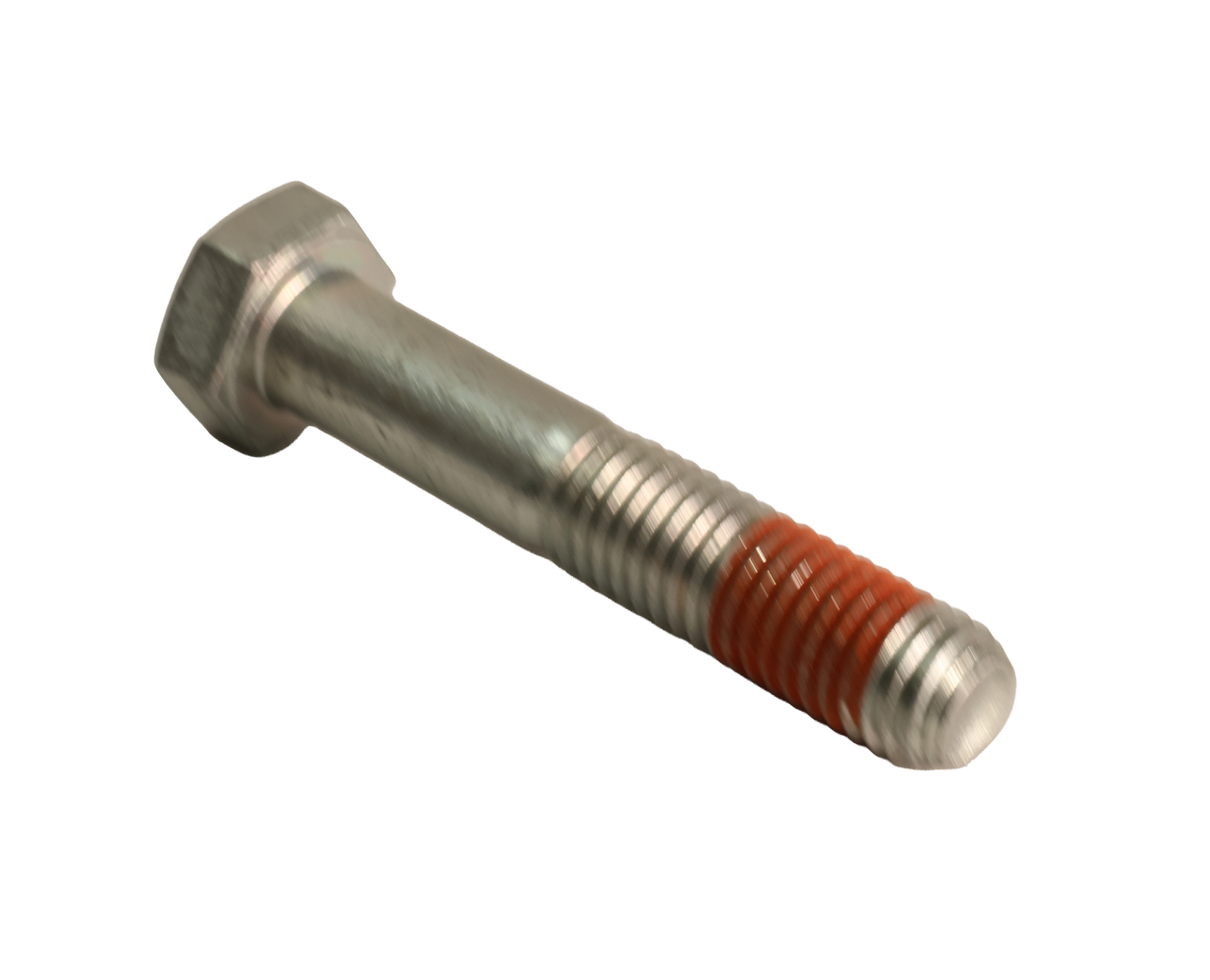

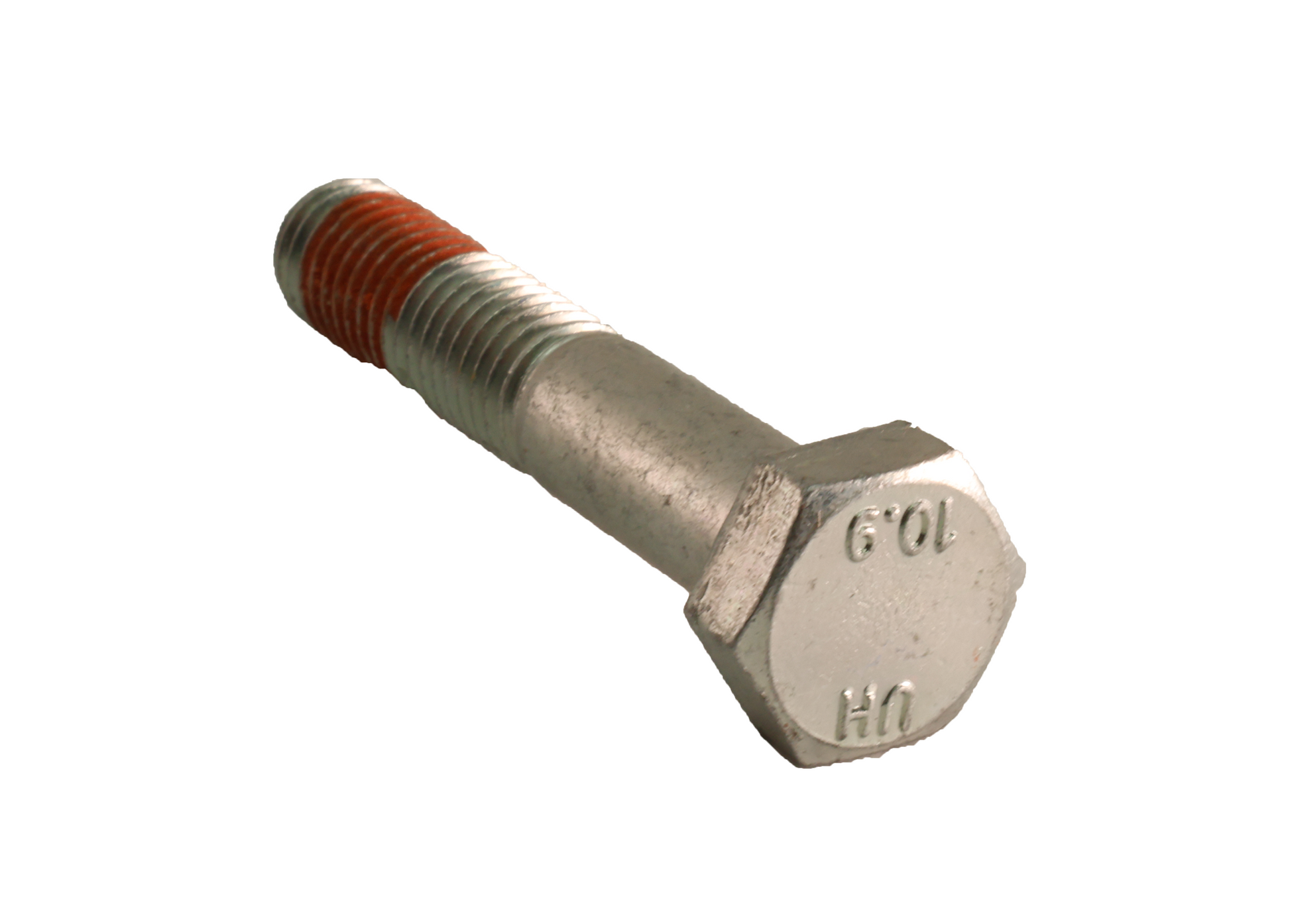

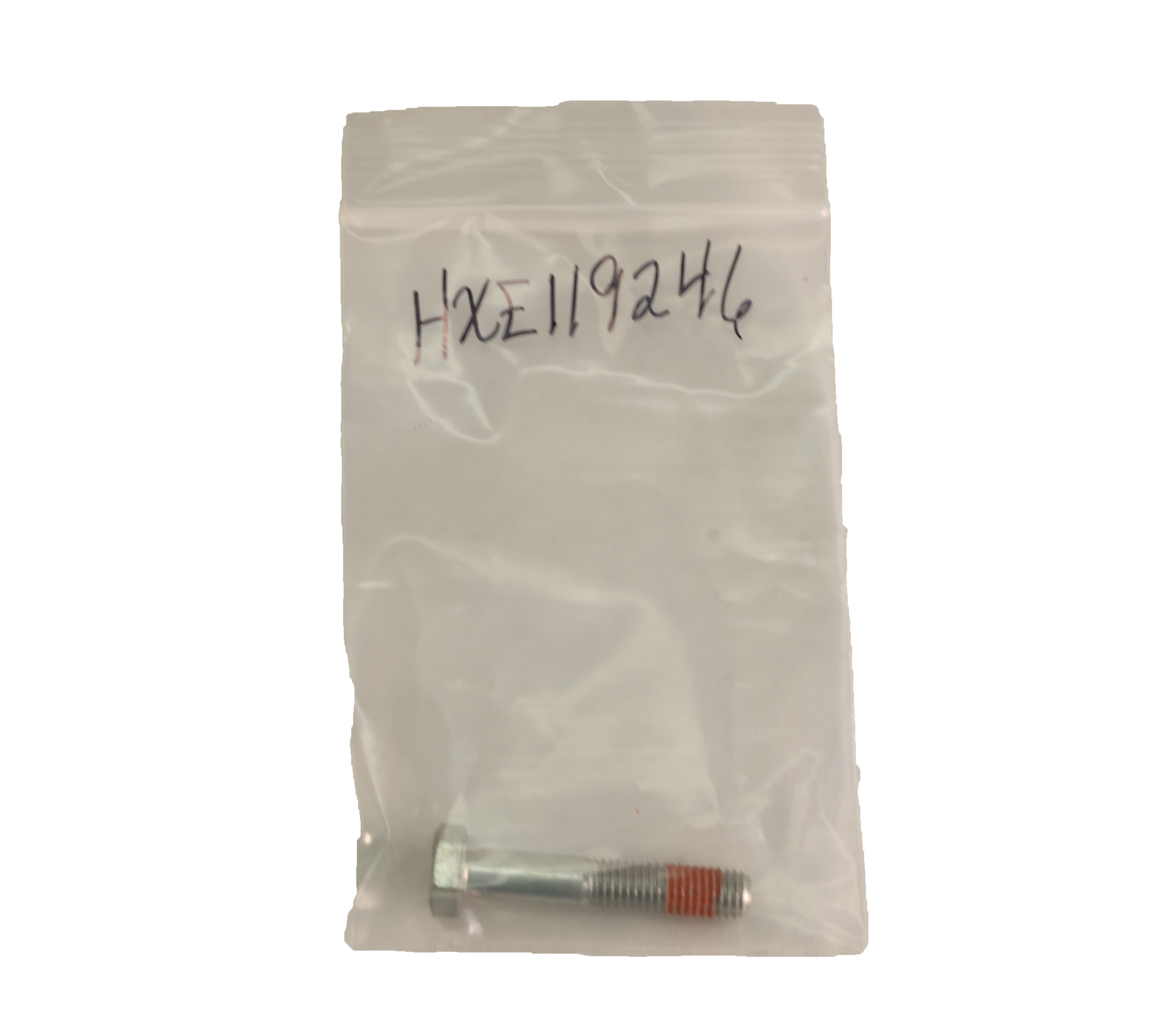

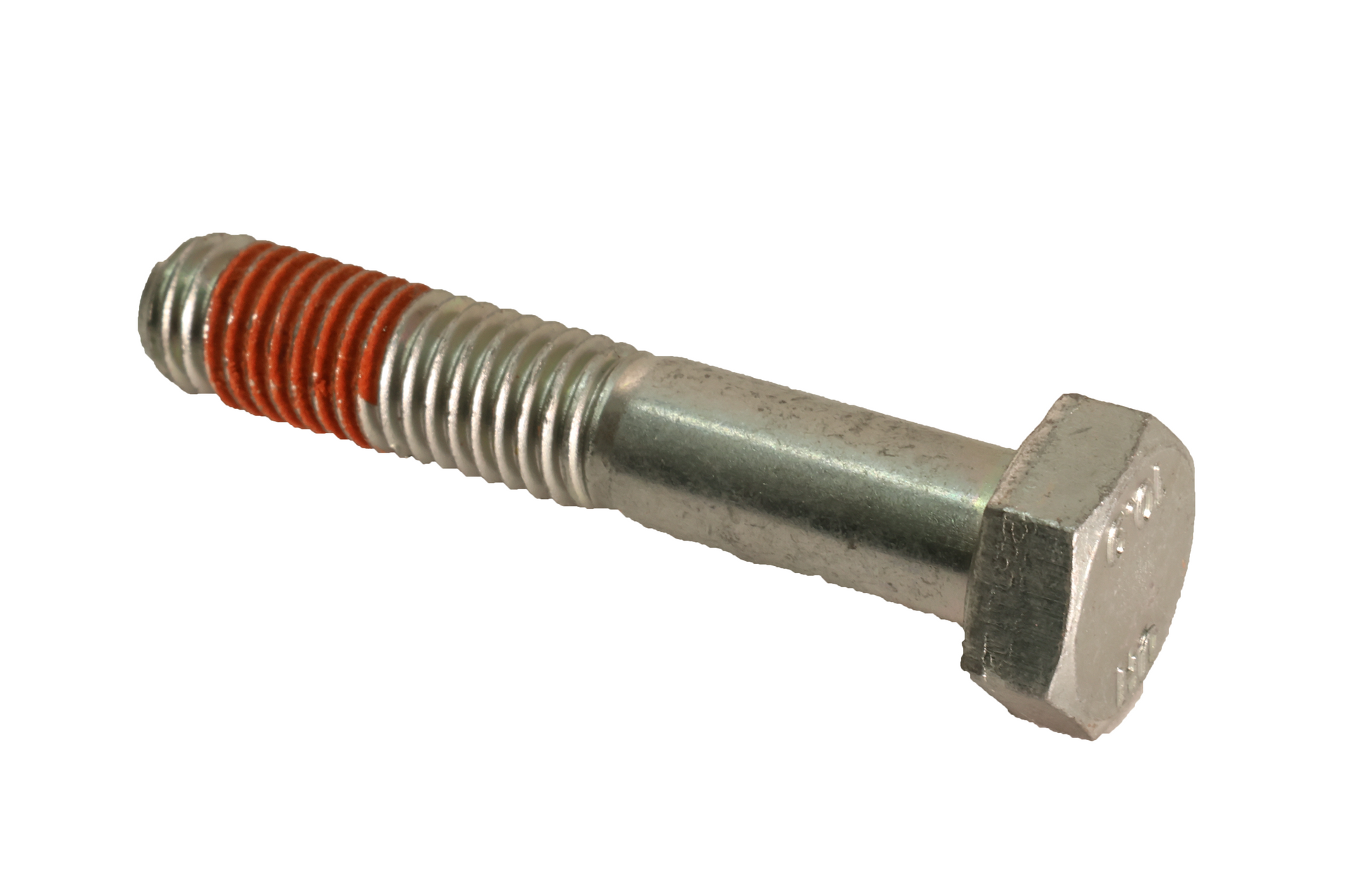

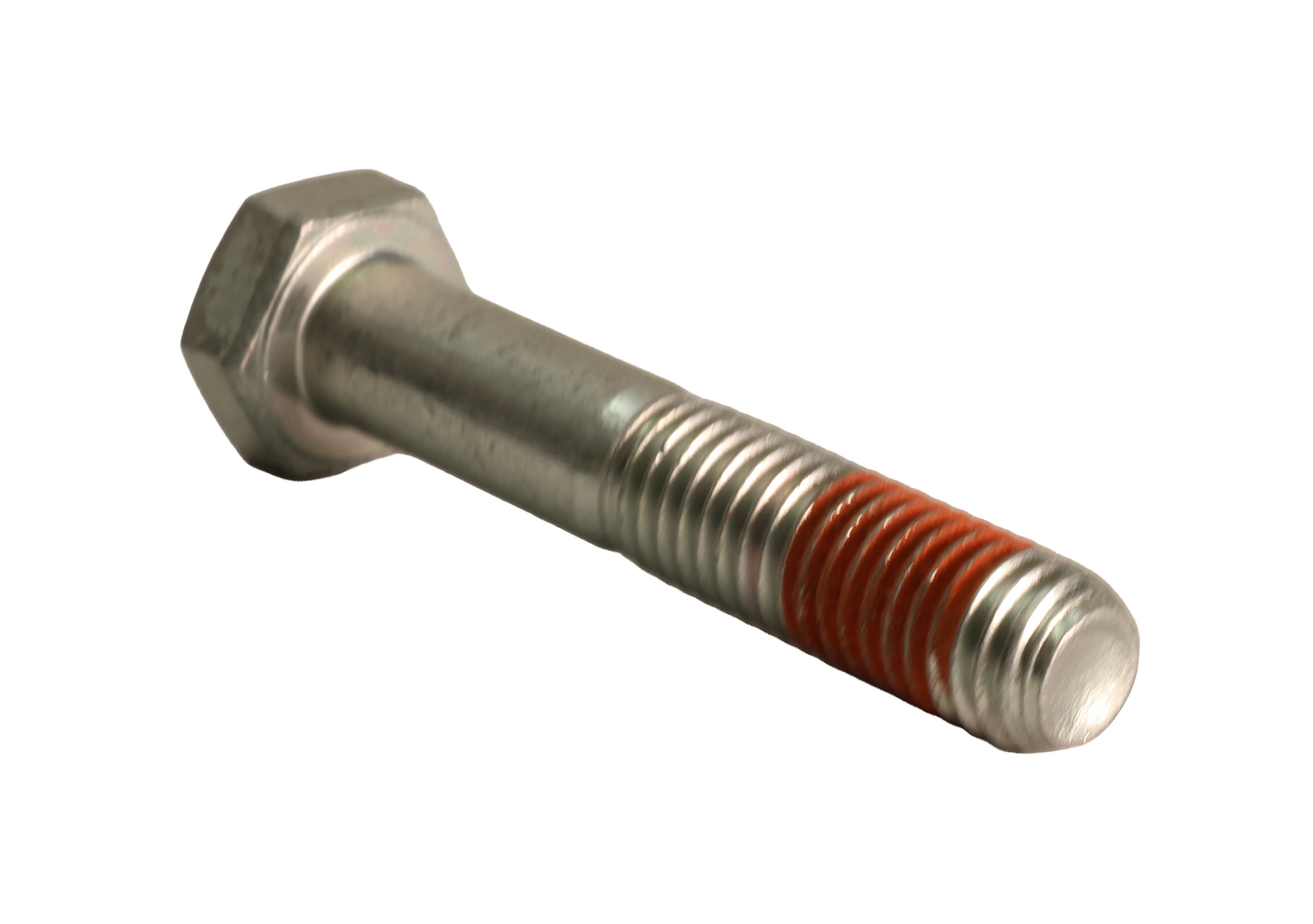

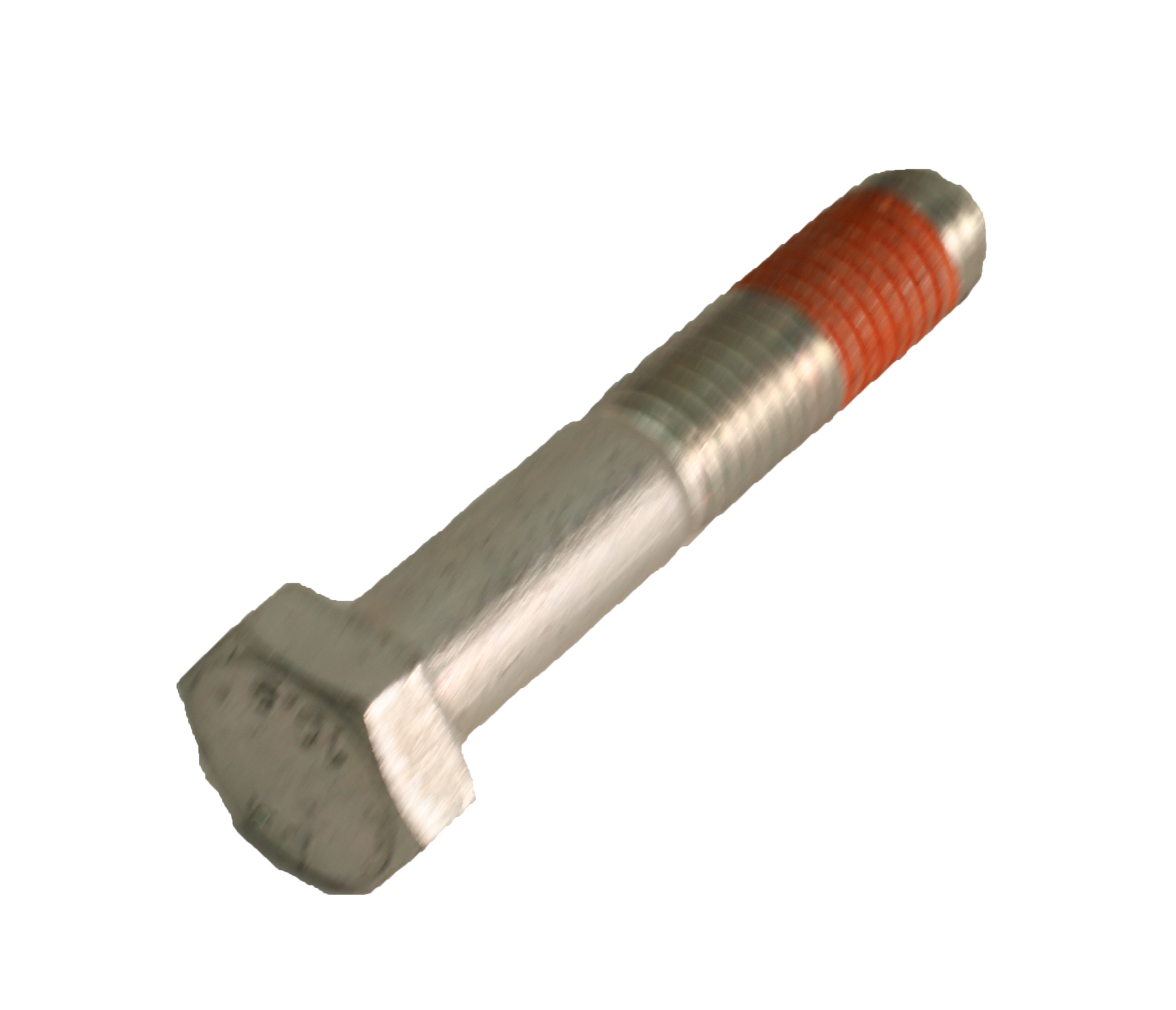

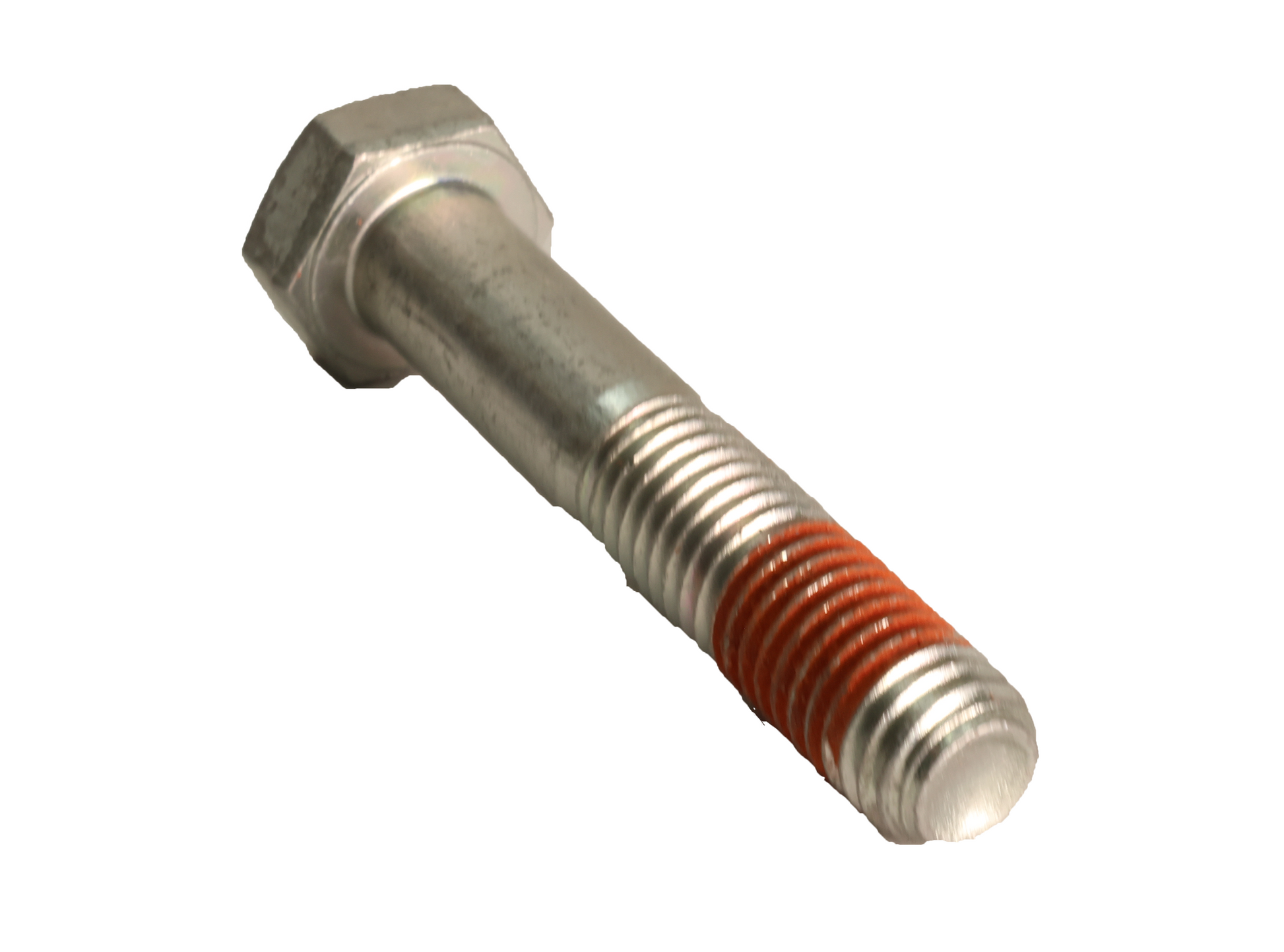

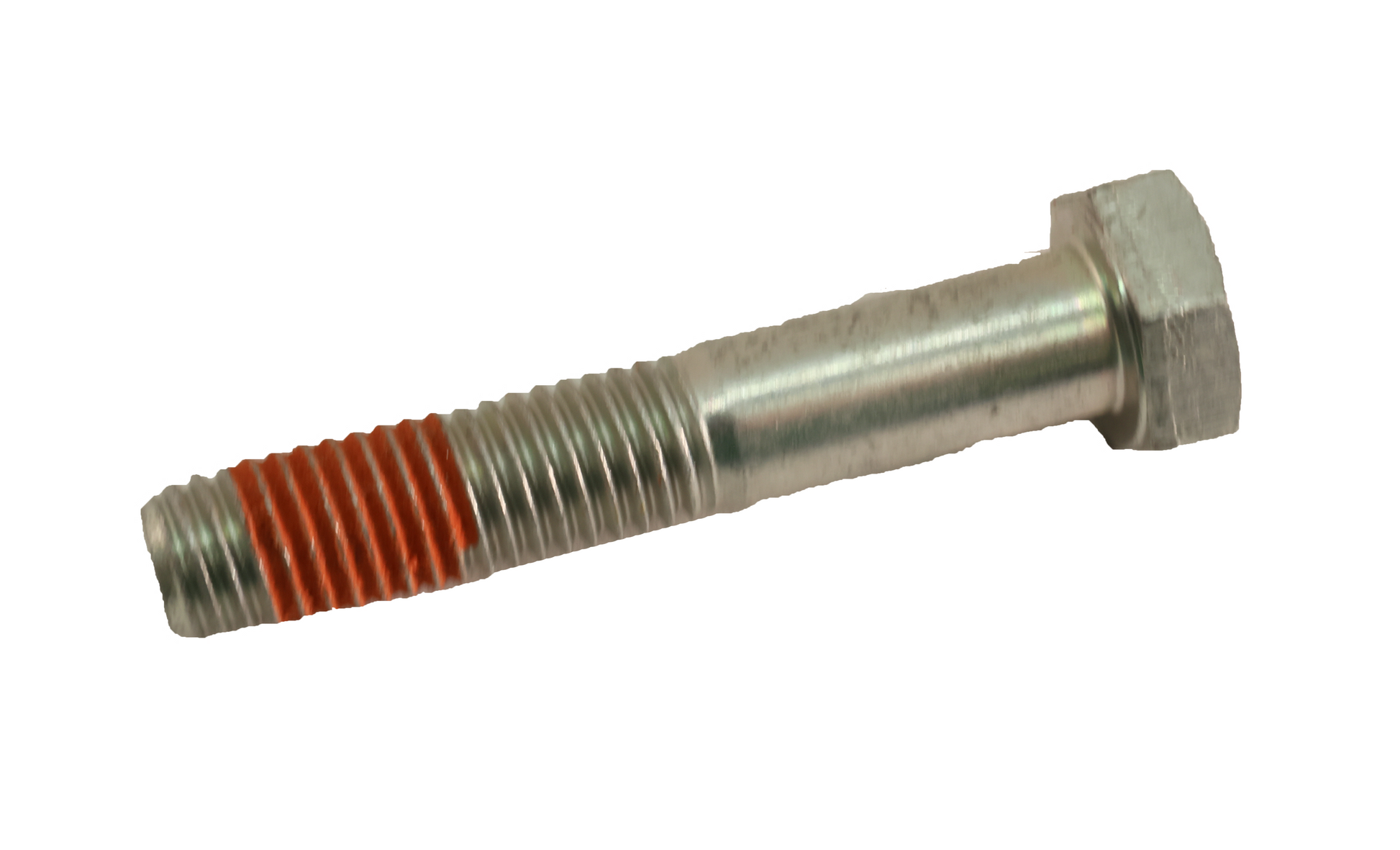

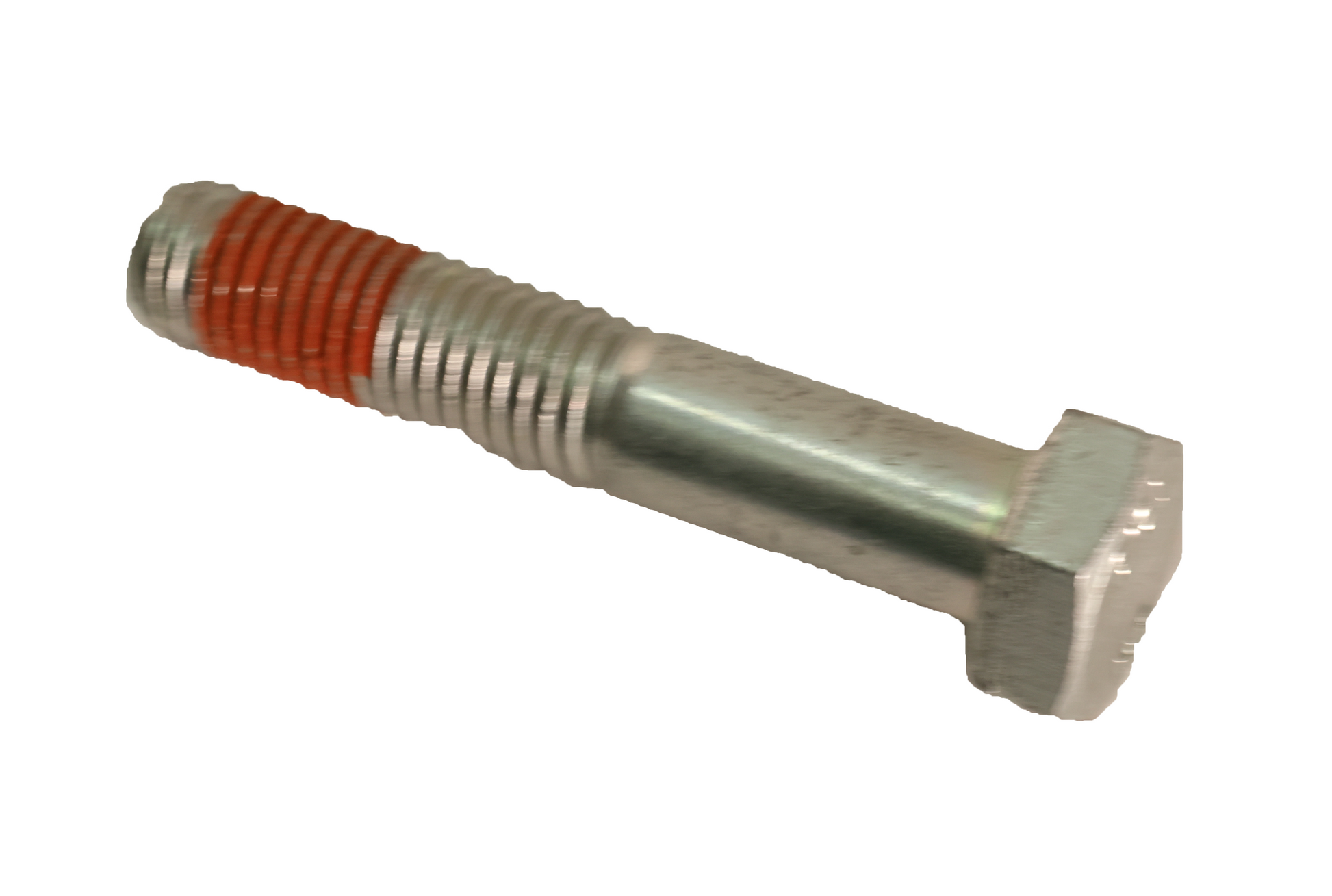

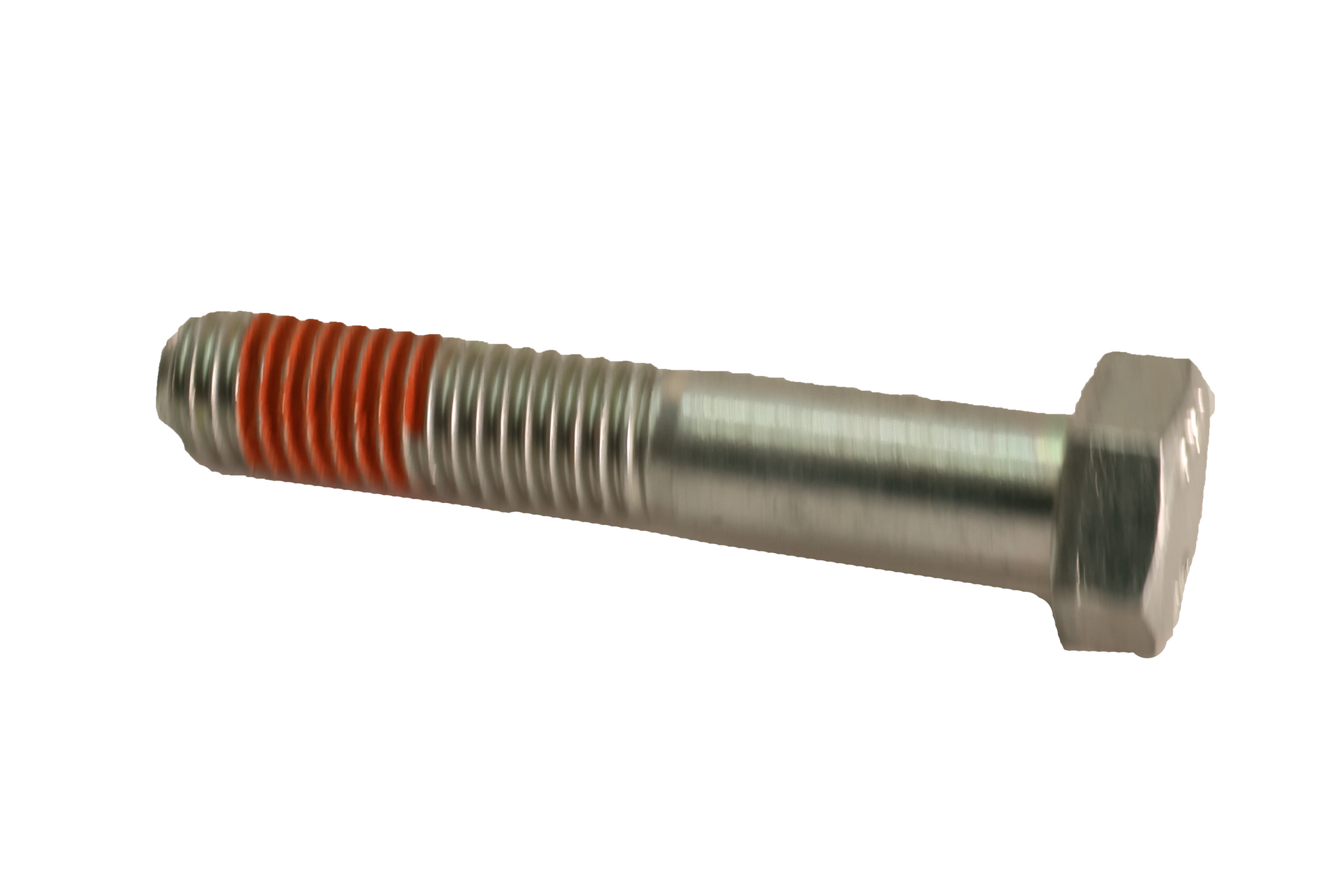

John Deere Original Equipment Hex Cap Screw M10 X 55 - HXE119246

John Deere Original Equipment Hex Cap Screw M10 X 55 - HXE119246

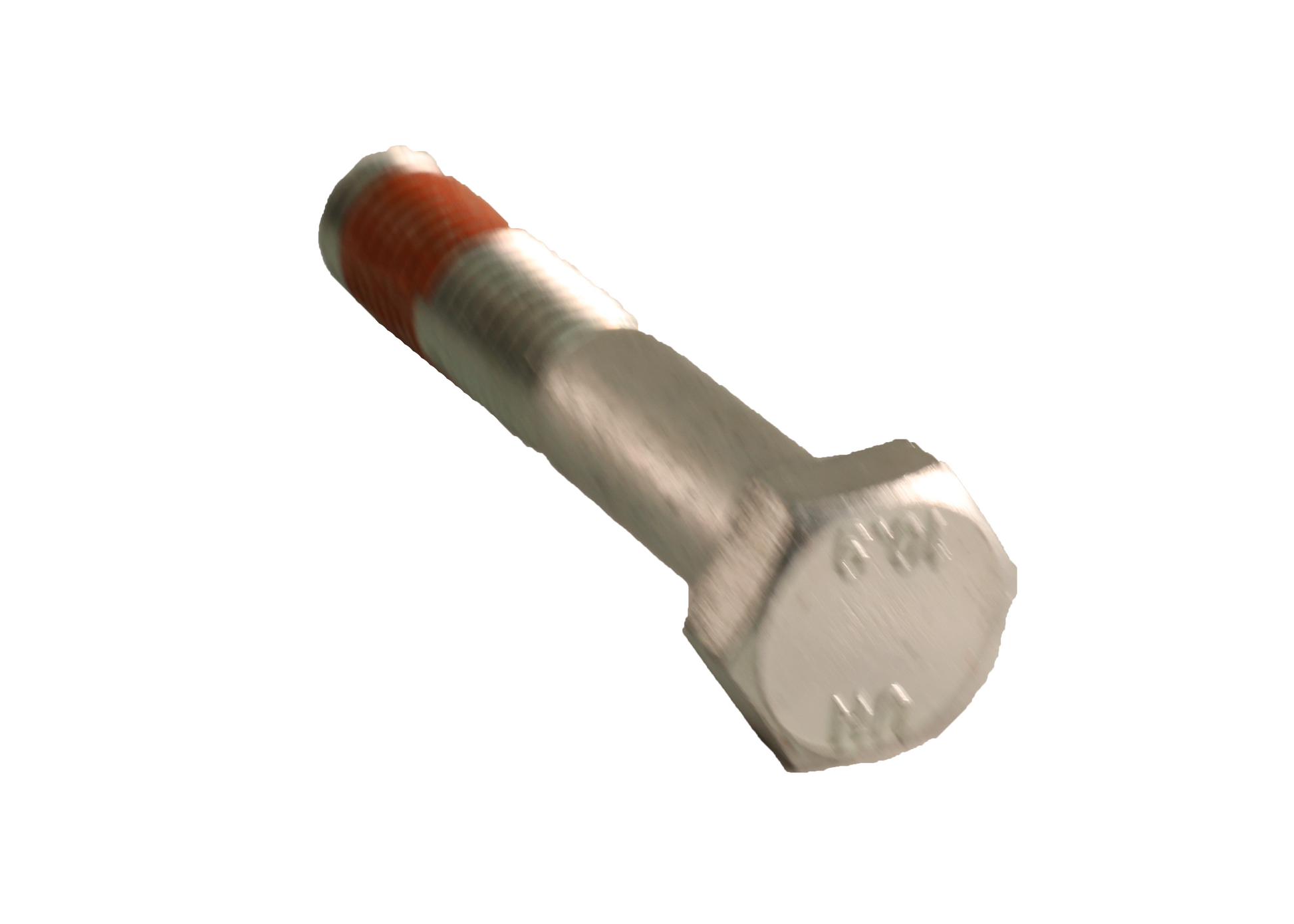

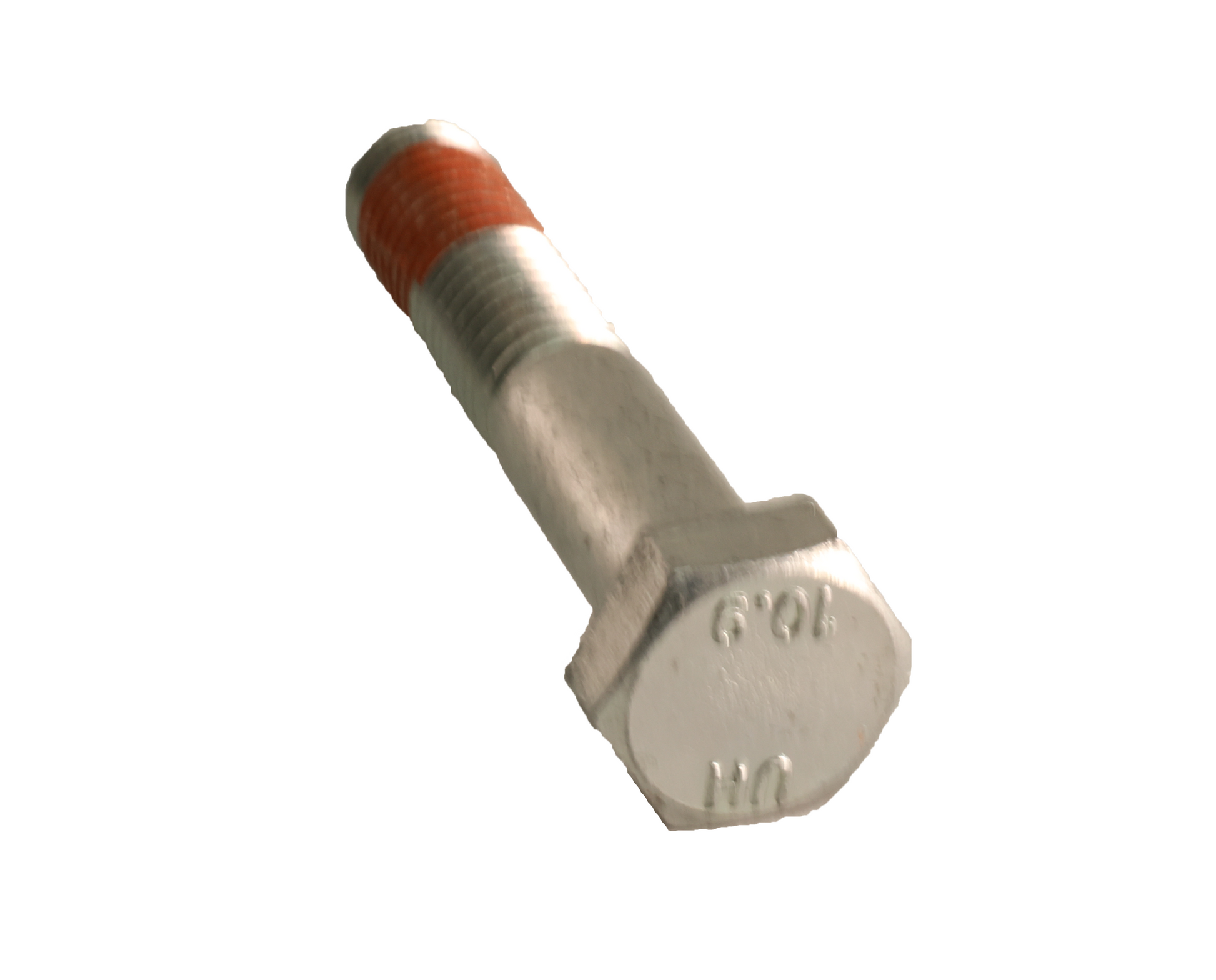

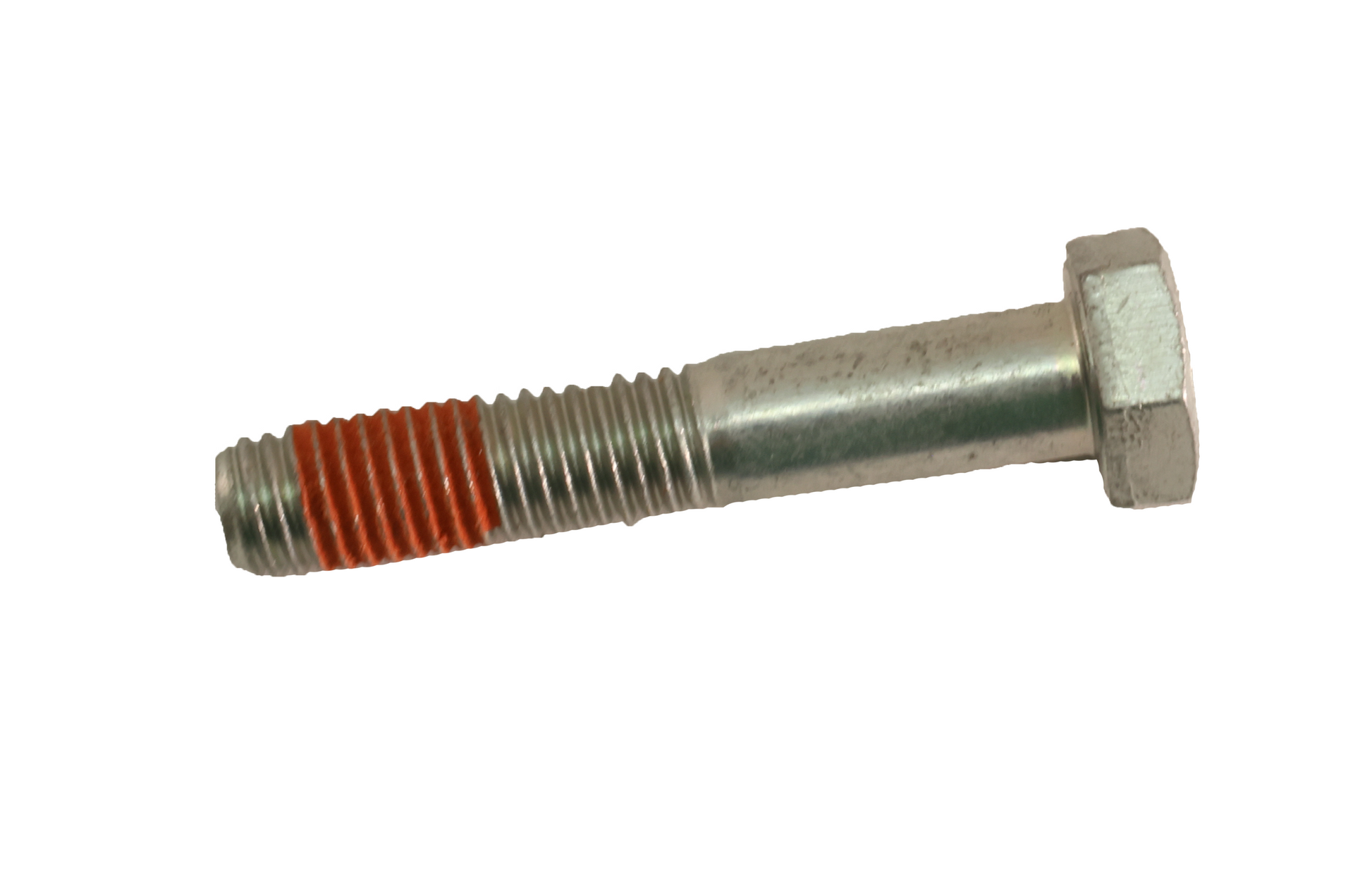

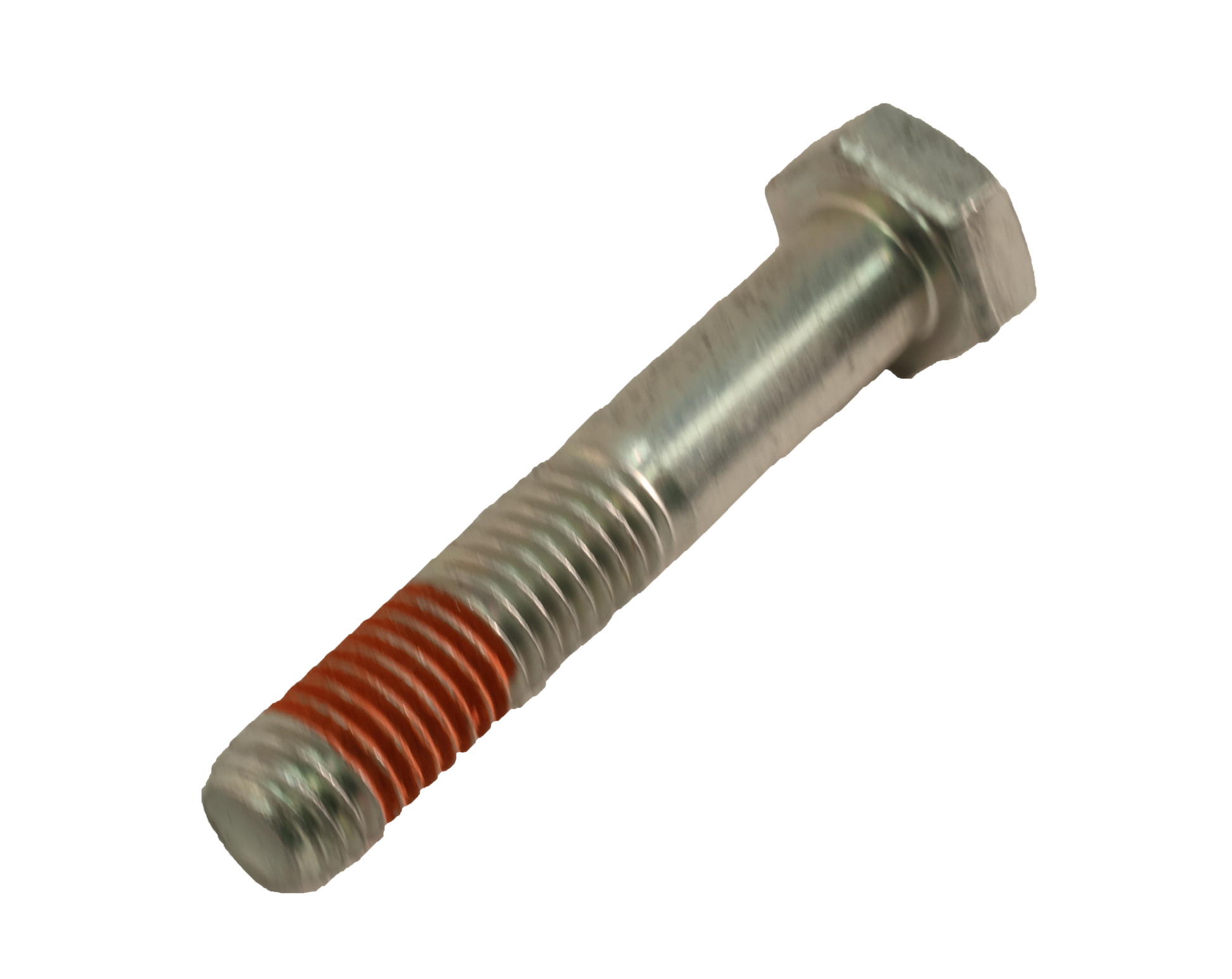

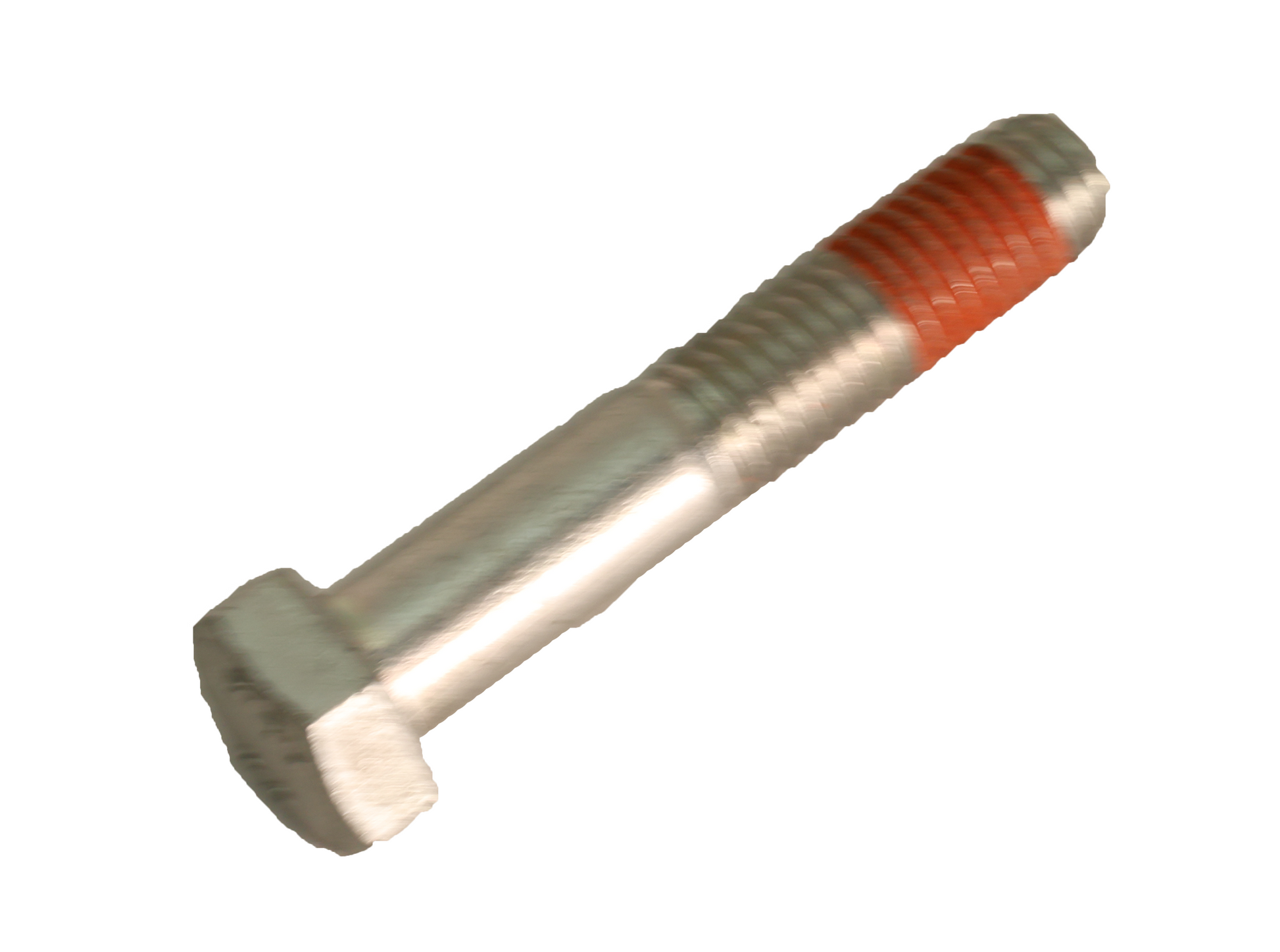

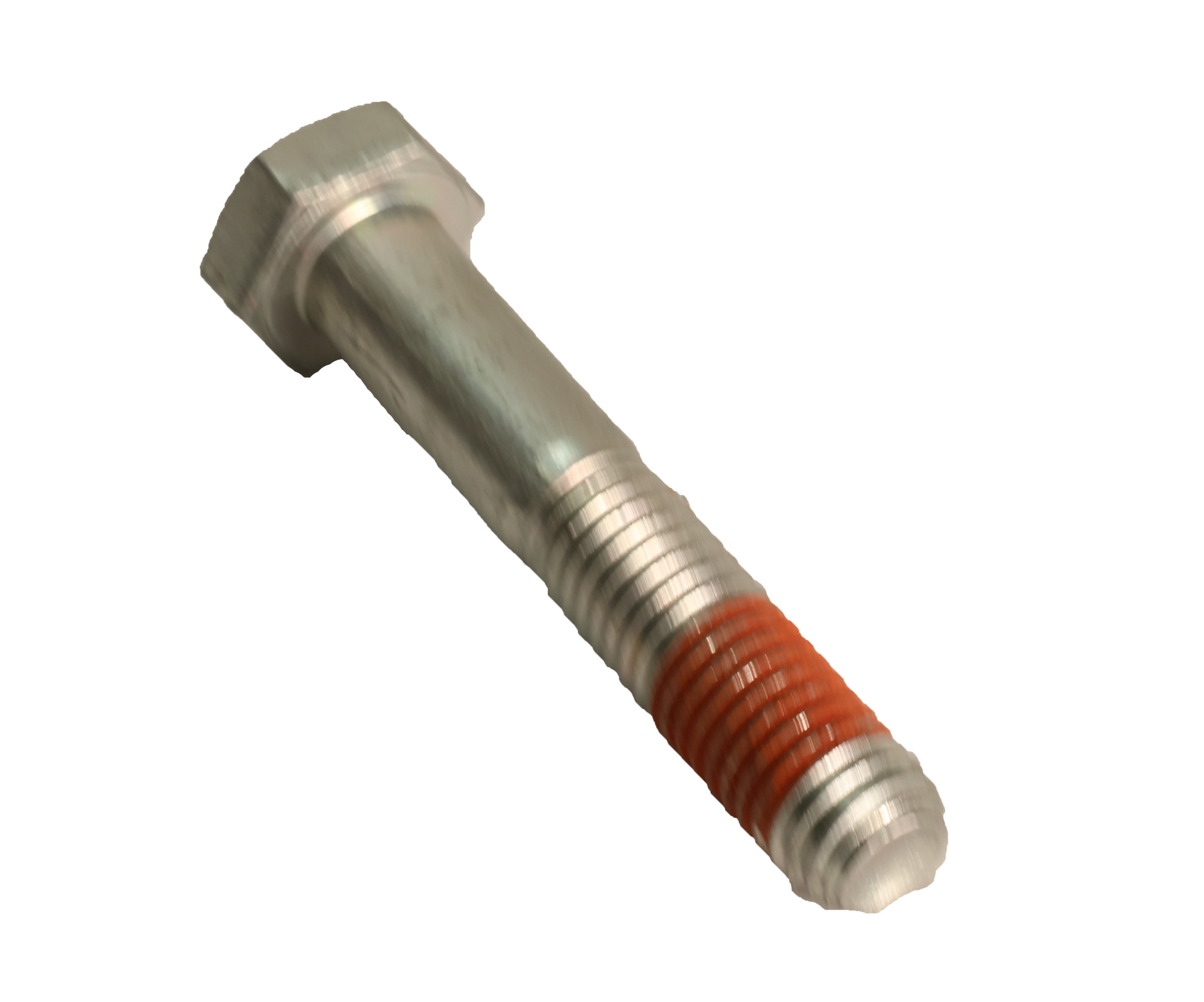

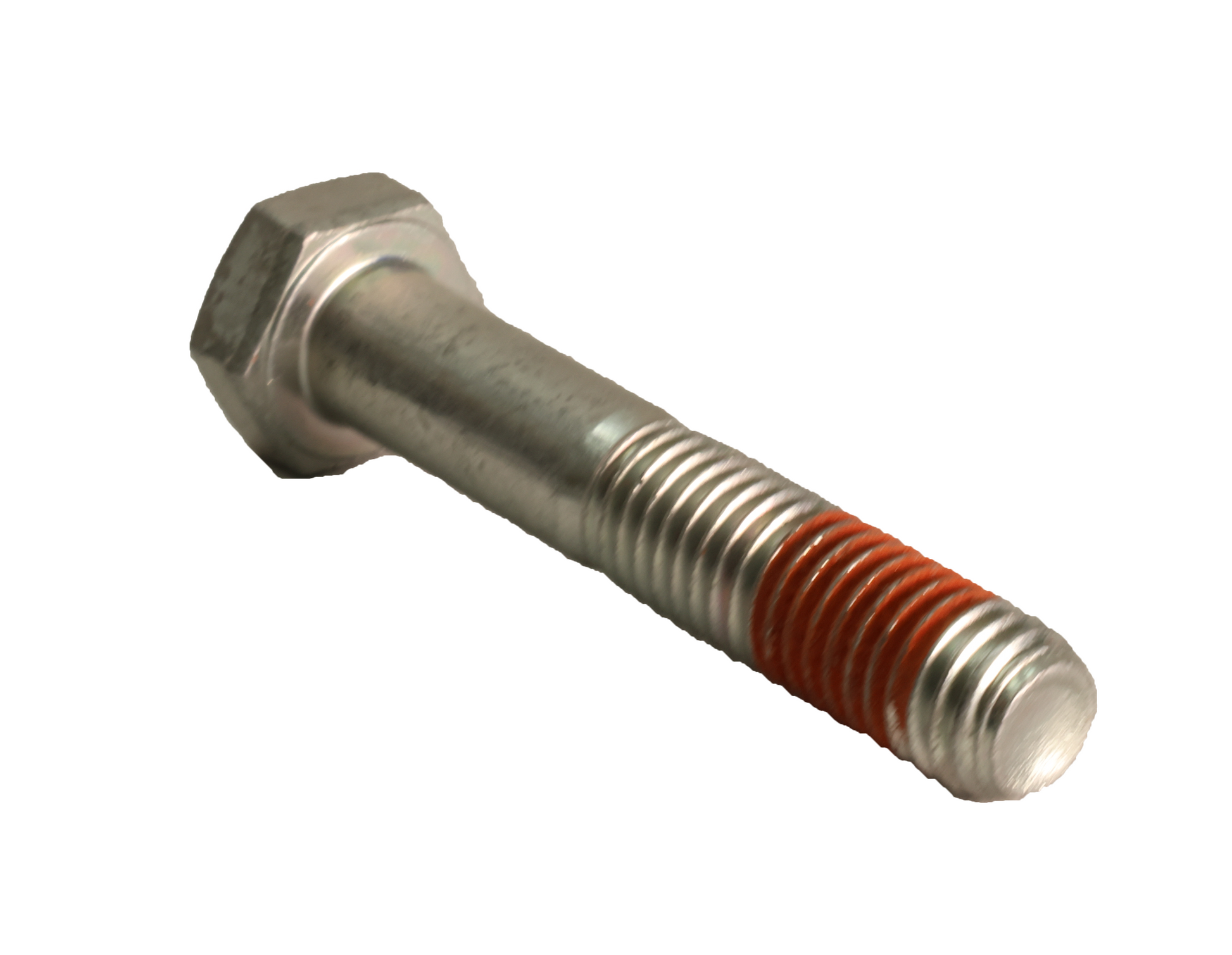

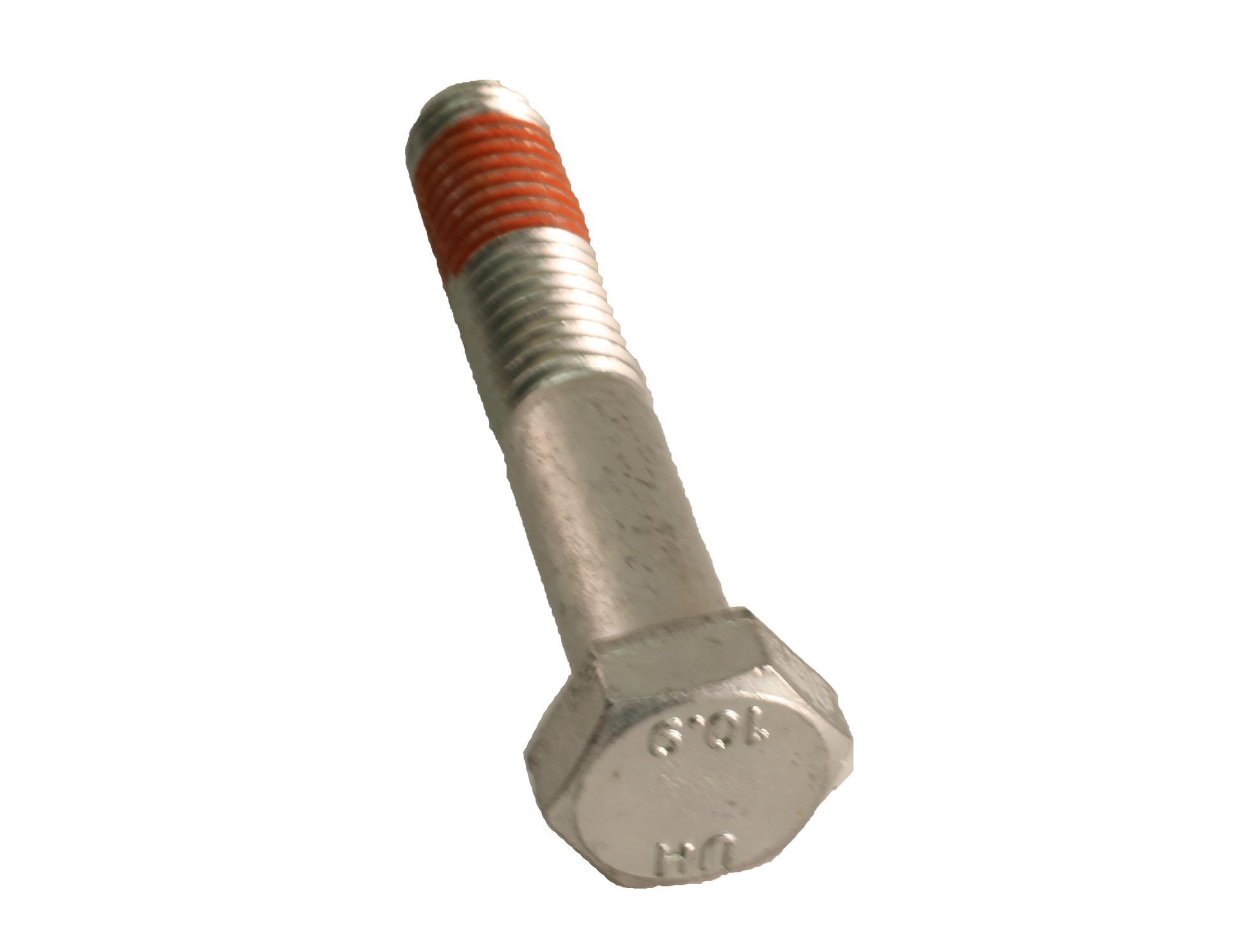

M10 X 55 Hexagonal Head Screw

Part Specifications:
Thread Size (MM) 10.0000
Thread Pitch (MM) 1.5000
Length (MM) 55.0000
Thread Length (MM) 26.0000
Head Width (MM) 16.0000
Head Thickness (MM) 6.5800
Material or Grade (ALPHA) 10.9000
Finish (ALPHA) B-Zinc-Electro Plated
Note (D) Thread Locking Adhesive

Fits the following John Deere models:
Combine: 9500SH, 9500, 9510, SH9510, 9550SH, 9550, 9570 STS, 9610, 9650CTS, 9650, 9660 CTS, 9660, S550, S660, S670HM, S660, S670HM, S690, S7 600, S7 700, S7 800, S7 900, 9670 STS, 9770 STS, 9870 STS, S650, S660, S670, S680, S680HM, S690, S760, S770, S780, S785, S790, T5 400, T5 500, T5 600, T5 700, T6 500, T6 600, T6 700, T6 800, 1000, X9 1000, 1100, X9 1100, X91100.

This is an O.E.M. John Deere part.
