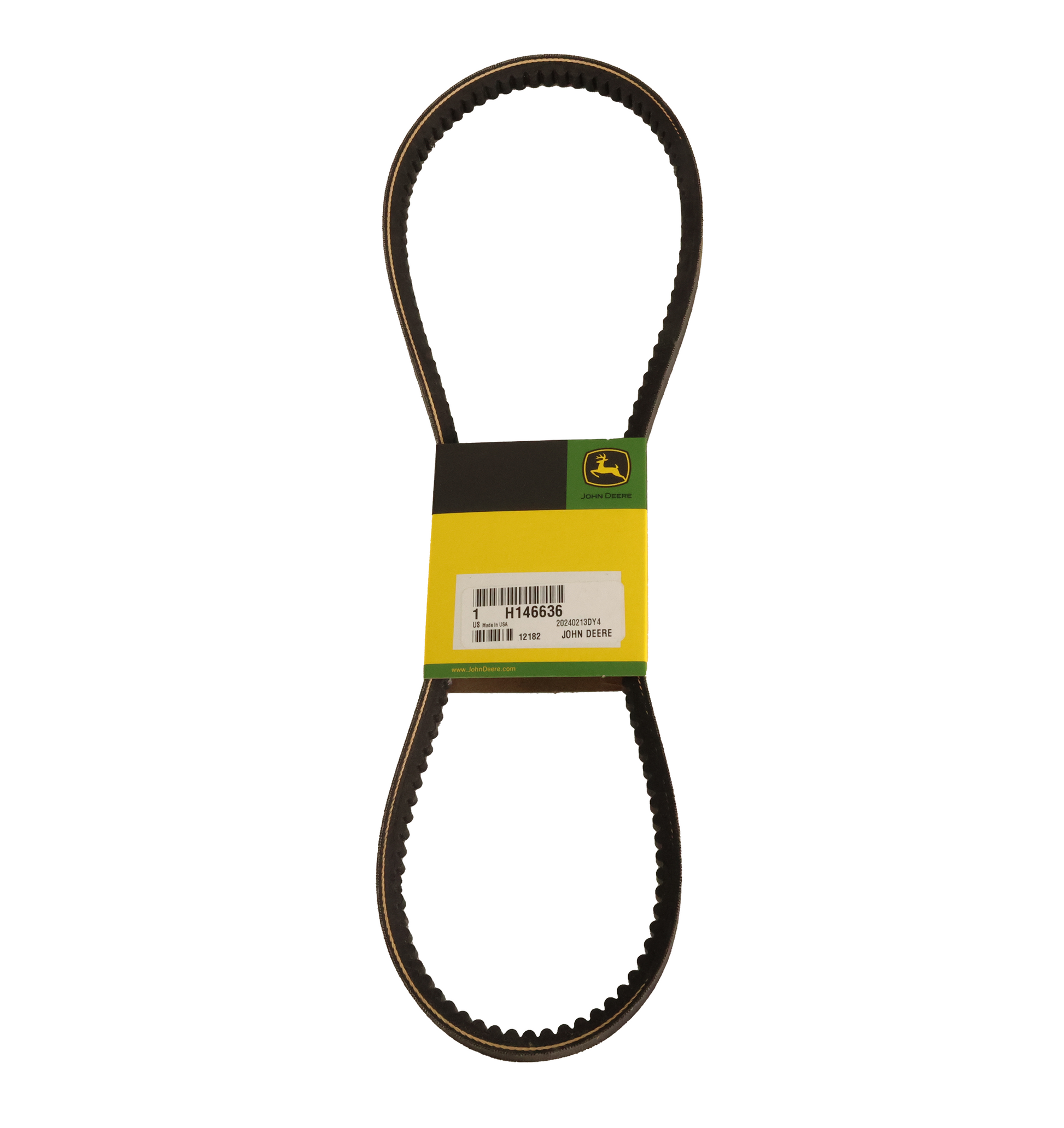

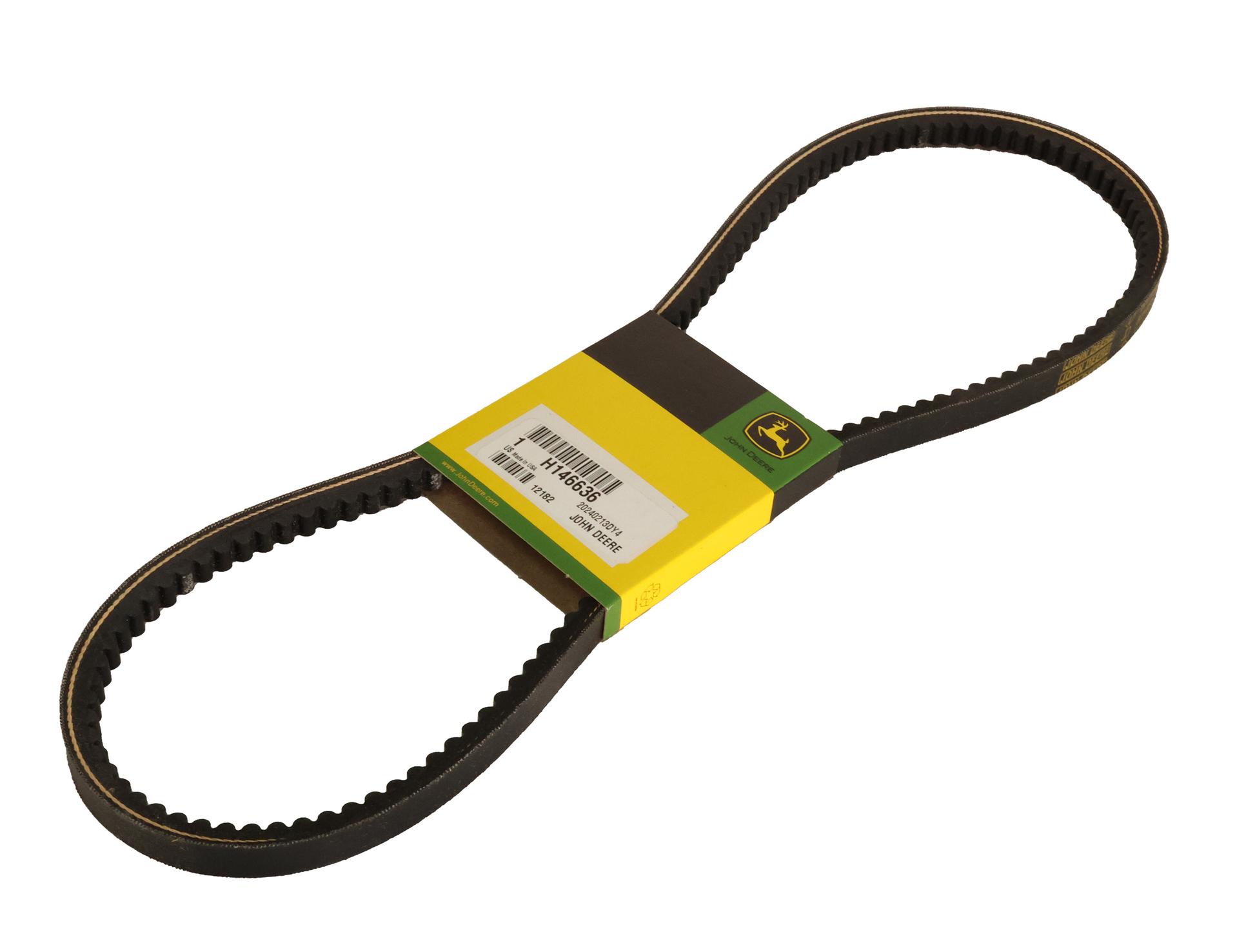

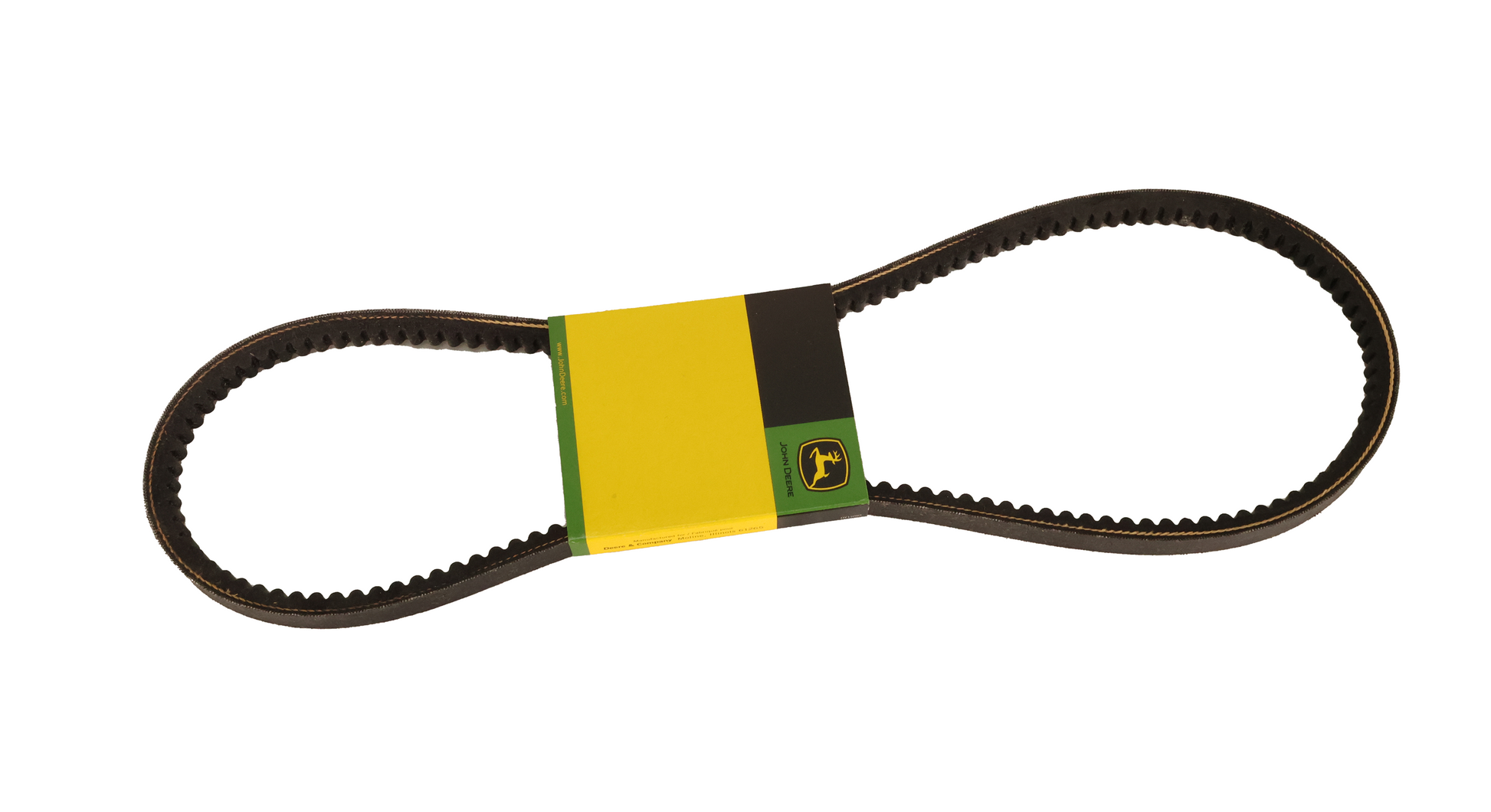

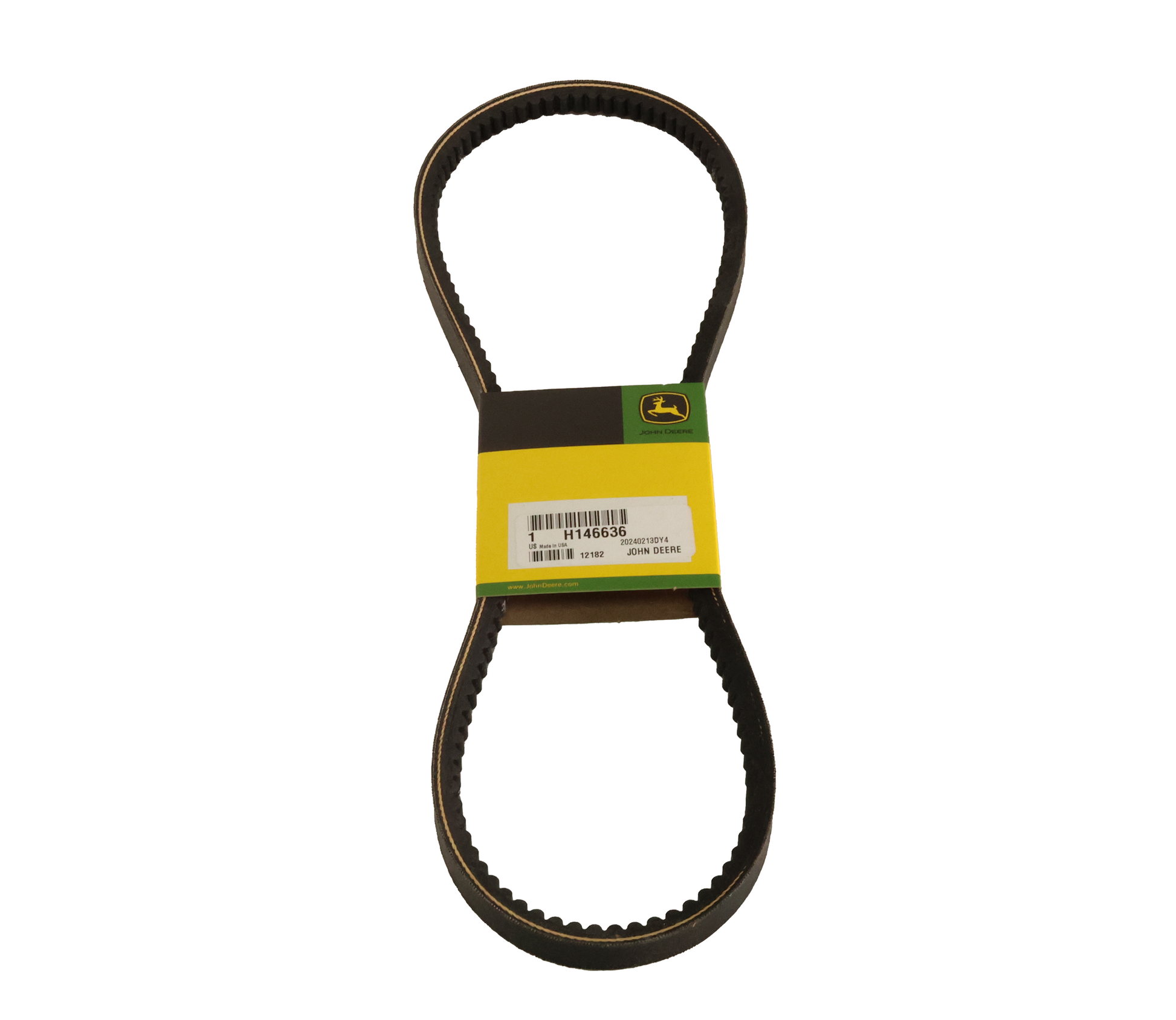

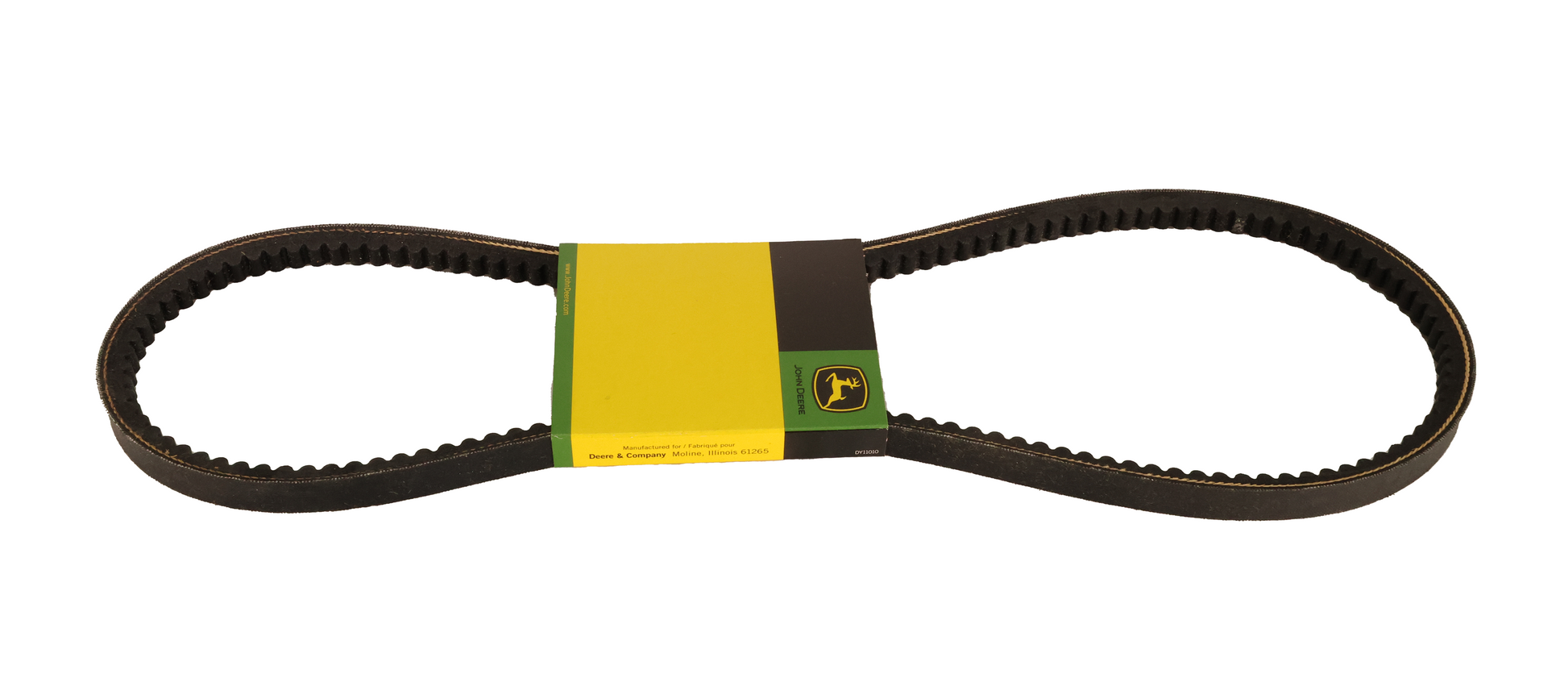

John Deere Original Equipment Ha Section V-Belt, Effective Length 1016 Mm (40 Inch) - H146636

John Deere Original Equipment Ha Section V-Belt, Effective Length 1016 Mm (40 Inch) - H146636

The part specifications for H146636:
Part Number: H146636
Part Name: Ha Section V-Belt, Effective Length 1016 Mm (40 Inch)
Belt Section(ALPHA): HA
Effective Length(IN): 40.0000
Width(IN): 0.5000
Thickness(IN): 0.3100
Angle(ALPHA): 32
Material Spec(ALPHA): C

This H146636 Ha Section V-Belt, Effective Length 1016 Mm (40 Inch) fits these models:
9400 Maximizer Combine
9410 Maximizer Combine
9450 Self-Propelled Combine
9500 Maximizer and 9500 SideHill Combines
9600 Maximizer Combine
9610 Maximizer Combine
9640WTS,9660WTS,9680WTS,9640i WTS,9660i WTS,9680i WTS Combines (Worldwide Edition)
9650 CTS Self-Propelled Combine
9650 Self-Propelled Combine
9660 CTS Self-Propelled Combine (North American Edition)
9660 Self-Propelled Combine (North American Edition)
9780CTS, 9780i CTS Combines (S.N. 072800- )Worldwide Edition
C670 Combine (Worldwide Edition)
CTS Combine (North American Version)
T550 Combine
T560 Combine
T560 Combine (Worldwide Edition, MY 2007-2011)
T560 Combine (Worldwide Edition, MY 2012-2013)
T560 Combine (Worldwide Edition, MY 2014 - 096410)
T660 Combine
T660 Combine (Worldwide Edition, MY 2007-2011)
T660 Combine (Worldwide Edition, MY 2012-2013)
T660 Combine (Worldwide Edition, MY 2014 - 096426)
T660 Combine (Worldwide Edition, S.N. 102000 - 104999)
T660 Combine (Worldwide Edition, S.N. 105000 - 109999)
T660 Combine (Worldwide Edition, S.N. 115000- )
T670 Combine
T670 Combine (Worldwide Edition, MY 2007-2011)
T670 Combine (Worldwide Edition, MY 2012-2013)
T670 Combine (Worldwide Edition, MY 2014 - 2015)
T670 Combine (Worldwide Edition, S.N. 102000 - 104999)
T670 Combine (Worldwide Edition, S.N. 105000 - 109999)
T670 Combine (Worldwide Edition, S.N. 115000- )
W550 Combine
W650 Combine
W650 Combine (Worldwide Edition, MY 2007-2011)
W650 Combine (Worldwide Edition, MY 2012-2013)
W650 Combine (Worldwide Edition, MY 2014 - 096432)
W650 Combine (Worldwide Edition, S.N. 115000- )
W660 Combine
W660 Combine (Worldwide Edition, MY 2007-2011)
W660 Combine (Worldwide Edition, MY 2012-2013)
W660 Combine (Worldwide Edition, MY 2014 - 096422)
W660 Combine (Worldwide Edition, S.N. 102000 - 104999)
W660 Combine (Worldwide Edition, S.N. 105000 - 109999)
W660 Combine (Worldwide Edition, S.N. 115000- )

This is an OEM John Deere part.
