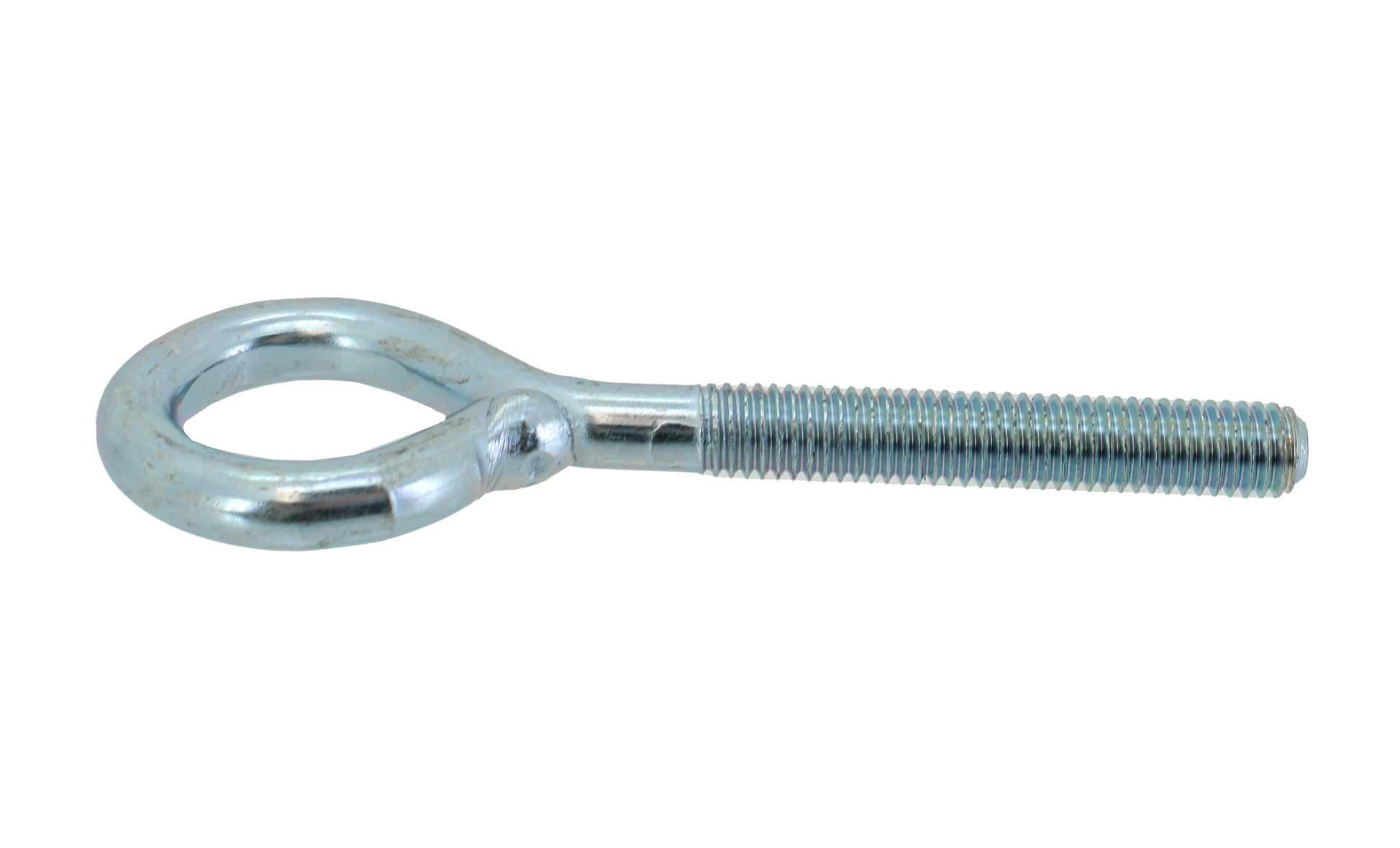

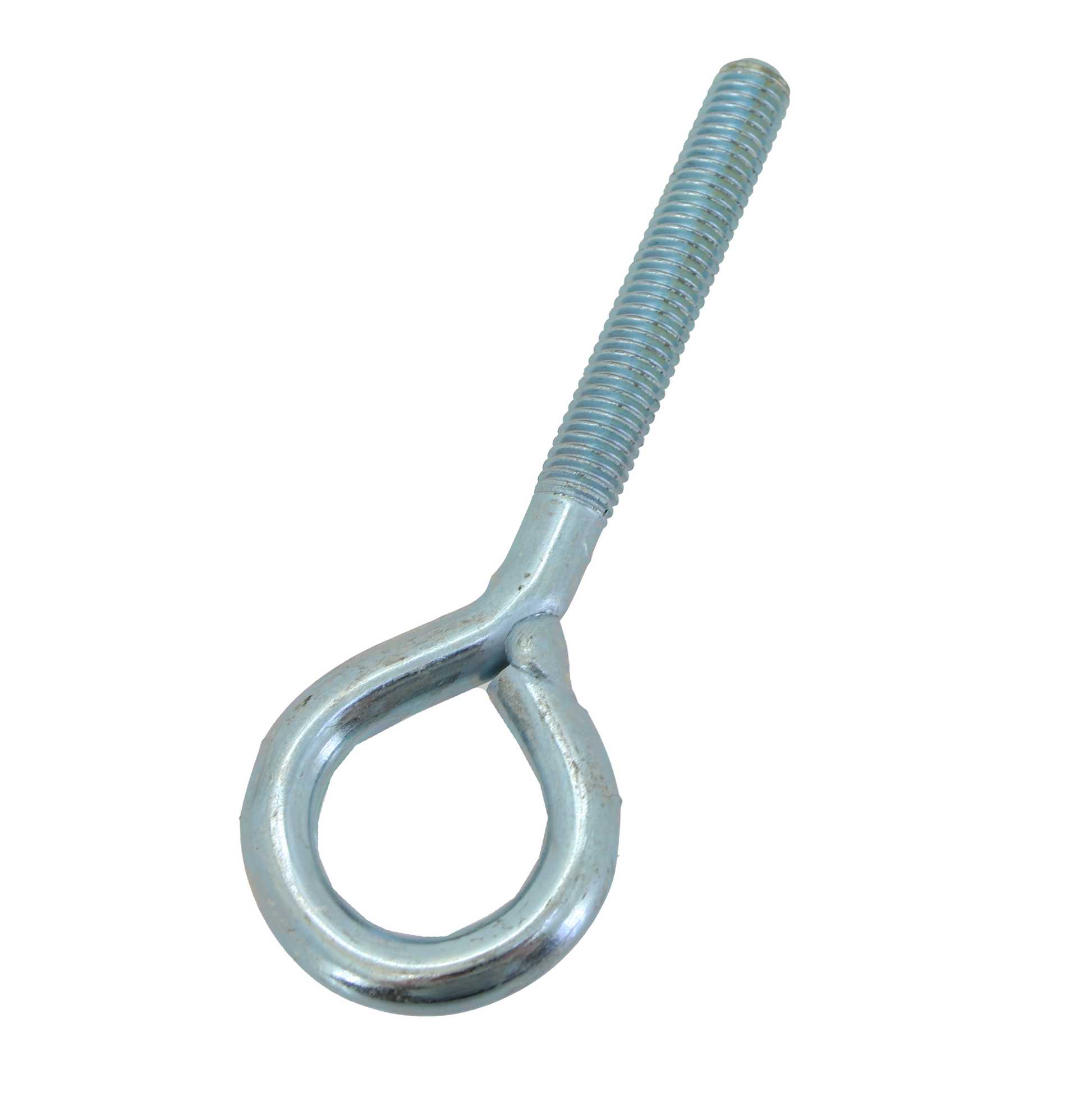

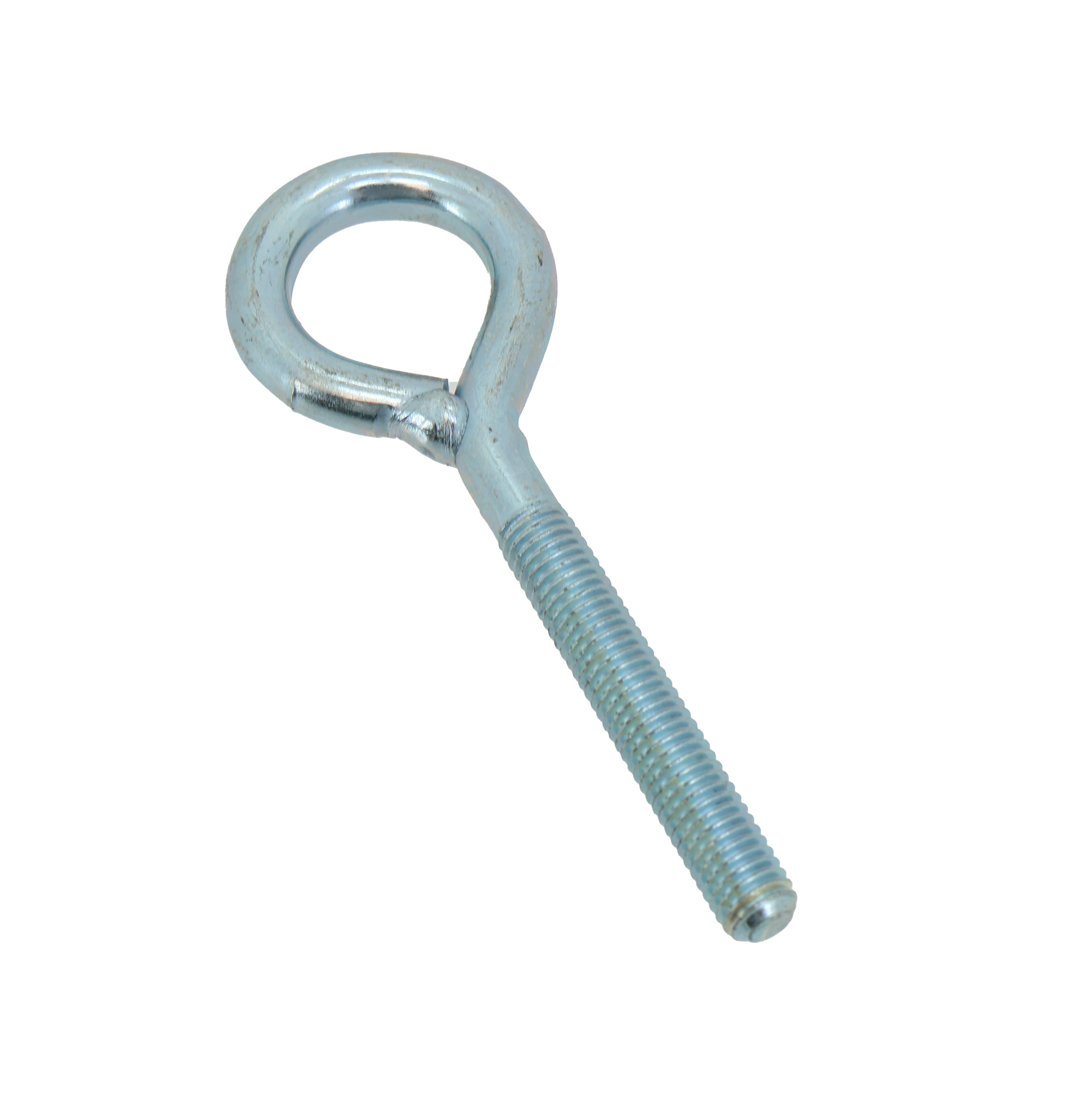

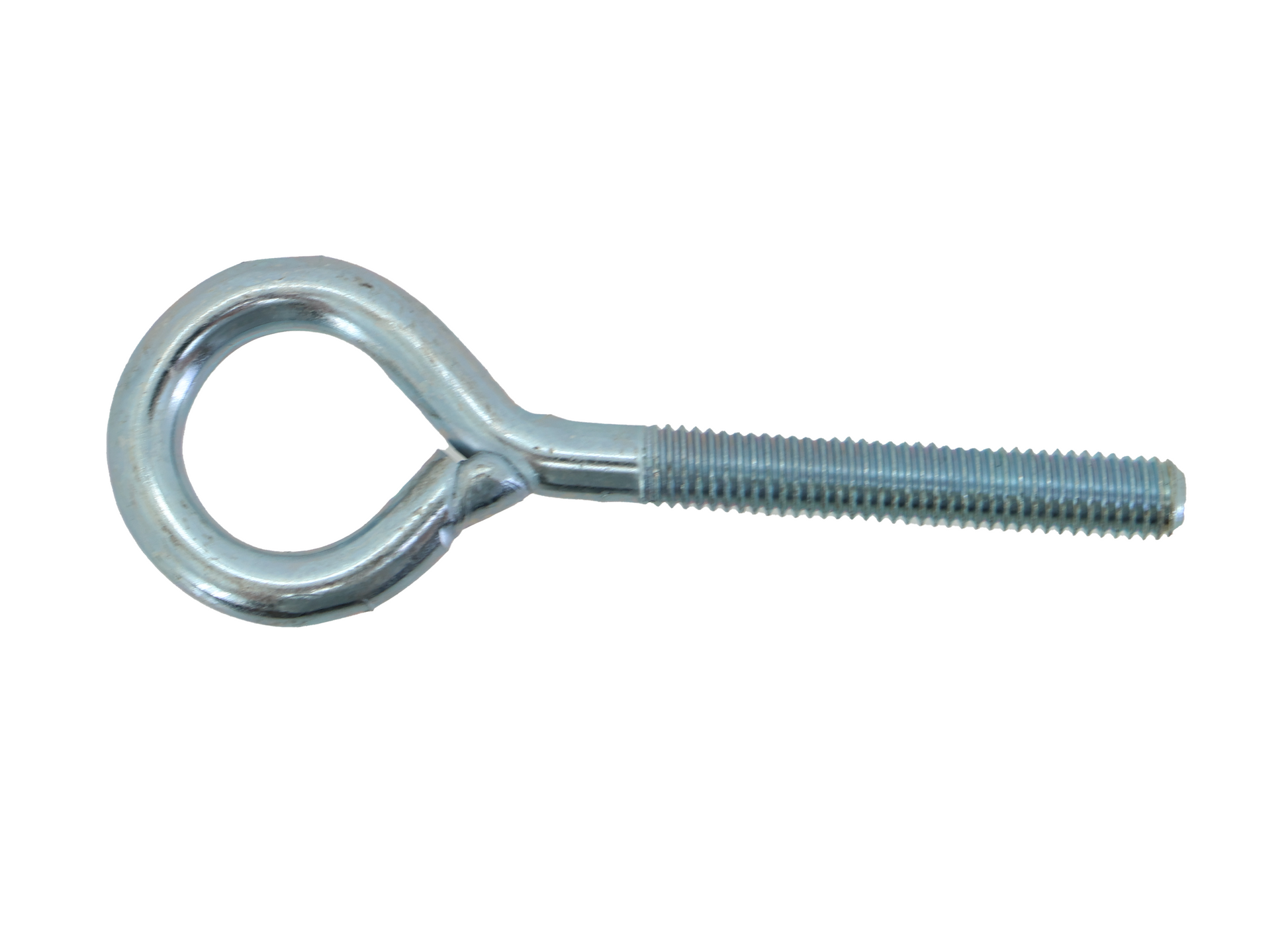

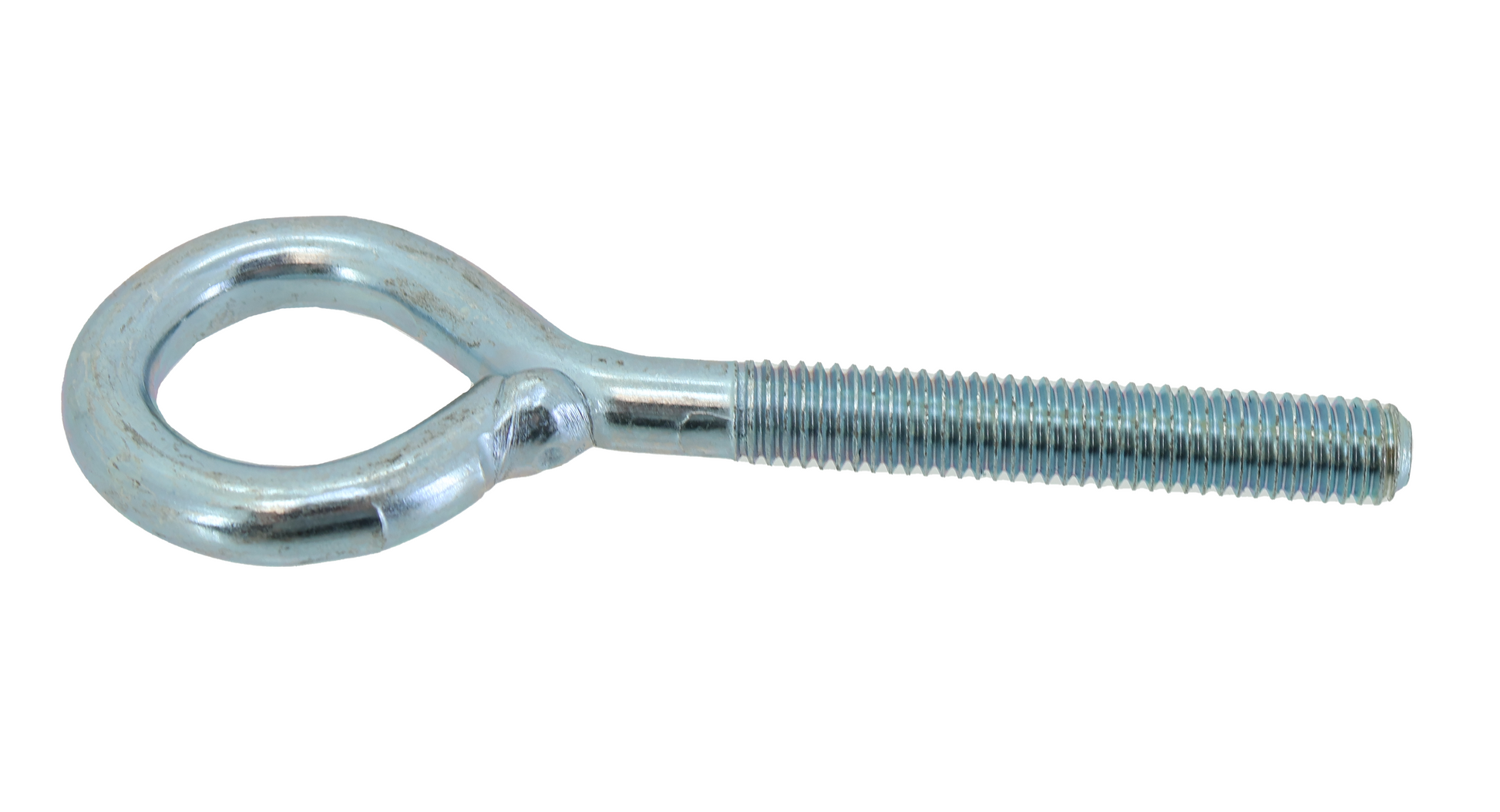

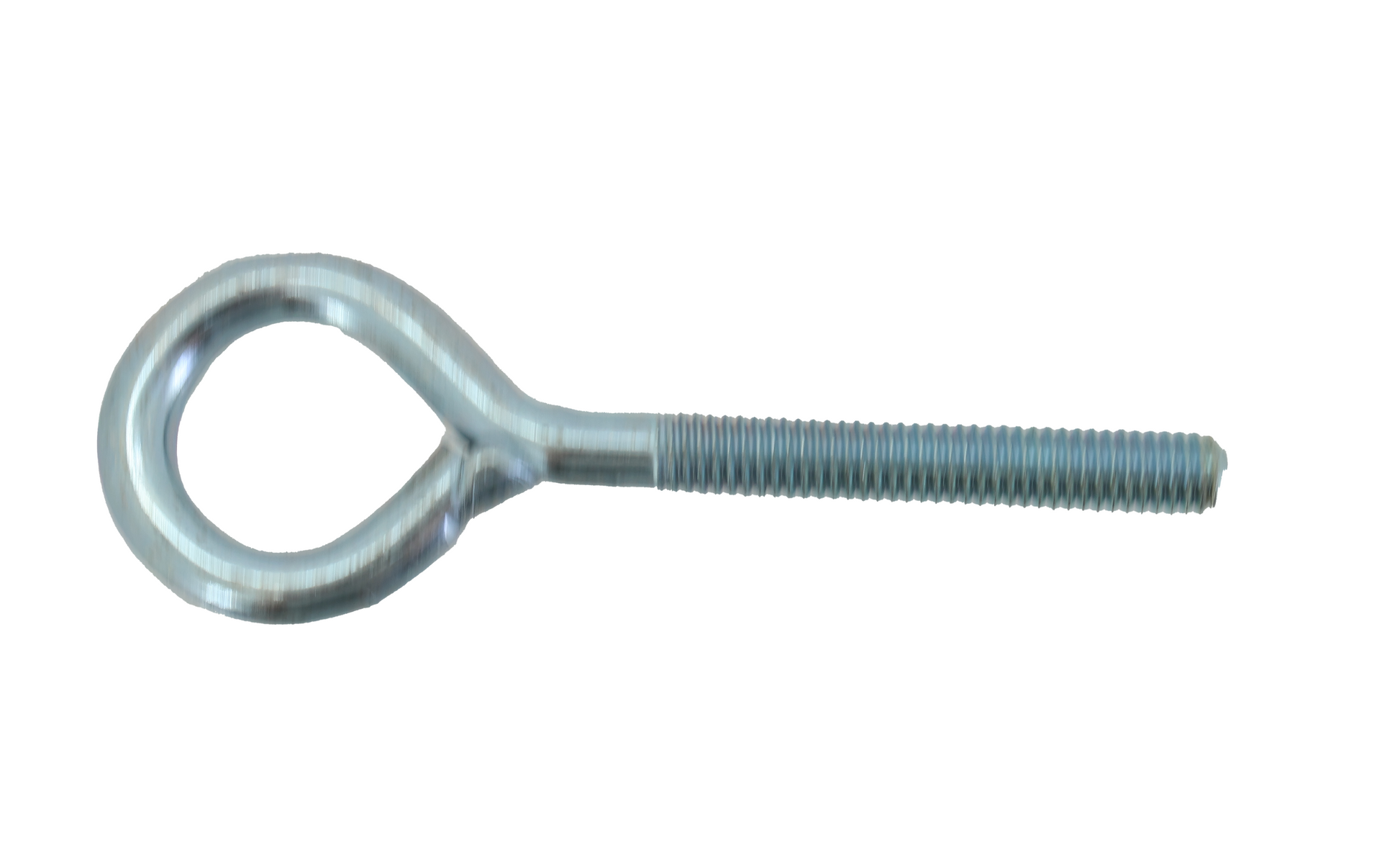

John Deere Original Equipment Eyebolt - TR115301
Part Specifications: Thread Size(MM) 8.0000, Thread Pitch(MM) 1.2500, Length(MM) 80.0000, Thread Length(MM) 45.0000, Eye Inside Diameter(MM) 20.0000, Eye Outside Diameter(MM) 34.1400, Eye Thickness(MM) 8.0000, Material or Grade(ALPHA) 1018, Finish(ALPHA) B-Zinc-Electro Plated.
Fits the following John Deere models: 1023E, 1025R, 260, 60D, 54D, 1026R, 2025R, 2026R, 72D, 60, 62, 72, 62C, 54C, 54, 62D. This is an O.E.M. John Deere part.
