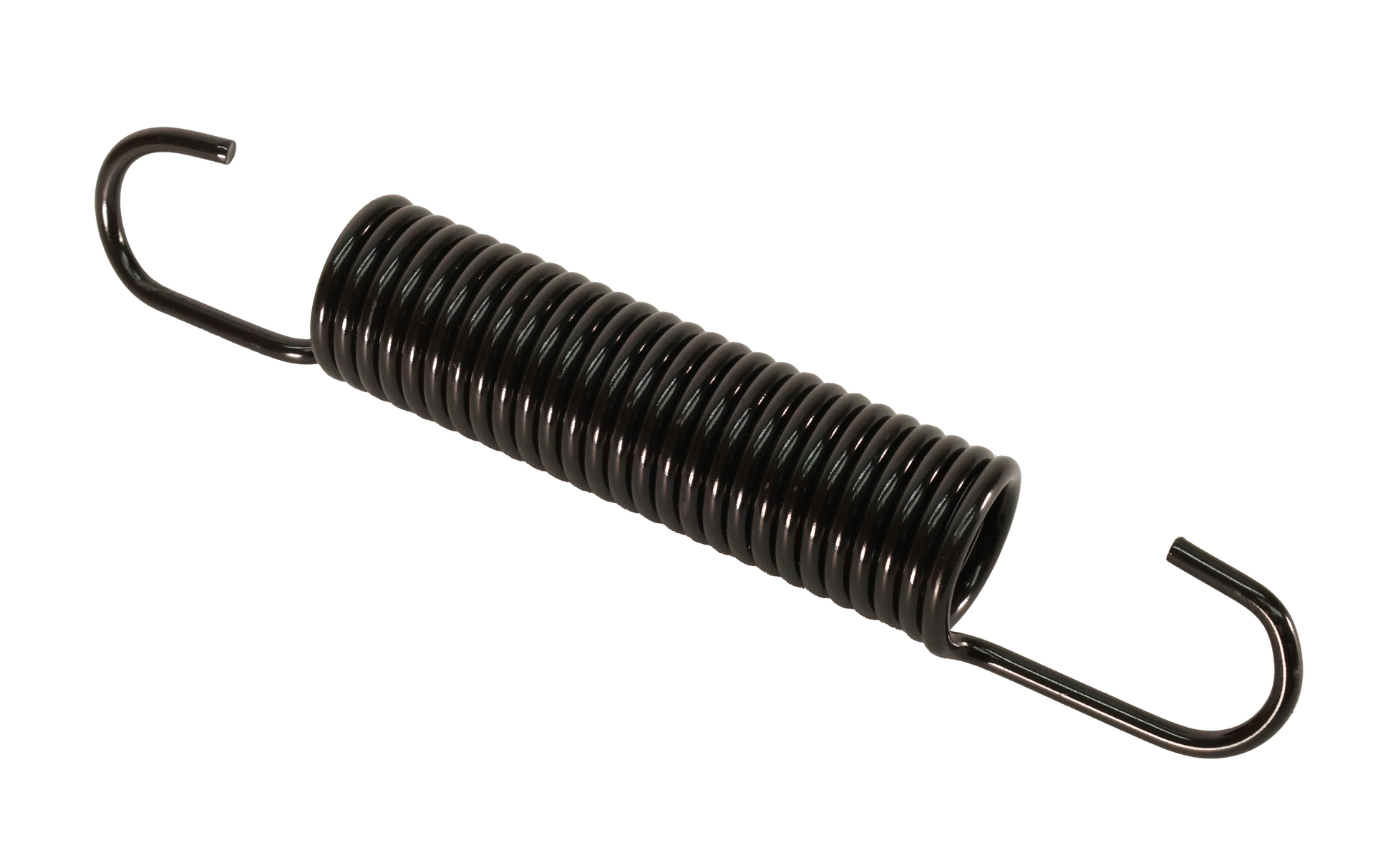

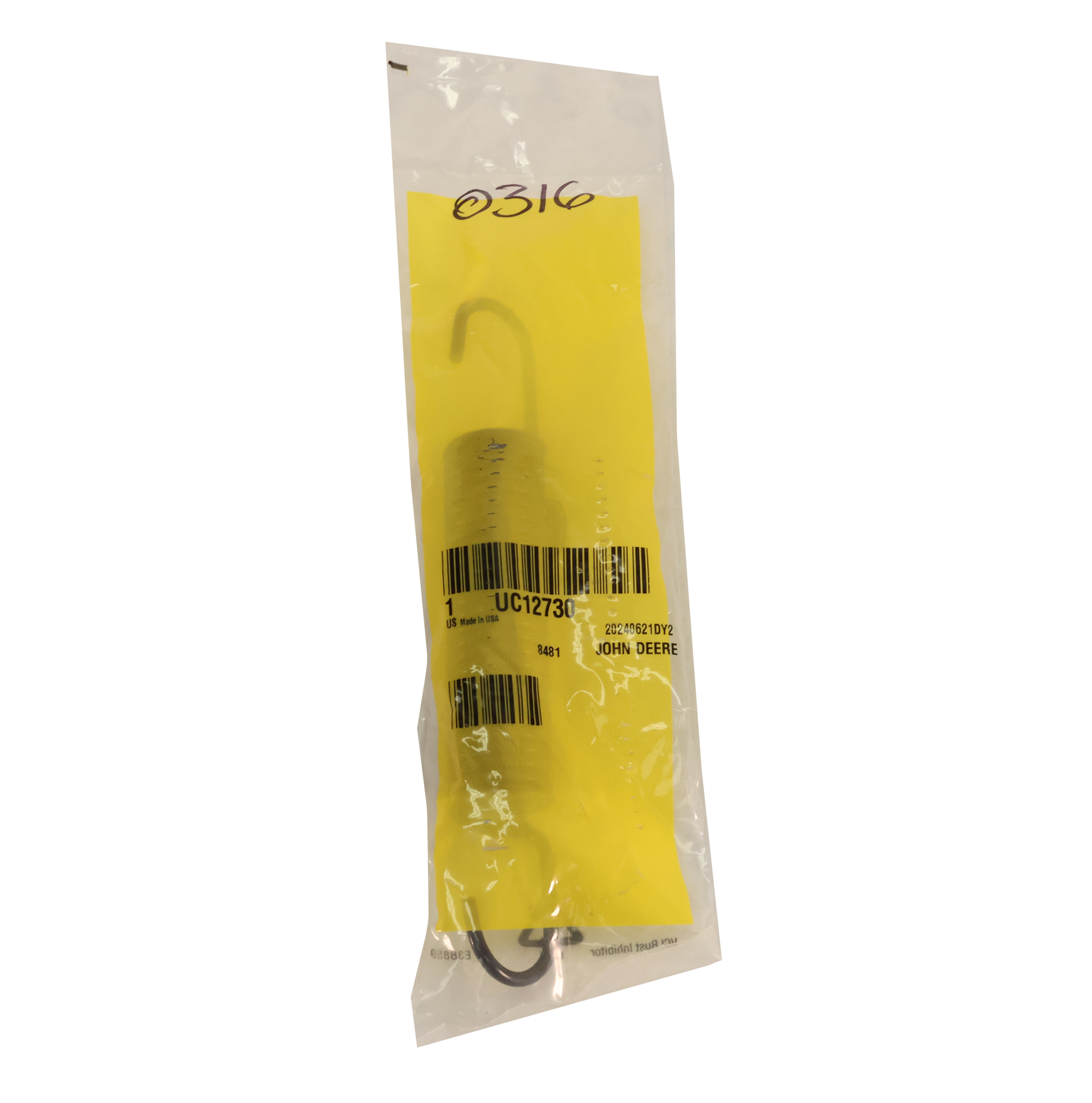

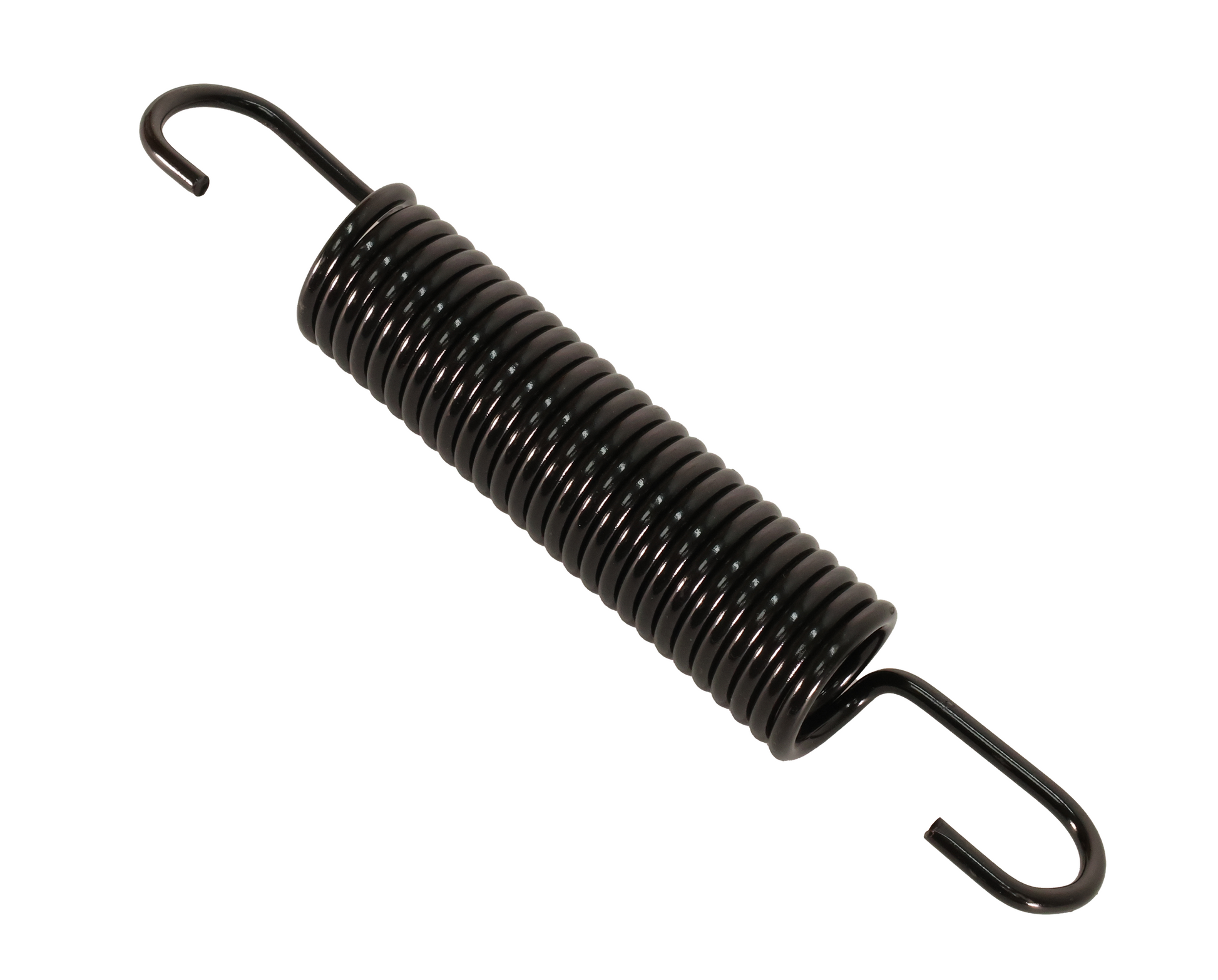

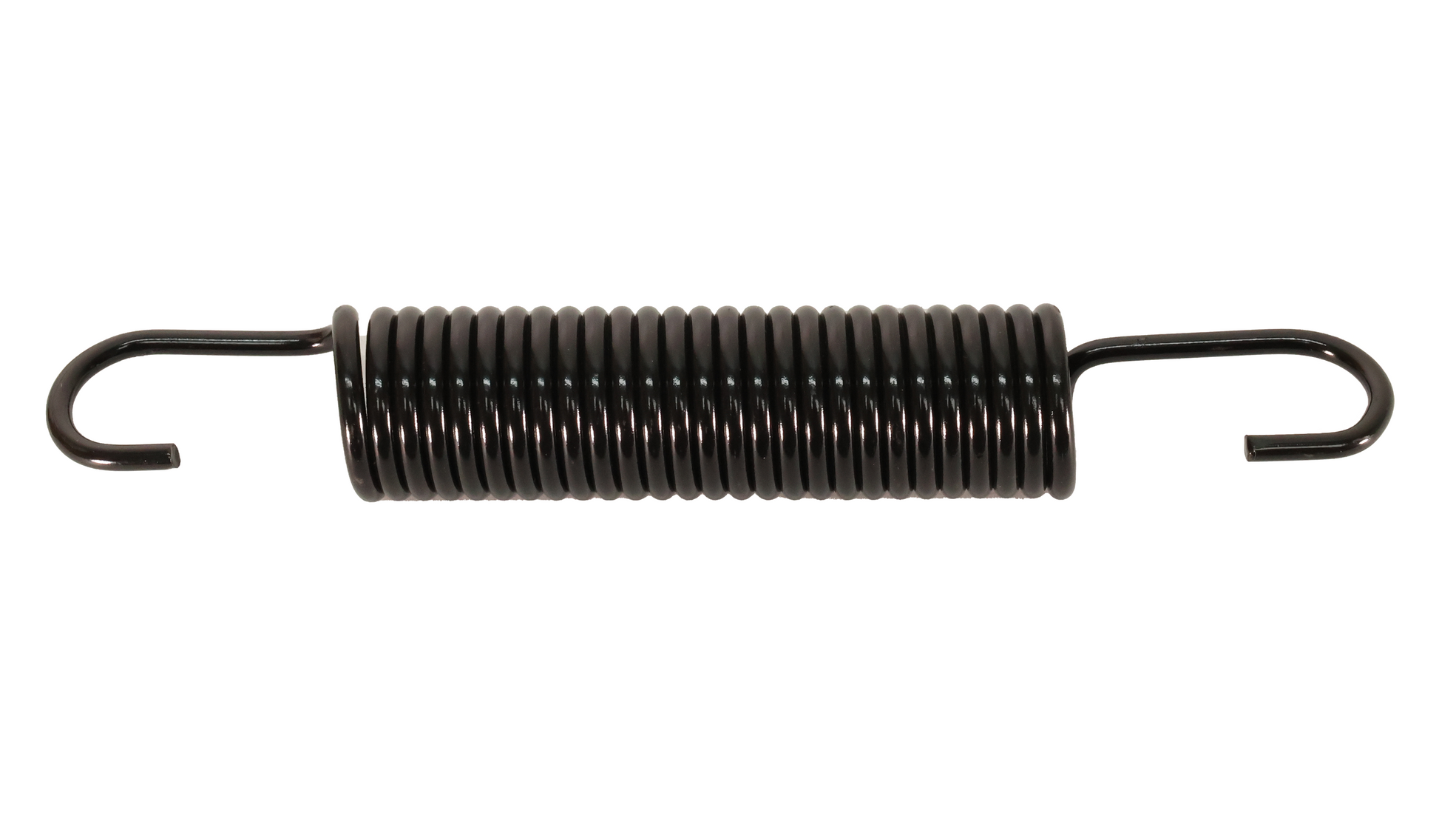

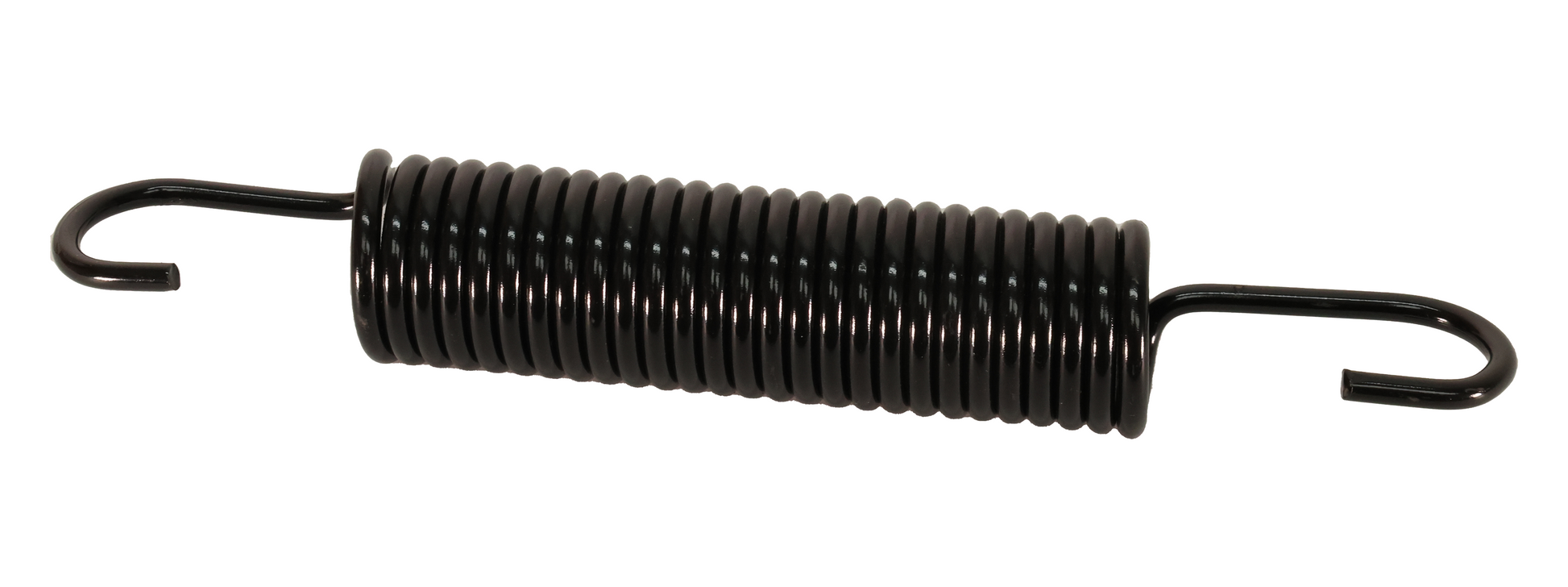

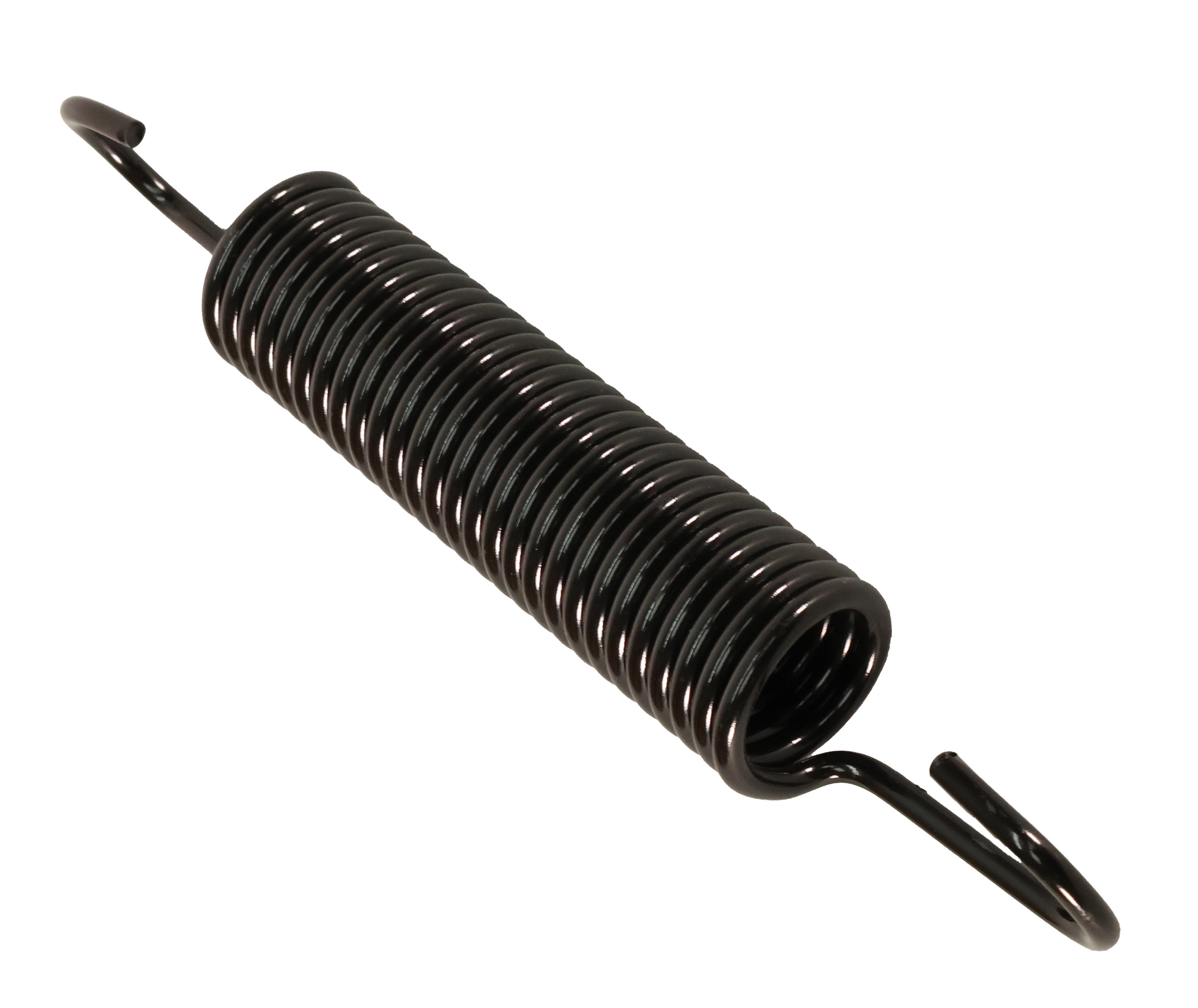

John Deere Original Equipment Extension Spring - UC12730

John Deere Original Equipment Extension Spring - UC12730

Part Specifications:
End Type (ALPHA) 03/03
Wire Diameter (MM) 3.5000
Outside Diameter (MM) 26.0000
Free Length (MM) 173.5000
Spring Rate (LBF/in or N/mm) 4.7500
Initial Tension (LBF or N)(N) 105.0000
Number of Coils (UNITY) 27.2500
Material (ALPHA) A15-7
Finish (ALPHA) K-Painted

Fits the following John Deere models:

Mower Deck Attachment: 48, 54, 60

Lawn and Garden Tractor: X330, X350, X354, X370, X380, X384, X390, X394, X570, X580, X584, X590.

This is an O.E.M. John Deere part.
