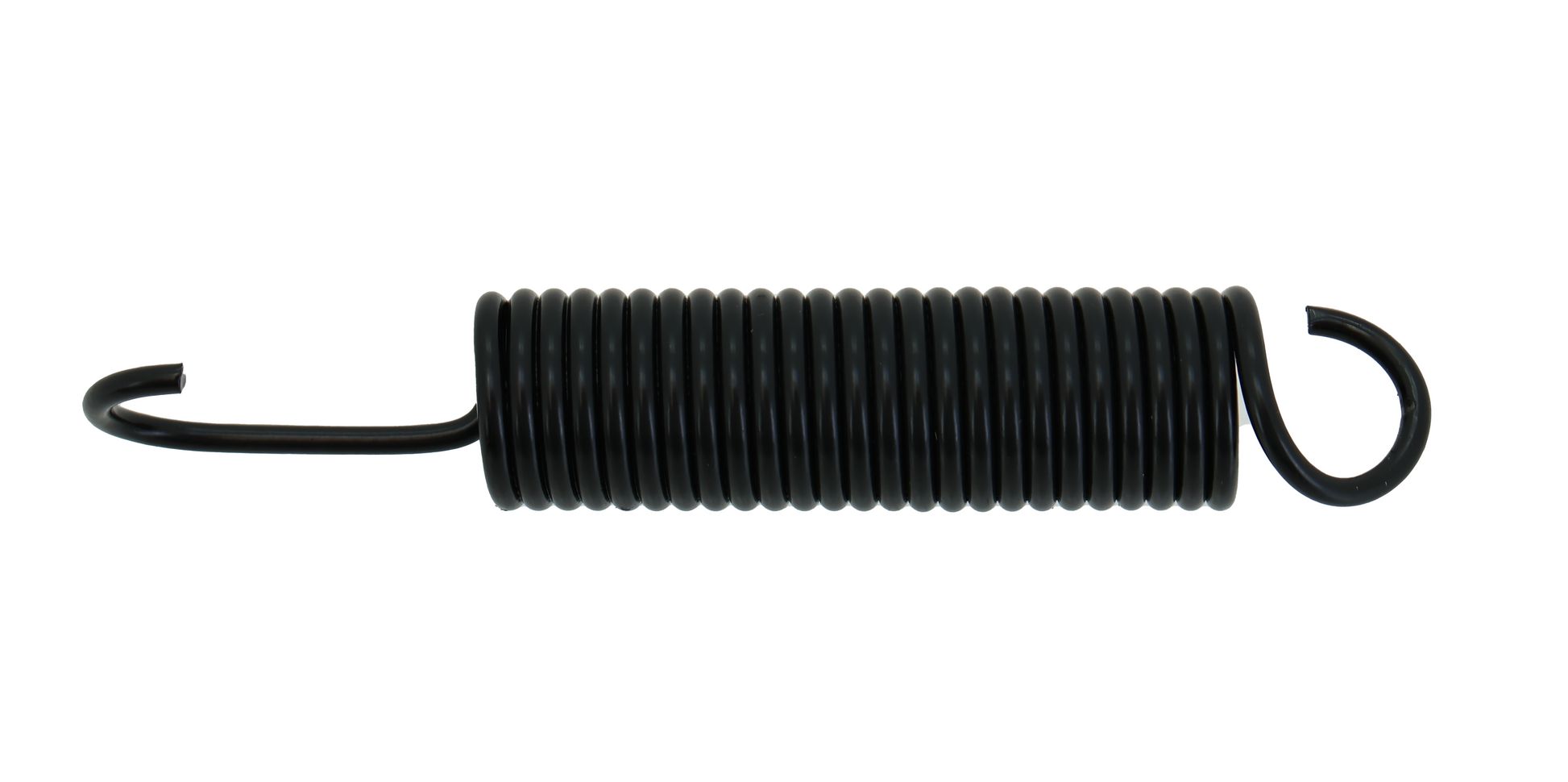

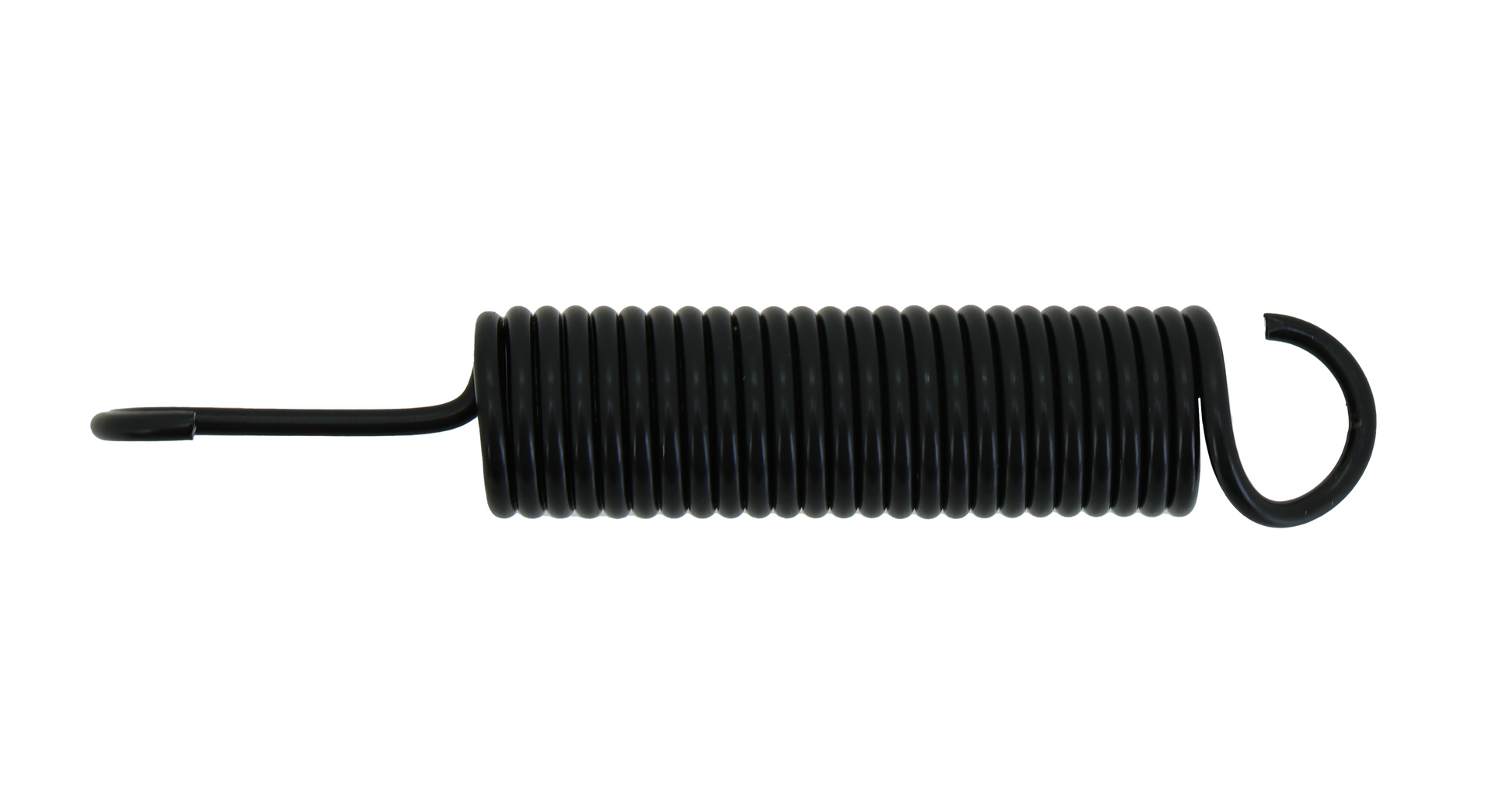

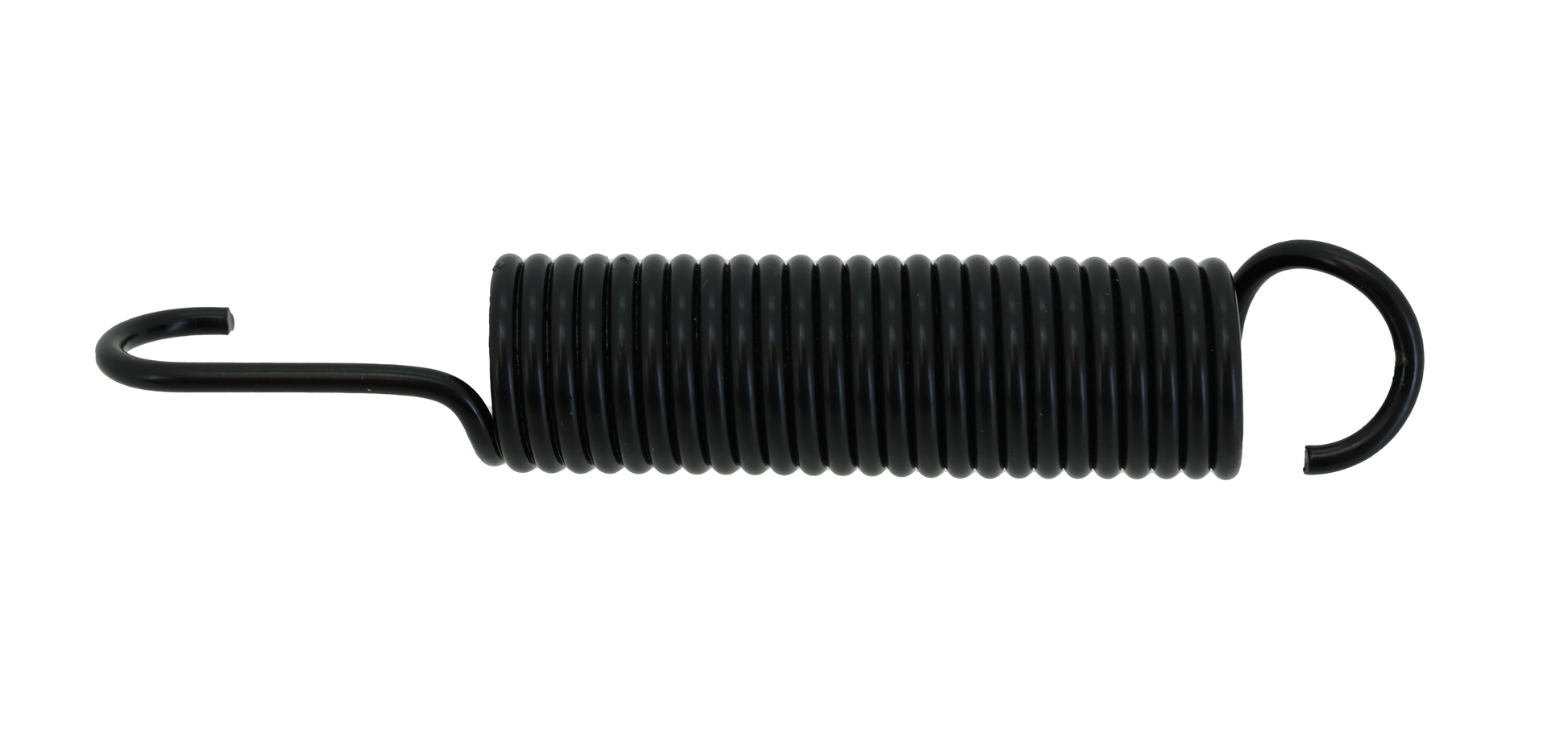

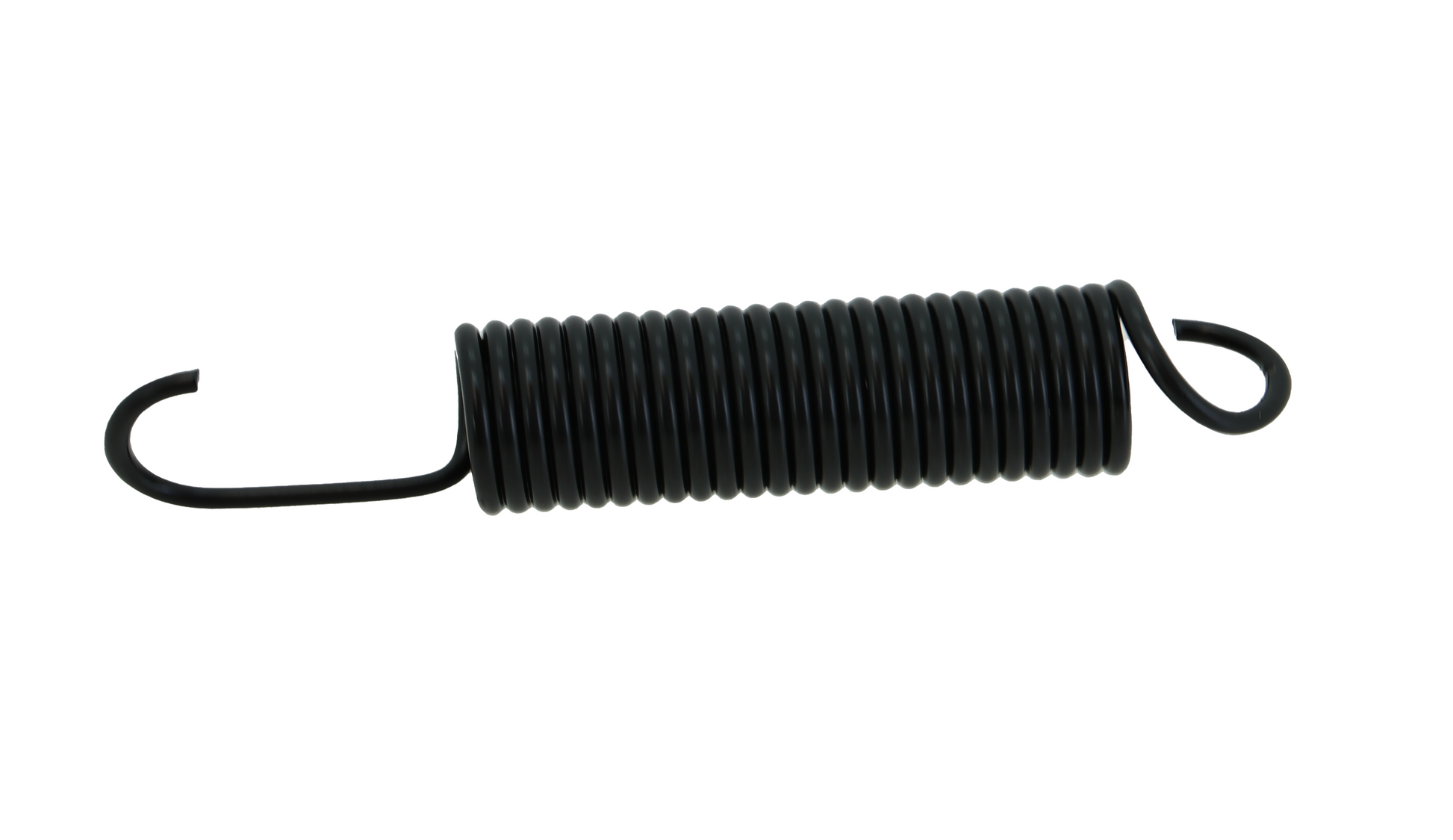

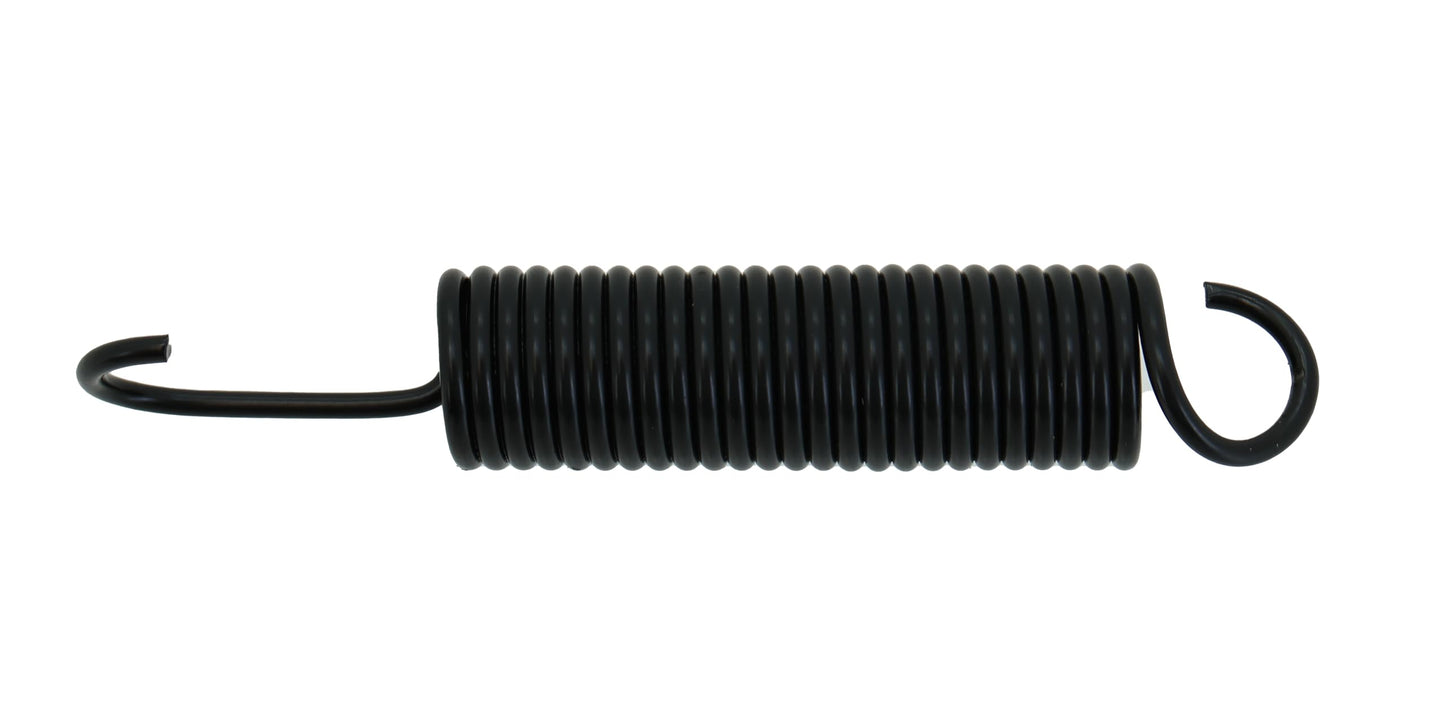

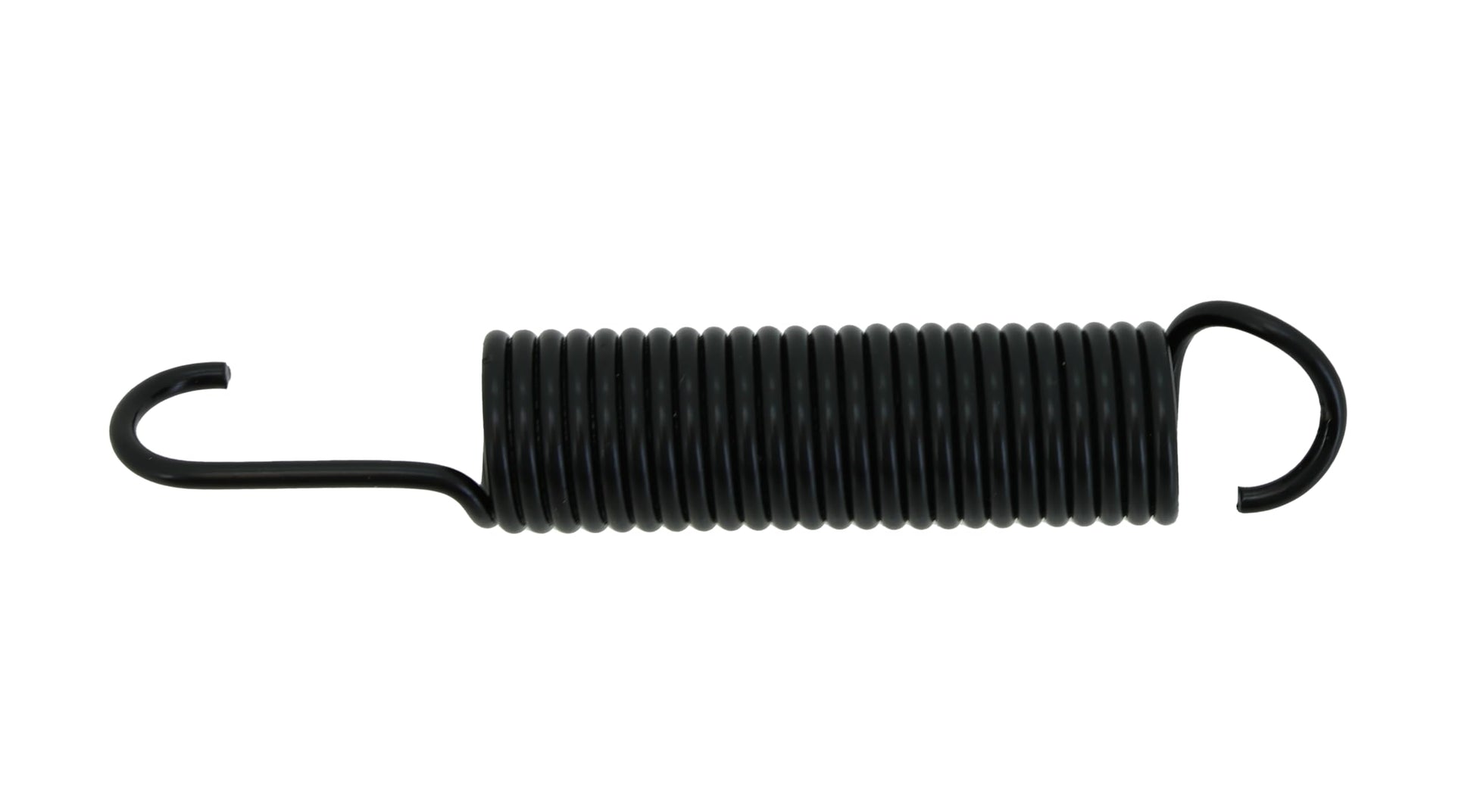

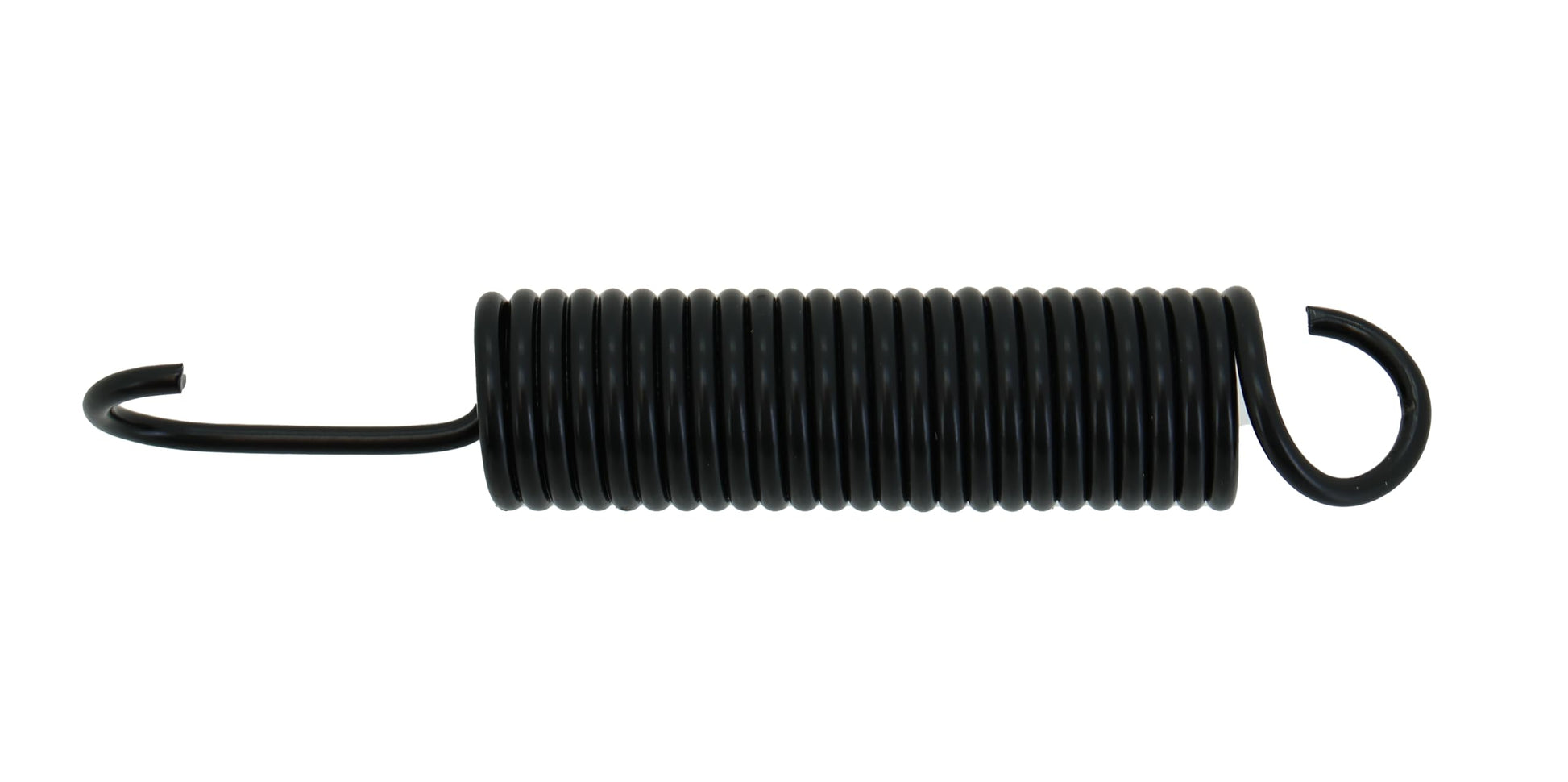

John Deere Original Equipment Extension Spring - M88185

John Deere Original Equipment Extension Spring - M88185

Part Specifications: End Type (ALPHA) 02/03, Wire Diameter(IN) 0.1483, Wire Diameter(MM) 3.7670, Outside Diameter(IN) 1.1181, Outside Diameter(MM) 28.4000, Free Length(IN) 6.4961, Free Length(MM) 165.0000, Spring Rate (LBF/in or N/mm)(LBF/IN) 29.6357, Spring Rate (LBF/in or N/mm) 5.1900, Initial Tension (LBF or N)(LBF) 24.9538, Initial Tension (LBF or N)(N) 111.0000, Number of Coils (UNITY) 26.0000, Material (ALPHA) A15-1, Finish (ALPHA) K-Painted, Note (D) Hooks 90 Degrees.

Fits the following John Deere models: 111, 111H, 112L, 108, 116, 116H, 165, 160, 130, 170, 175, 180, 185, GX75, GX95, GX70, GX85, SX85, RX95, SX95, RX75, RX73, RX63, SX75, SRX95, SRX75. This is an O.E.M. John Deere part.
