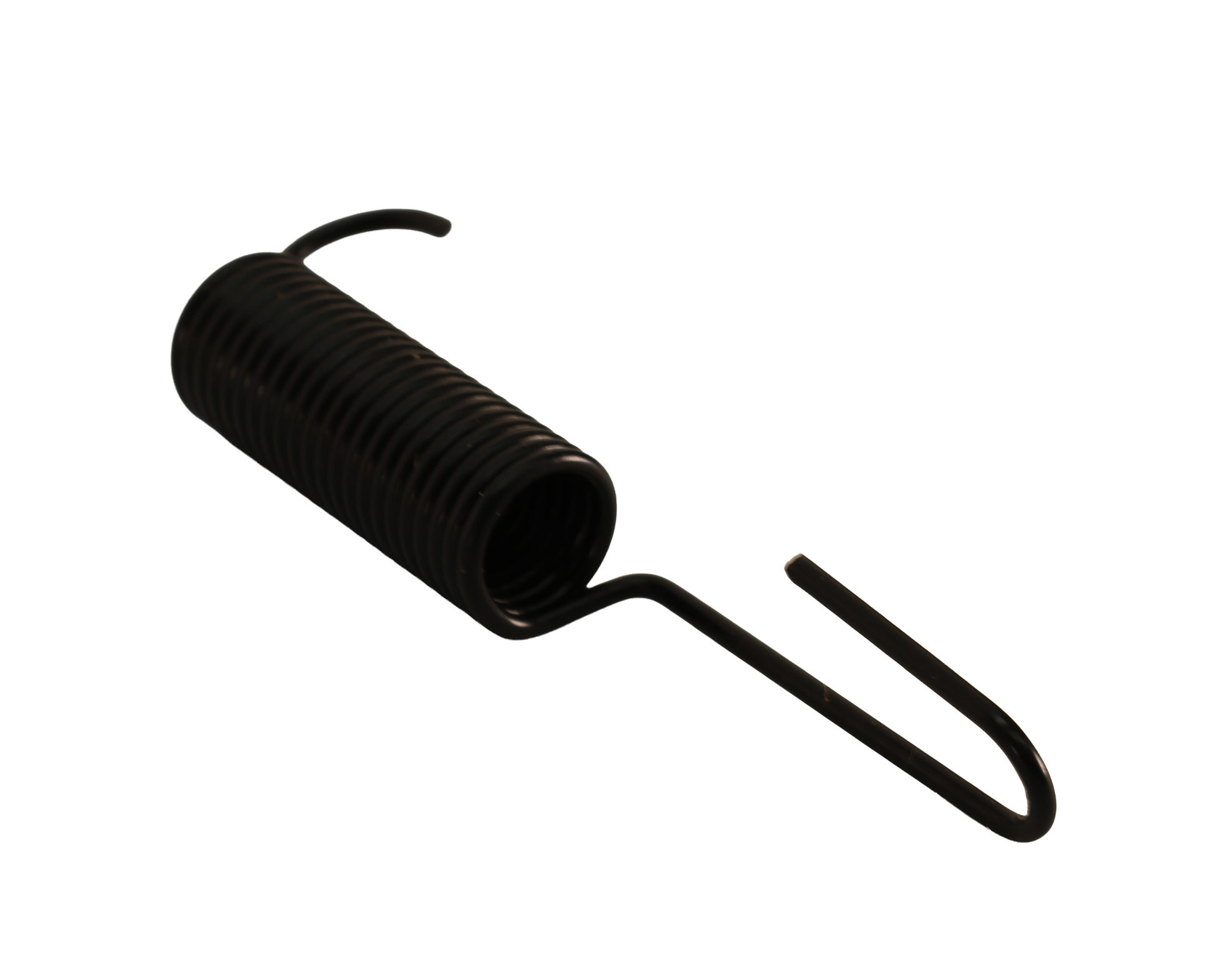

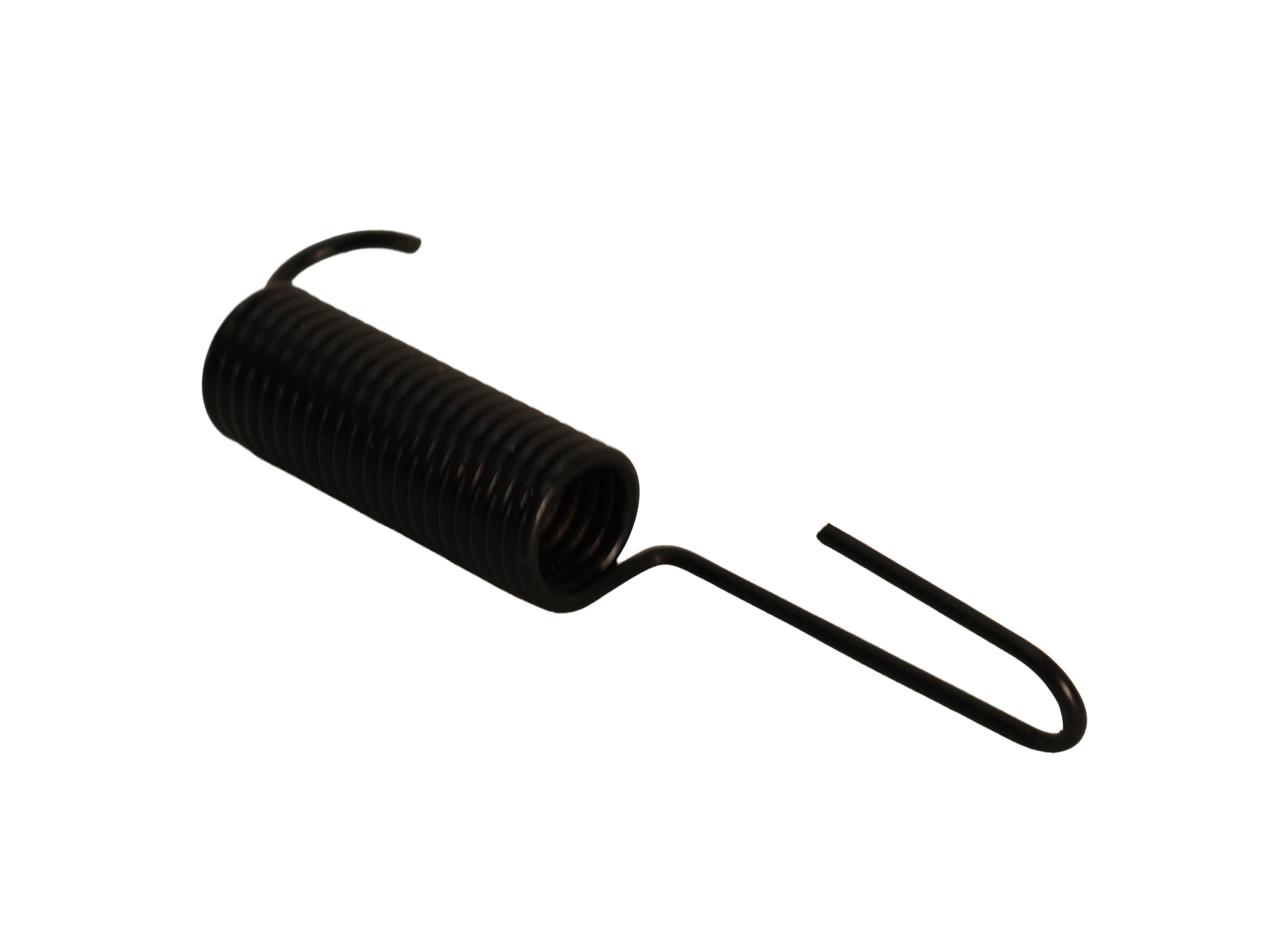

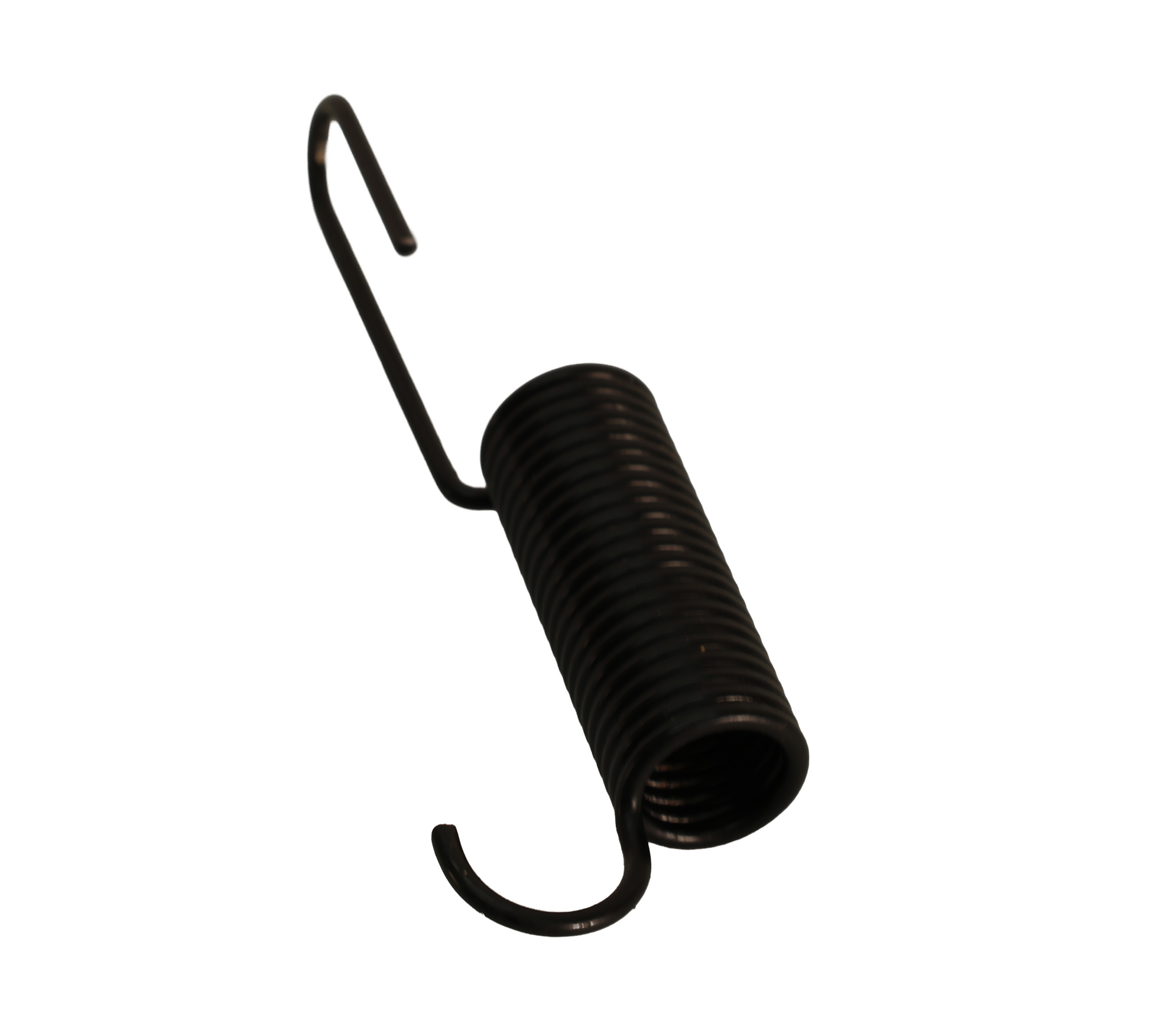

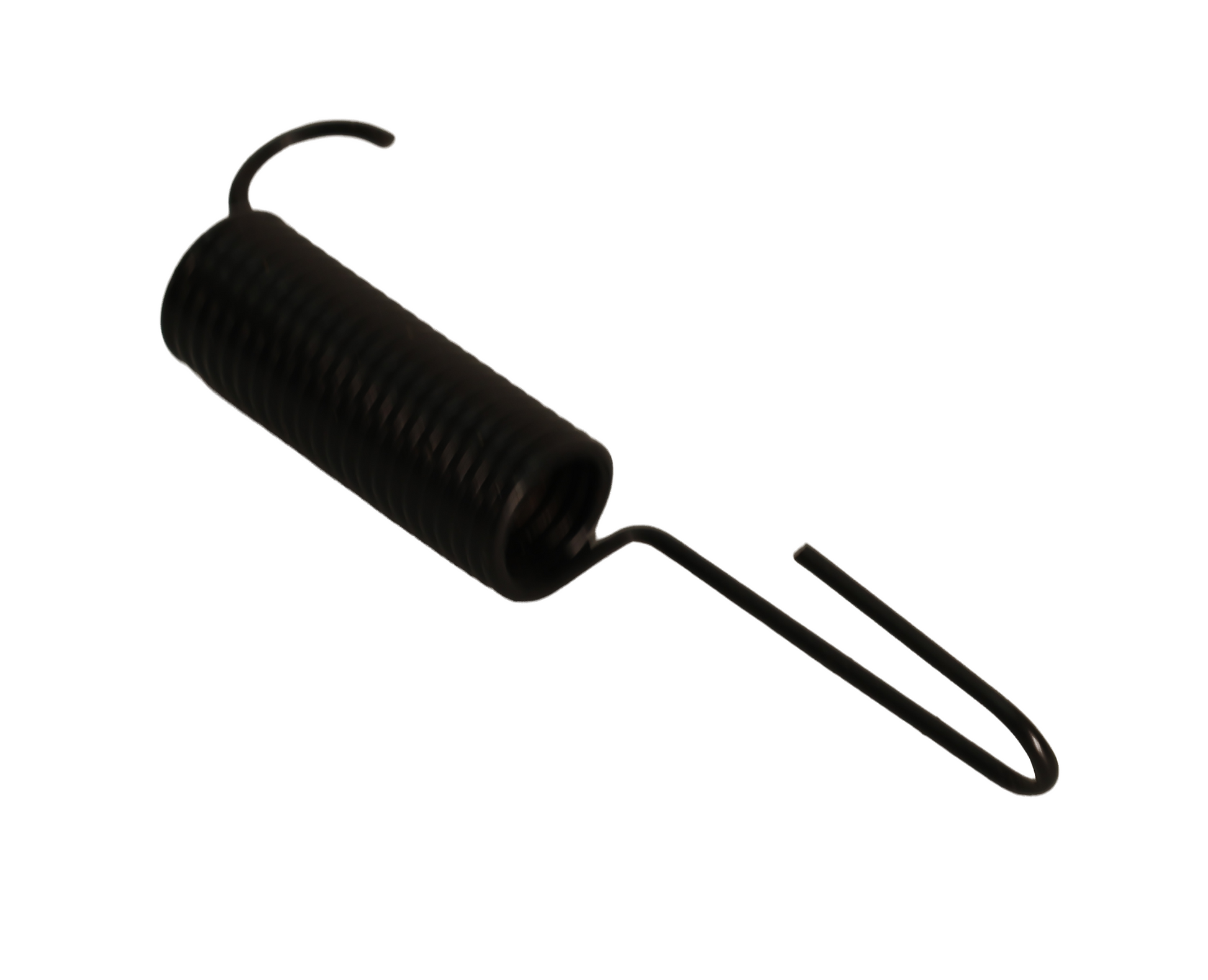

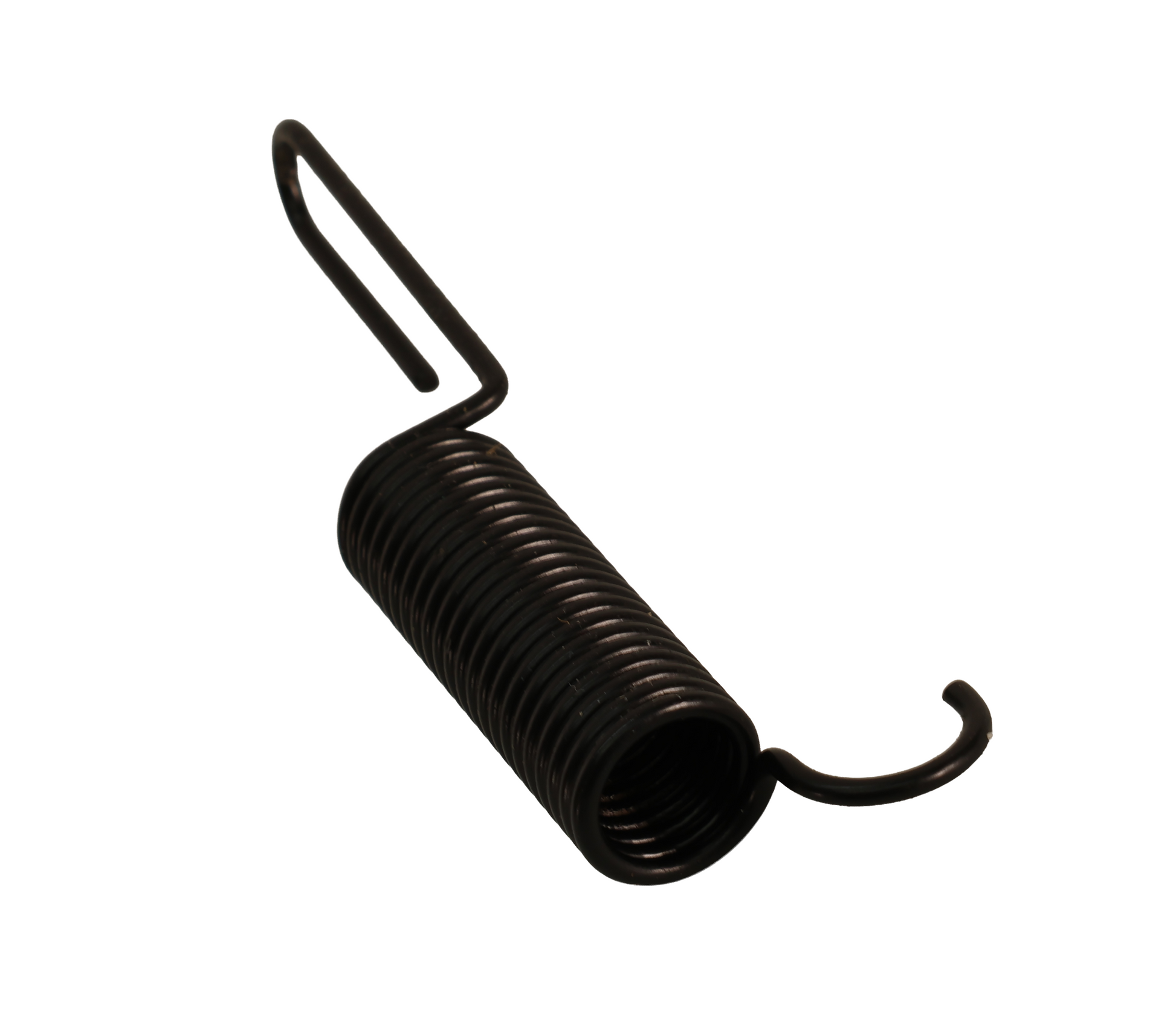

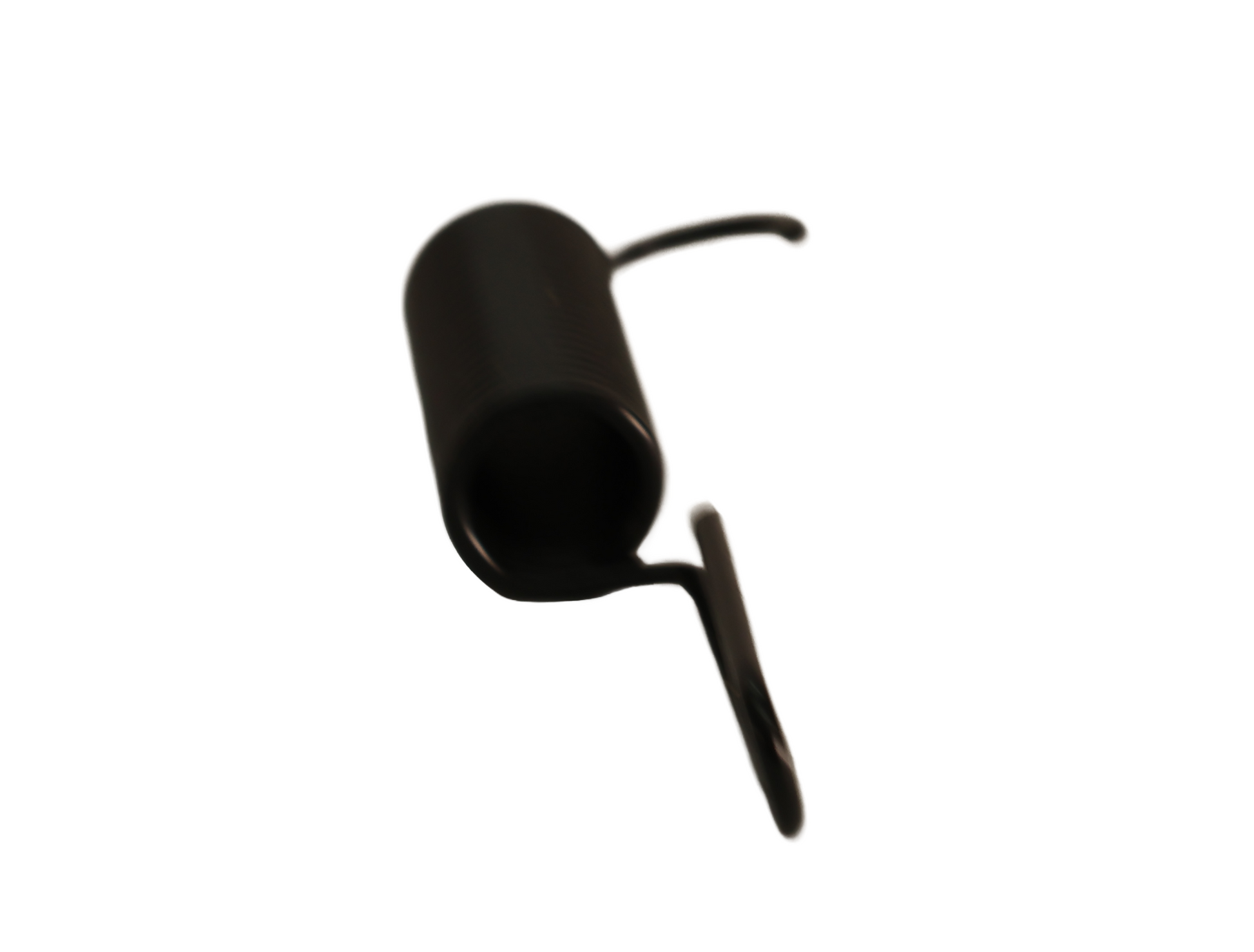

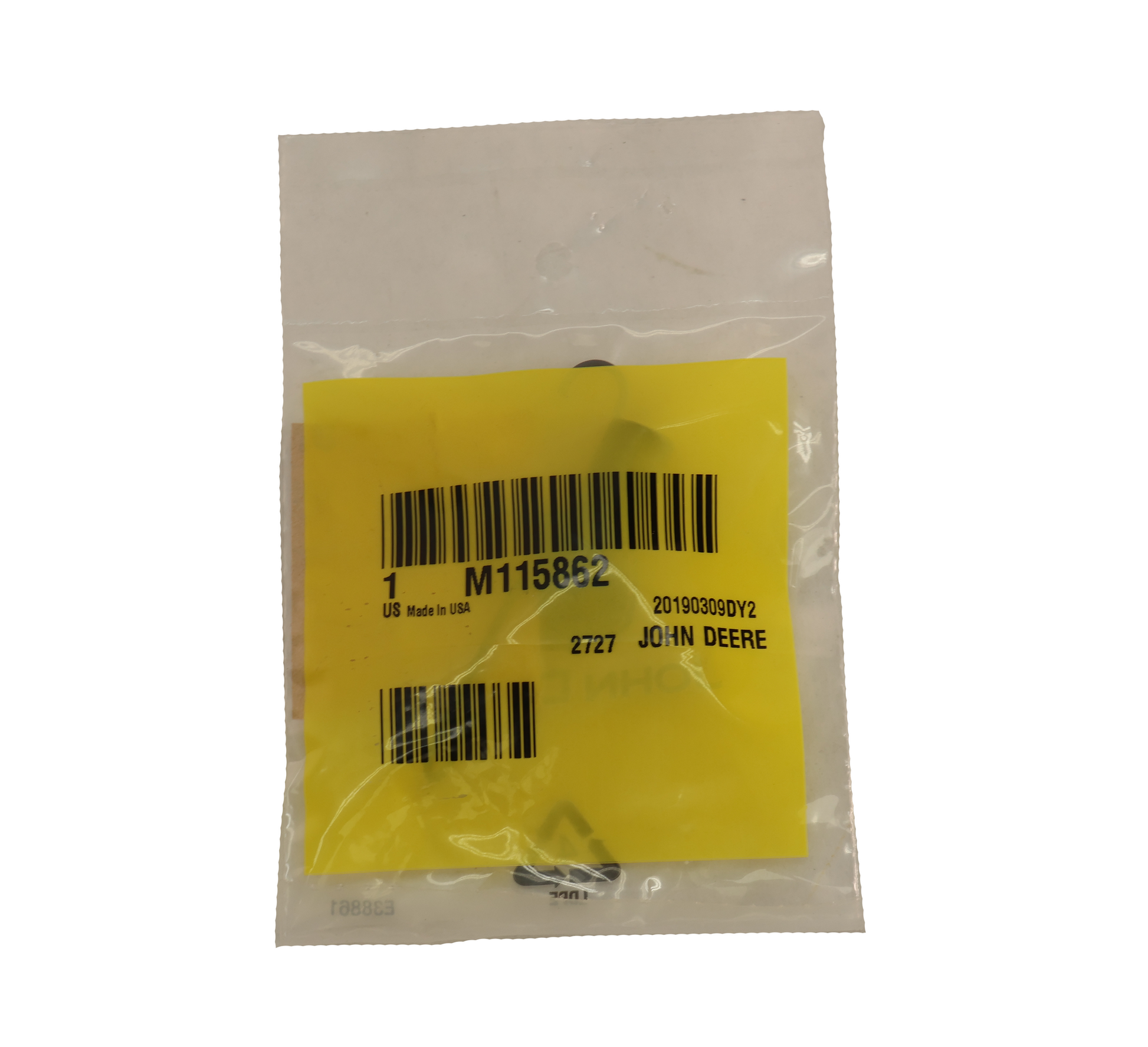

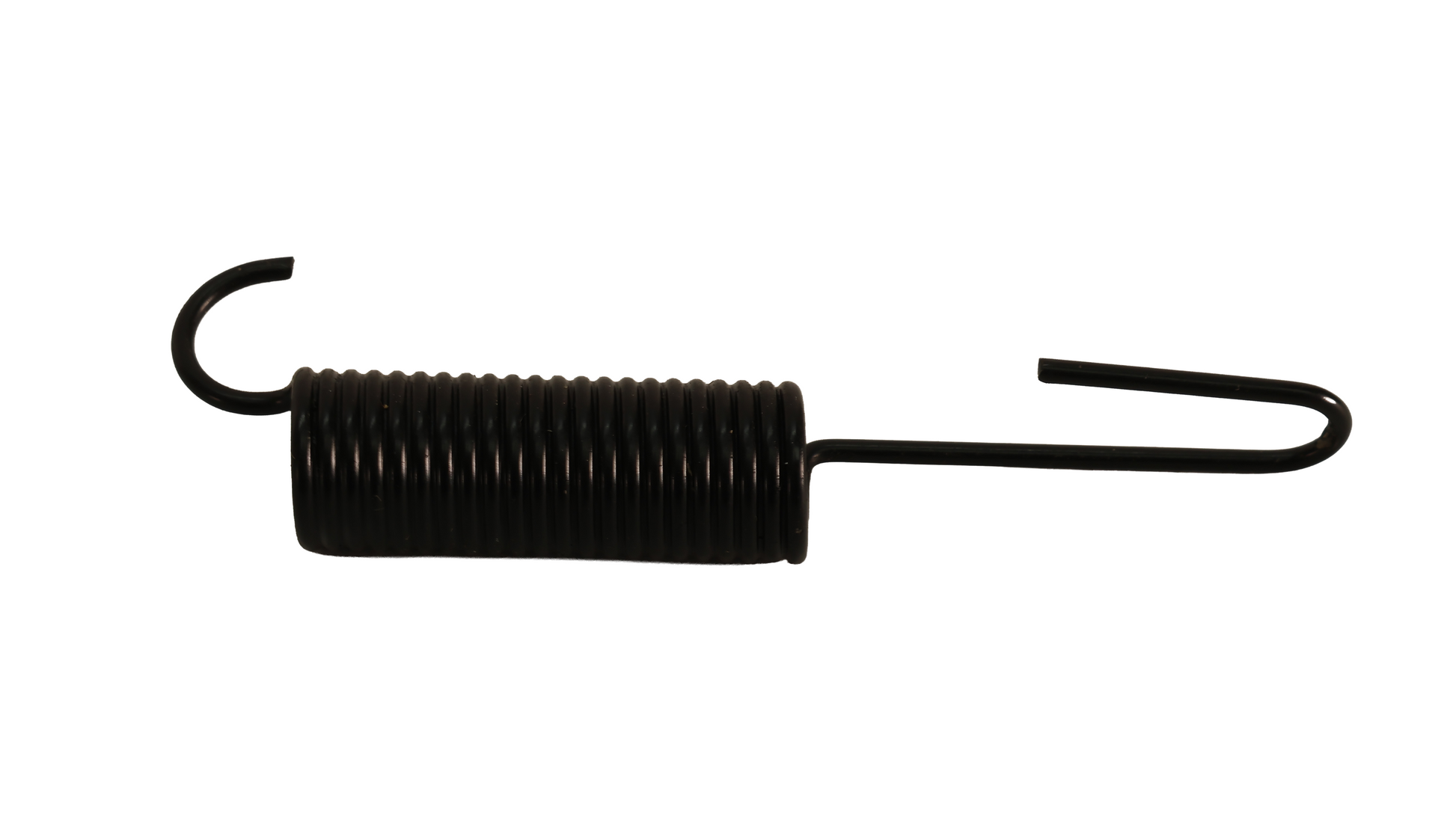

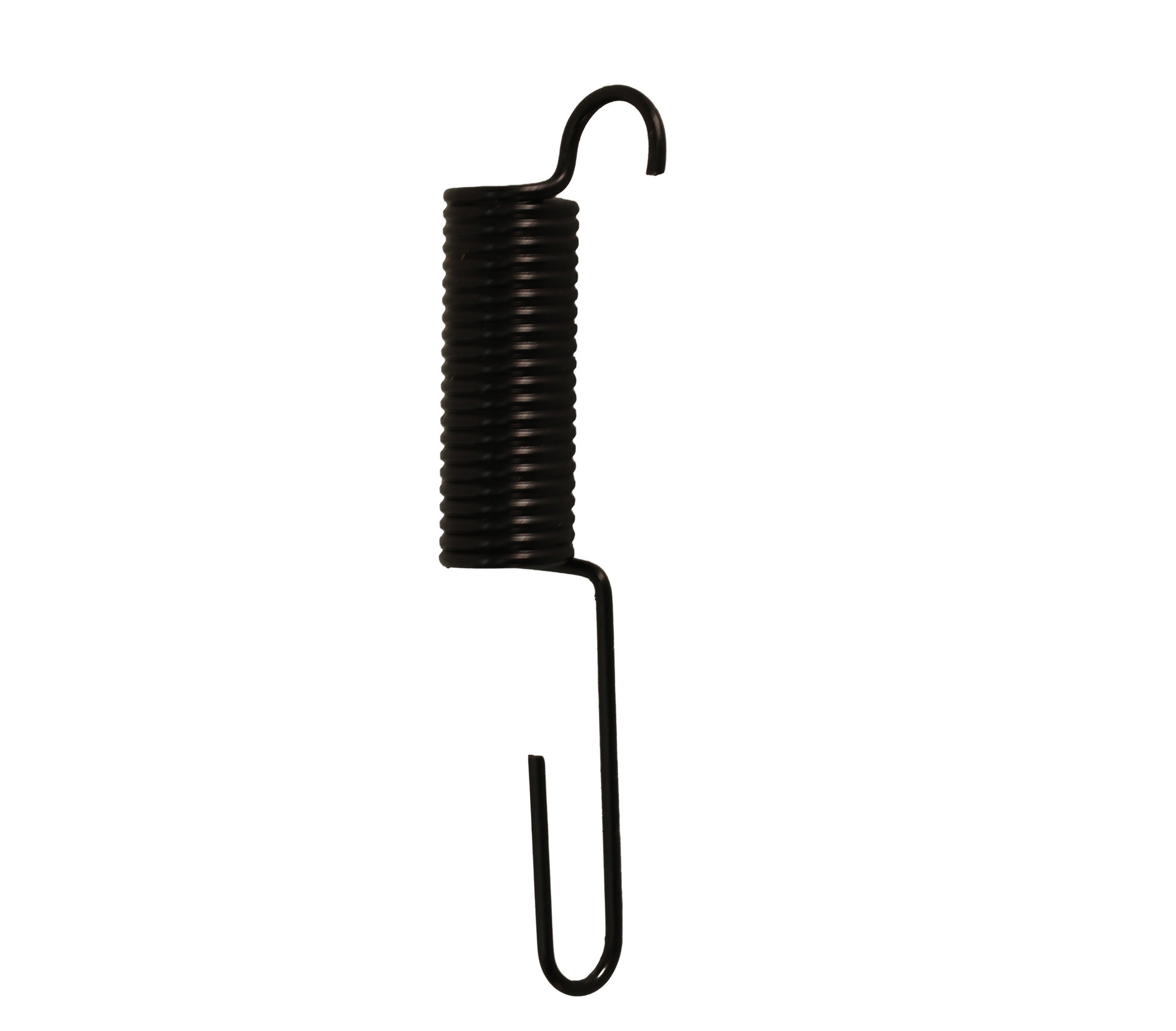

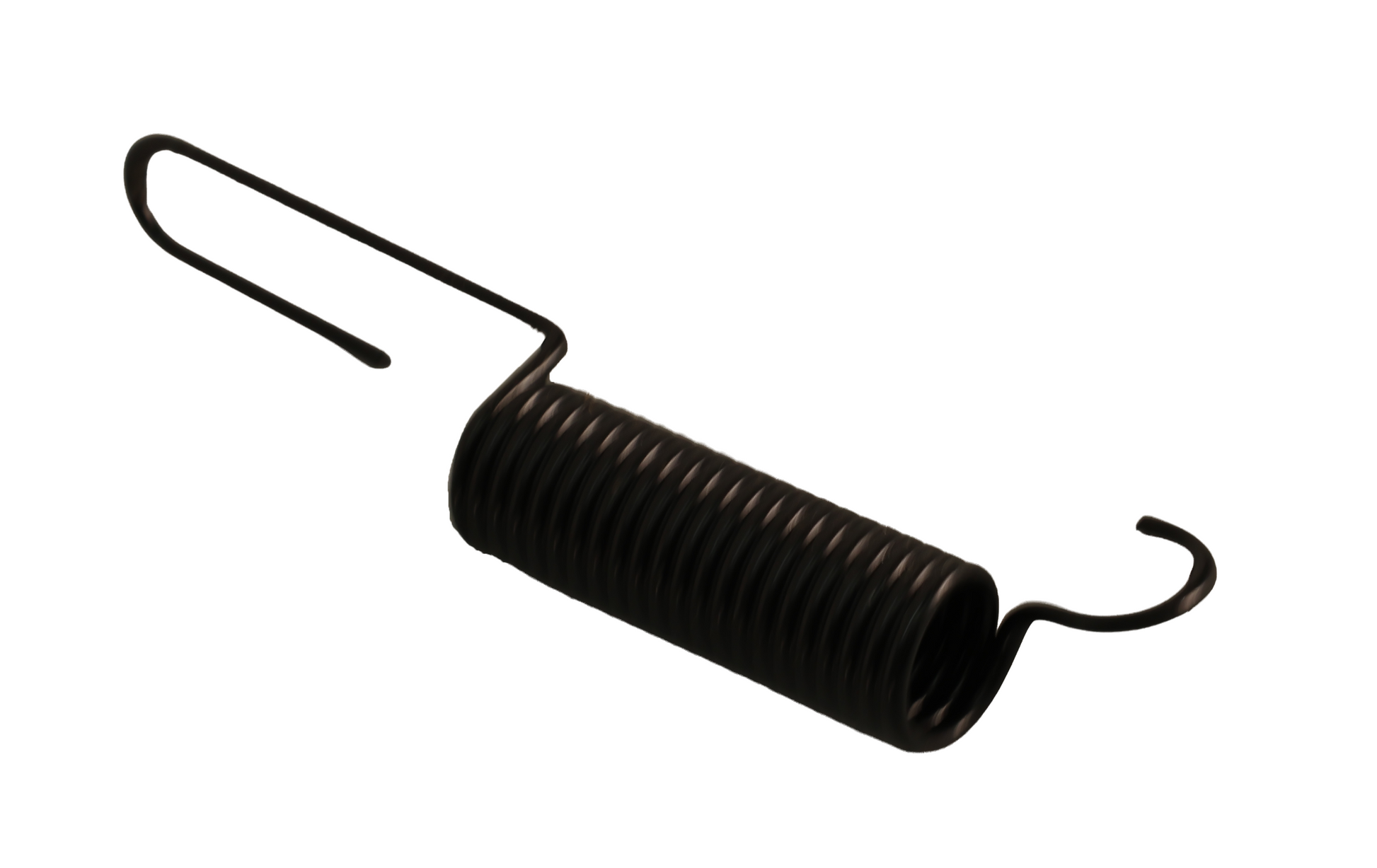

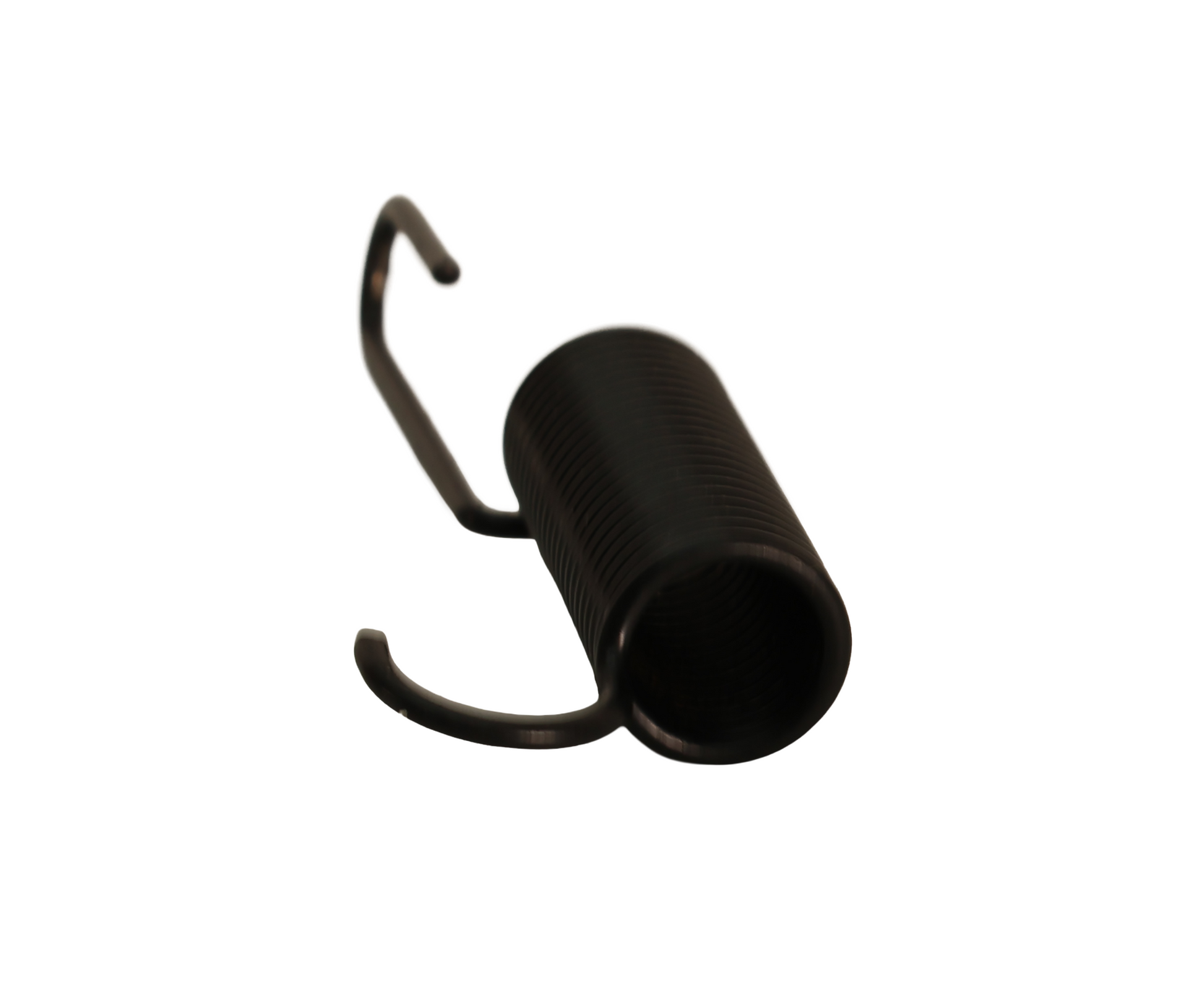

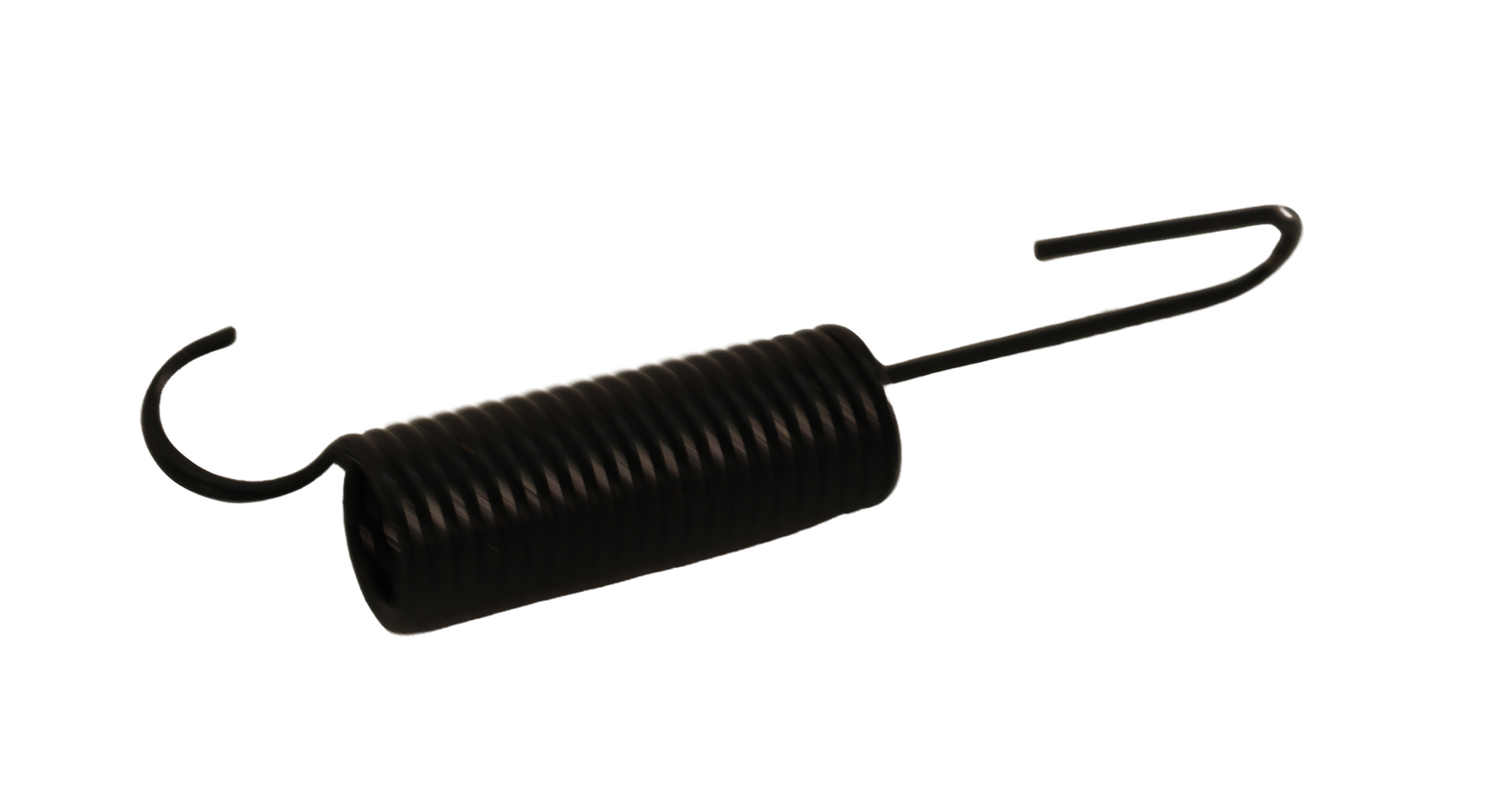

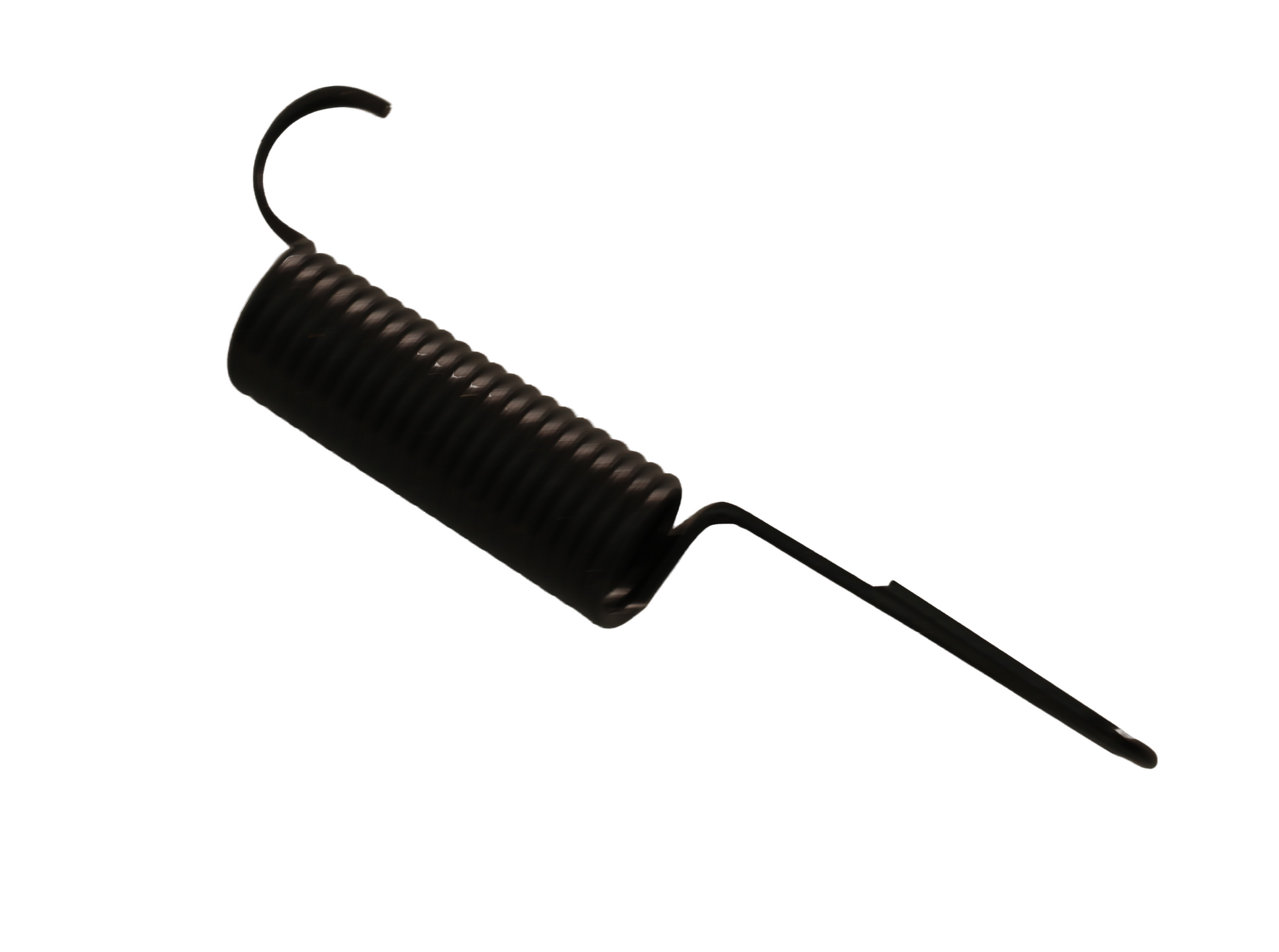

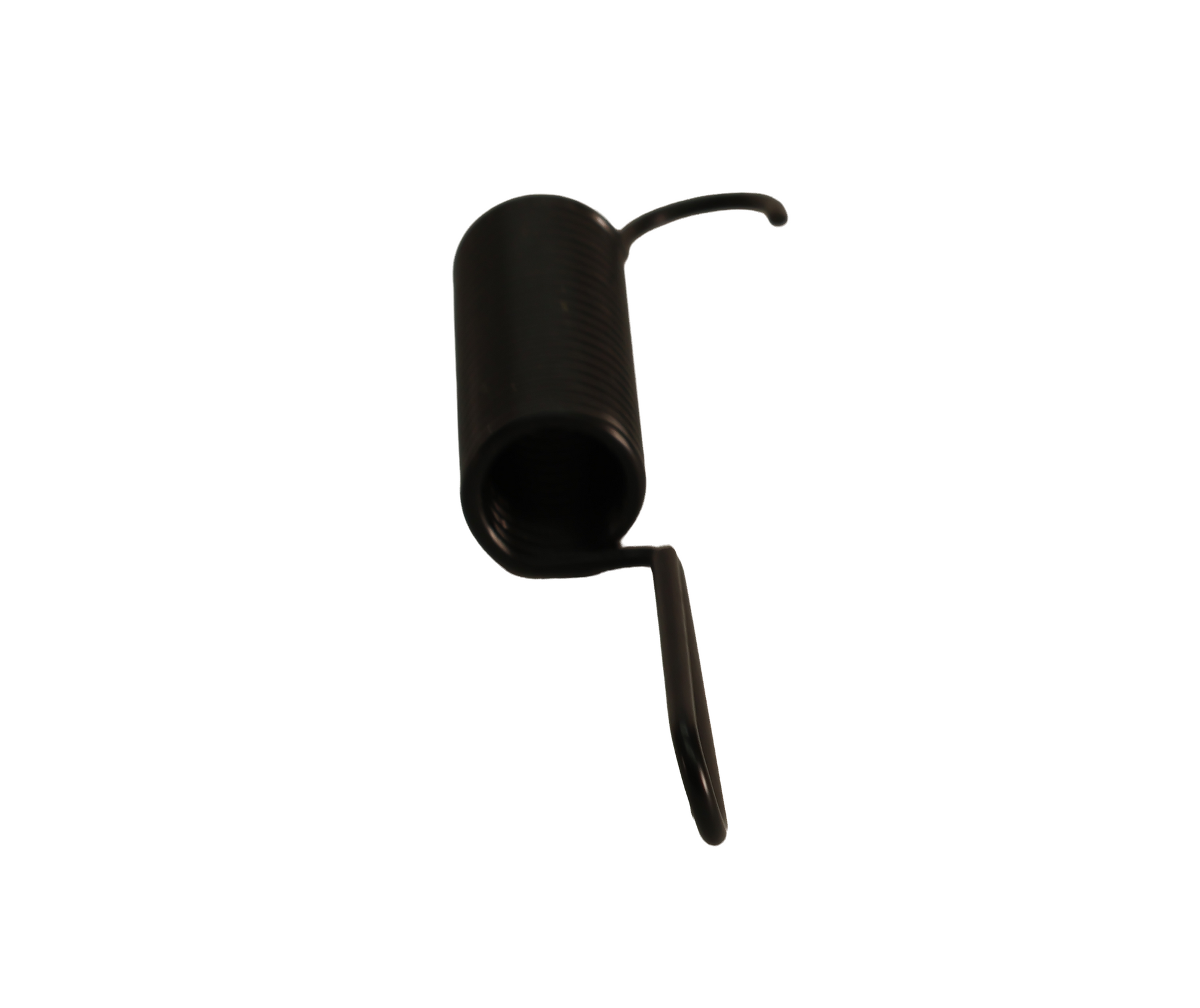

John Deere Original Equipment Extension Spring - M115862

John Deere Original Equipment Extension Spring - M115862

Part Specifications:
End Type (ALPHA) 02/03
Wire Diameter (IN) 0.0539
Outside Diameter (IN) 0.4370
Free Length (IN) 2.7992
Spring Rate (LBF/in or N/mm)(LBF/IN) 9.7998
Initial Tension (LBF or N) (LBF) 1.0000
Number of Coils (UNITY) 22.0000
Material (ALPHA) A15-7
Finish (ALPHA) K-Painted
Note (D) Hooks 90 Degrees

Fits the following John Deere models
Blade: 46
Lawn and Garden Tractor: G100, GT242, GT262, GT275, LX172, LX173, LX176, LX178, LX186, LX188, 1842GV, 1842HV, 1848GV, 1848HV, 1948GV, 1948HV, 2048GV, 2148HV, 2254HV, 2354HV, 2554HV, SABRE, S2048, SCOTTS, S2348, S2554.

This is an O.E.M. John Deere part.
