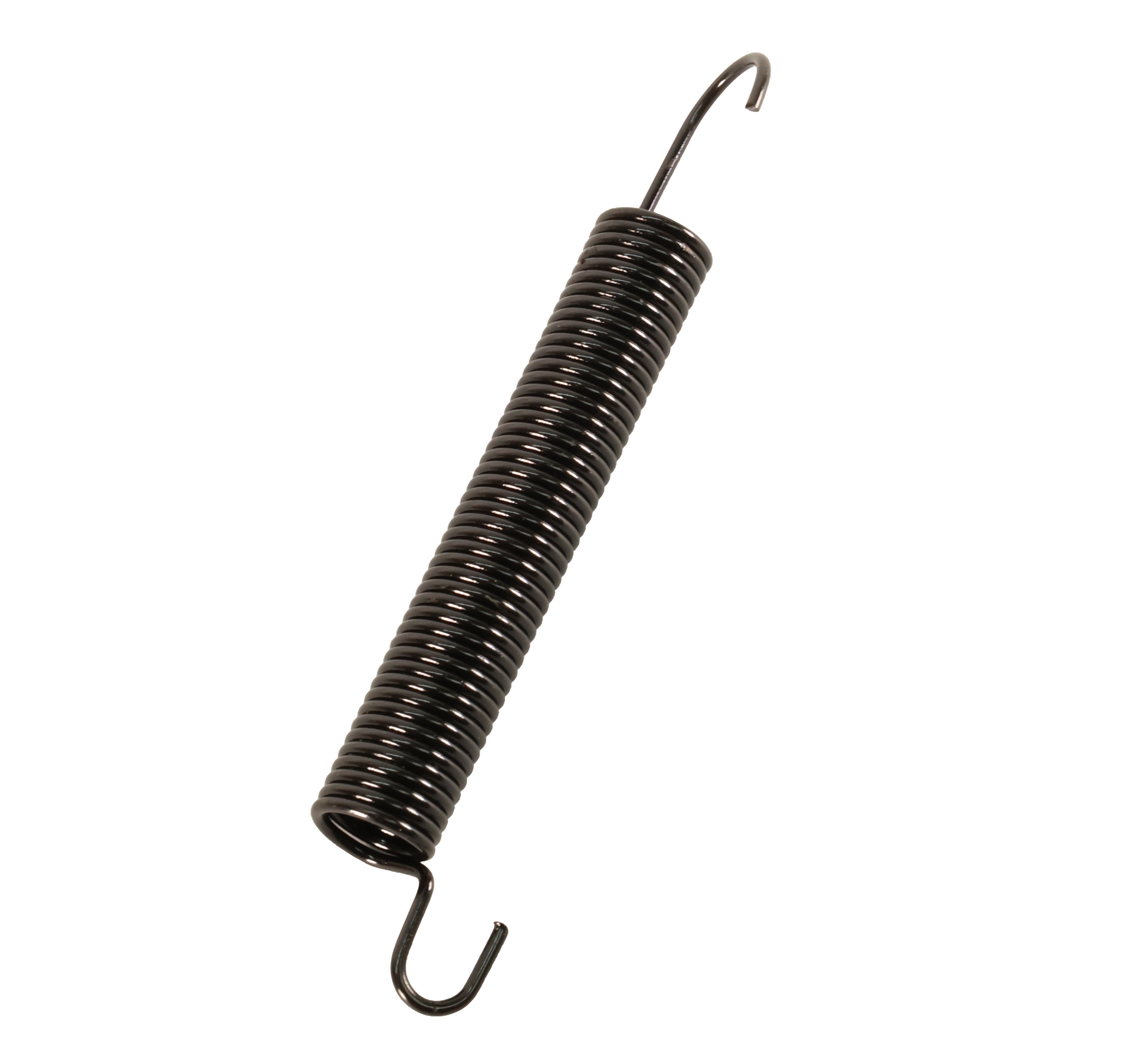

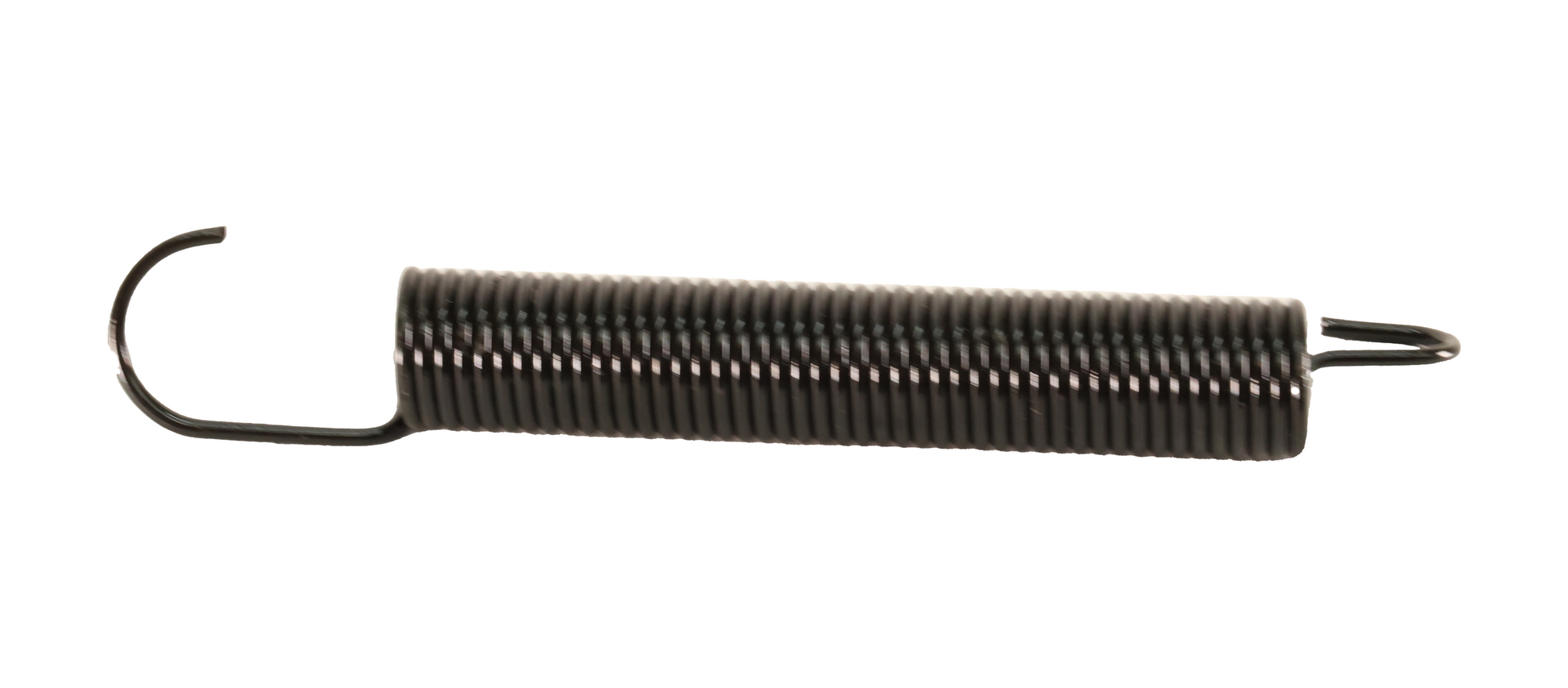

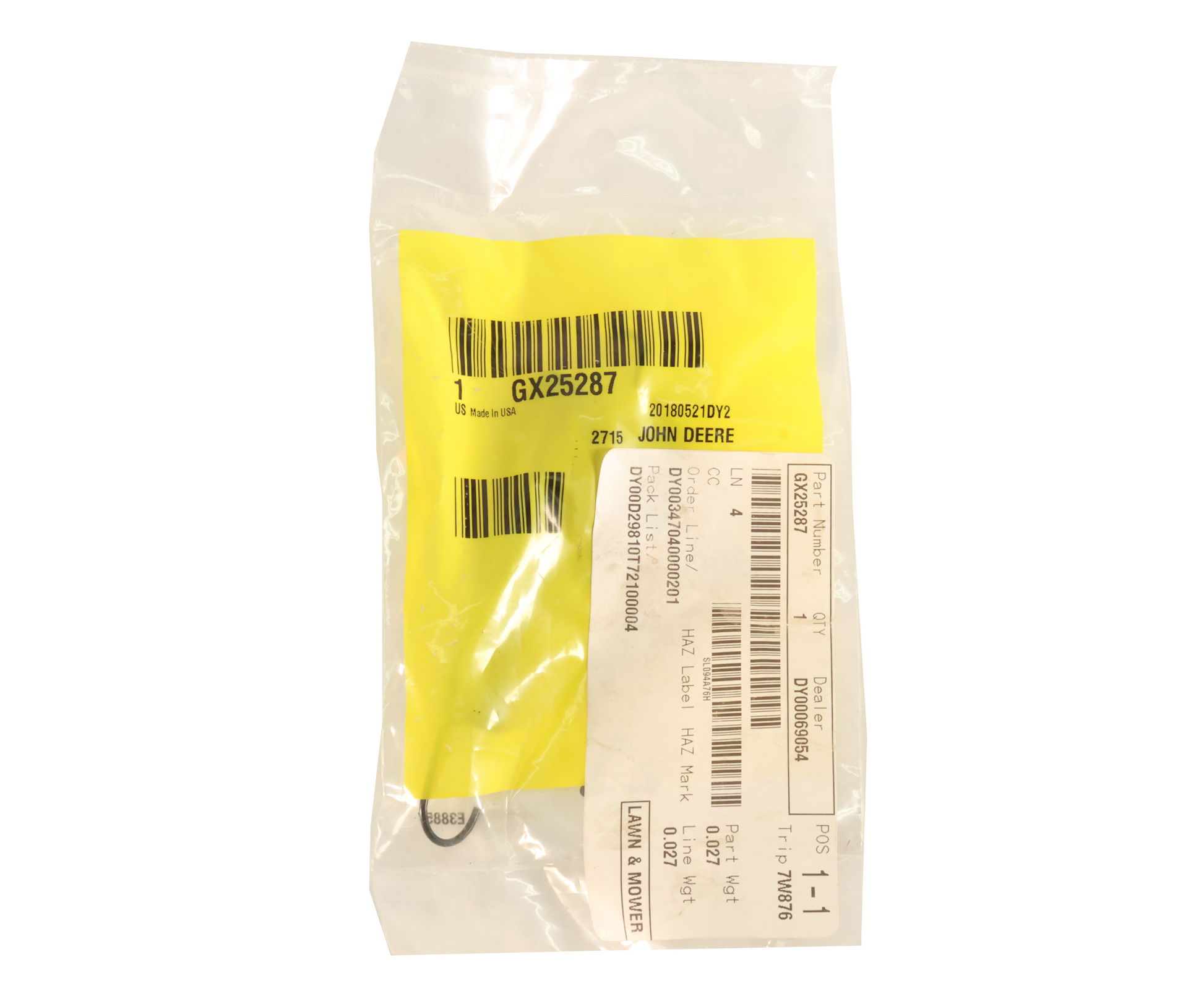

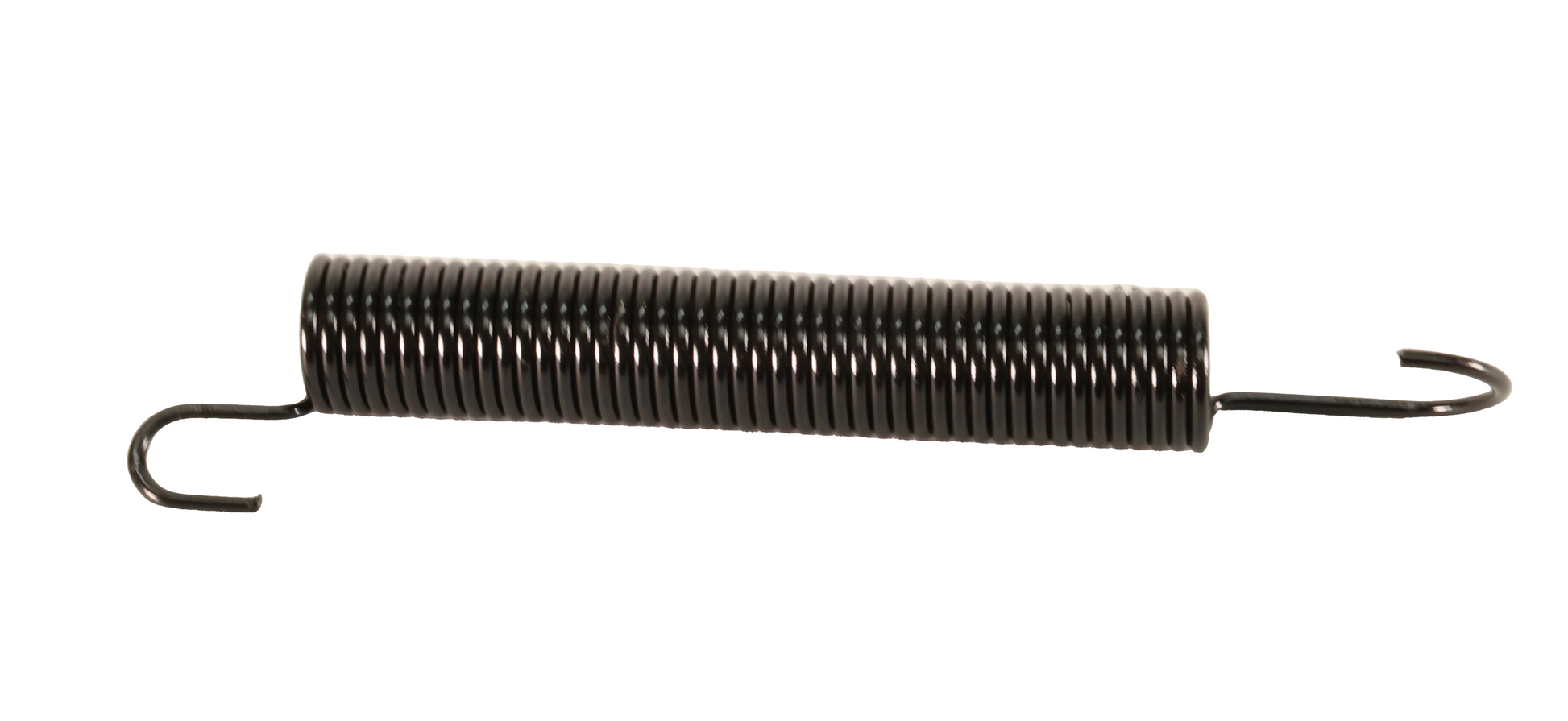

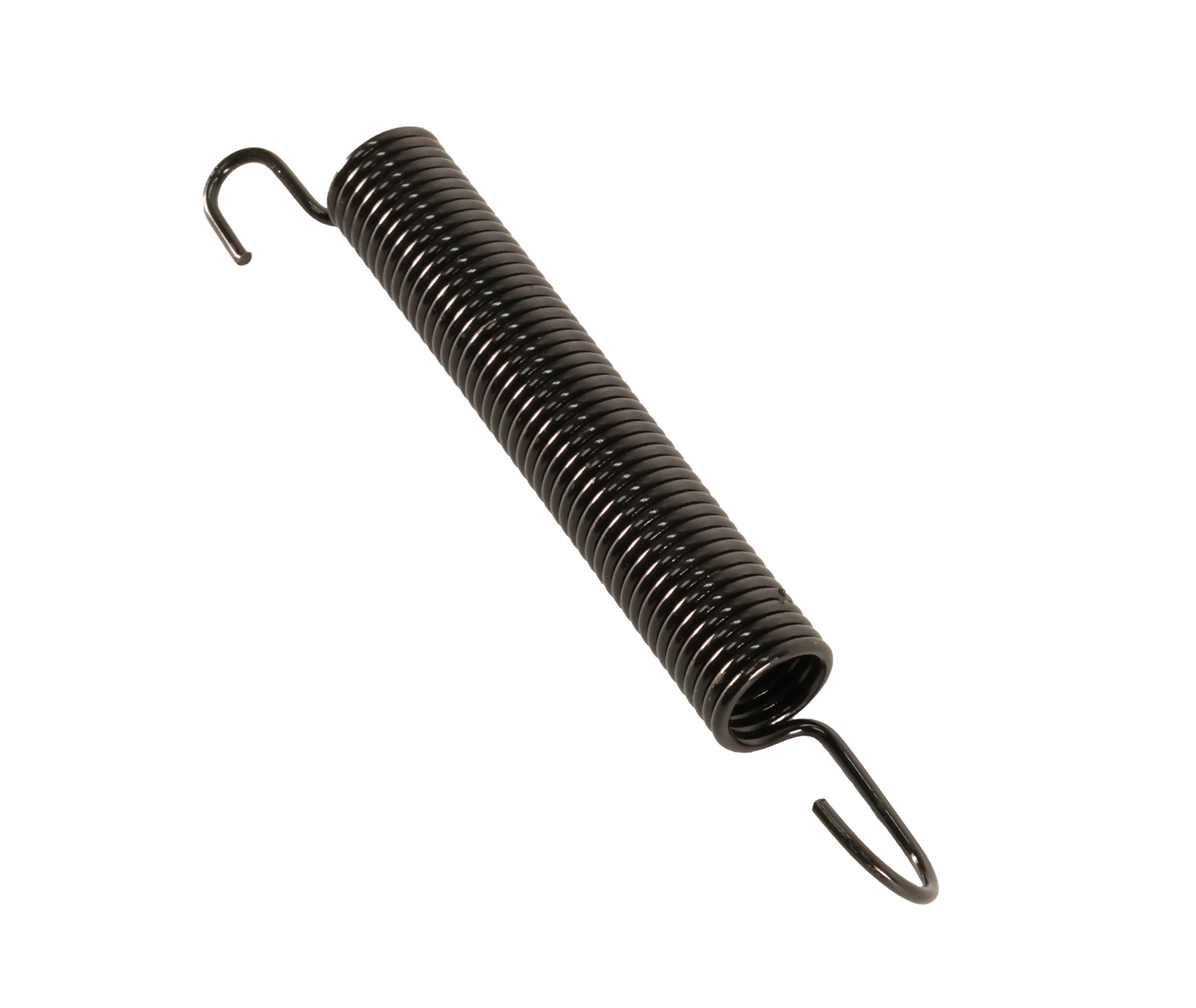

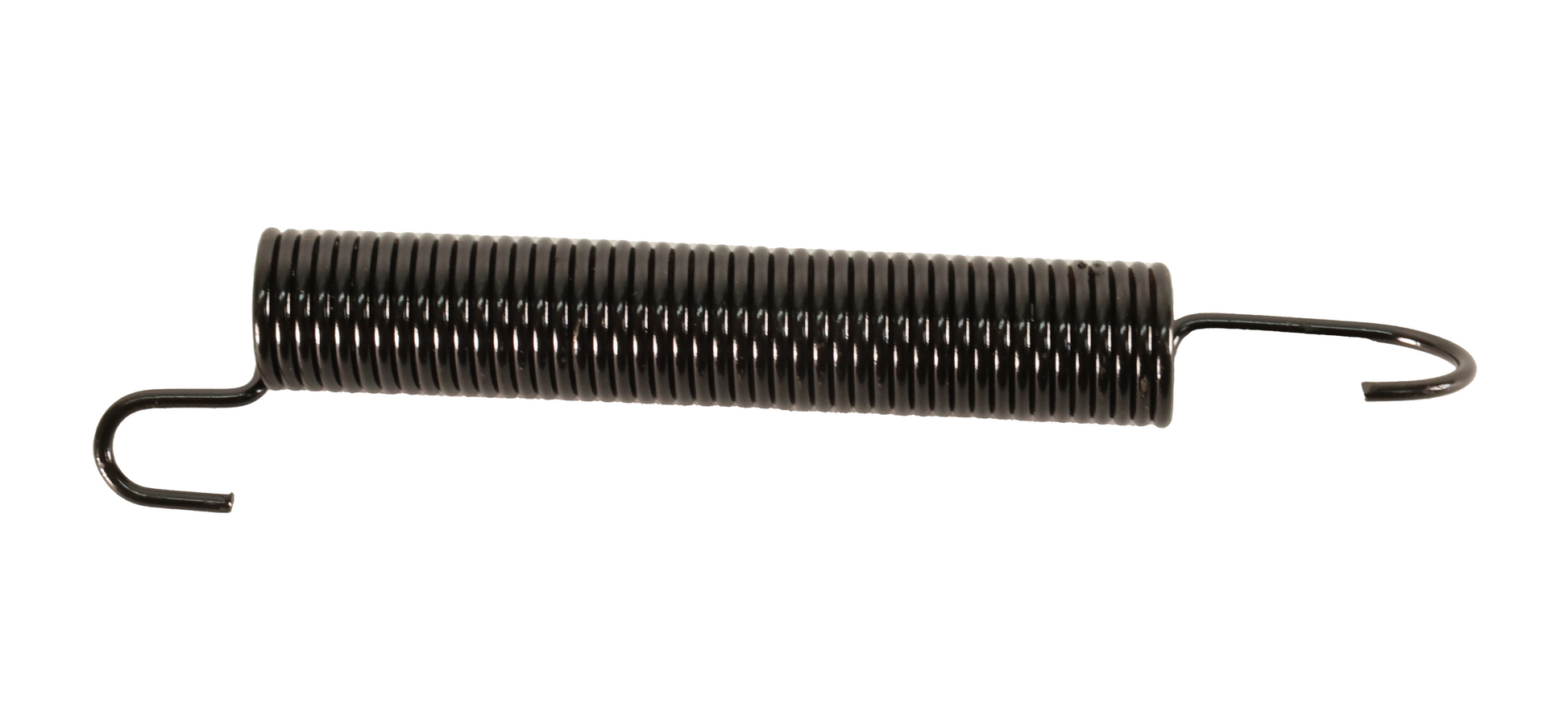

John Deere Original Equipment Extension Spring - GX25287

John Deere Original Equipment Extension Spring - GX25287

Part Specifications:
End Type (ALPHA) 03/03
Wire Diameter (MM) 1.5900
Outside Diameter (MM) 13.1000
Free Length (MM) 108.5000,
Spring Rate (LBF/in or N/mm) 0.0000
Initial Tension (LBF or N)(N) 0.0000
Number of Coils (UNITY) 46.1000
Material (ALPHA) MUSIC
Finish (ALPHA) K-Painted
Note (D) Hooks 90 Degrees

Fits the following John Deere models:

Lawn Tractor: 102, D100, D105, E100, L100, LA100, X105, X106.

This is an O.E.M. John Deere part.
