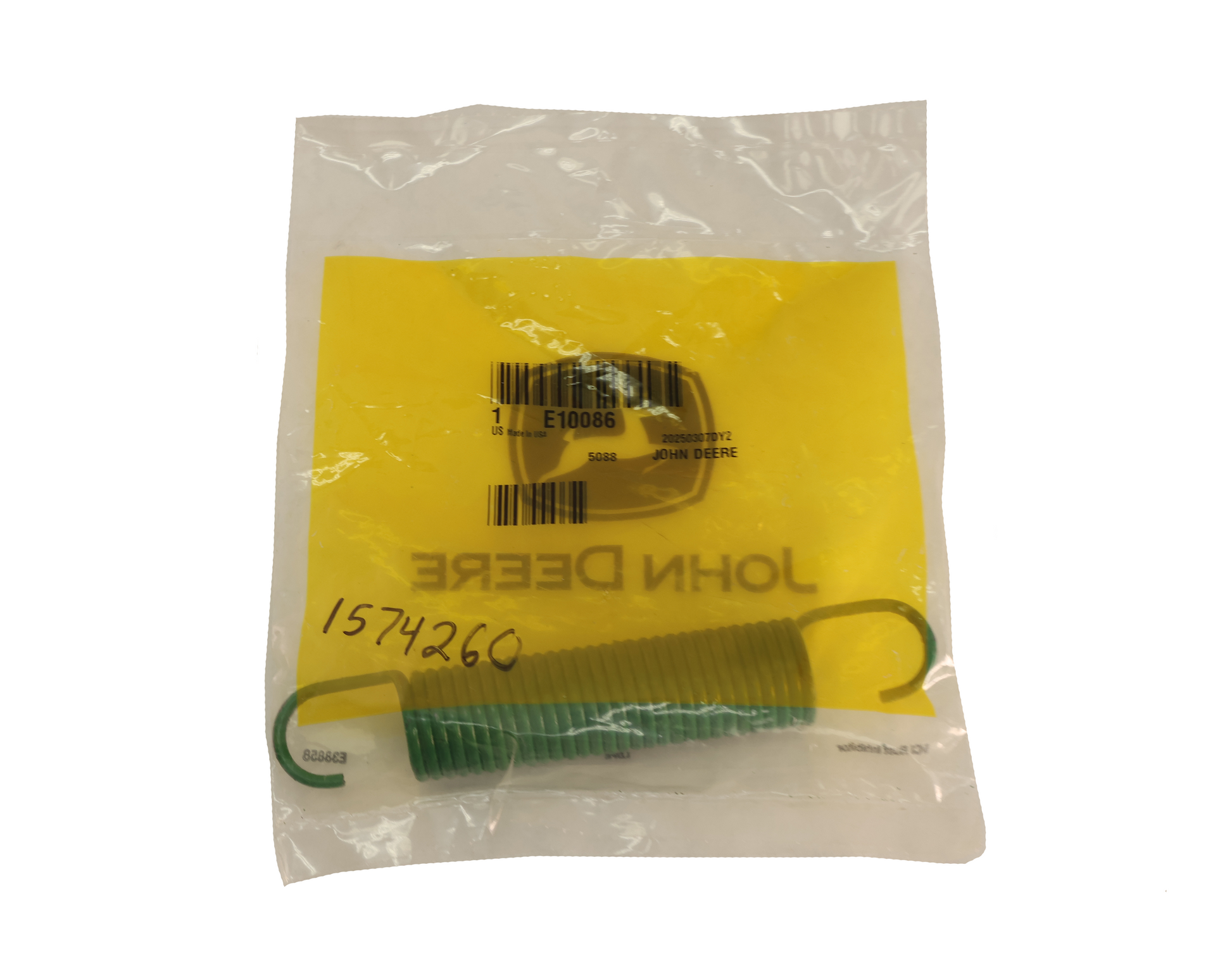

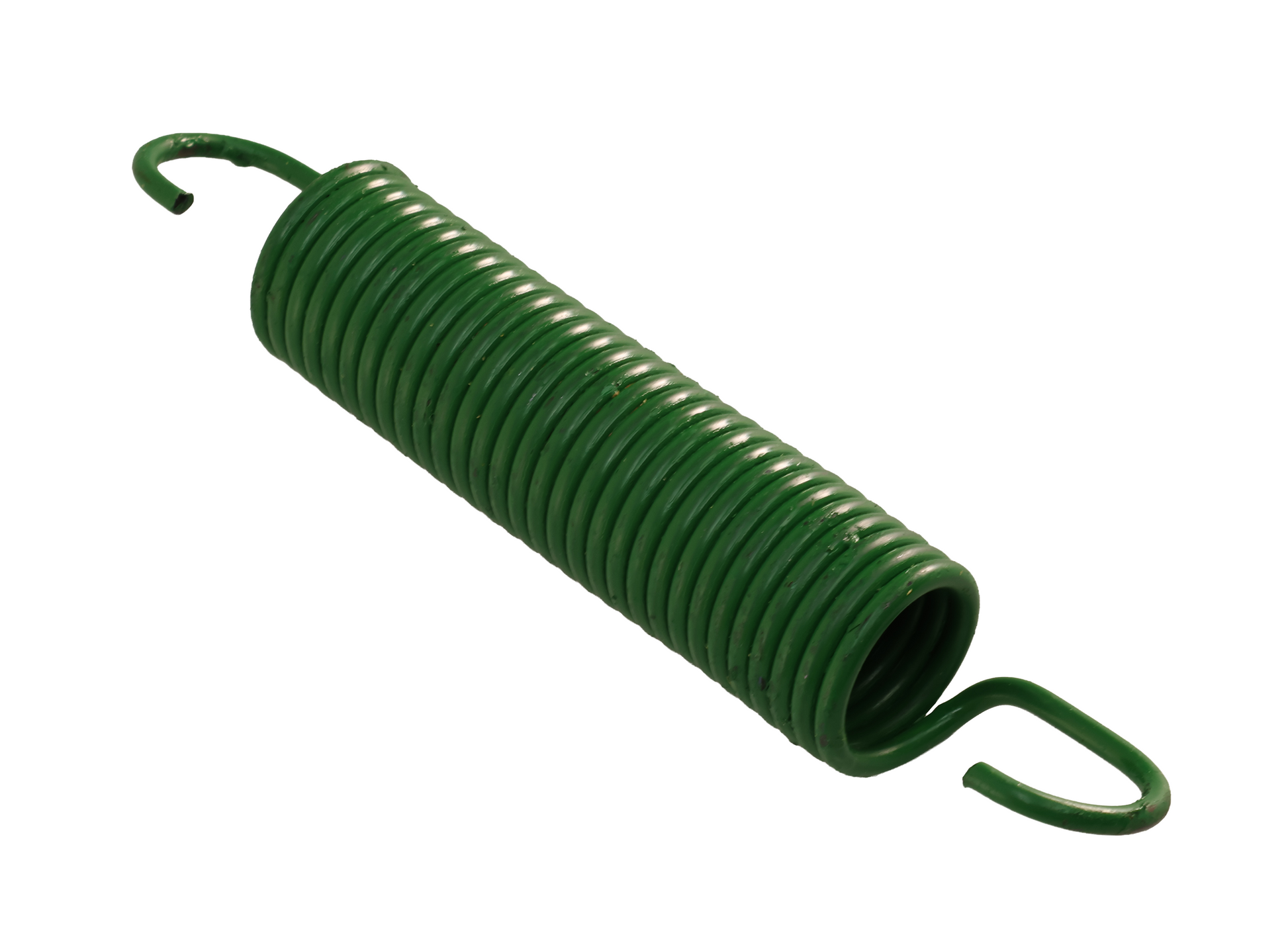

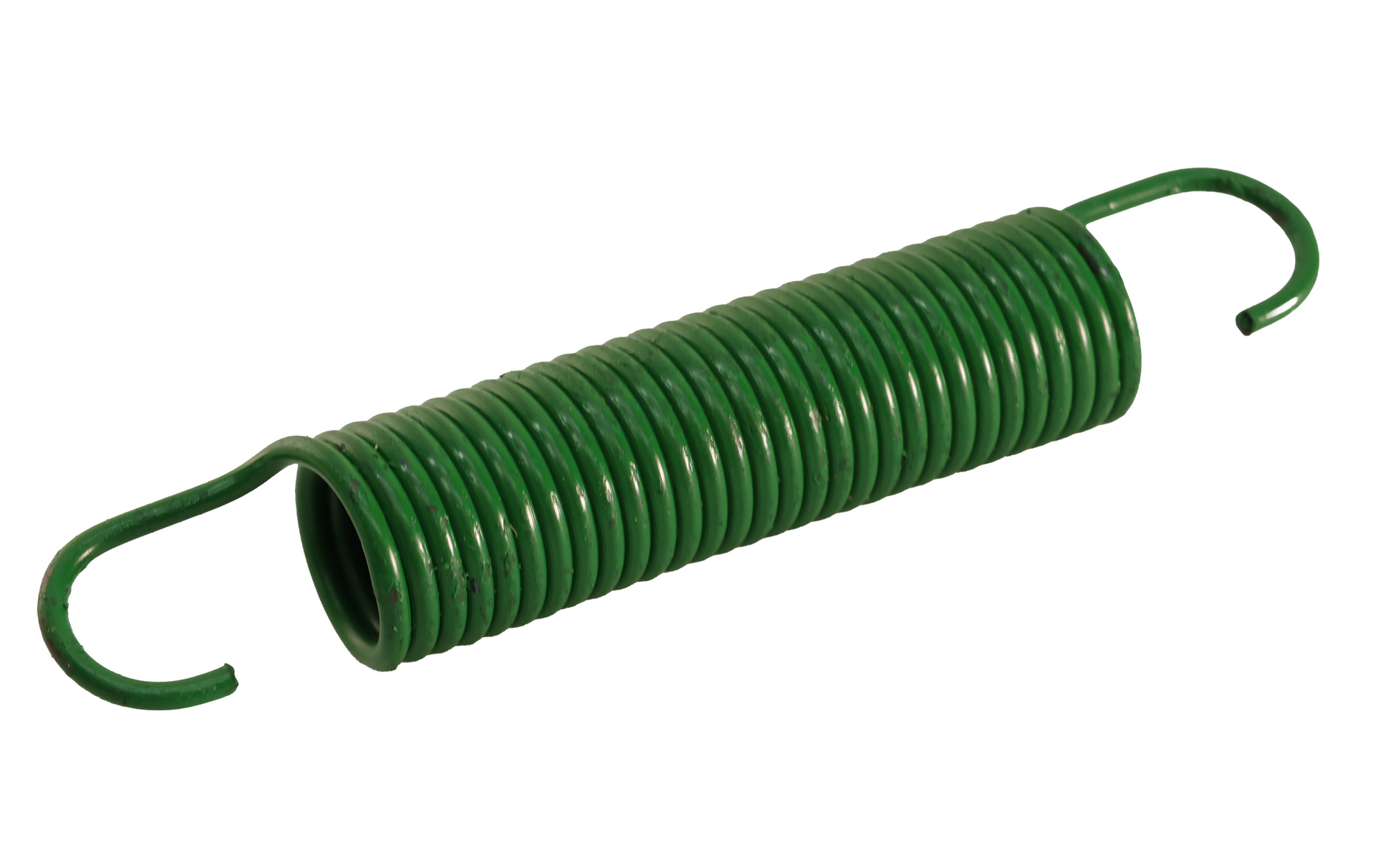

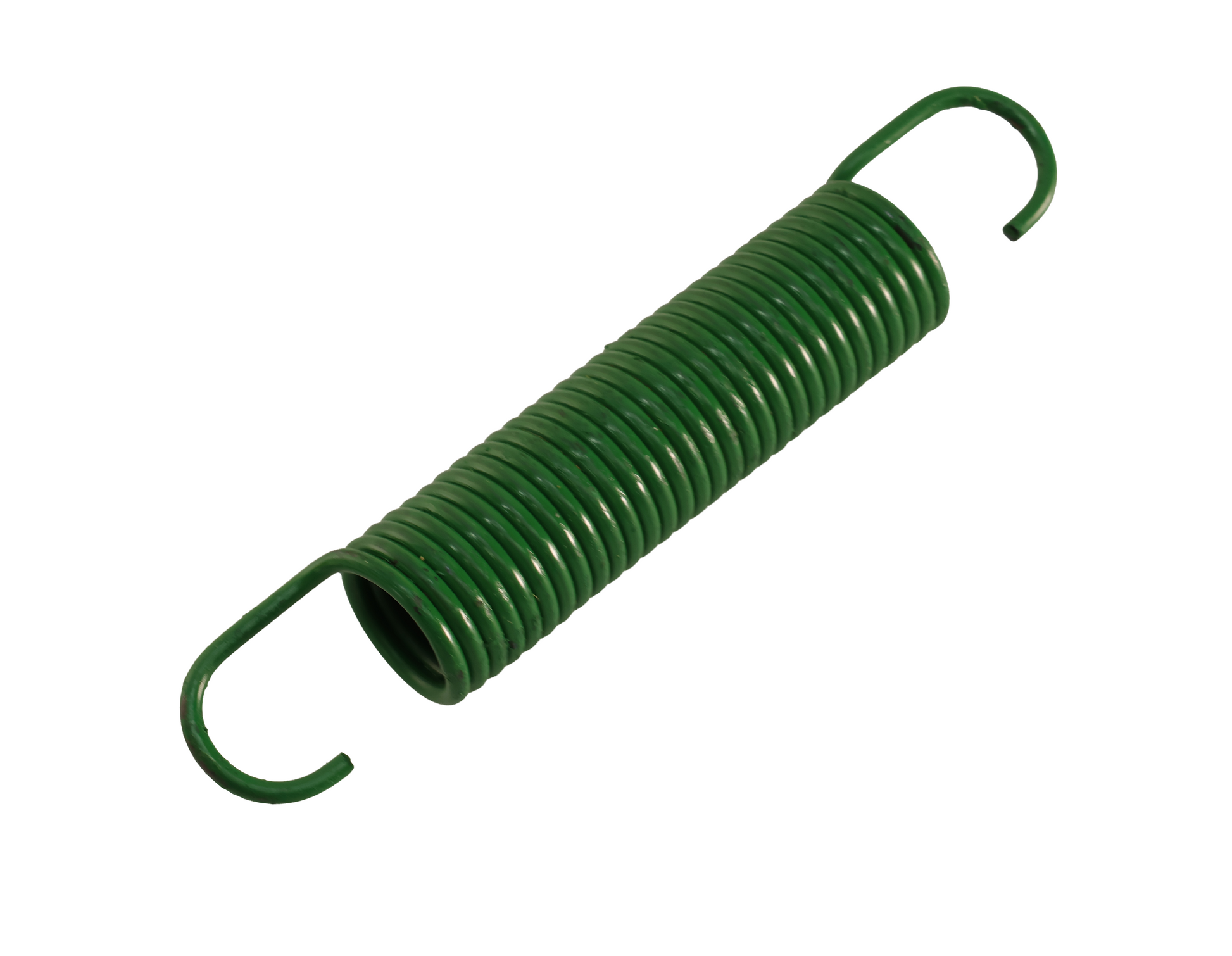

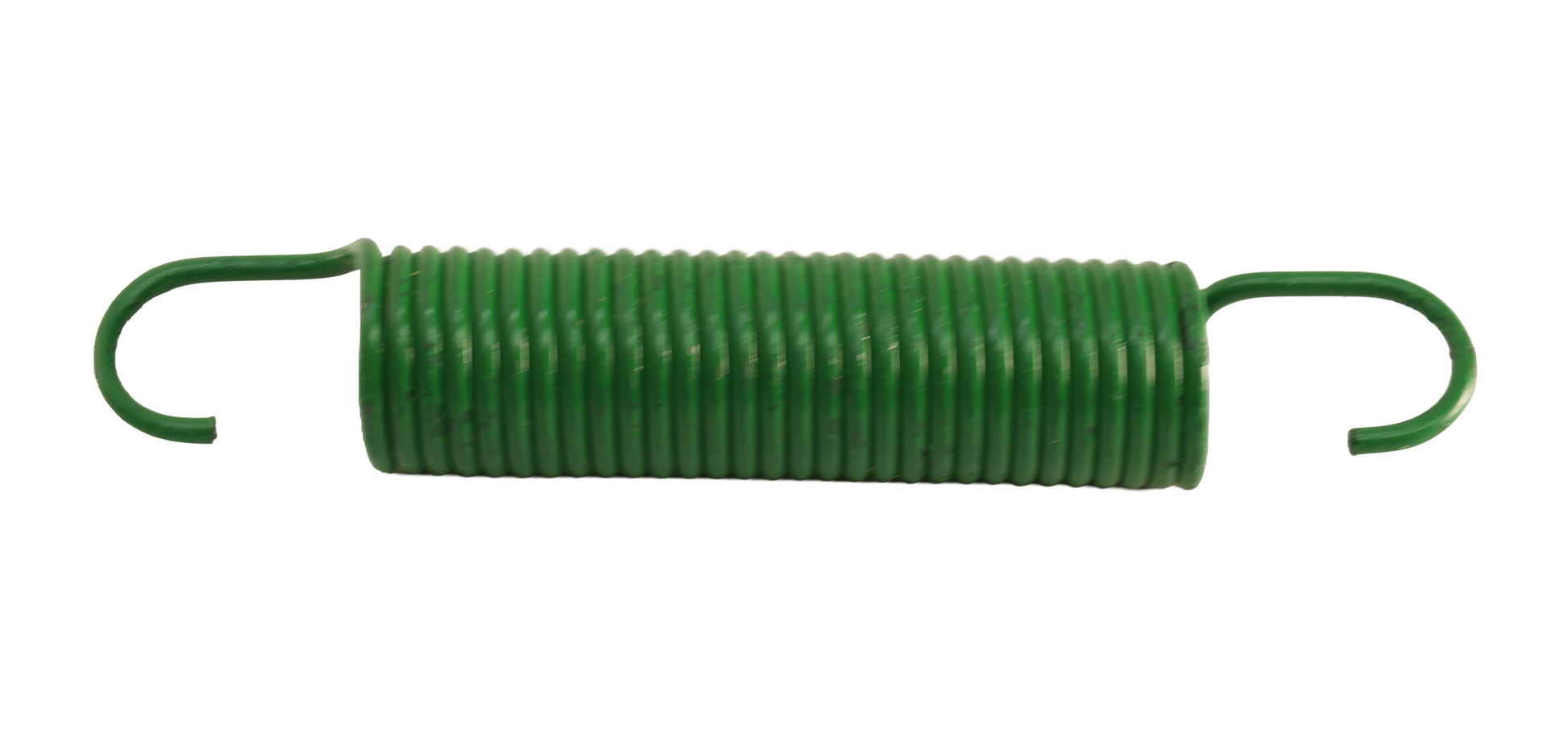

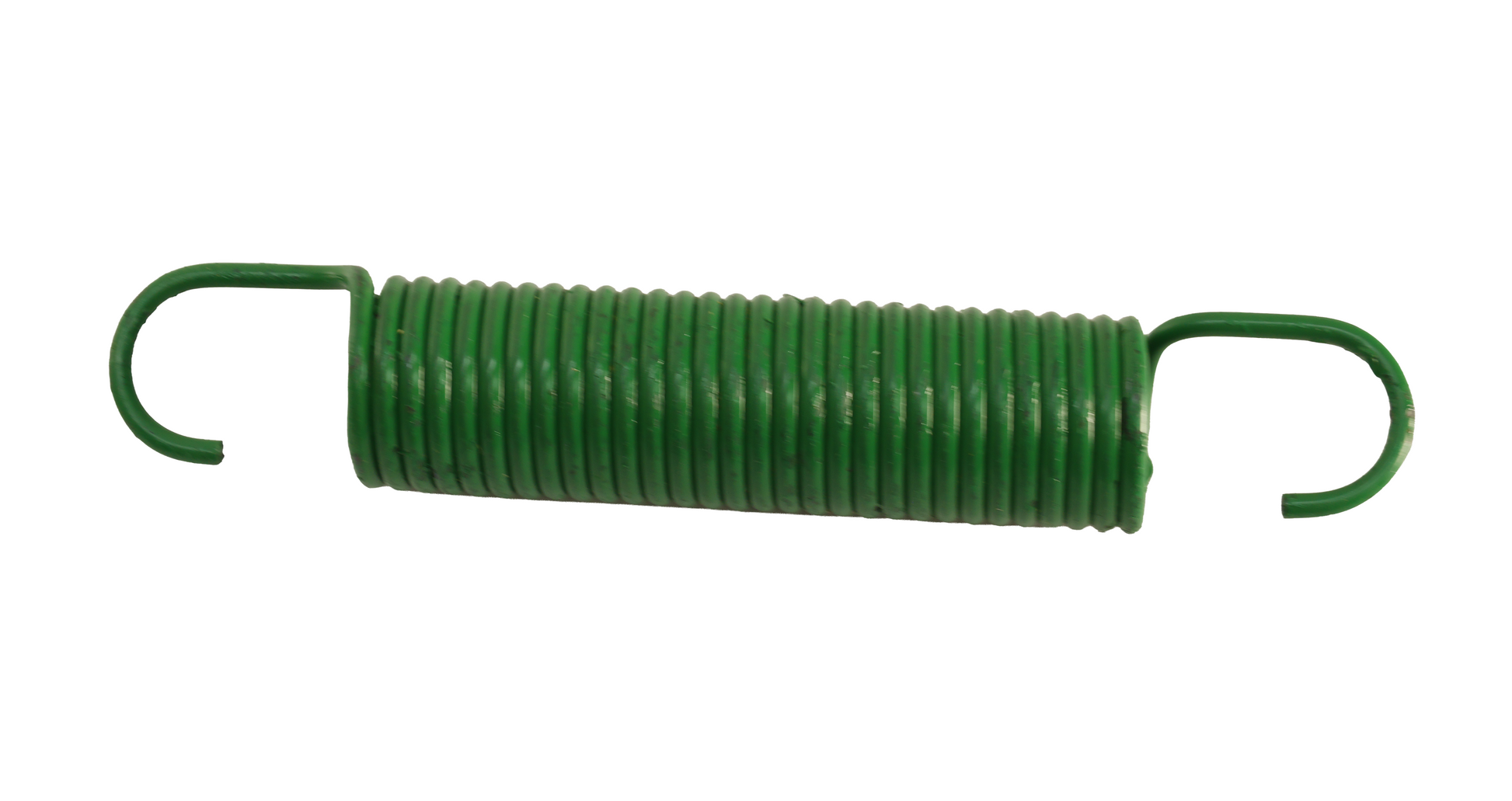

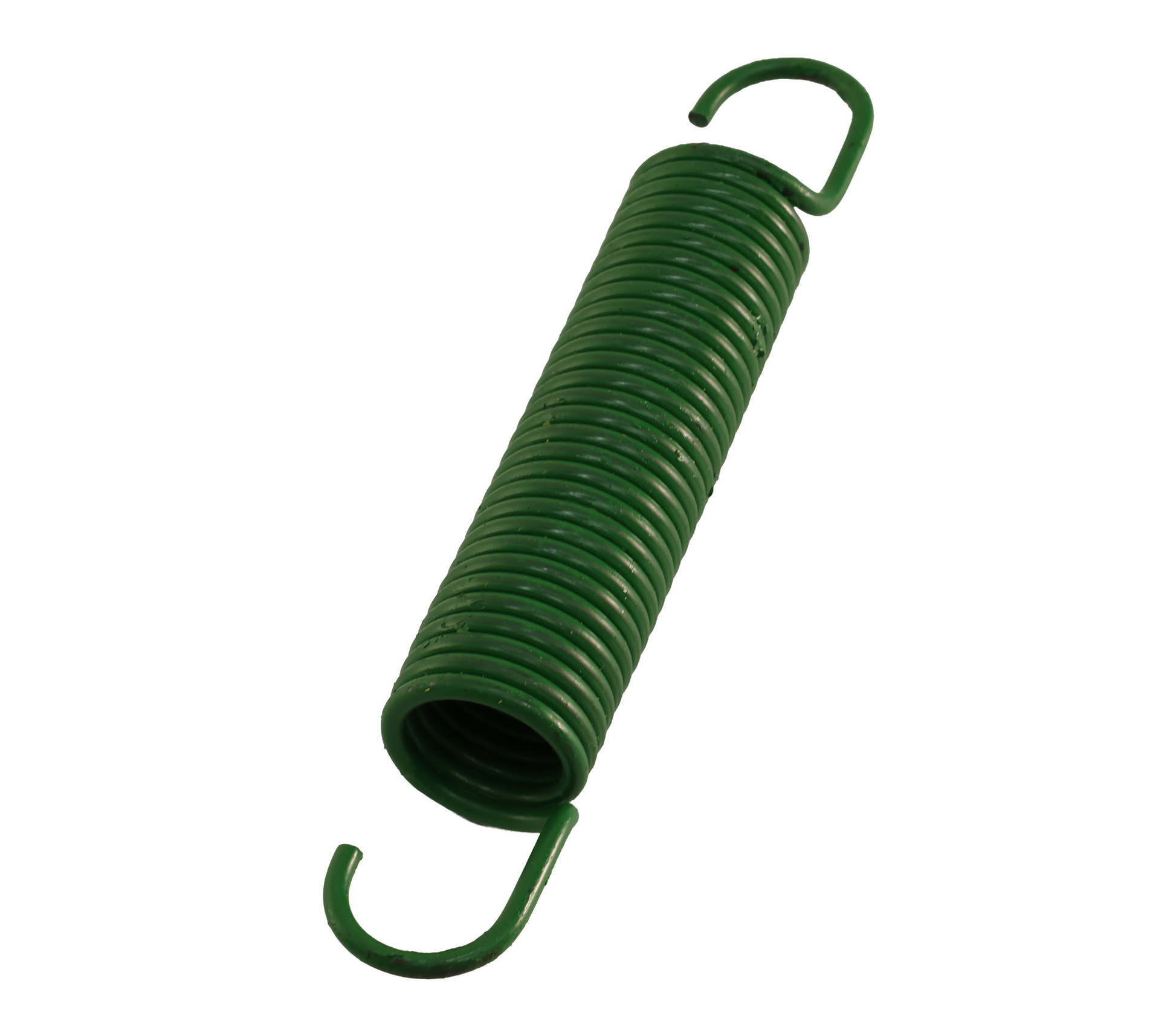

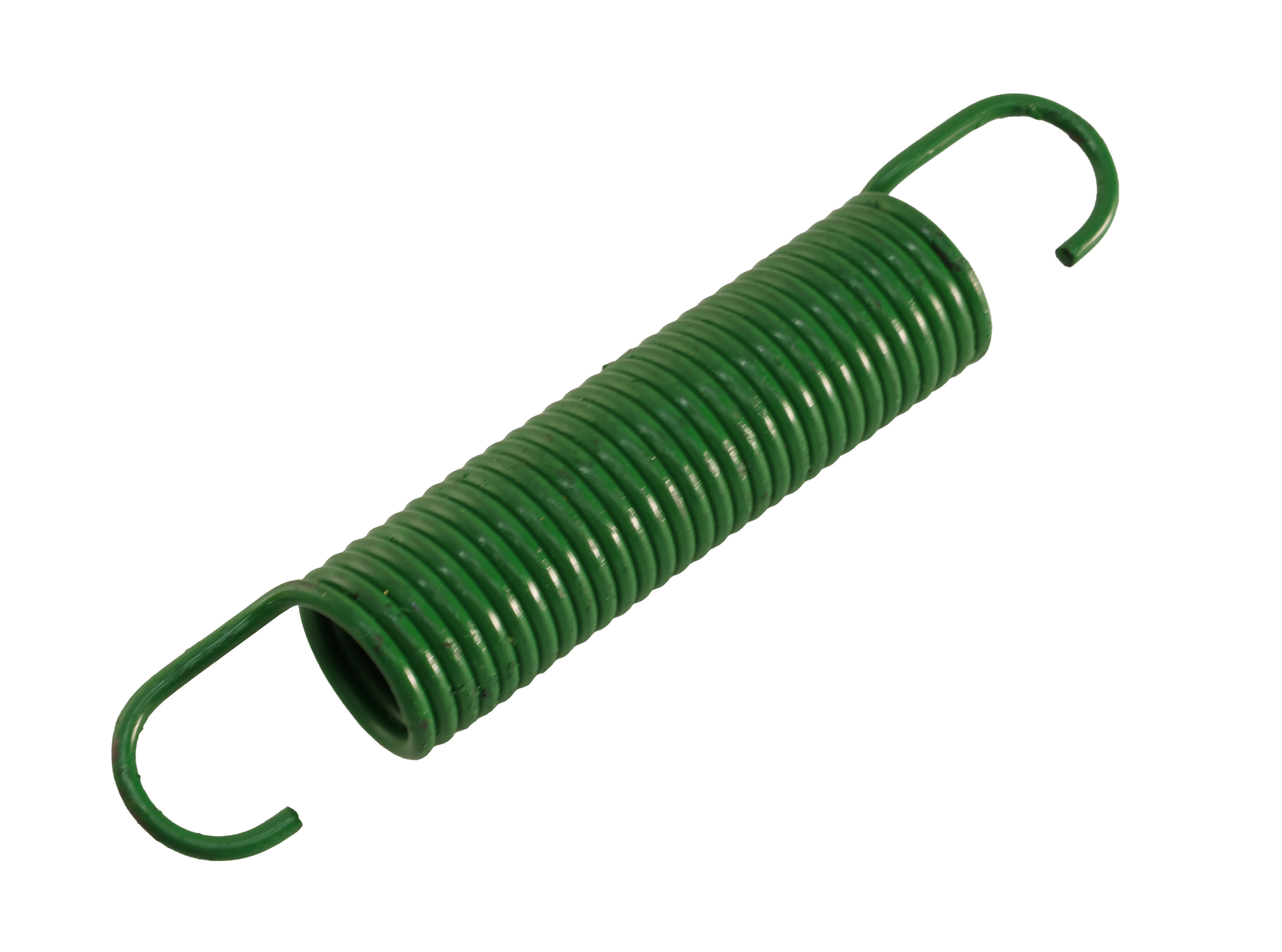

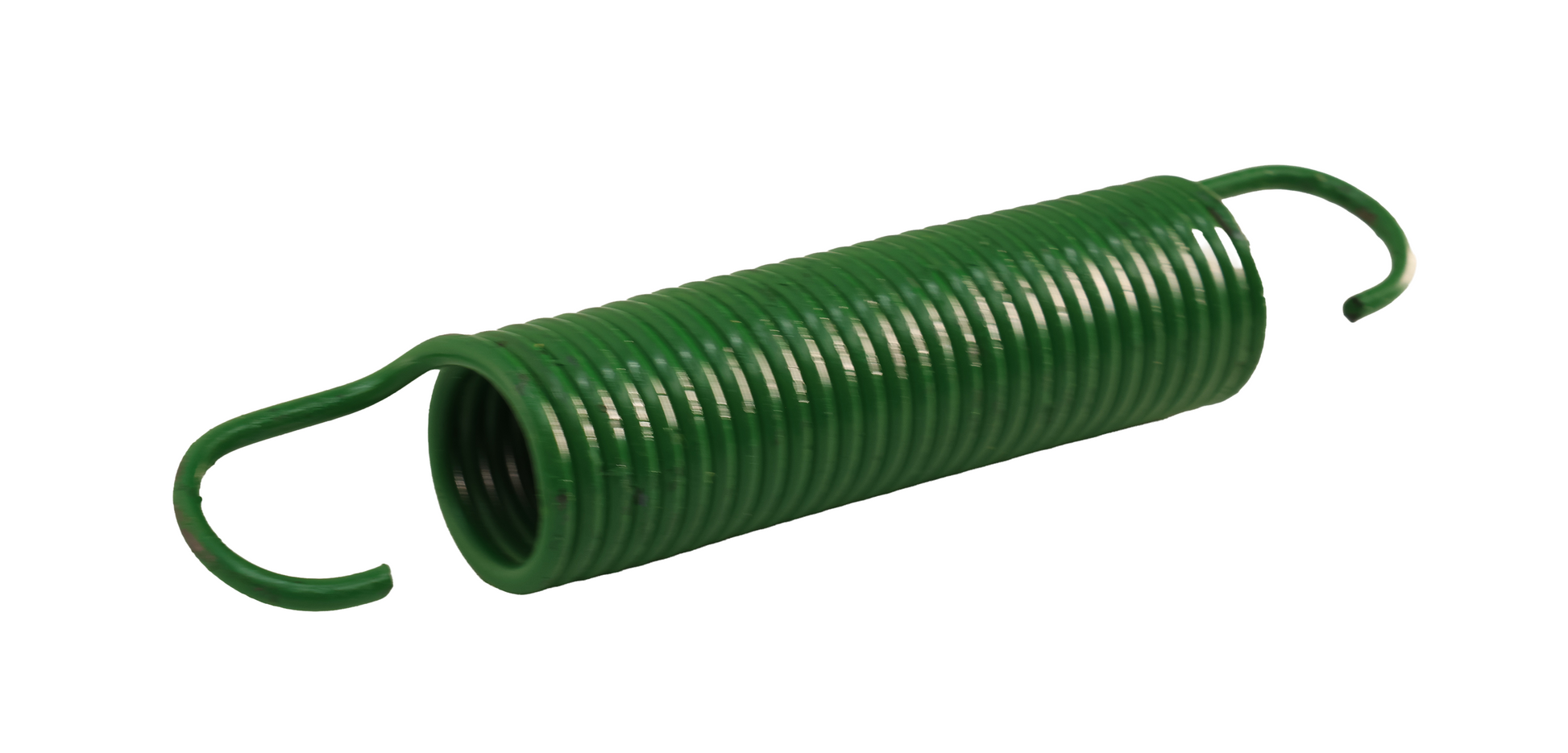

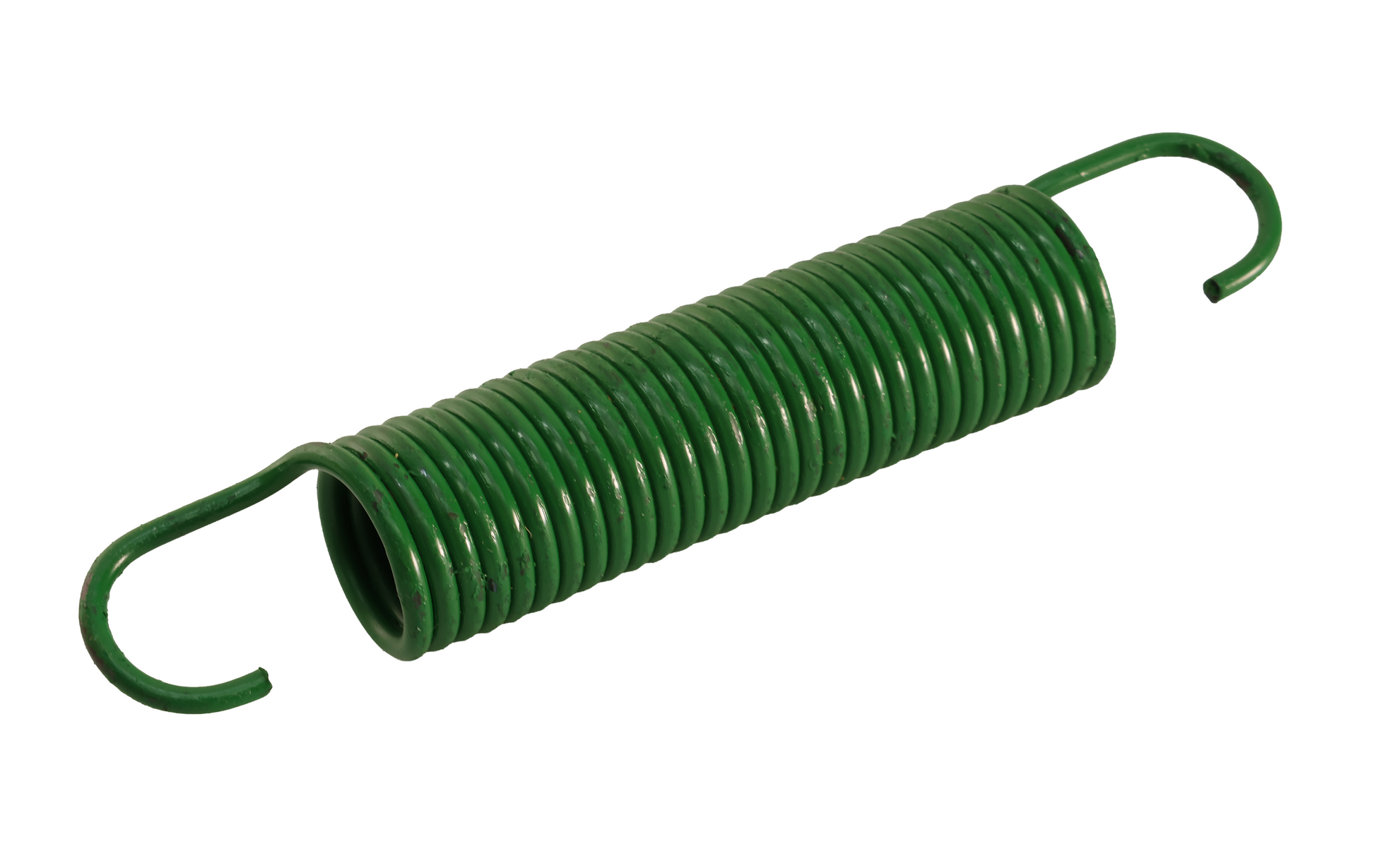

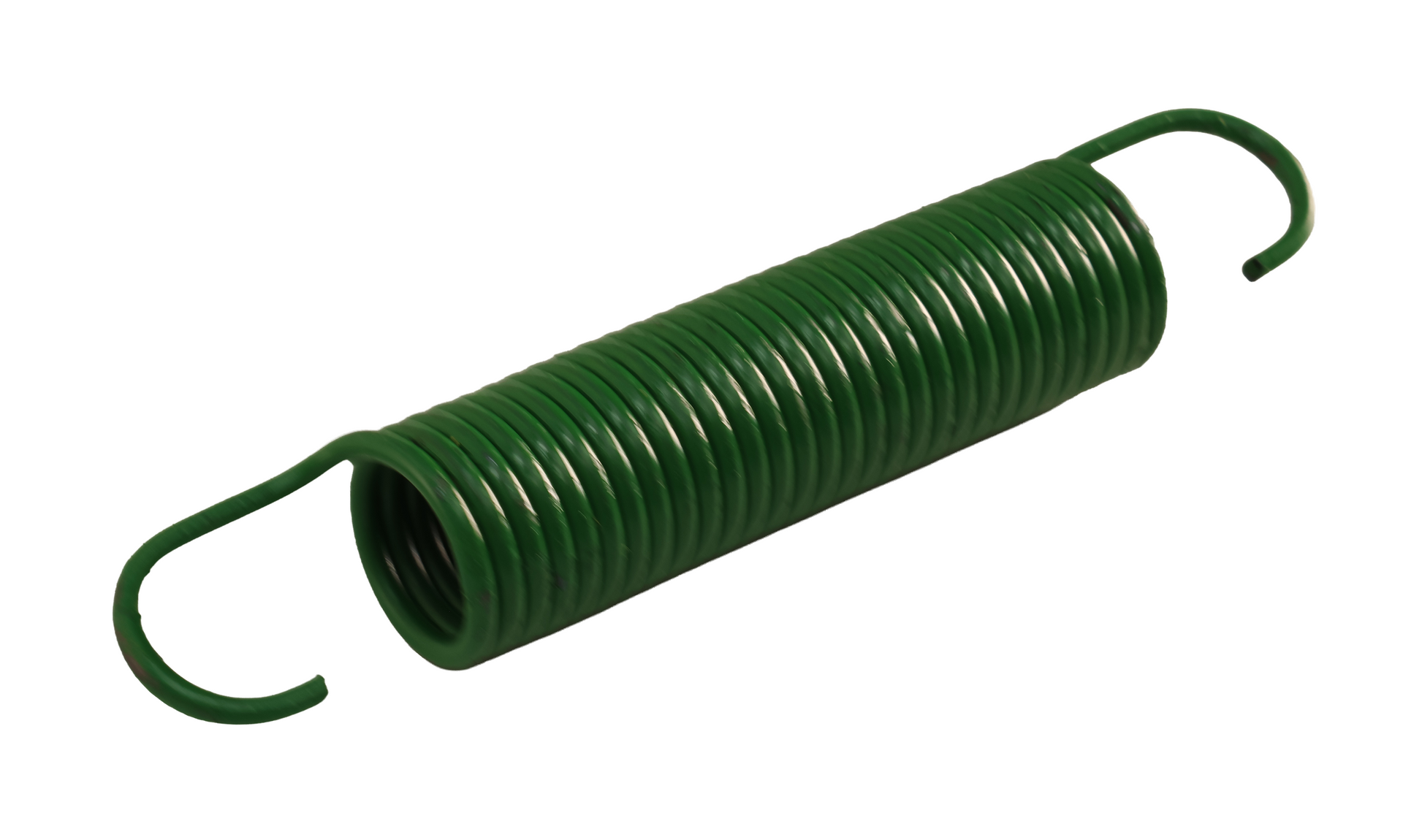

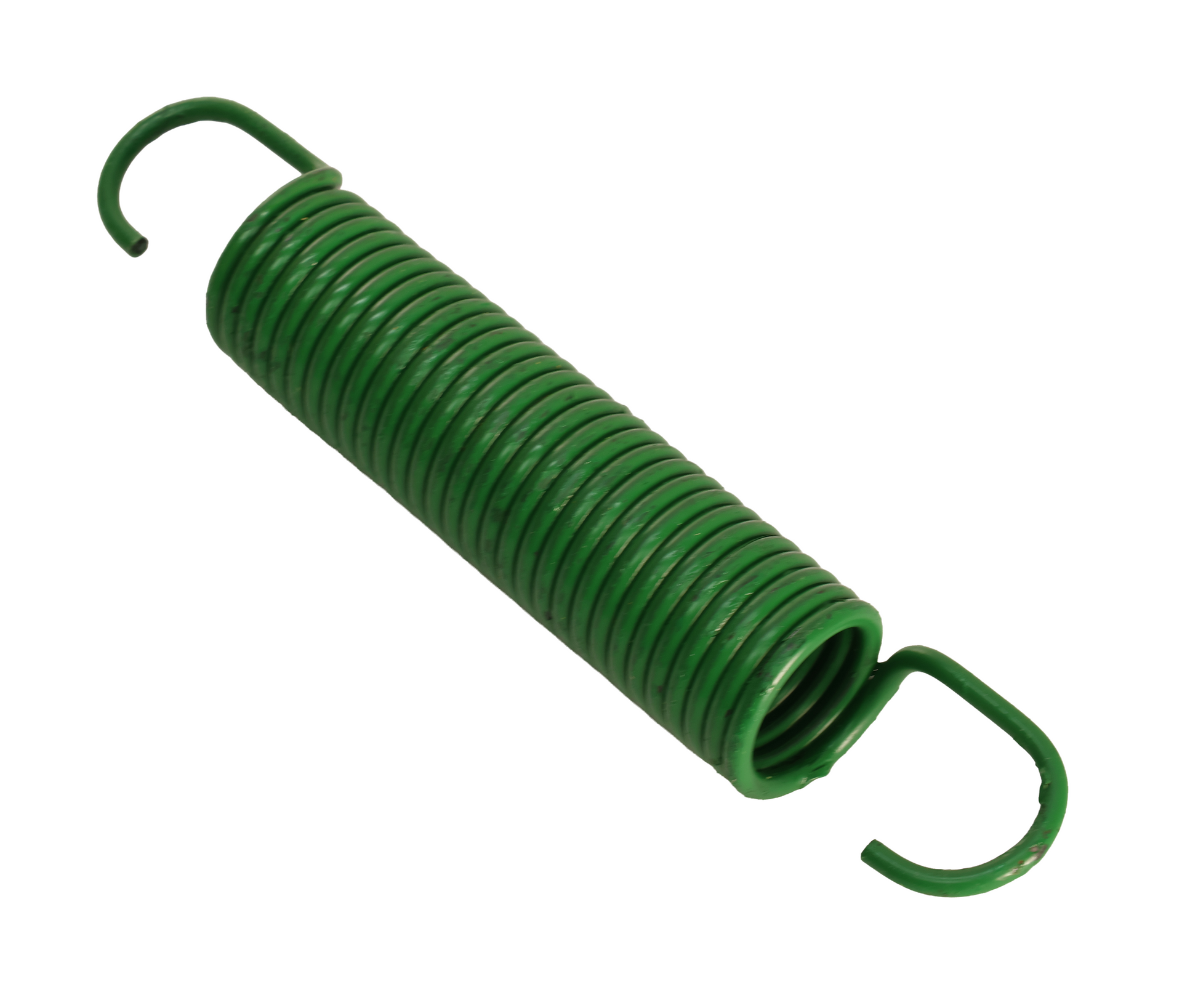

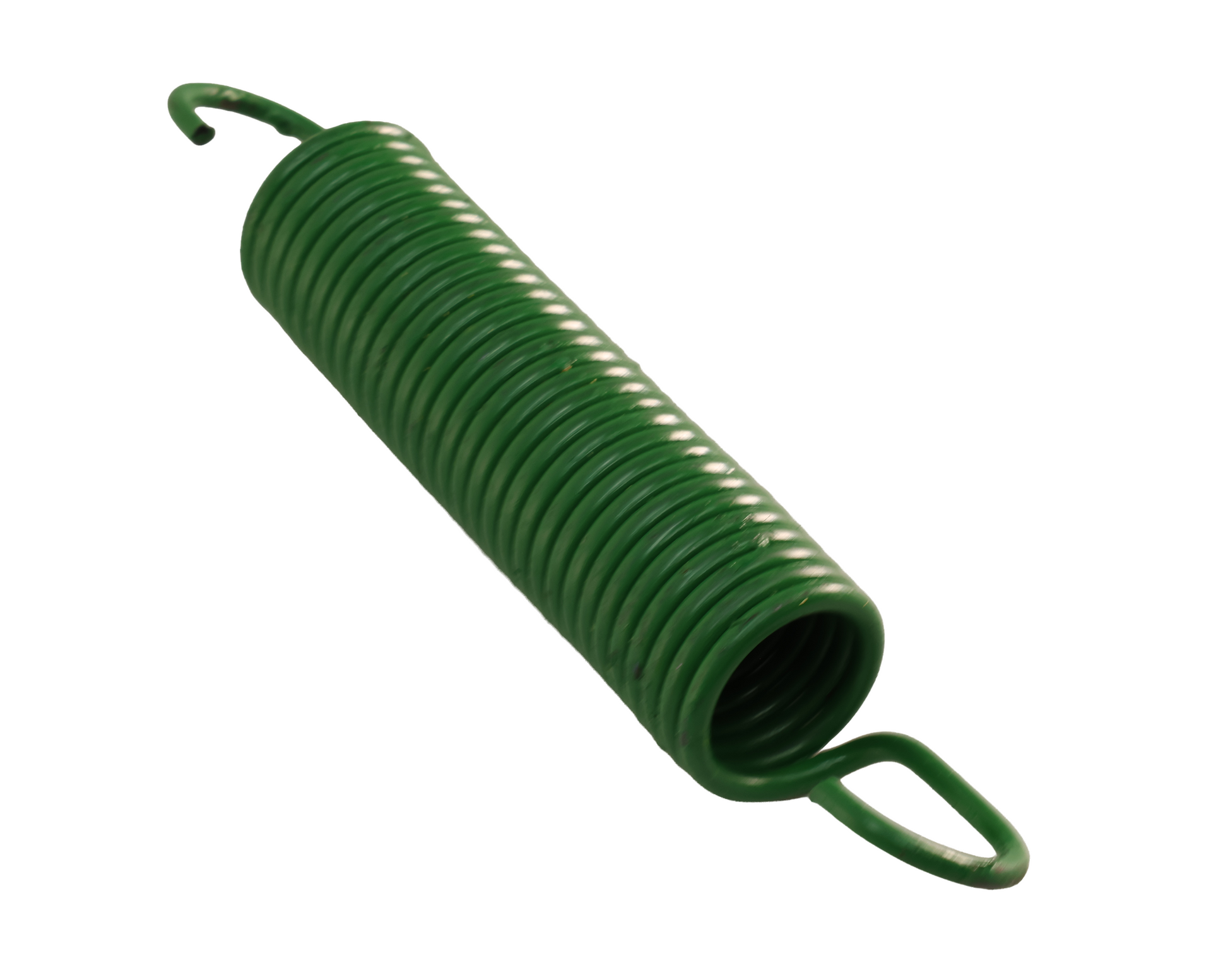

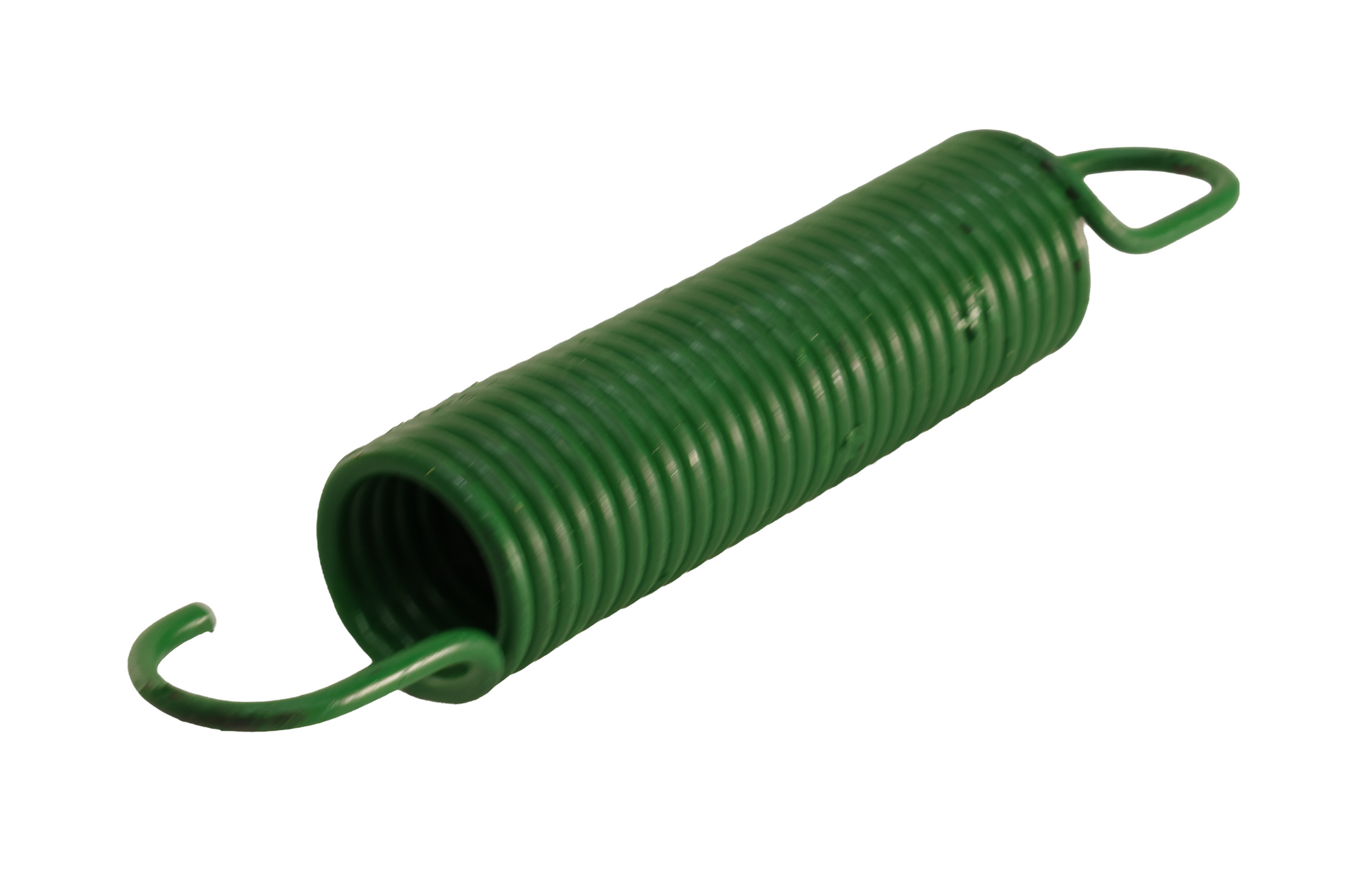

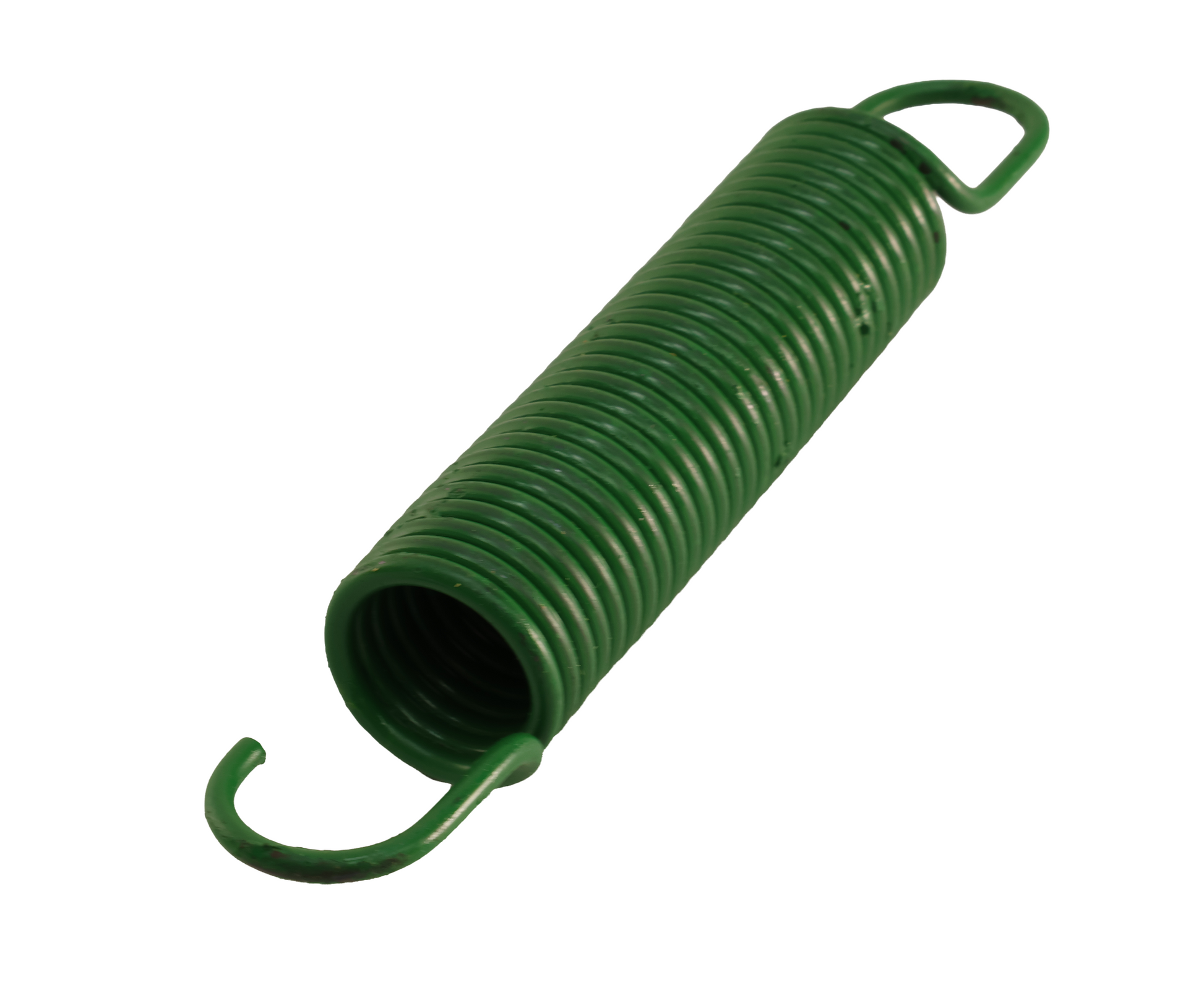

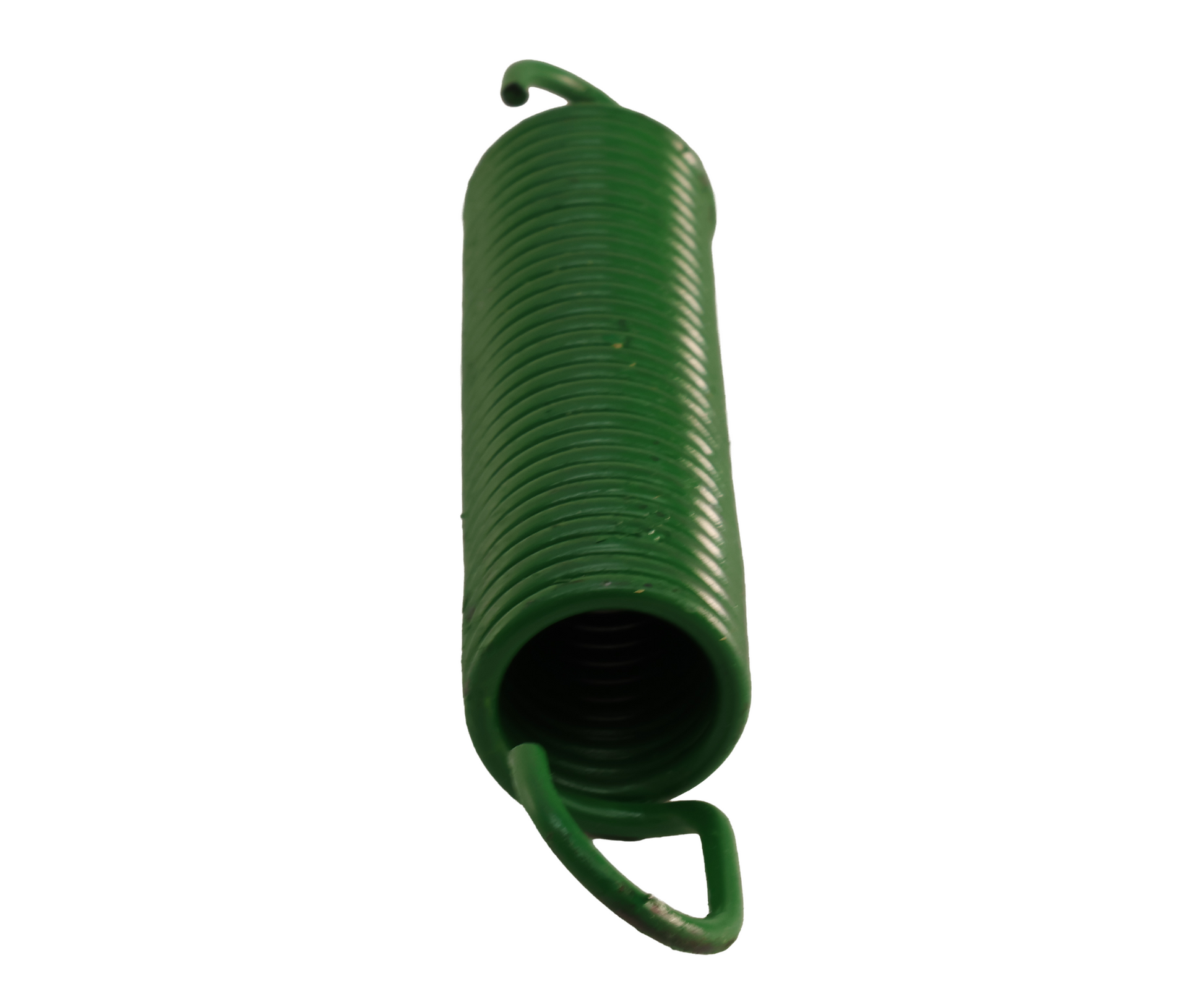

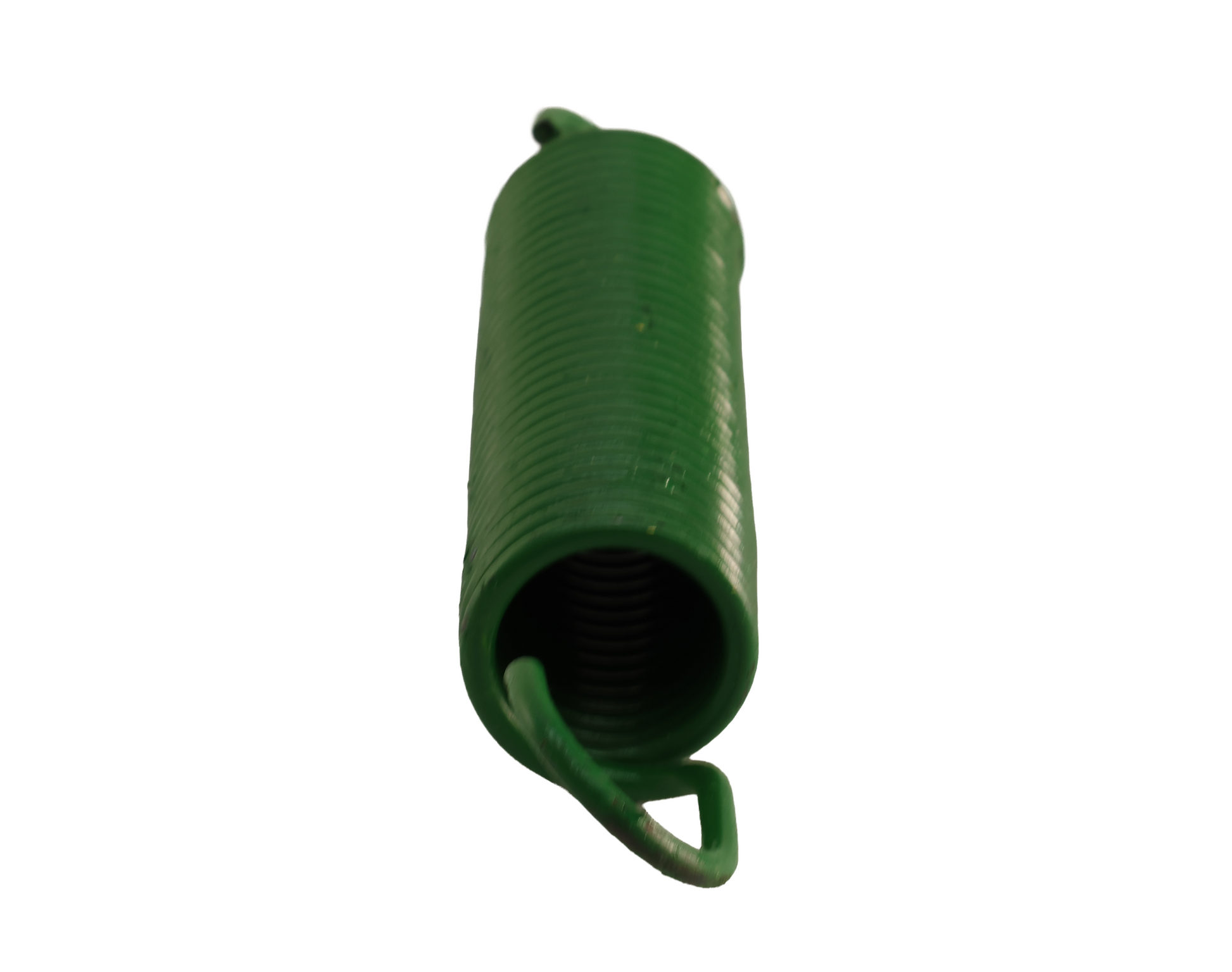

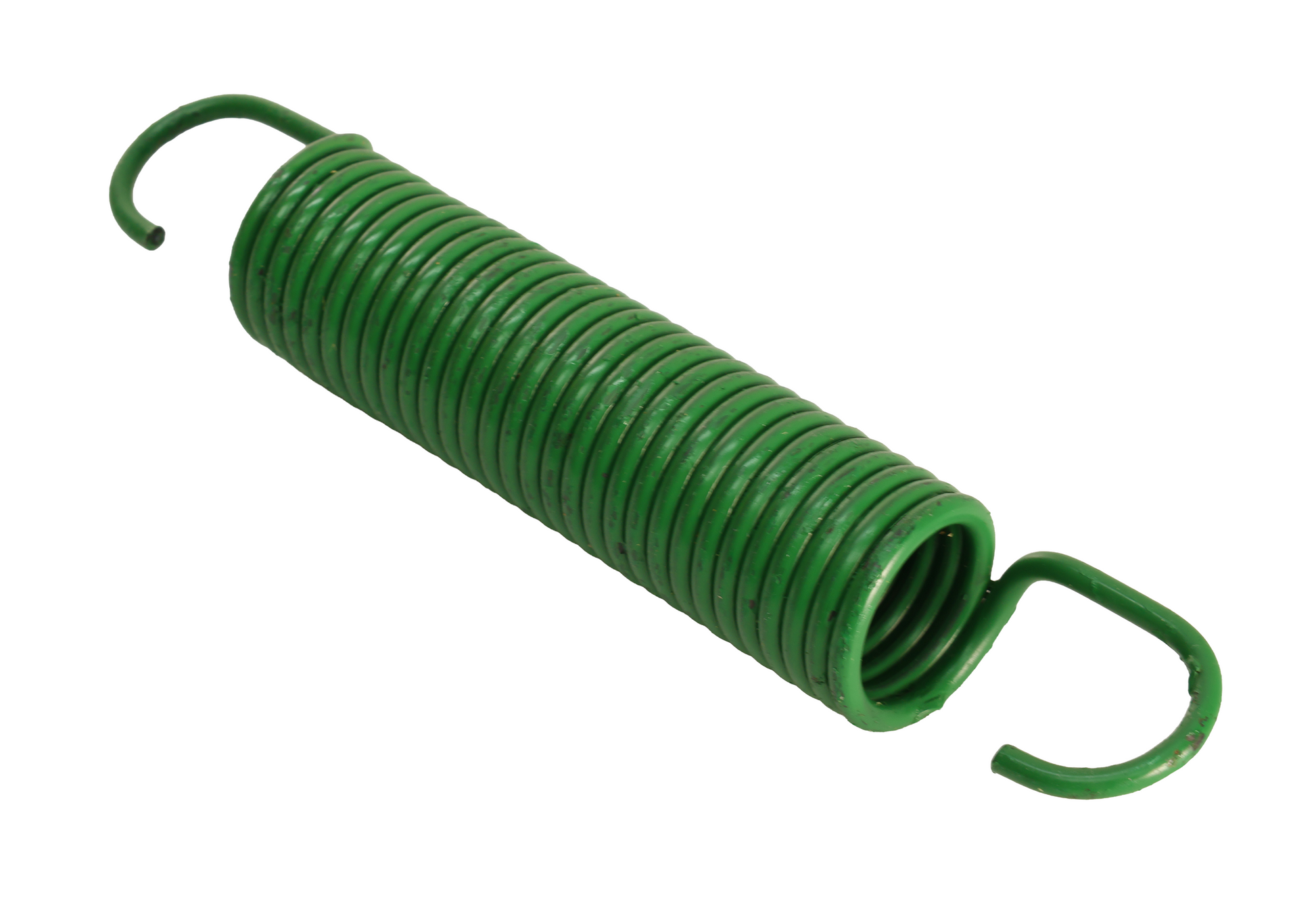

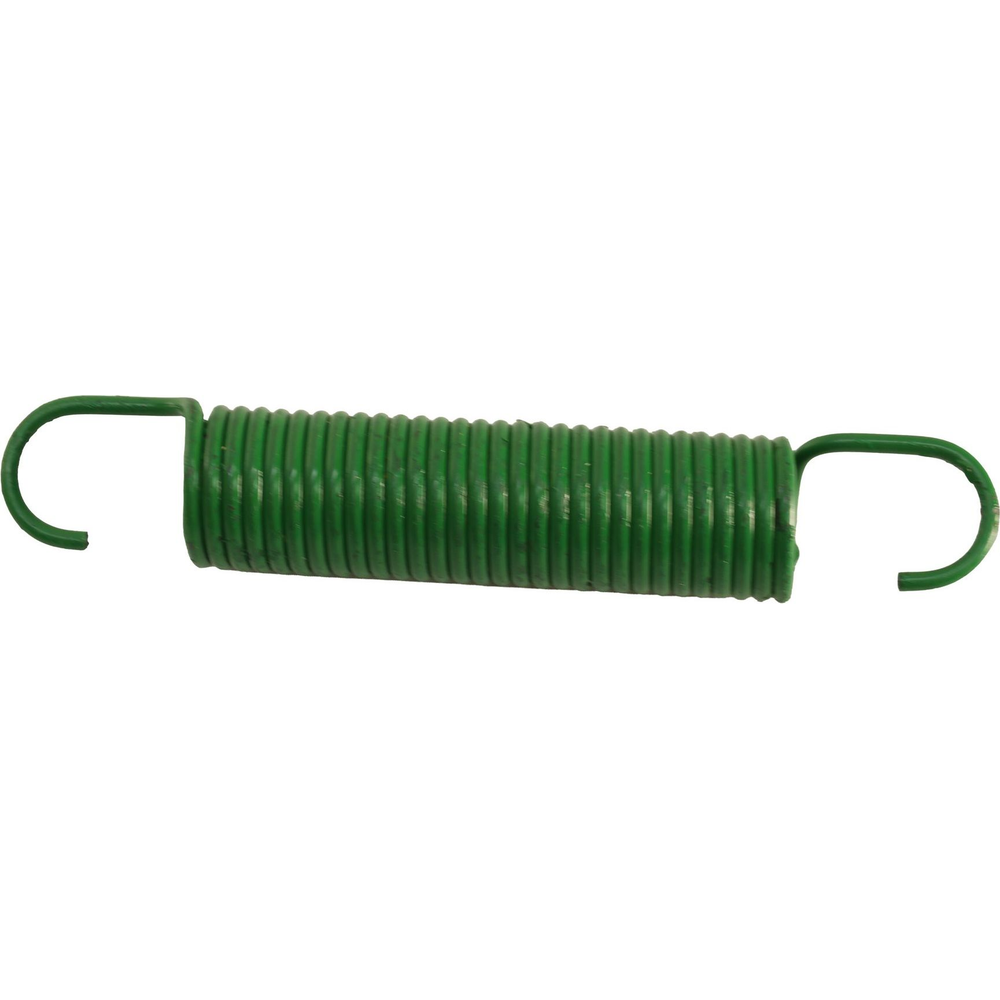

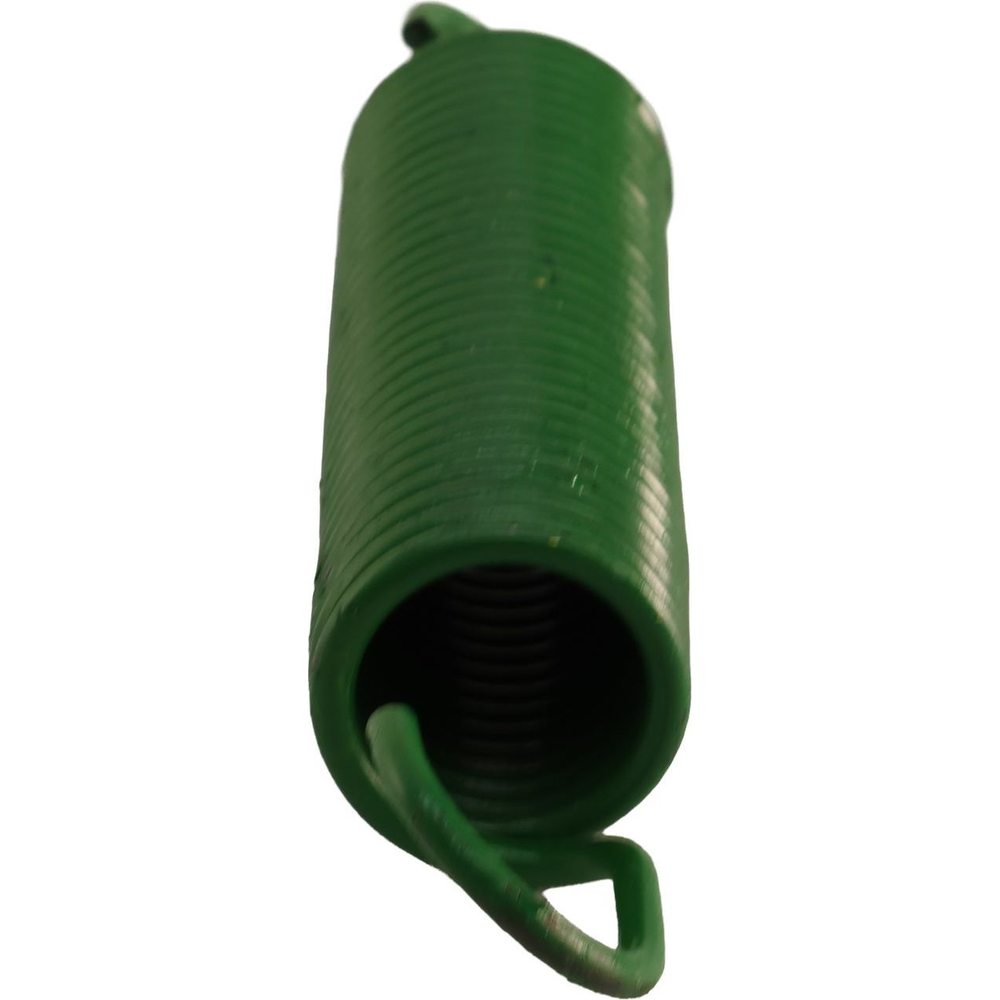

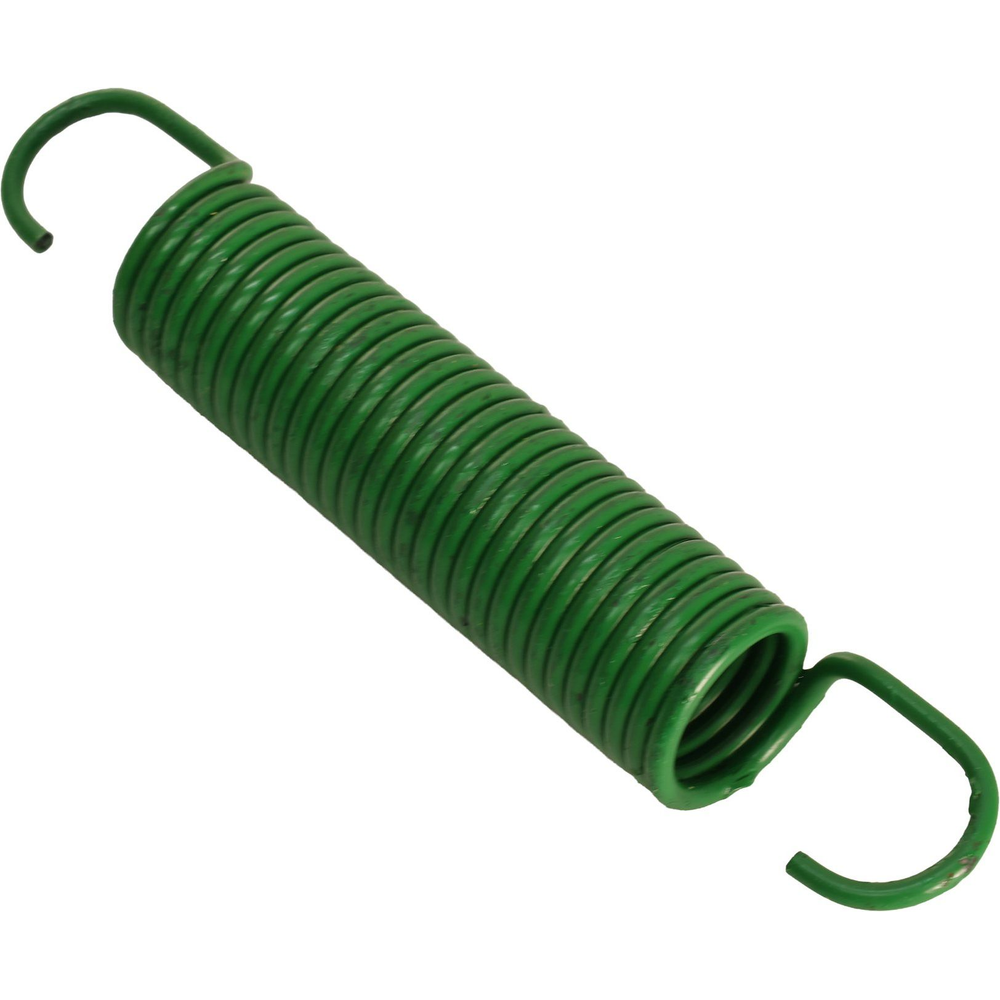

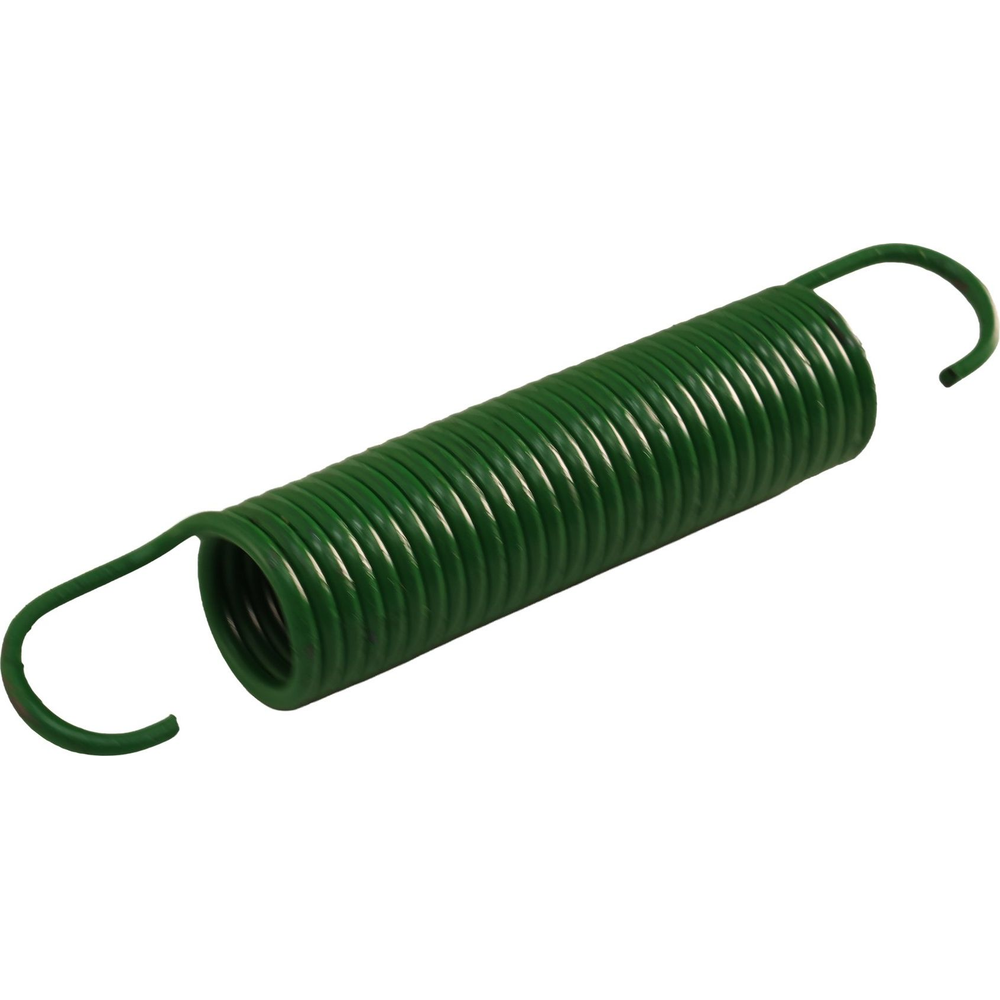

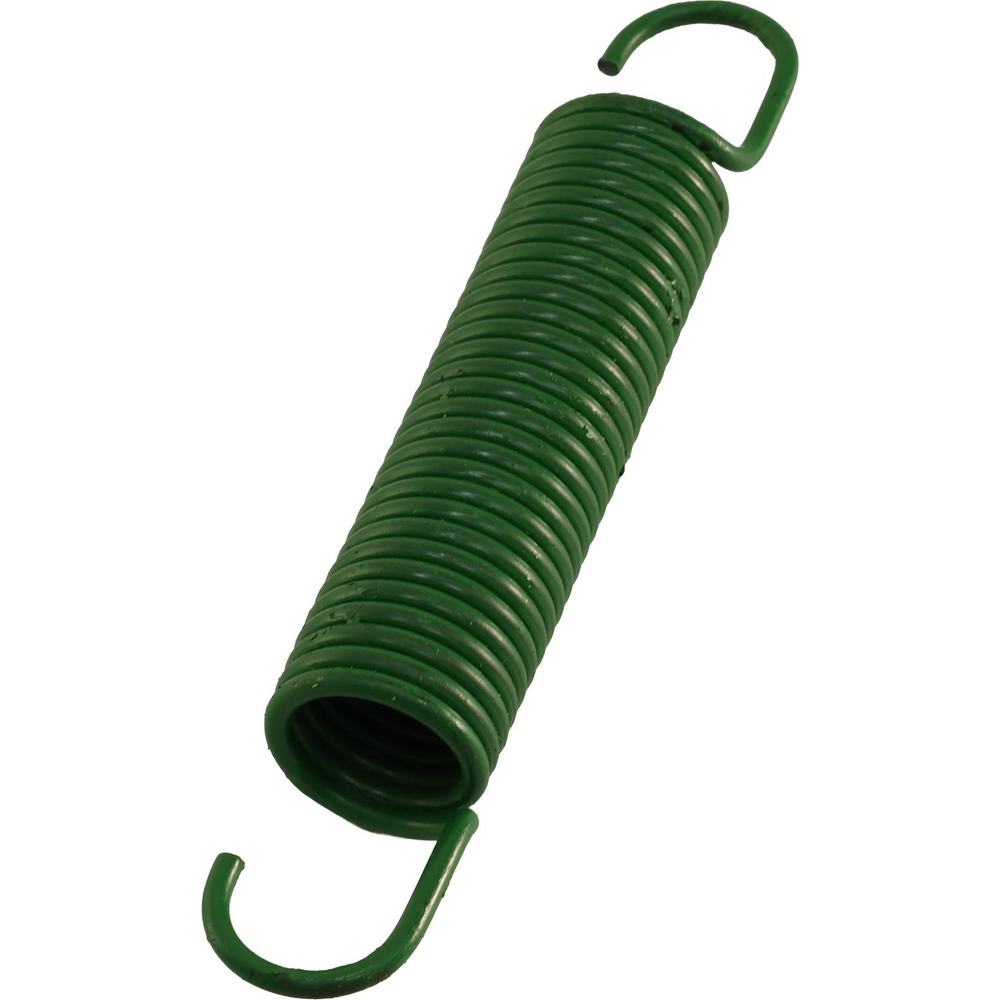

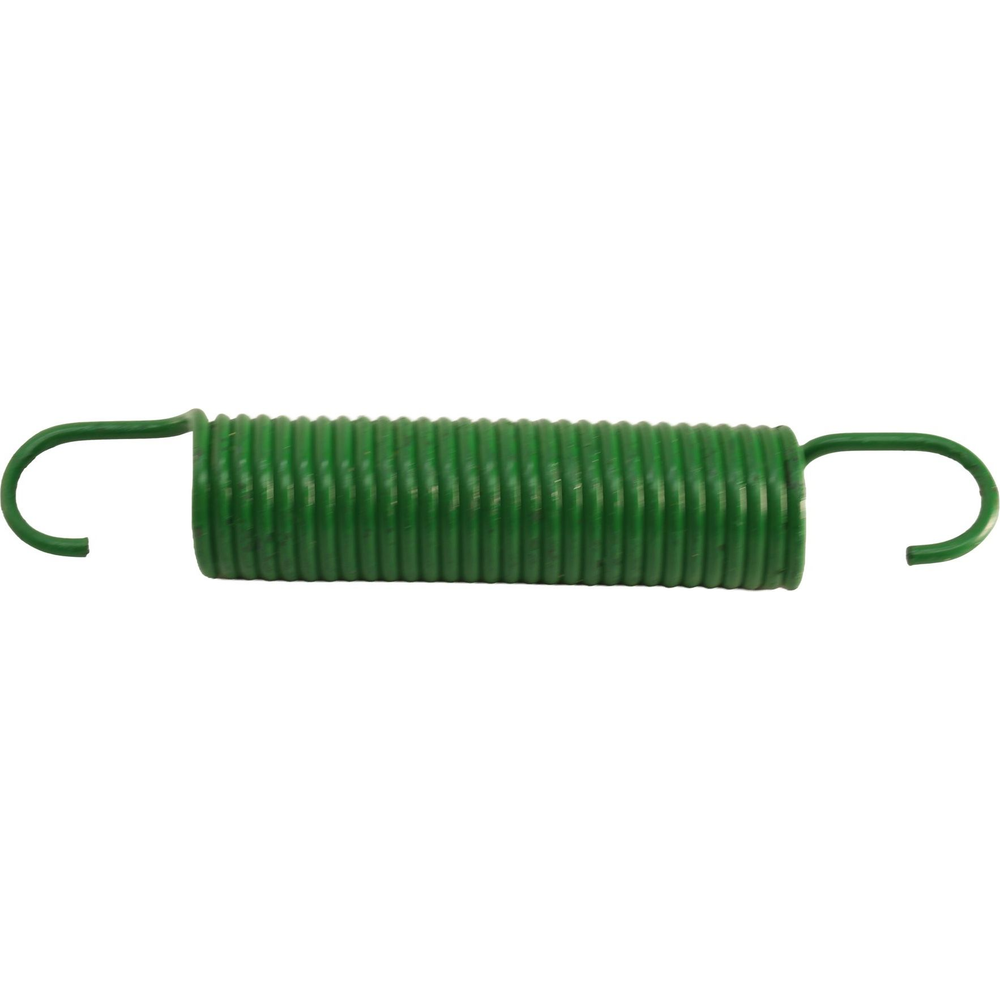

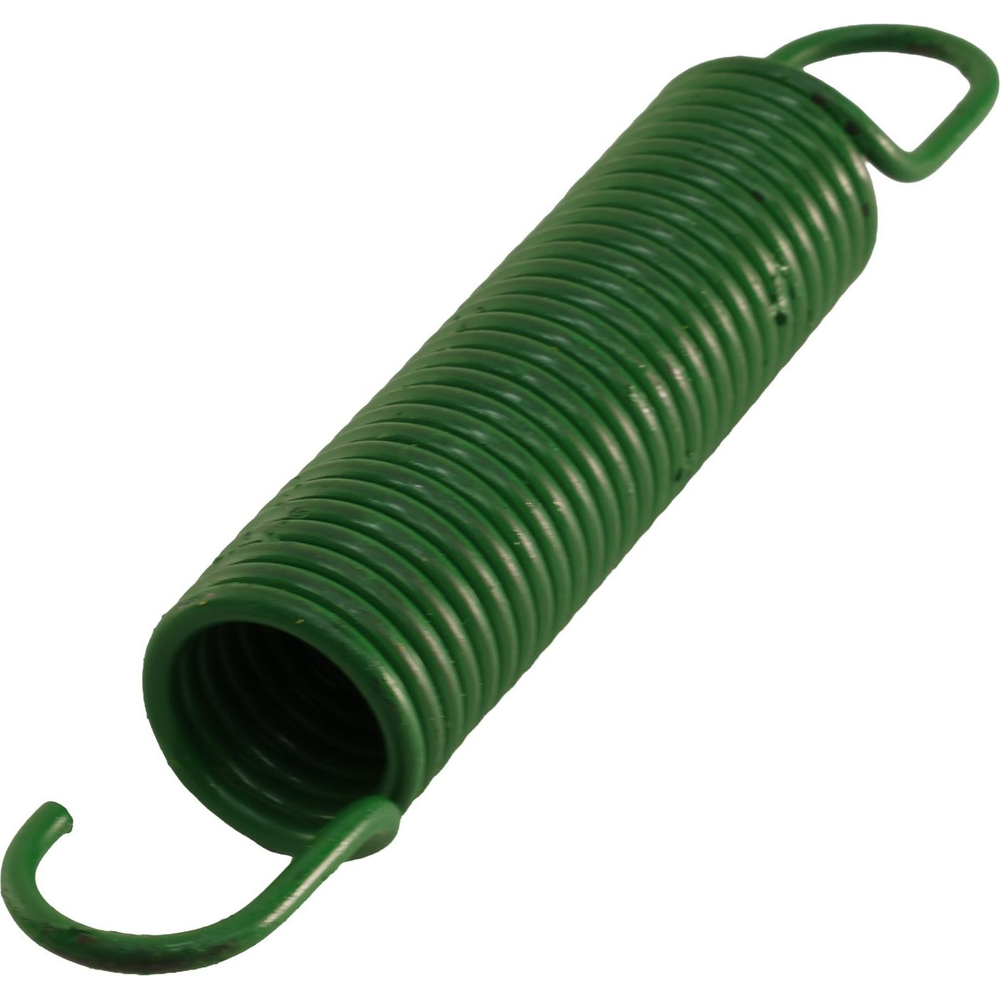

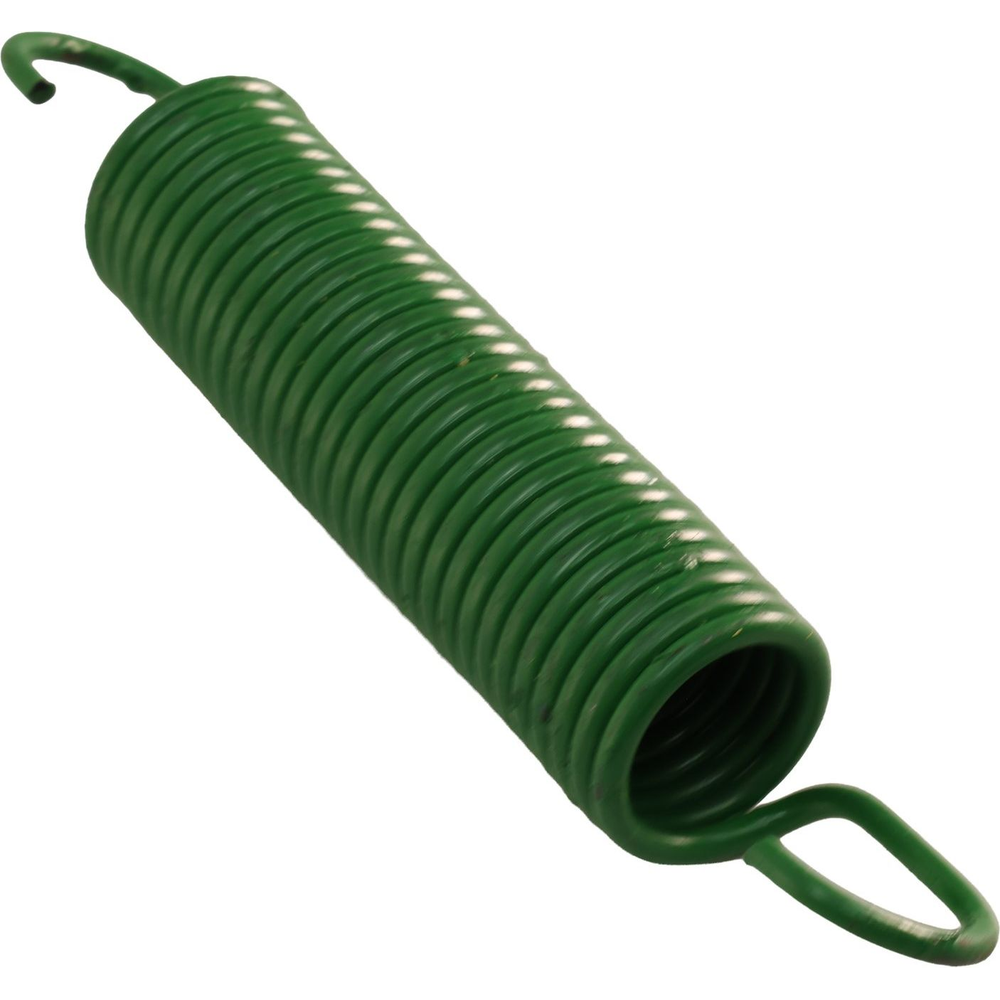

John Deere Original Equipment Extension Spring - E10086

John Deere Original Equipment Extension Spring - E10086

Part Specifications:
End Type (ALPHA) 03/03
Wire Diameter (IN) 0.1200
Outside Diameter (IN) 0.9950
Free Length (IN) 5.8750
Spring Rate (LBF/in or N/mm)(LBF/IN) 15.0999
Initial Tension (LBF or N)(LBF) 20.0000
Number of Coils (UNITY) 30.0000
Material (ALPHA) A15-2
Finish (ALPHA) K-Painted

Fits the following John Deere models:
Combine: 3300, 4400, 4420, 6600, 6601, 6602, 7700, 7701, 1032, 1042, 1052, 1133, 1144, 1165, 1175AH, 1175A, 1175H, 1175, 1165A, 1175H4, 1170, 1185, 6200, 7100, 7200, 6300, 7300, 7500, 7700, 6300, 7300, 7500, 7700H4, 7700, 8500H, 8700, 965H, 965, 968H, 975HY/4, 975, 985HY/4, 985, C1 200, C2 300.
Hay Rake: 700, 705.
Conditioner Mower: 1600, 1600A.
Stack Wagon: 200, 300.
Windrower: 2250, 2270, 2280, 800, 830.
Round Baler: 450M, 451R, 460M, 460R, 461R, 560M, 560R, 561R.
Cotton Stripper: 484.
Log Skidder: 740A, 740.
Tractor: 700A.

This is an O.E.M. John Deere models.
