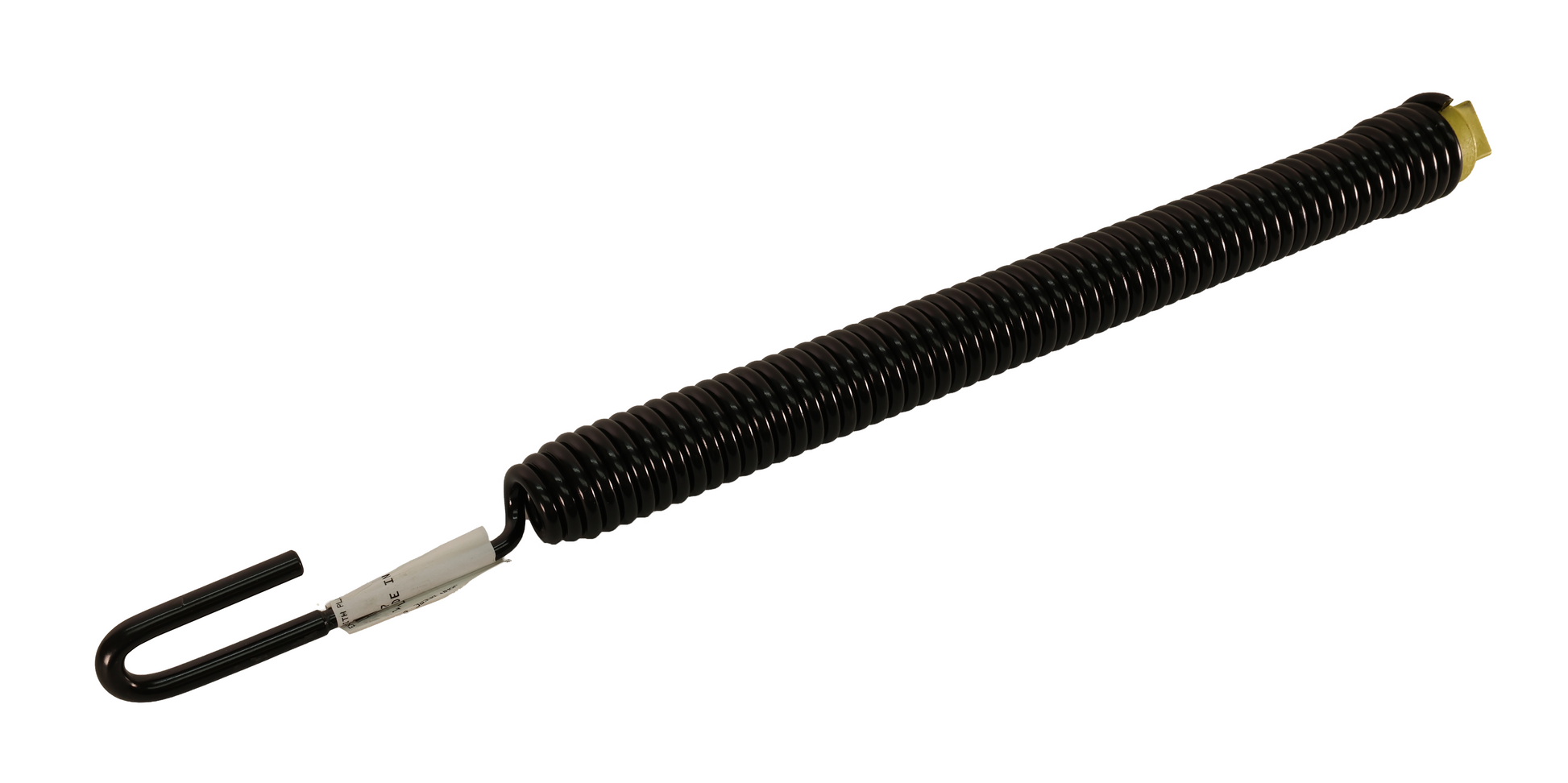

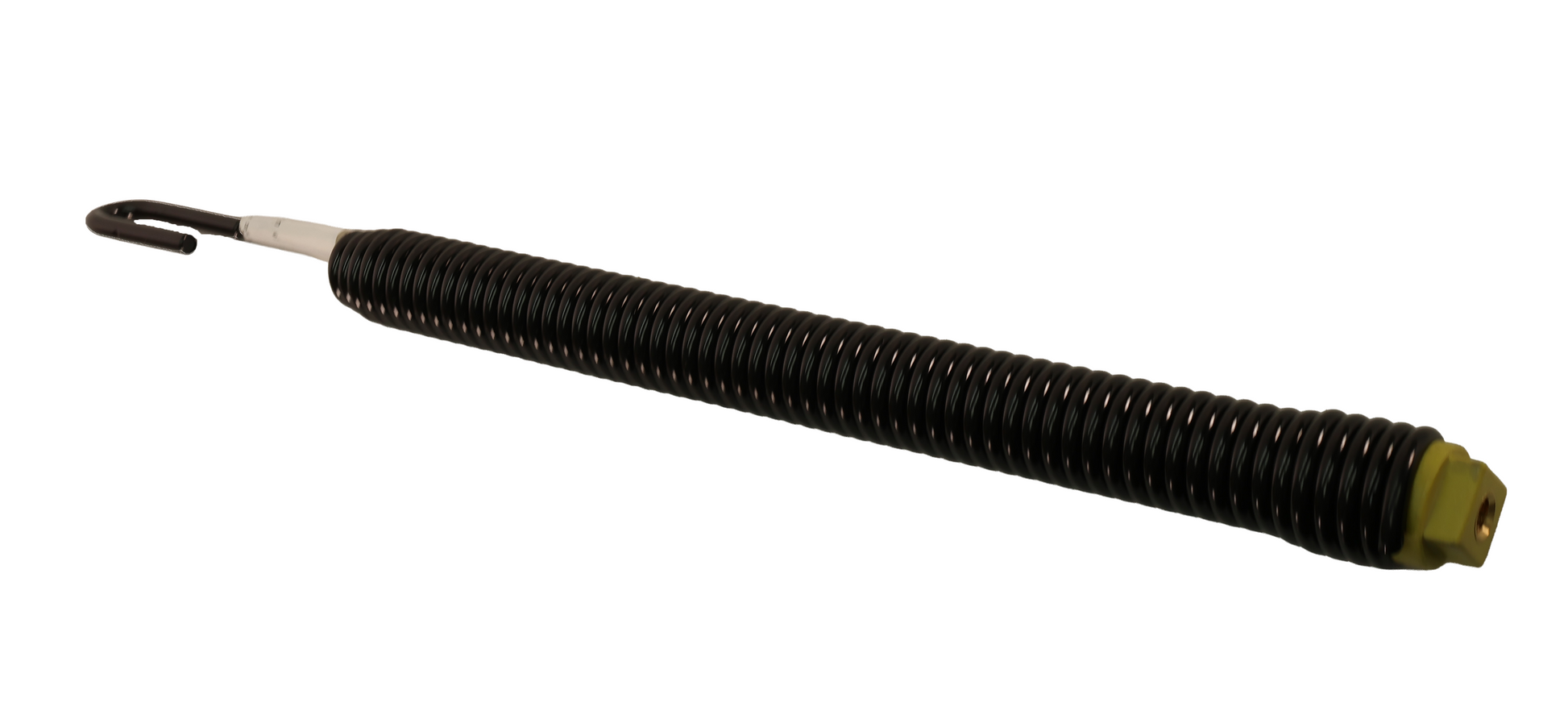

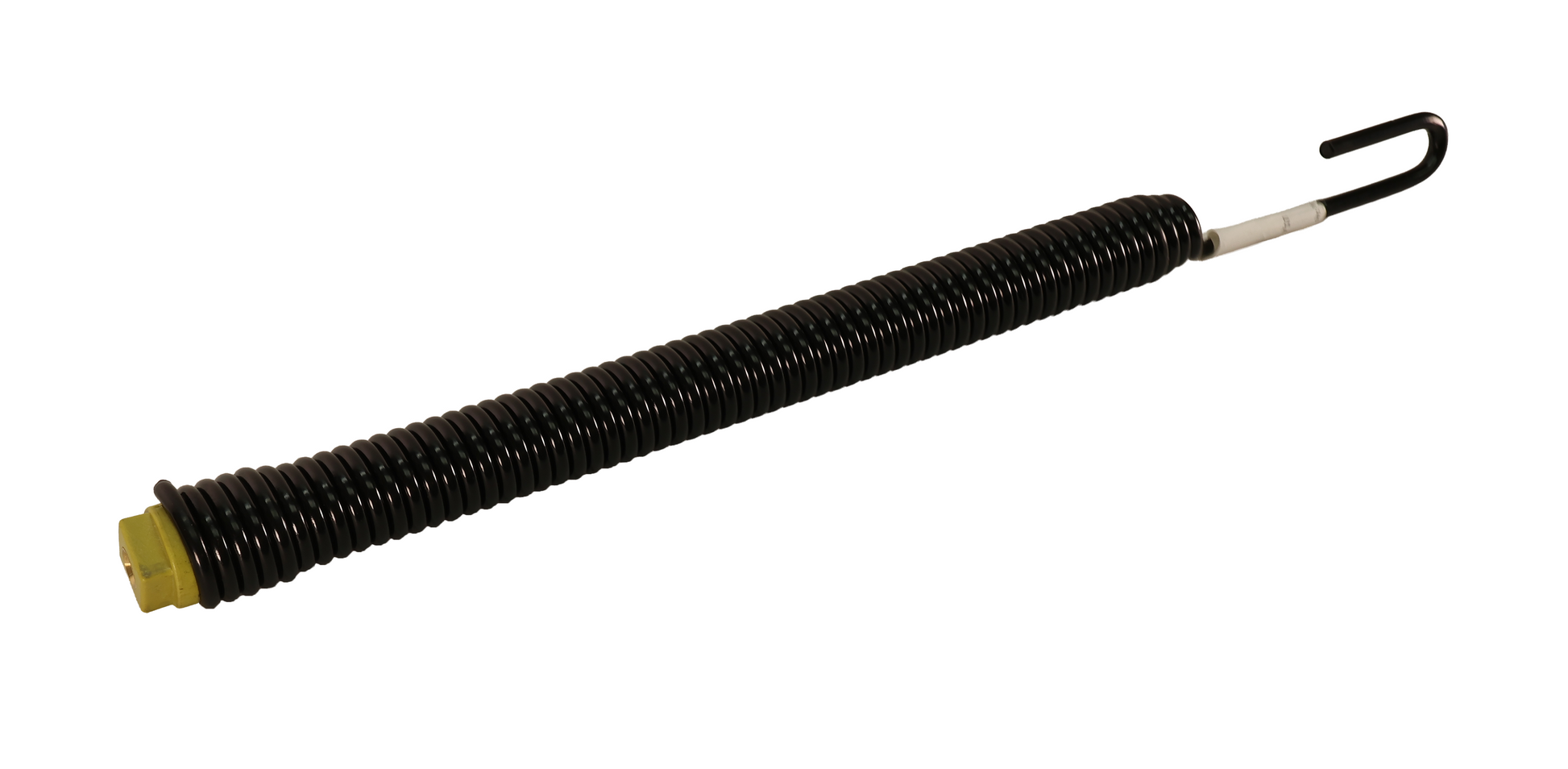

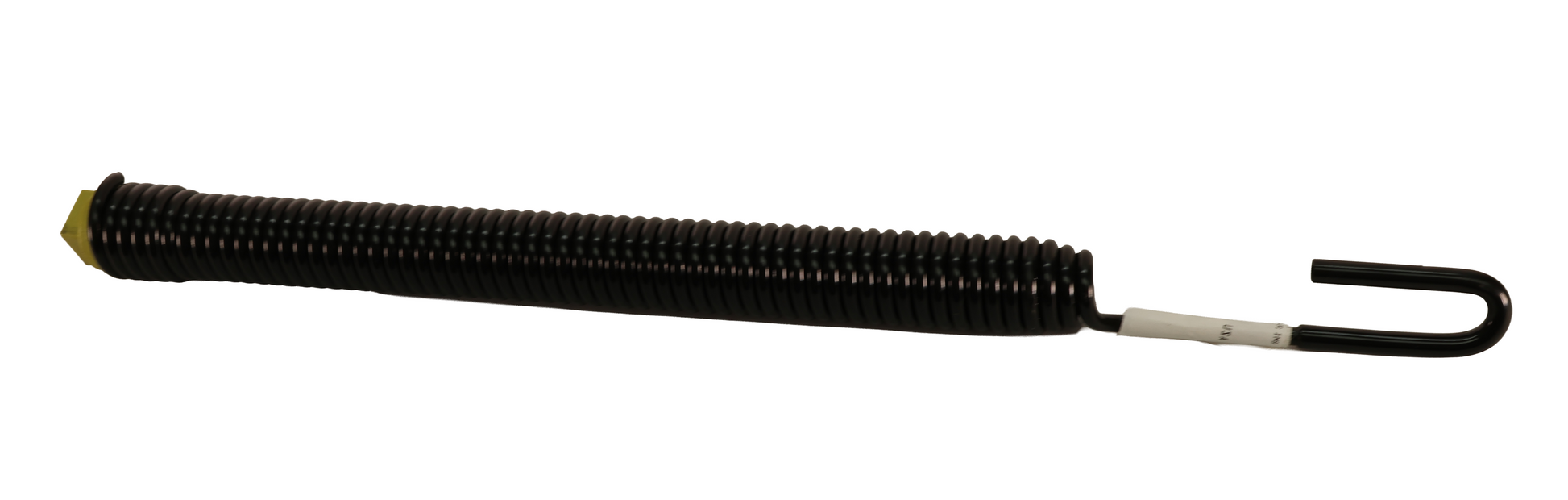

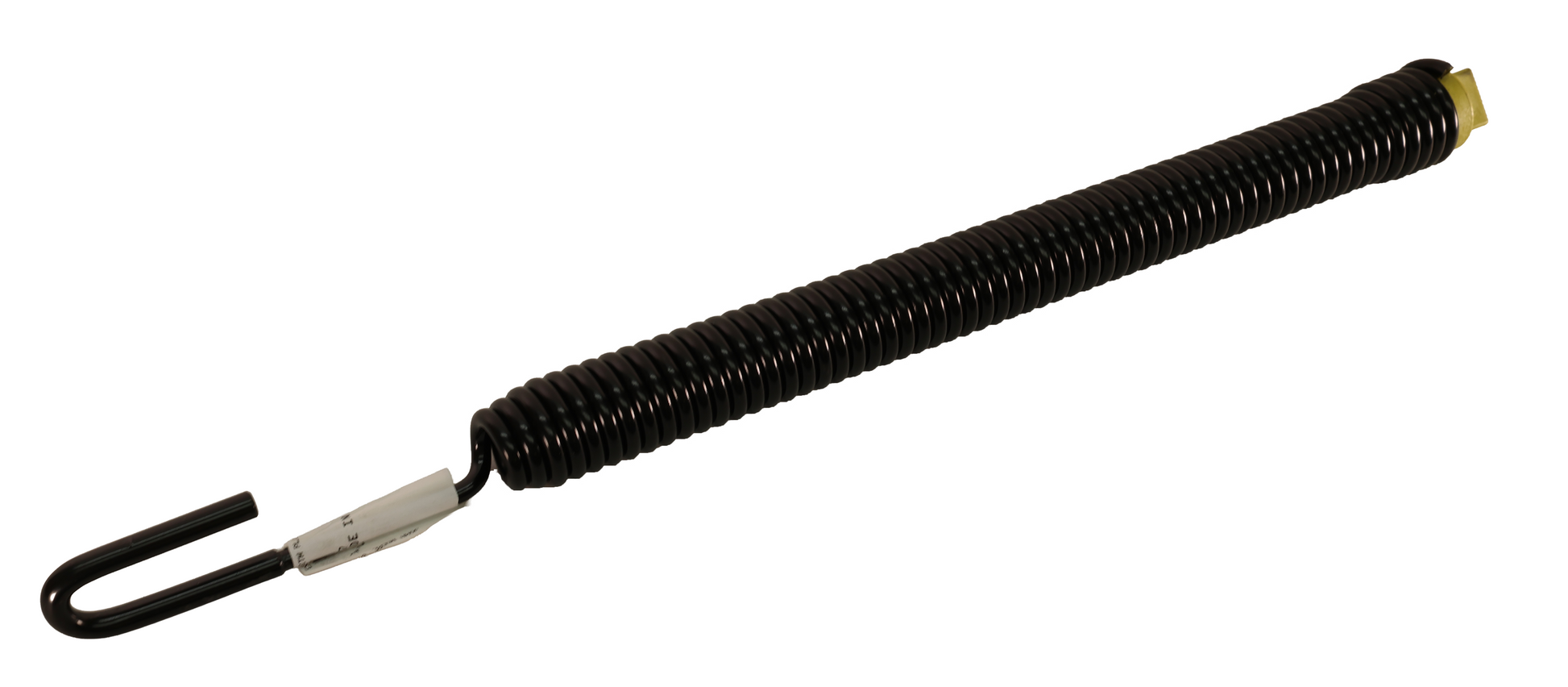

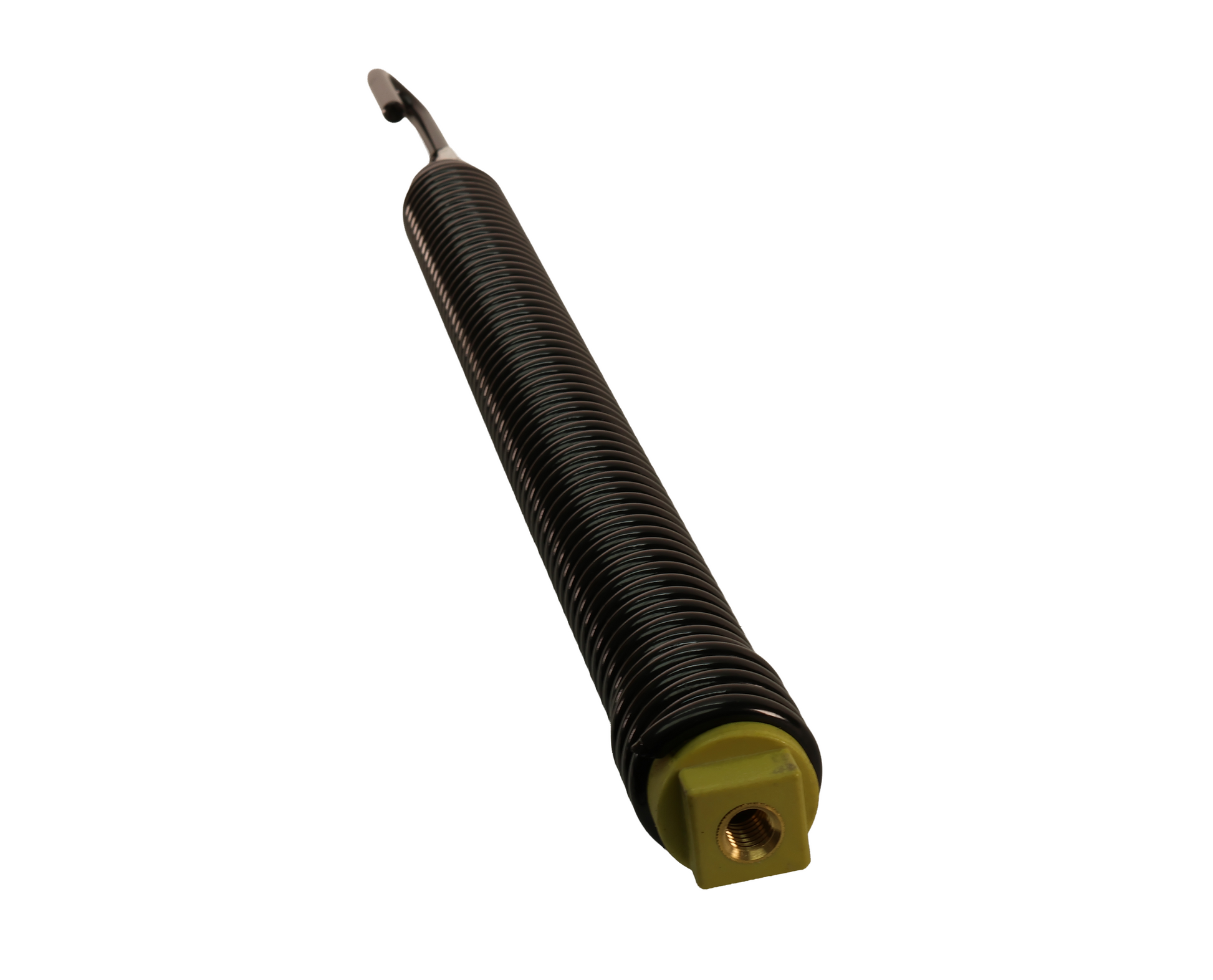

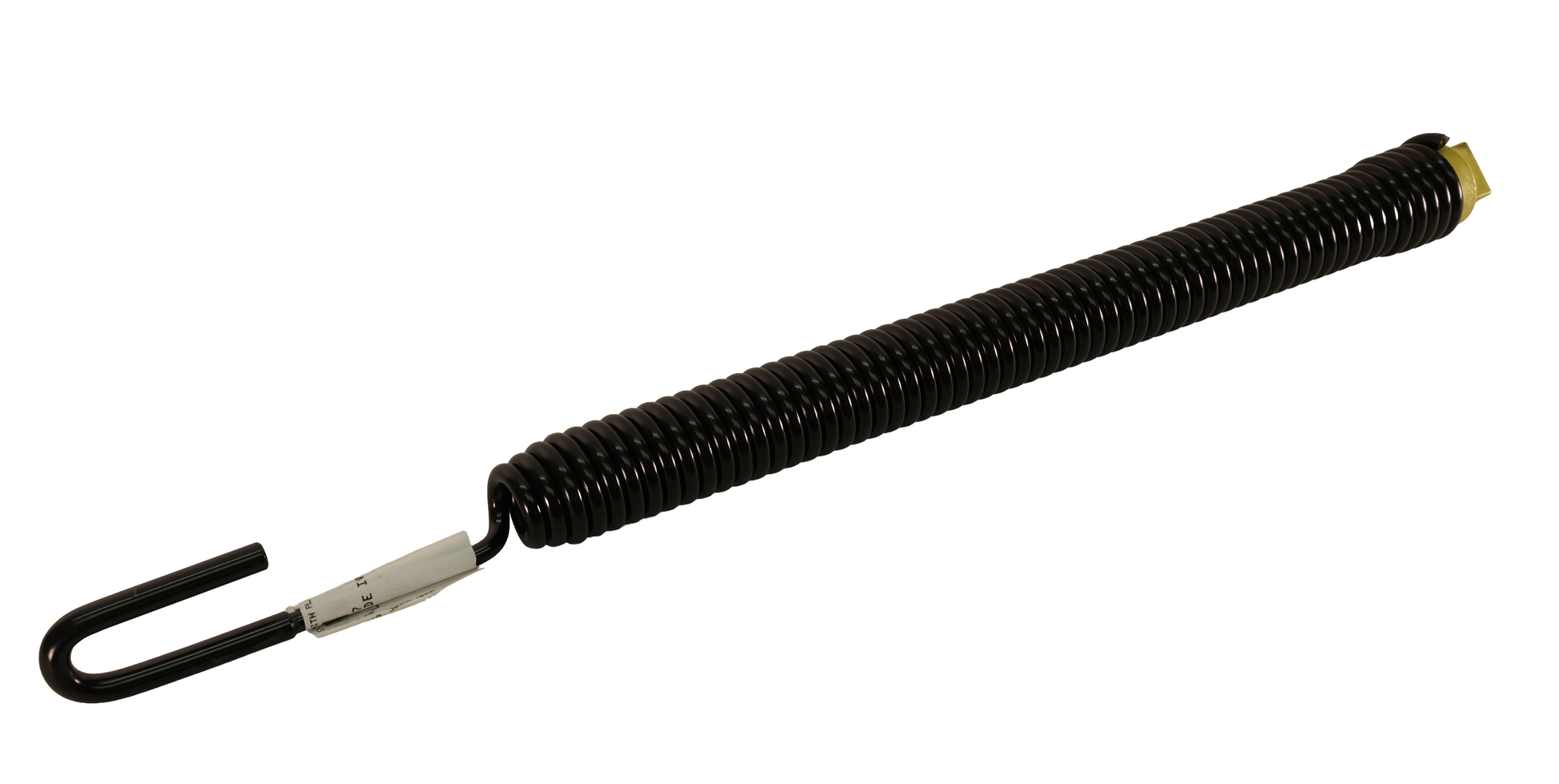

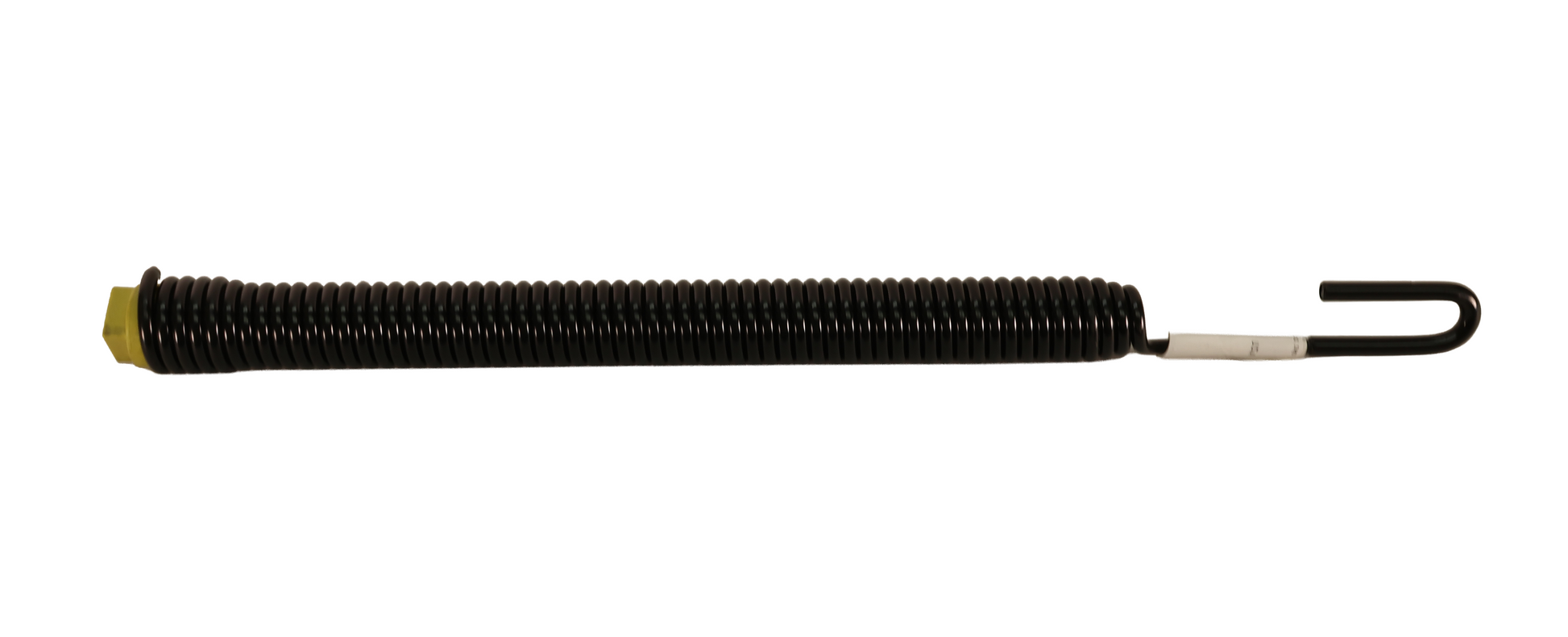

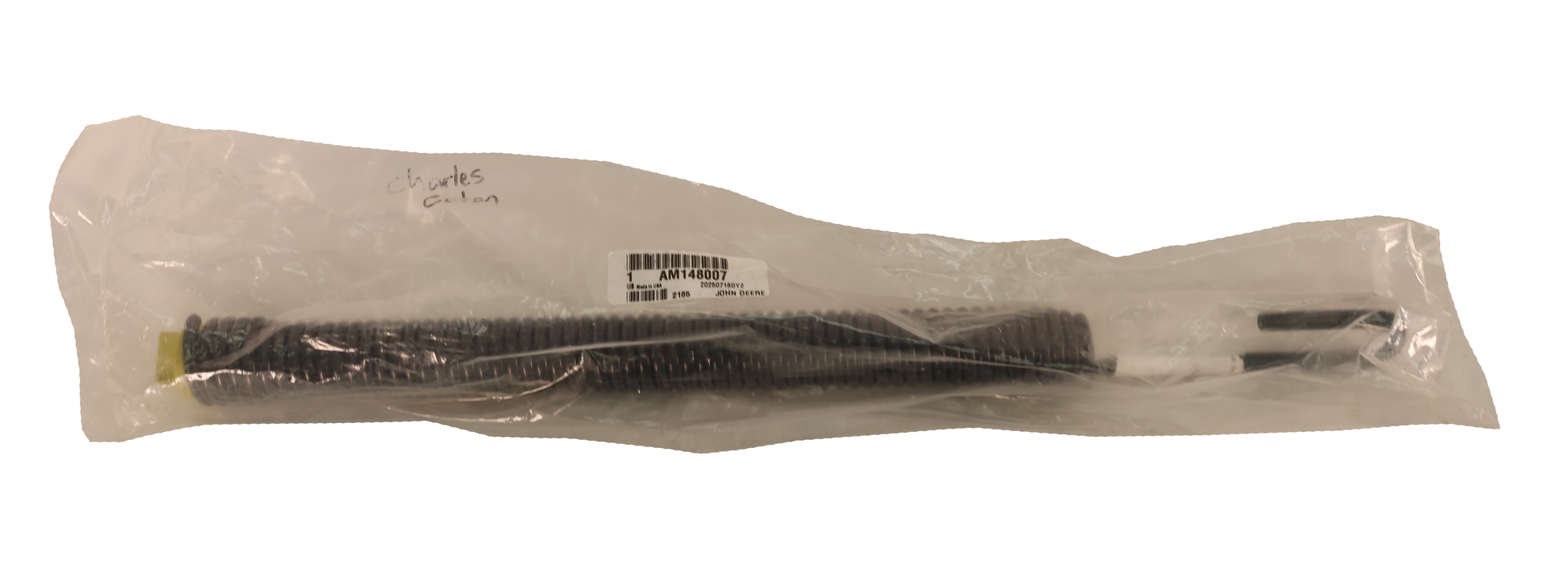

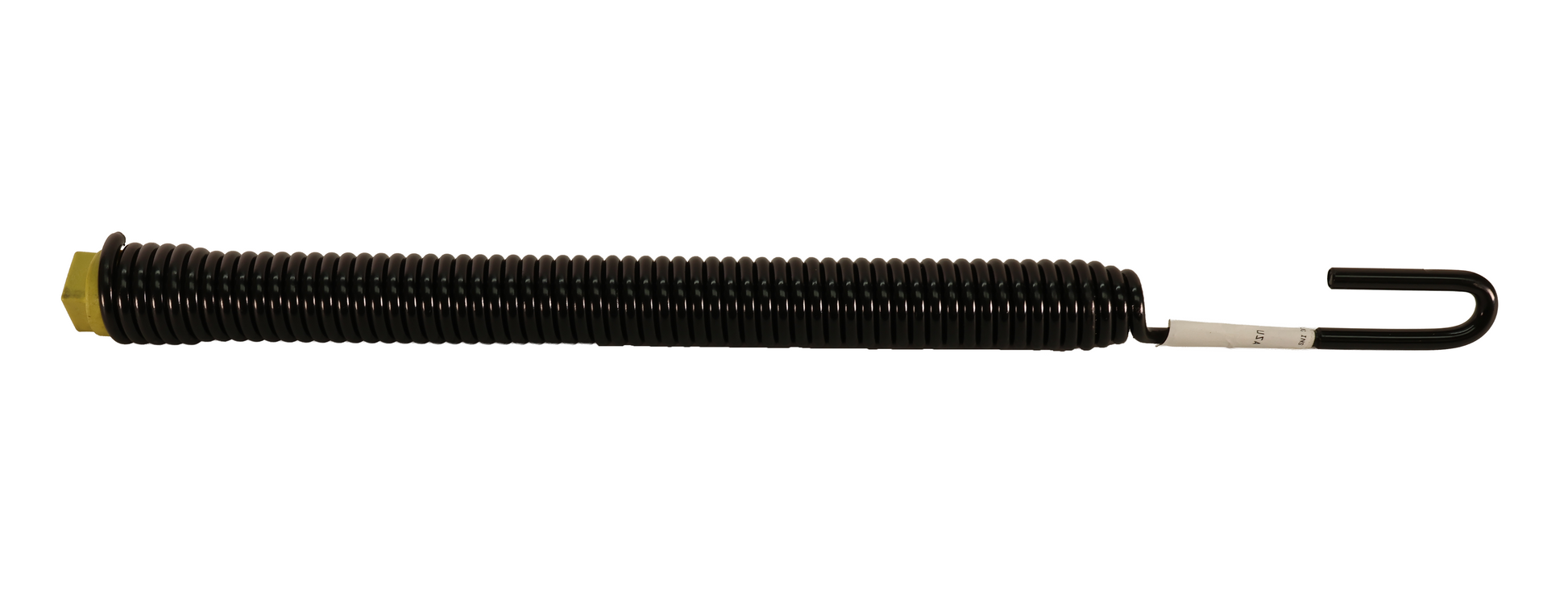

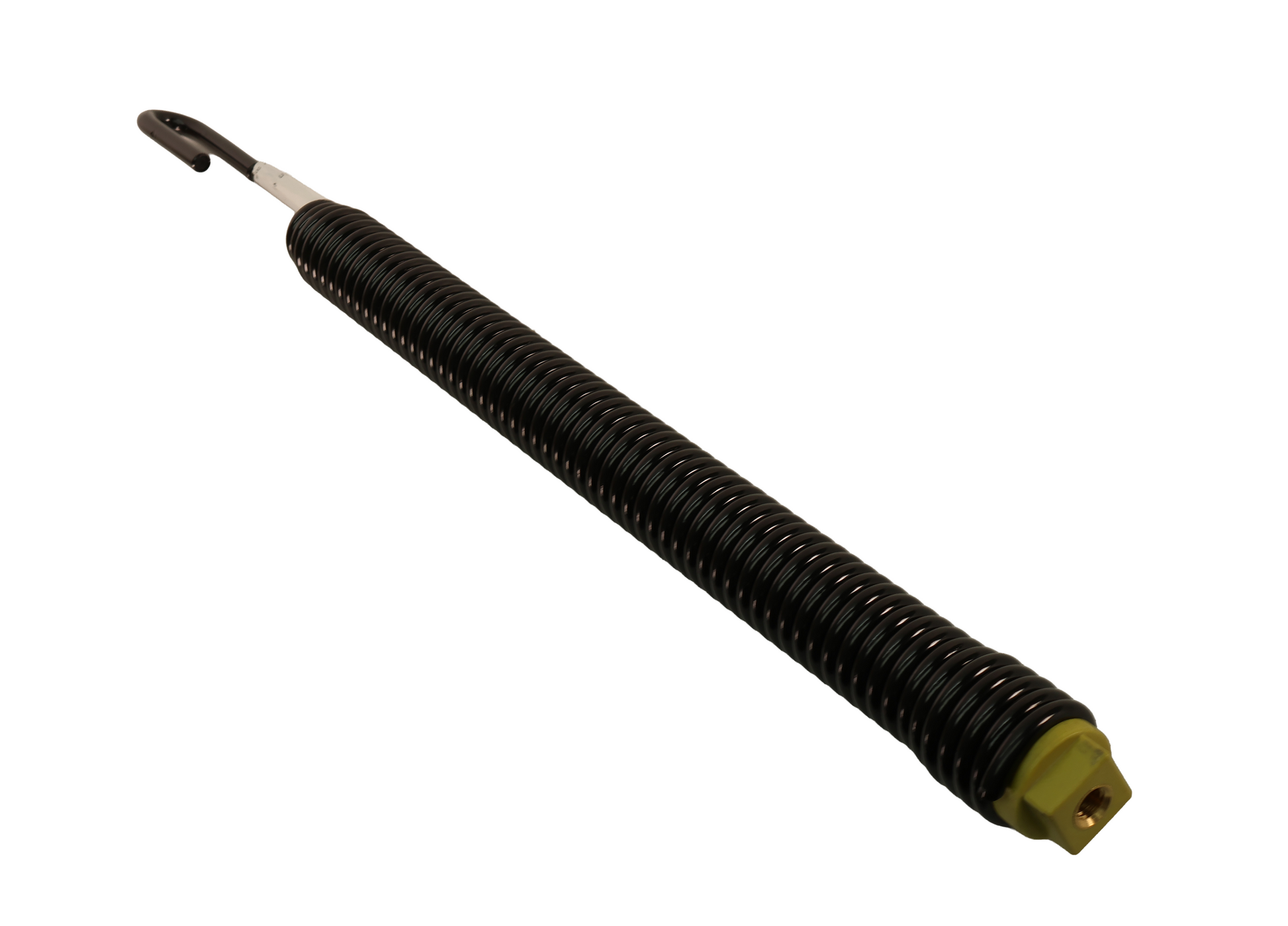

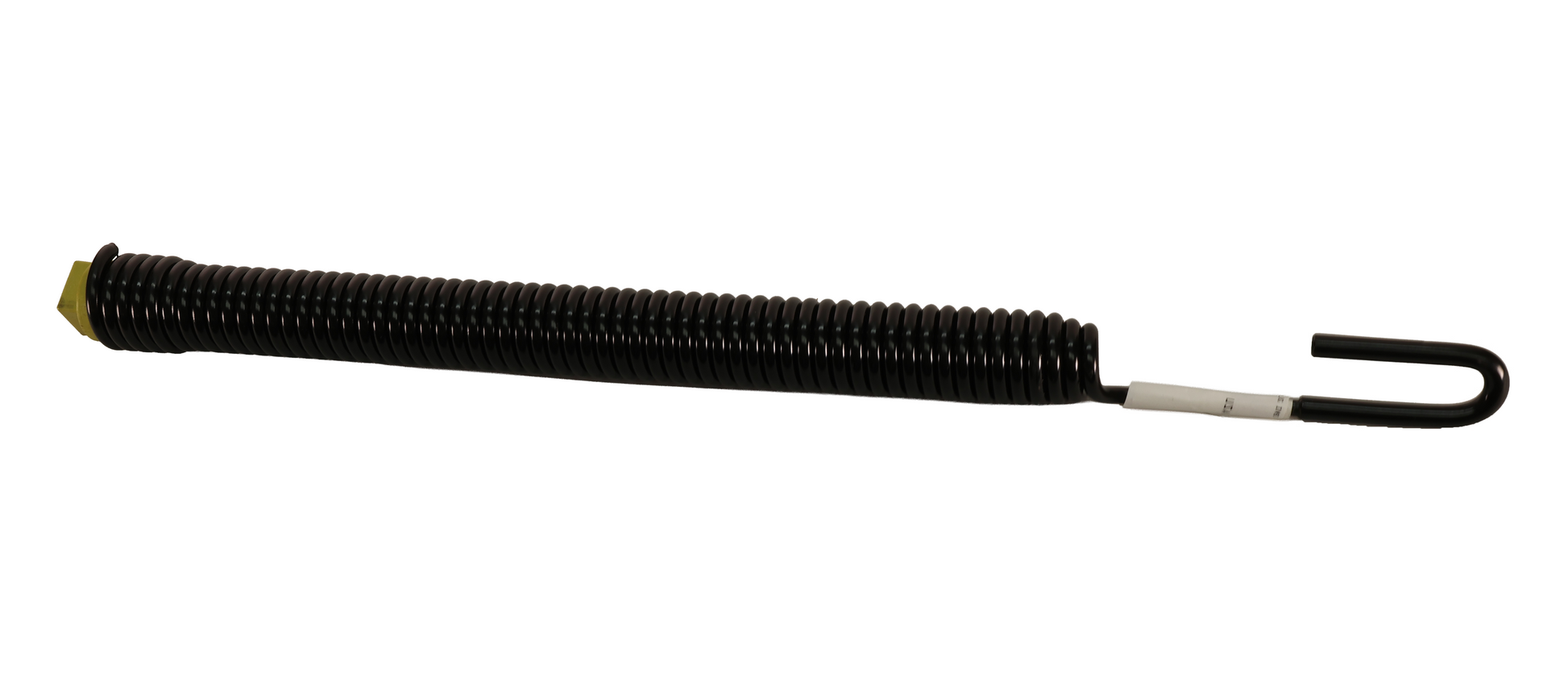

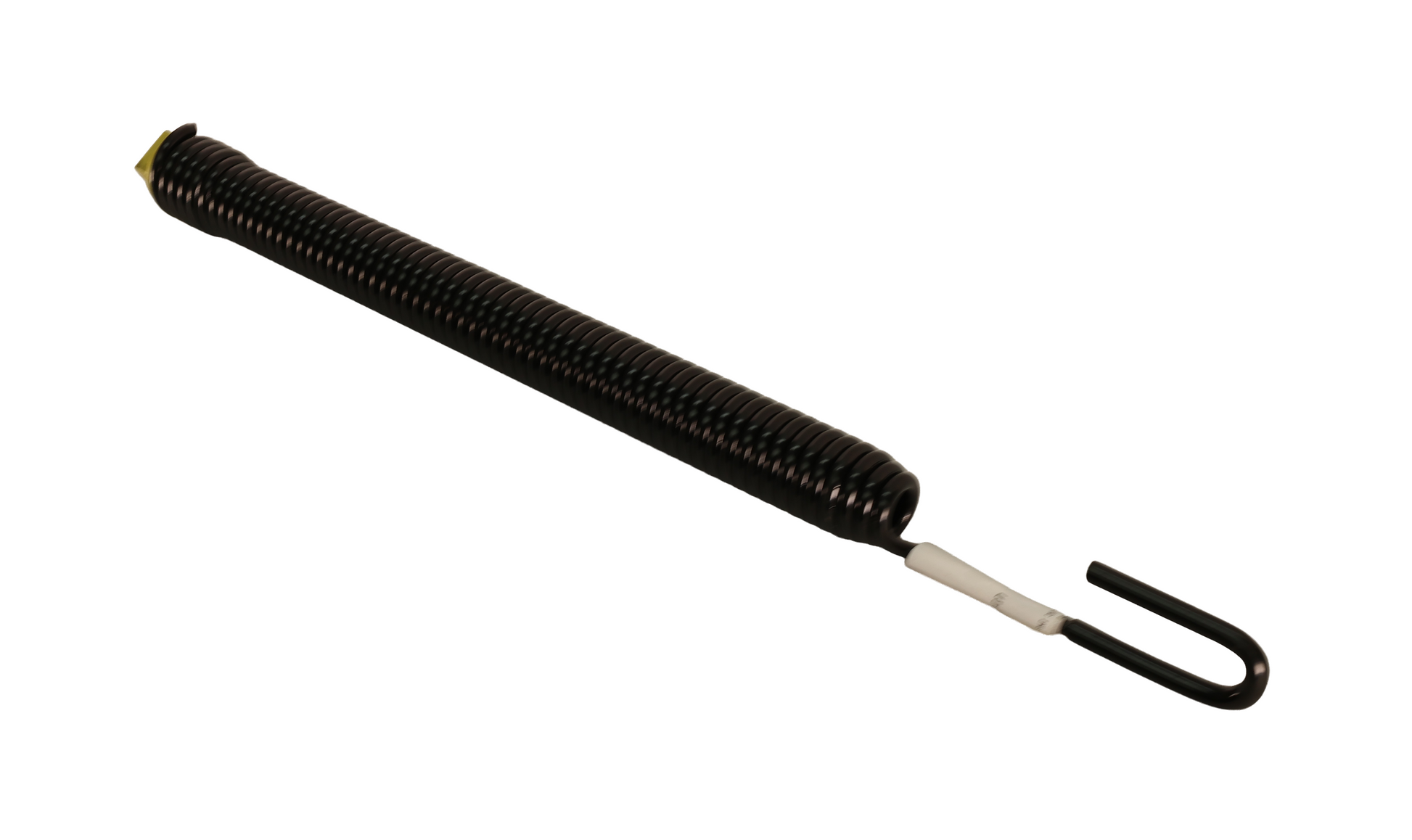

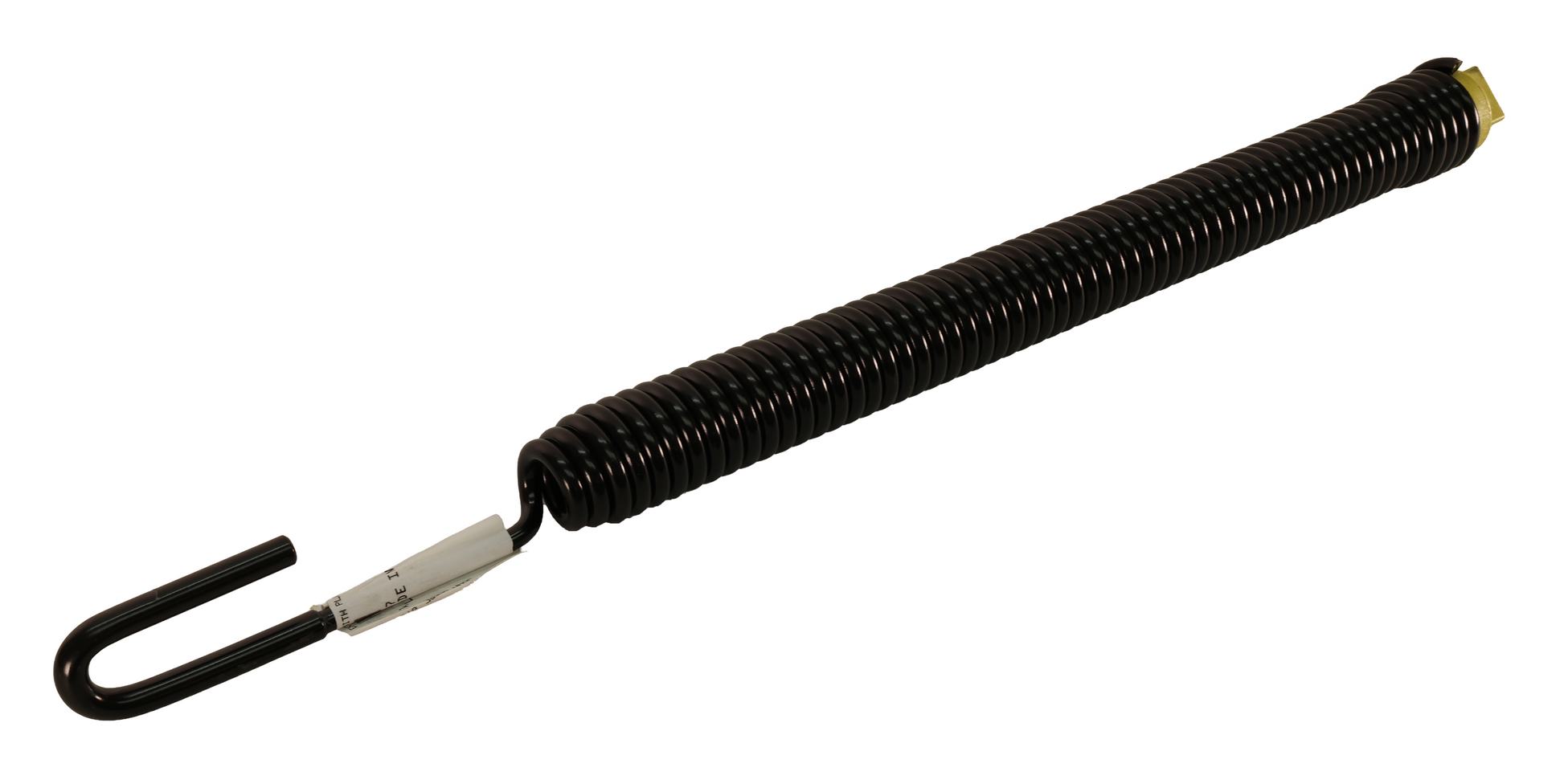

John Deere Original Equipment Extension Spring - AM148007

John Deere Original Equipment Extension Spring - AM148007

Part Specifications:
End Type (ALPHA) 03/06
Wire Diameter (IN) 0.2339
Outside Diameter (IN) 1.2992
Free Length (IN) 19.4488
Spring Rate (LBF/in or N/mm)(LBF/IN) 61.3841
Initial Tension (LBF or N)(LBF) 78.6831
Number of Coils (Unity) 61.5000
Material (ALPHA) A15-11
Finish (ALPHA) K-Painted
Note (A) There is more information on the engineering blue print that is not shown in detail here.

Fits the following John Deere models:
Lawn and Garden Tractor: X330, X350, FS600V, X354, X370, FS651V, X380, X384, FS730V, X570.

This is an O.E.M. John Deere part.
