John Deere Original Equipment Extension - M119576

John Deere Original Equipment Extension - M119576

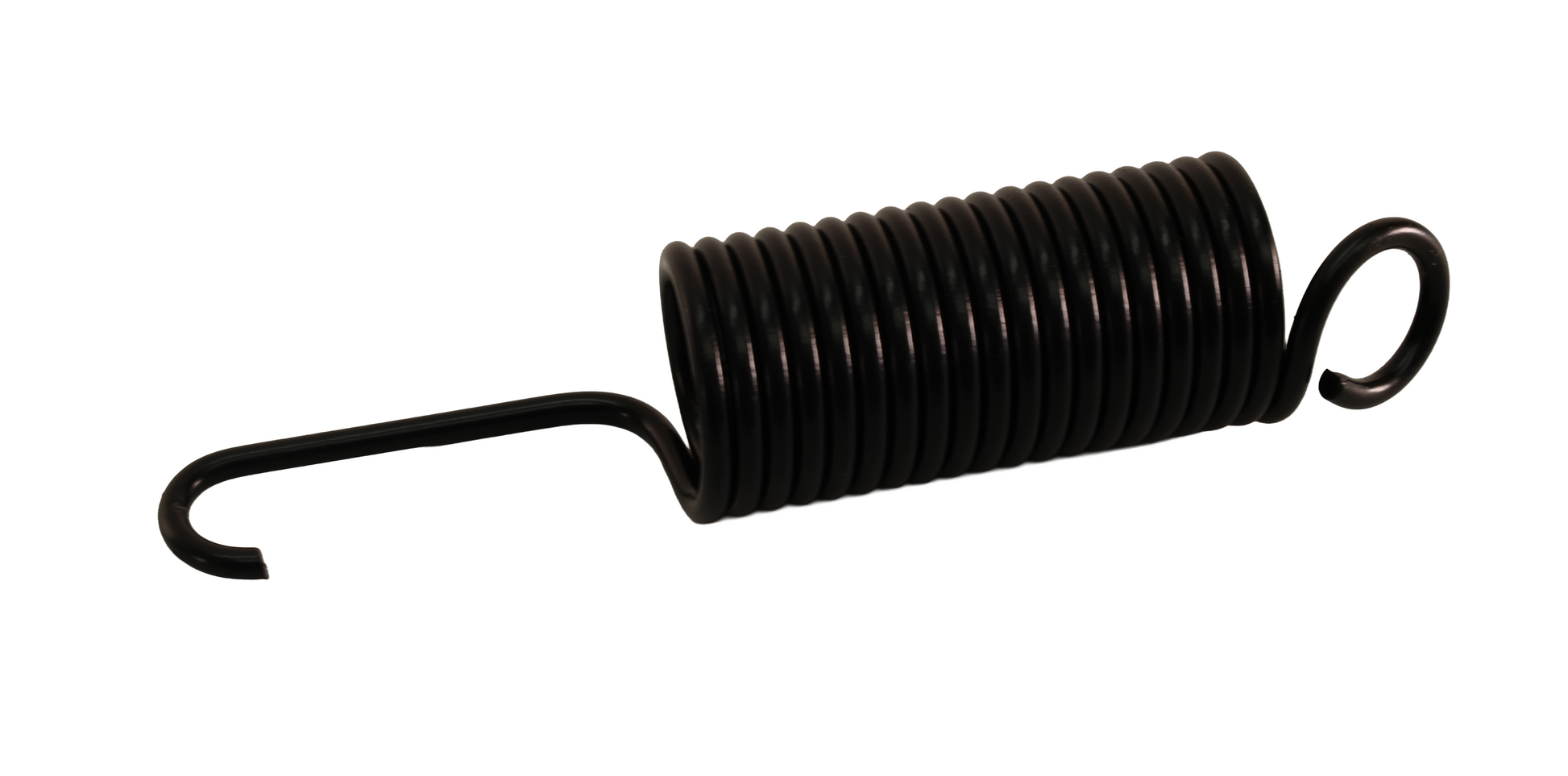

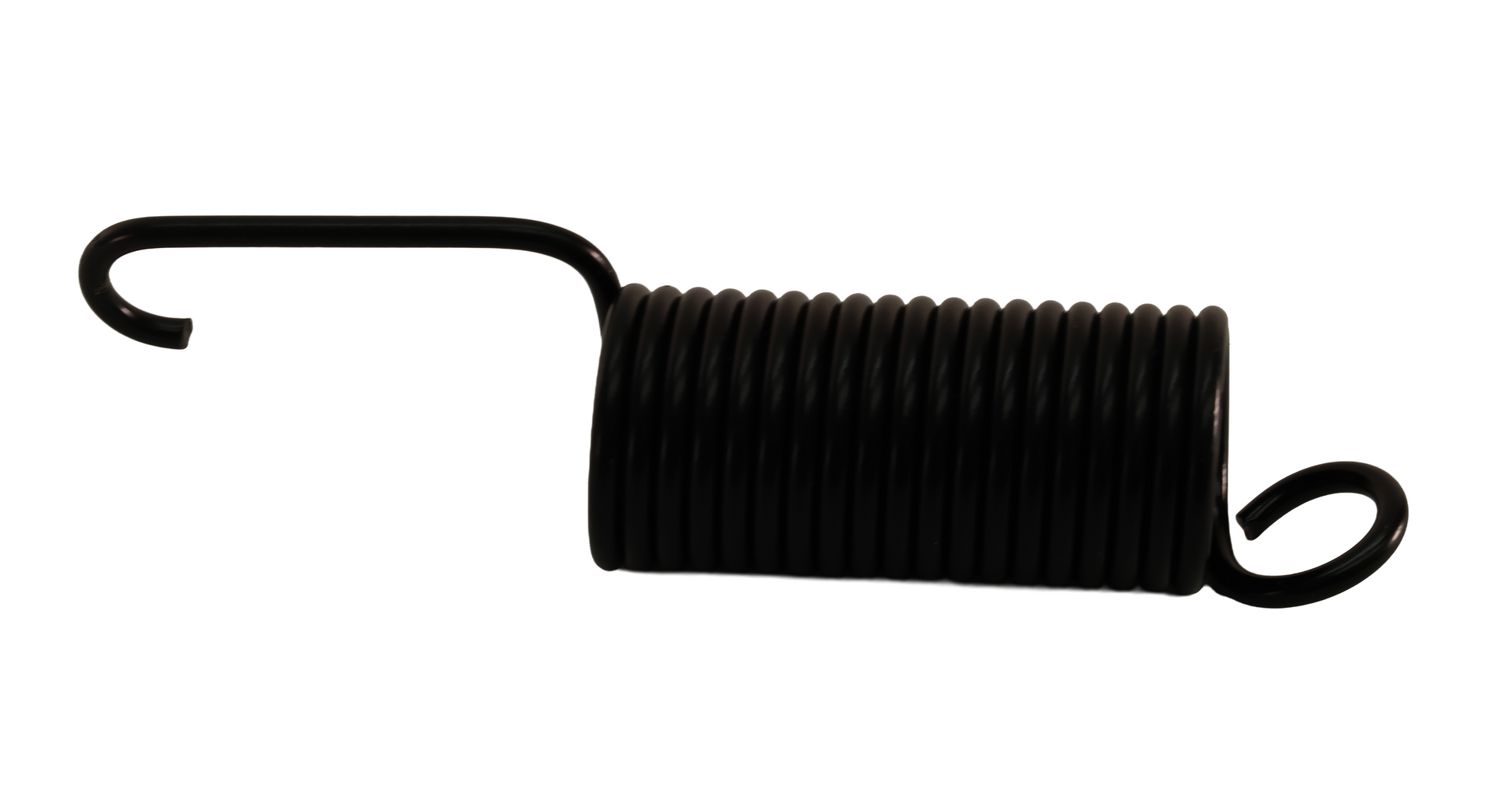

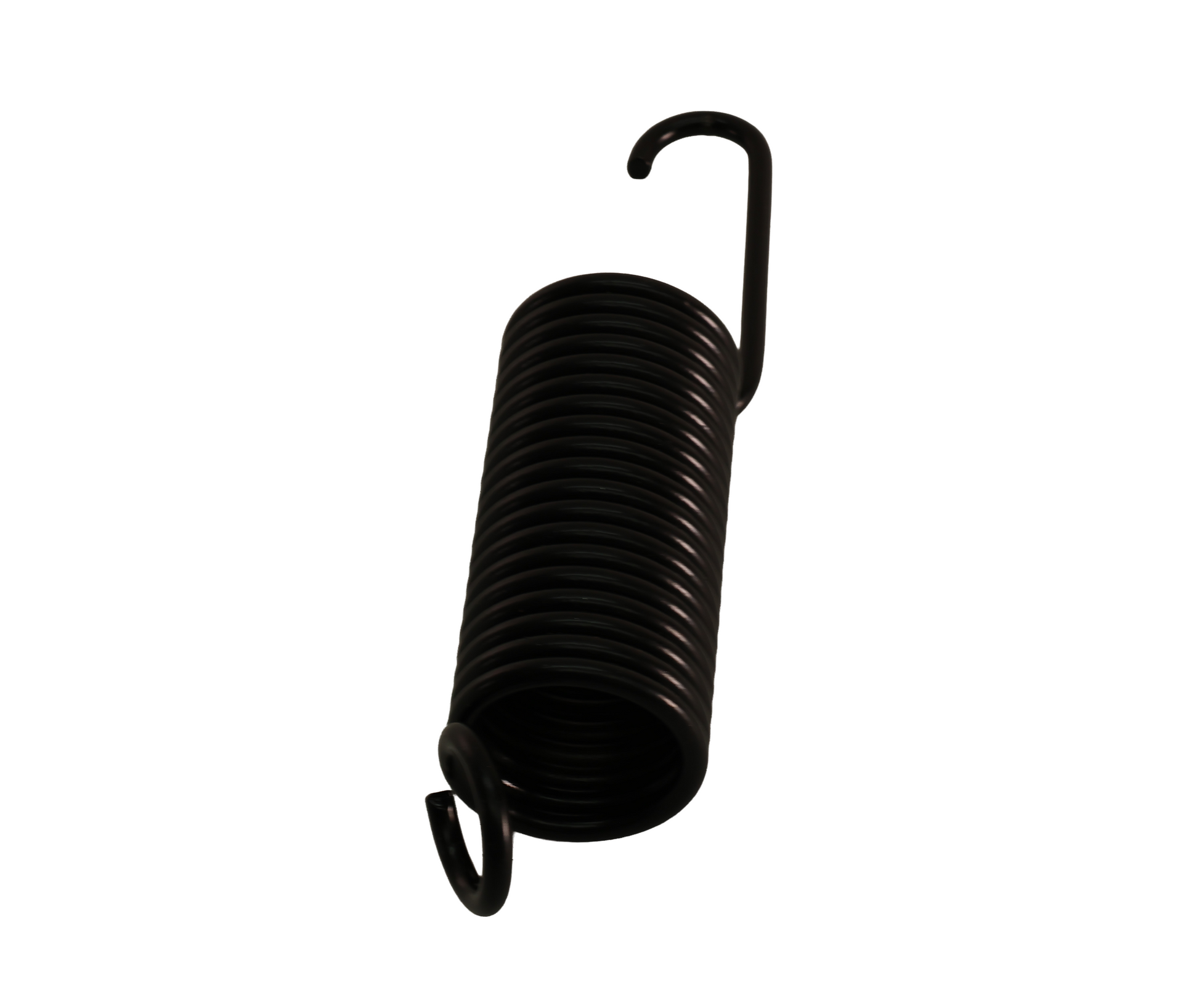

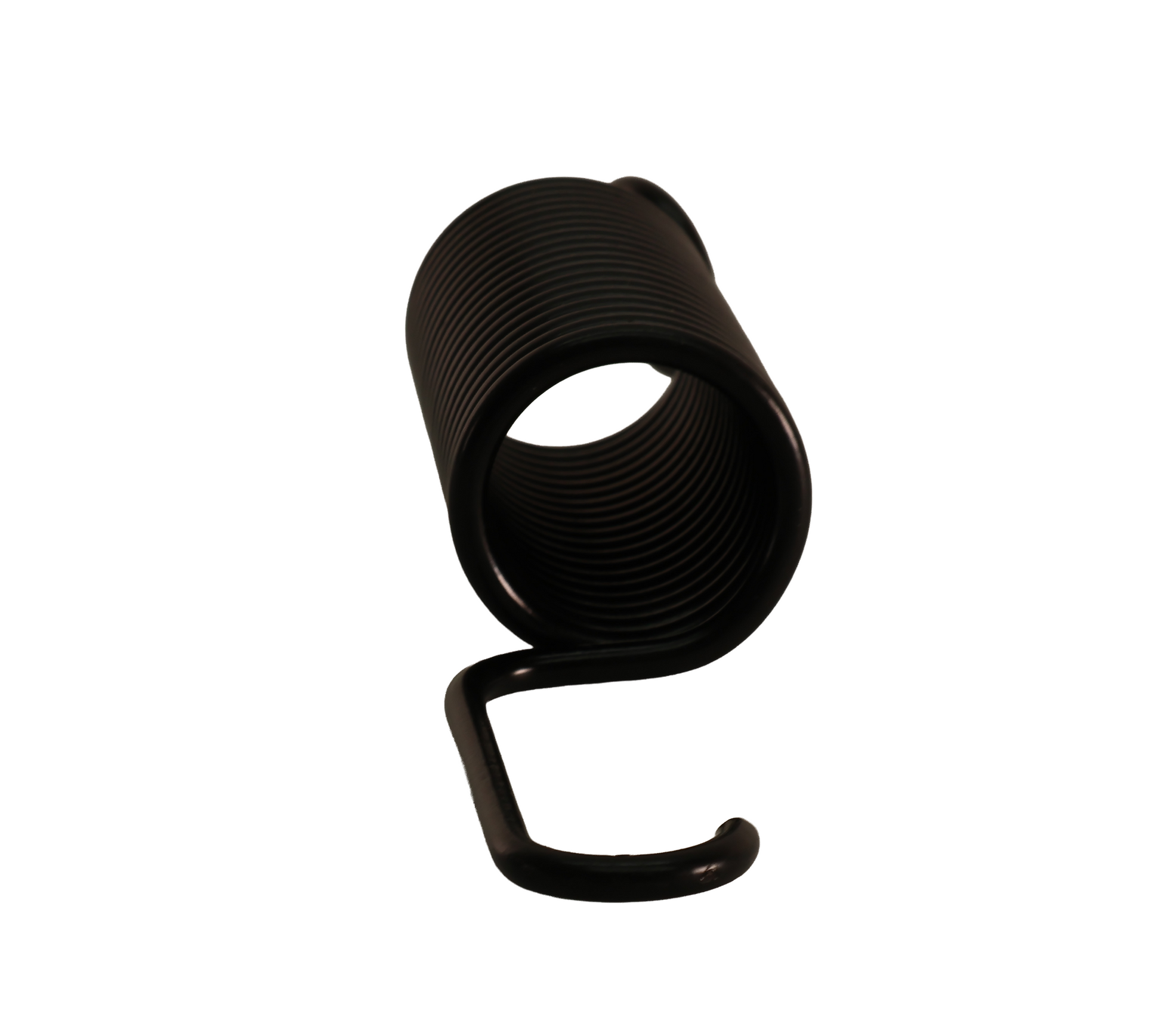

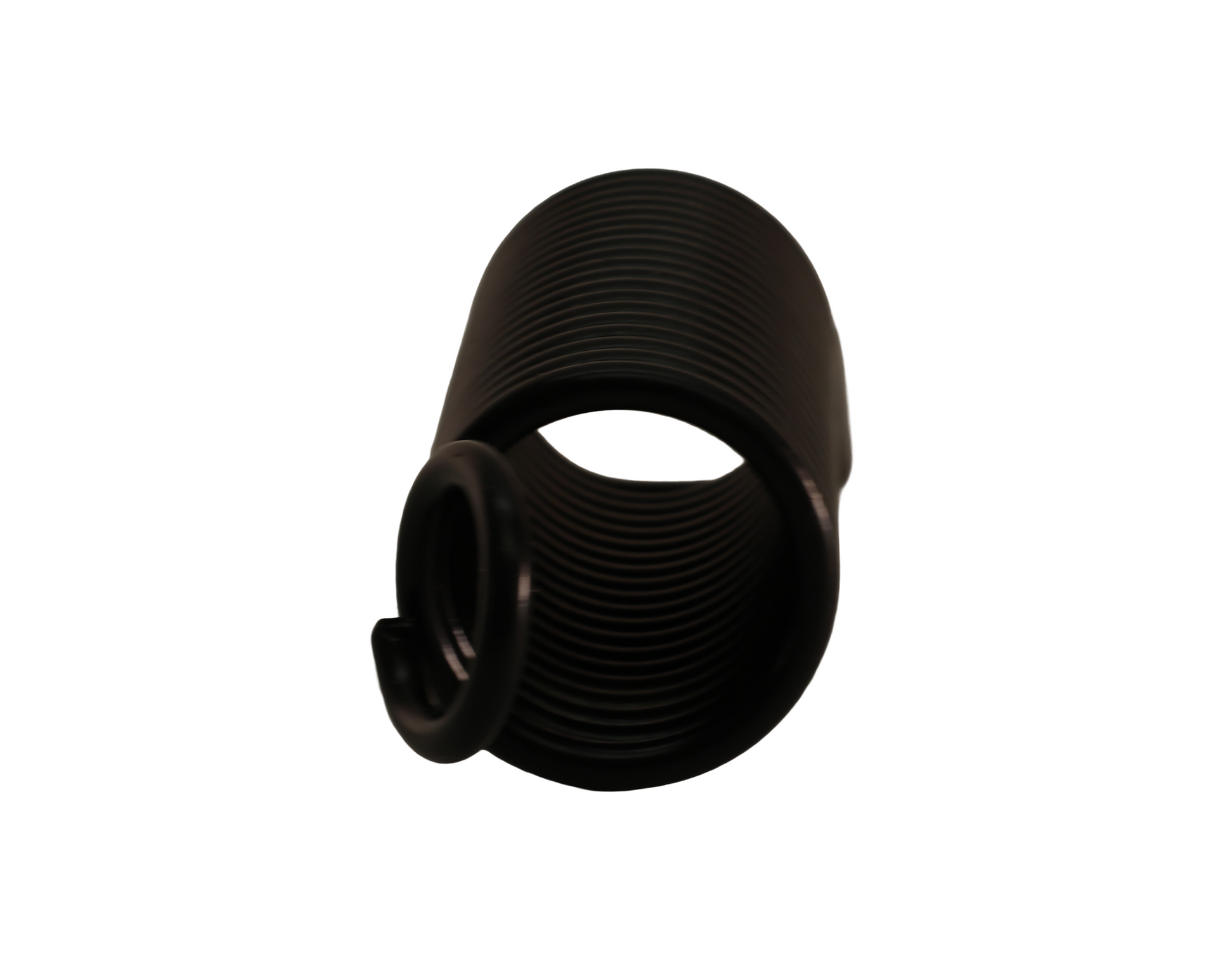

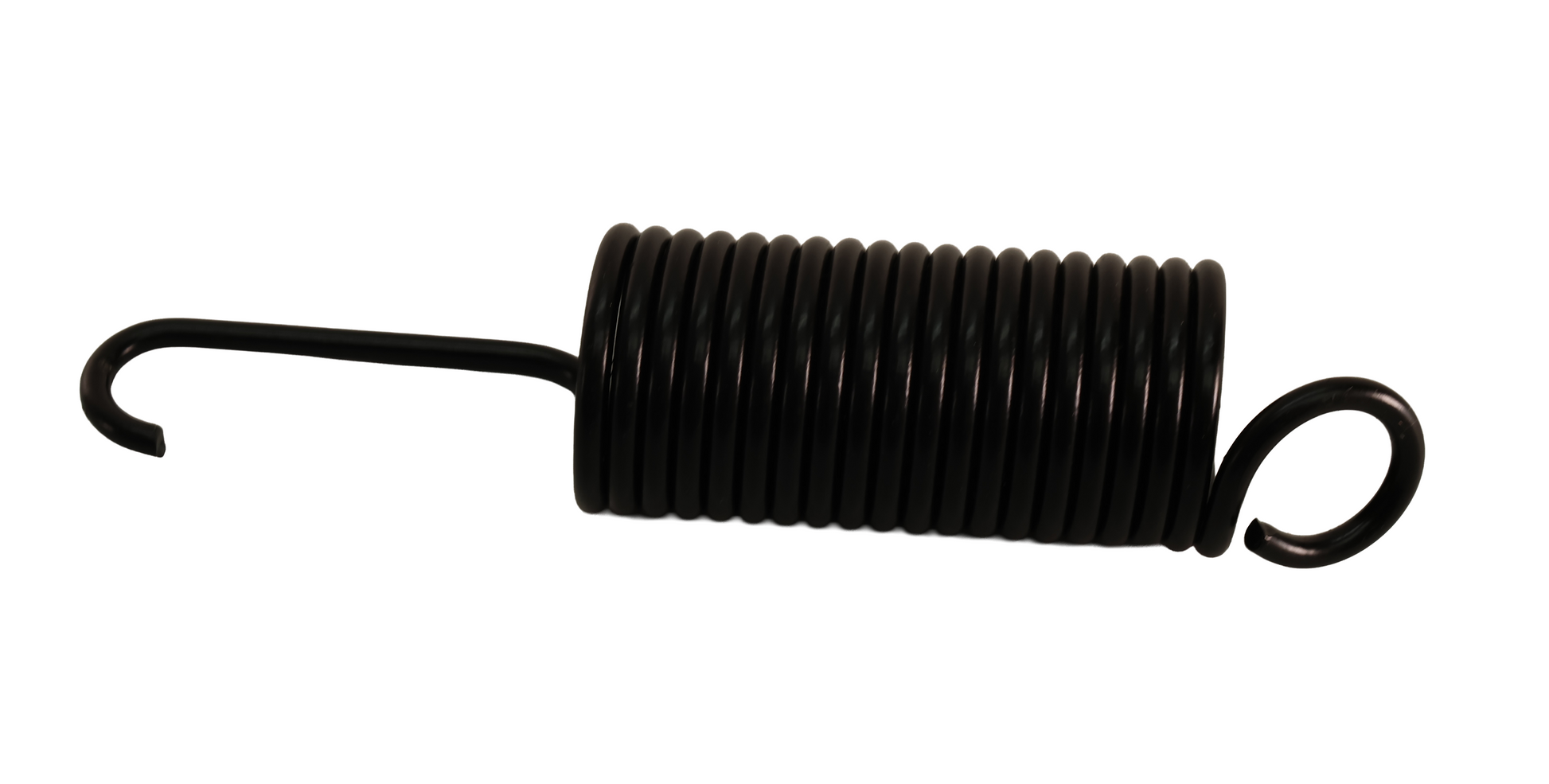

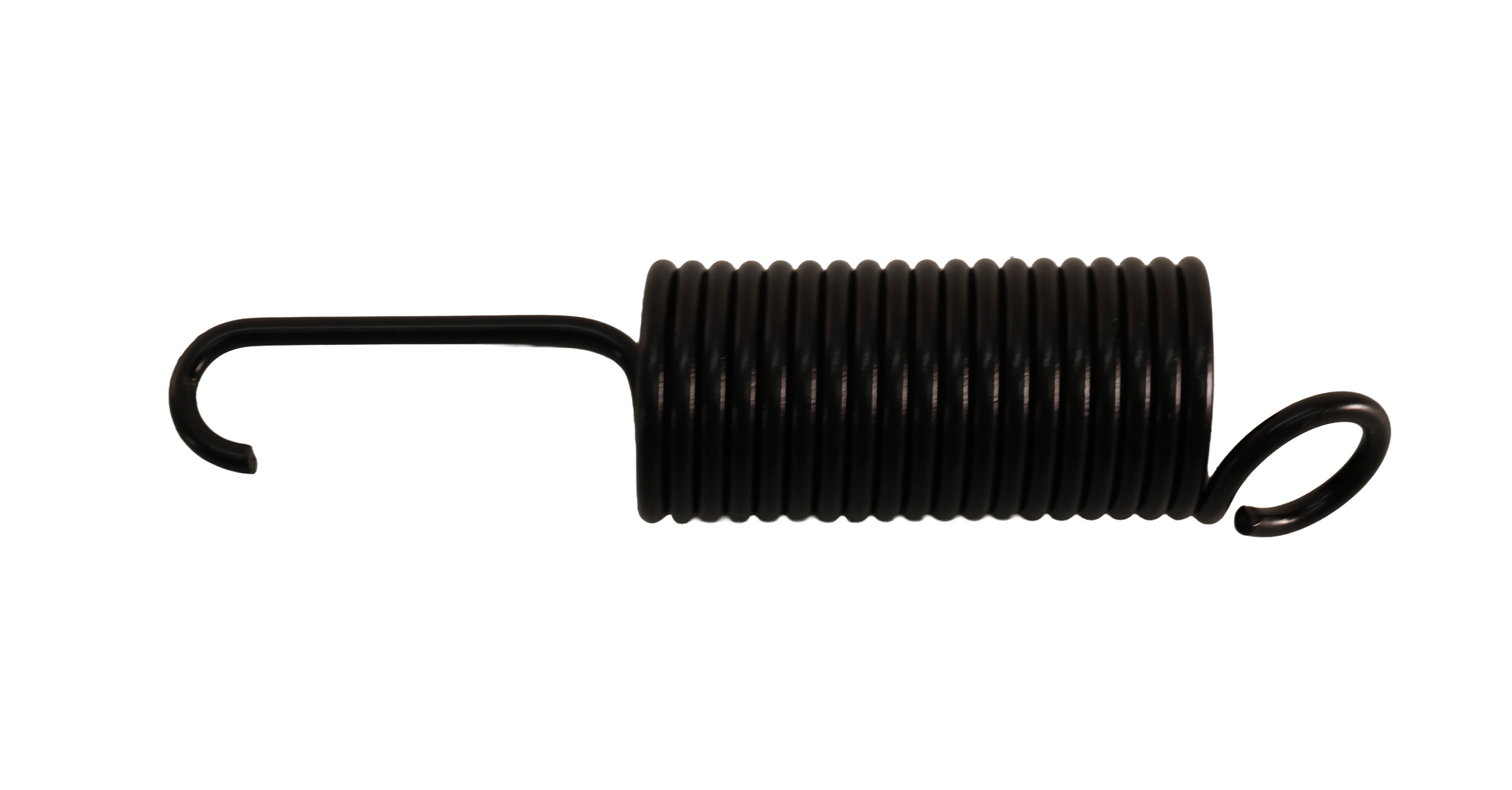

Extension Spring

Part Specifications
End Type (ALPHA) 01/03
Wire Diameter (IN) 0.1480
Outside Diameter (IN) 1.3480
Free Length (IN) 5.9449
Spring Rate (LBF/in or N/mm) (LBF/IN) 21.0133
Initial Tension (LBF or N) (LBF) 11.9149
Number of Coils (UNITY) 19.0000
Material (ALPHA) A15-7
Finish (ALPHA) K-Painted

Fits the following John Deere models:
Lawn and Garden Tractor: GT242, GT262, GT275, LX172, LX173, LX176, LX178, LX186, LX188, 1842GV, 1842HV, 1848GV, 1848HV.
Mower Deck and Power Flow Blower Attachment: 325, 335, 345, 355D, 38, 42, 44, 48, 54, 38, 42C, 42, 44, 48, 48C, 54C, 54.

This is an O.E.M. John Deere part.
