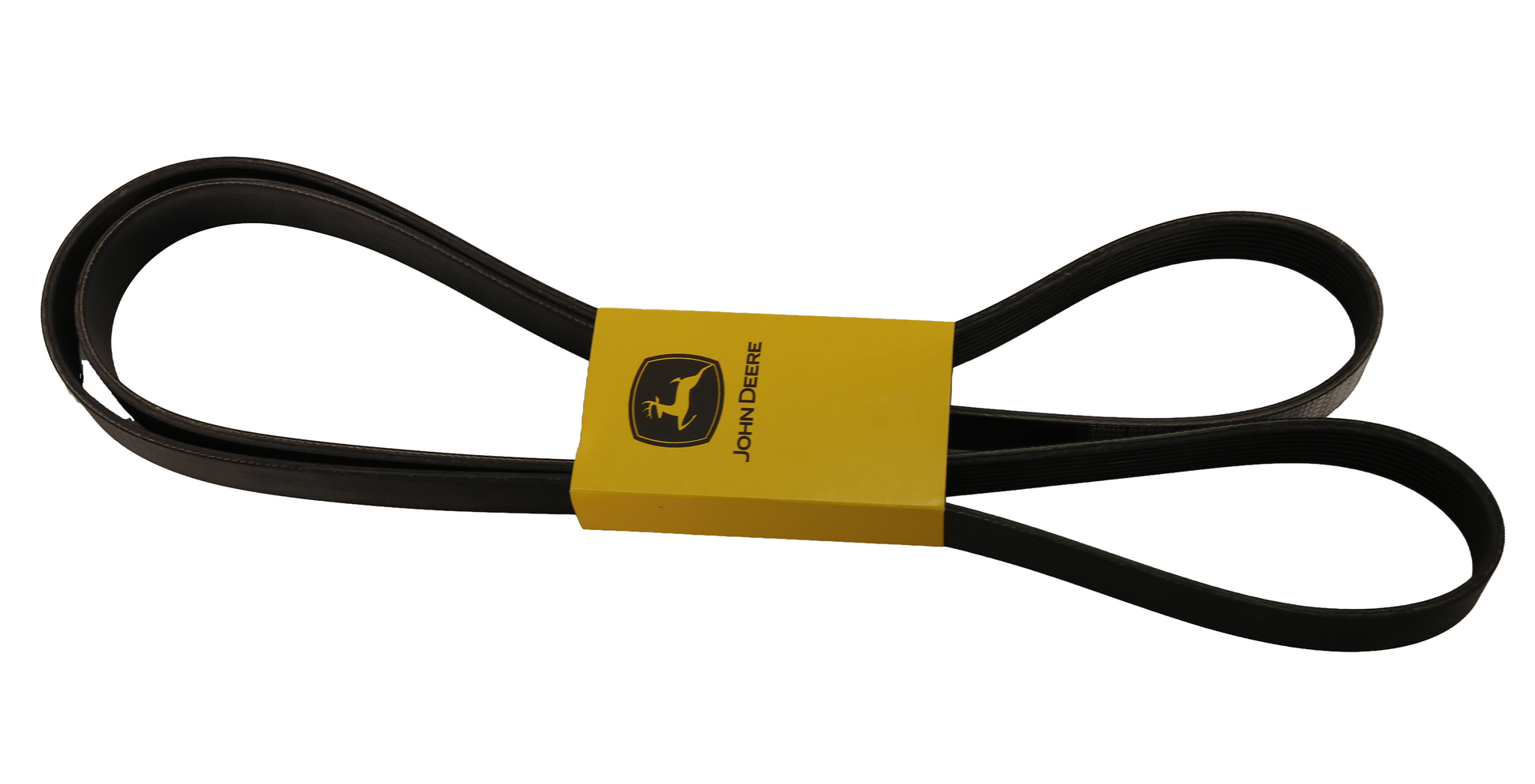

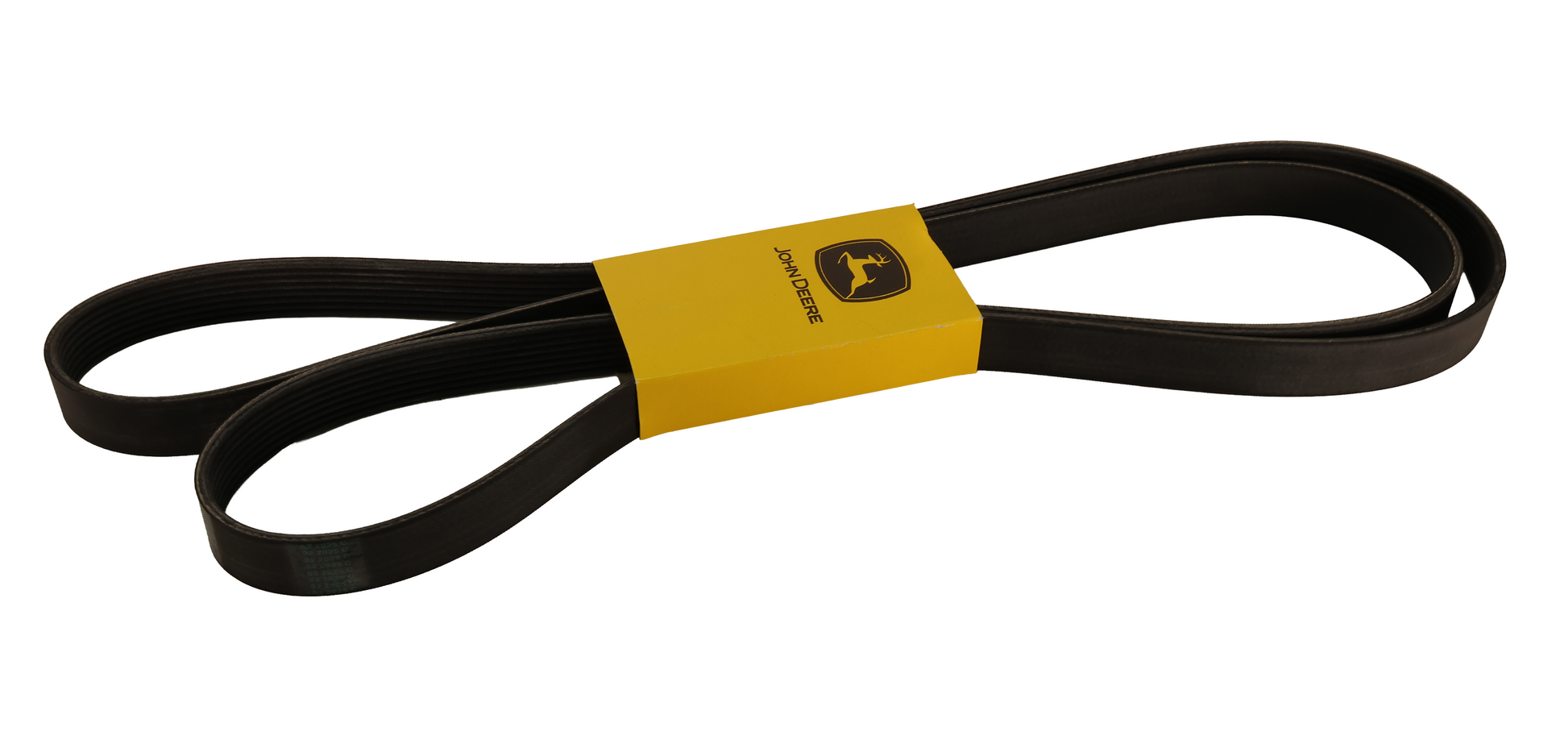

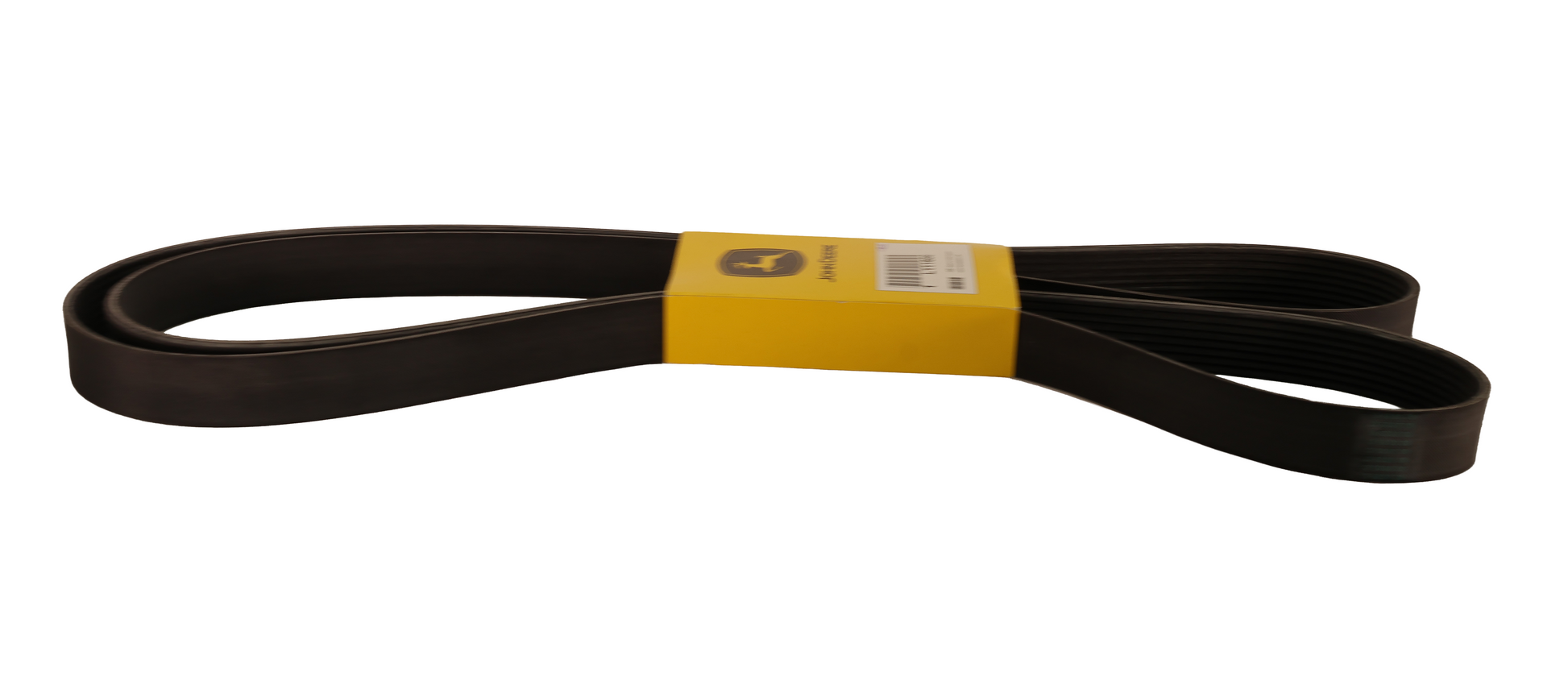

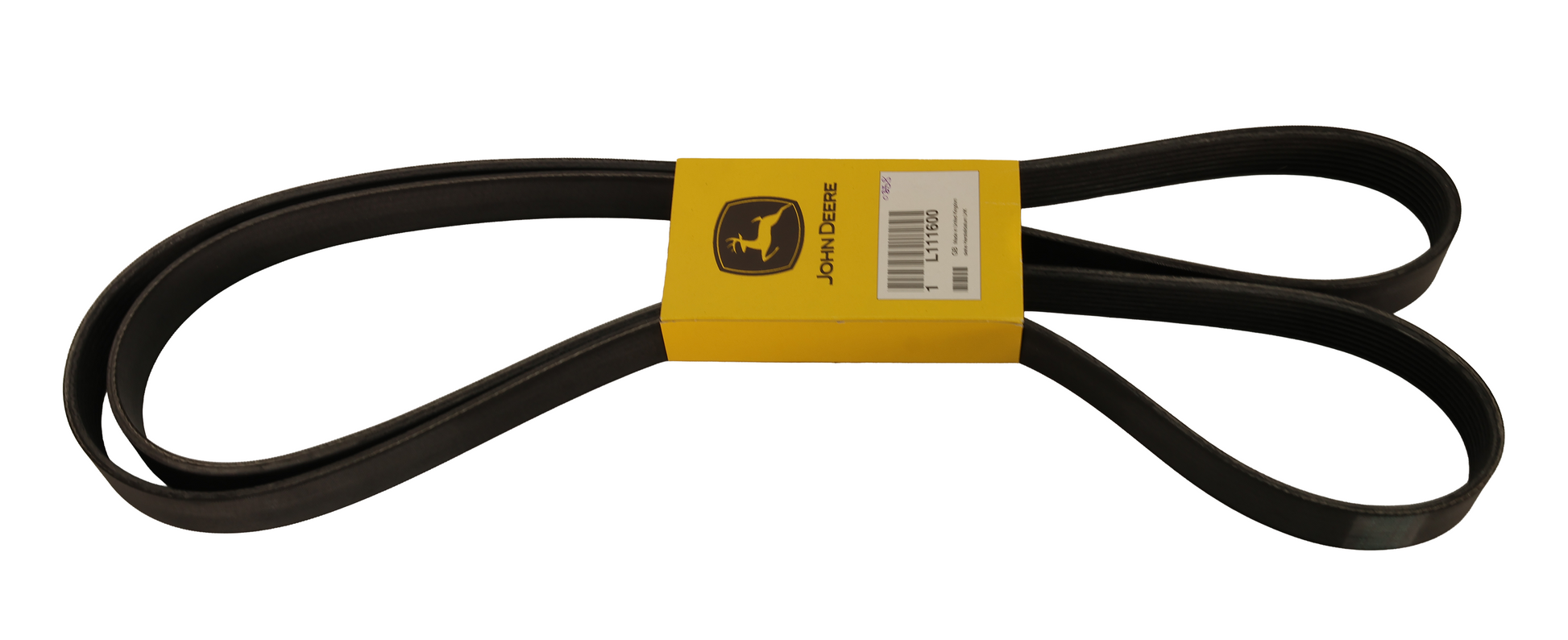

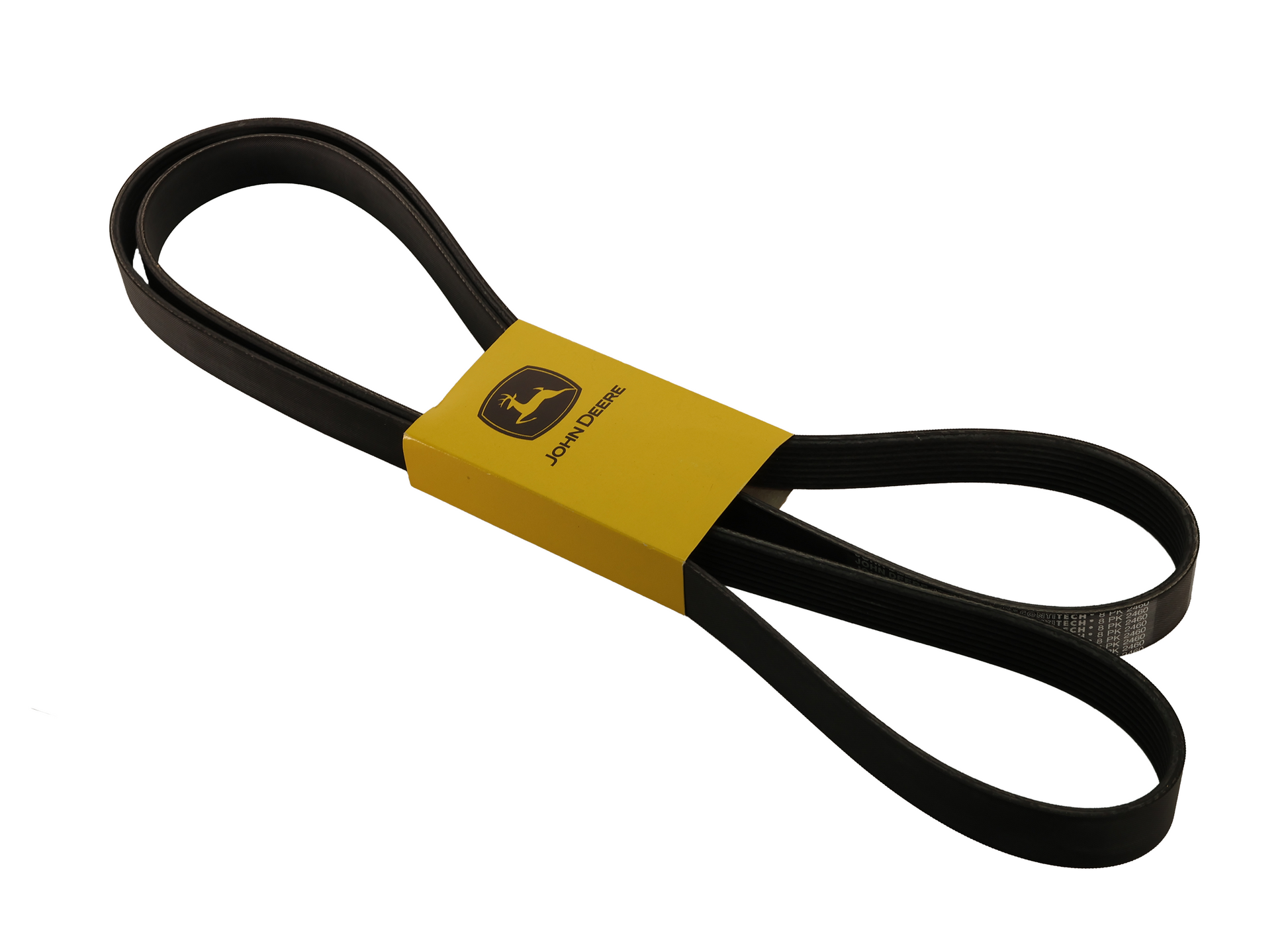

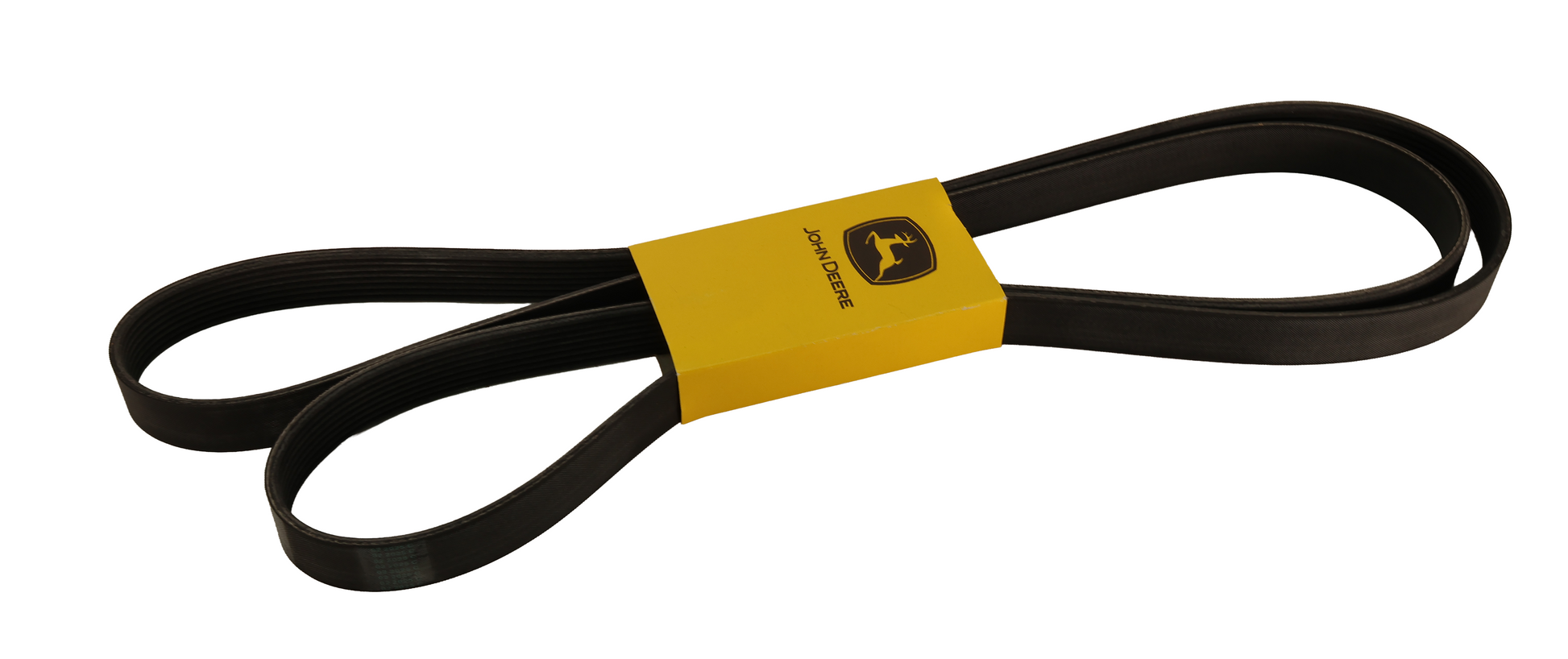

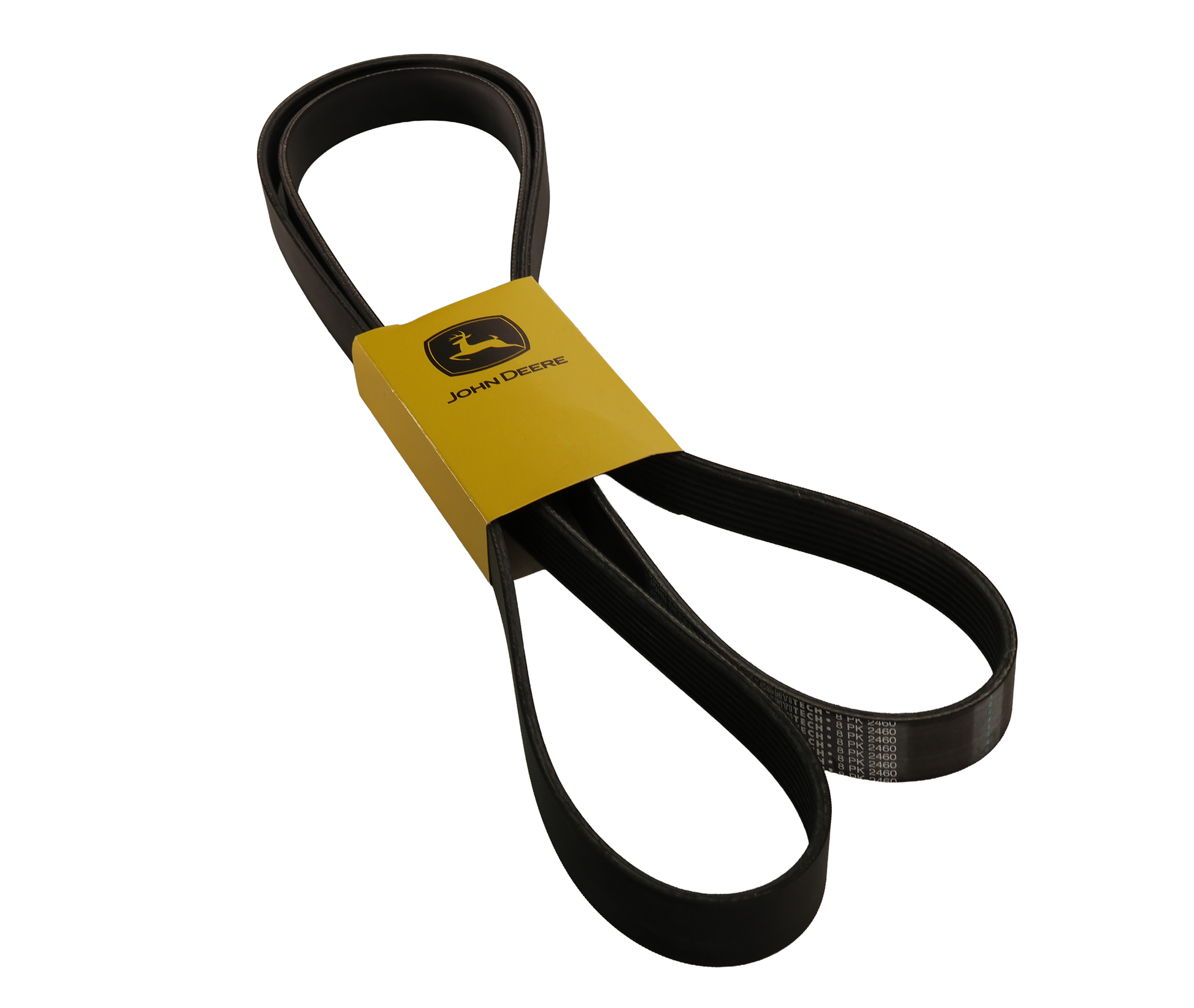

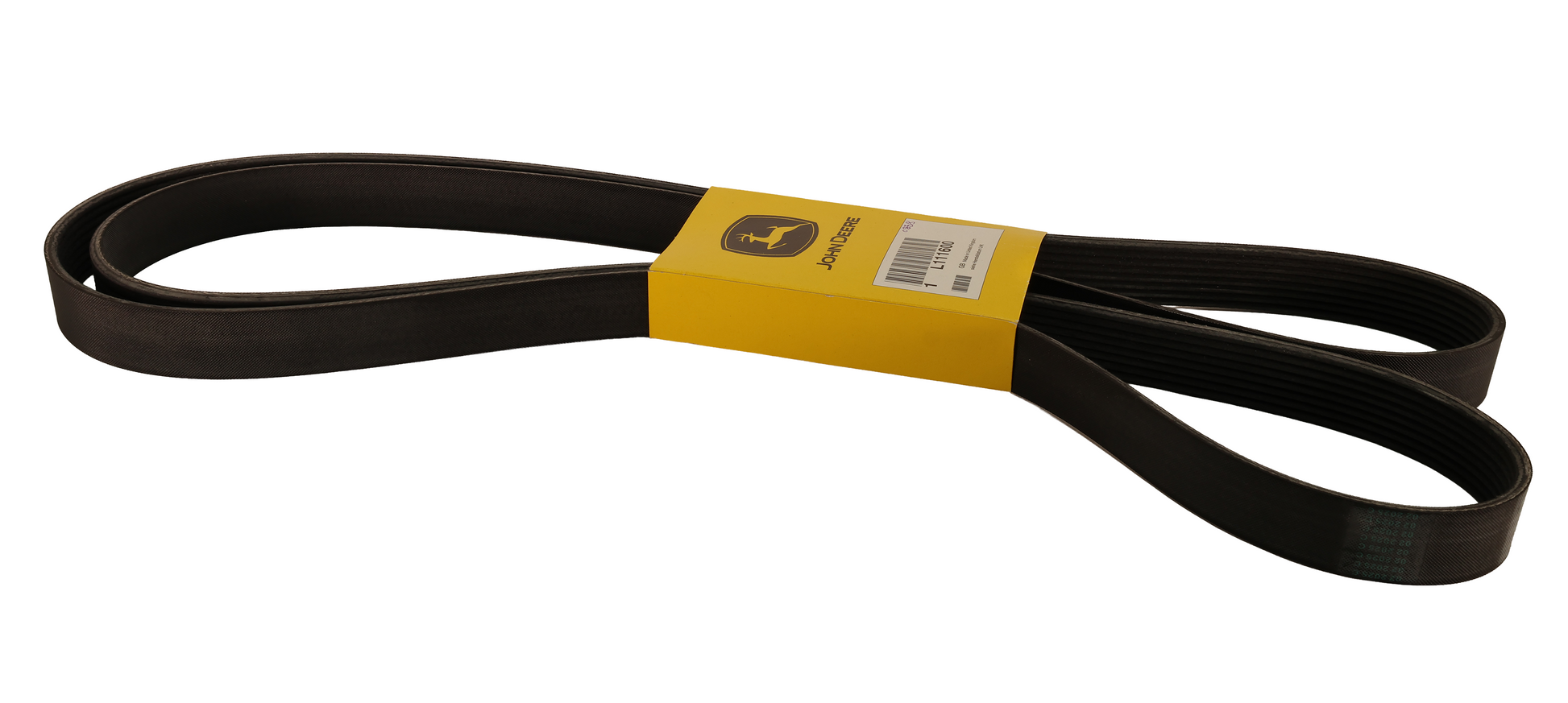

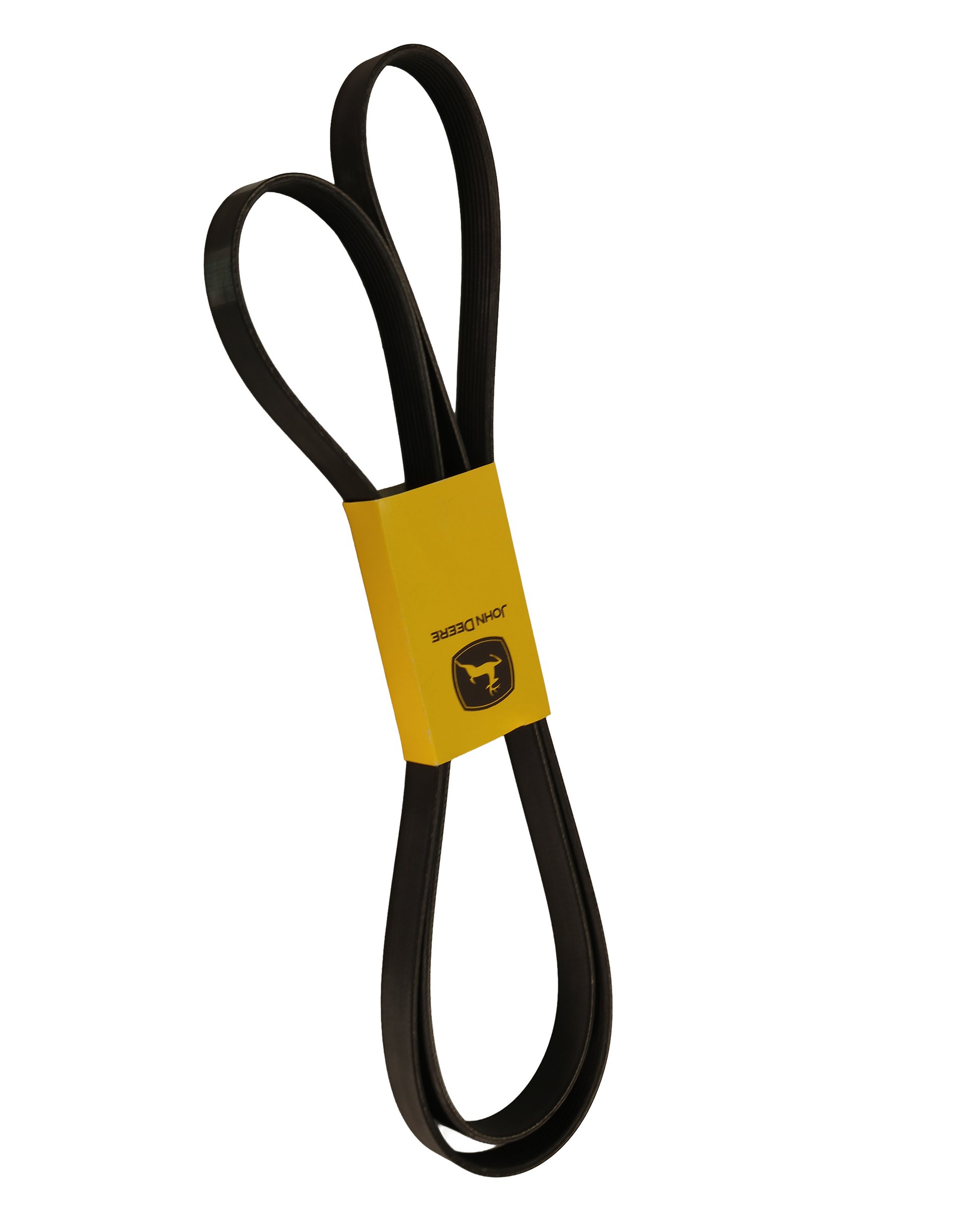

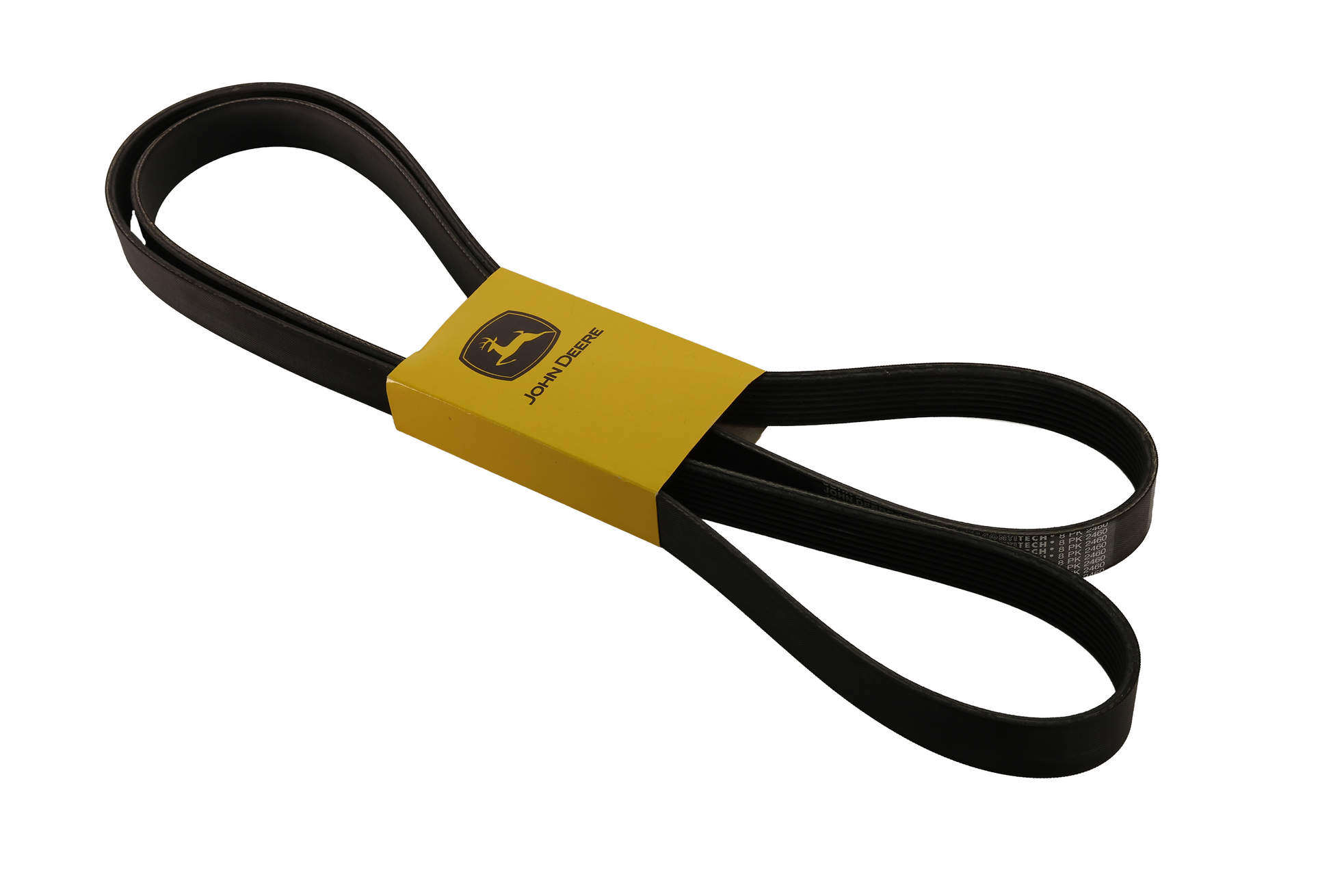

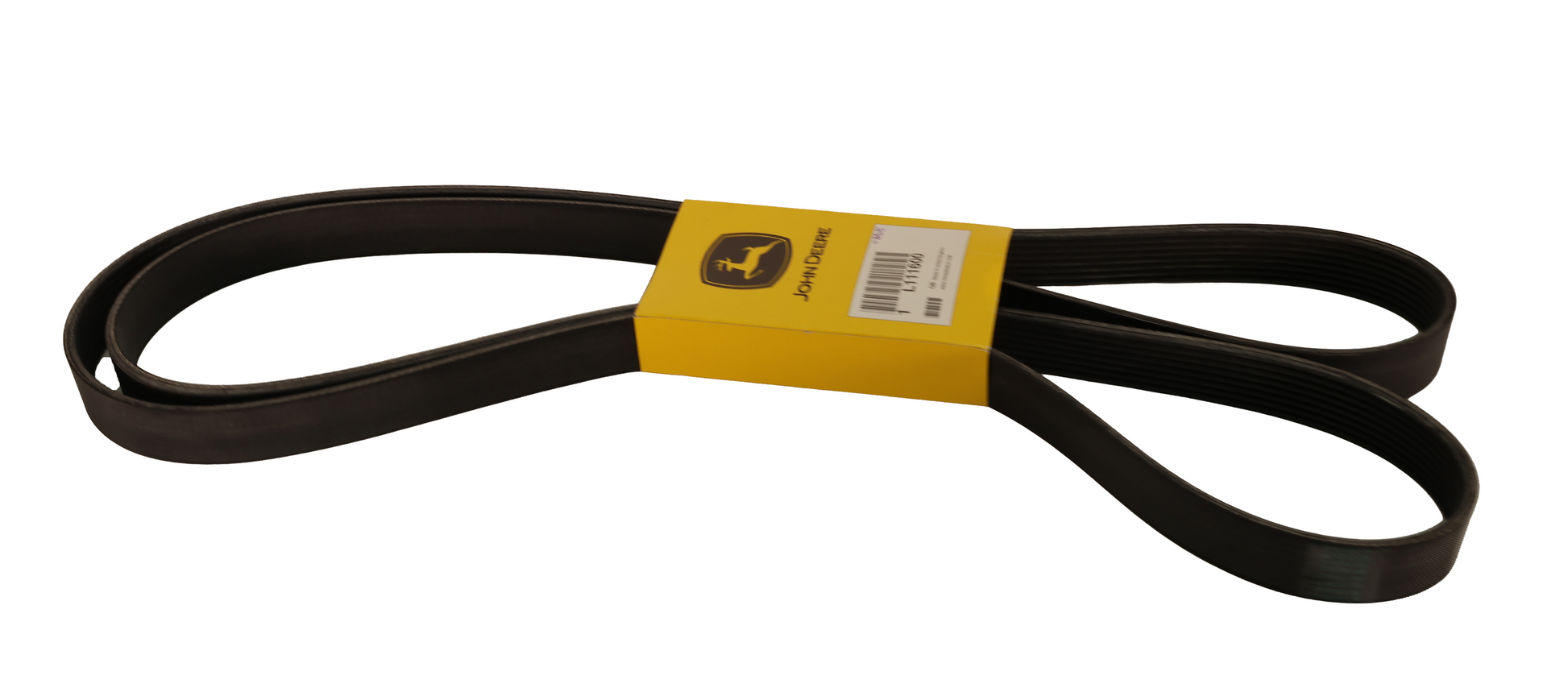

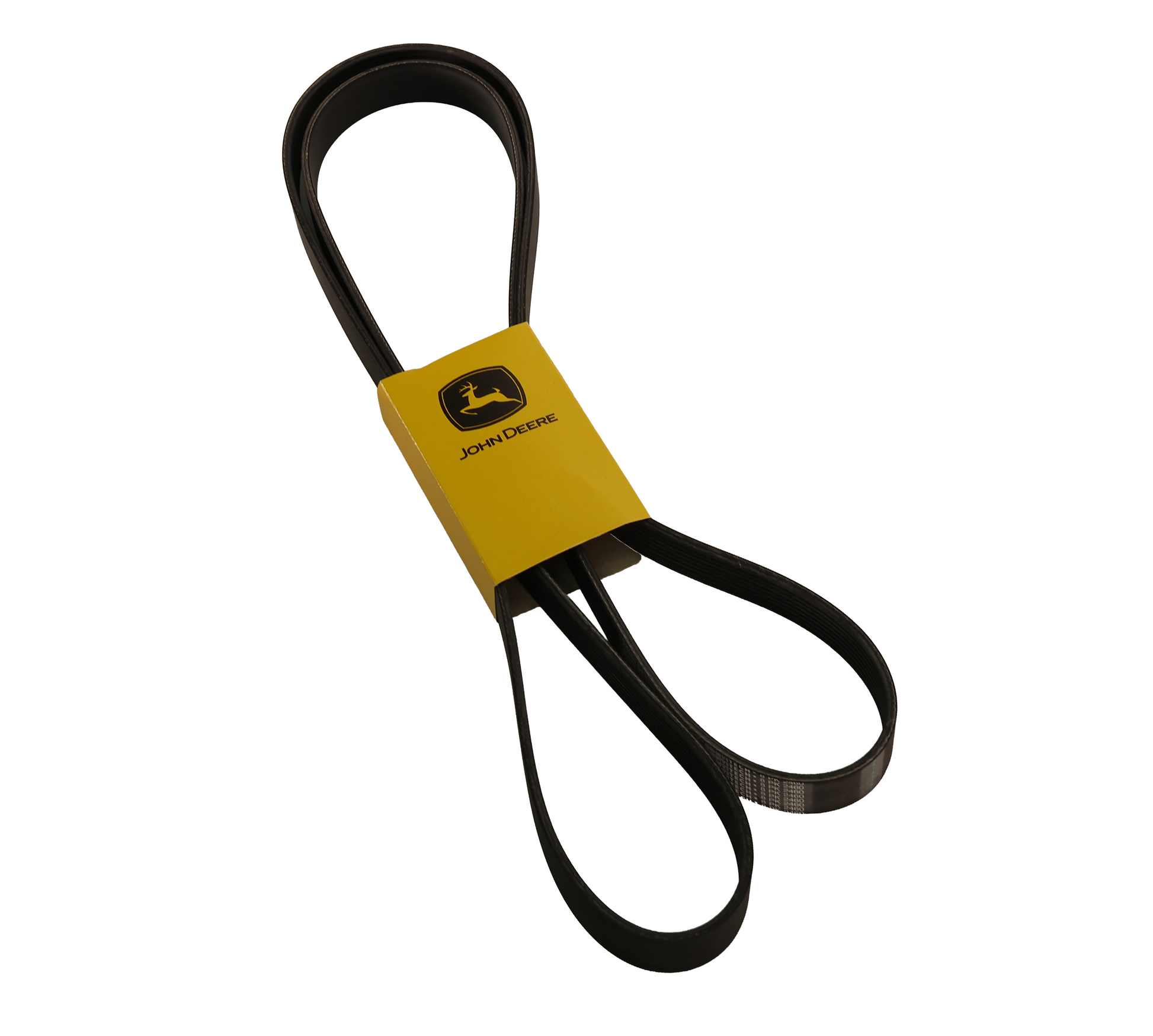

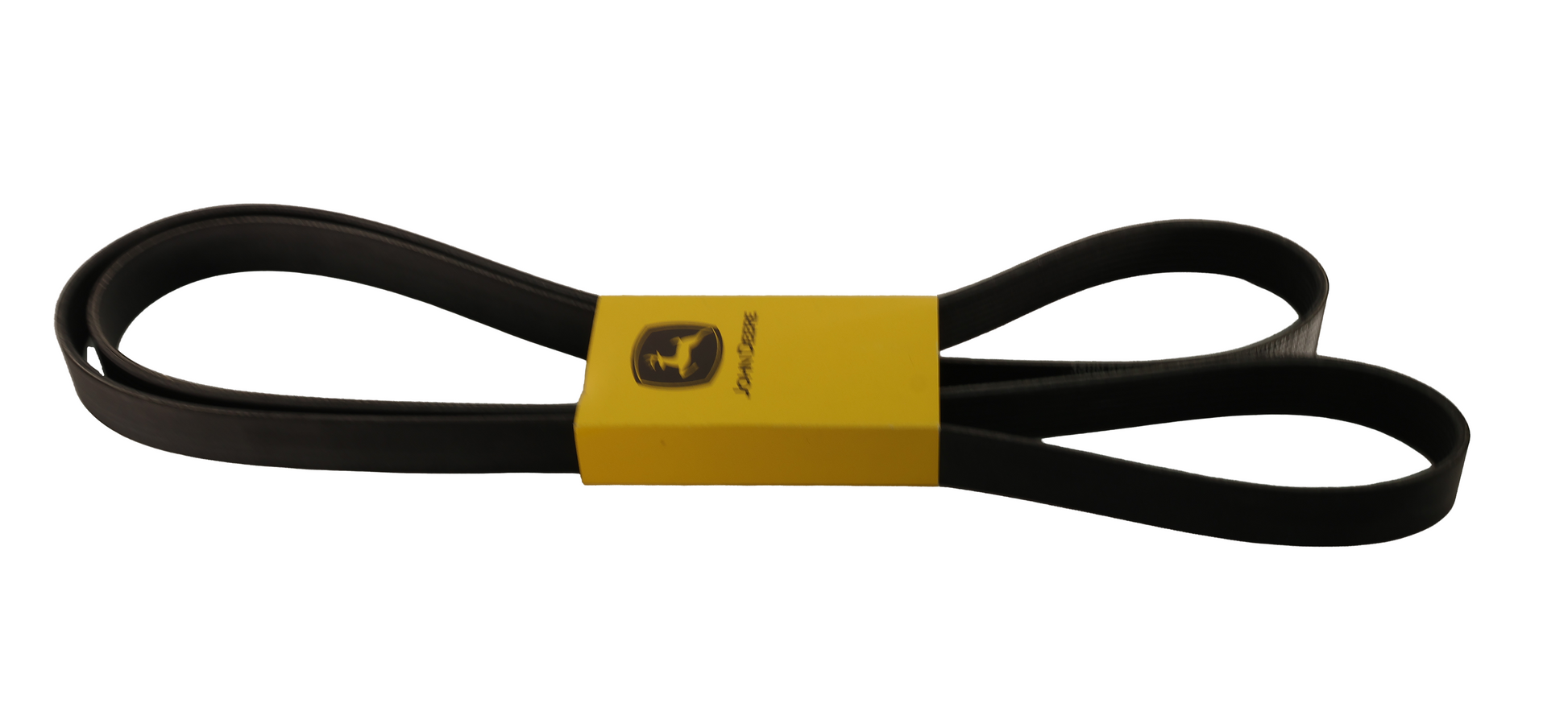

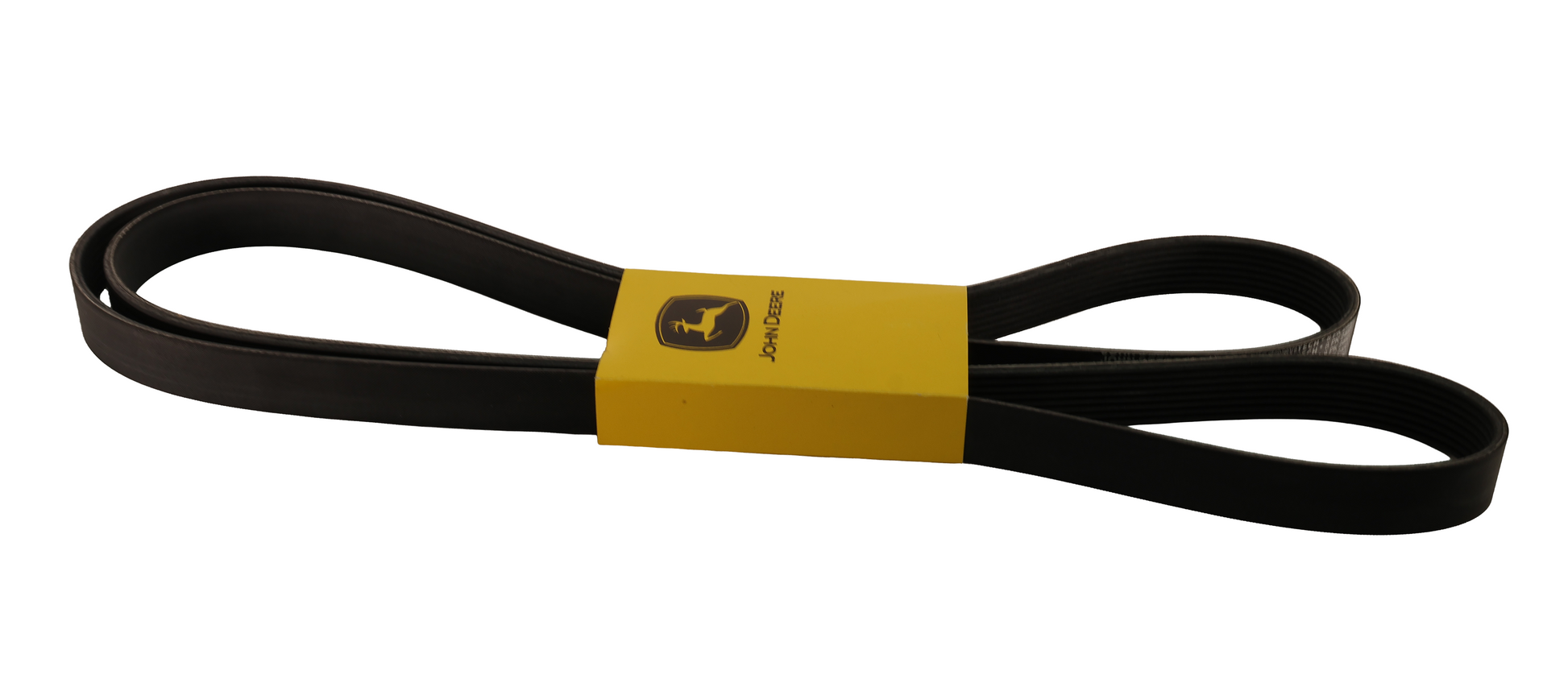

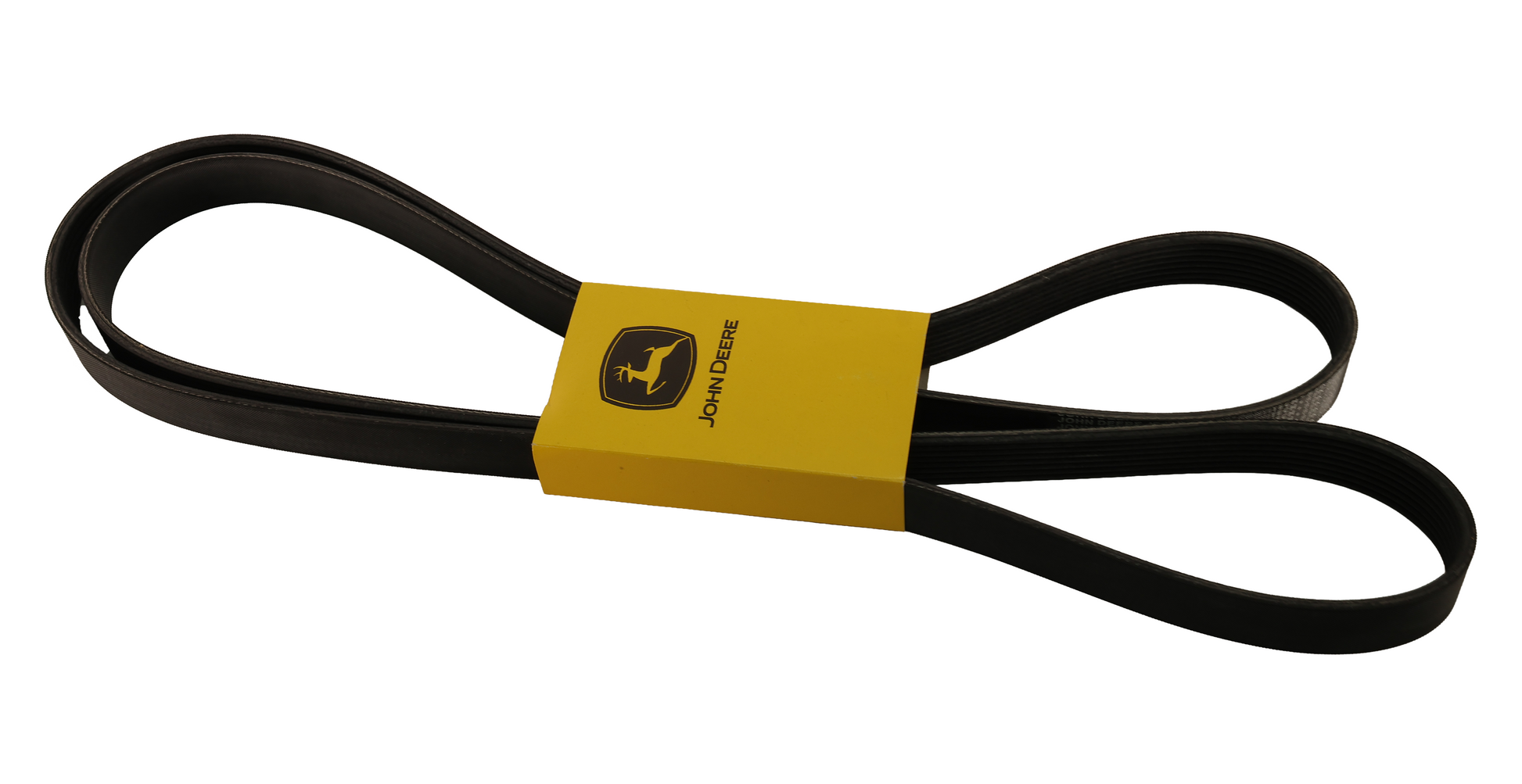

John Deere Original Equipment Engine Drive V-Belt - L111600

John Deere Original Equipment Engine Drive V-Belt - L111600

PK Section Engine Auxiliary Drive V-Belt, Effective Length 2460mm (96.9 inch)

Part Specifications:
Belt Section (ALPHA) PK
Effective Length (MM) 2460.0000
Number of Ribs (Unity) 8.0000
Width (MM) 28.4800
Thickness (MM) 5.0000
Angle (ALPHA) 40
Material Spec (ALPHA) RBRTE
Note (A) There is more information on the engineering blue print that is not shown in detail here.

Fits the following John Deere models:
Tractor: 6110, 6210, 6310, 6410, 6230, 6310S, 6410S, 6510S, 6405, 6430 Premium, 6605, 7220, 7320, 7230 Premium, 7230, 6120B, 6135B, 6140B,
Harvester: 1070D, 970D.

This is an O.E.M. John Deere part.
