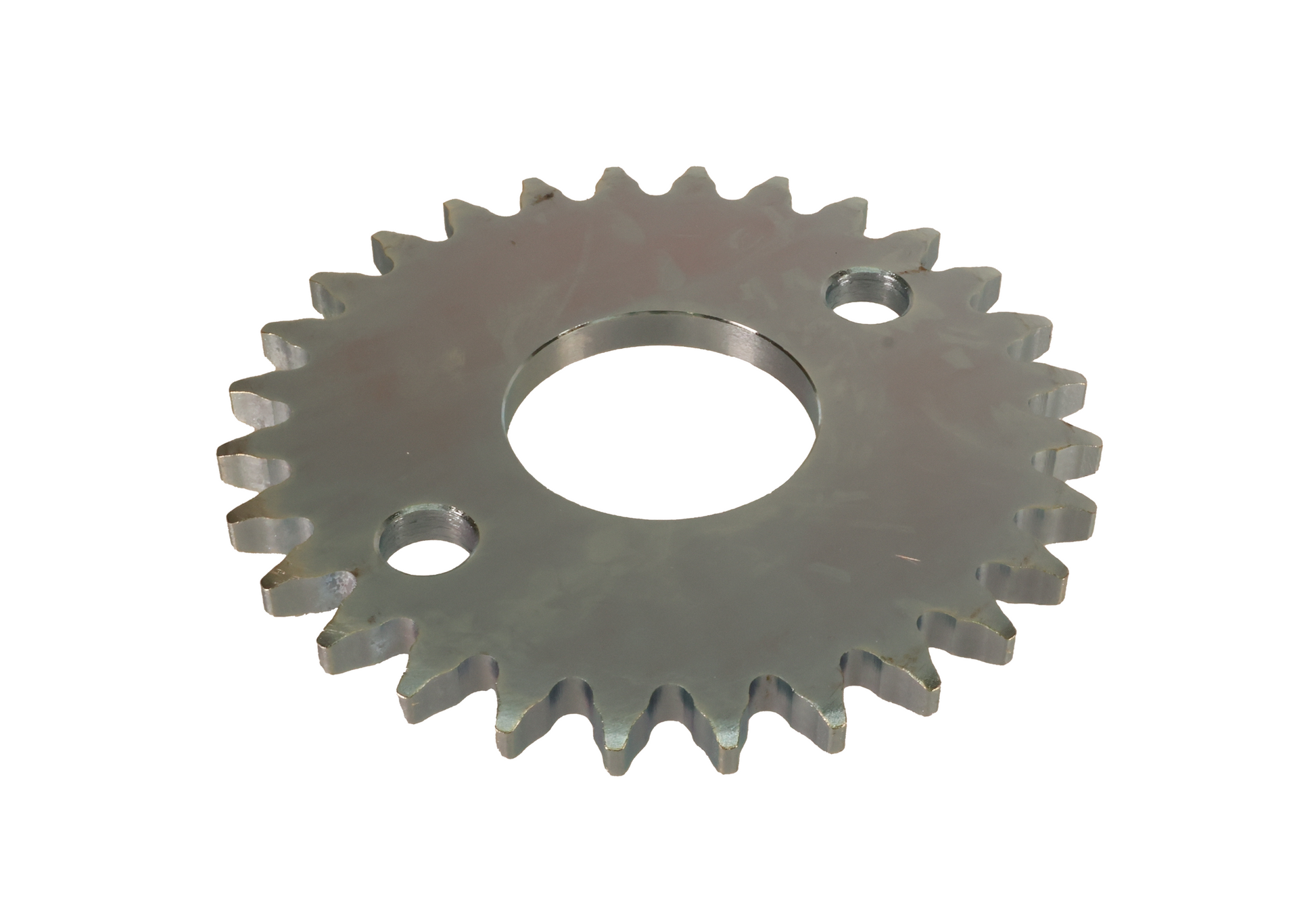

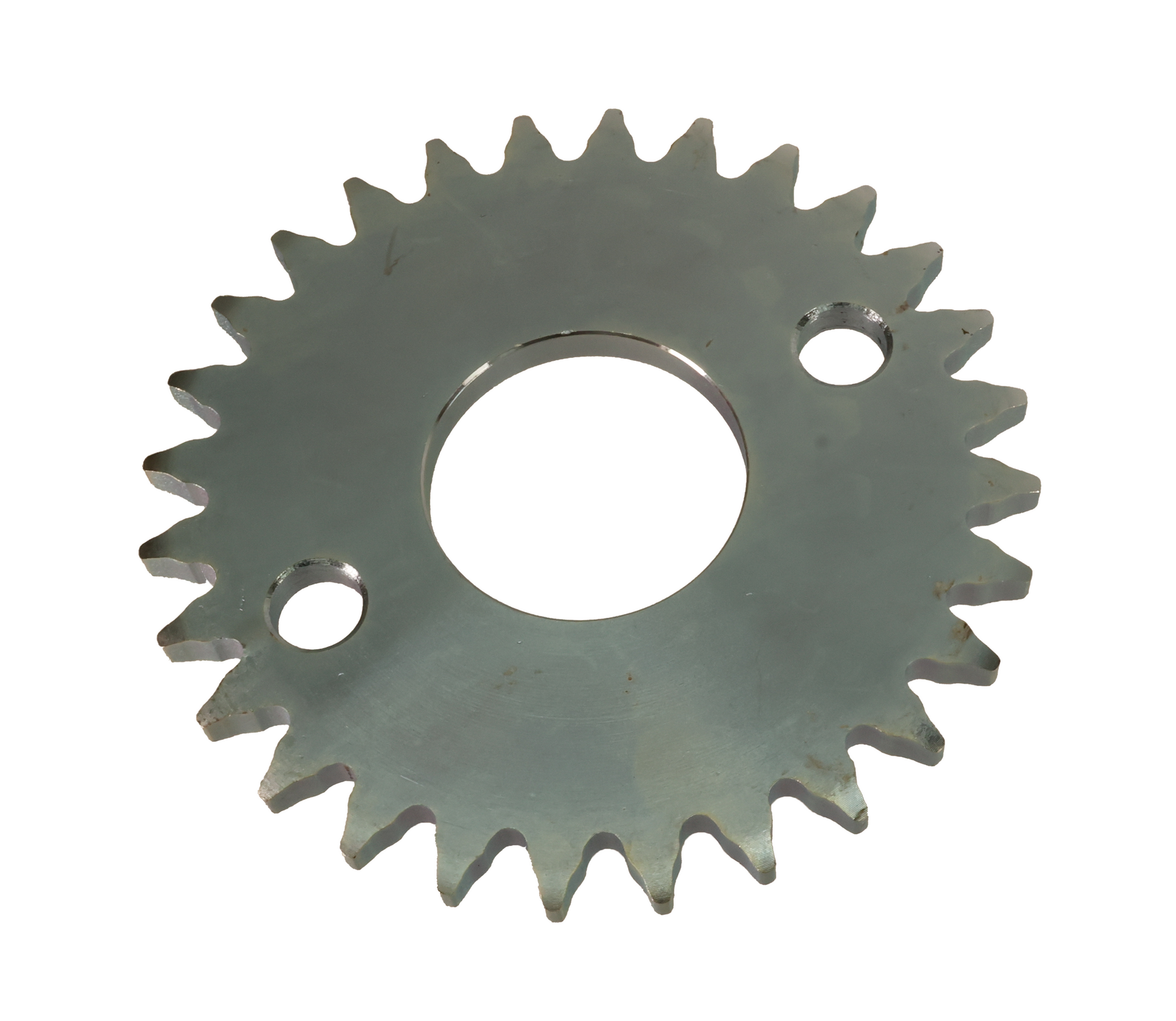

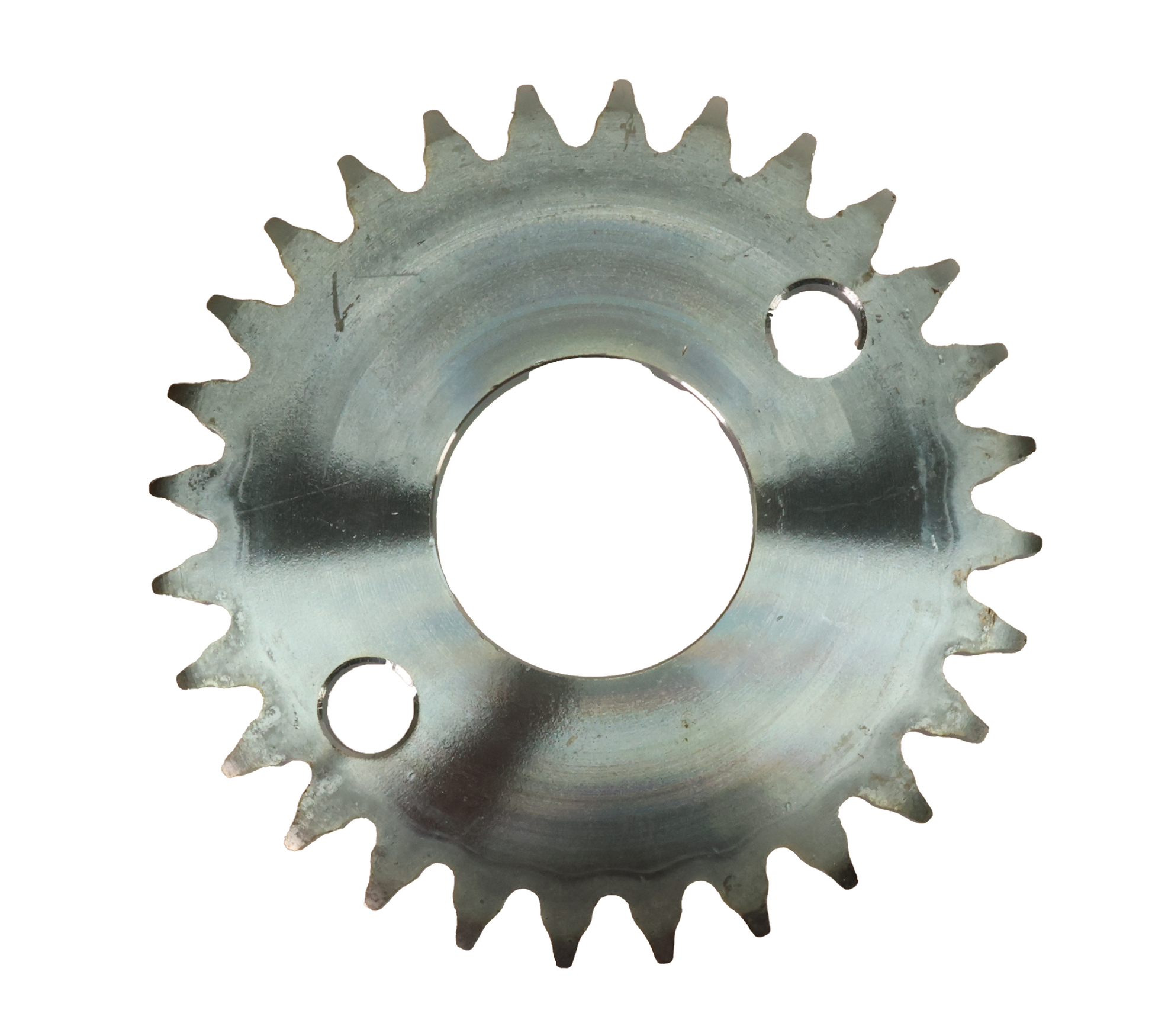

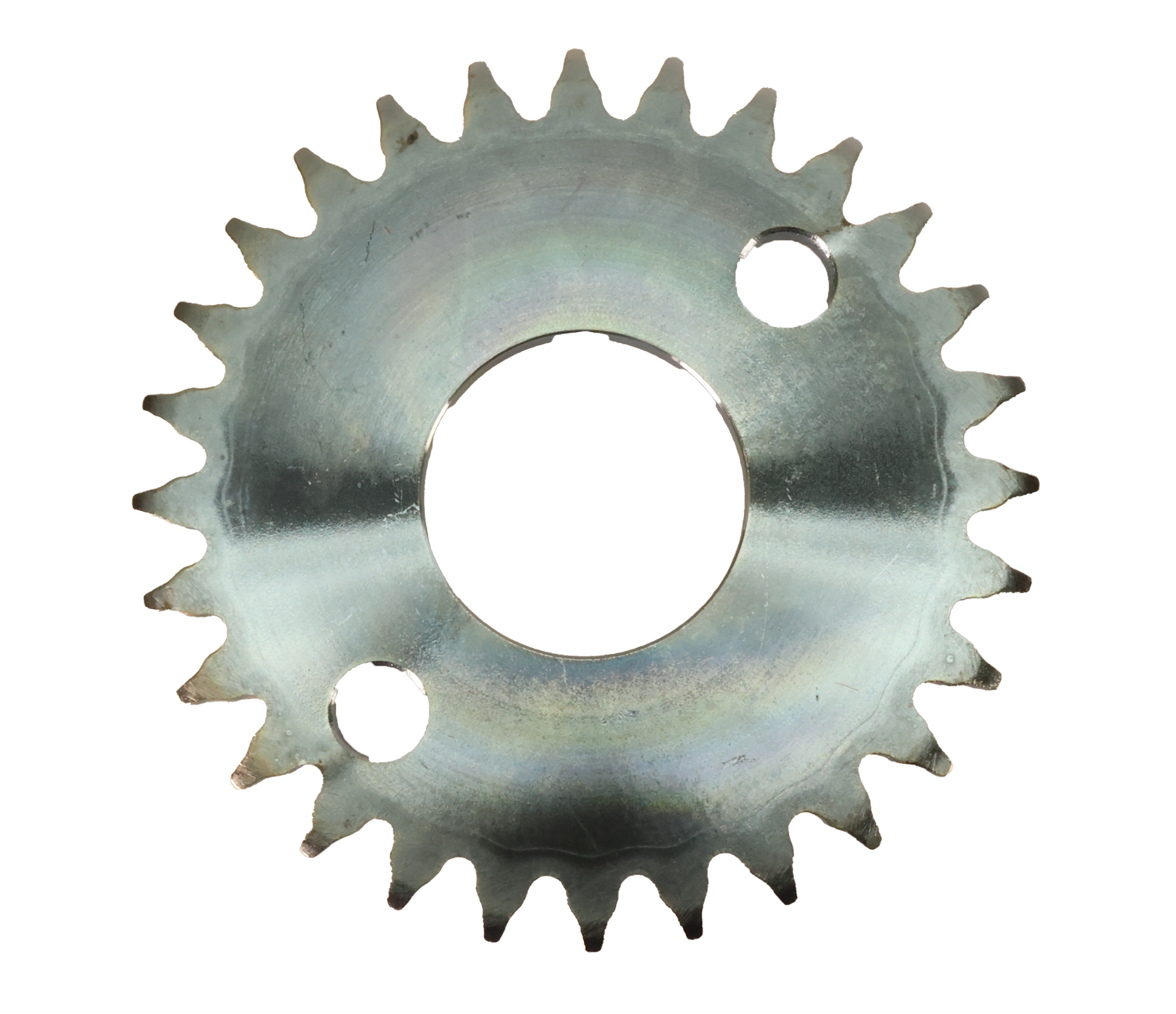

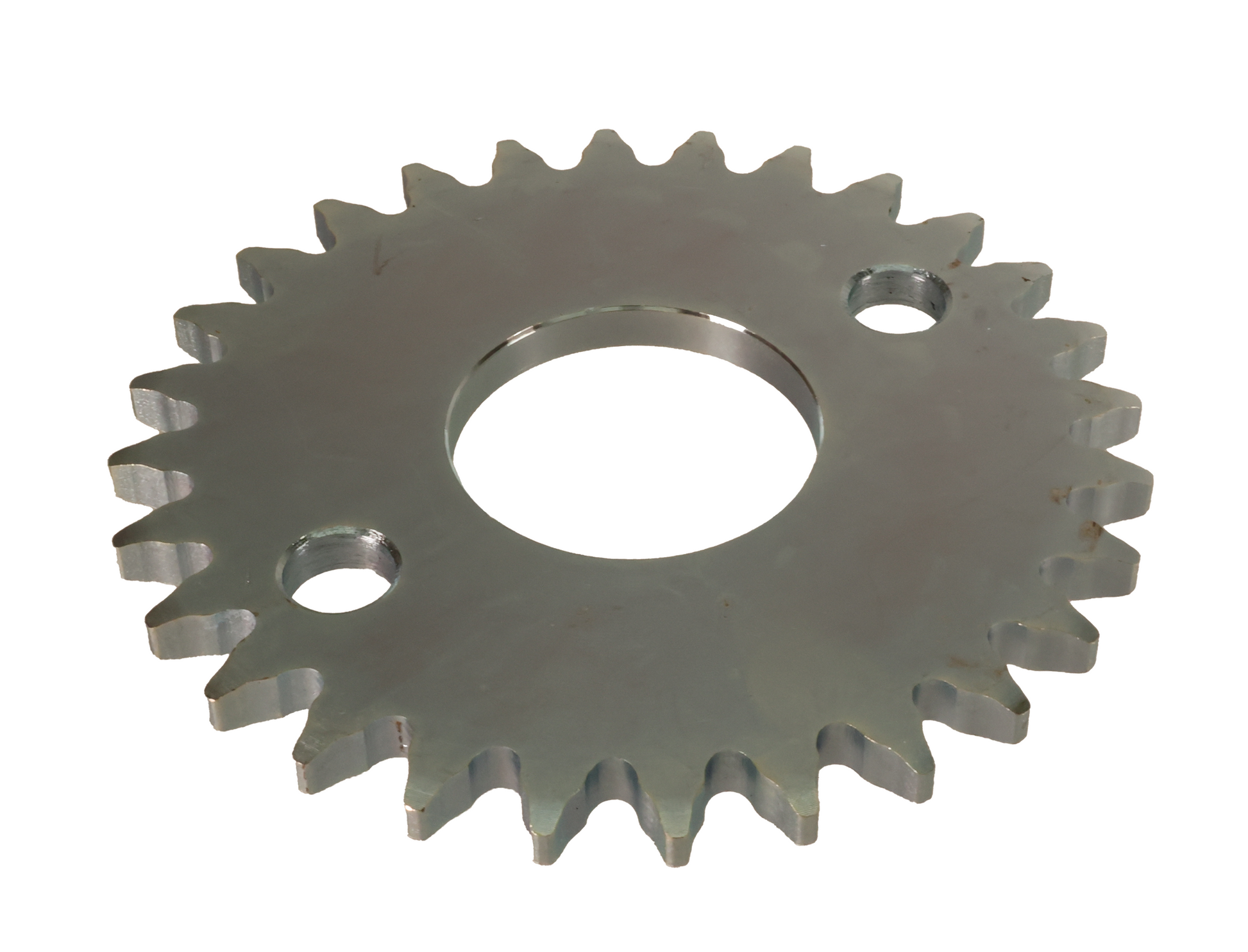

John Deere Original Equipment Chain Sprocket - A50386
John Deere Original Equipment Chain Sprocket - A50386
Chain Sprocket
Chain Number(ALPHA): 50
Number of Teeth(UNITY): 28.0000
Bore Diameter(IN): 2.0866
Bore Detail Code(ALPHA): R
Root Diameter or Outside Diameter(IN): 4.8906
Bolt Circle(IN): 3.8189
Bolt Hole(UNITY): 2.0000
Material(ALPHA): 1020
Finish(ALPHA): A - Heat Treated
This A50386 Chain Sprocket fits these models:
1700 Integral Planter
1700 Twin Row Planter
1705 Integral Planter (S.N. 760101- )
1705 Twin Row Planter (S.N. 760101- )
1710 Vertical-Fold Planter
1715 Vertical Fold Planter (S.N. 760101- 780999)
1720 CCS Stack-Fold Planter
1720 CCS Twin Row Planter
1720 Stack-Fold Planter
1725 CCS Stack Fold Planter (S.N. 760101- )
1725 CCS Twin Row Planter (S.N. 760101 - 785999)
1725 Stack Fold Planter (S.N. 760101- )
1730 Narrow Row Integral Planter
1735 Narrow Row Integral Planter (S.N. 760101- )
1750 Conservation Planter (4, 6 and 8 Row)
1755 Conservation Planter (S.N. 760101 - 790100)
1755 Planter (4, 6 and 8 Row)(S.N. 790101- )
7000 Flex-Fold Planter
7200 (12-Row, 8-Row Wide and 12-Row Narrow) Flex-Fold MAXEMERGE 2 Planter
7200 (4-Row, 4-Row Wide and 6-Row Narrow), 7200 (6-Row Wide and 8-Row Narrow) Drawn MAXEMERGE 2 Planter
7200 Drawn Standard (4-Row and 6-Row) MAXEMERGE 2 Planter
7200 Rigid-Fold MAXEMERGE 2 Drawn Conservation Planter (12-Row) (North American Edition)
7200 Wing-Fold Drawn (8-Row Wide and 12-Row Narrow) MAXEMERGE 2 Planter (North American Edition)
7300 Integral MAXEMERGE 2 Planter
7300 Stack-Fold MAXEMERGE 2 Integral Planter
7300 Vertical-Fold (8-Row Wide and 12-Row Narrow) Integral MAXEMERGE 2 Planter
7340 Integral (12-Row Narrow) MAXEMERGE 2 Planter
DB120 Planter (48 Rows, 30-Inch Spacing)(S.N. 794101- )
This is an OEM John Deere part.
