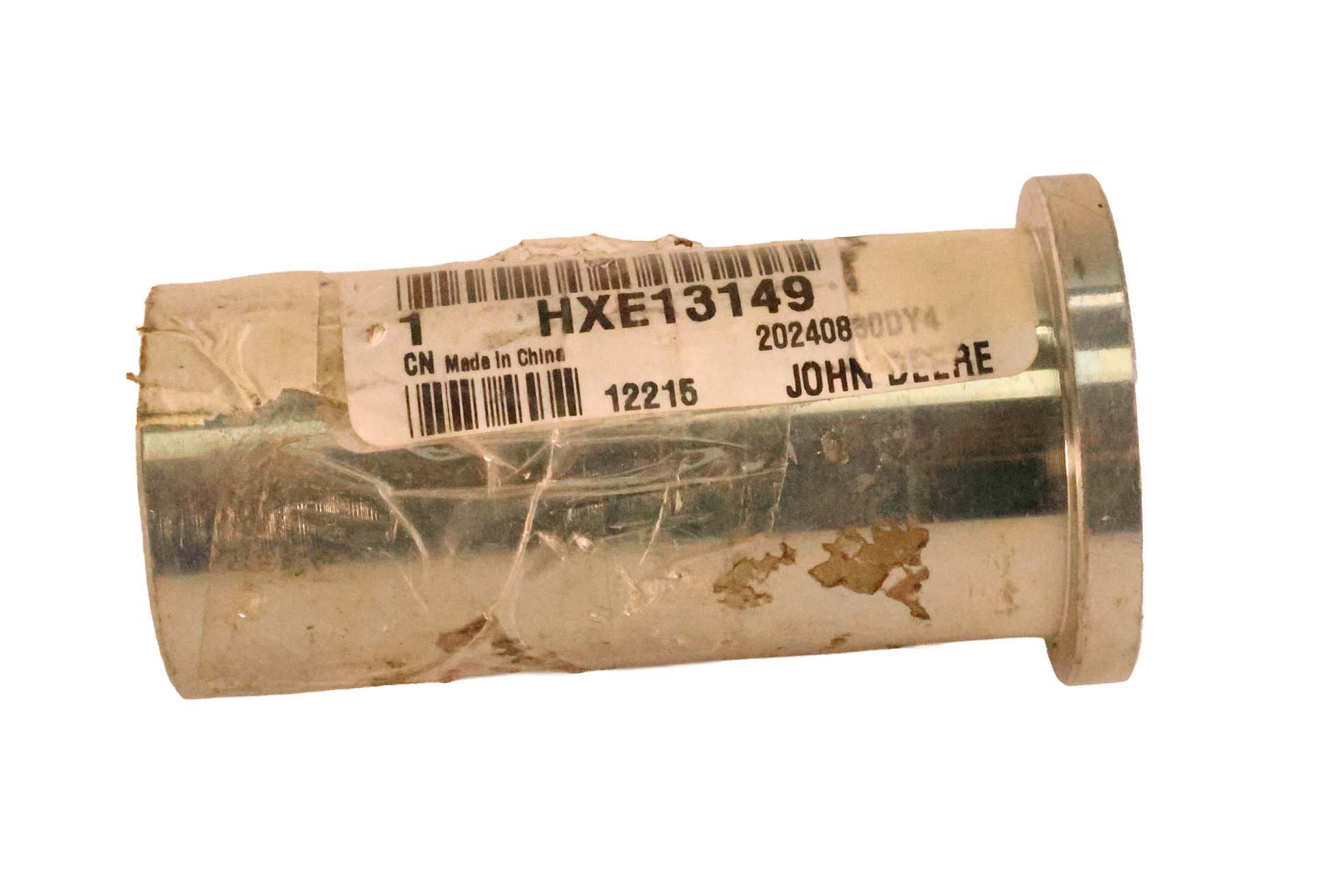

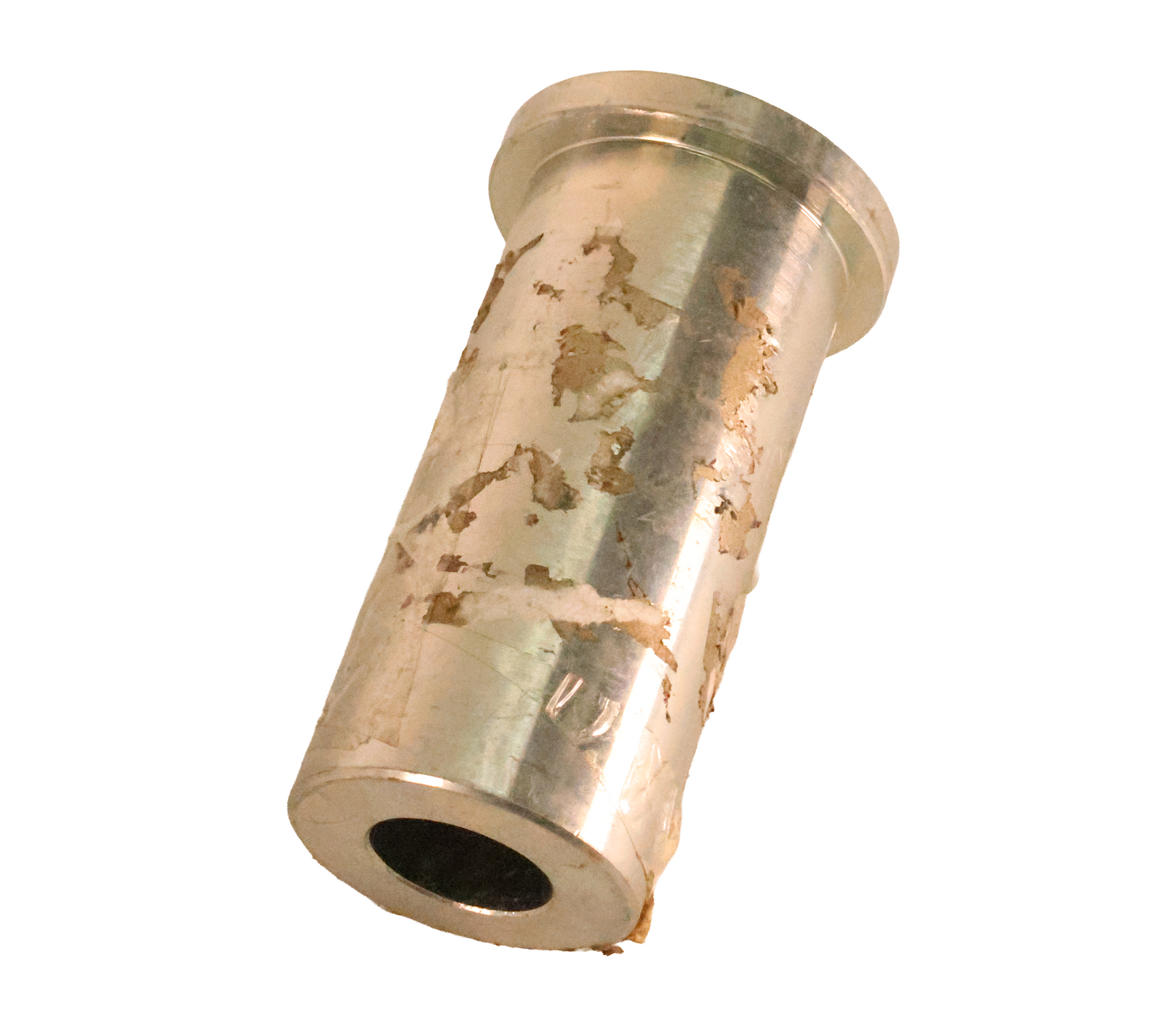

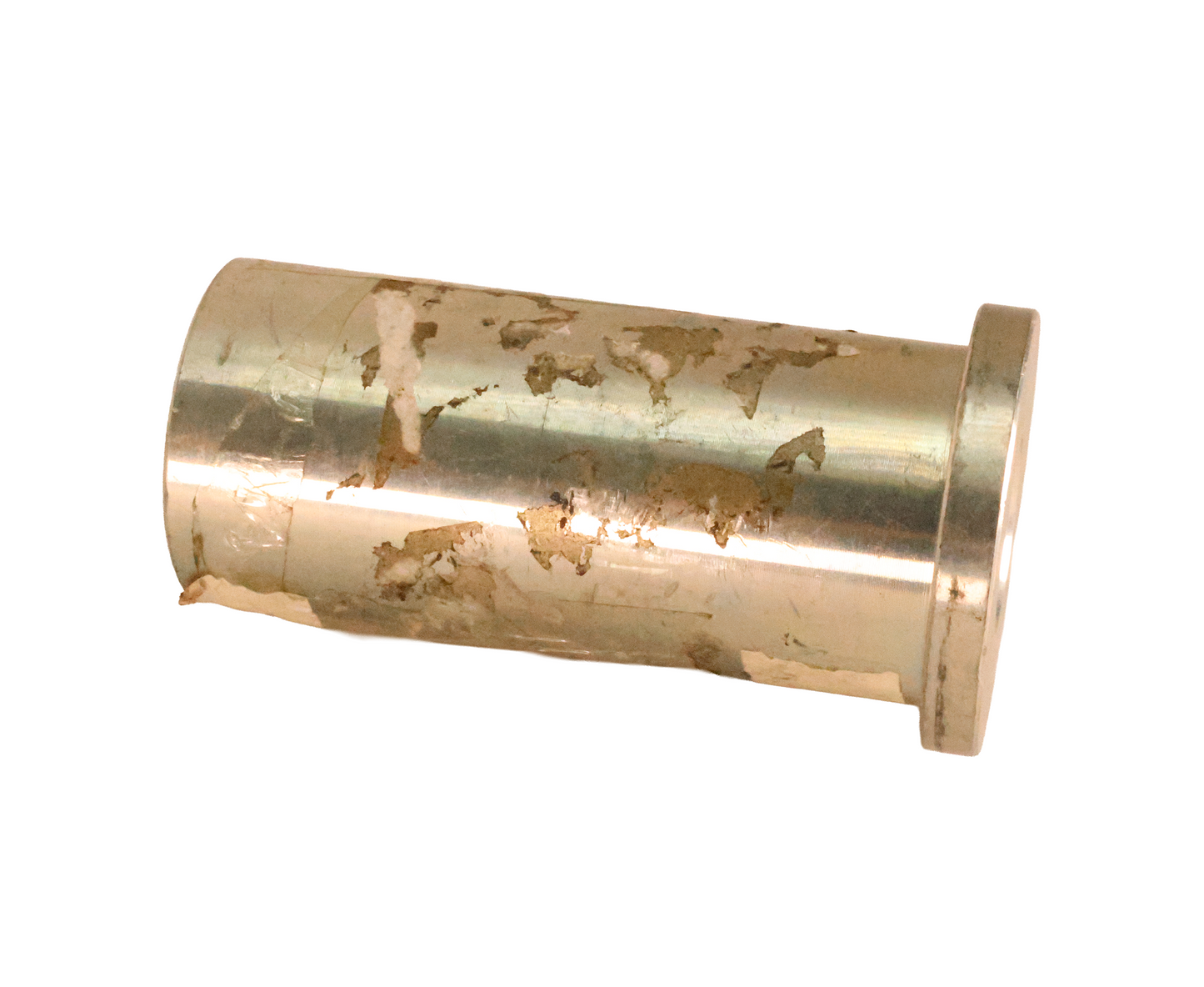

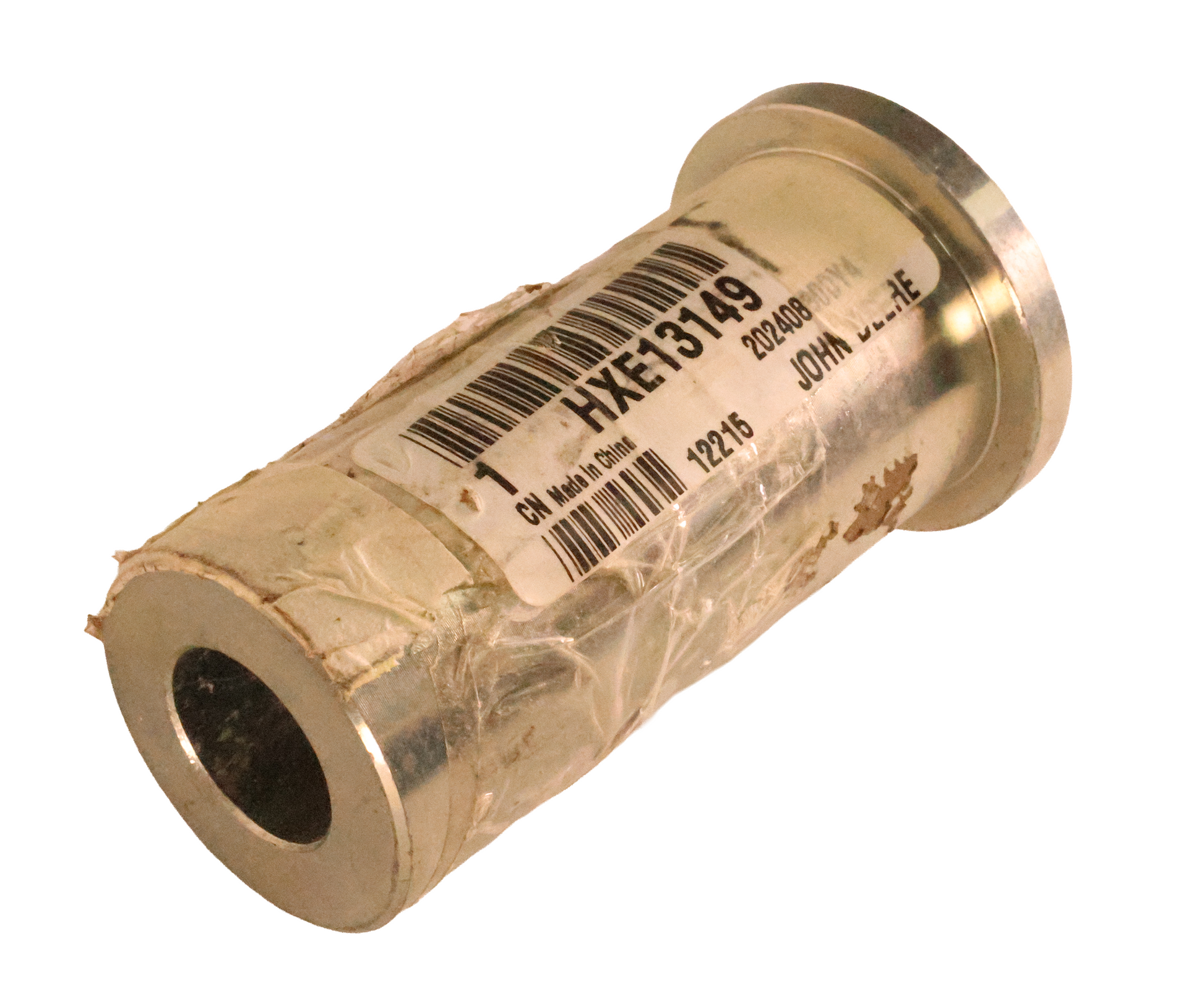

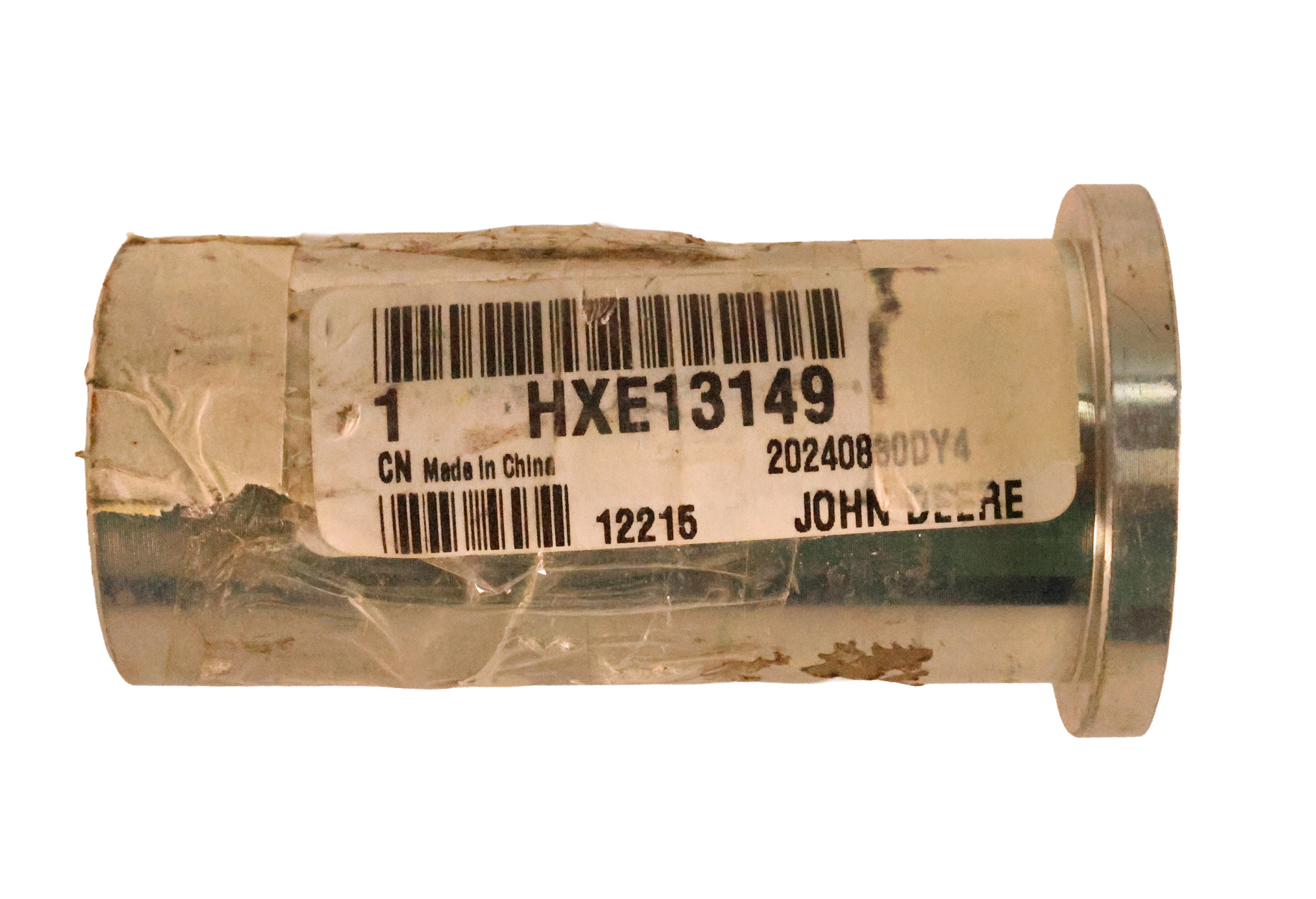

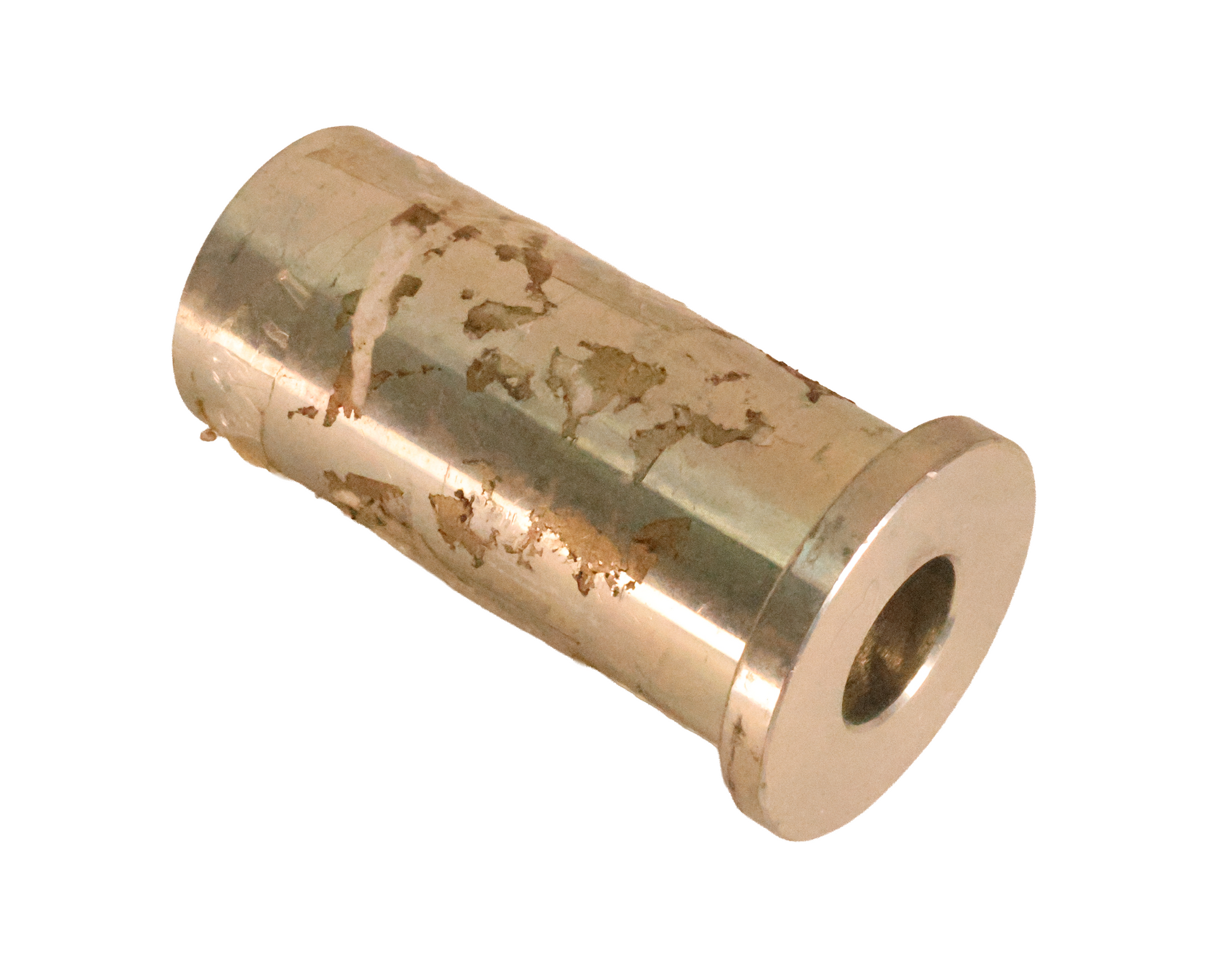

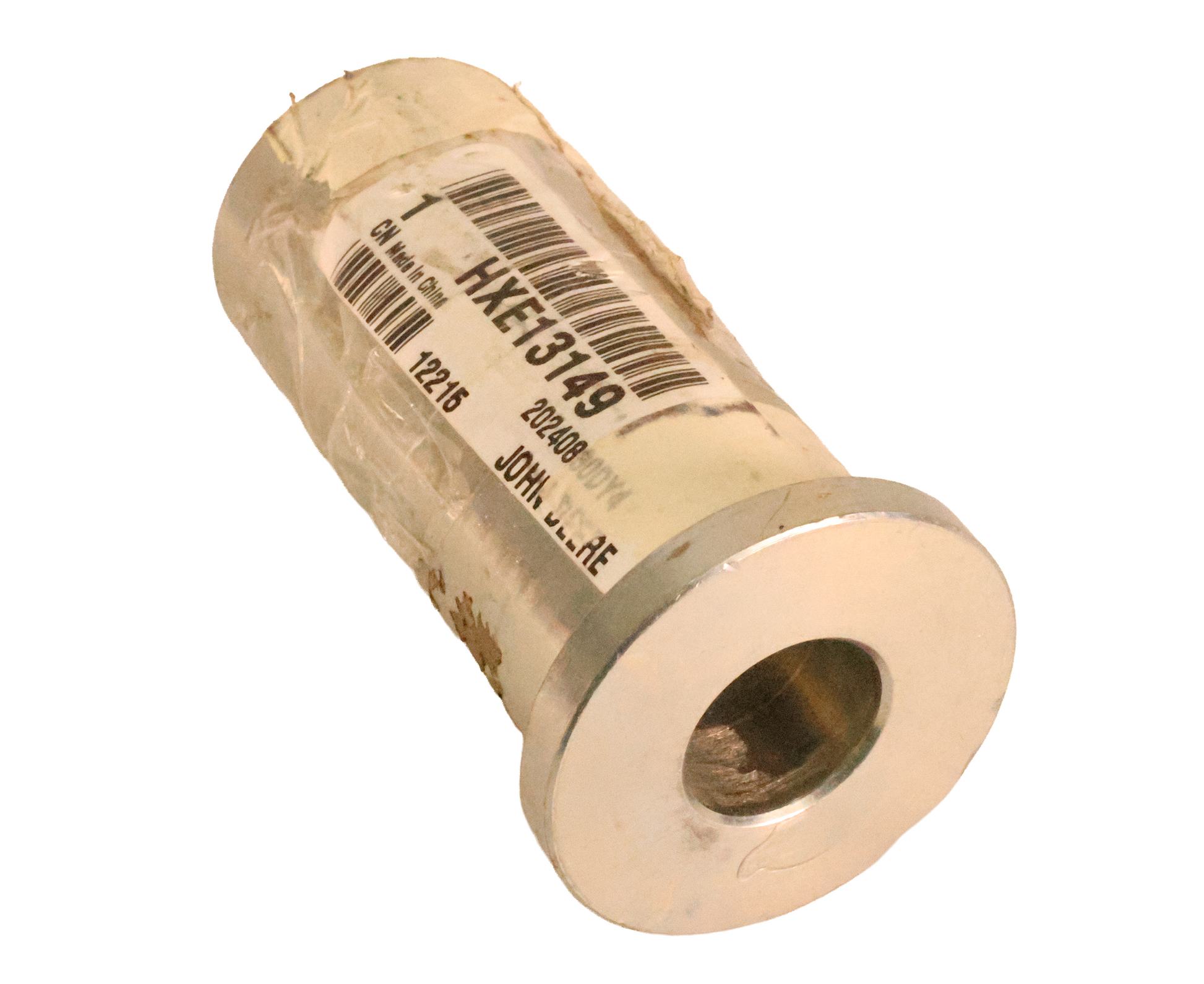

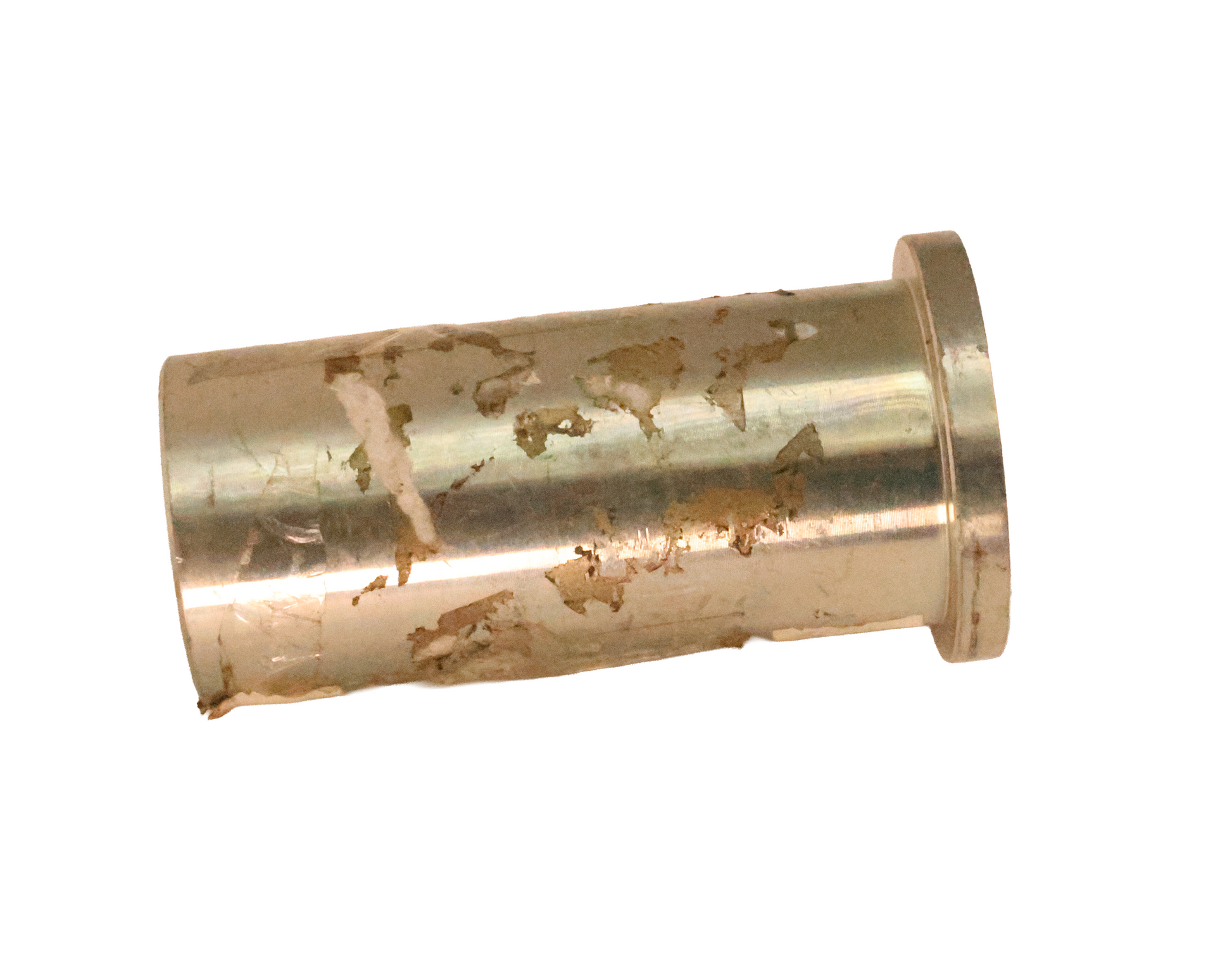

John Deere Original Equipment Bushing - HXE13149

John Deere Original Equipment Bushing - HXE13149

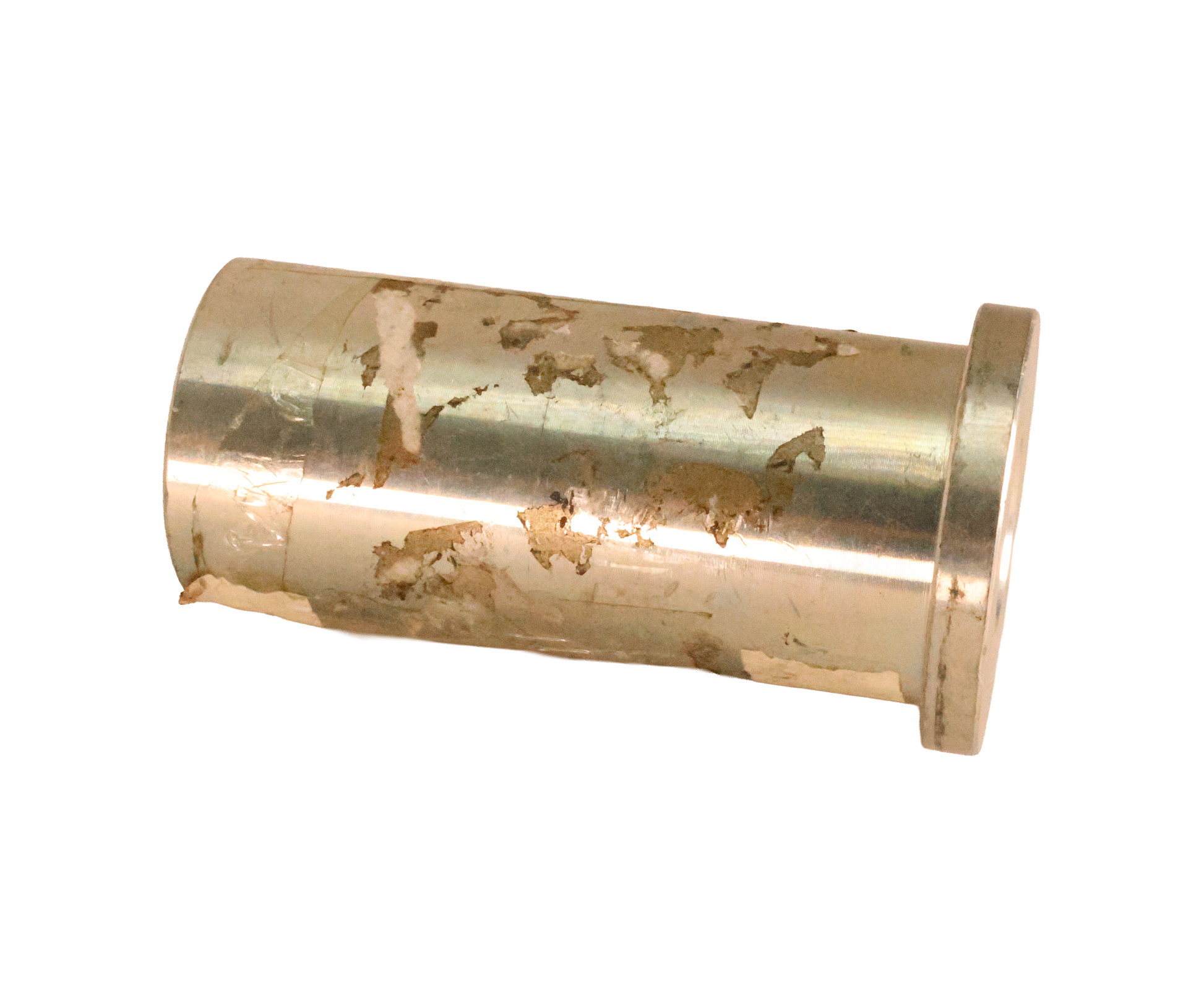

Flanged Bushing

Part Specifications:
Inside Diameter (IN) 0.8071
Outside Diameter (IN) 1.5742
Length (IN) 3.5984
Flange Thickness (IN) 0.2520
Flange Diameter (IN) 1.9685
Material (ALPHA) AO1045
Finish (ALPHA) C-Heat Treated and Plated

Fits the following John Deere models:
Combine: S550, S660, S670HM, S690, S7 600, S7 700, S7 800, S7 900, S650, S660, S670, S680, S680HM, S690, S690HM, S7 600, S7 700, S7 800, S7 850, S7 900, S760, S770, S780, S785, S790.

This is an O.E.M. John Deere part.
