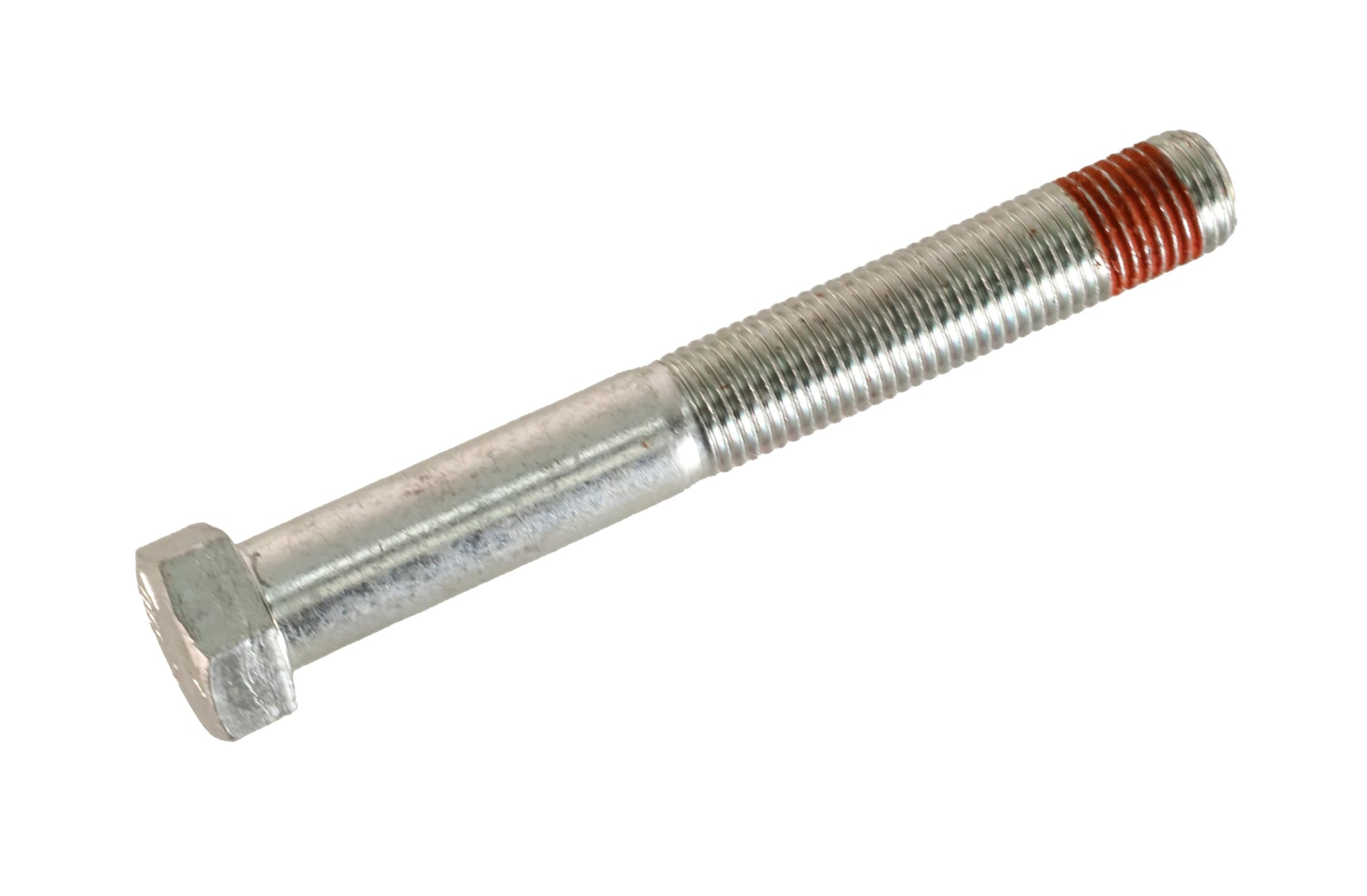

John Deere Original Equipment Bolt - TCU35896

Hexagonal Head Bolt

Part Specifications: Diameter (MM) 11.1252, Thread (ALPHA) UNF2A, Length (MM) 88.9000, Thread Length (MM) 28.5750, Width Across Flats (MM) 15.8750, Head Height (MM) 7.3914, Material Grade (ALPHA) A17D, Finish (ALPHA) B-Zinc-Electro Plated, Note (D) Thread Locking Adhesive.

Substitutes for TCU29399

Fits the following John Deere models:

Mower: Q820M, Q850M, Q865R, Z710A, Z720E, Z73M, Z735E, Z375M, Z740R, Z760R, Z910A, Z920A, Z920M, Z925A, Z925A, Z925M, Z930A, Z930M, Z930R, Z950A, Z950M, Z950R, Z955M, Z955R, Z960A, Z960M, Z960R, Z970A, Z970R.

This is an O.E.M. John Deere part.
