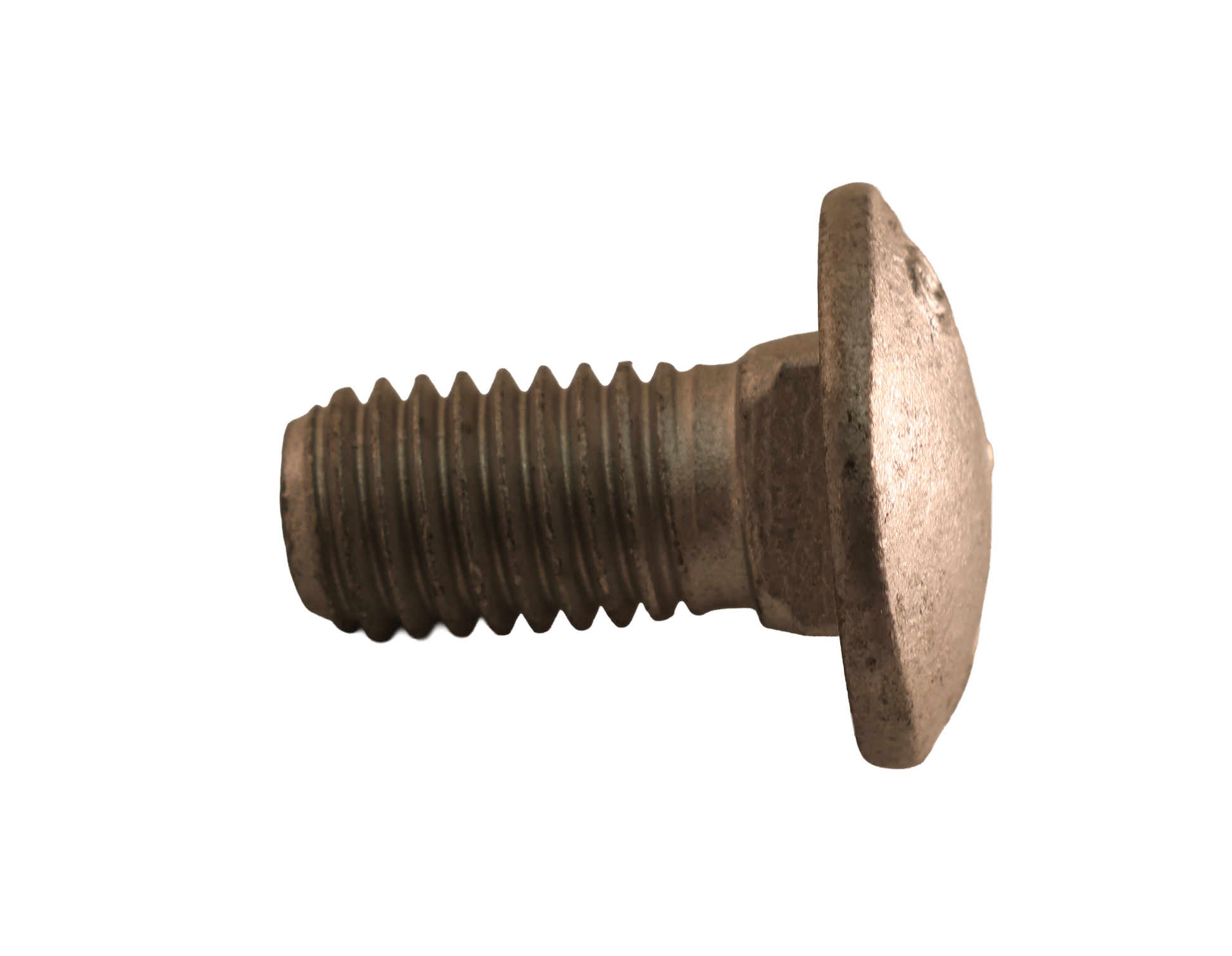

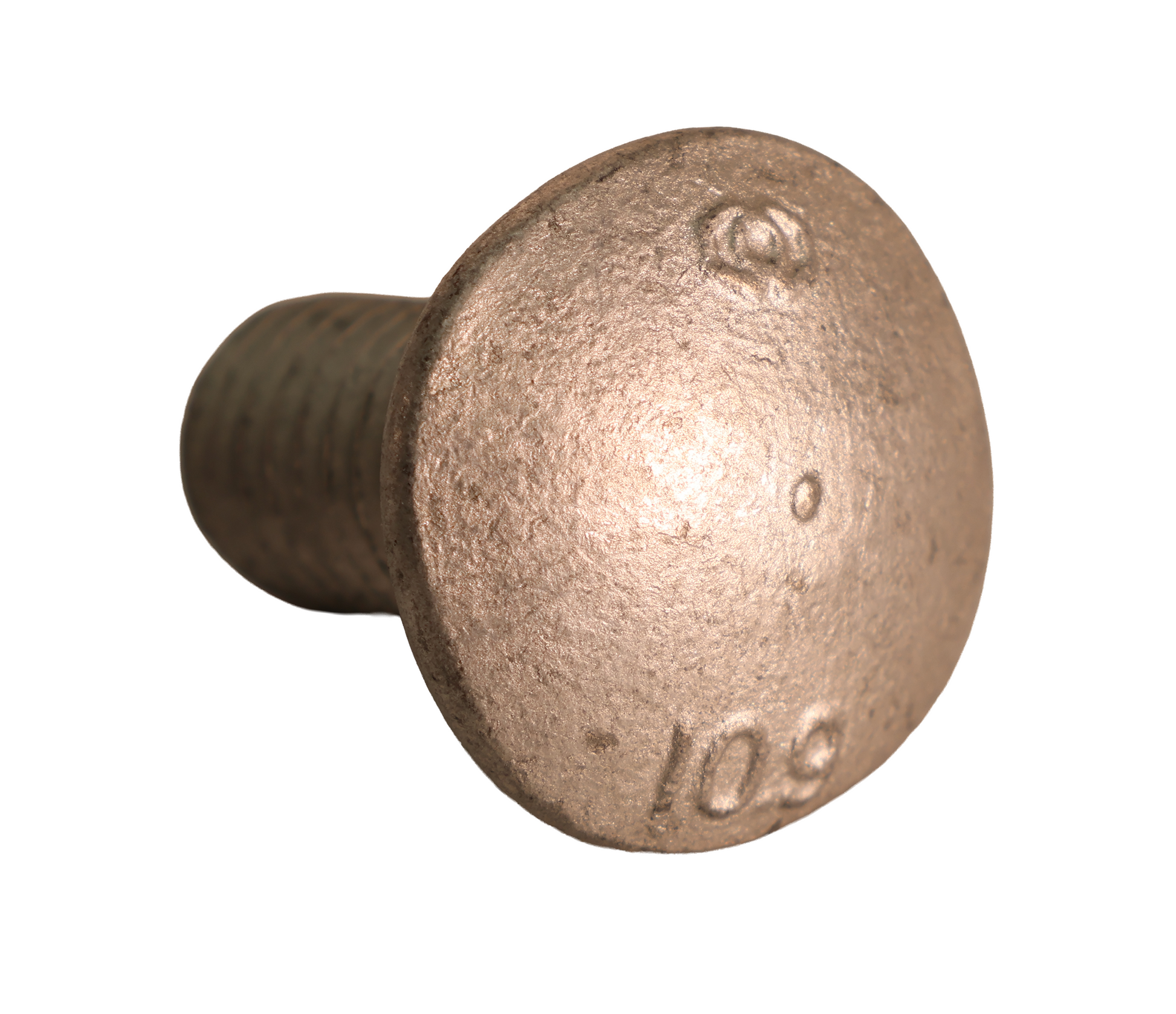

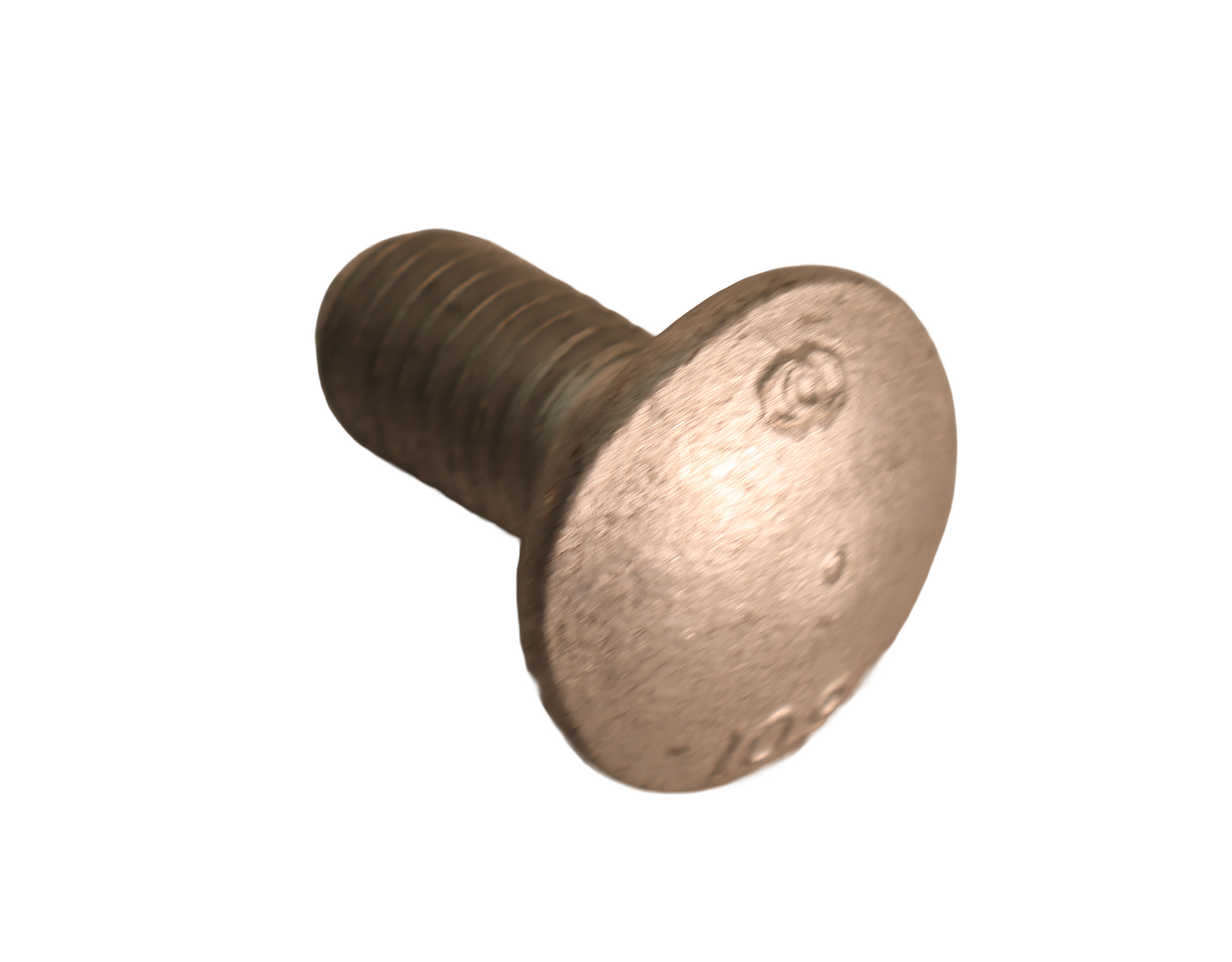

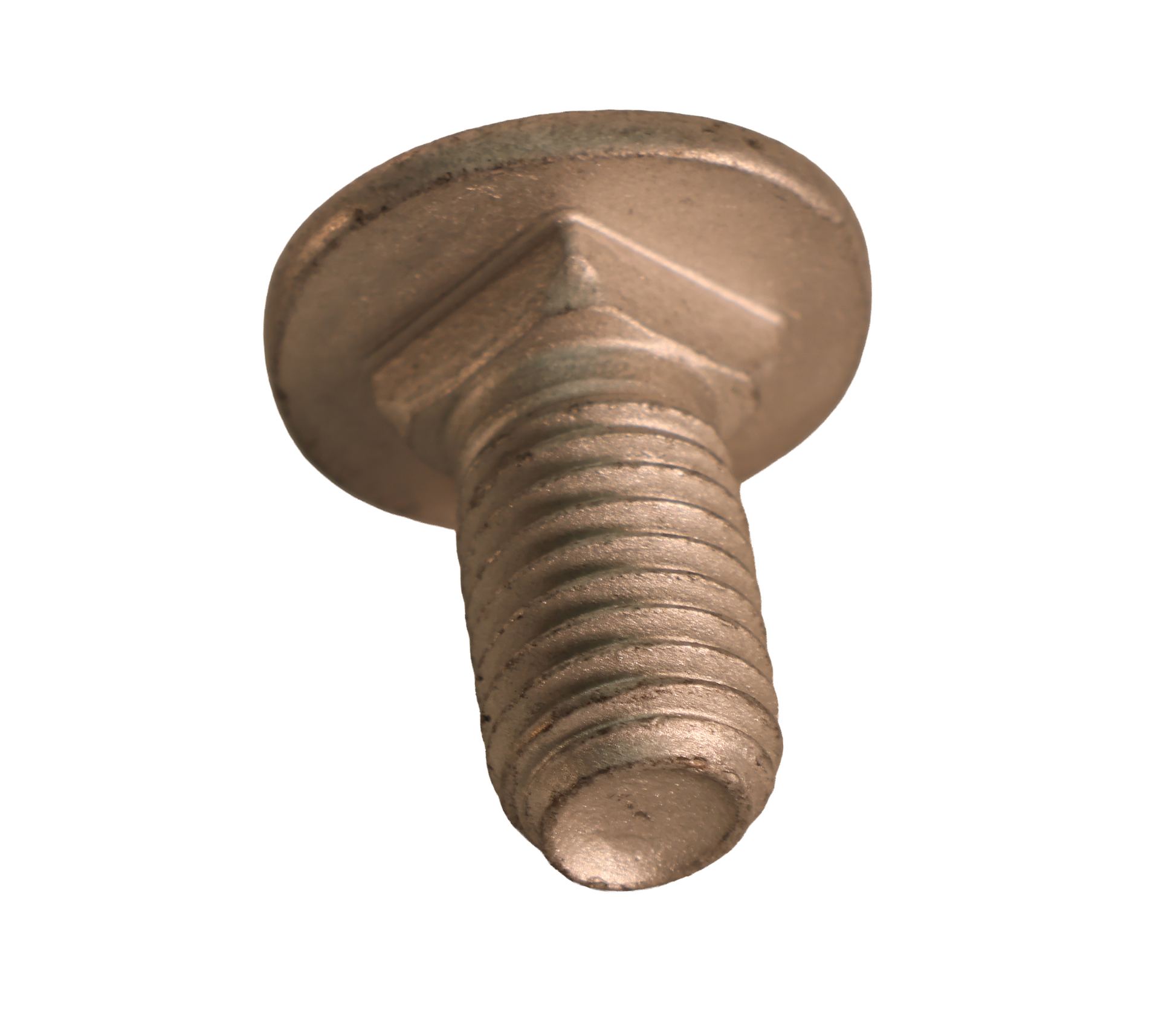

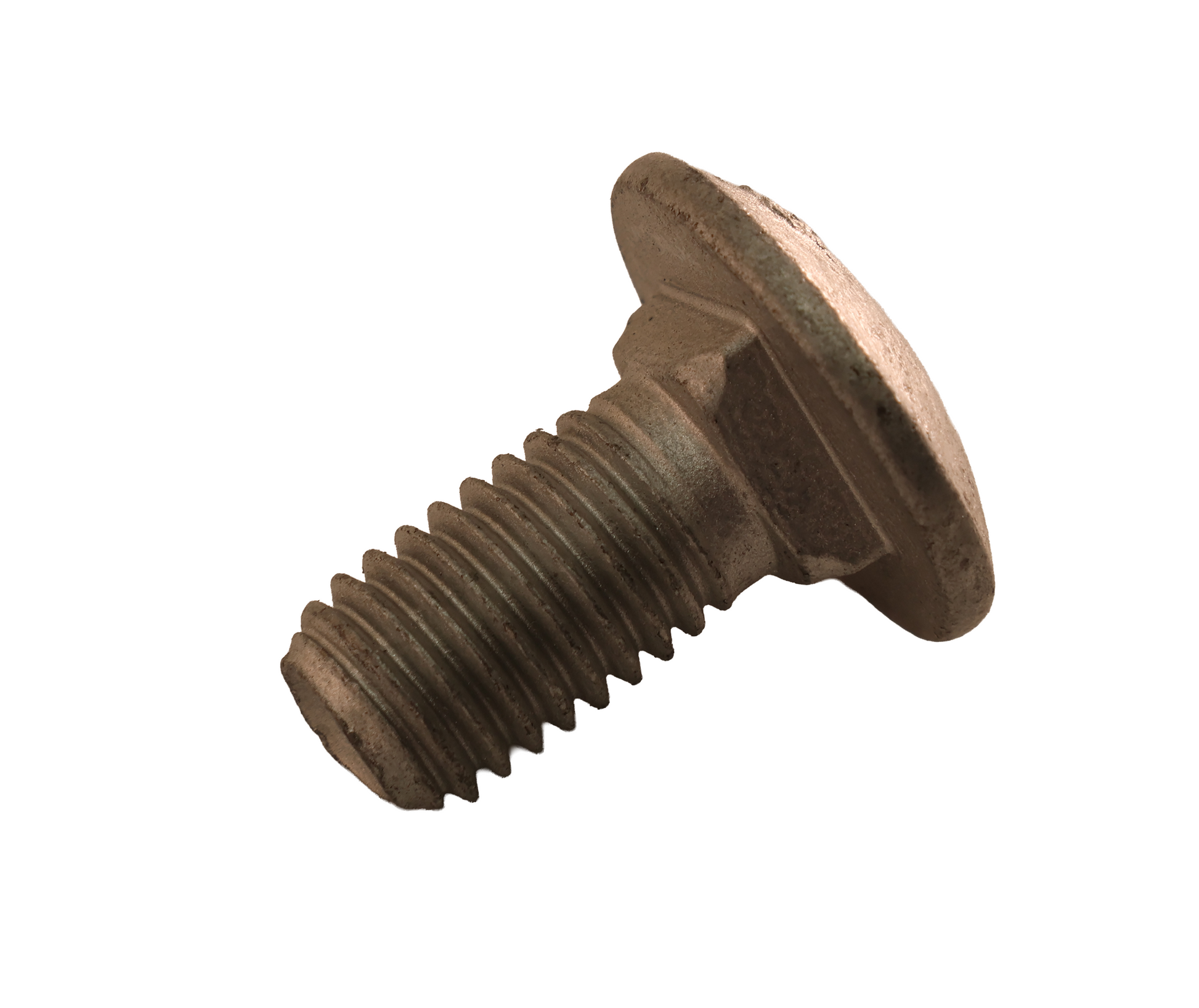

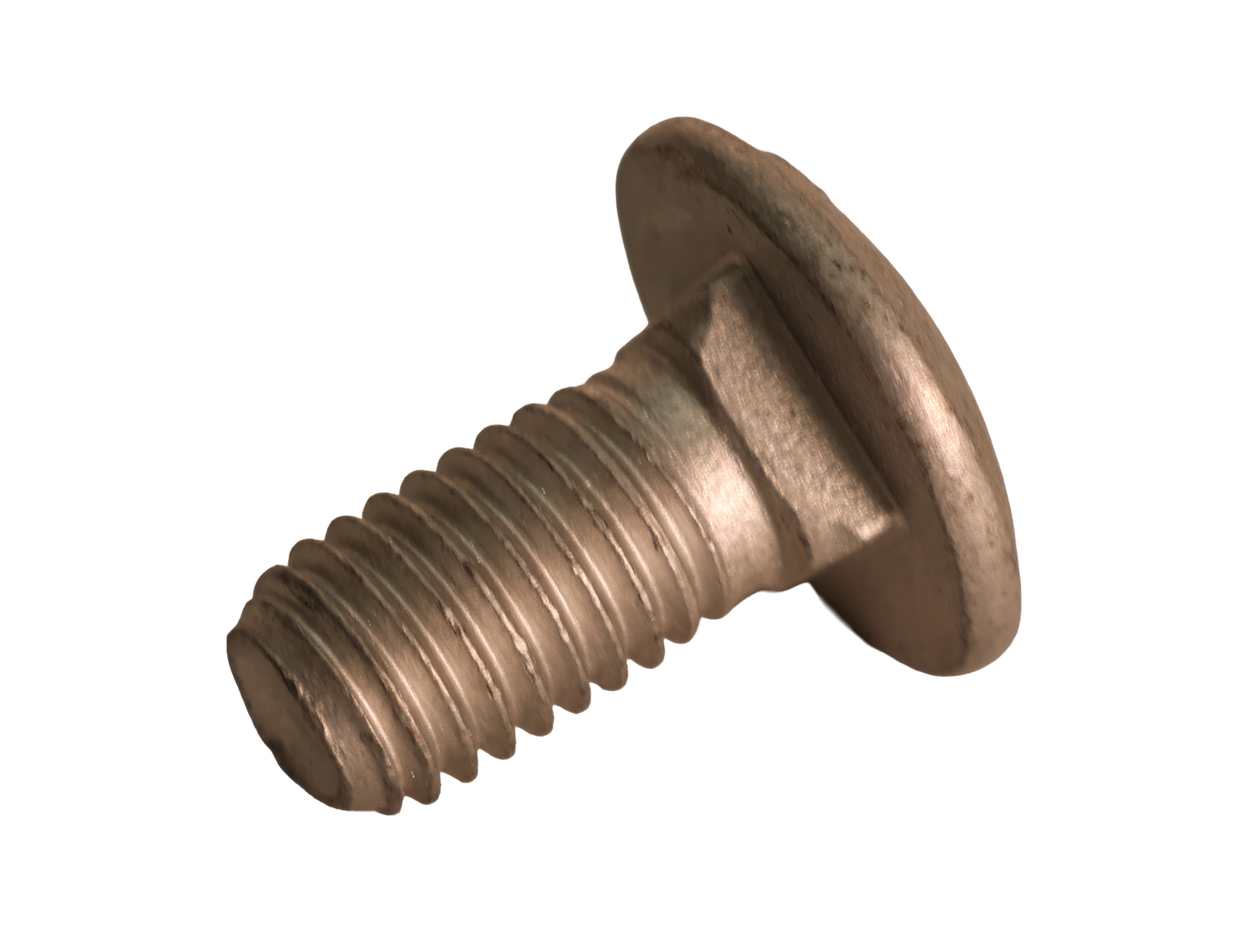

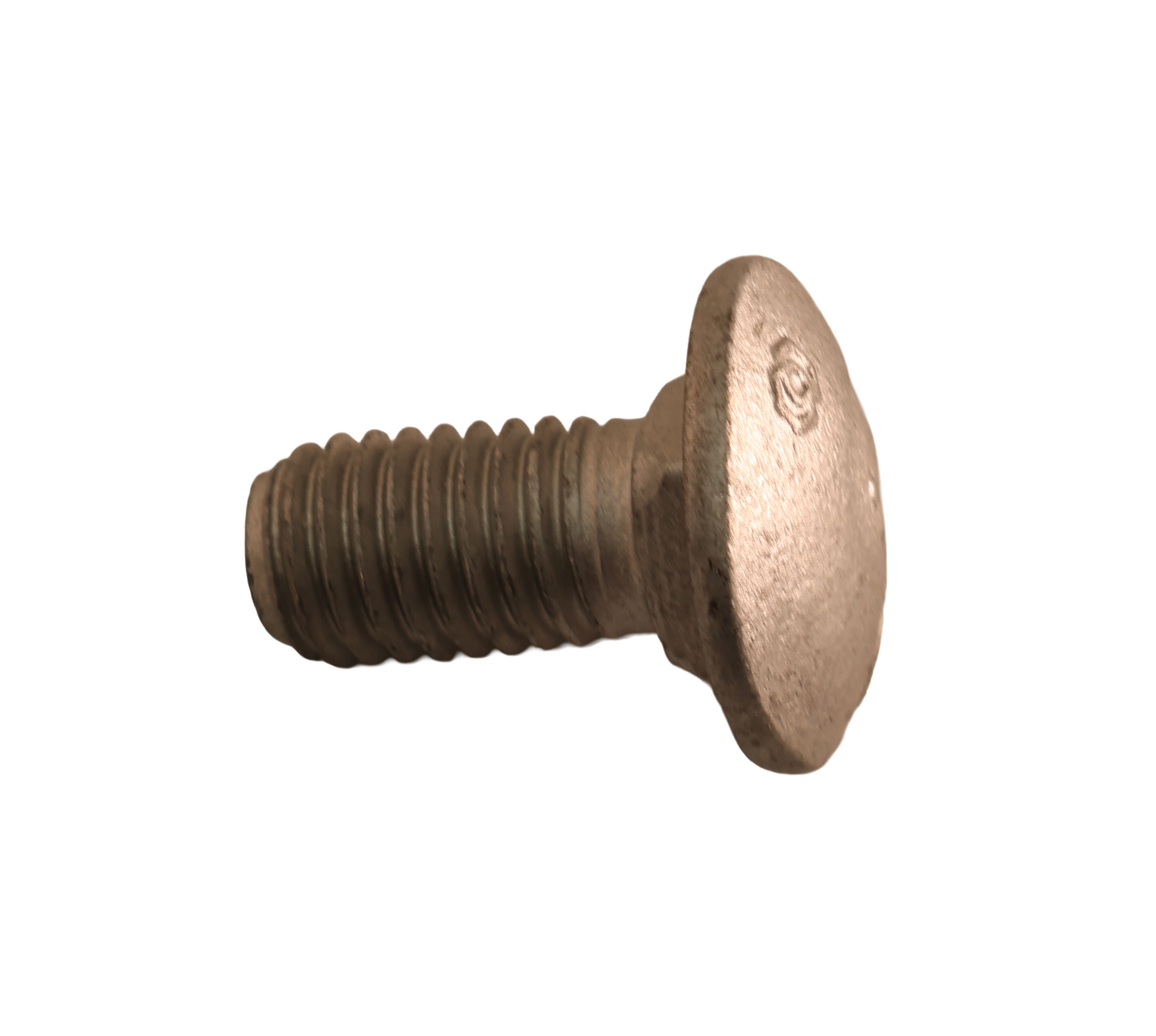

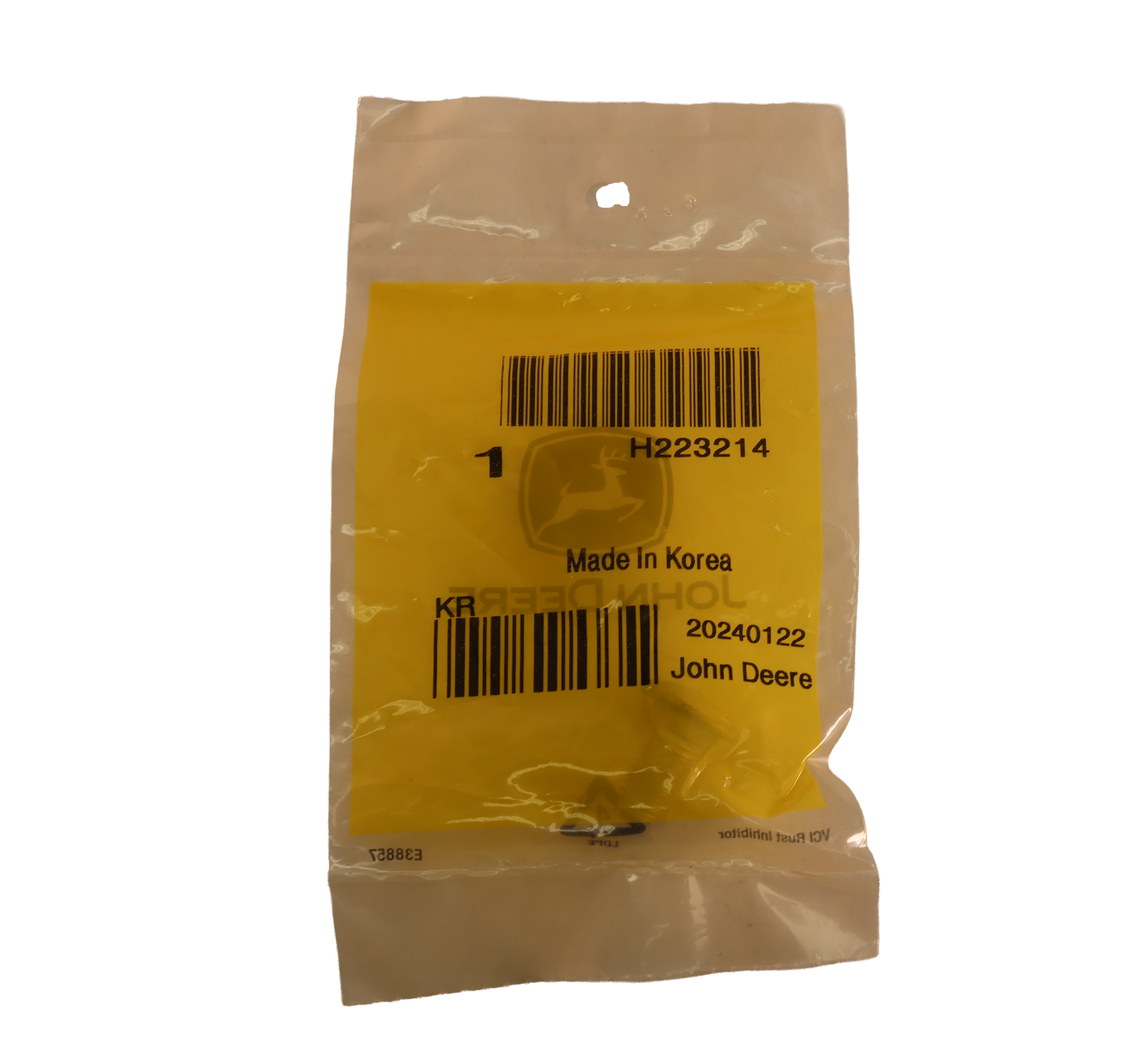

John Deere Original Equipment Bolt - H223214

John Deere Original Equipment Bolt - H223214

Part Specifications:
Thread Size (MM) 10.0000
Thread Pitch (MM) 1.5000
Length (MM) 20.0000
Thread Length (MM) 16.0000
Neck Depth (MM) 4.0000
Head Diameter (MM) 22.3000
Head Thickness (MM) 5.8000
Material or Grade (ALPHA) 10.9000
Finish (ALPHA) T-Zinc Flake
Note (A) There is more information on the engineering blue print that is not shown in detail here.

Fits the following John Deere models:
Combine: 9560STS, 9570STS, 9660STS, 9760STS, 9860STS, S550, S660, S690, S7 600, S7 700, S7 800, S7 900, 9670STS, 9770STS, 9870STS, S650, S660, S670, S680, S690, S7 700, S7 600, S7 800, S7 900, S760, S770, S780, S785, S790, 1000, X9 1000, 1100, X9 1100.

This is an O.E.M. John Deere part.
