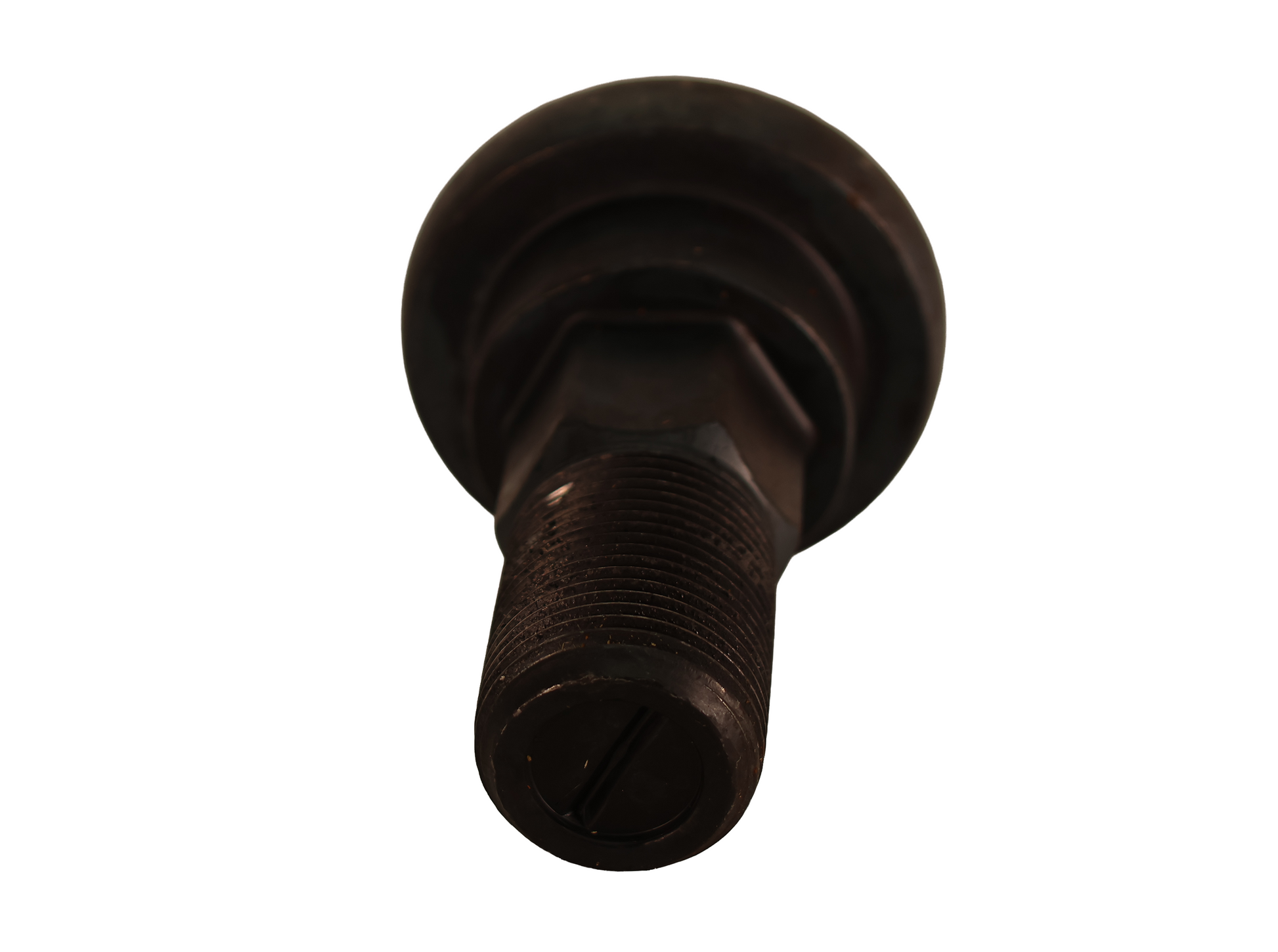

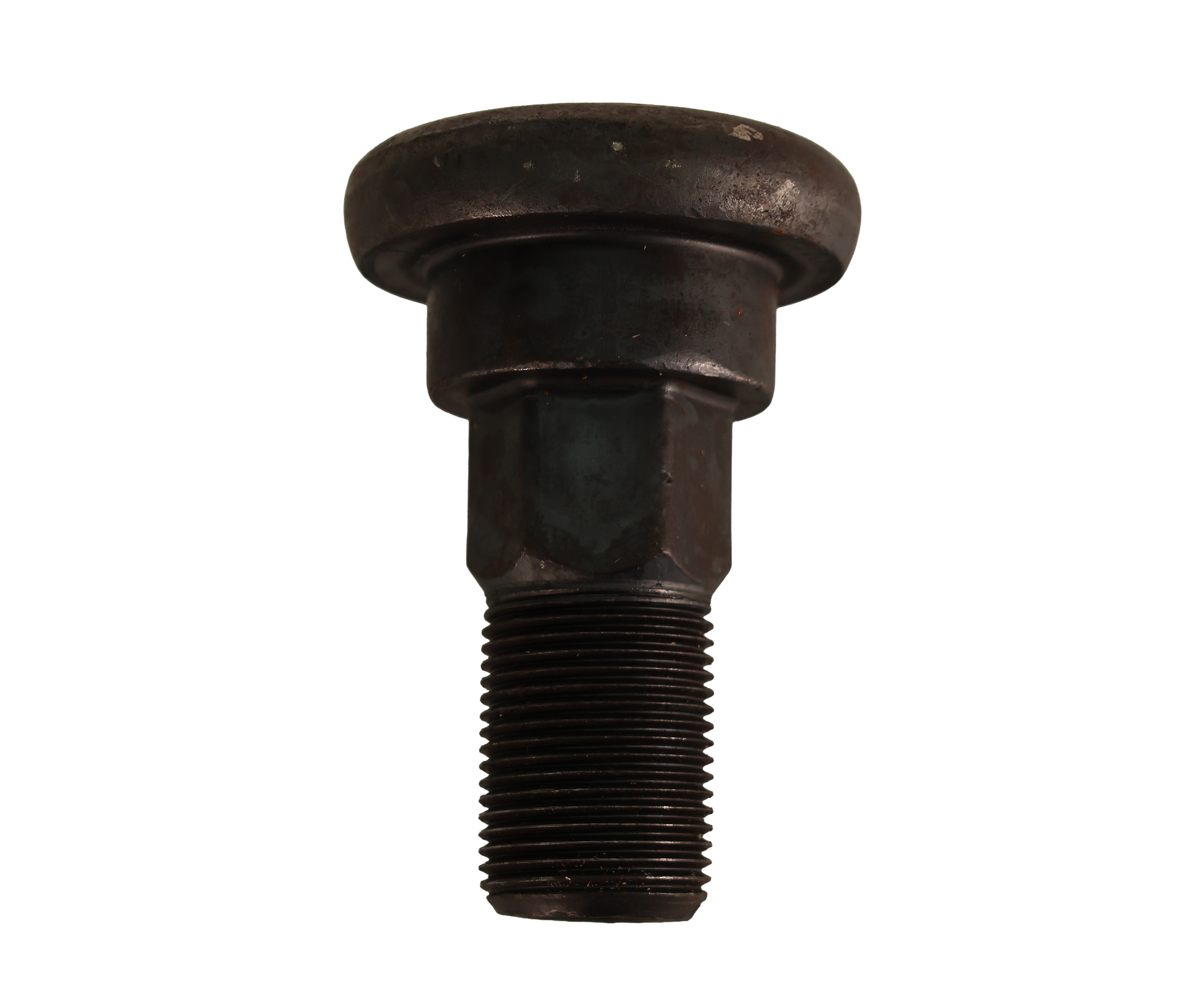

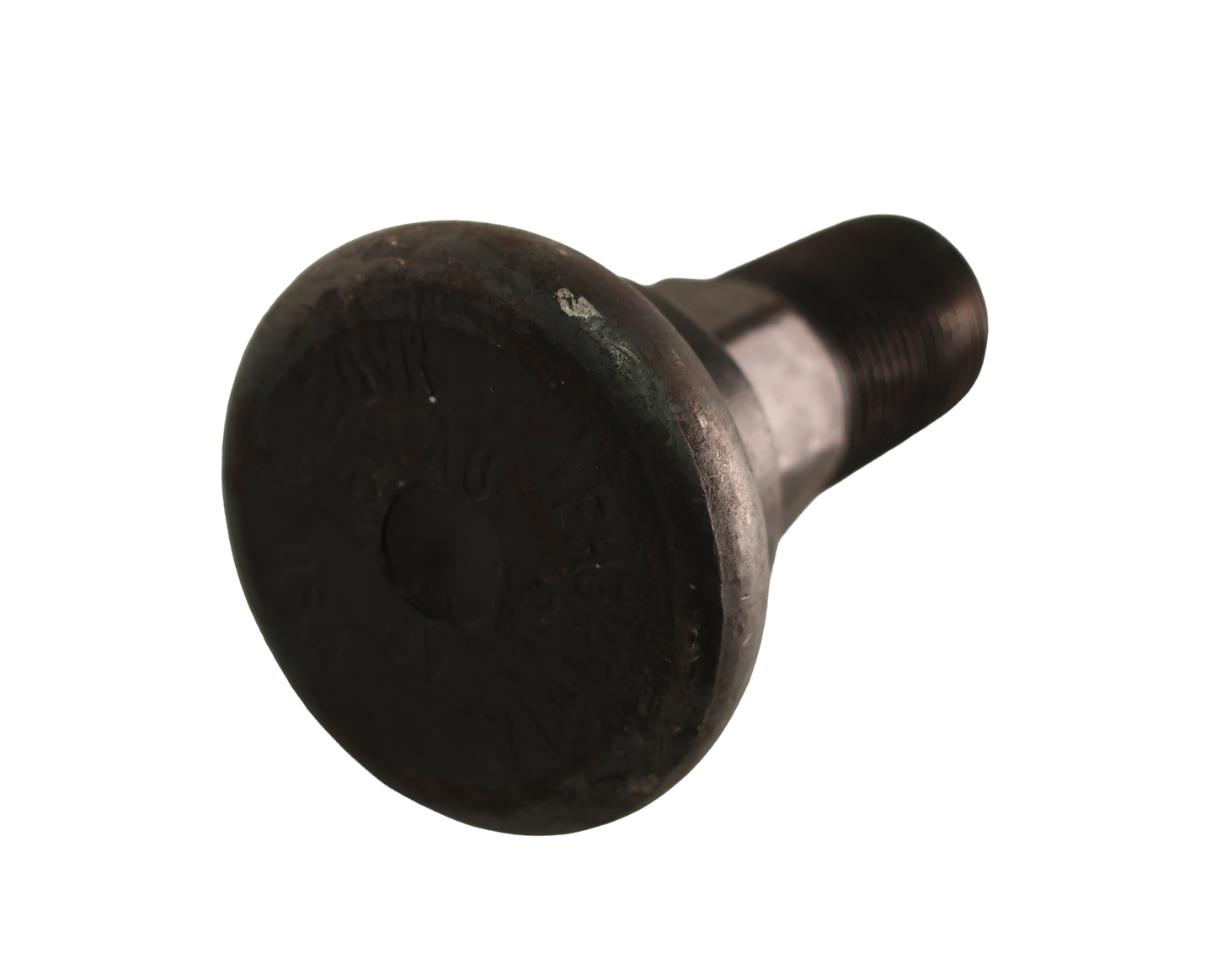

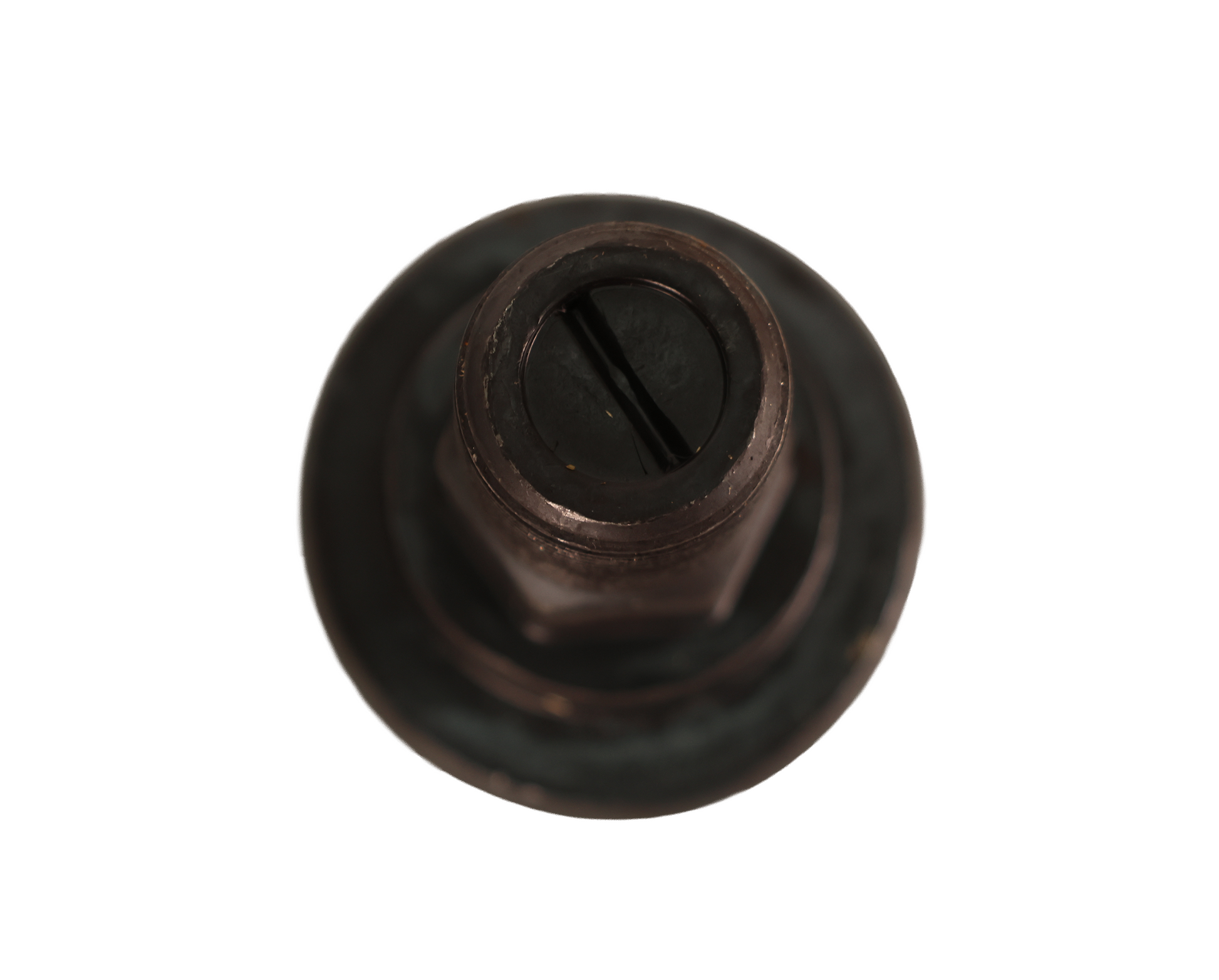

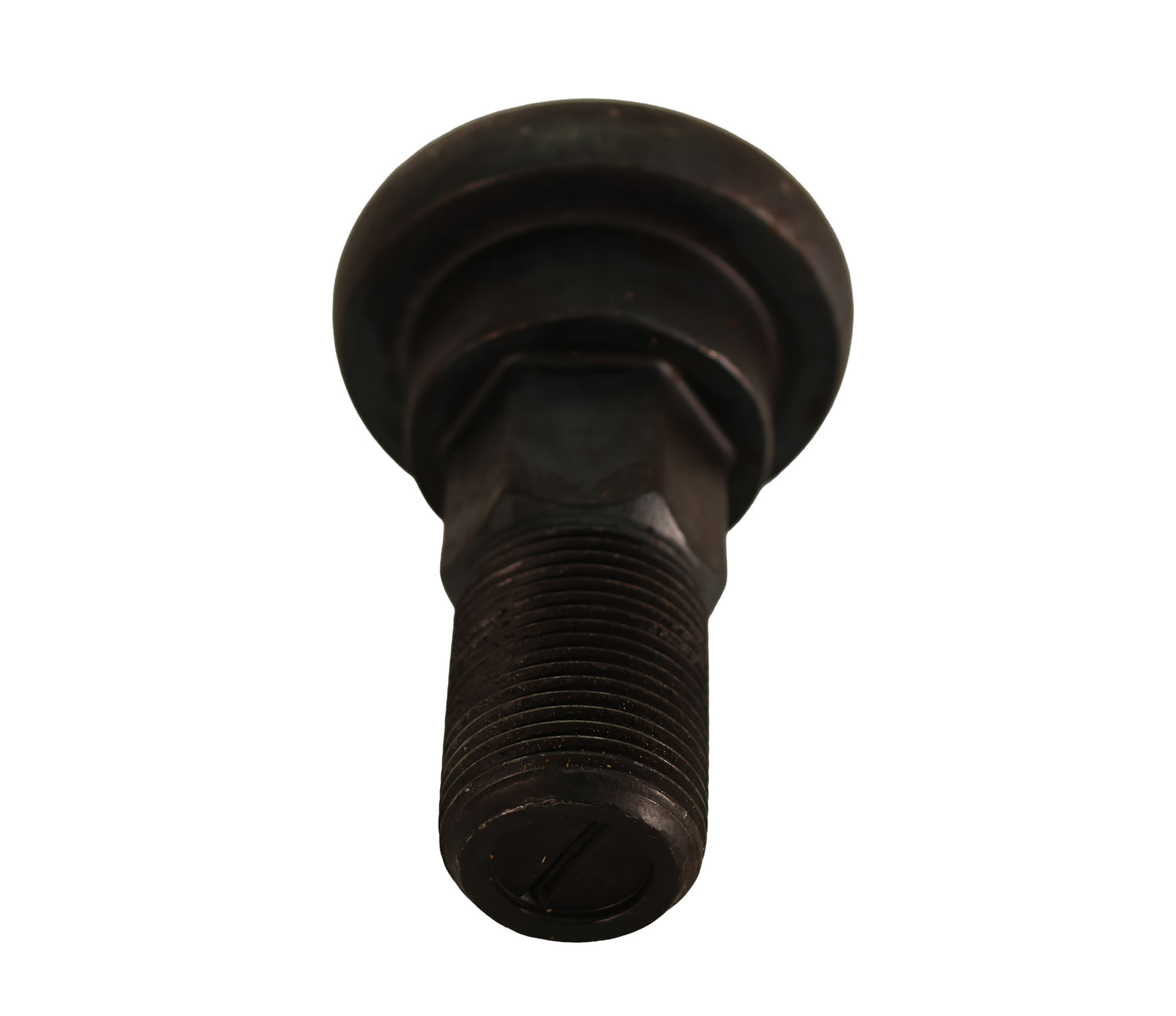

John Deere Original Equipment Bolt - FH349597

John Deere Original Equipment Bolt - FH349597

Part Specifications:
Thread Size (IN) 1.0000
Threads Per Inch/Pitch (ALPHA) UNS
Length (IN)  2.8150
Thread Length (IN) 1.2126
Shoulder Type (ALPHA) HE
Shoulder Size (IN) 1.0098
Neck Size (IN) 1.5000
Head Size (IN) 2.2480
Note (A) There is more information on the engineering blue print that is not shown in detail here.

Fits the following John Deere models:
Rotary Cutter: 1517, 403, 503, 603, 413, 513, 613, 509, 609, 709, 516, 616, 717, CX15, HX15, CX20, HX20, HX10, HX14, LX4, LX5, LX6, E12, E15, FC10R, FC12E, FC15E, FC15M, FC15R, FC20M, FC20R, HX6,HX7, M15, M20, MX15, MX5, MX6, MX7, MX10, MX8, R10, R15, R20, RC10M, RC10R, RC14R, RC5M, RC6M, RC6R, RC7M, RC7R, RC8M.

This is an O.E.M. John Deere part.
