John Deere Original Equipment Bolt - 03M7327

John Deere Original Equipment Bolt - 03M7327

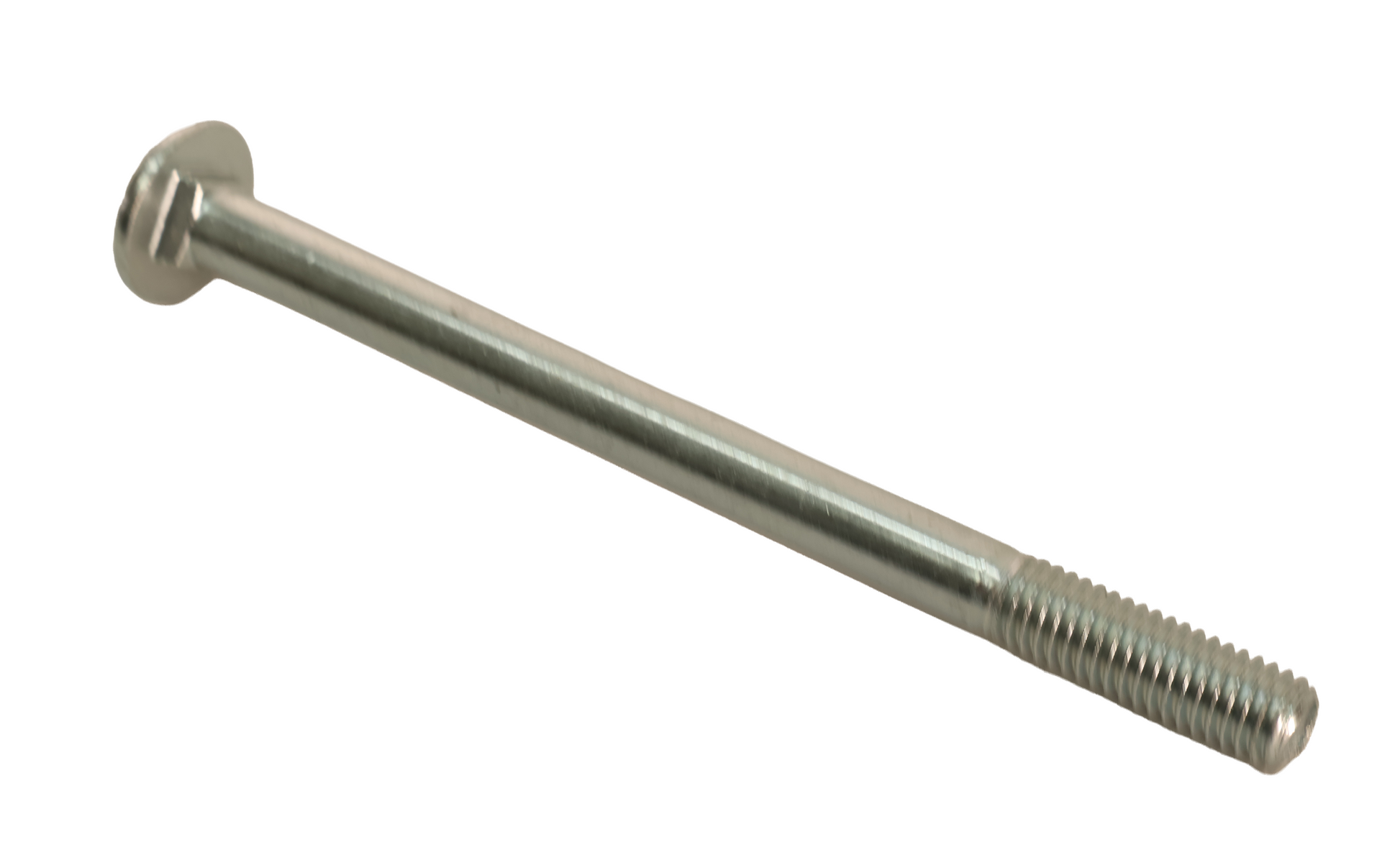

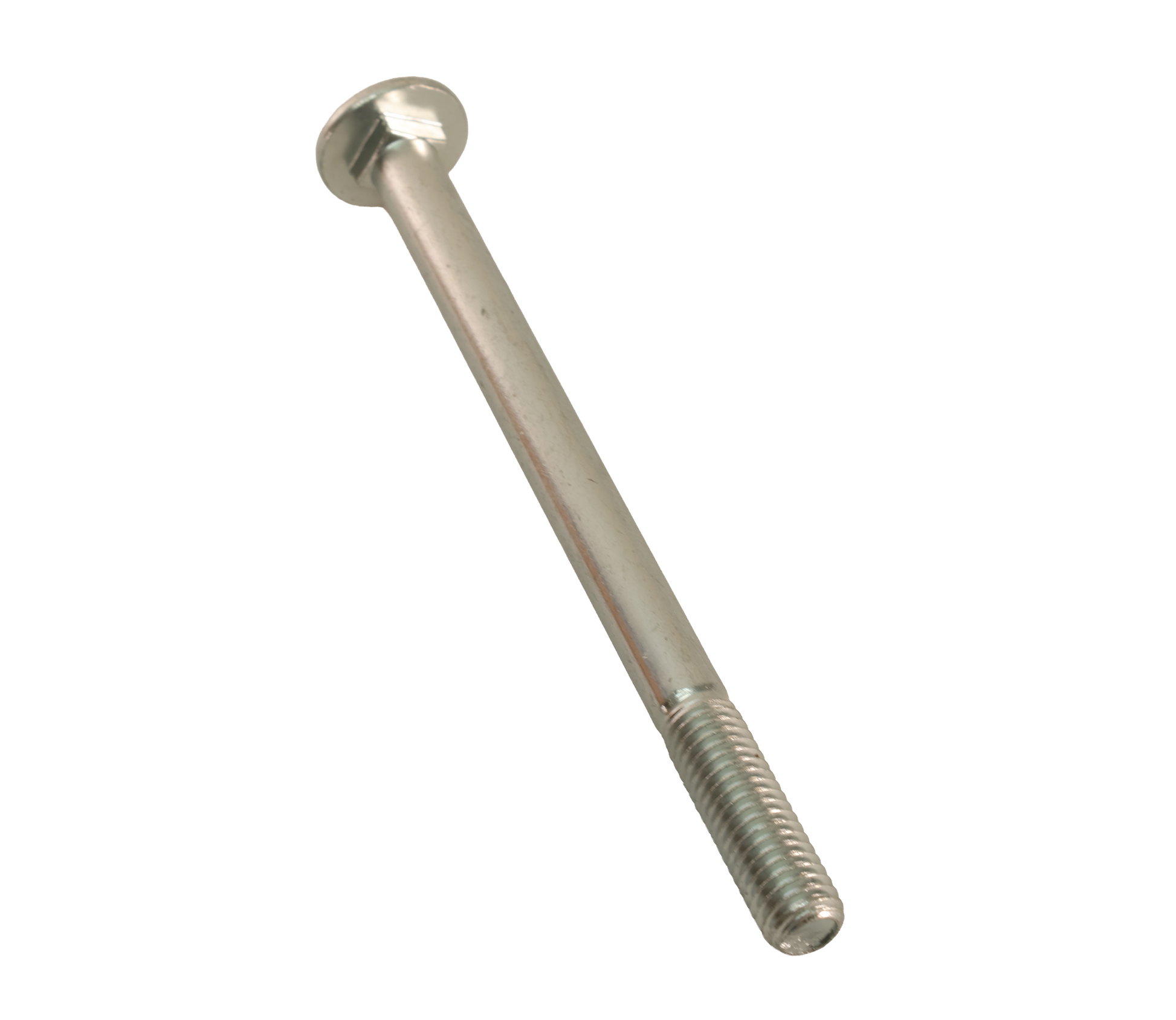

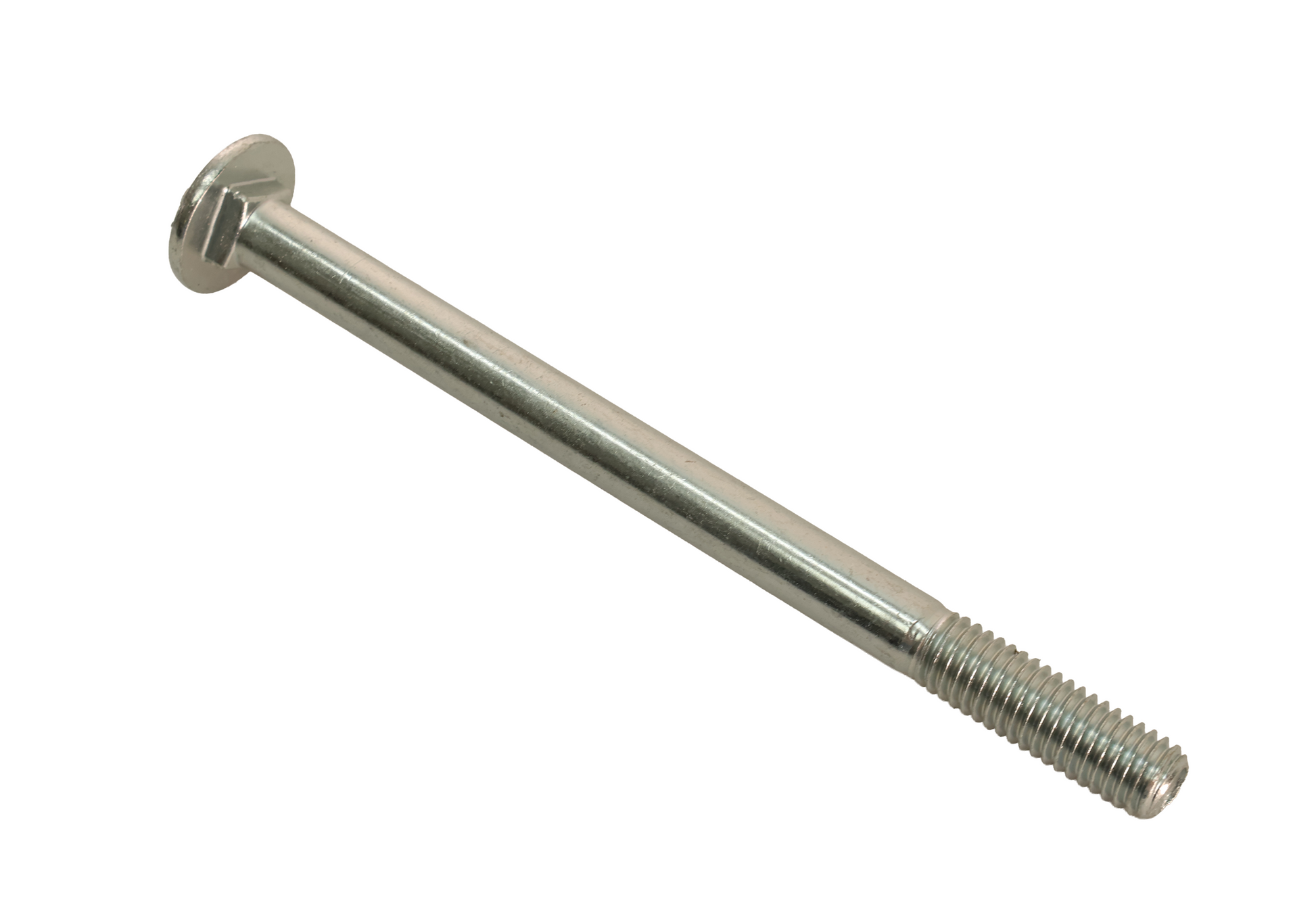

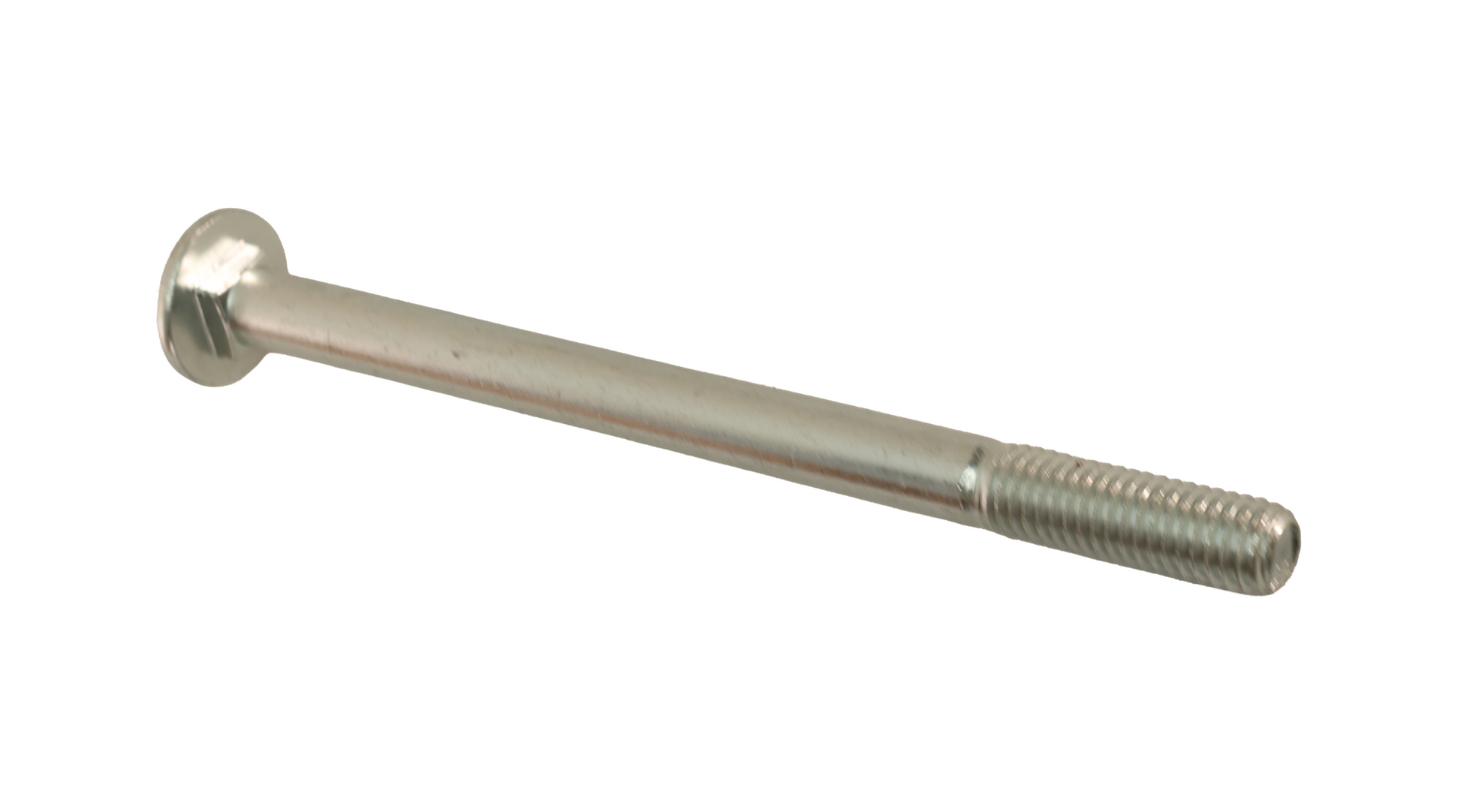

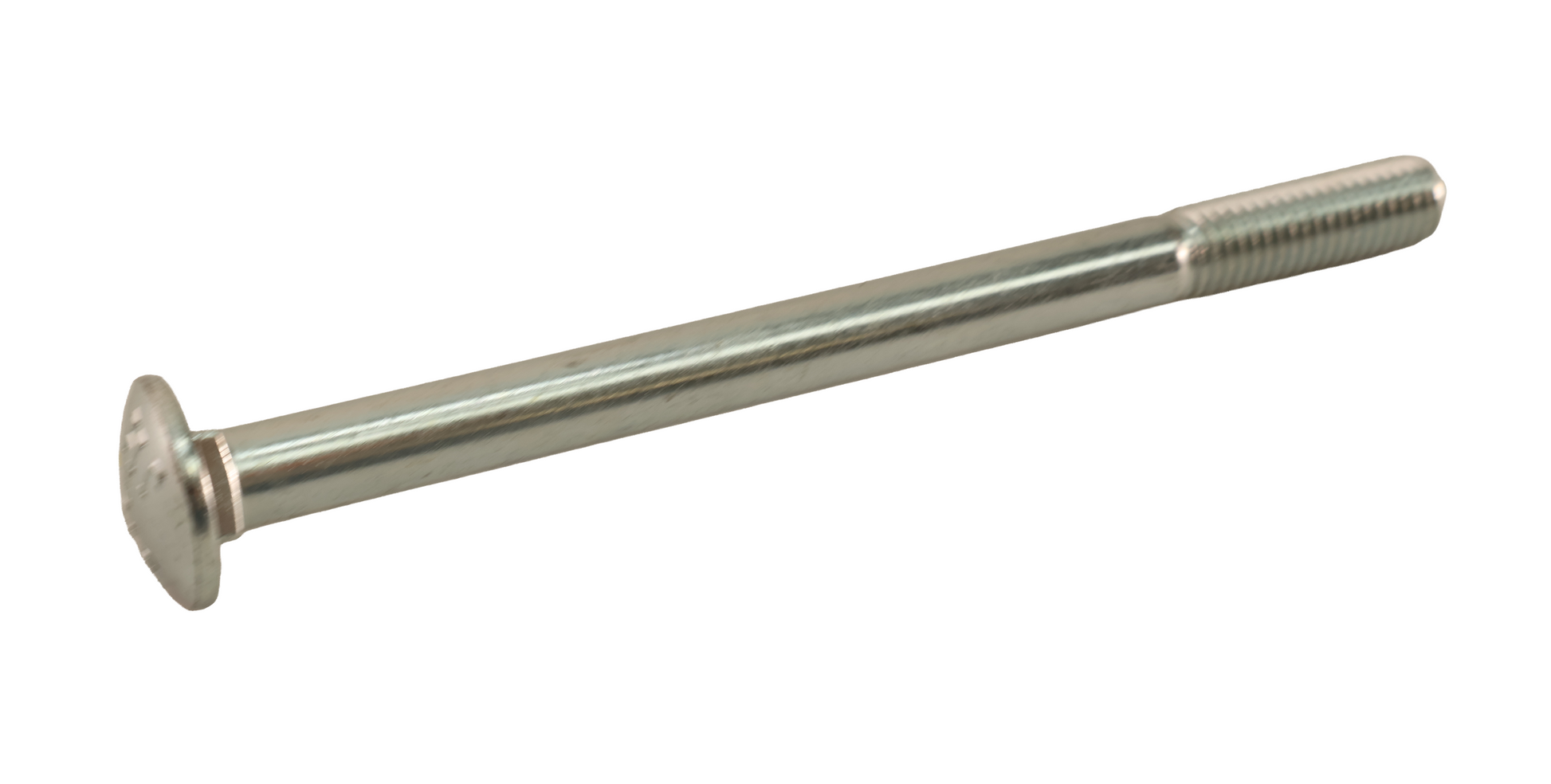

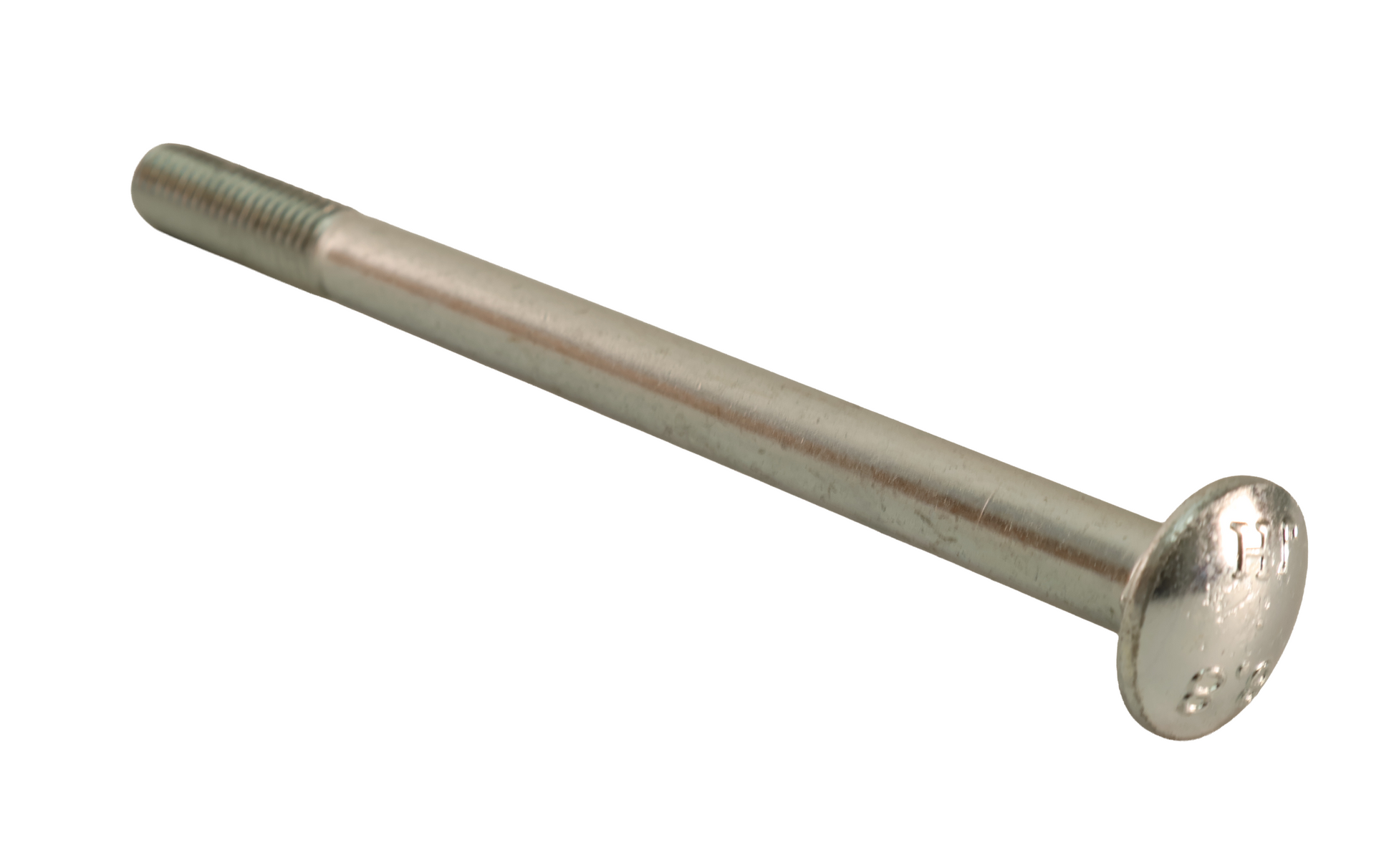

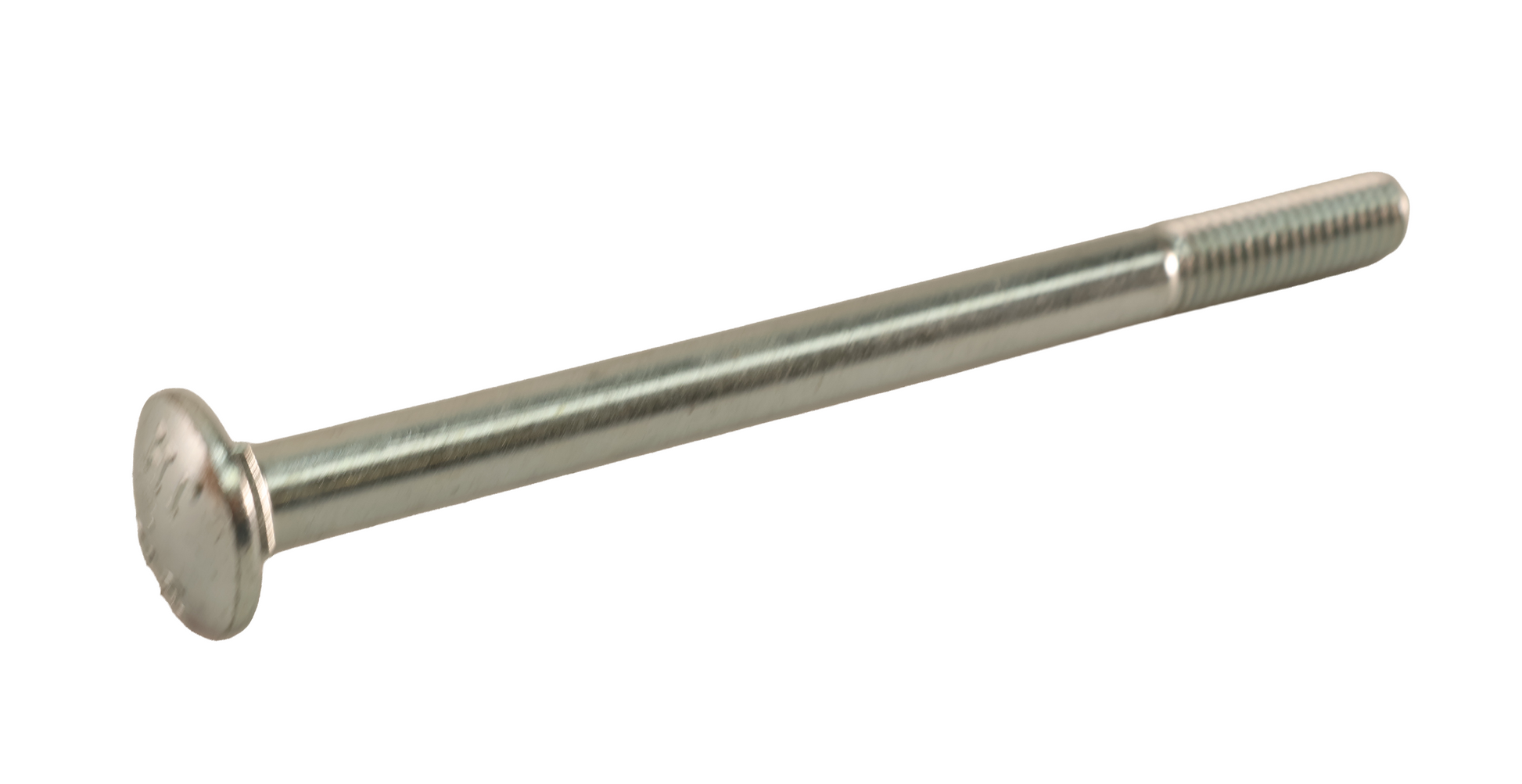

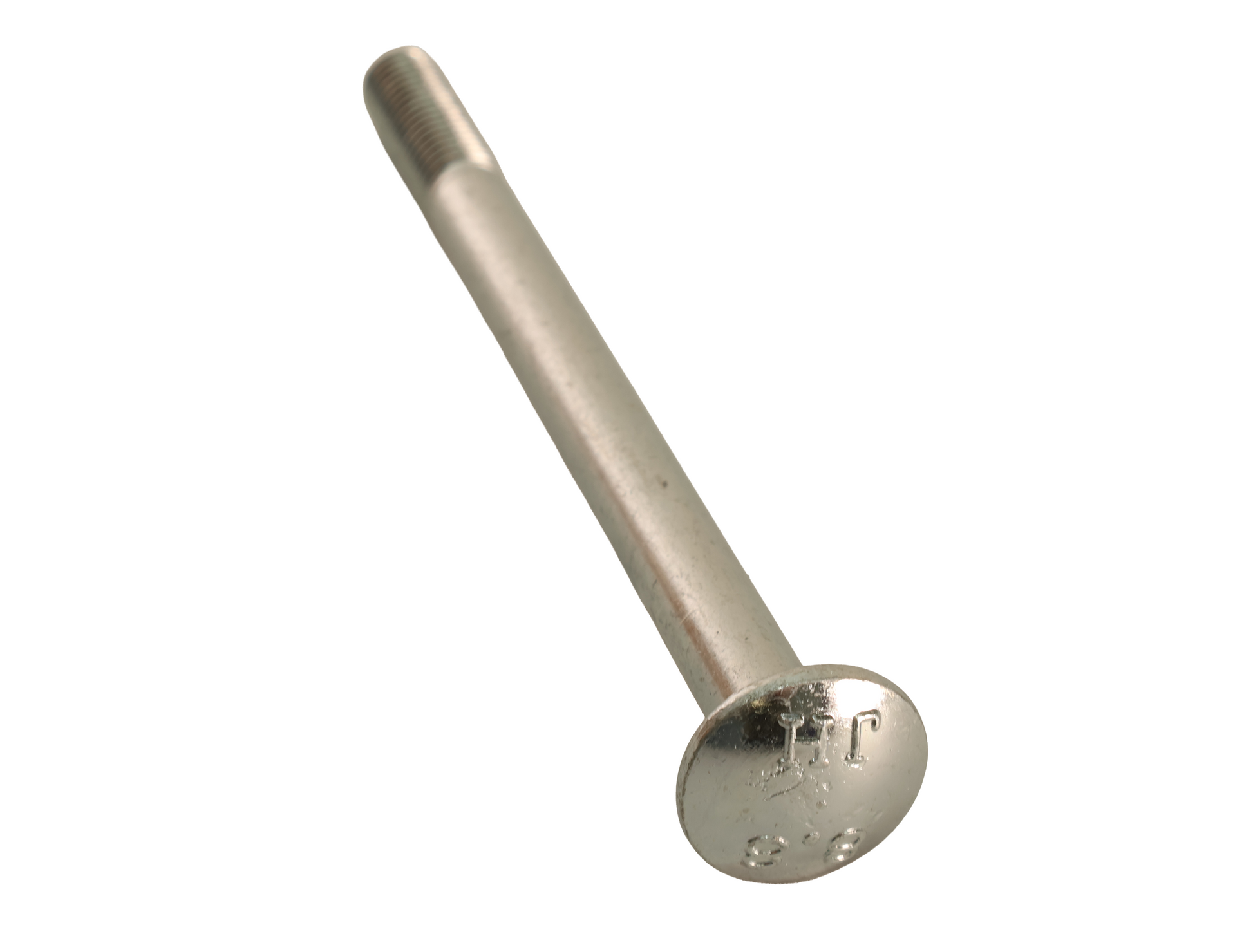

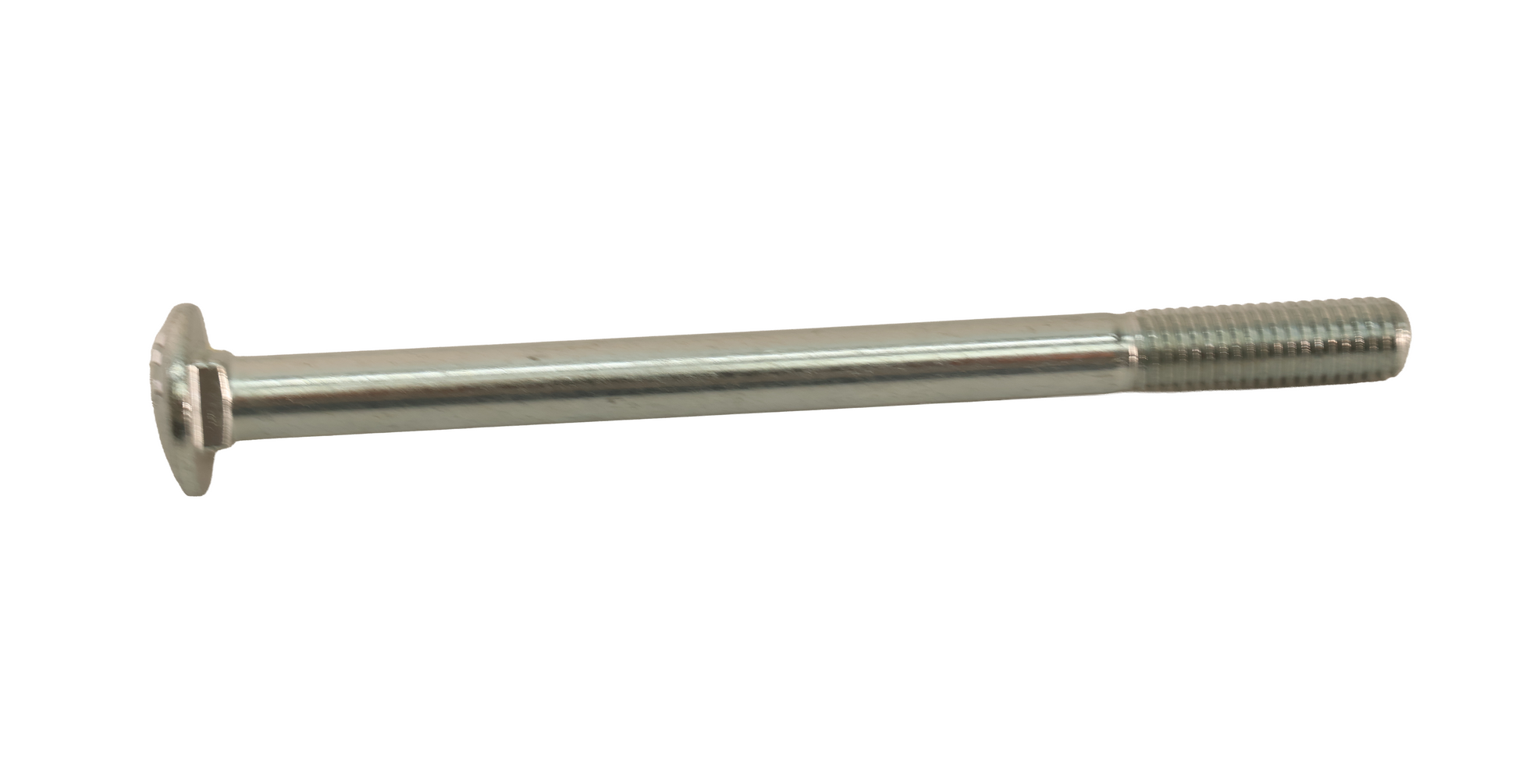

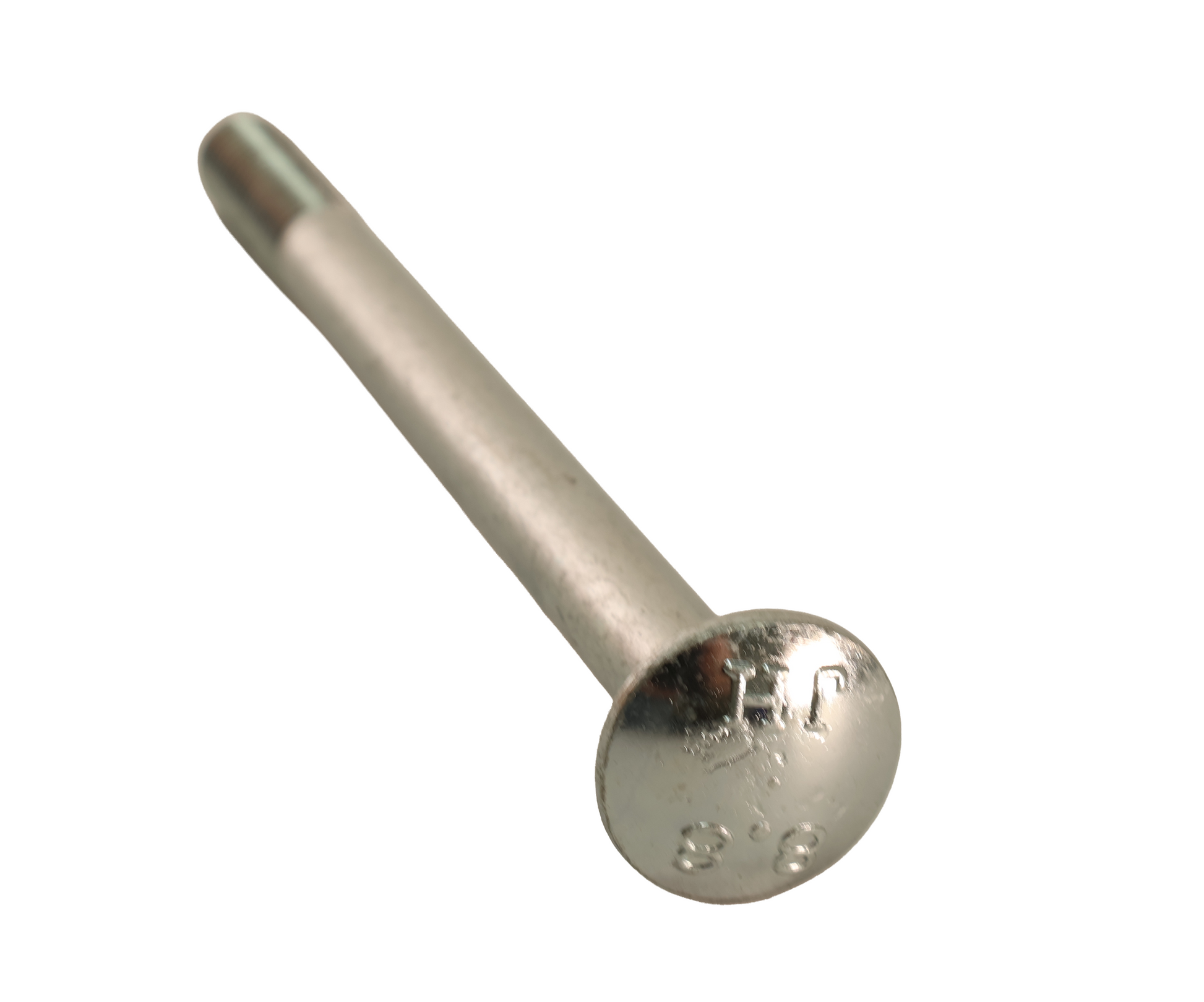

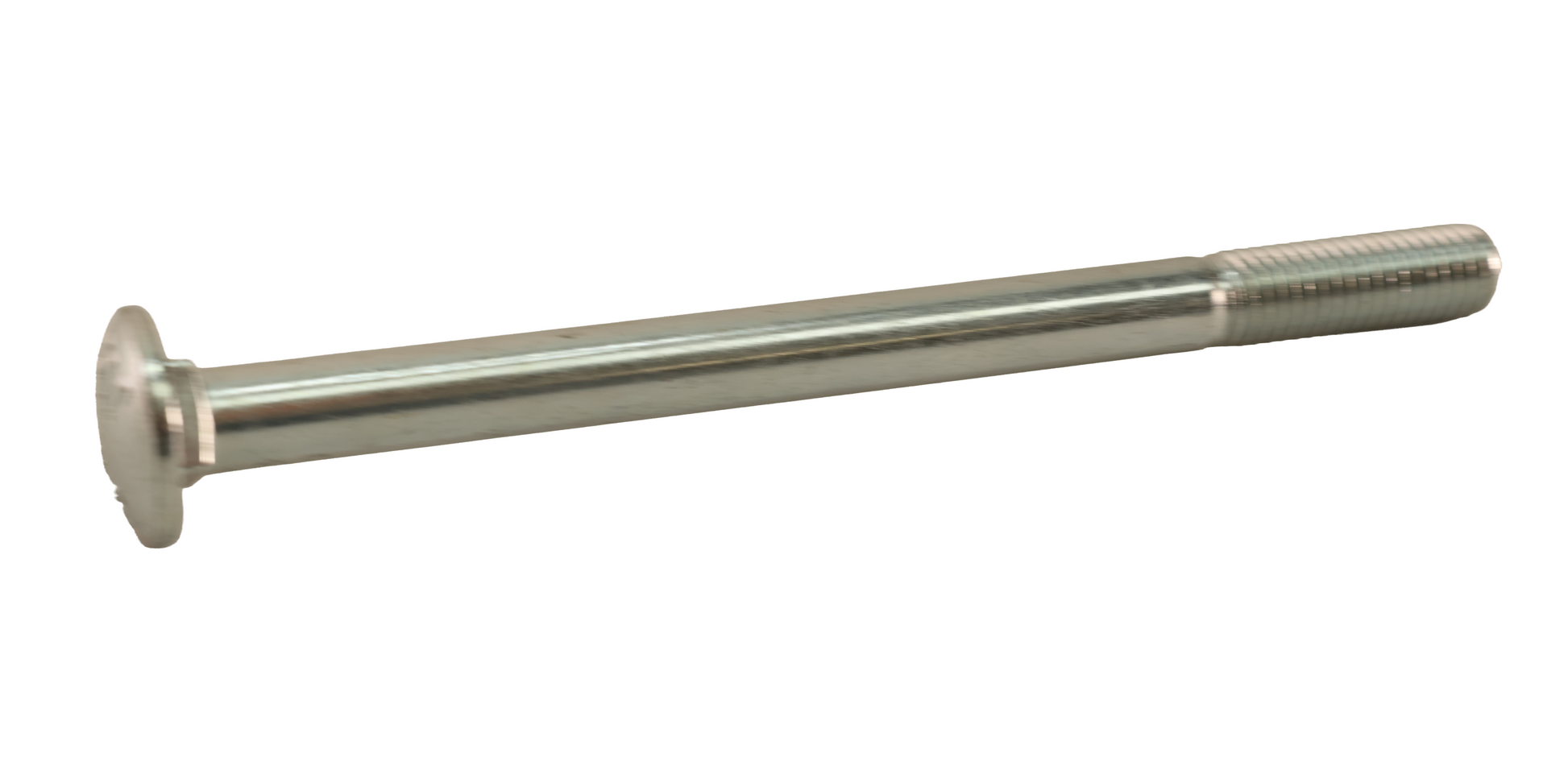

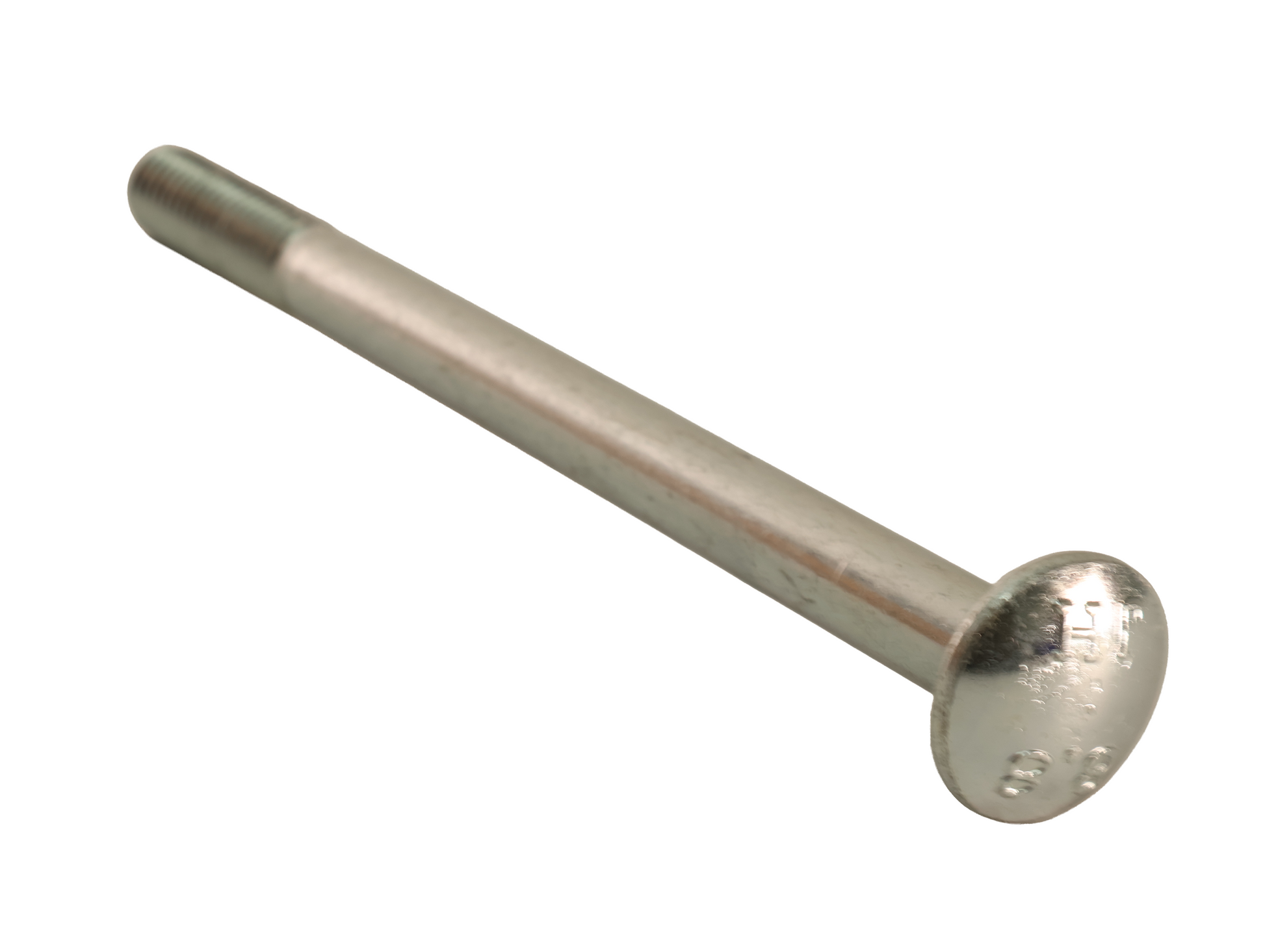

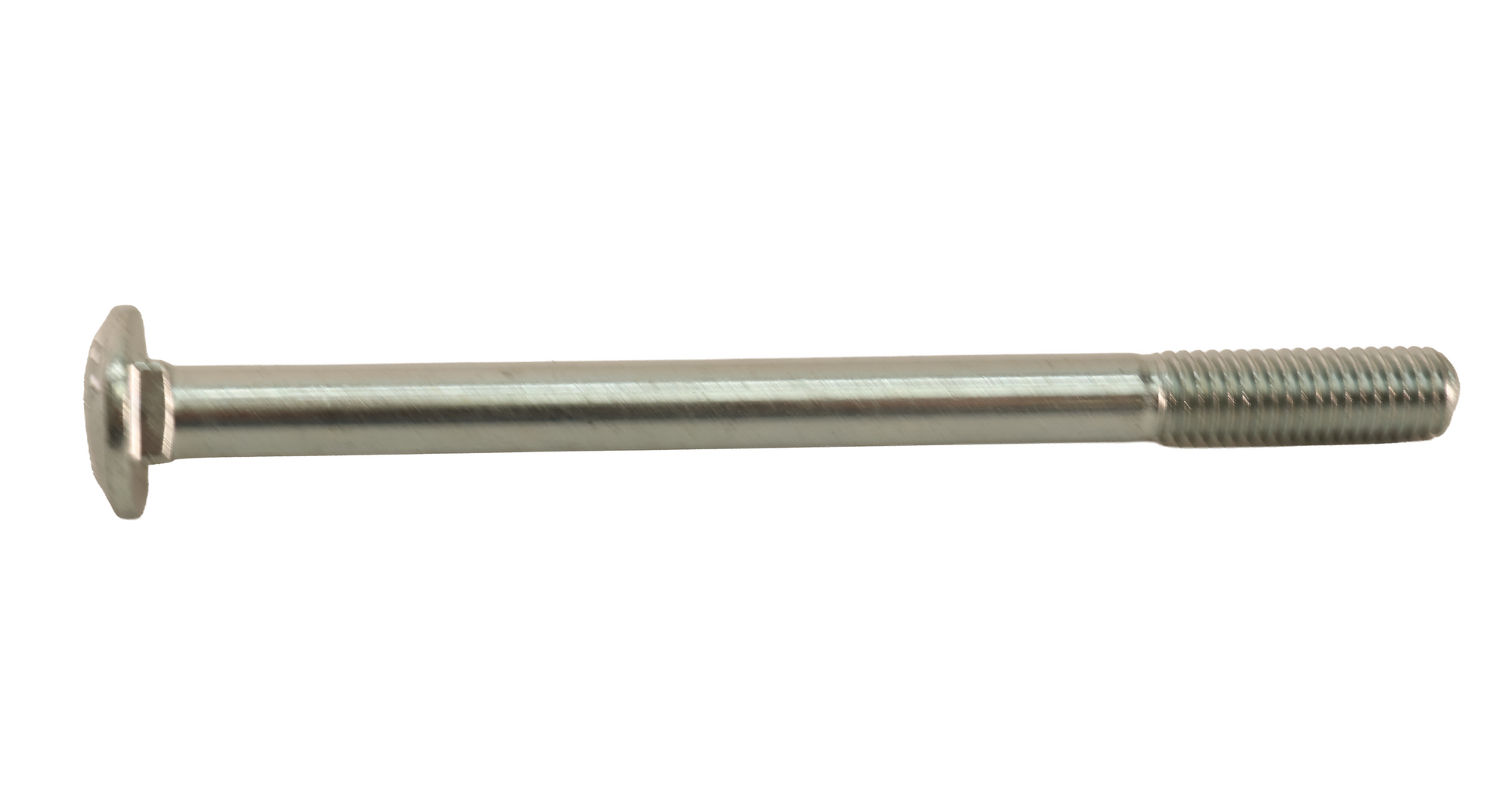

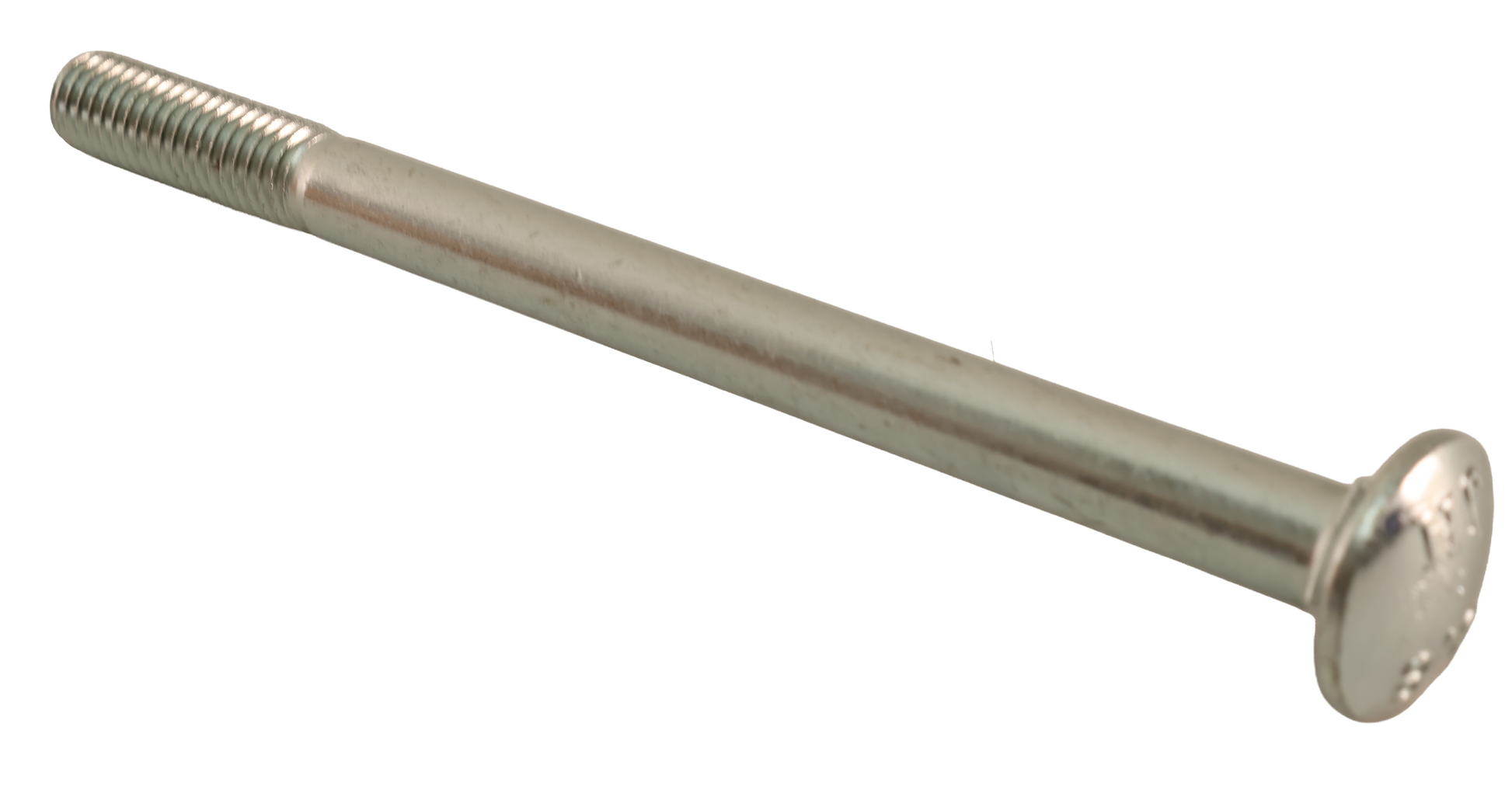

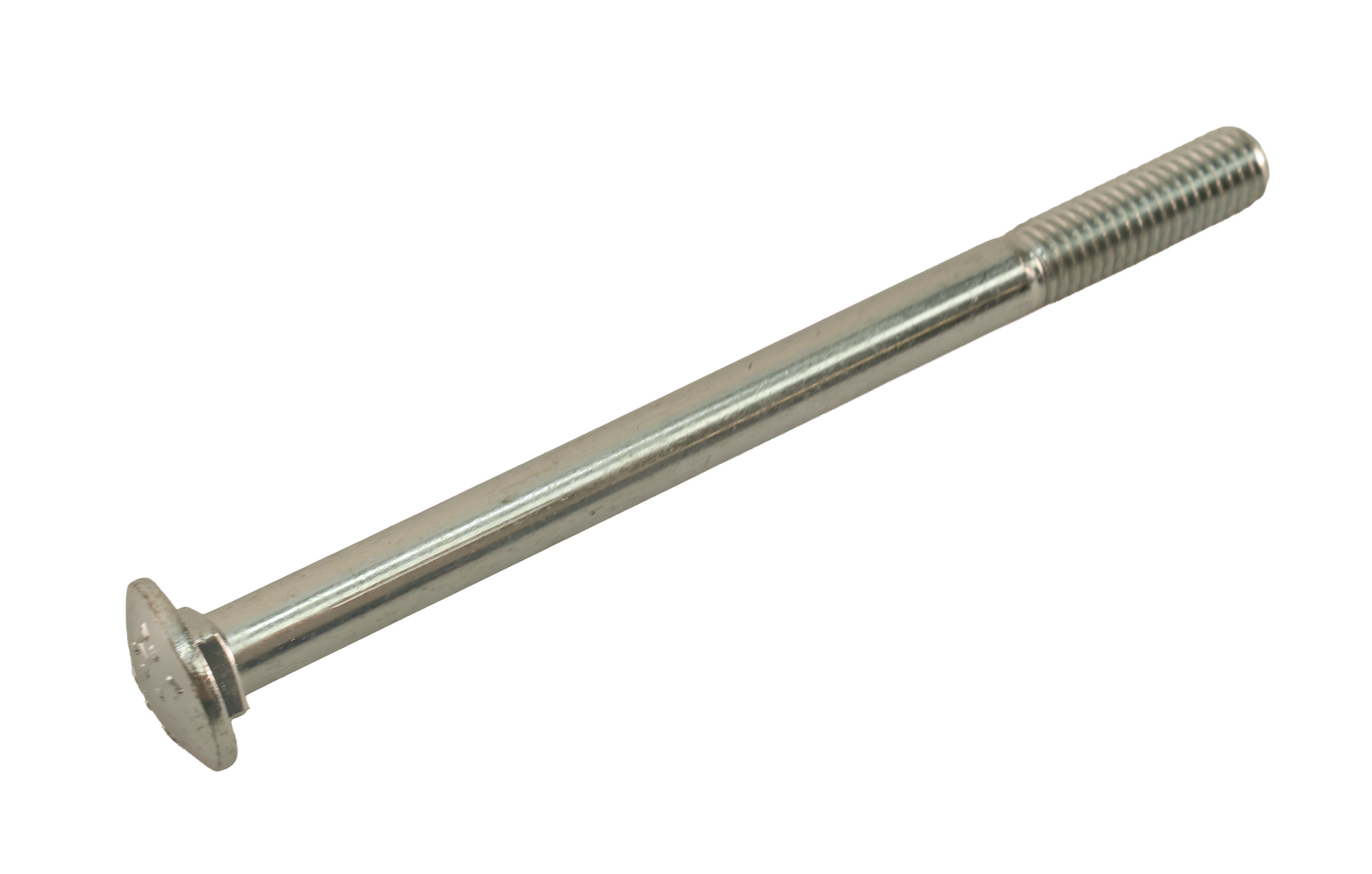

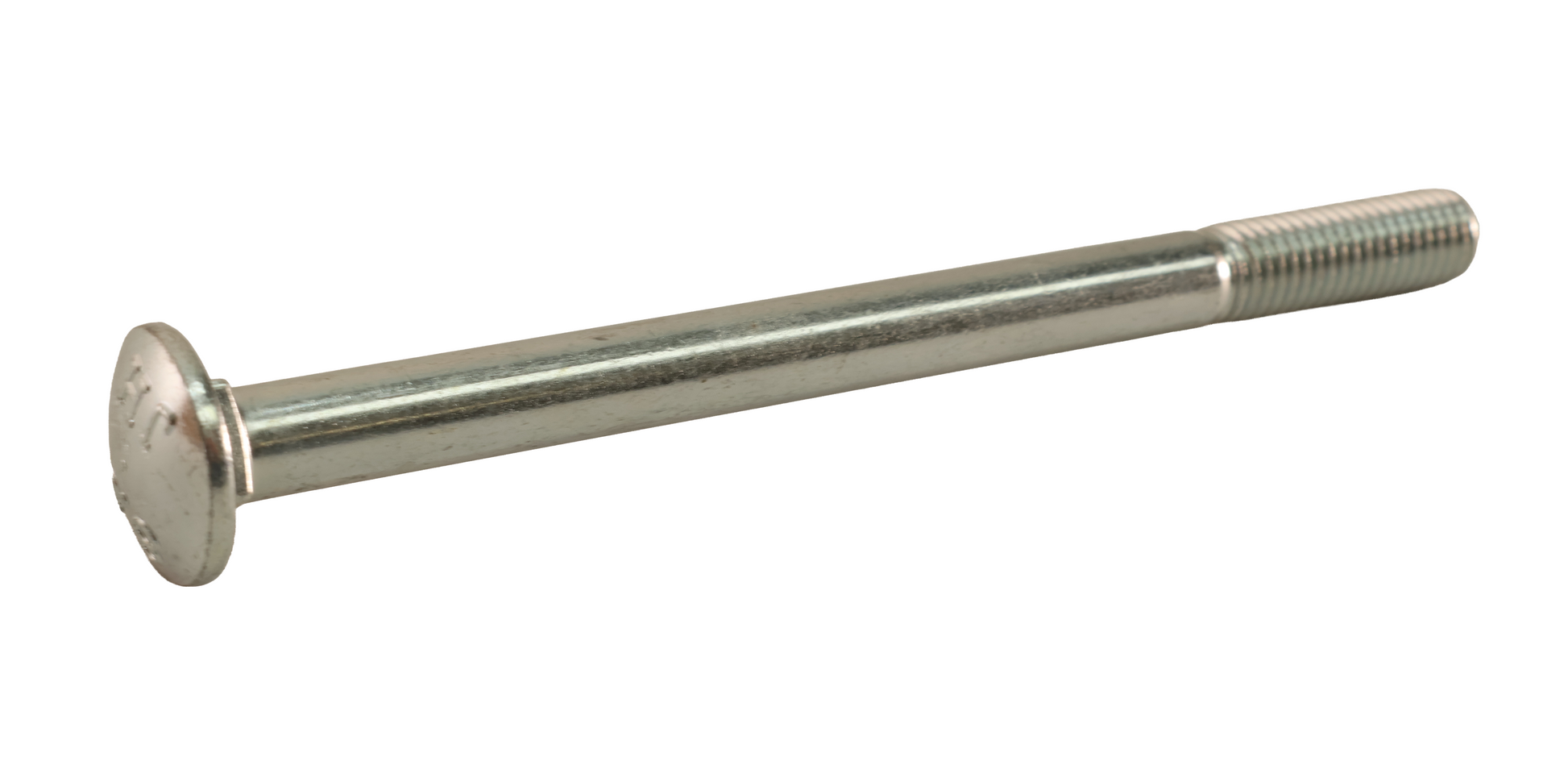

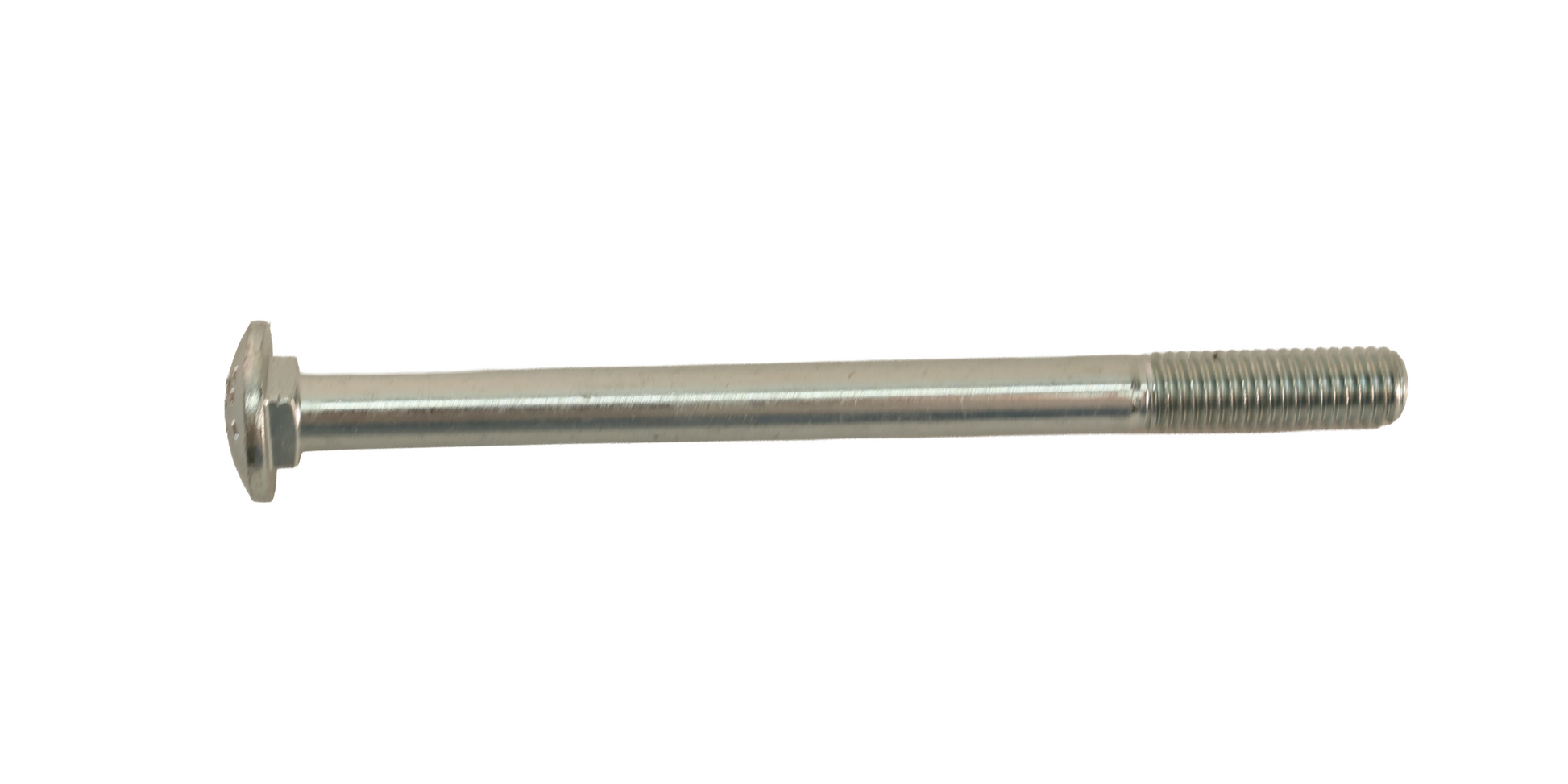

M8 X 110 Round Head Square Neck Bolt

Part Specifications:
Thread Size (MM) 8.0000
Thread Pitch (MM) 1.2500
Length (MM) 110.0000
Thread Length (MM) 22.0000
Neck Depth (MM) 3.0000
Head Diameter (MM) 18.0000
Head Thickness (MM) 4.8000
Material or Grade (ALPHA) 8.8000
Finish (ALPHA) B-ZINC-Electro Plated

Fits the following John Deere models:
Planter: 1720, 1725, 1795, 1775NT, DB37, DB44, DB55, DB60, DB66, DB80, DB90, DR12, DR16, DR18, DR24,
Farm Loader: 265, 280, 520, 540, DB120, DB44, DB58, DB60, DB66, DB80, DB88, DB90, DR12, DR16, DR18, DR24, 240, 245, 740,
Windrower: 4890, 4895
Cotton Stripper: 606SH, 608SH, CS690,
Platform: HD35F, HD35R, HD35X, HD40F, HD40R, HD40X, HD45F, HD45R, HD45X, HD50F, HD50R, HDF 35, HDF 40, HDF 45, HDF 50, HDR 50, HDX 35, HDX 40, HDX 45, HDX 50,
Harvester: 1270H, 1470H,
Front Mower: 1420, 1435, 1445,
Fairway Mower: 1550,
Turf System Mower: 1550,
Front Loader: 245M, 740A,
Skid-Steer Loader: 313, 315, 318E, 320E, 324E, 326E, 328E, 330 P, 330 G, 331G, 332E, 332G, 333G, 334P, 315, CT315
Compact Loaders: 319E, 323E, 329E, 331P, 331G, 333P, 333E, 335P,
Motor Grader: 620G, 620P, 620GP, 622G, 622P, 622GP, 670G, 670P, 670GP, 672G, 672P, 672GP, 770G, 770P, 770GP, 772G, 772P, 772GP, 870GP, 870G, 872G, 872GP,
Loader: 643R, 683R,
Four-Wheel Drive Loader: 724K,
Quik-Trak: 652R, FX730V,
Cotton Picker: CP550,
Walk-Behind Mower: GS25, GS30, GS45, GS45, GS75, W36M, W36R, W48M, W48R, W52R, W61R,
Front Loader: H360, H380
EZTRAK: Z465, Z530R, Z535M, Z535R, Z540M, Z540R, Z545R, Z625, Z645, Z655, Z665.

This is an O.E.M. John Deere part.
