John Deere Original Equipment Bolt - 03M7234

John Deere Original Equipment Bolt - 03M7234

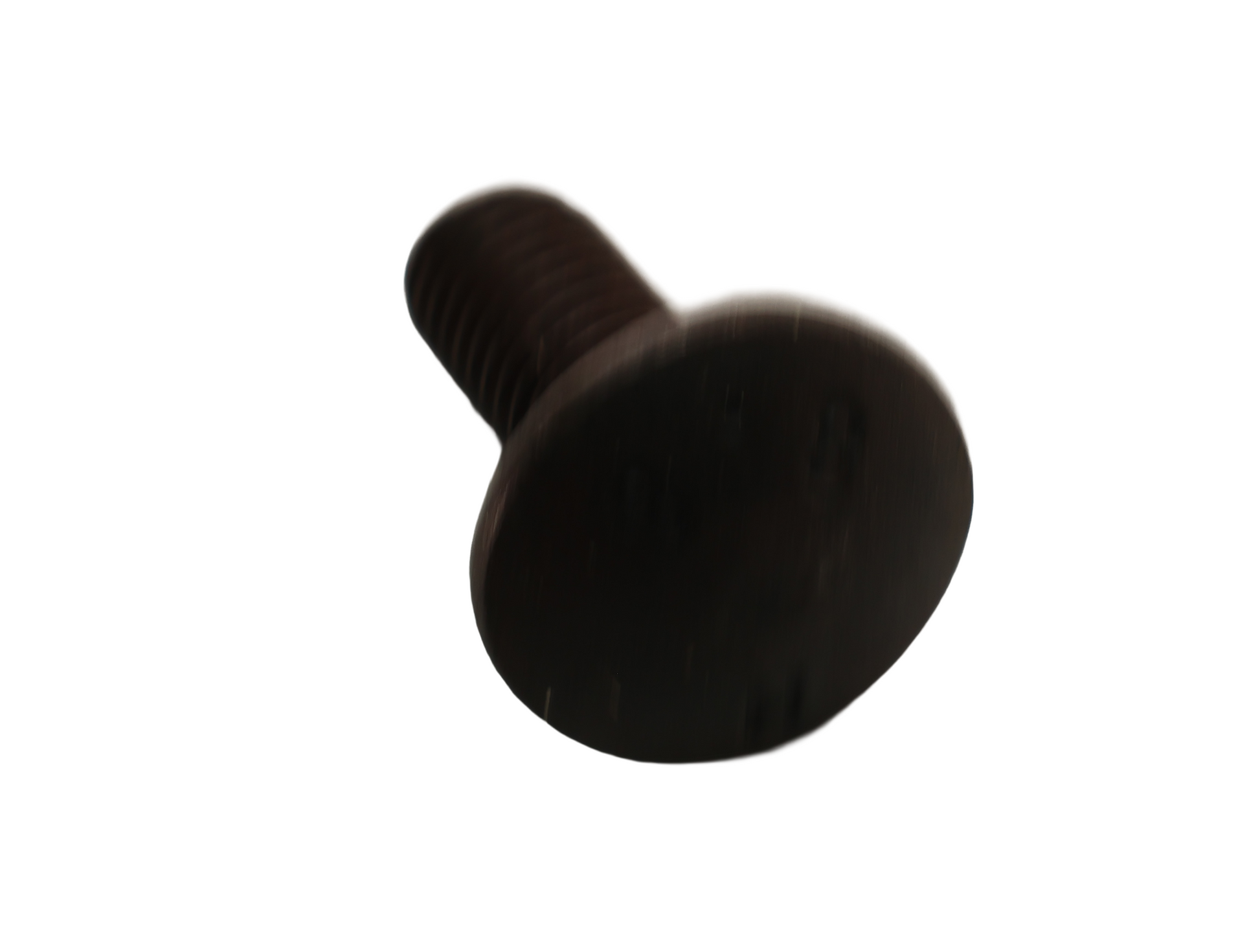

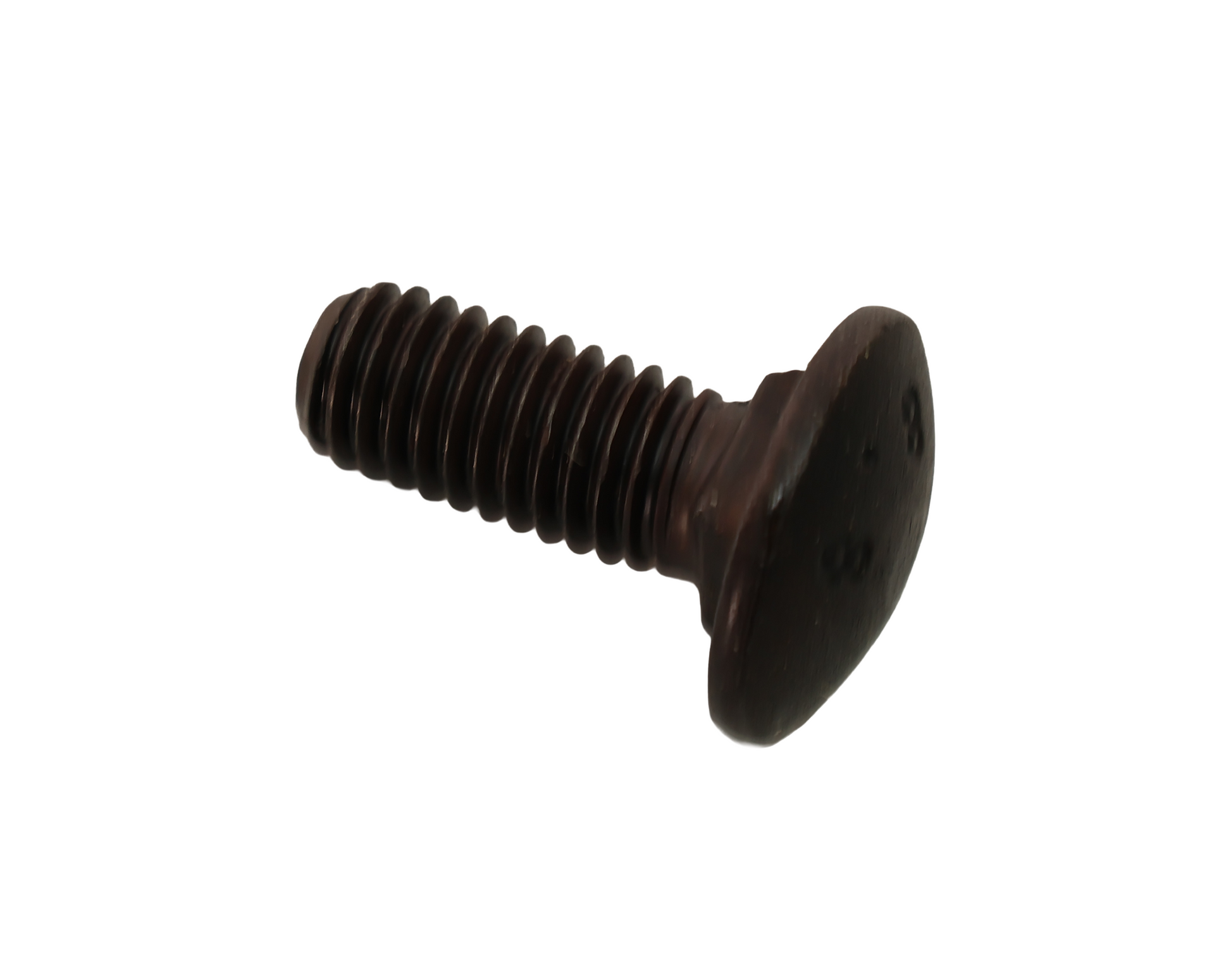

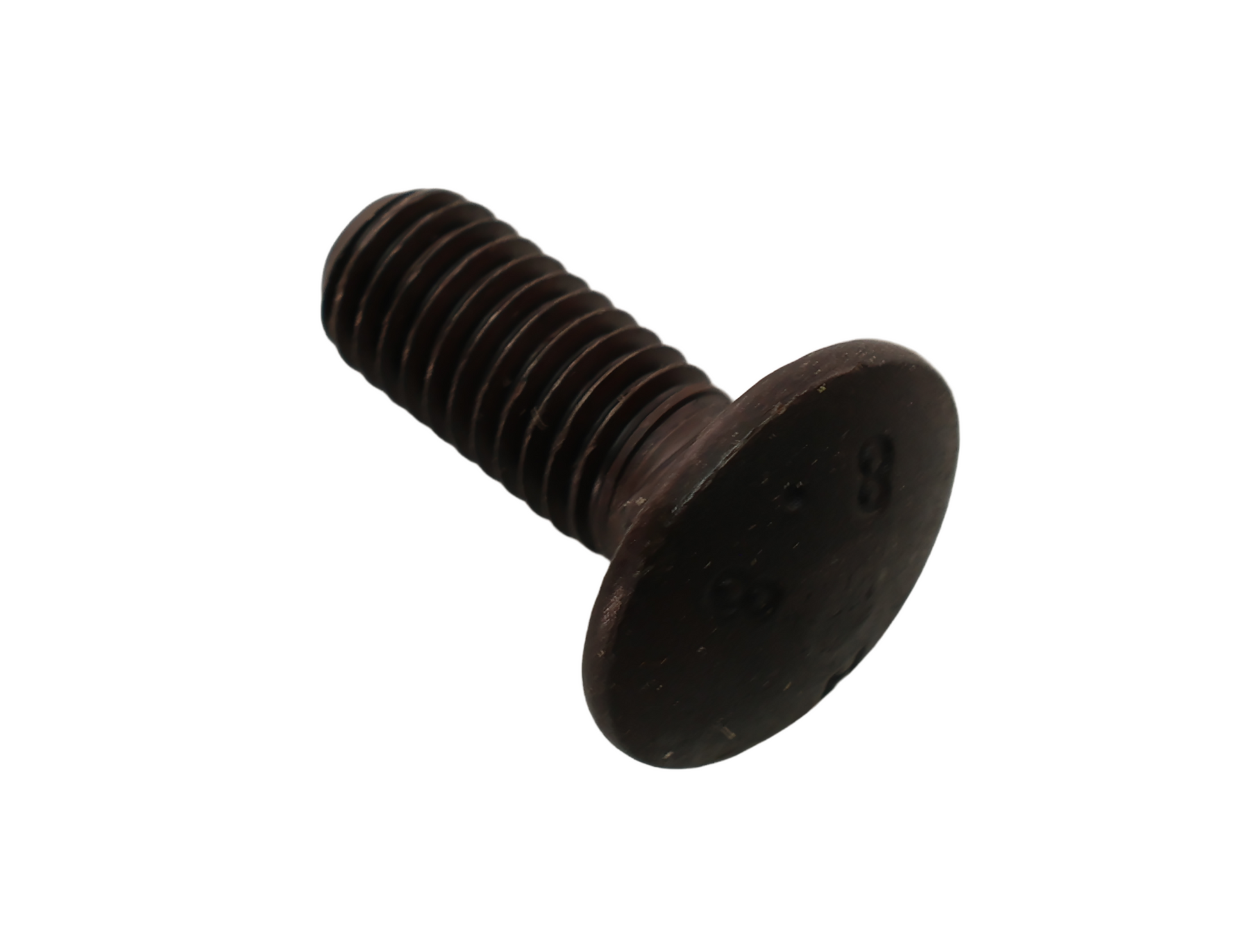

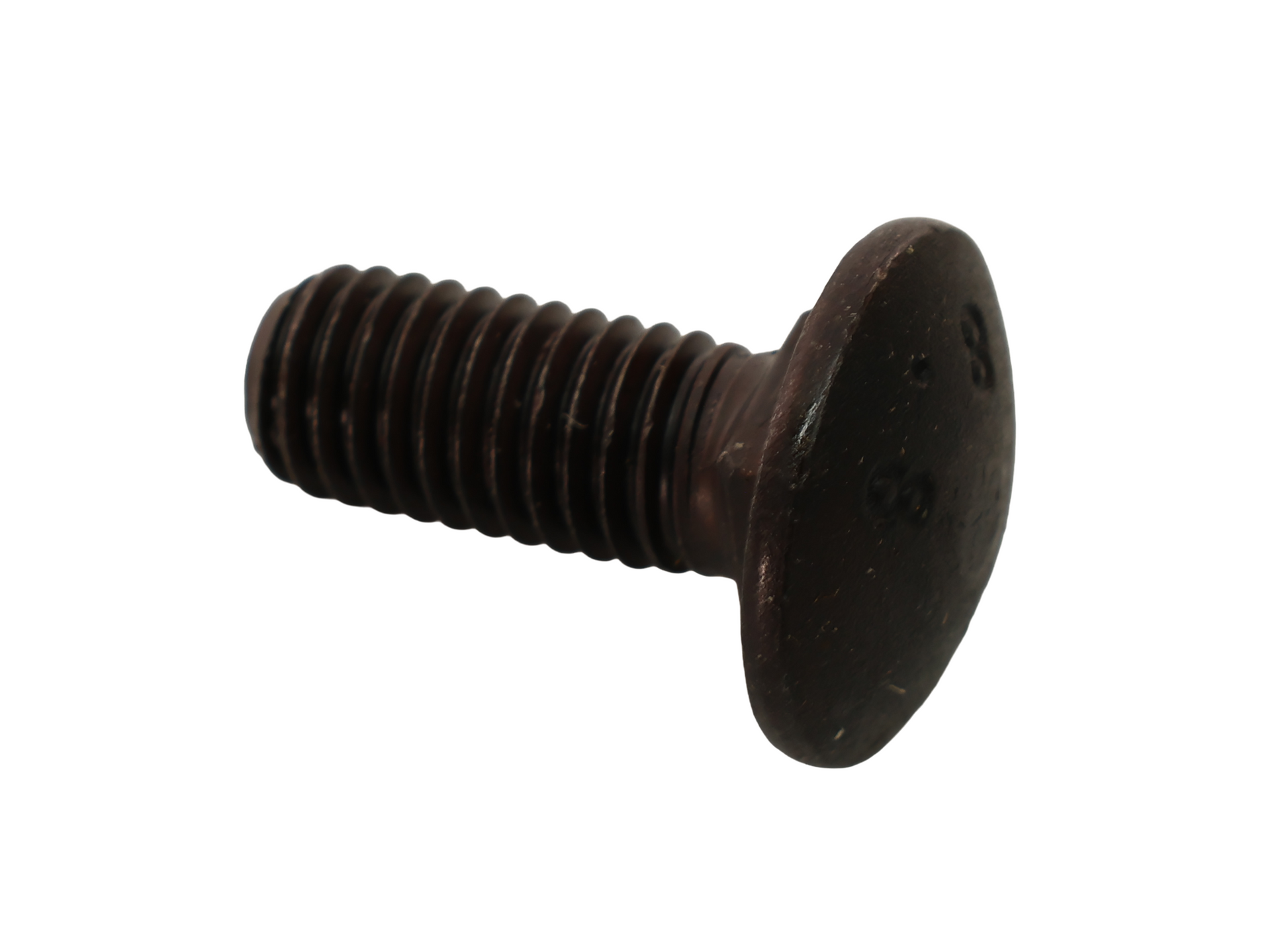

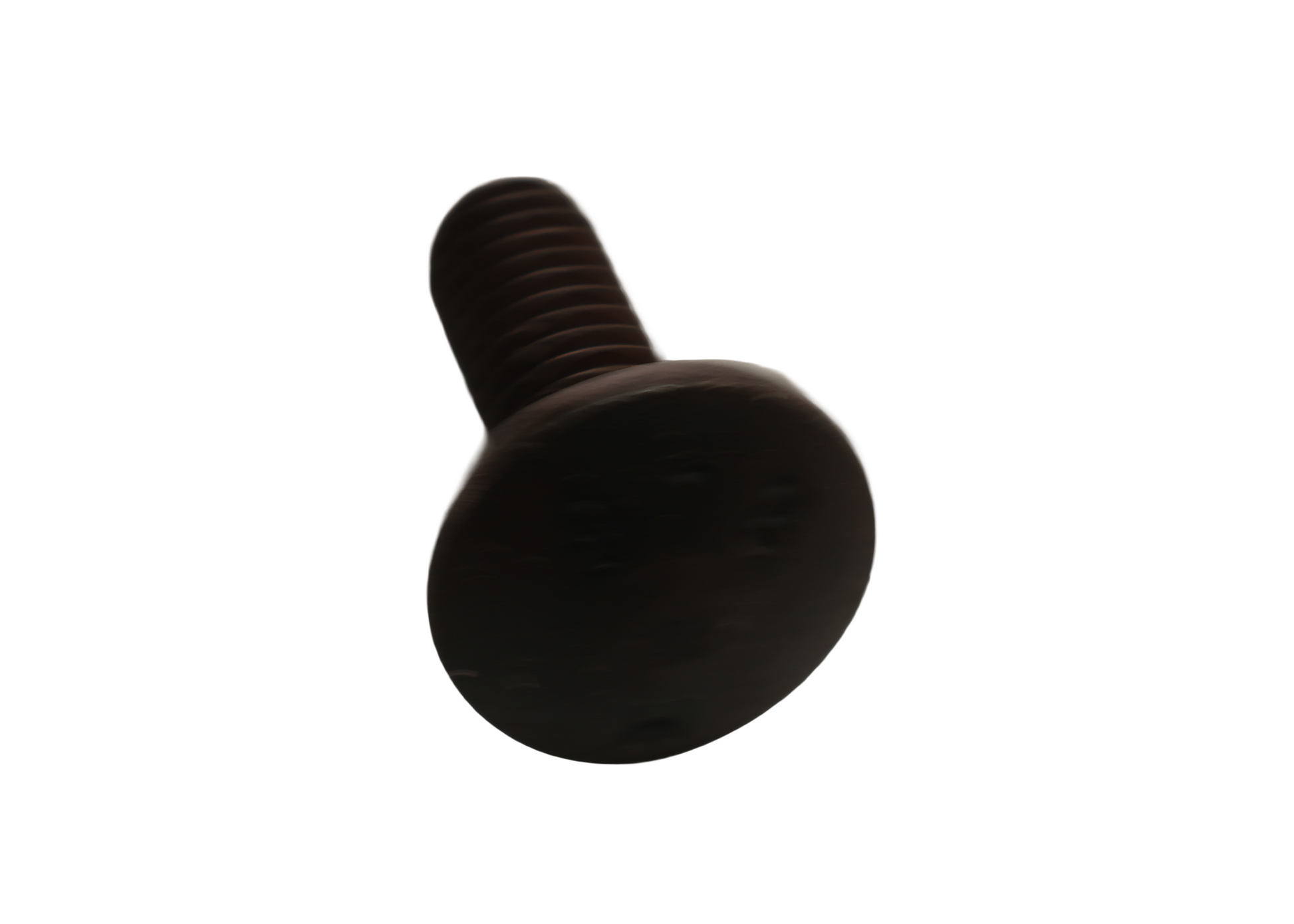

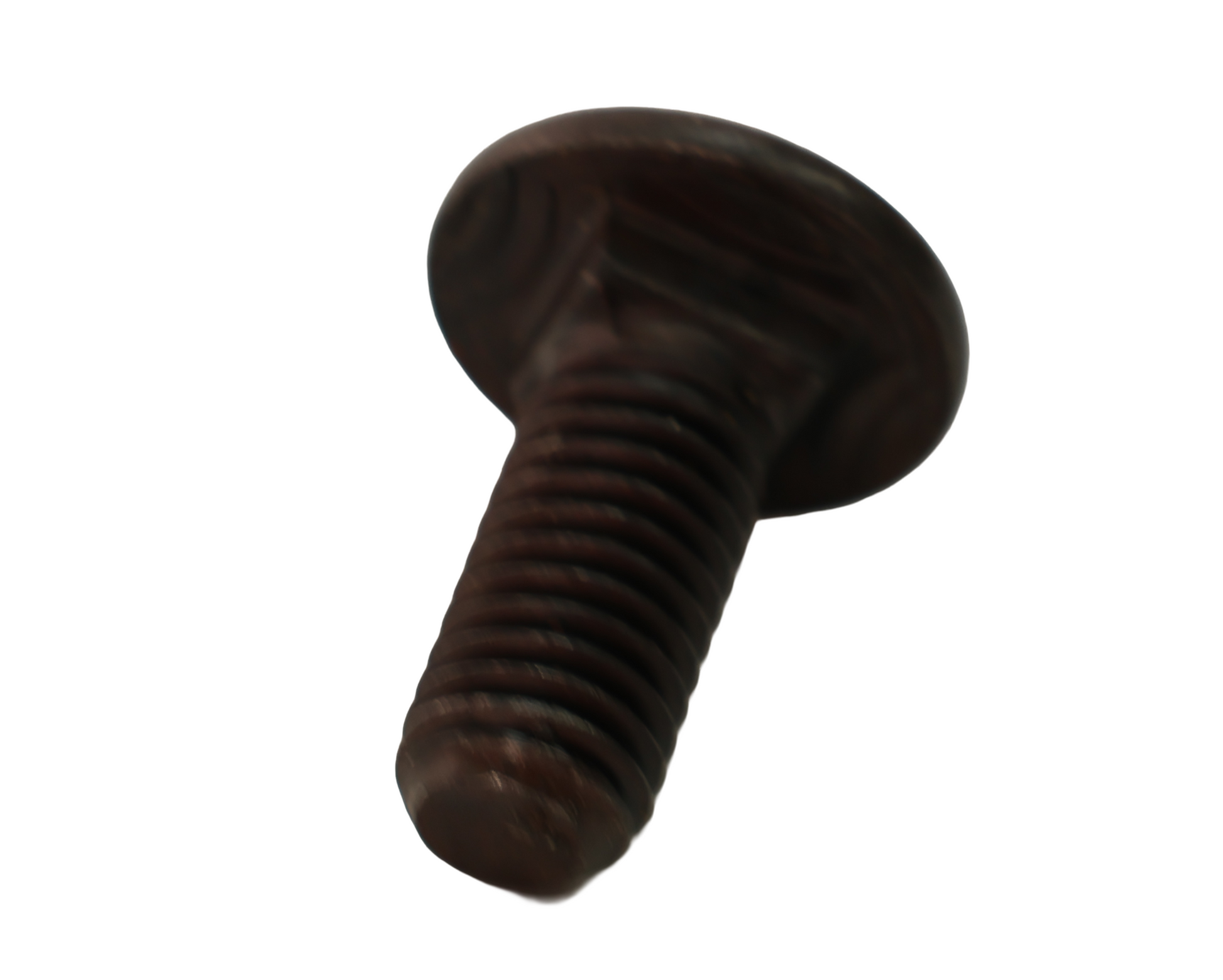

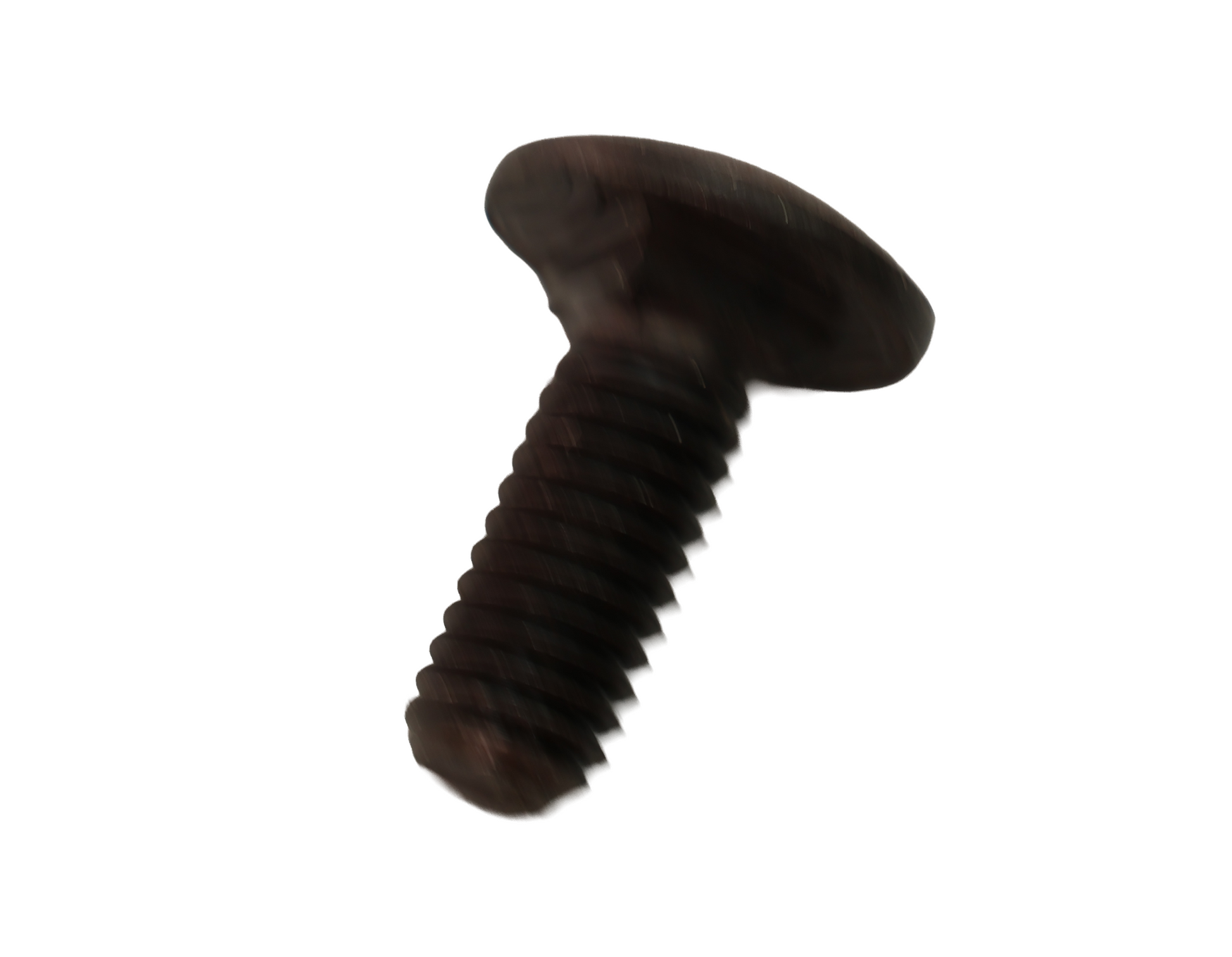

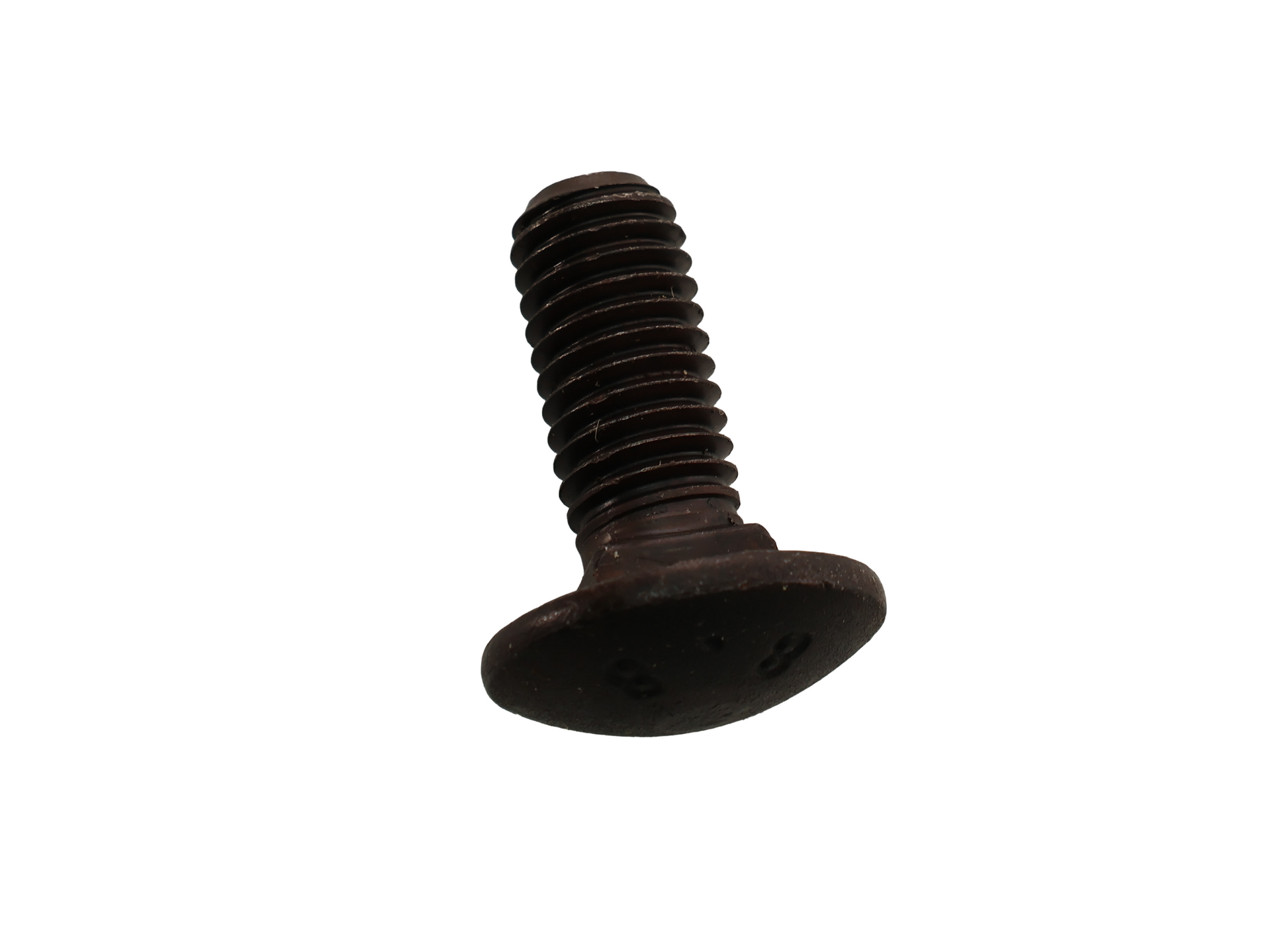

M8 X 20 Round Head Square Neck Bolt

Part Specifications:
Thread Size (MM) 8.0000
Thread Pitch (MM) 1.2500
Length (MM) 20.0000
Thread Length (MM) 14.5000
Neck Depth (MM) 3.0000
Head Diameter (MM) 18.0000
Head Thickness (MM) 4.8000
Material or Grad (ALPHA) 8.8000

Fits the following John Deere models:
Compact Utility Tractor: 1023E, 54D, 1025R, 2032R, 238R, 3039R, 3046R, 1025R, 260, 54D, 60D, 1025R, 2026R, 2038R, 3033R.
Field Cultivator: 2230FH.
Tractor: 9370R, 9420R, 9470R, 9520R, 9570R, QSX15, 9620R, 9420RX, 9470RX, 9520RX, 9570RX, QSX15, 9620RX.
AMS: ATU200, ATU300, AUTOTRAC, ITC, JDLINK, LIGHTBAR, STARFIRE, ATC250, GEN4 DISPLAY, GEN5 DISPLAY, GREENSTAR DISPLAY, MCR.
Quik-Trak: Q820M, Q850M, Q850R, Q865R.
ZTRAK: CV730, PS-CV730, Z720A, 717, 717A, 727A, 737, 757, 777, 797, FD791D, 997, Z997, M665, Z445, Z510A, Z520A, Z710A, Z810A, Z820A, Z830A, Z840A, Z850A, Z910A, Z915B, Z915E, FX730V, Z920A, Z920M, Z920R, Z925A, FX751V, FX801V, Z925A, Z925M, Z930A, Z930M, Z930R, Z945M, Z950A, Z950M, Z950R, Z955M, Z955R, Z960A, FX921V, Z960M, Z960R, Z965M, Z965R, Z970A, Z970R, Z975M, Z985R, Z994R, Z997R.
Fairway Mower: 1550, 1570, 1575, 1580, 1585.
Turf System Mower: 1550, 1570, 1575, 1580, 1585.
Material Collection System: MCS600.

This is an O.E.M. John Deere part.
