John Deere Original Equipment Bolt - 03M7191

John Deere Original Equipment Bolt - 03M7191

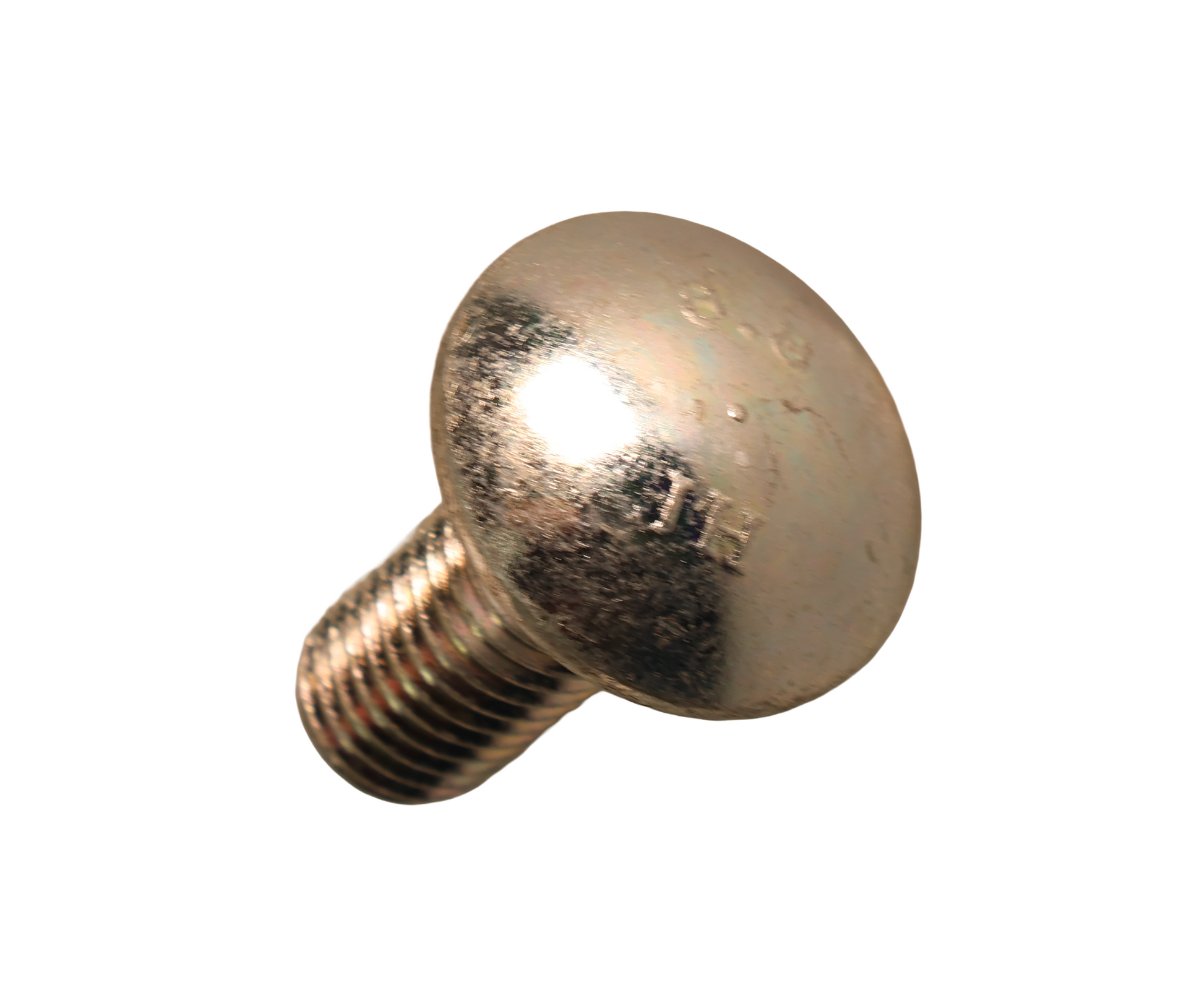

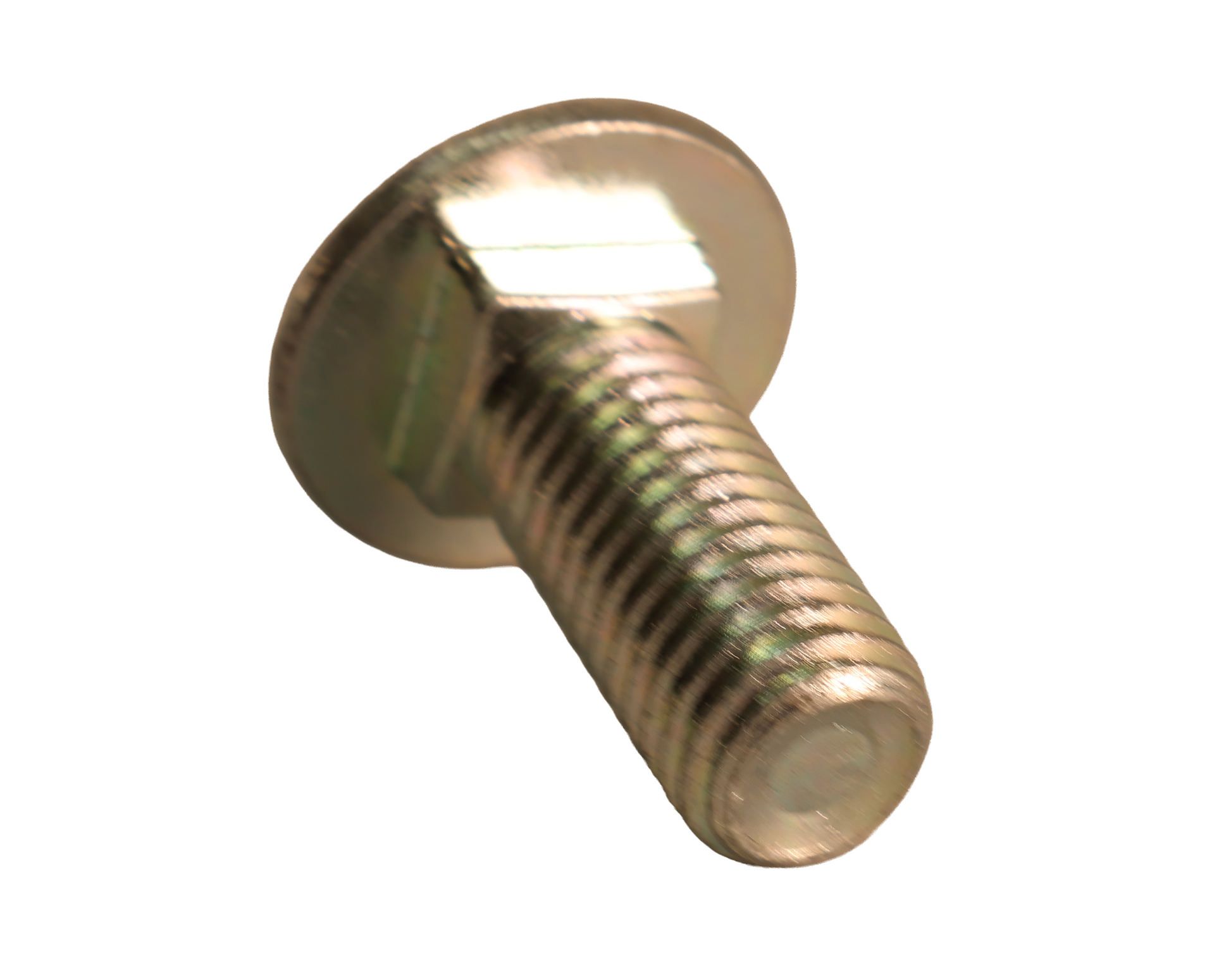

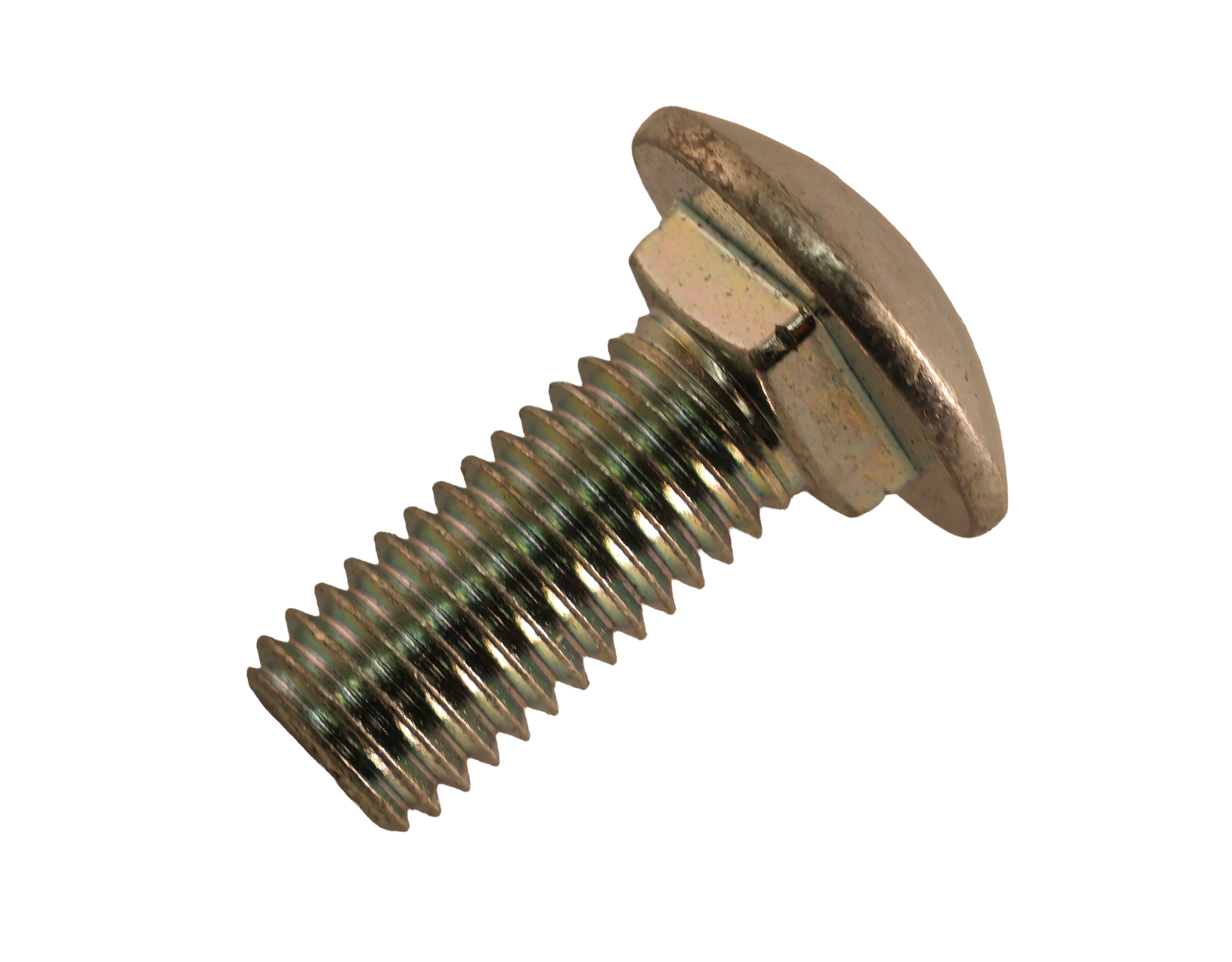

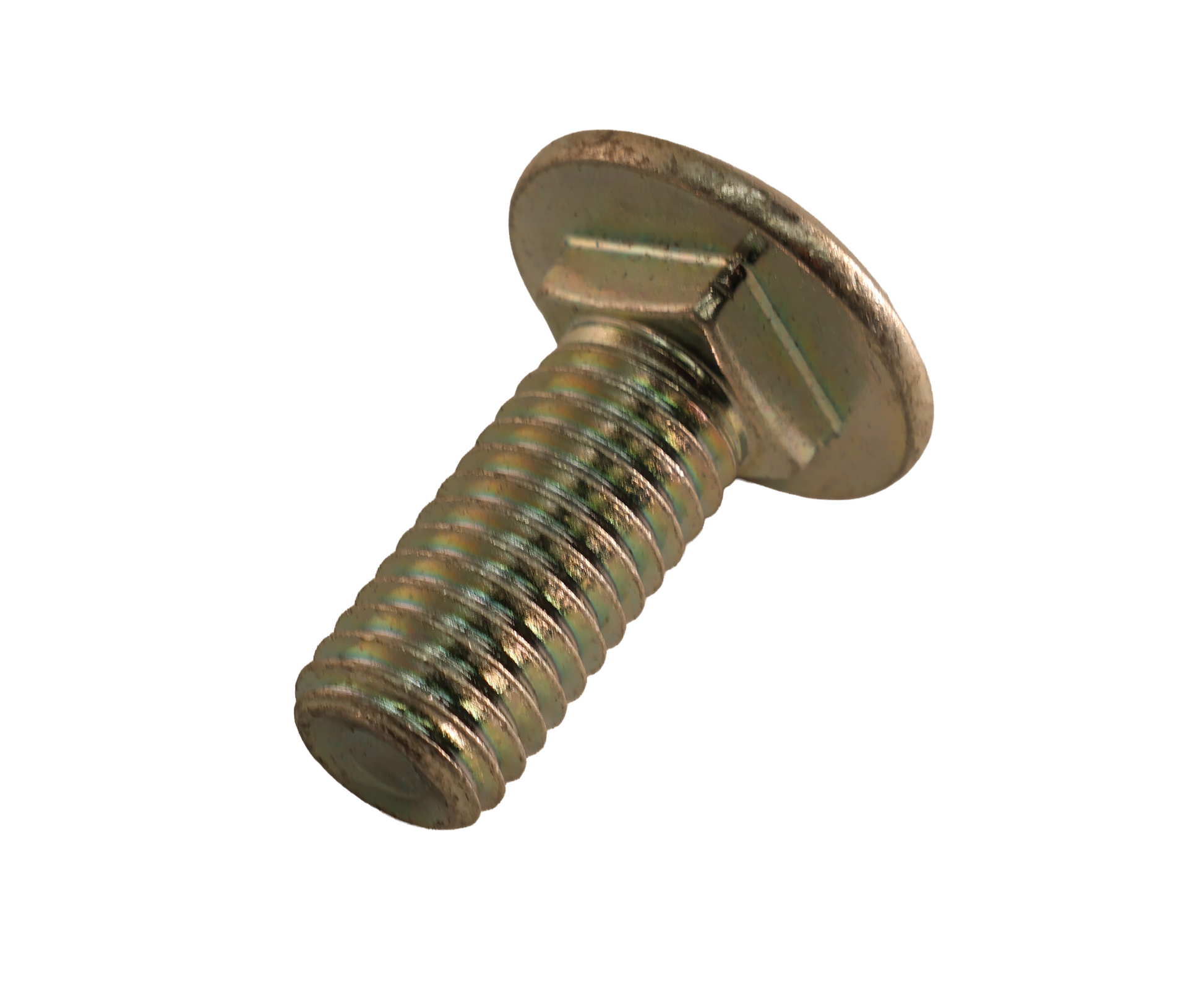

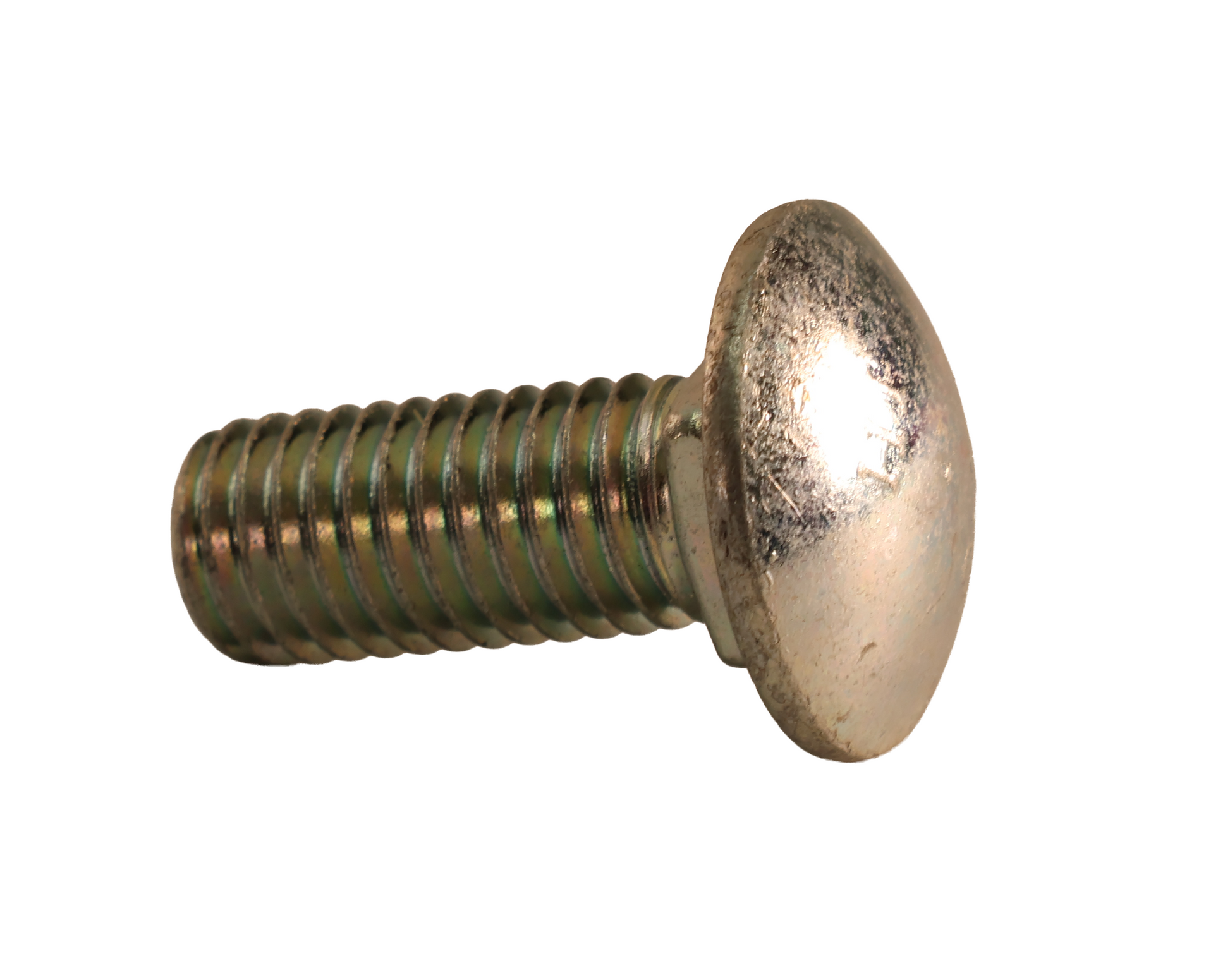

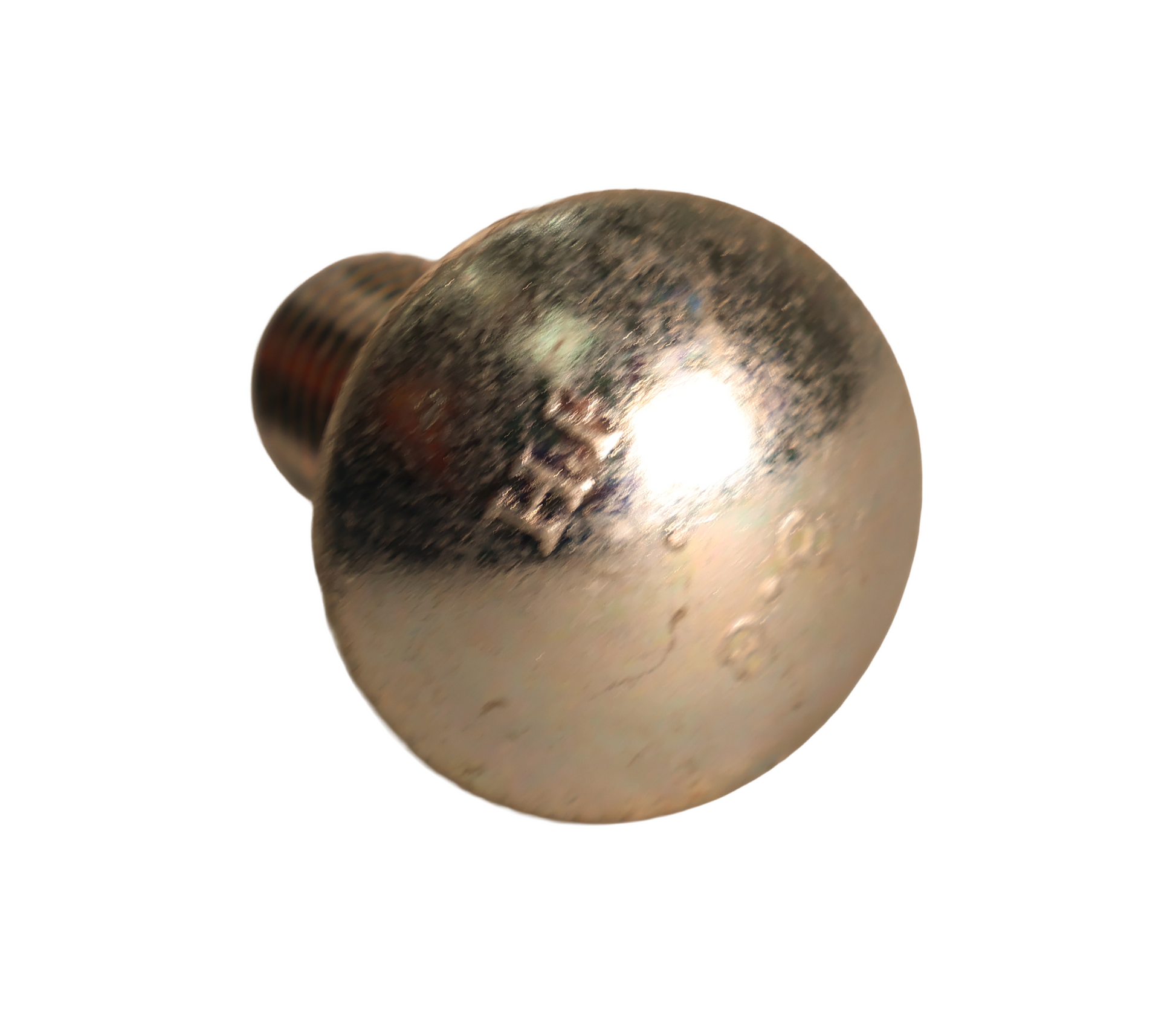

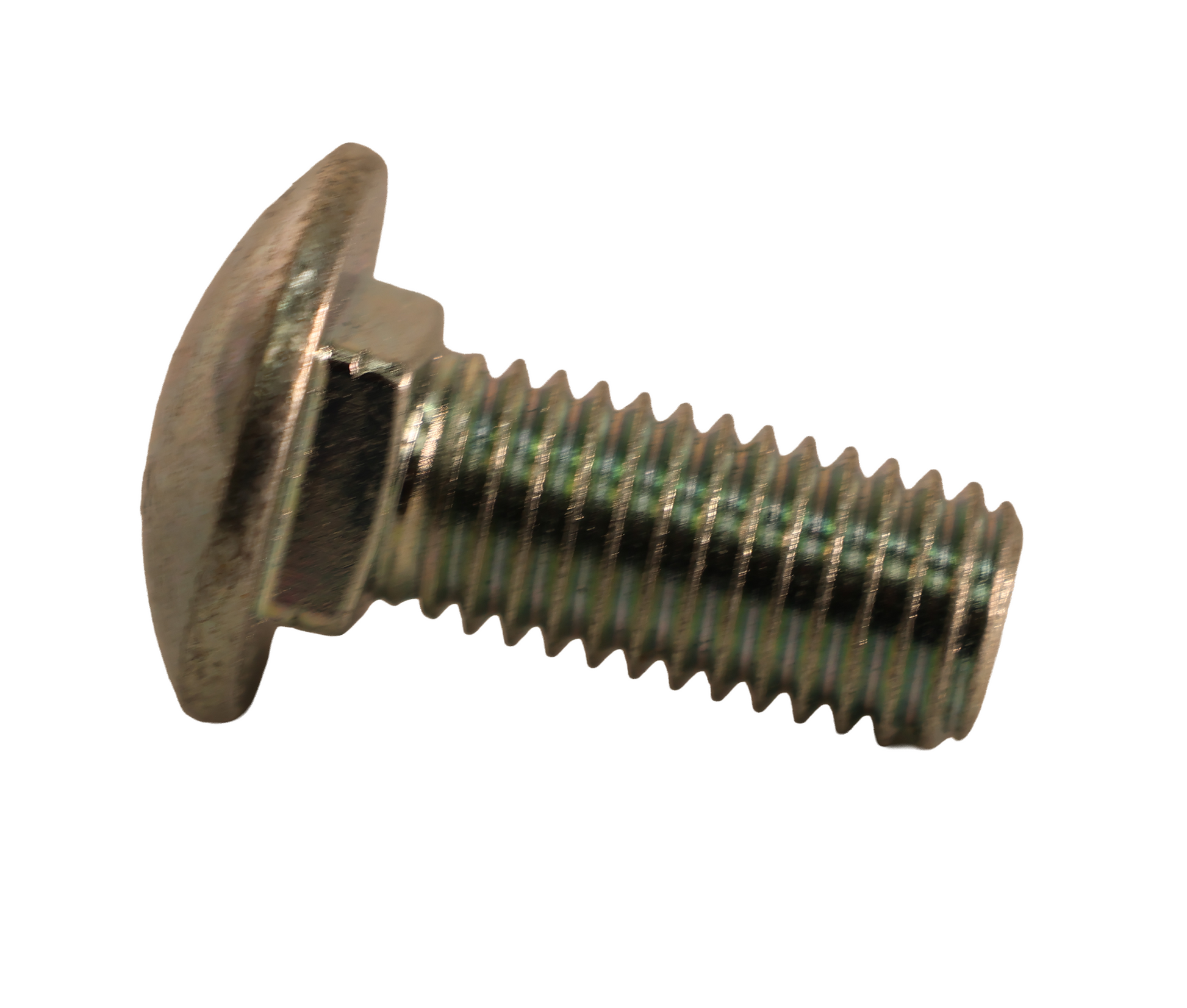

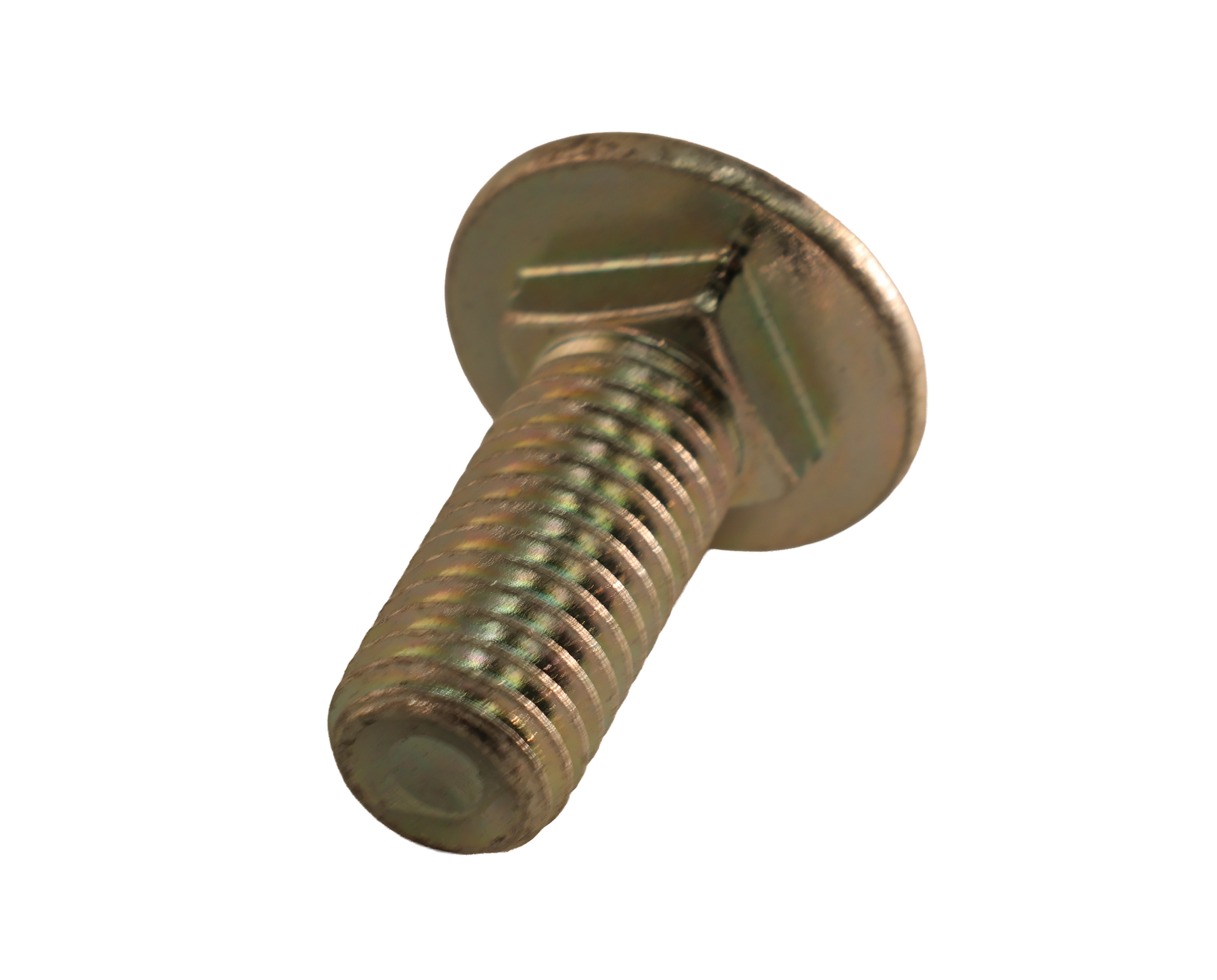

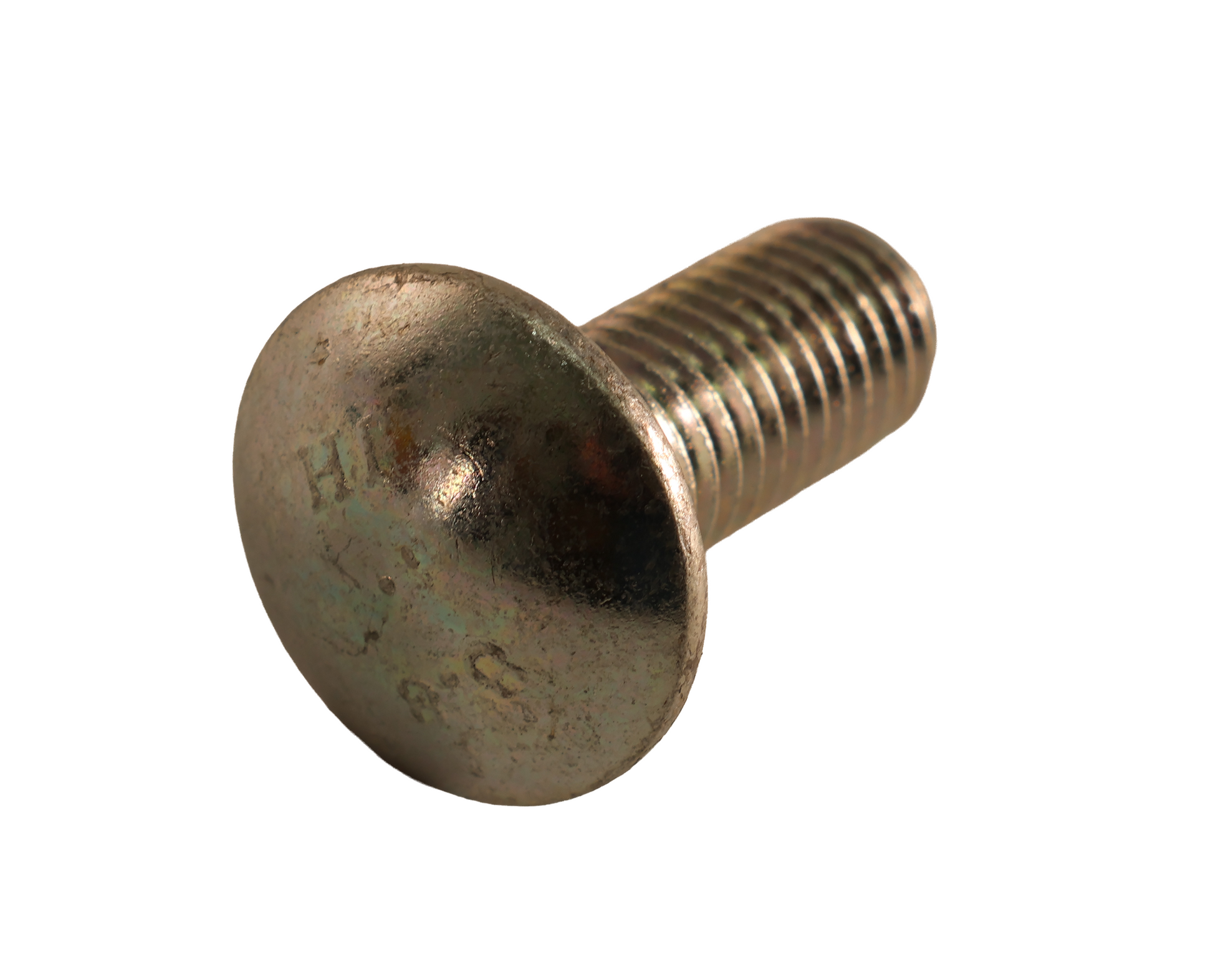

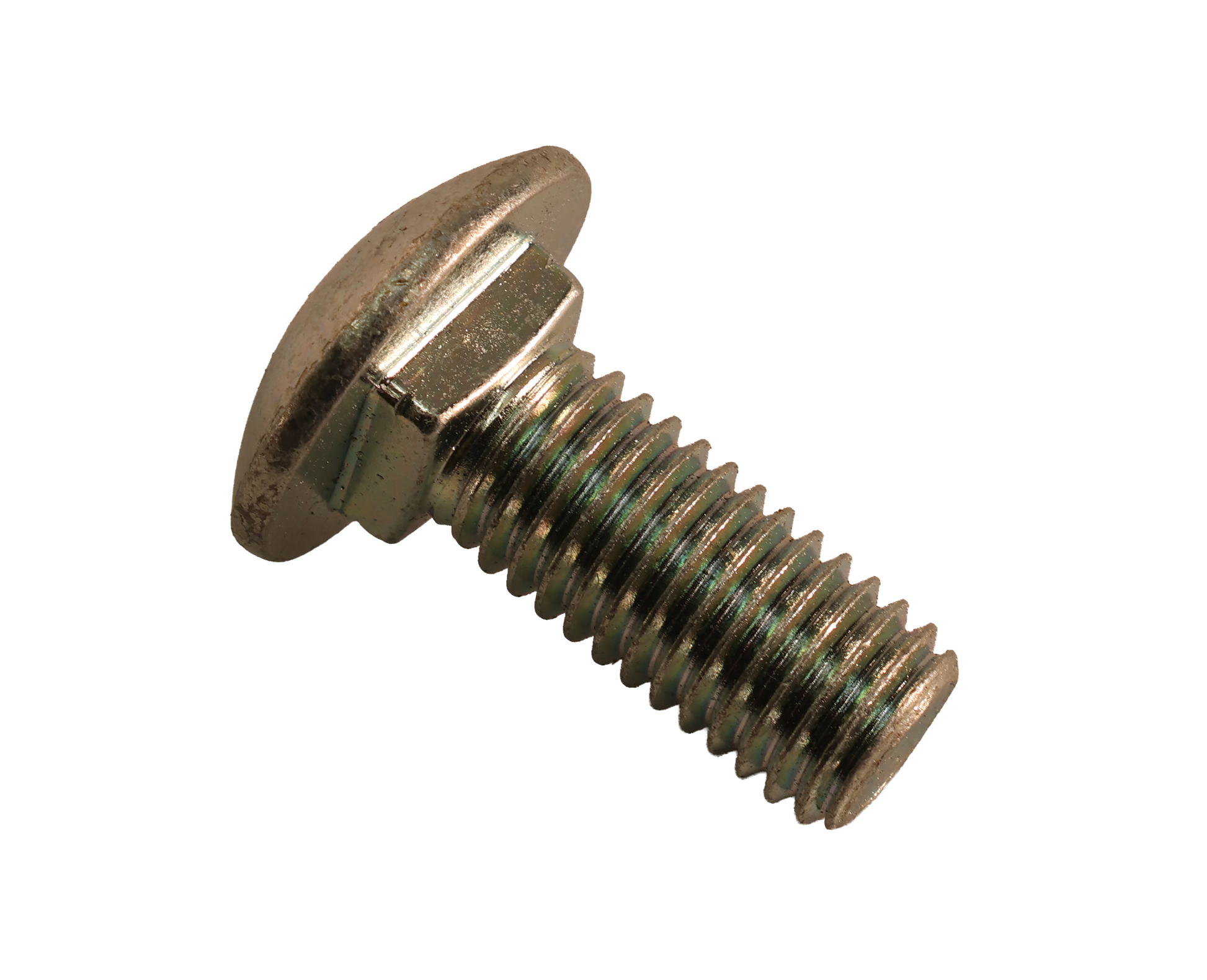

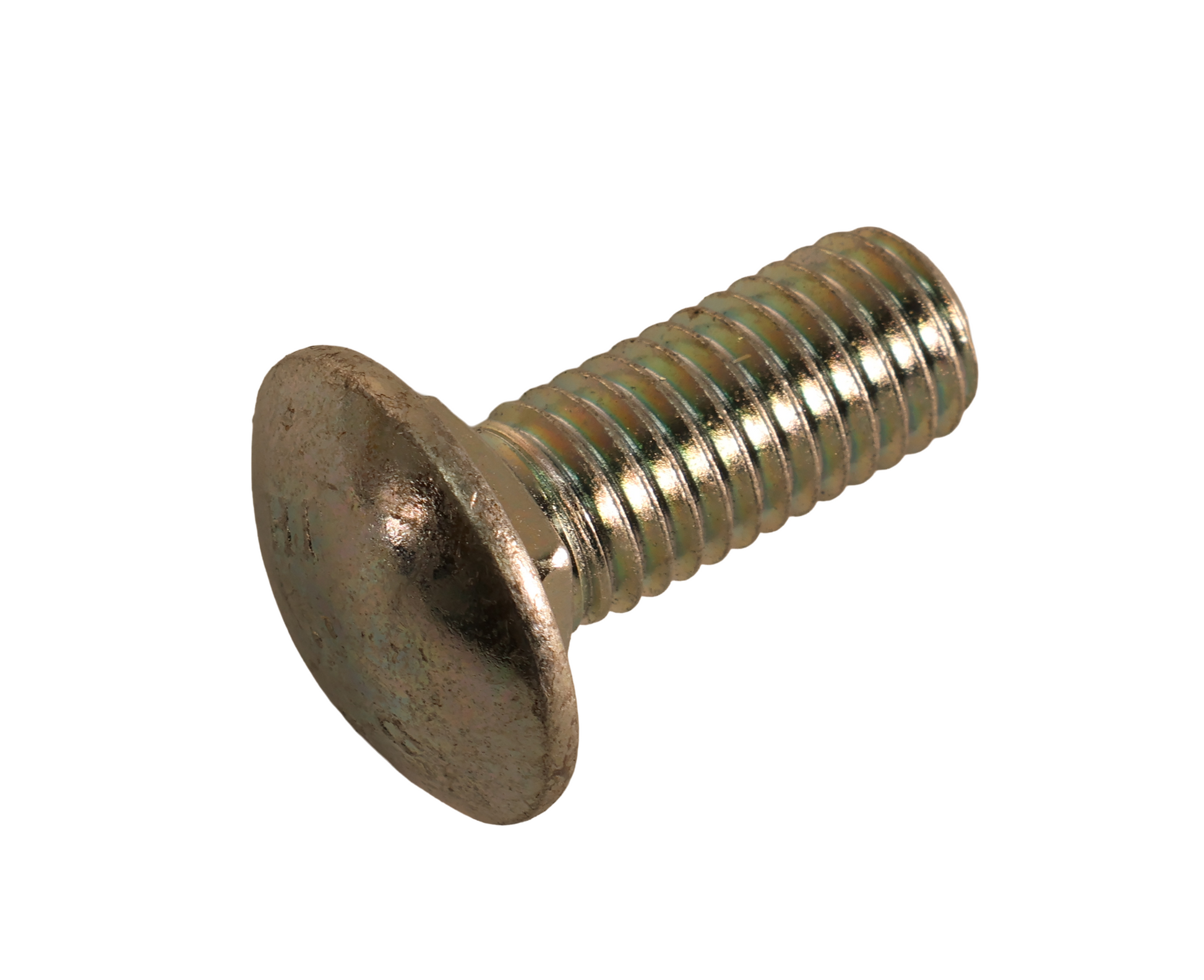

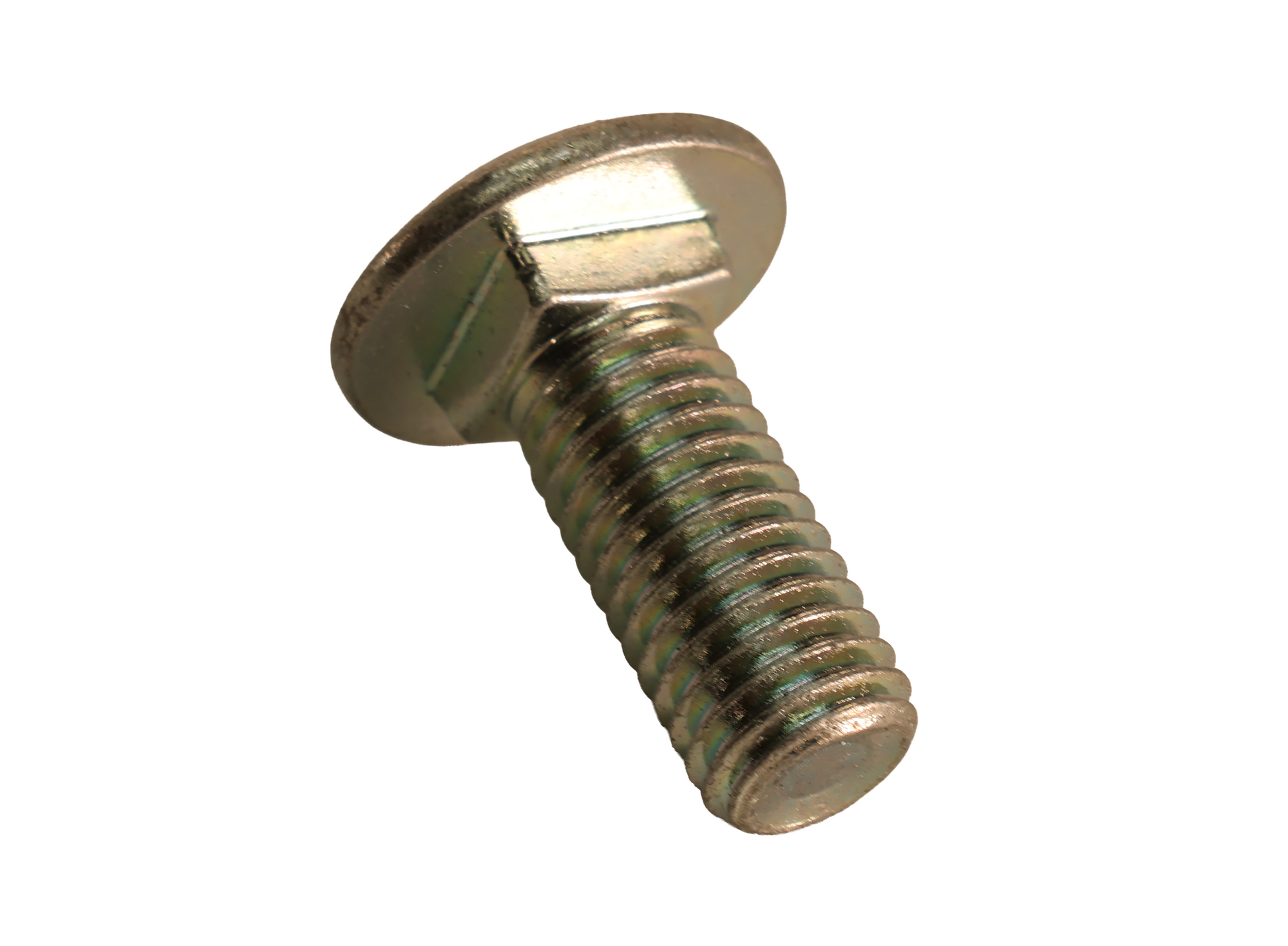

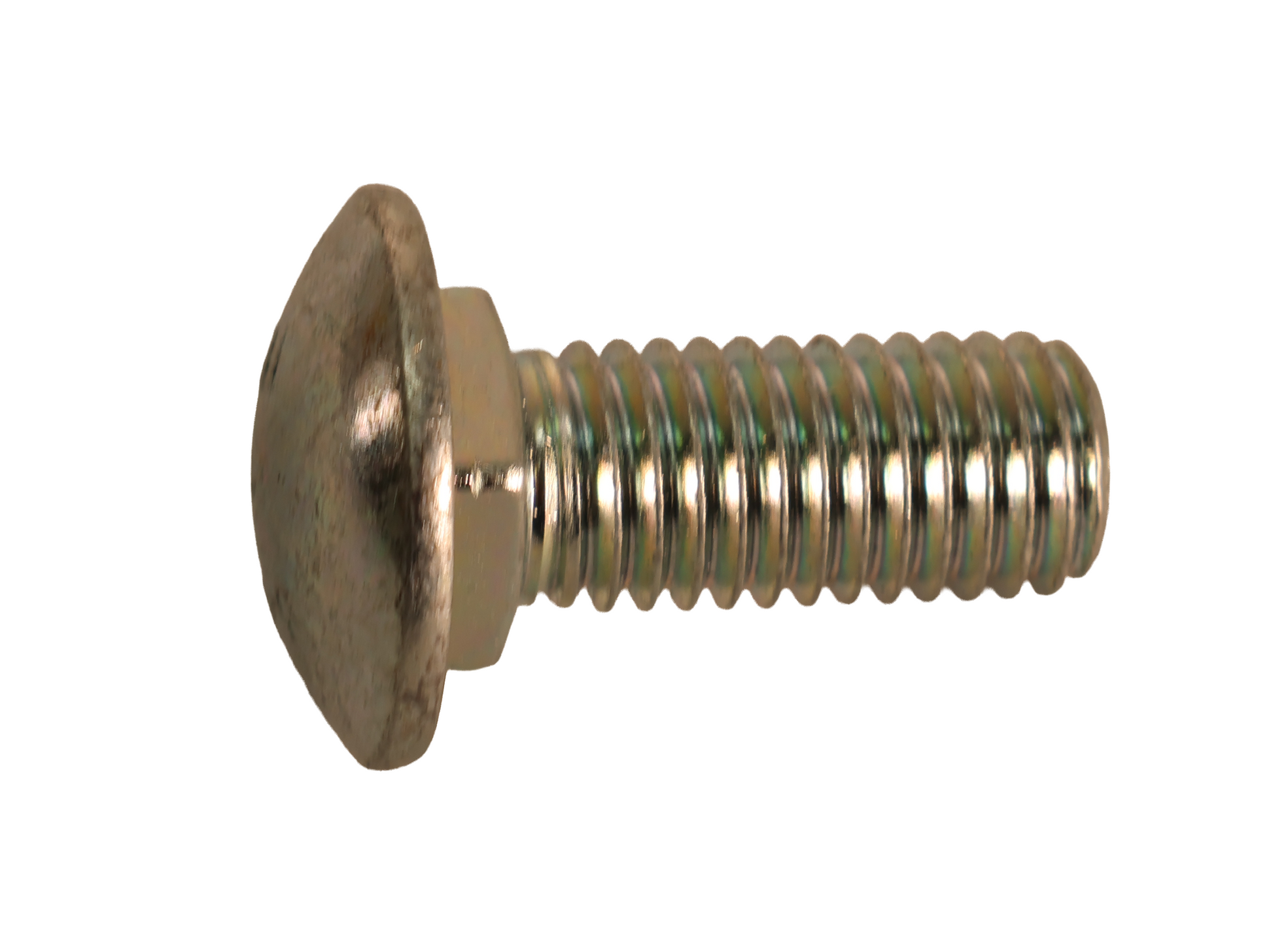

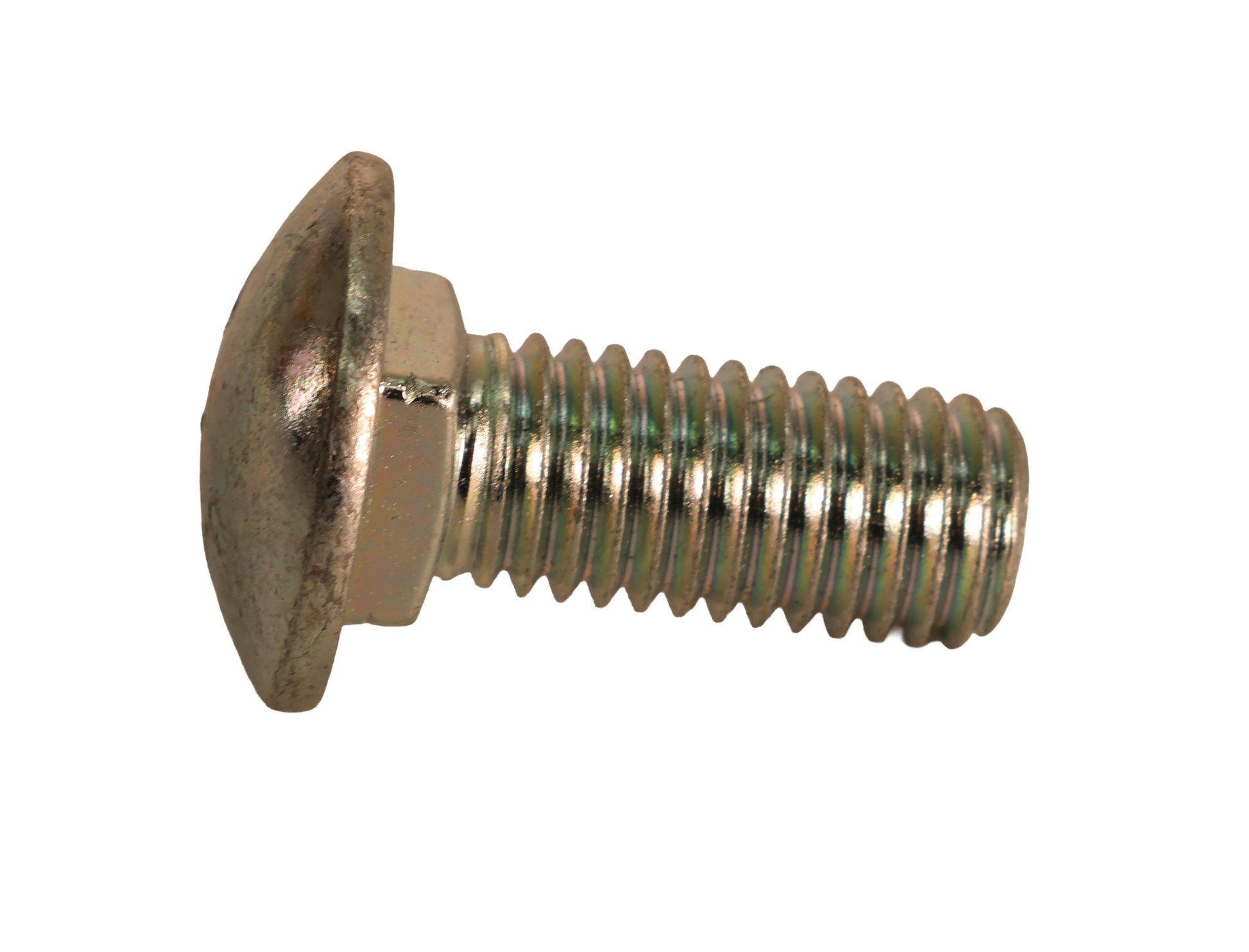

M10X25 Round Head Square Neck Bolt

Part Specifications:
Thread Size (MM) 10.0000
Thread Pitch (MM) 1.50000
Length (MM) 25.0000
Thread Length (MM) 18.0000
Neck Depth (MM) 4.0000
Head Diameter (MM) 22.3000
Head Thickness (MM) 5.8000
Material or Grade (ALPHA) 8.8000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Planter: 1720, 1725C, DB37C, DB41, DB55, DB55C, DB60, DB62, DB74, DB83, DB37, DB55.
Applicator: 2510H.
Compact Utility Tractor: 4052M, 2720, 3033R, 3039R, 3046R, 4044R, 4052R, 4066R.
Round Baler: 447, 458, 458STD, 458S, 468, 468S, 547, 558.
Sprayer: 4730, 4940.
Tractor: 5065M, 5075M, 5083E, 5093E, 5101E, 5130M, 6110M, 6120M, 6130M, 6140M, 6145M, 6155MH, 6155M, 6175M, 6230R, 6250R, 6R 110, 6R 120, 6R 130, 6R 140, 6R 145, 6R 155, 6R 165, 6R 175, 6R 195, 6R 215, 6R 230, 2940, 4030, 4230, 4430, 4630, 6195M, 7630, 7730, 7830, 7930, 8130, 8225R, 8230, 8230T, 8330, 8330T, 8400R, 8430, 8430T, 8530, 9230, 9330, 9410R, 9430, 9430T, 9460R, 9460RT, 9510R, 9510RT, 9530, 9530T, 9560R, 9560RT, 9630, 9630T, 9RT 490, 9RT 540, 9RT 590.
Row-Crop Head Combine: 1253A, 453A, 454A, 50A, 653A, 654A, 655A, 853A, 854A.
Corn Head: 606C, 606, 612FC, CH2112, CH2208.
Platform Combine: 625D, 630D, 635D, 640D, 625F, 722X, 725X, 730X, 735X, 740X.
Harvester: CH530.
Cotton Picker: CP770, 9970.
Combine: S550, S660, S670HM, S690, S7 600, S7 700, S7 800, S7 900, S670, S680, S680H, S690HM, S760, S770, S780, S785, S790, T550, T560, T670, W540, W550, W650, W660.
ZTRAK: Z915E.
Greensmower: 185, 225.
Loader: 553.
Fairway Mower: 6700A, 7700A.
Ensilage and Forage Harvester: 8100, 8200, 8300, 8400, 8500, 8600, 9600, 9700, D9512, 9800, 9900.
Large Square Baler: L331R, L341R.

This is an O.E.M. John Deere part.
