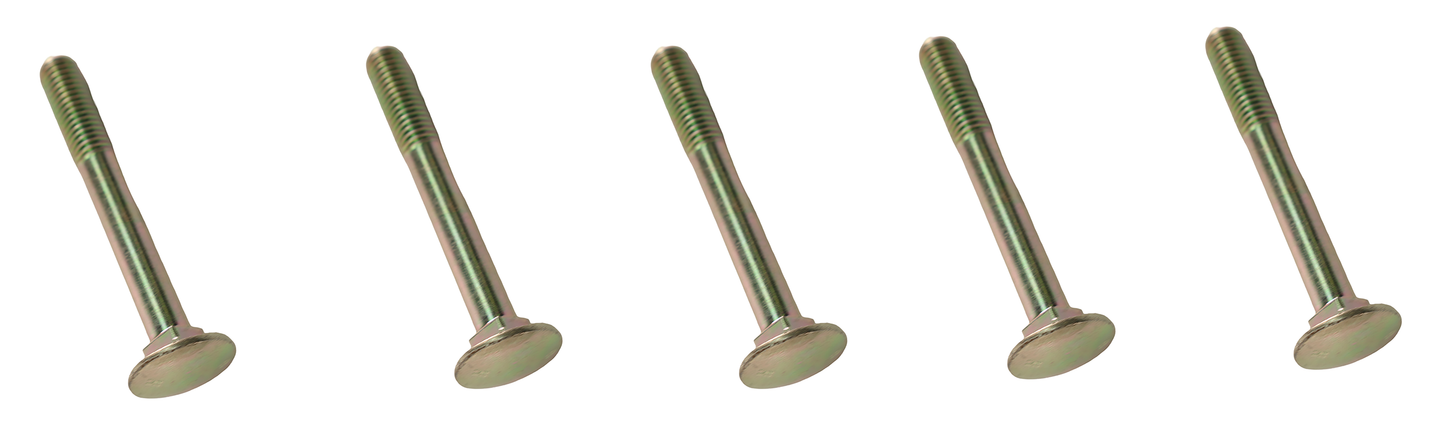

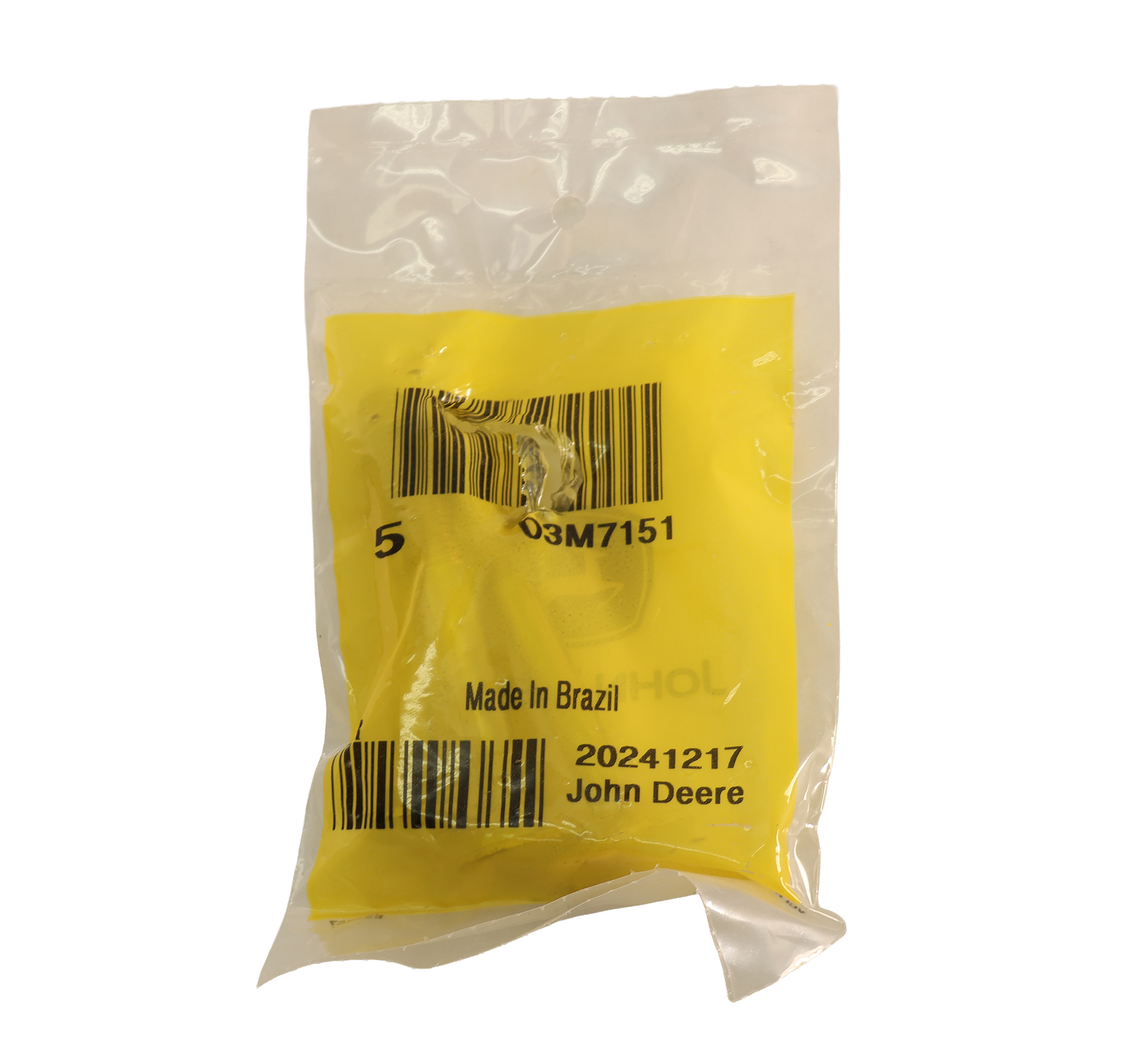

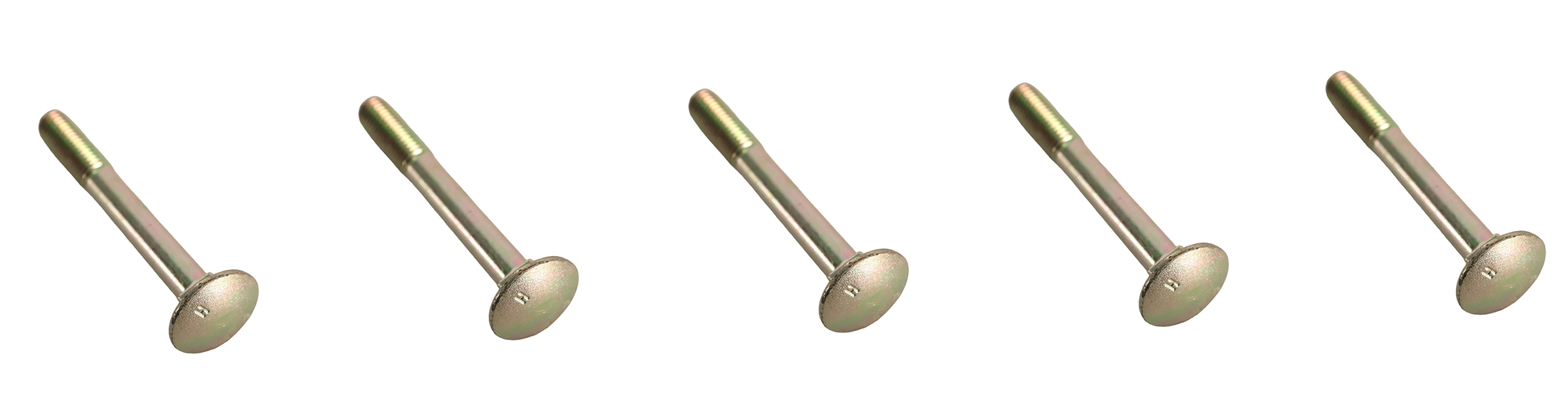

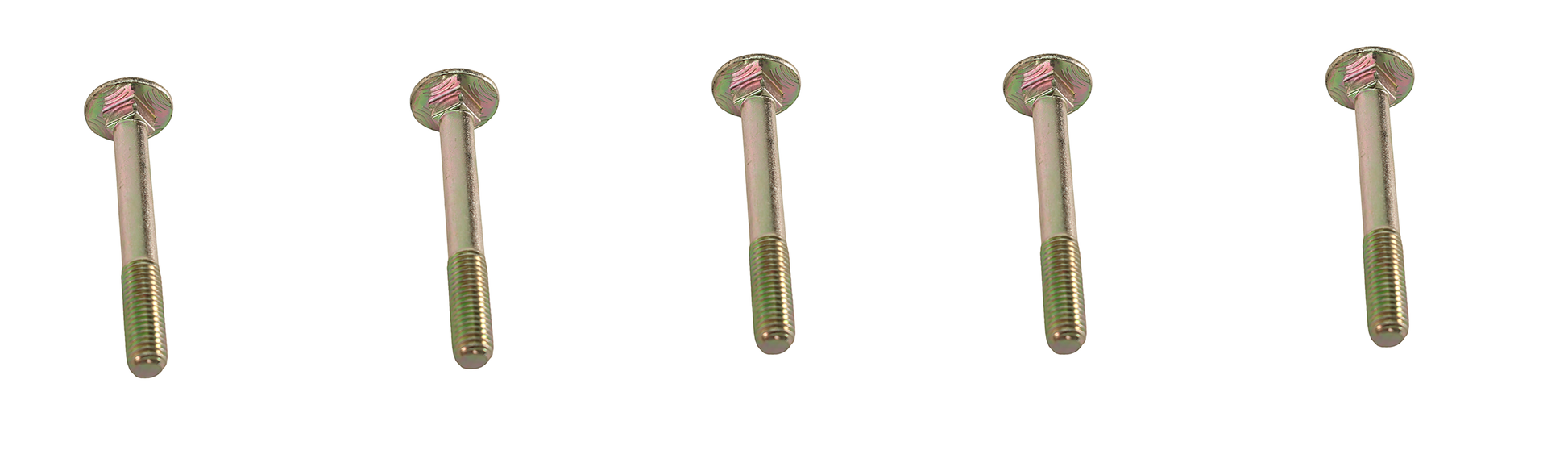

John Deere Original Equipment Bolt - 03M7151

John Deere Original Equipment Bolt - 03M7151

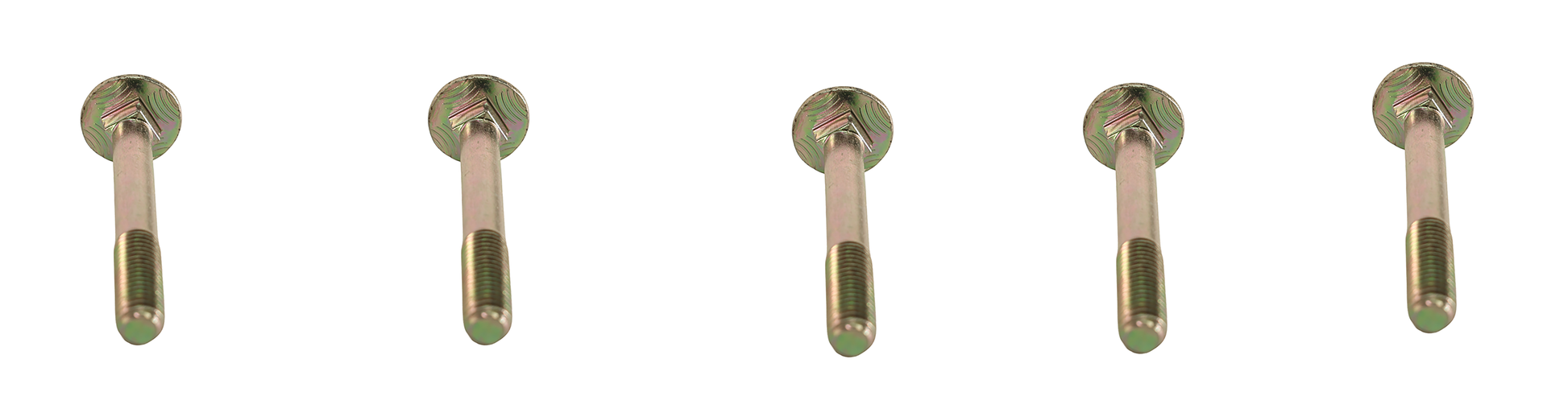

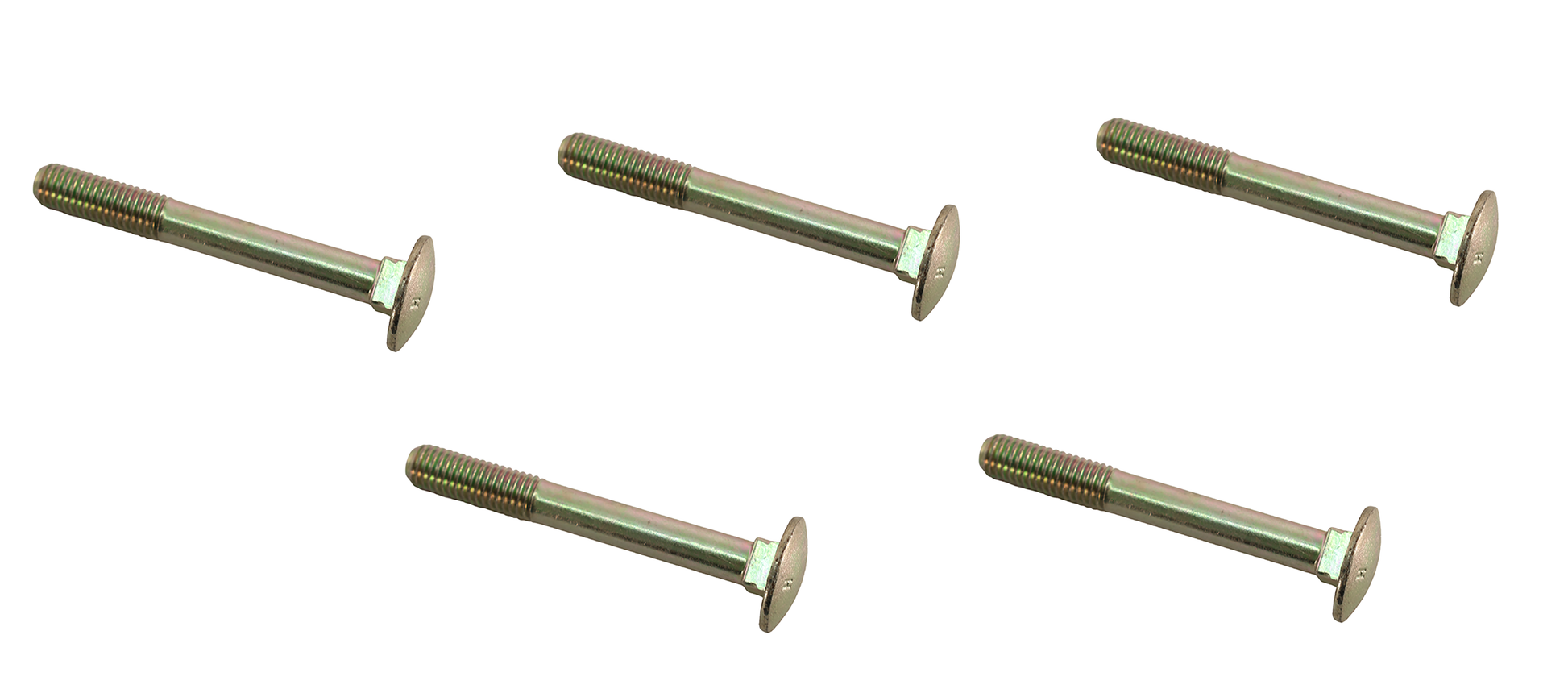

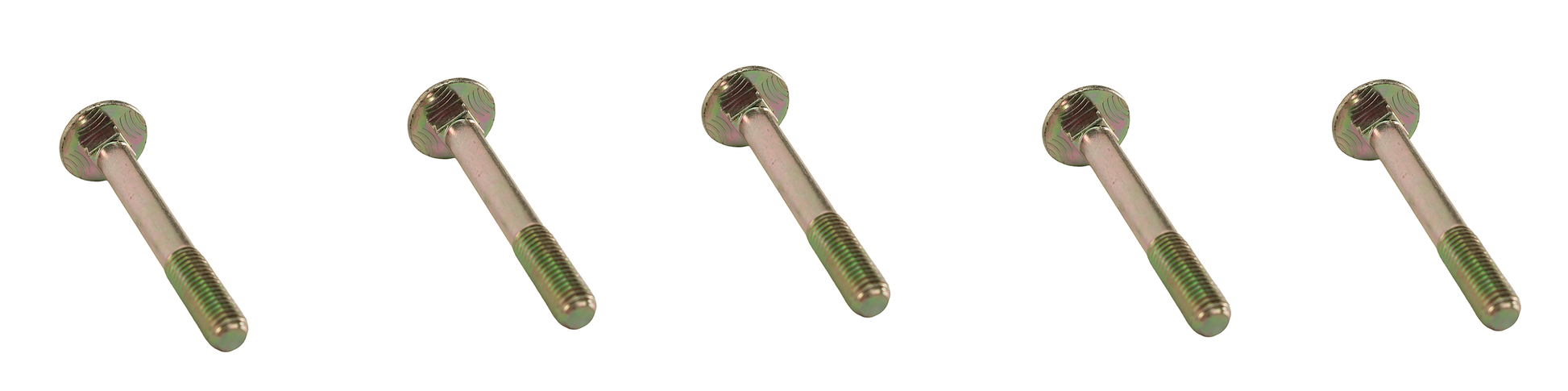

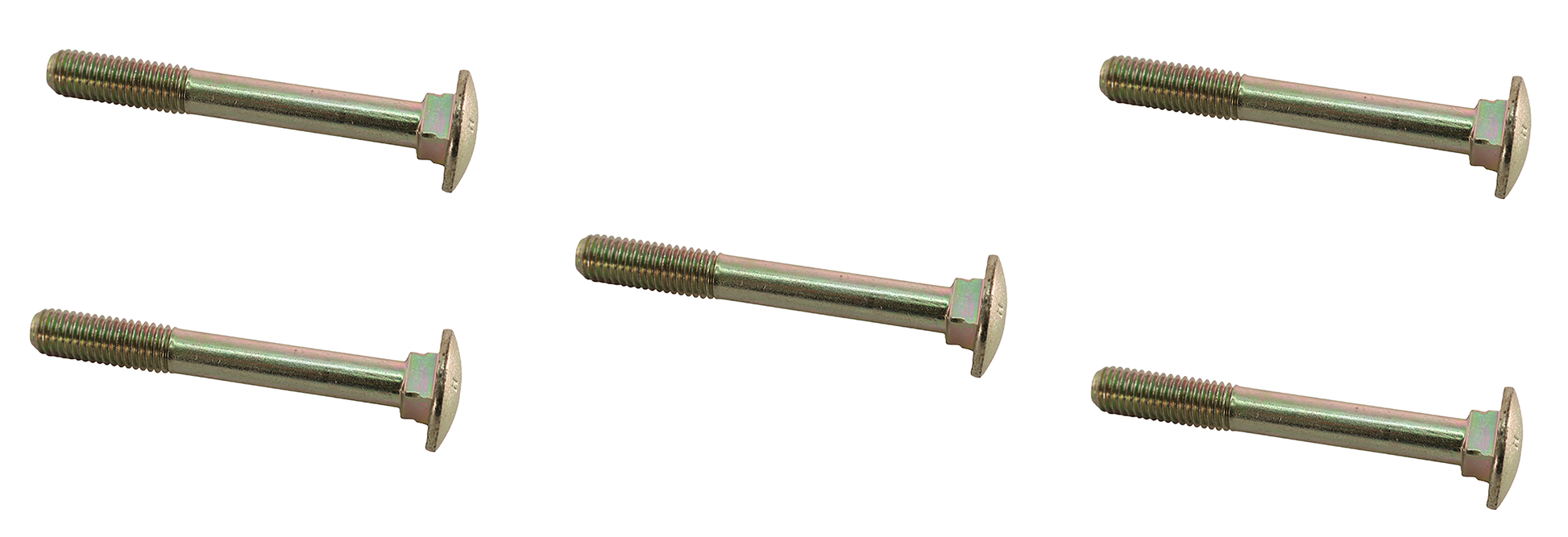

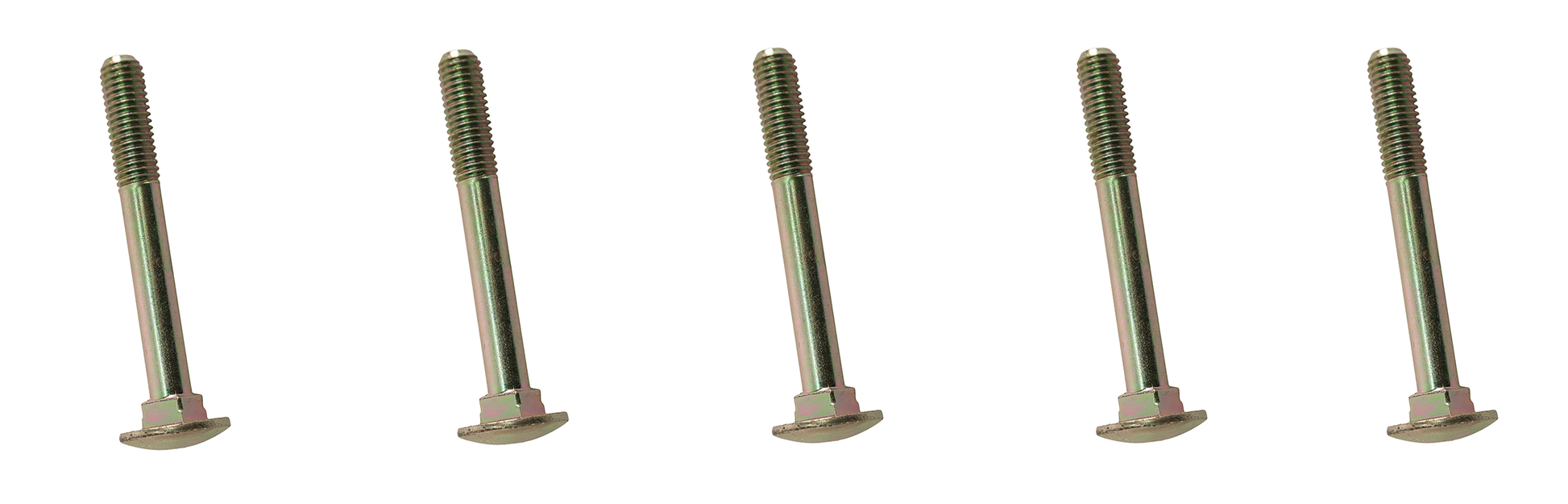

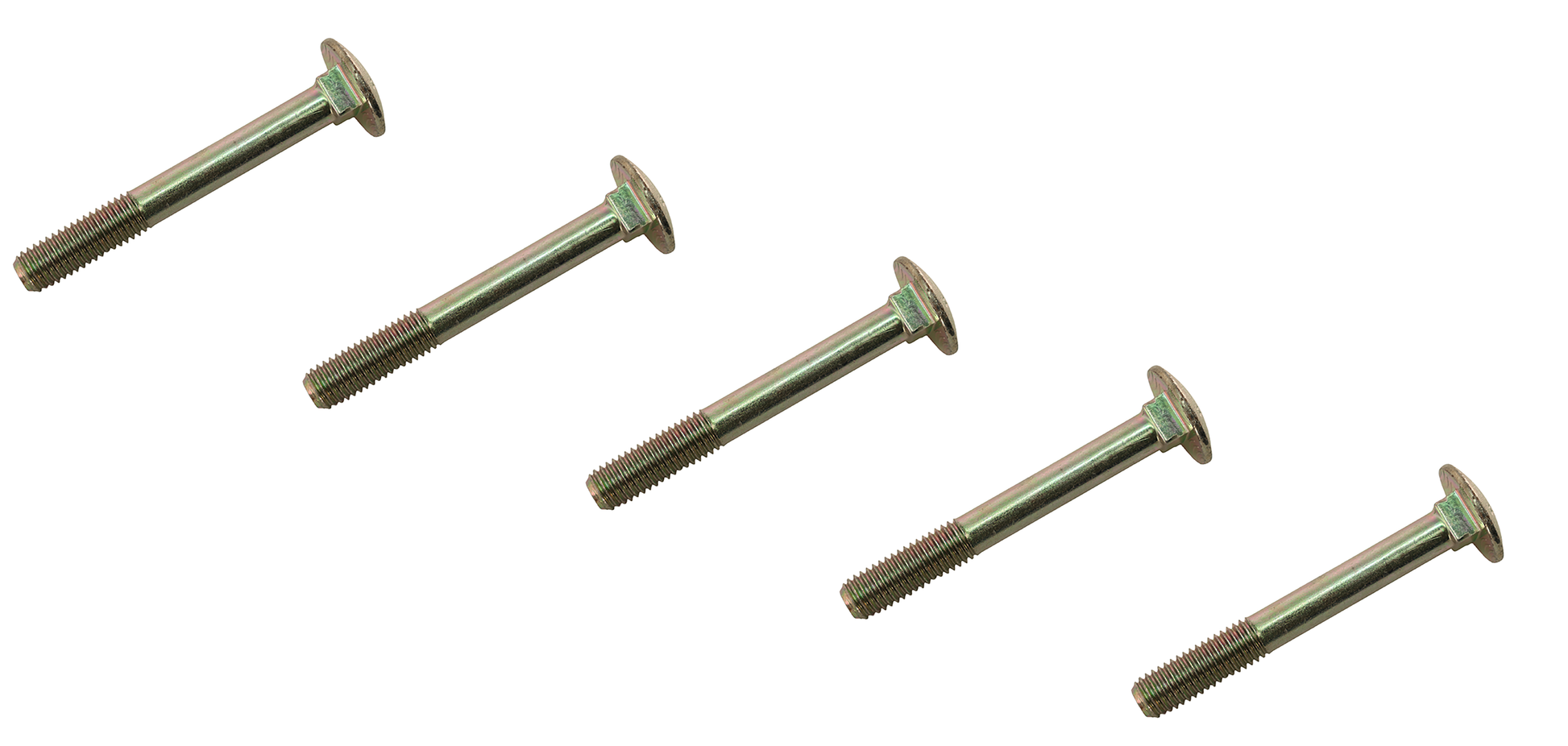

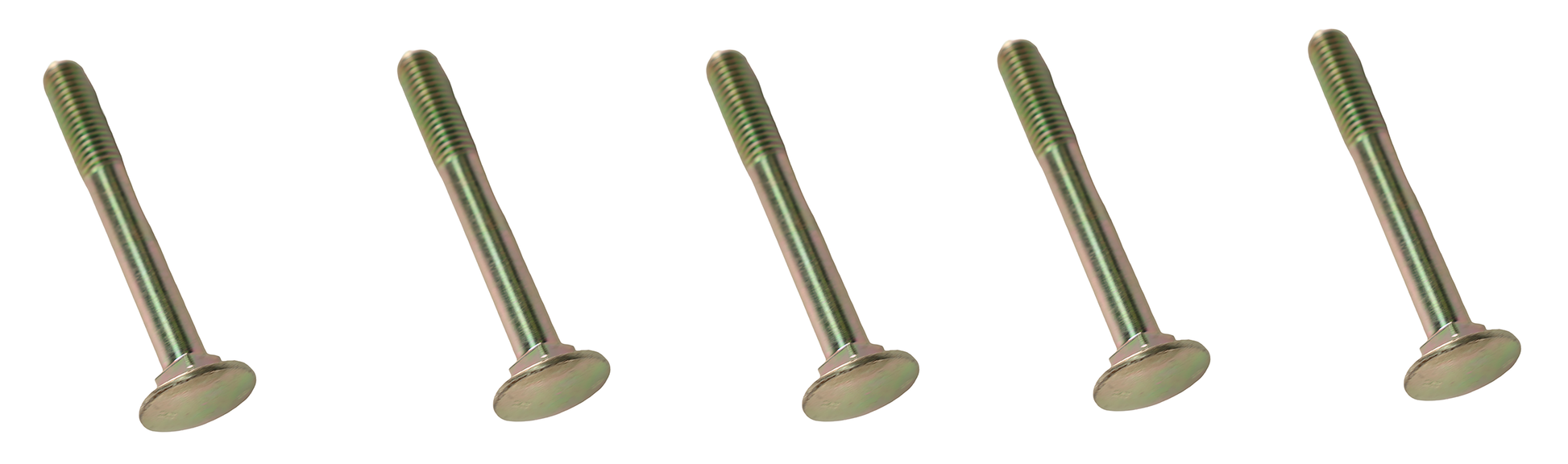

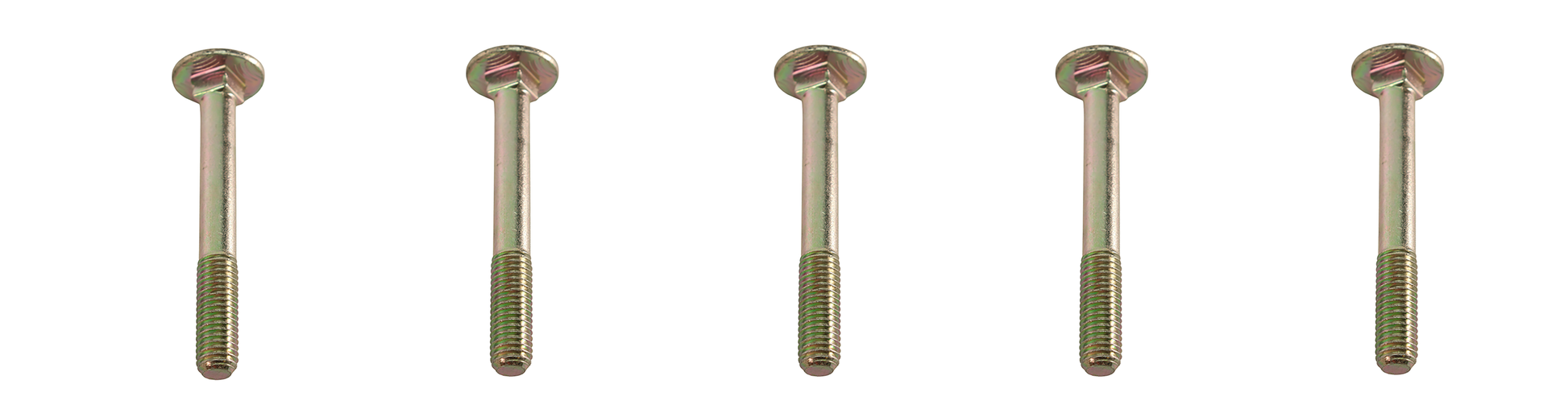

M10 X 80 Round Head Square Neck Bolt

Part Specifications:
Thread Size (MM) 10.0000
Thread Pitch (MM) 1.5000
Length (MM) 80.0000
Thread Length (MM) 26.0000
Neck Depth (MM) 6.6000
Head Diameter (MM) 24.6500
Head Thickness (MM) 5.3800
Material or Grade (ALPHA) 8.8000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Lawn and Garden Tractor: 318, 430, 240, 245, 260, 265, 285, 320, 300, 322, 332, 420, GT242, GT262, GT275.
Ensilage and Forage Harvester: 678, 770, 770plus, 778, 30R, 460pro, 46R, 475pro, 490pro.
Combine: 1170, 6200, 7100, 7200, 955, 9780CTS, 9780i CTS, 950, 960, 970.
Platform Combine: 314, 316, 319, 323, 325.
Forage Harvester Pickup: 35R.
Corn Head: 40E.
Planter: 702, 706, 708, 710, 710RF, 712, 716, 907, 911, 913, 9200, 9209, 9211, 9200, 9213, 9215, 9218, 2109, 2111, 2113, 2115, 2117, 2122, 2126, 2130, 2134.
ZTRAK: F620, F680, F687.

This is an O.E.M. John Deere part.
