John Deere Original Equipment Bolt - 03M7127

John Deere Original Equipment Bolt - 03M7127

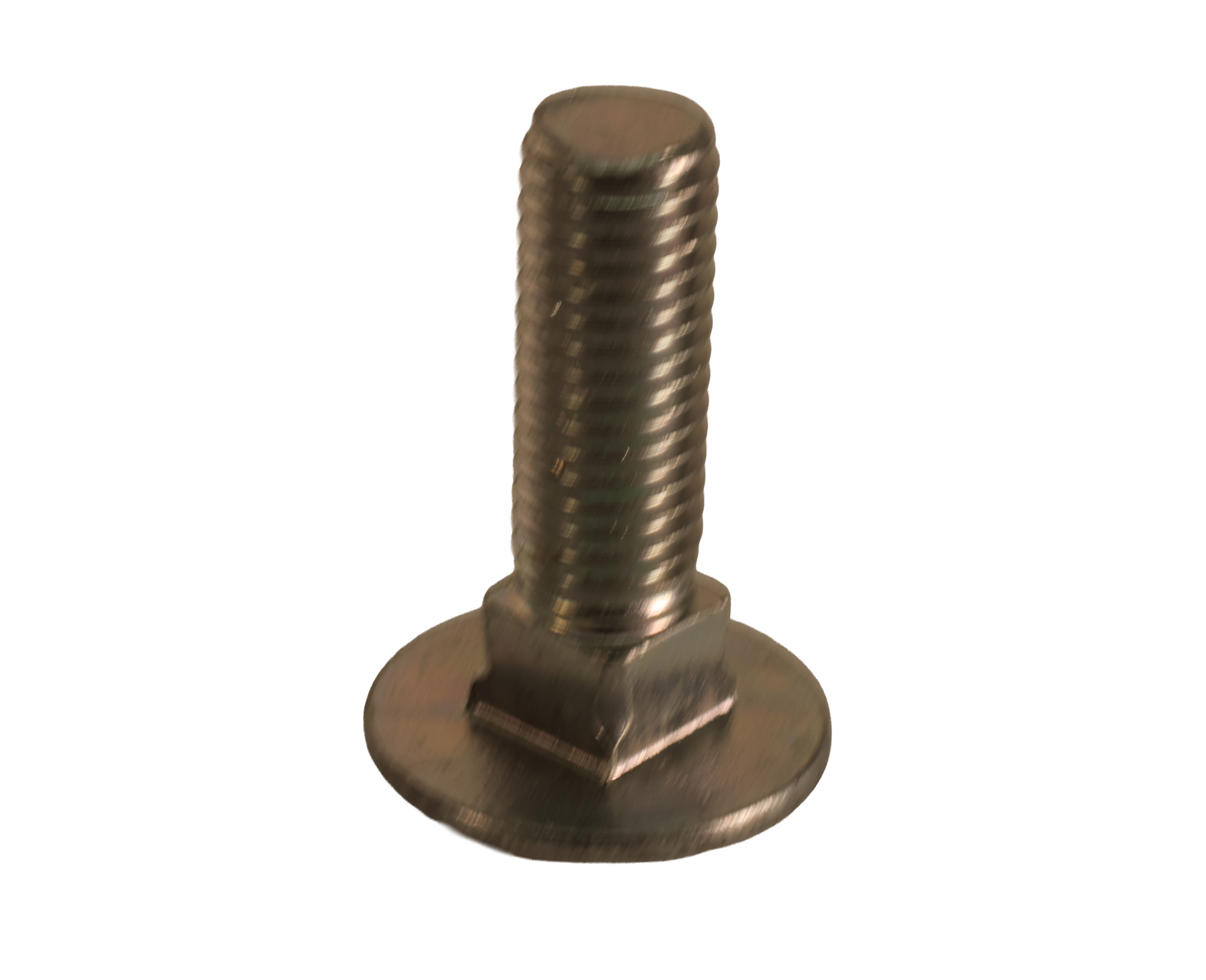

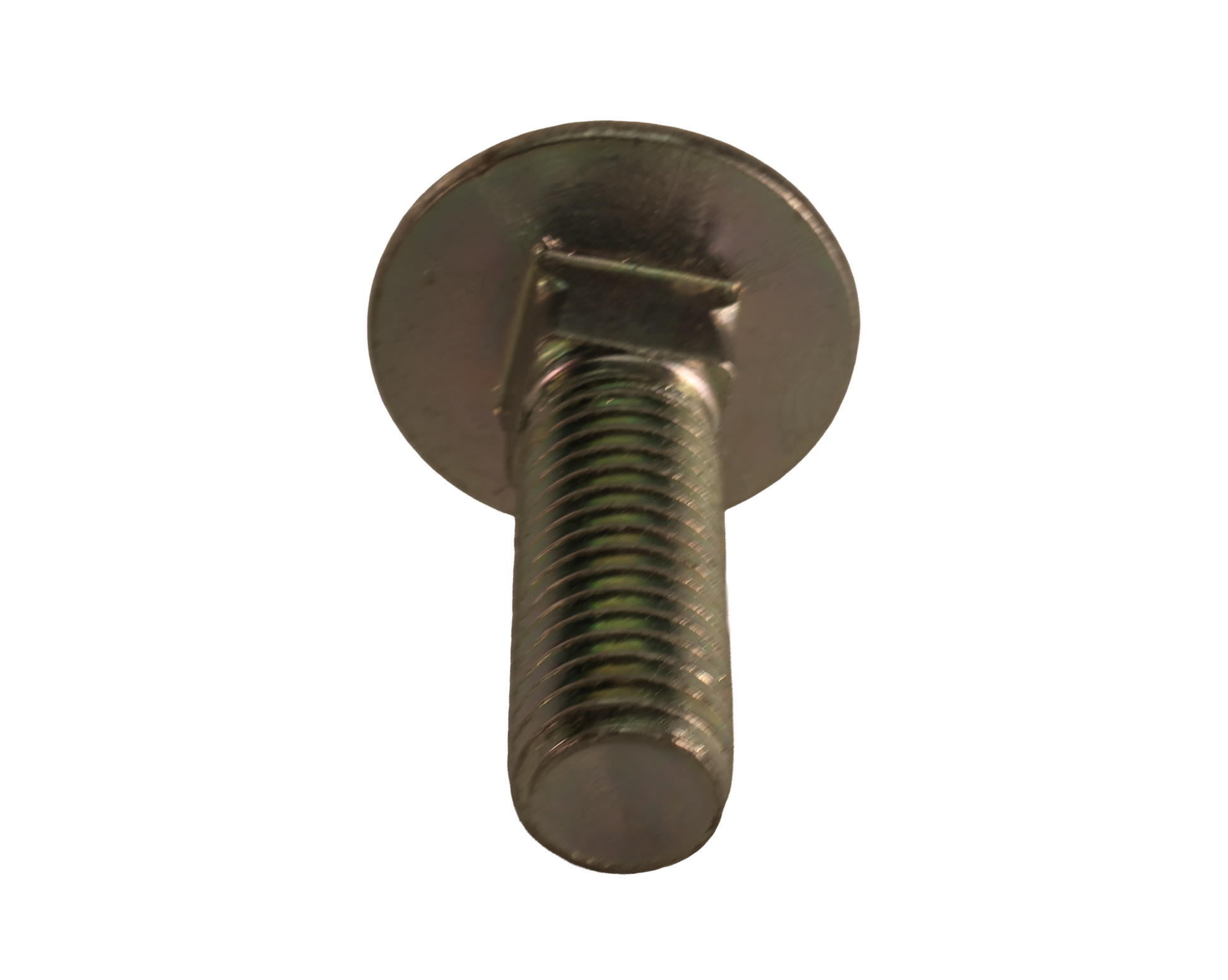

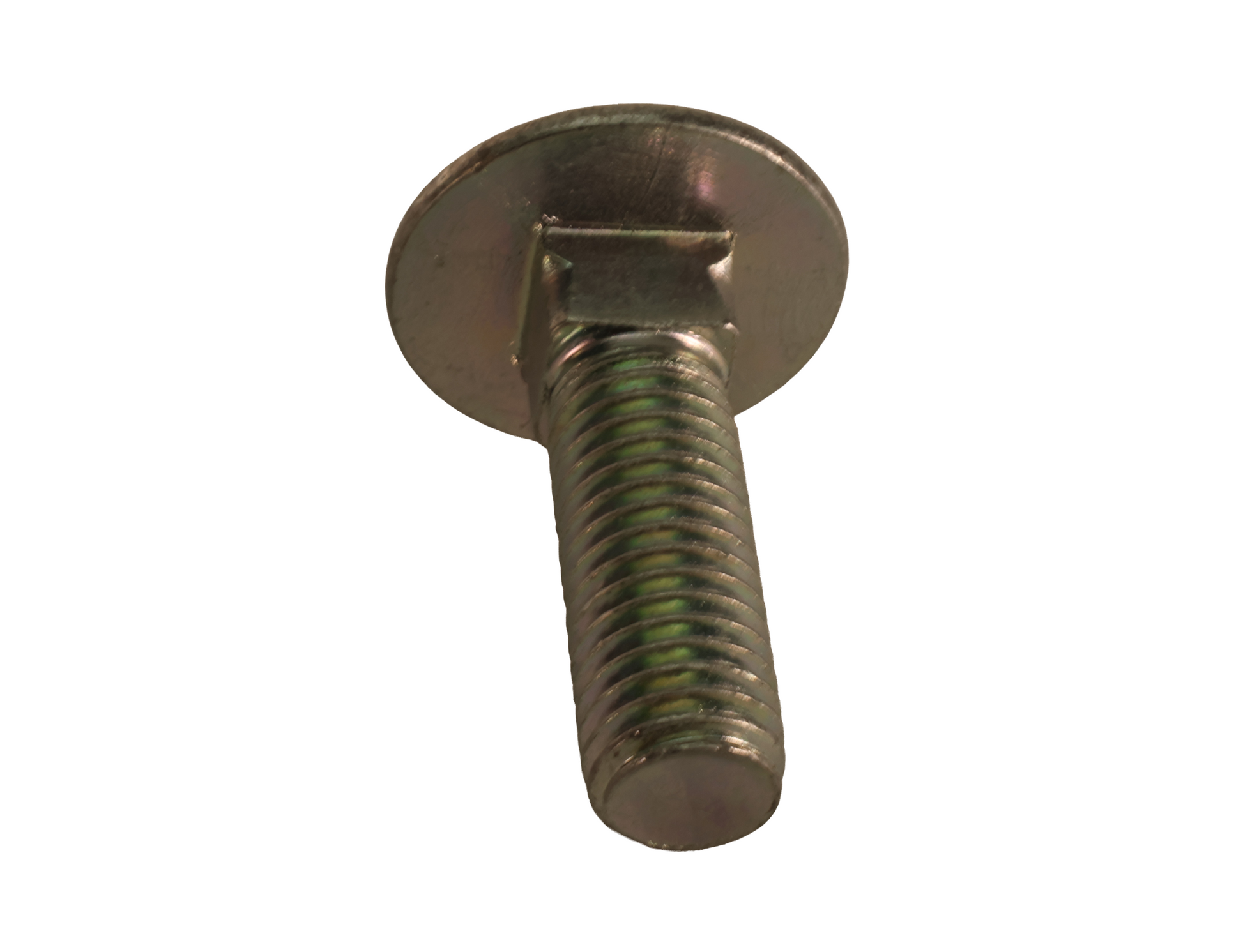

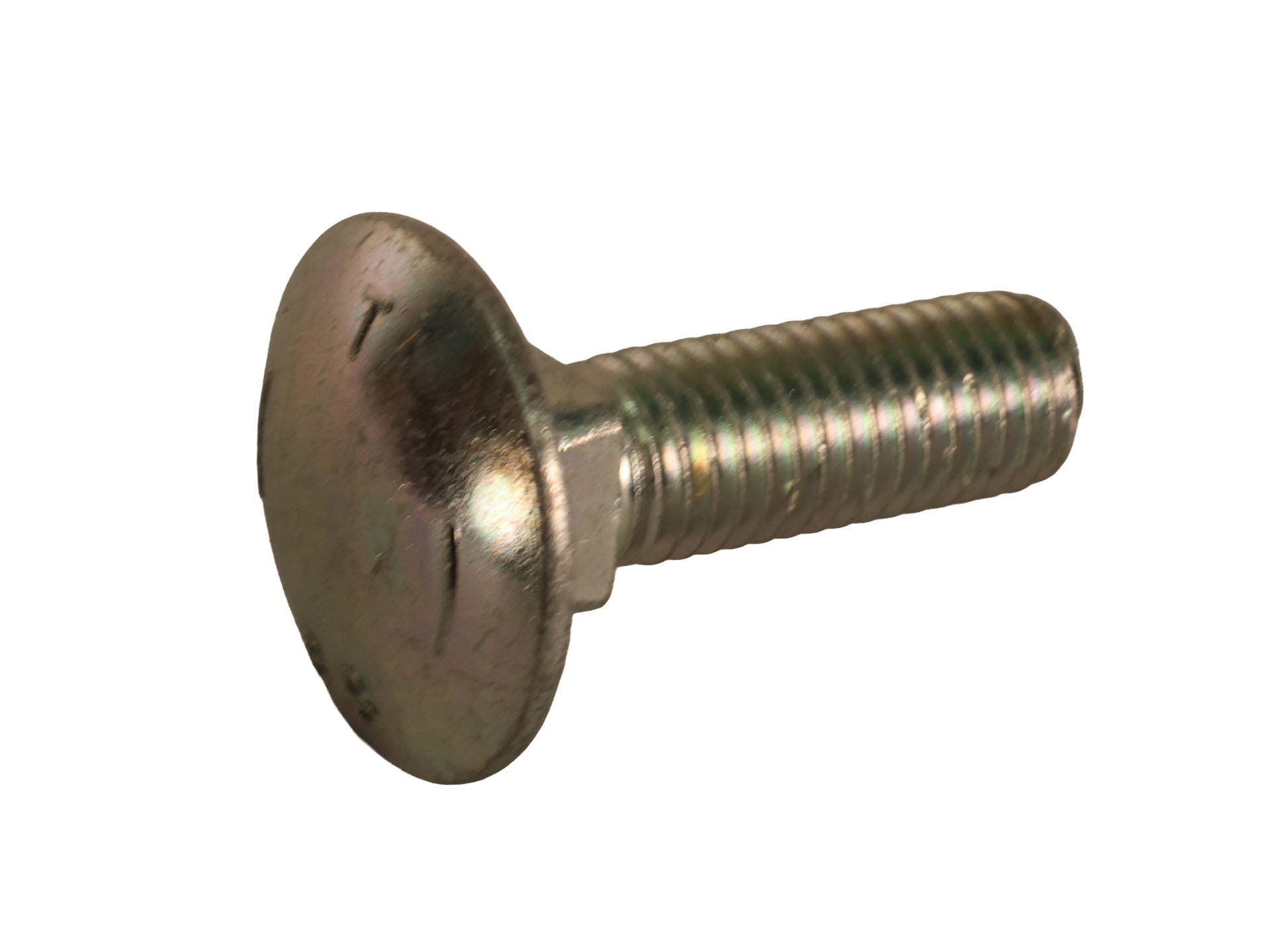

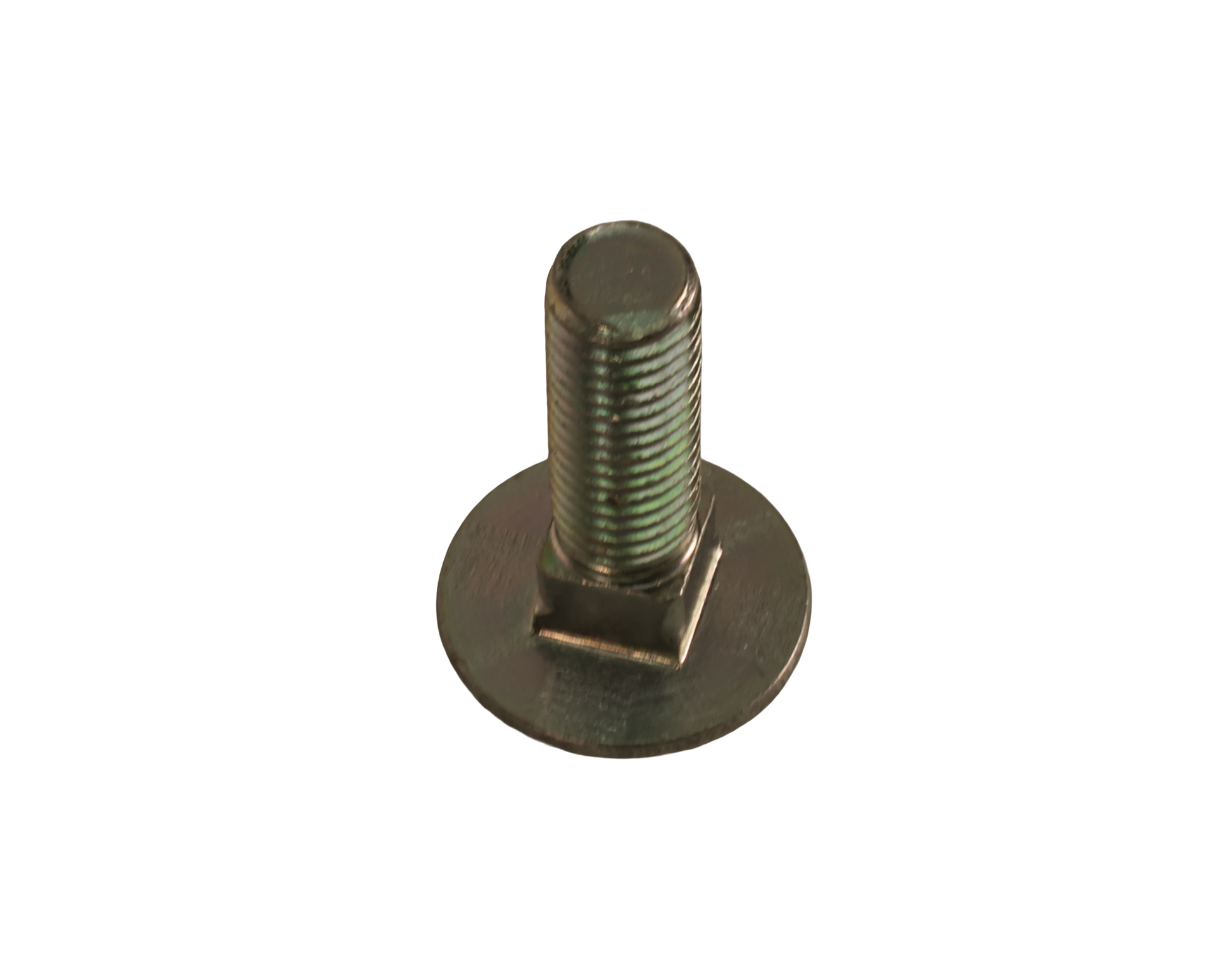

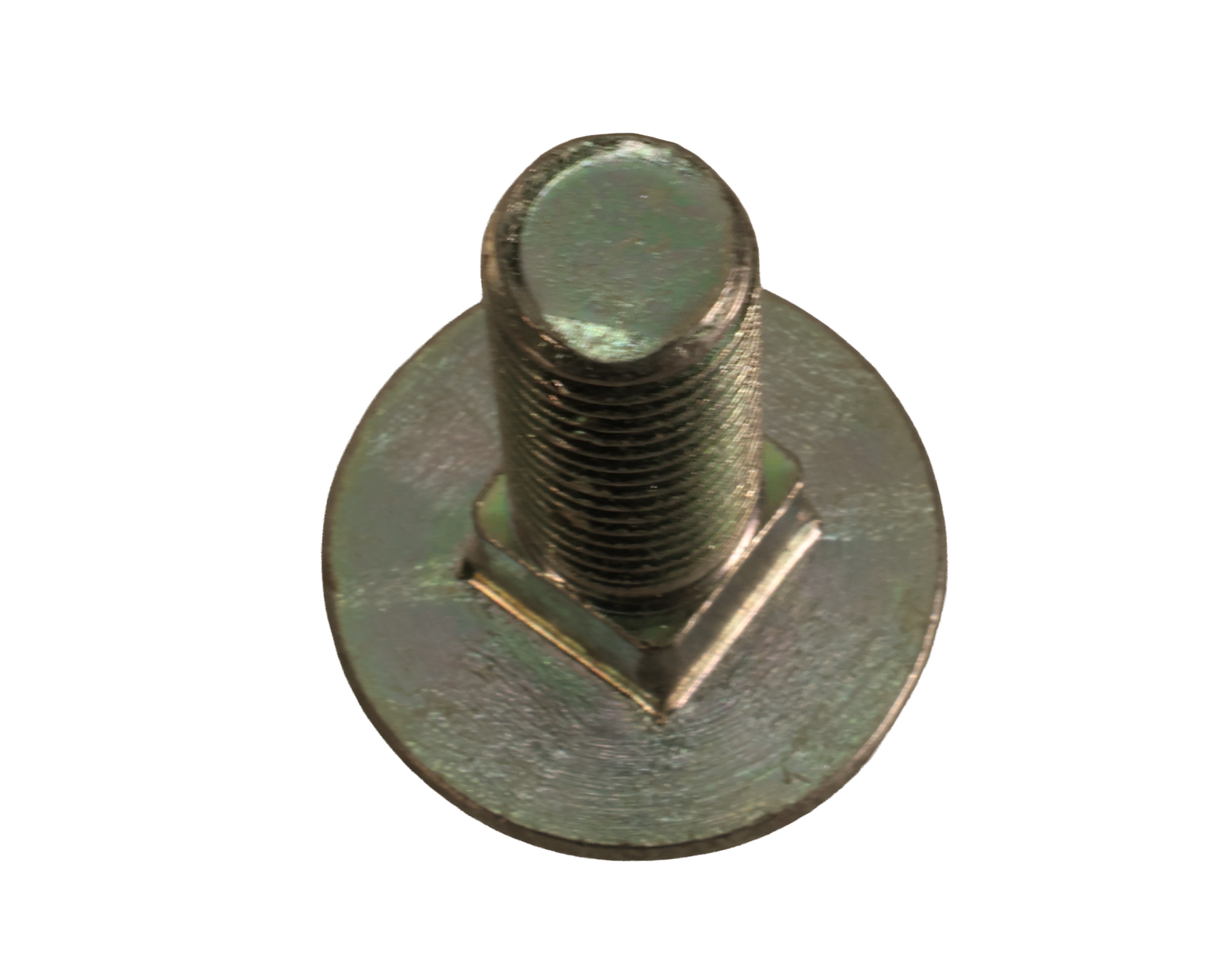

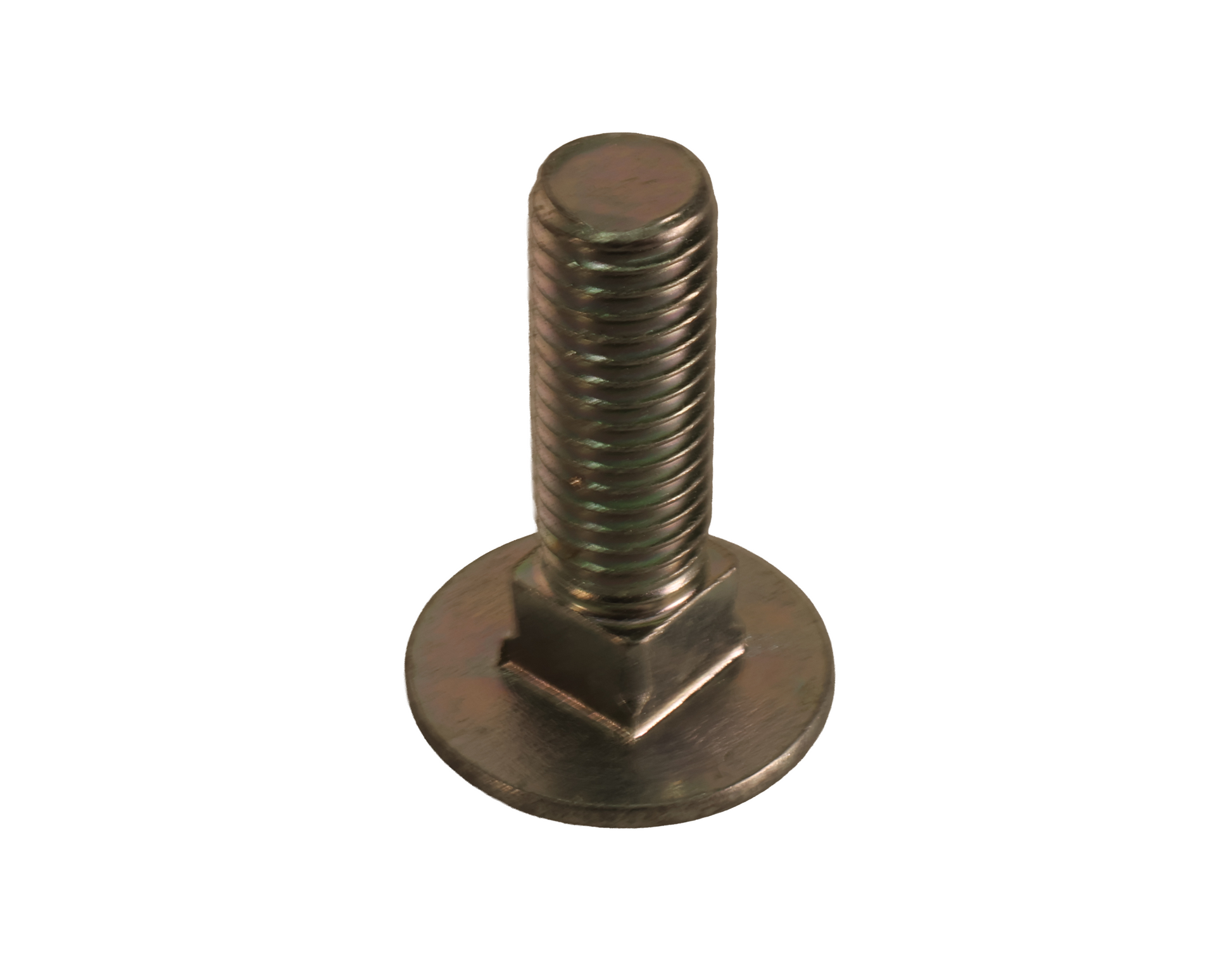

M12X40 Round Head Square Neck Bolt

Part Specifications:
Thread Size (MM) 12.0000
Thread Pitch (MM) 1.7500
Length (MM) 40.0000
Thread Length (MM) 22.0000
Neck Depth (MM) 8.7500
Head Diameter (MM) 30.6500
Head Thickness (MM) 6.9500
Material or Grade (ALPHA) 8.8000
Finish (ALPHA) B-Zinc-Electro Plated

Fits the following John Deere models:
Planter: 1745, 1795, DB60, 1770NT, 1790, DB44, DB58, DB66, DB80, DB90, 1720 CCS, 1720 Twin Row, 1720, 1770NT, 1790, DB60, 1207, 1209, 1211, 1213, 1795, 9200, 9211, 9213, 9215, 9218.
Tillage Implement: 2660VT.
Tractor: 5045E, 5050E, 5060E, 5065E, 5067E, 5075E, 5075M, 5085M, 5090E, 5090EL, 5100E, 5100M, 5100MH, 5100ML,  5115M, 5115ML, 5130M, 6110M, 6120M, 6M 105, 6M 110, 6M 115, 6M 125, 6M 130, 6M 140, 6M 145, 6M 150, 6M 155, 6M 165, 6M 175, 6M 180, 6M 185, 6M 195, 6M 200, 6M 210, 6M 220, 6M 230, 6M 240, 6M 250, 6M 95, 6MH 155.
Front Loader: 600R, 620R, H240, 500E, 500M, 520M, 540M,  600M, H130, H260, H310.
Ensilage and Forage Harvester: 678, 686, 688, 710, 770, 772, 778, 30R, 360, 375, 46R, 475pro, 490pro, 630C, 639, 649, 659, 6610, 6710, 6810, 6910, 664.
Cotton Picker: 7760, CP690, CP770.
Platform Combine: 900, 913, 915, 918, 920, 922, 924, 925, 930, 913F, 913R, 915F, 915R, 918F, 918R, 920F, 920R, 922F, 922R, 924F, 924R, 925F, 925R, 930F, 930F, 930R, 900, 913F, 913R, 913, 915F, 915R, 915, 916F, 916R, 916, 918F, 918R, 918, 920F, 920R, 920, 922F, 922R, 922, 924F, 924R, 924, 925F, 925R, 925, 930F, 930F, 930R, 930, 300, 314, 316, 319, 323, 325, 615P.
Cotton Stripper: 606SH, 608SH, CS690, CS770.
Combine: 1065, 1068H,1169HY/4, 1169, 1170, 1185, 2200, 6200, 7100, 7200, 8500H, 8700, 965H, 965, 968H, C1 200, C2 300, W2 400.
Loader: 200CX, 200X, 220R, 512, 553.
Compact Utility Tractor Attachment: 200CX, 200X, 512.
Compact Utility Tractor: 2320.
Baler: 332AT, 336AT, 336AWX, 342AT, 342AWS, 456AT, 456AWS, 456A, 466AT, 466AWS, 466A.
Forage Harvester Pickup: 35R.
Utility Vehicle: 4X2, 6X4, Gator, Trail, Worksite.
Corn Head Combine: 670, 870.
Corn Head: 670, 870.
Bale Ejector: 30.
Rotary Cutter: E12, E15, FC10R, FC12E, FC15E, FC15M, FC15R, M15, R15.

This is an O.E.M. John Deere part.
