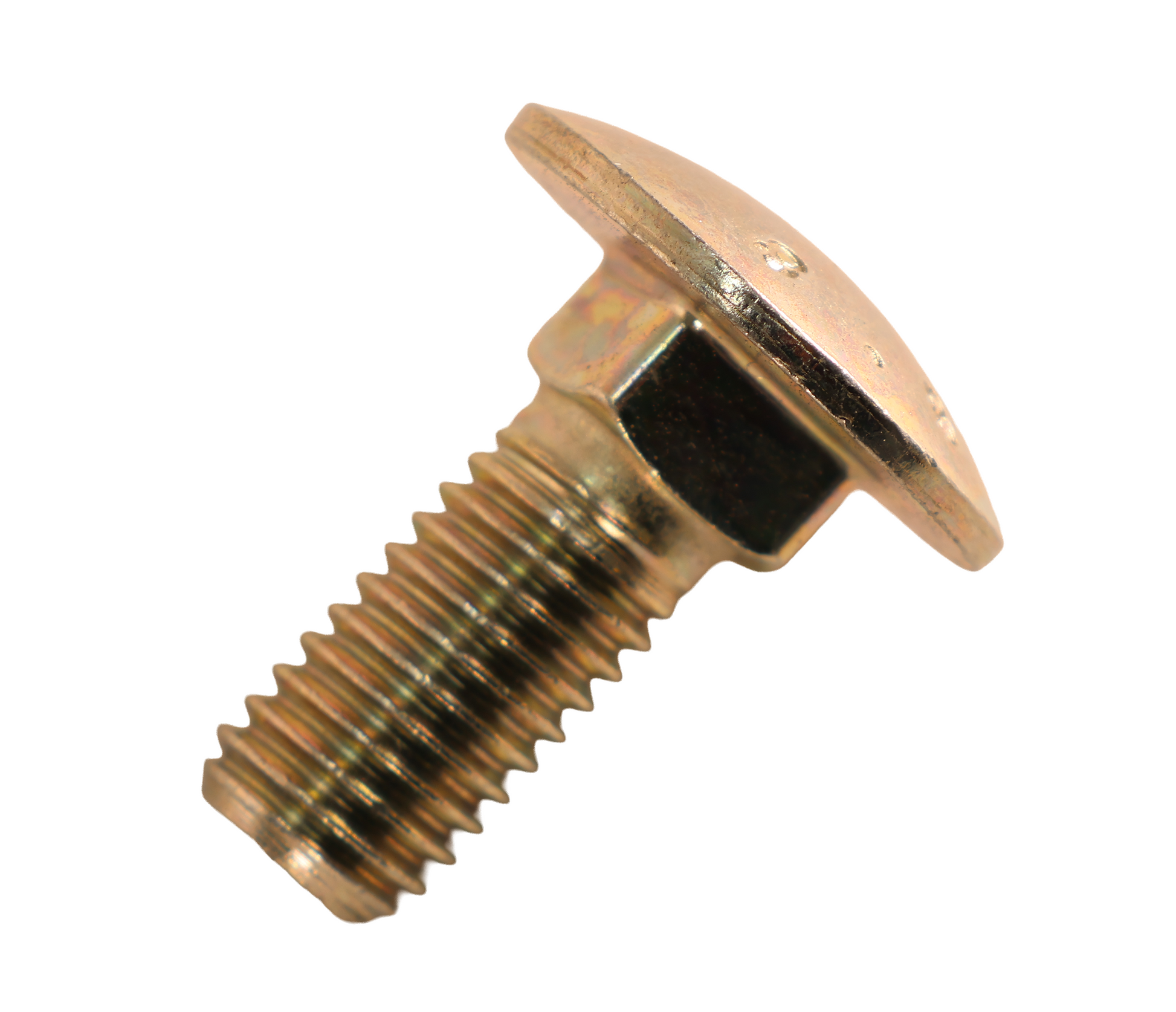

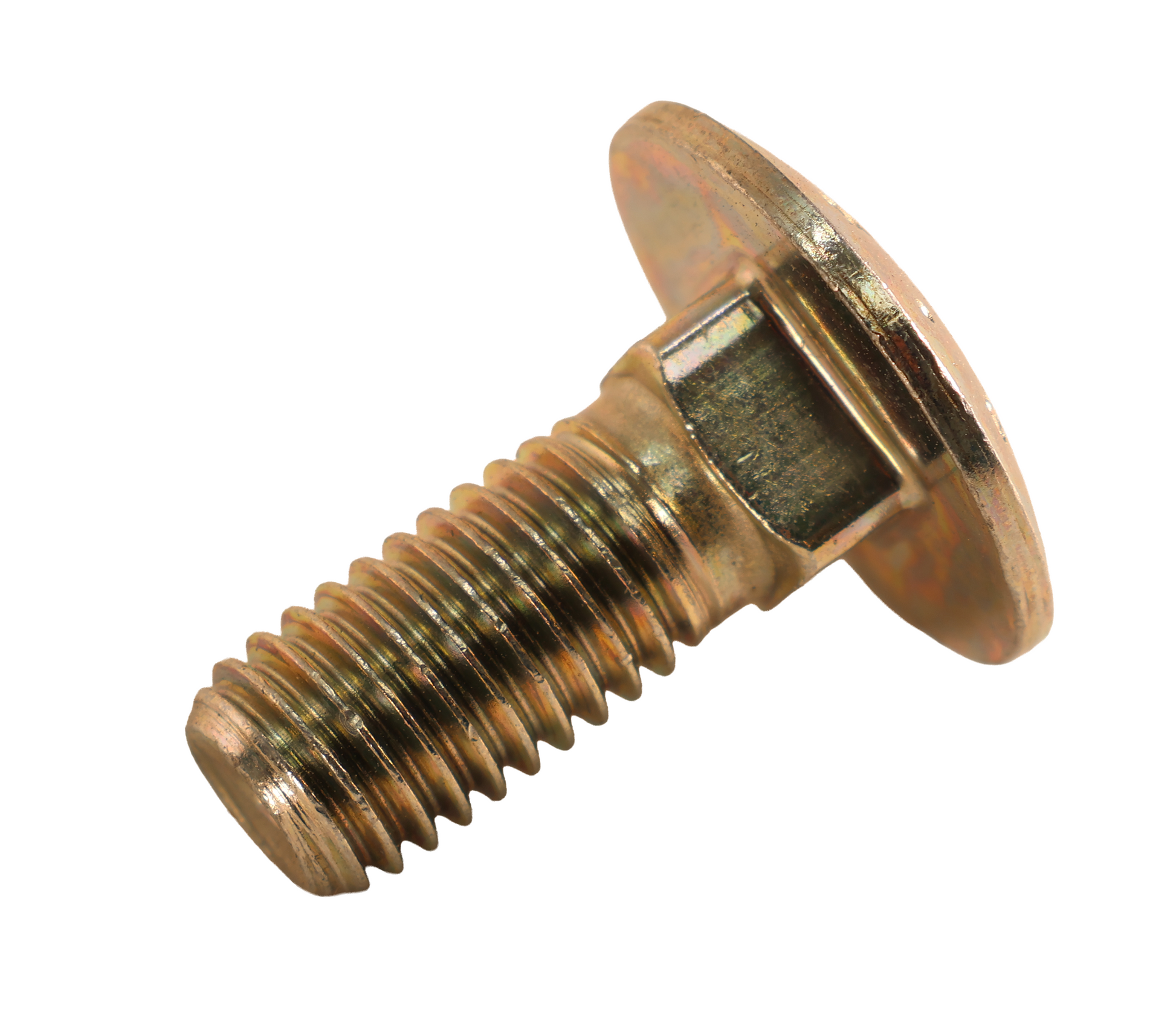

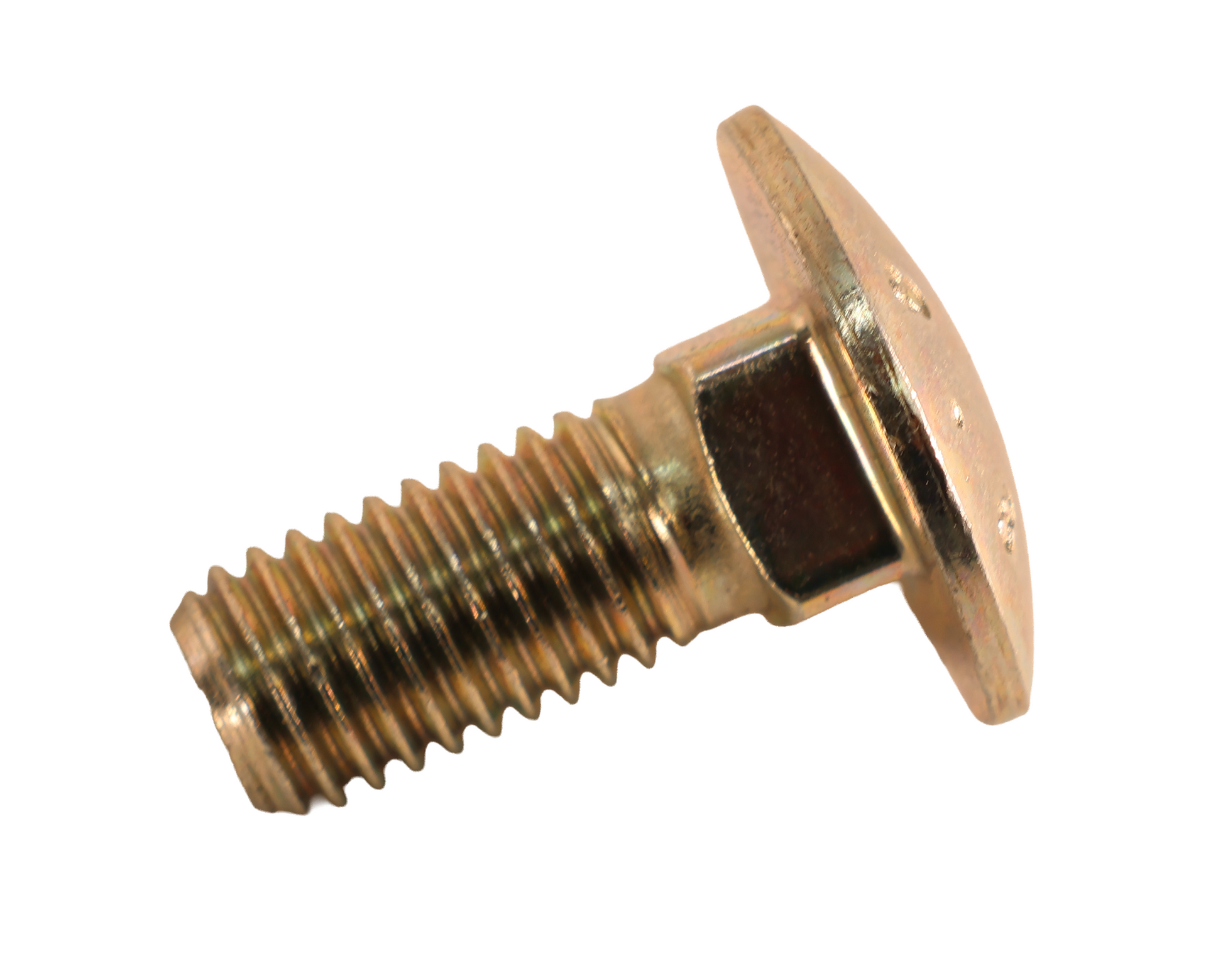

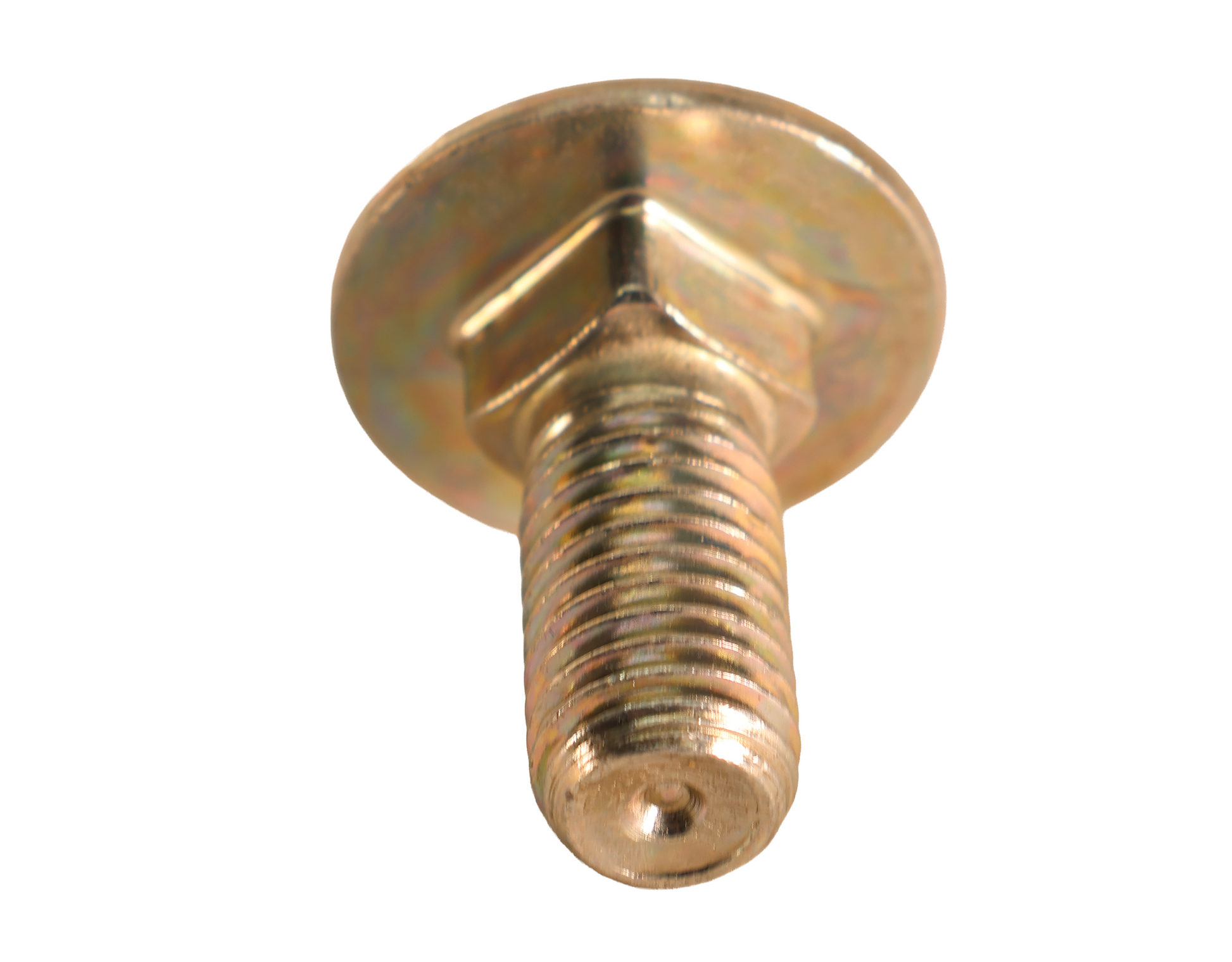

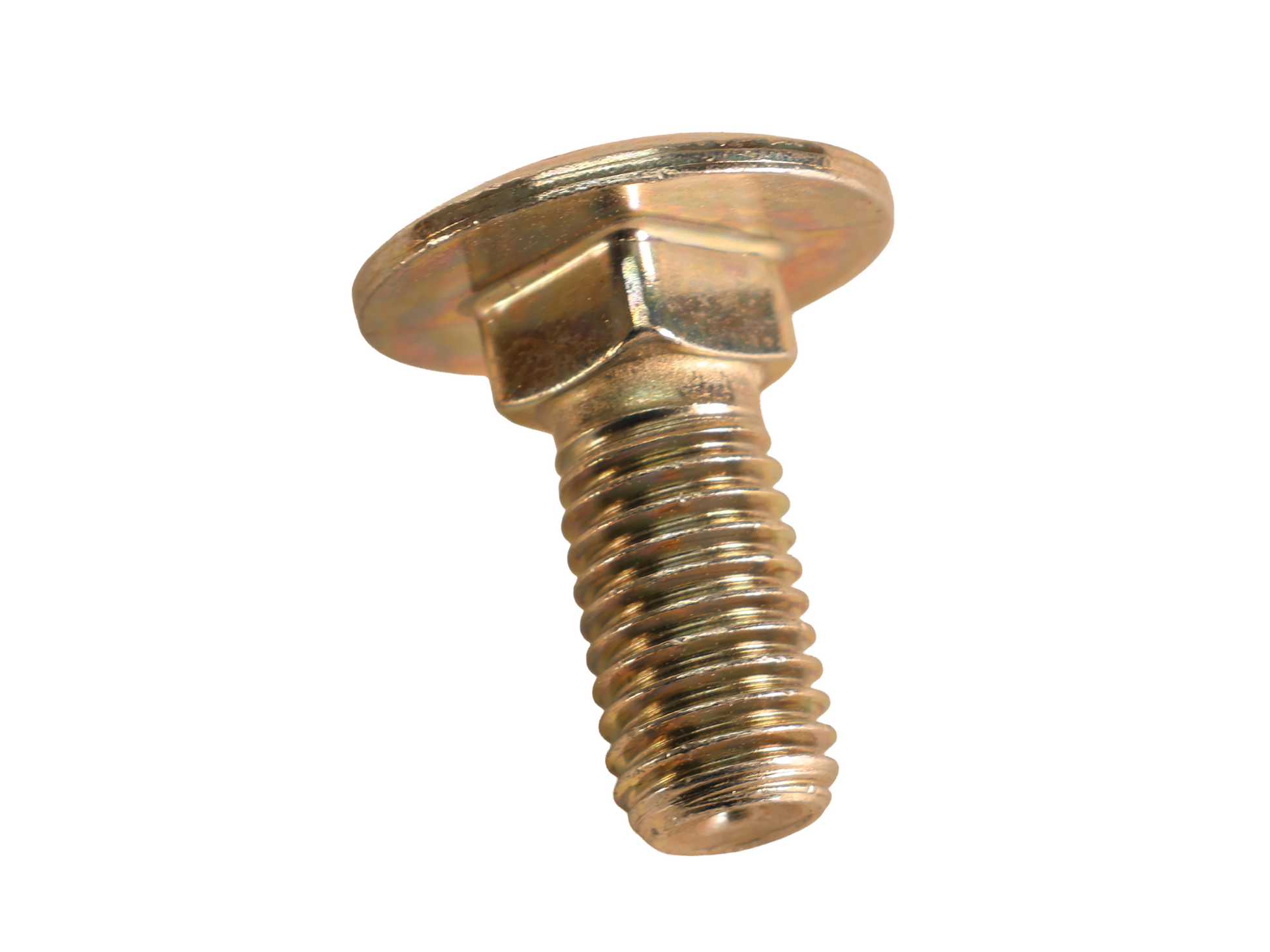

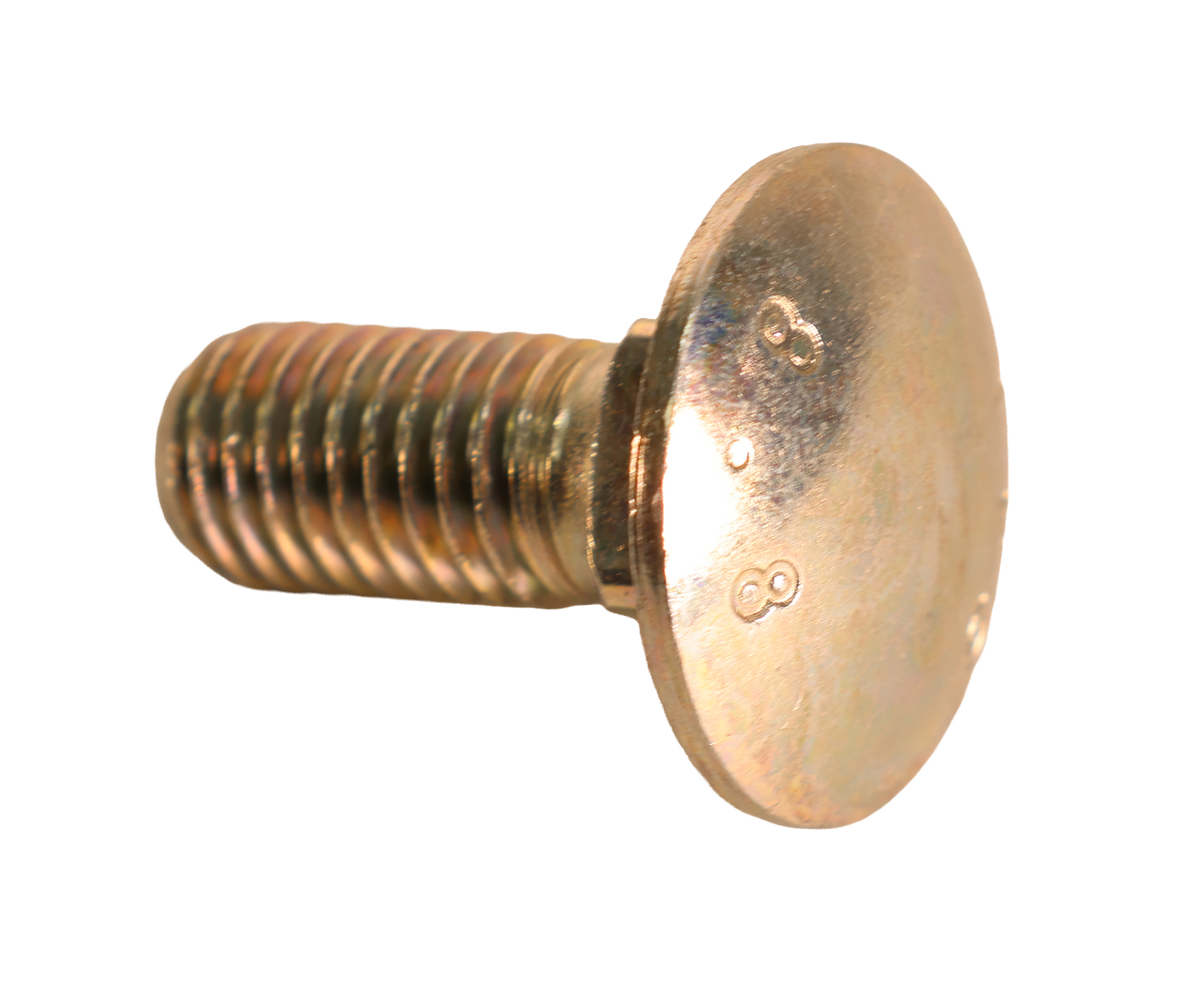

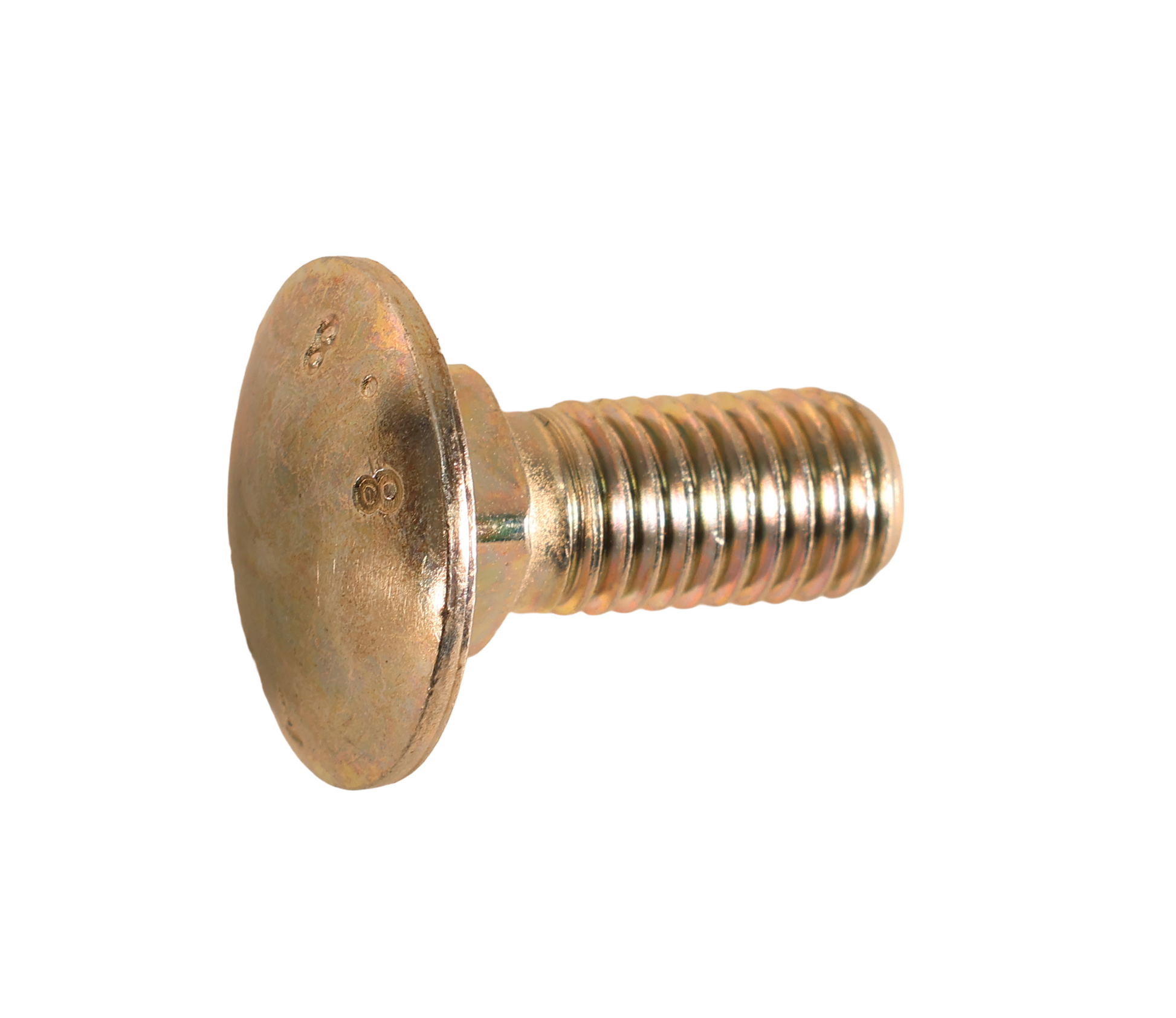

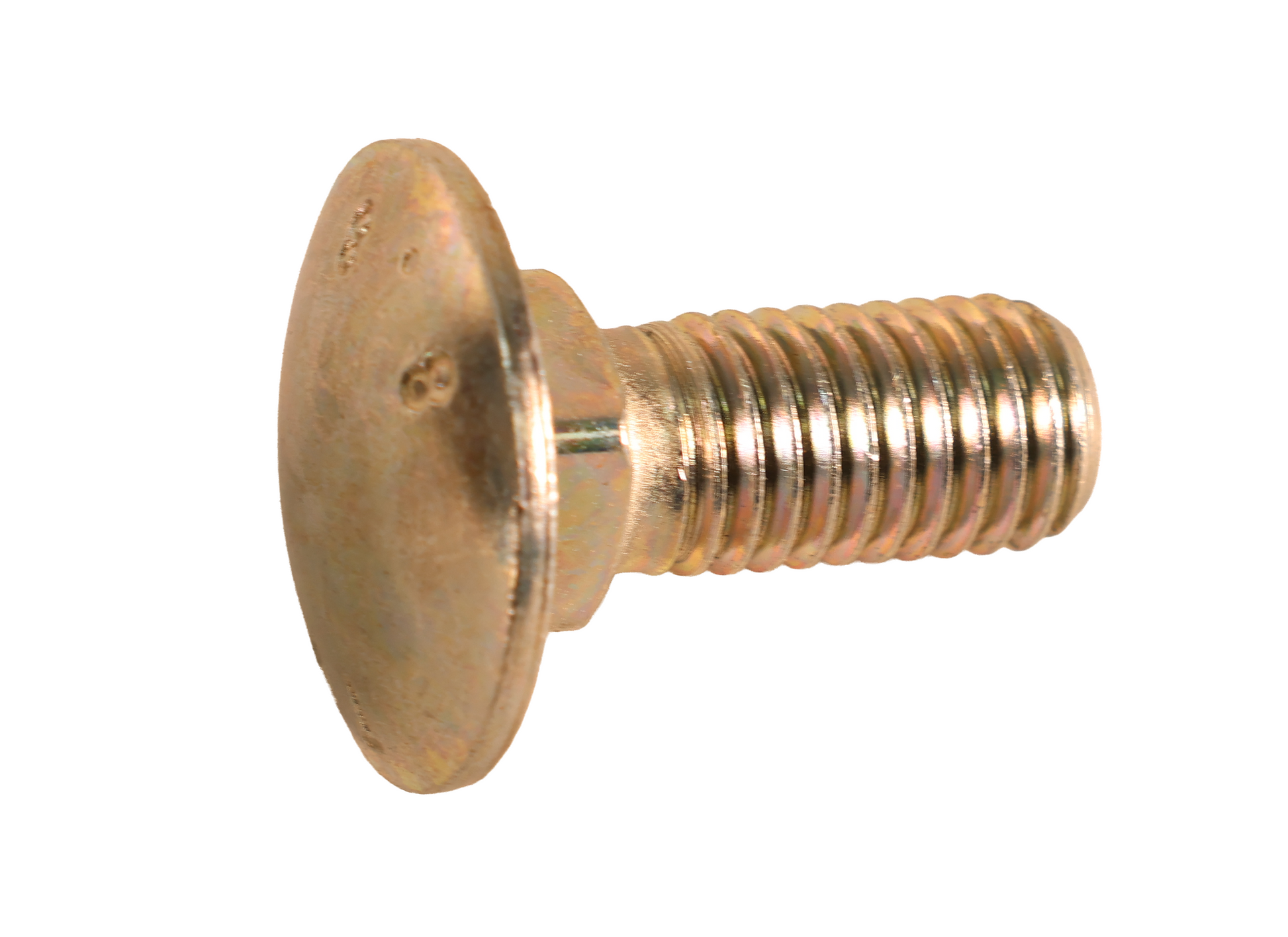

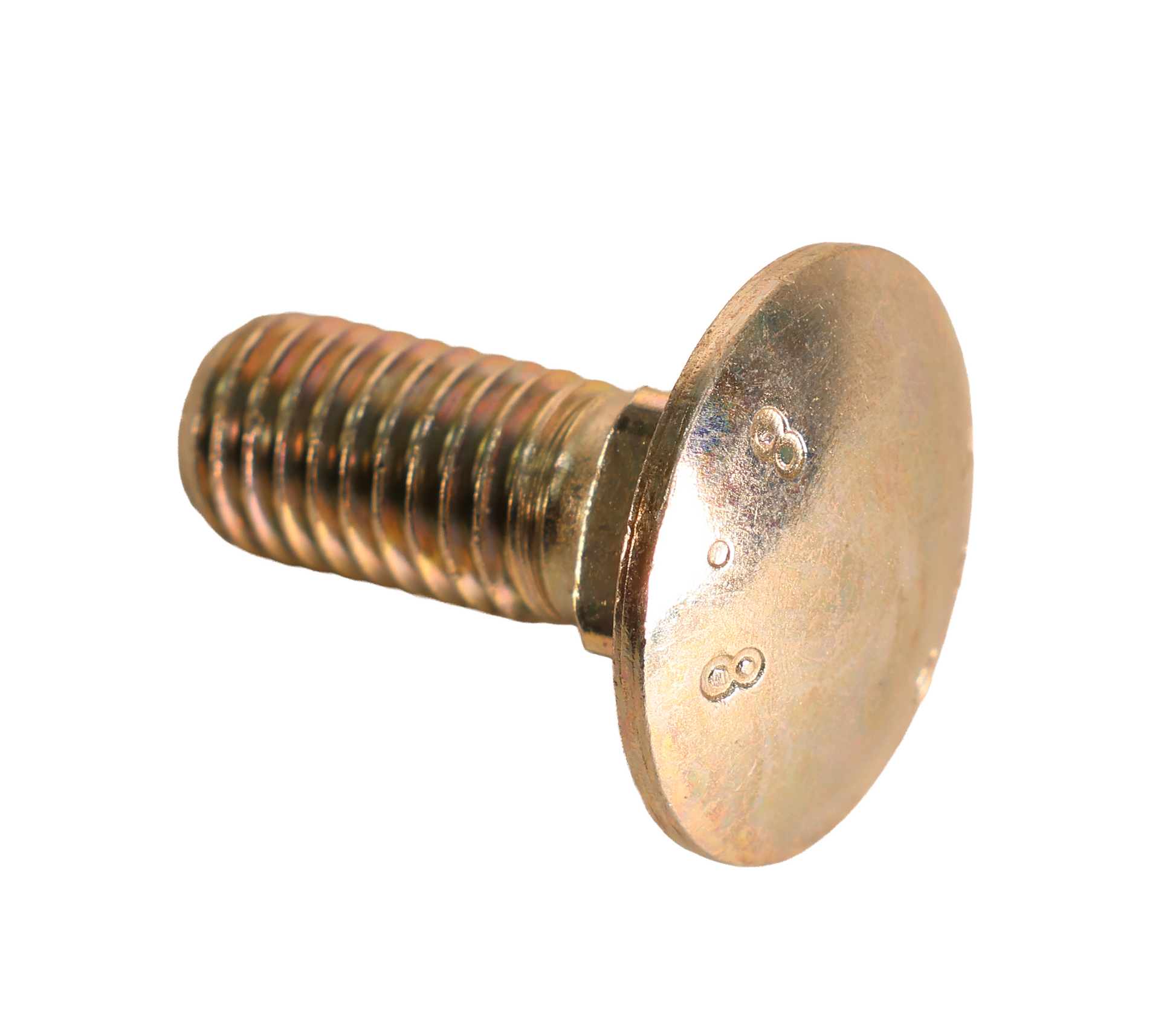

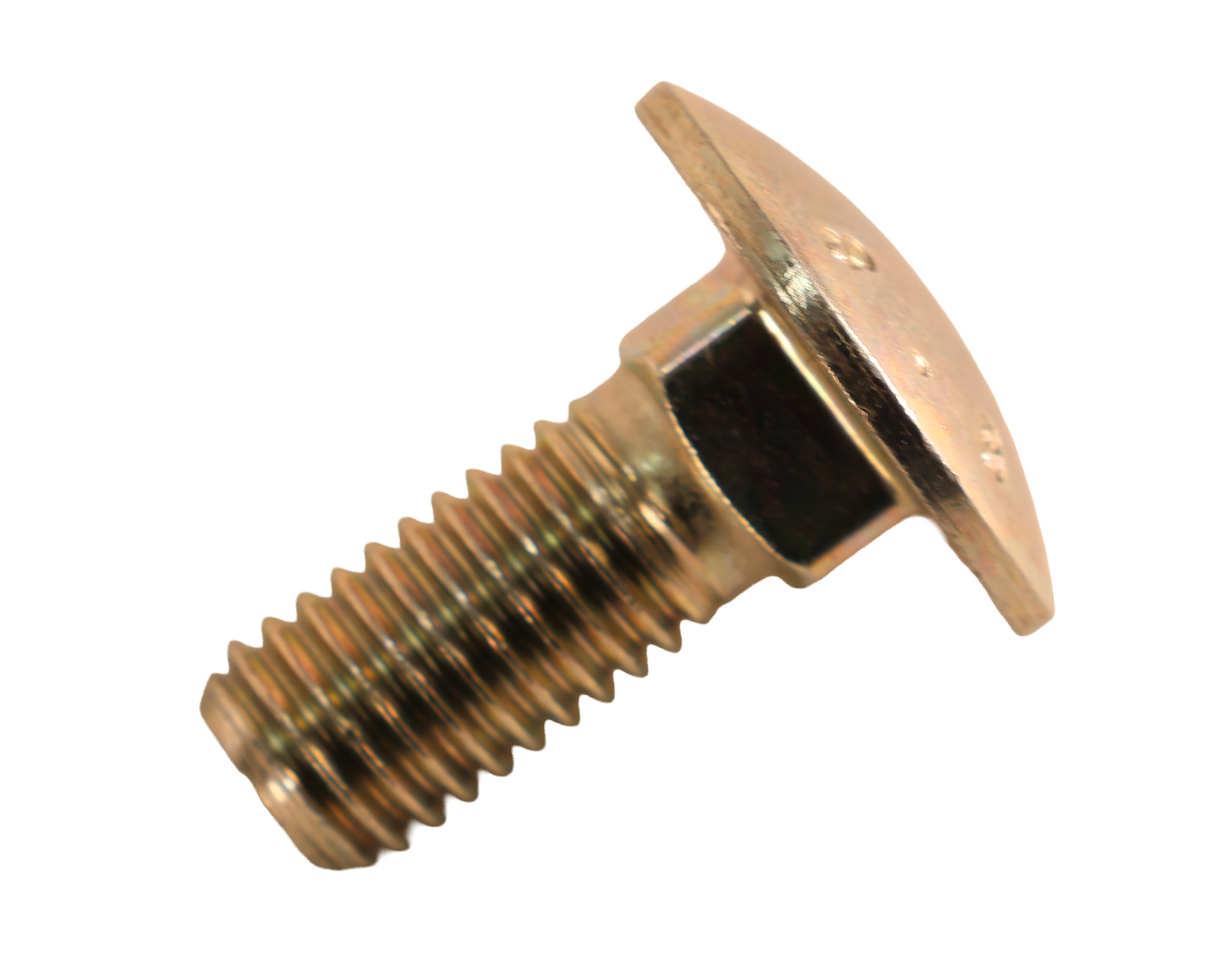

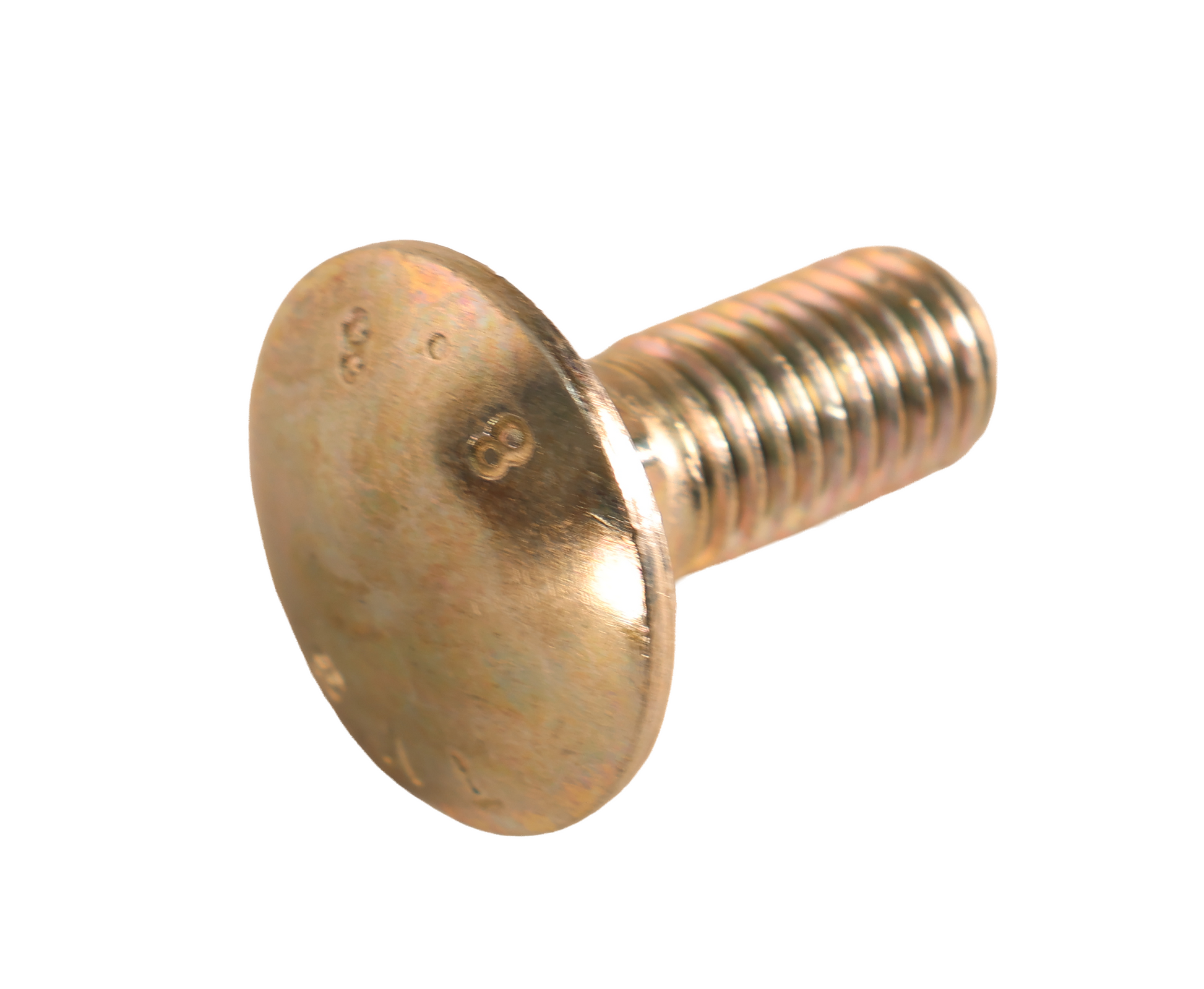

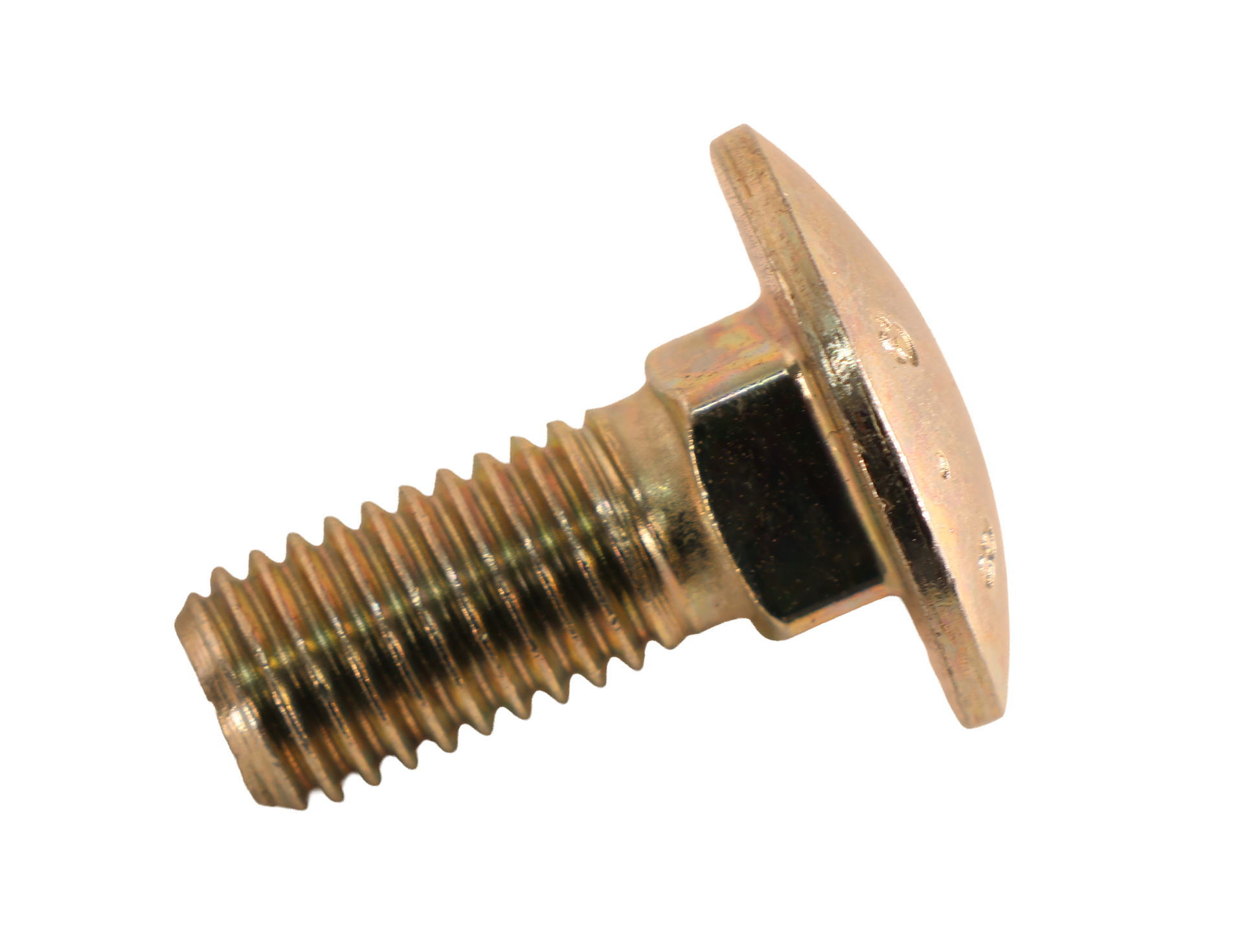

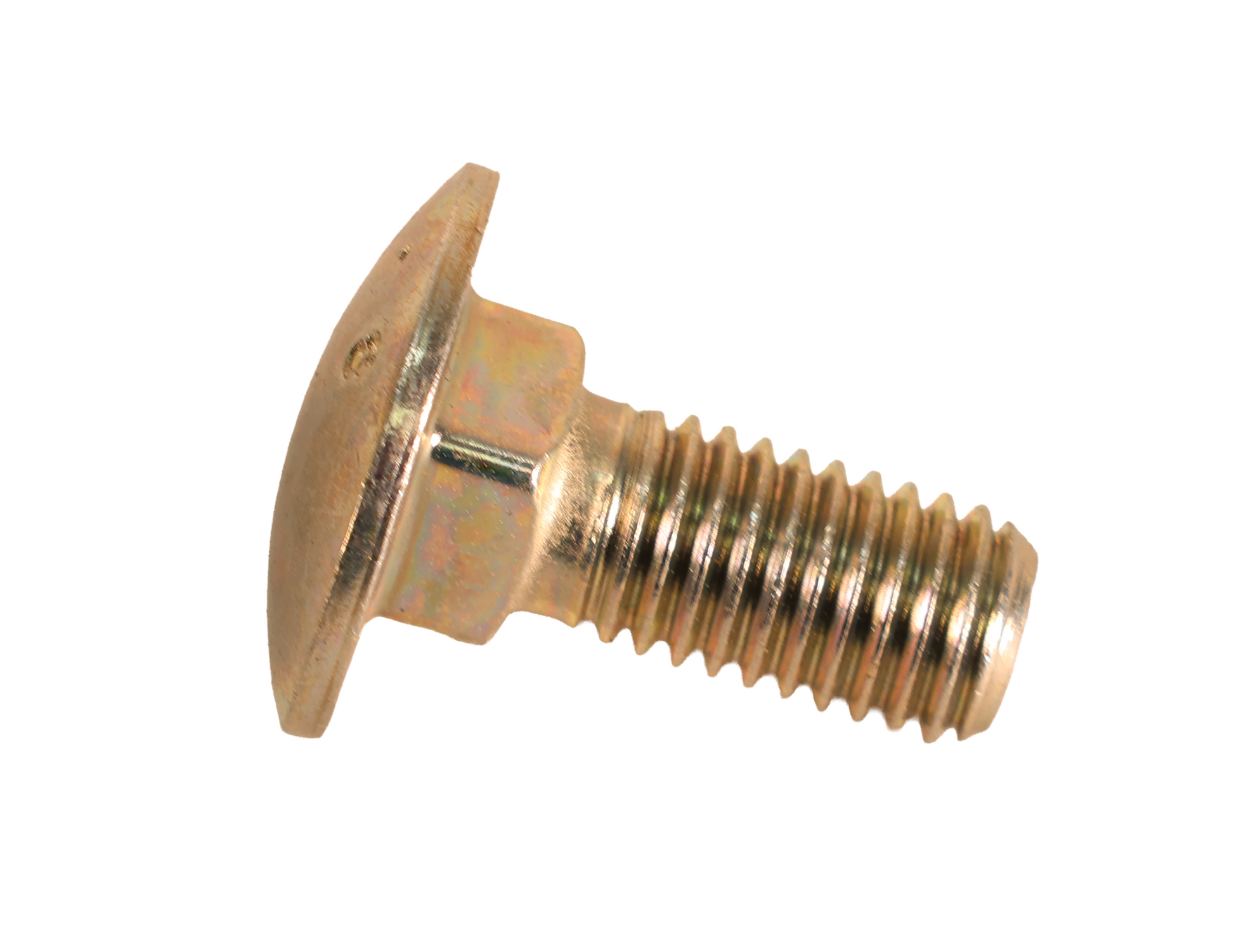

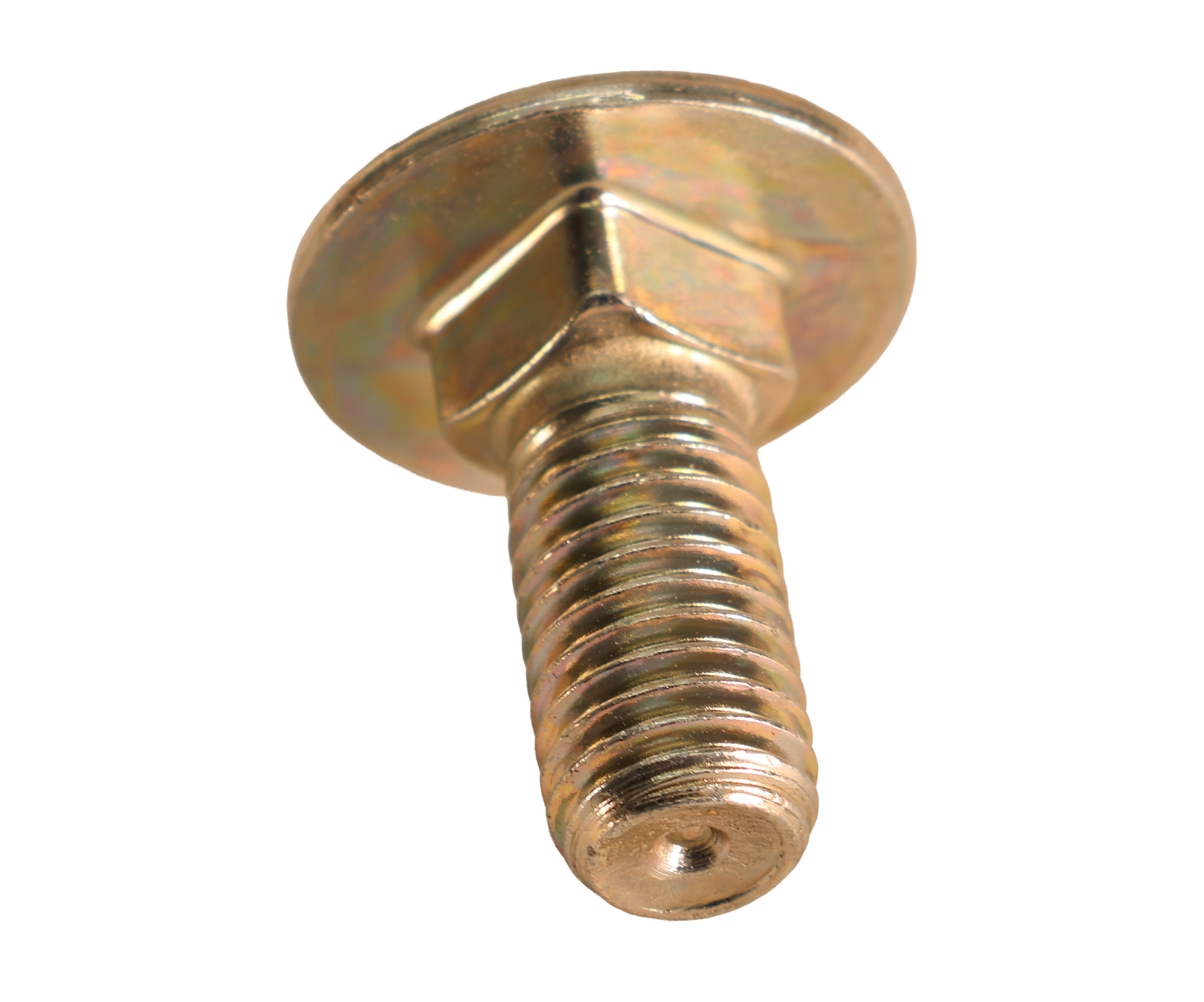

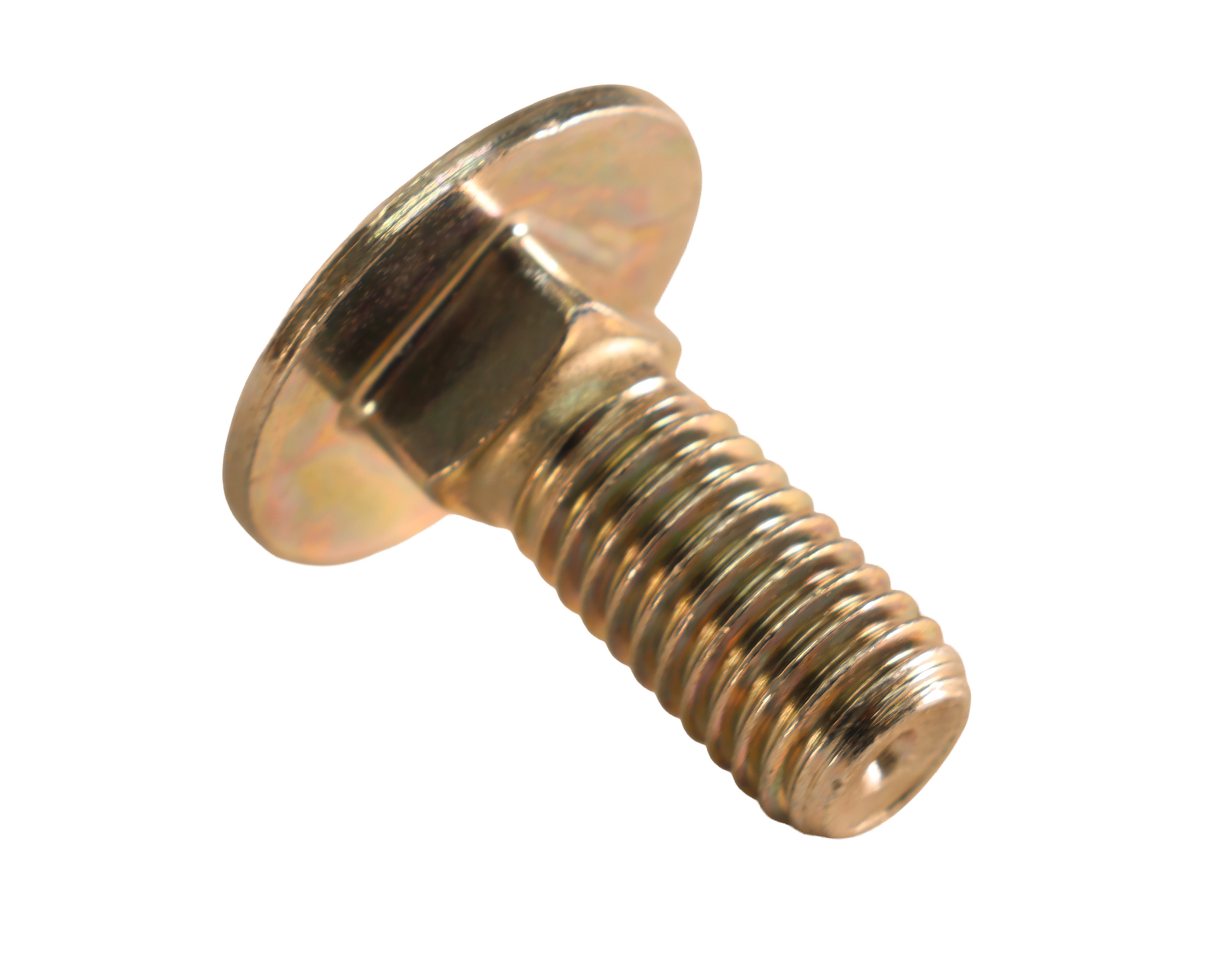

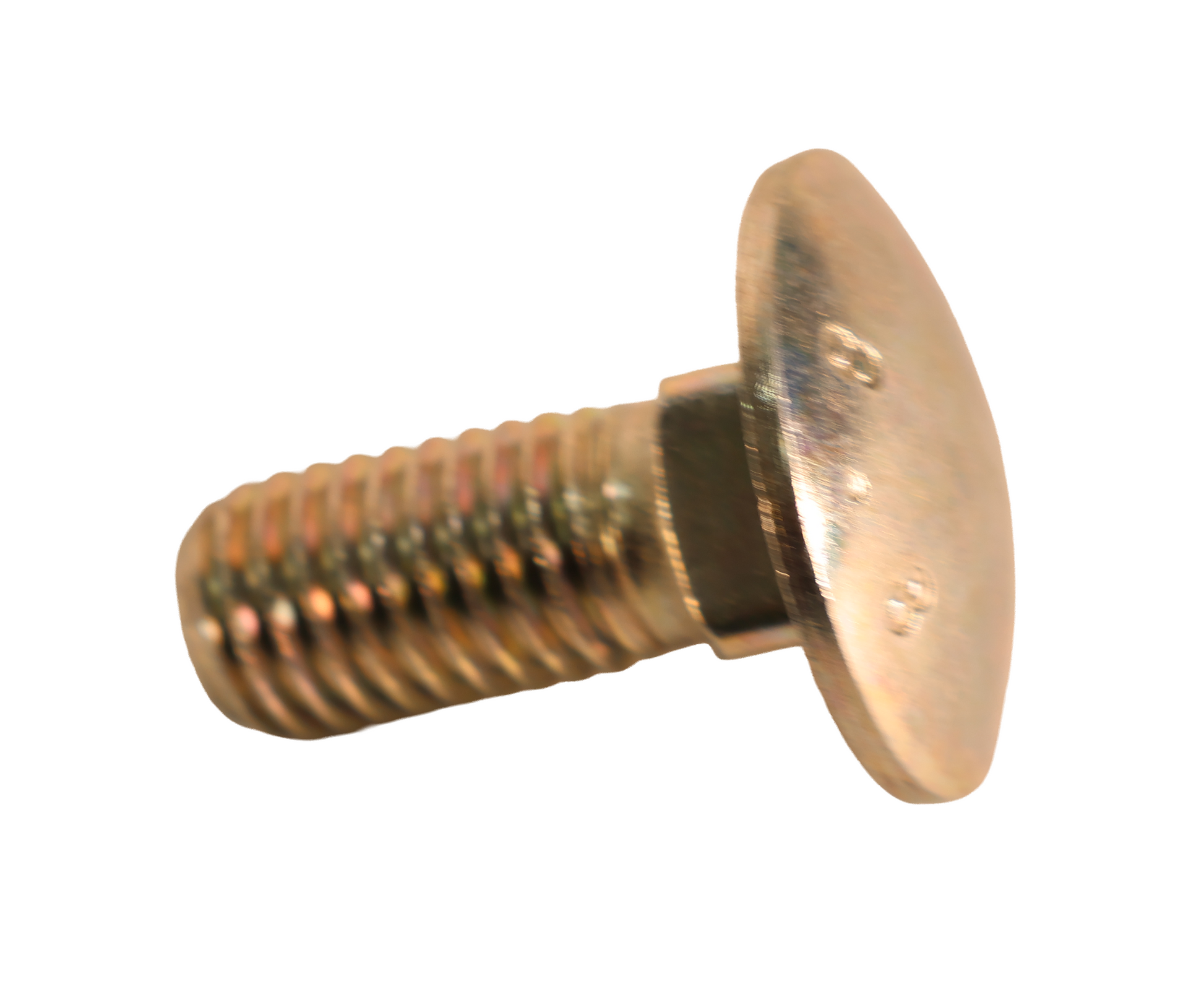

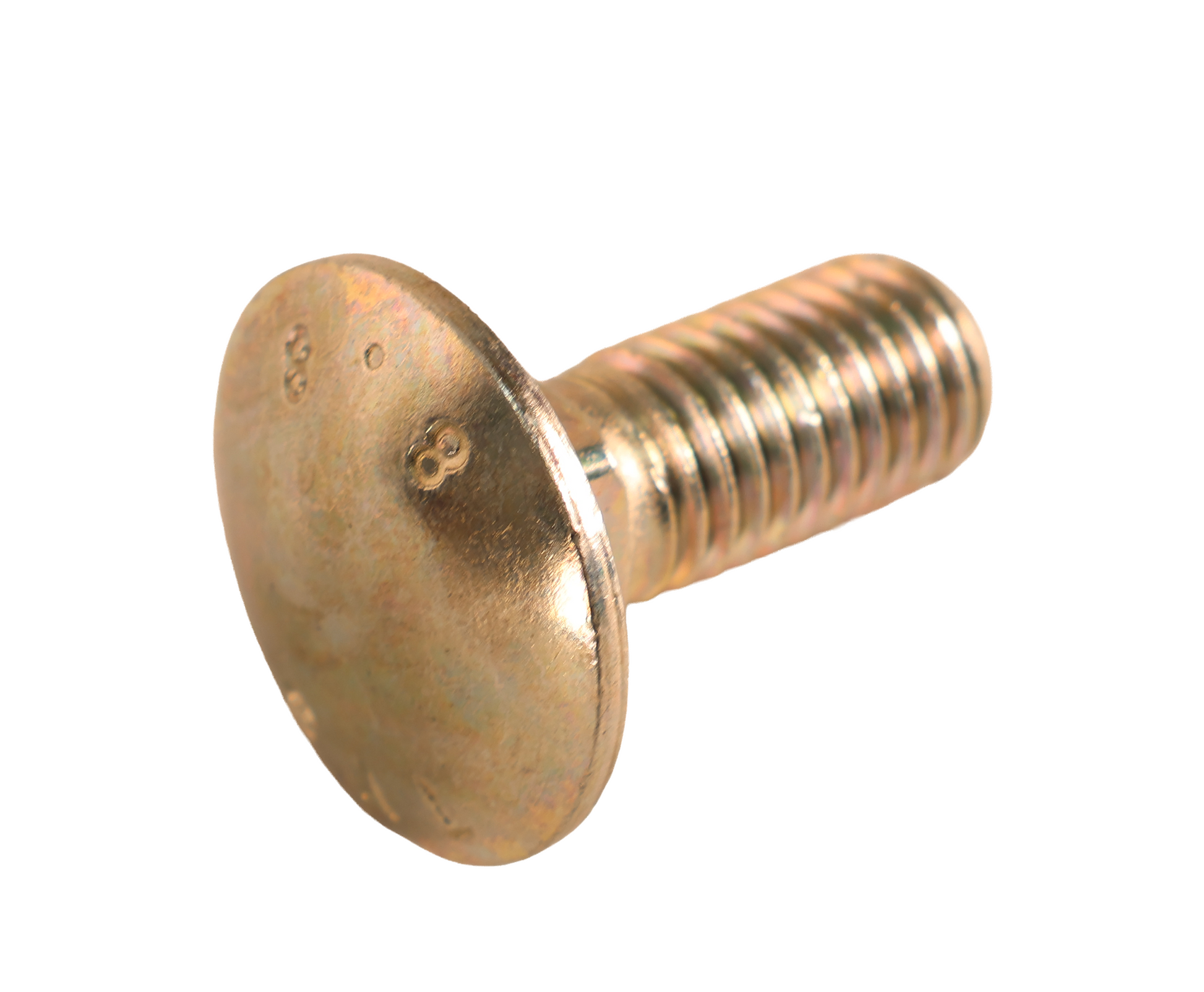

John Deere Original Equipment Bolt - 03M7017

John Deere Original Equipment Bolt - 03M7017

Part Specifications:
Thread Size (MM) 10.0000
Thread Pitch (MM) 1.5000
Length (MM) 25.0000
Thread Length (MM) 11.00000
Neck Depth (MM) 6.6000
Head Diameter (MM) 24.6500
Head Thickness (MM) 5.3800
Material or Grade (ALPHA) 8.8000
Finish (ALPHA)

Fits the following John Deere models:

6M 95, 6M 105, 6M 110, 6M 115, 6M 125, 6M 130, 6M 140, 6M 145, 6M 150, 6M 155, 6M 165, 6M 175, 6M 180, 6M 185, 6M 195, 6M 200, 6M 210, 6M 220, 6M 230, 6M 240, 6M 250, 6MH 155, 6R 110, 6R 120, 6R 130, 6R 140, 6R 145, 6R 150, 6R 155, 6R 165, 6R 175, 6R 185, 6R 195, 6R 215, 59 IN., 102, 105, 115, 125, 135, 145, 155C, 190C, 204, 205, 206, 208R, 209R, 210R, 212R, 213F, 215F, 215R, 218F, 218R, 220F, 222R, 300F, 312, 314, 314R, 316, 319, 323, 325, 345, 360, 375, 375 PRO, 390, 400F, 445, 460, 460 PRO, 460S, 460S PRO, 475, 475 PRO, 488, 490, 490 PRO, 553, 600L HIGH DUMP, 606C, 608C, 614R, 615R, 616, 616R, 618R, 620R, 622R, 622X, 625R, 625X, 630C, 630R, 630X, 635R, 635X, 639, 640C, 640X, 645C, 649, 659, 670, 676, 690, 692,696, 698, 702, 704, 722PF, 725PF, 730PF, 735PF, 740PF, 770, 772, 778, 805, 870, 918, 920, 920R, 922, 922R, 925, 925R, 1008, 1018, 1107, 1109, 1111, 1113, 1165, 1170, 1175, 1185, 1207, 1209, 1211, 1213, 1418, 1424, 1424C, 1433, 1433C, 1434, 1434C, 1450,1470,1550,1570, 1745, 2054, 2056, 2058, 2064, 2066, 2109, 2111, 2113, 2115, 2117, 2122, 2126, 2130, 2134, 2254, 2256, 2258, 2264, 2266, 2266E, 3123FT, 3131FT, 3316, 3800, 4055, 4255, 4455, 4700, 4710, 5070M, 5080G, 5080M, 5080R, 5090G, 5090GH, 5090M, 5090R, 5100M, 5100R, 5215, 5215F, 5215V, 5300, 5300N, 5310, 5310N, 5315, 5315F, 5315V, 5400, 5410, 5410N, 5415, 5500, 5500N, 5510, 5510N, 5515, 5515 HIGH CROP, 5515F, 5515V, 5615, 5615V, 5620, 5720, 5820, 6010, 6020, 6090 MC, 6090 RC, 6090M, 6095 MC, 6095 RC, 6100, 6100 MC, 6100 RC, 6100M, 6105 MC, 6105 RC, 6105M, 6105R, 6110 6110 MC, 6110 RC, 6110M, 6110R, 6115 MC, 6115 RC, 6115M, 6115R, 6120, 6120M, 6120R, 6125M, 6125R, 6130, 6130M, 6130R, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6150RH, 6155M, 6155MH, 6155R, 6155RH, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6200, 6210, 6210M, 6210R, 6215R, 6220, 6230, 6300, 6310, 6320, 6330, 6400, 6405, 6410, 6420, 6420S, 6430, 6506, 6510, 6510S, 6520, 6530, 6534, 6600, 6605, 6610, 6620, 6630, 6800, 6810, 6820, 6830, 6900, 6910, 6910S, 6920, 6920S, 6930, 7200, 7250, 7300, 7350, 7400, 7430E, 7450, 7500, 7505, 7530E, 7550, 7600, 7700, 7750, 7760, 7800, 7850, 7950, 9209, 9211, 9213, 9215, 9218, 9470 STS, 9540, 9560, 9560 STS, 9570 STS, 9580, 9640, 9650, 9650 STS, 9660, 9660 STS, 9660 WTS, 9670, 9670 STS, 9680, 9750 STS, 9760 STS, 9770 STS, 9780, 9860 STS, 9870 STS, 9880 STS, 9935, 9976, 9986, 9996, C1 200, C2 300, C2 400, C100, C110, C120, C230, C240, C440, C670, CP690, CS690, CTS, CTS II, D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170, DB50, DB74, DB90, E100, E110, E120, E130, E140, E150, E160, E170, E180, G110, L50, L60, L70, L100, L105, L107, L108, L110, L111, L118, L120, L130, L330, L331, L331R, L340, L341, L341R, L341R HIGH-DENSITY, L624, L633, L634, L1524, L1533, L1534, LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175, R2 300, R40, R230, S5 500, S7 600, S7 700, S100, S110, S120, S130, S140, S160, S170, S180, S240, S540, S550, S560, S650, S660, S660 PRECISION UPGRADES, S670, S670 PRECISION UPGRADES, S670H, S690, S760, S760 PRECISION UPGRADES, S770, S770 PRECISION UPGRADES, T5 400, T5 500, T5 600, T5 700, T6 500, T6 600, T6 700, T6 800, T550, T560, T660, T670, W2 300, W2 400, W50, W70, W70 V2, W80, W100, W210, W230, W330, W430, W540, W550, W650, W660, X9 1000, X9 1000 PRECISION UPGRADES, X9 1100, X9 1100 PRECISION UPGRADES, X110, X120, X125, X135R, X140, X145, X155R, X165.

This is an O.E.M. John Deere part.
