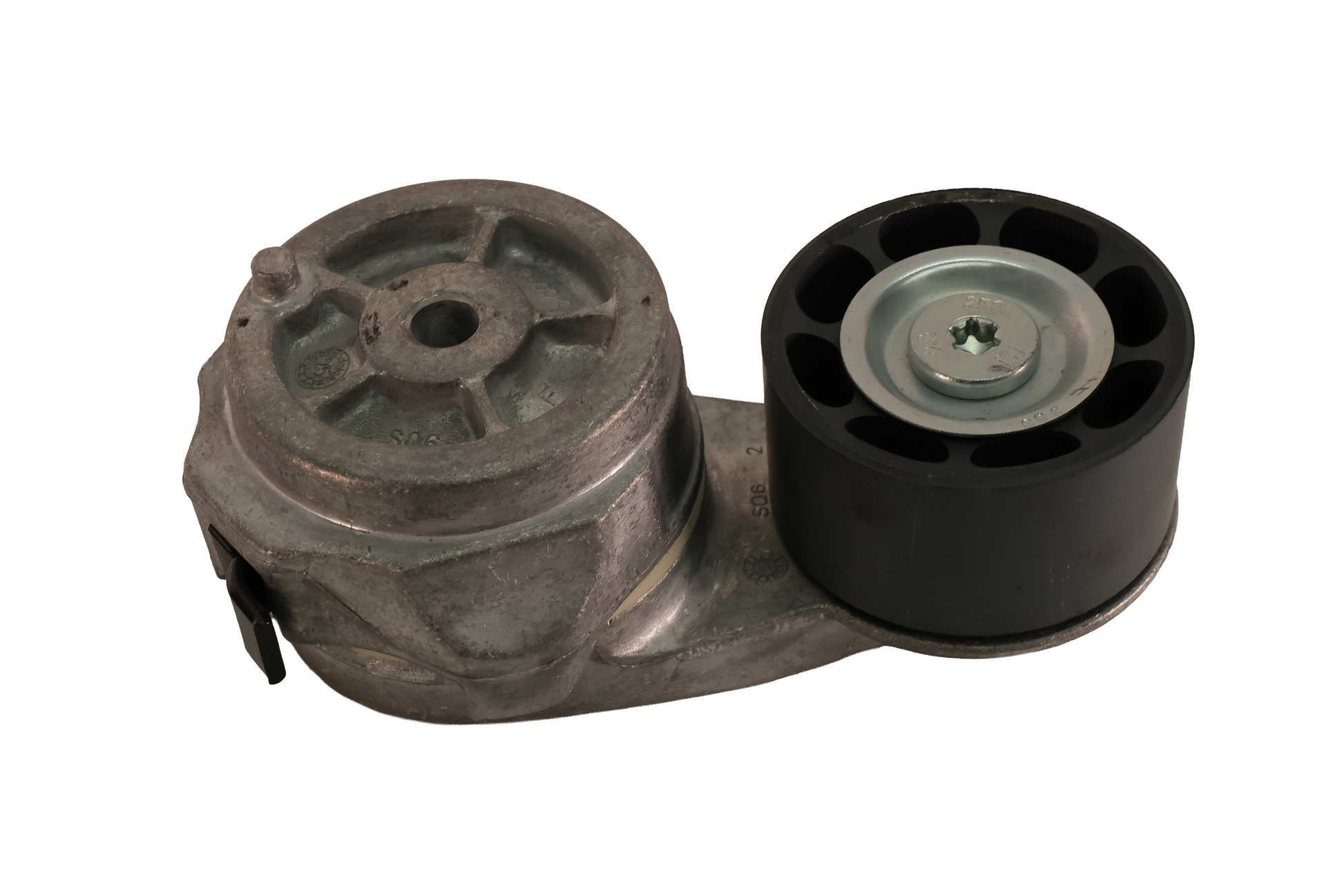

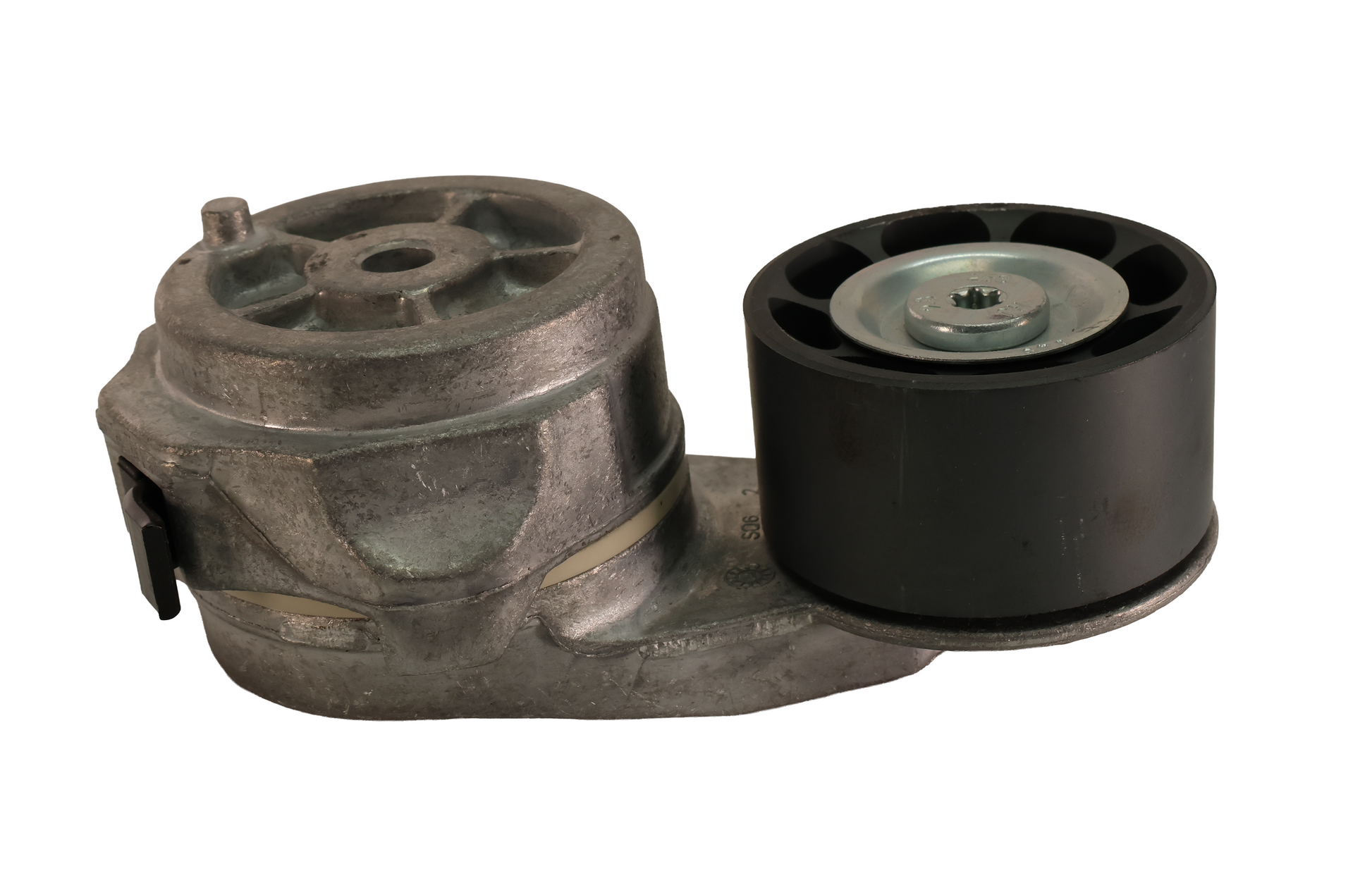

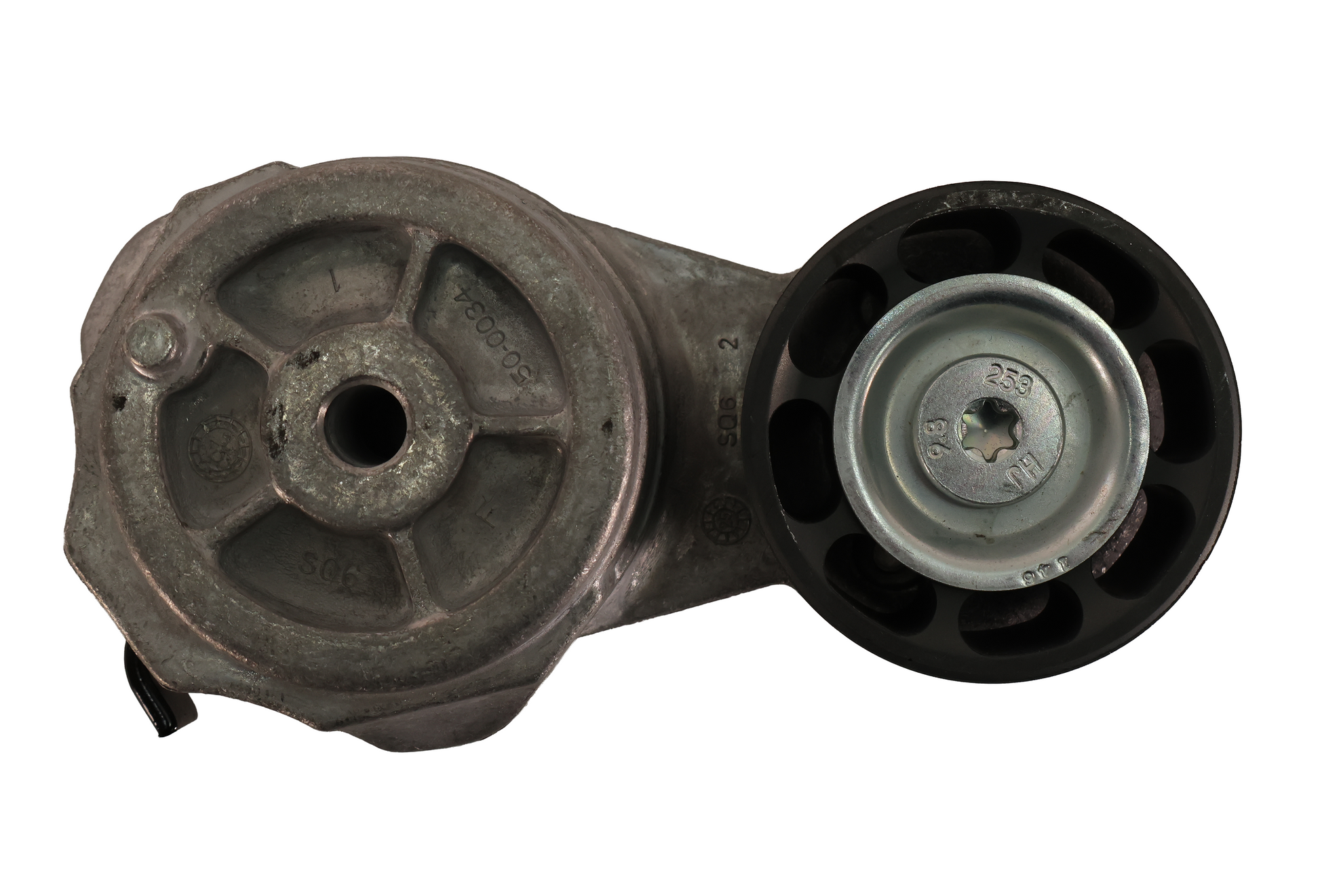

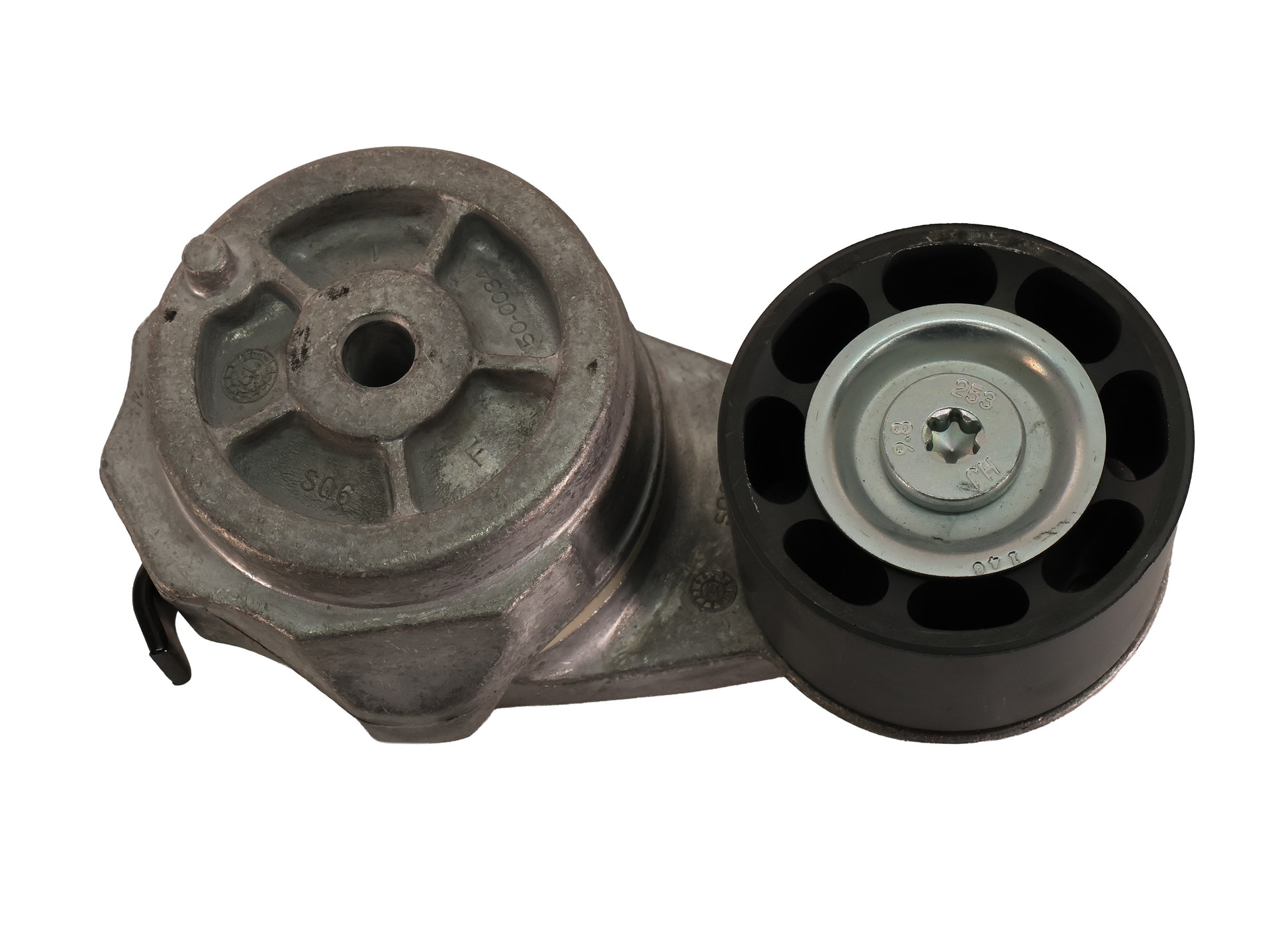

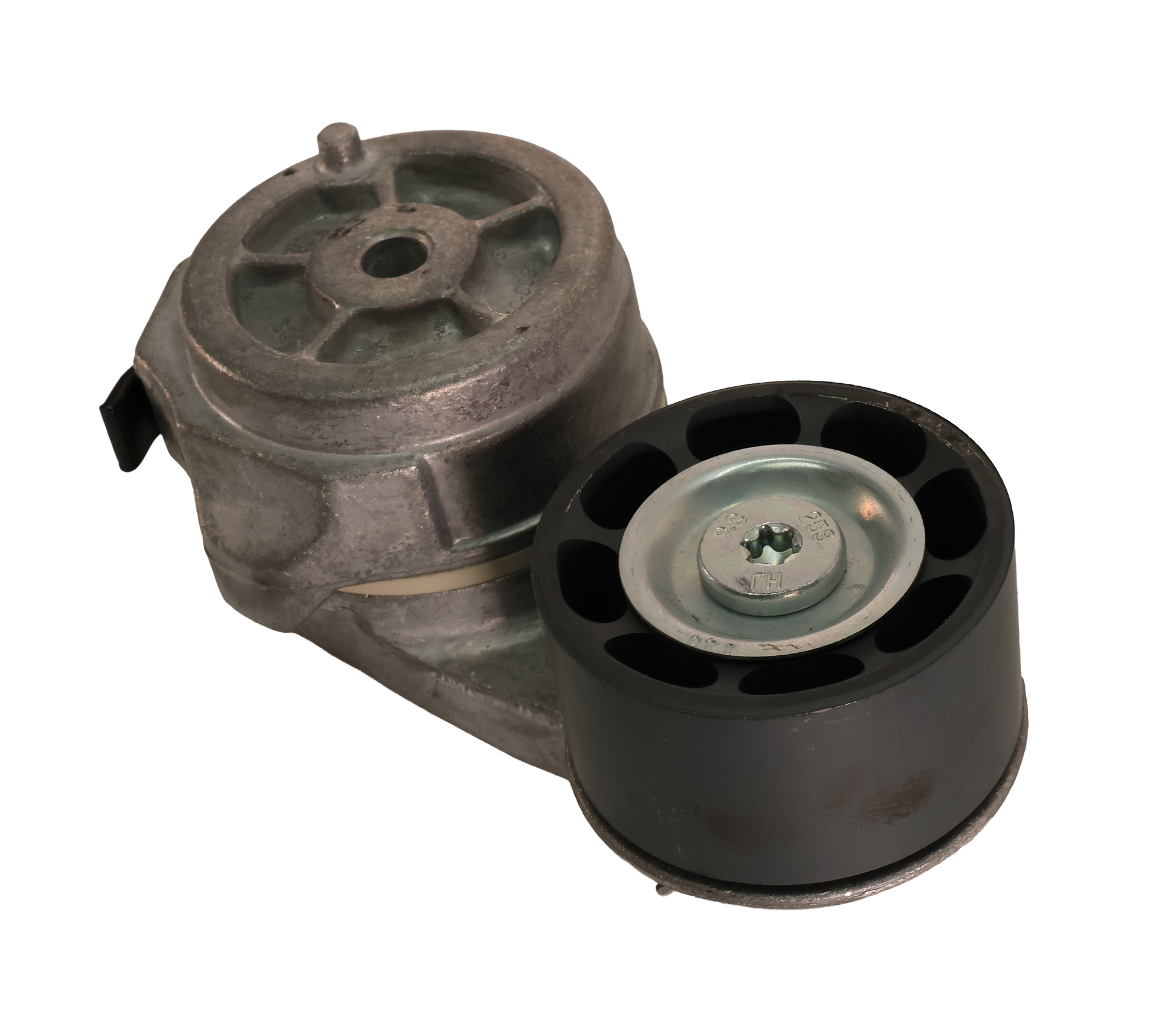

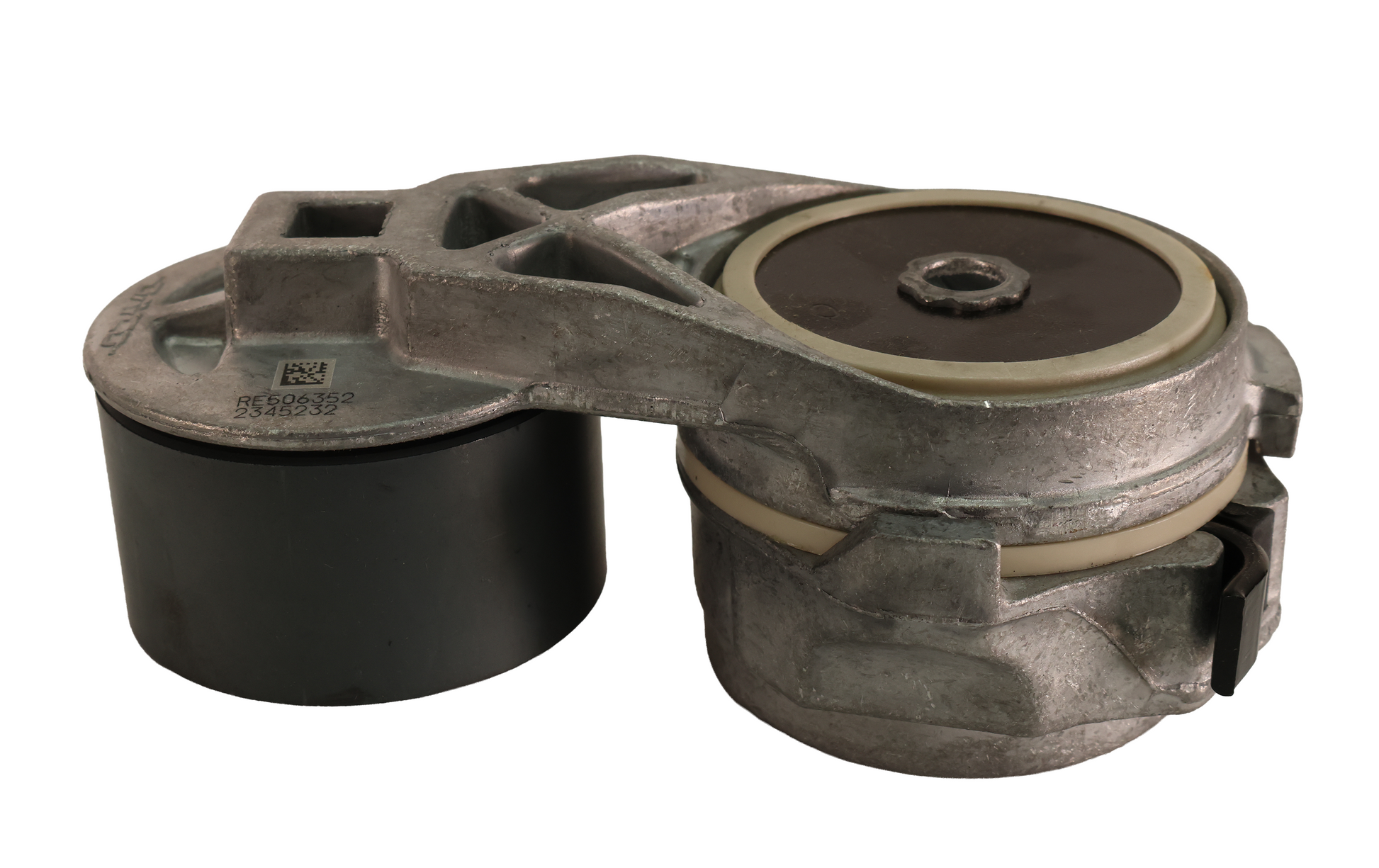

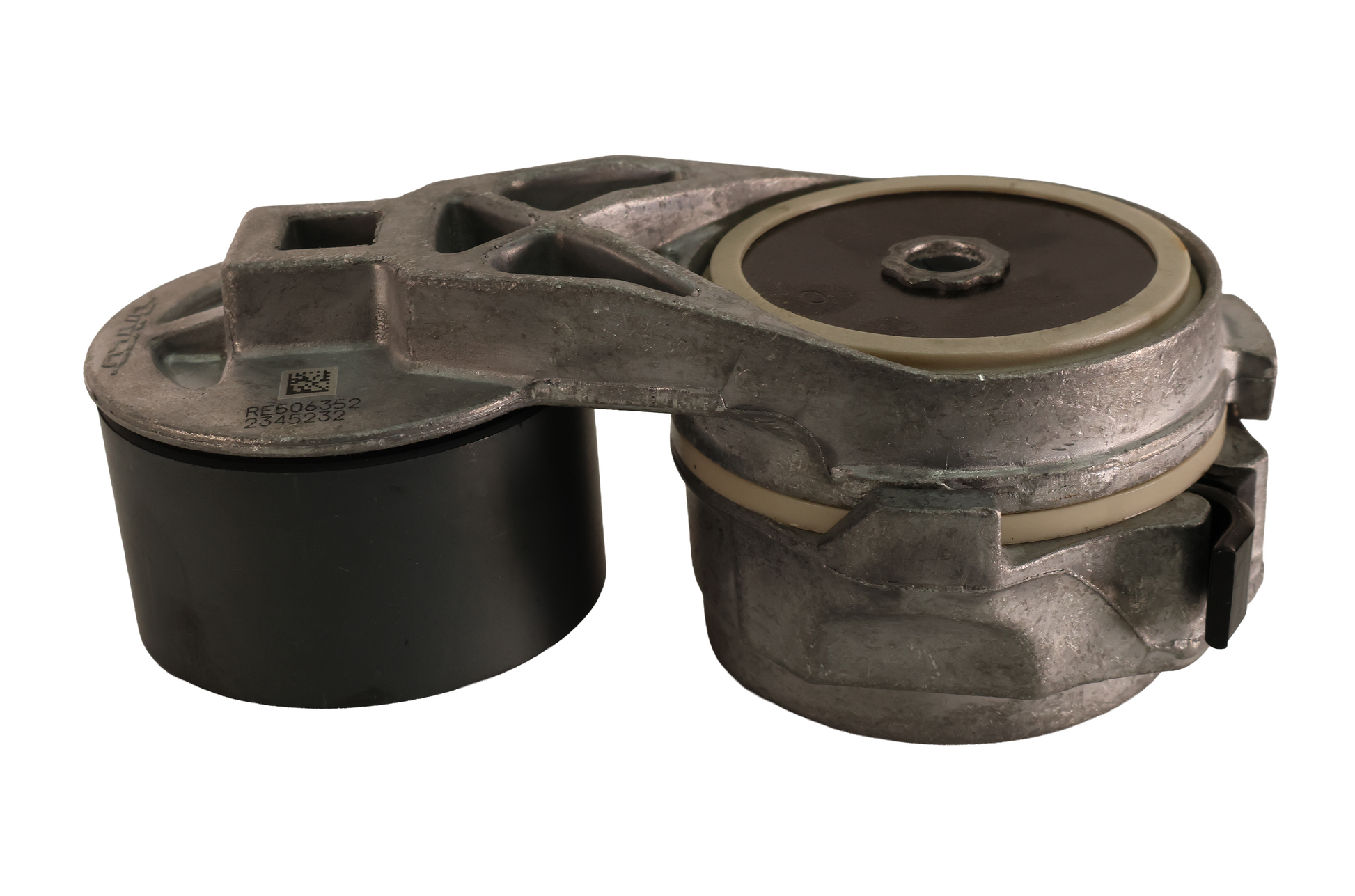

John Deere Original Equipment Belt Tensioner - RE506352

John Deere Original Equipment Belt Tensioner - RE506352

Engine Auxiliary Drive Belt Tensioner

Part Specifications:
Style (ALPHA) A
Number of Groove (UNITY) NONE
Idler Diameter (IN) 2.9134
Width (IN) 1.5453
Assembly Spring Torque (IN-LBF) 349.6045
Minimum Arm Travel- Degrees (UNITY) 71.0000
Mounting Style (ALPHA) PIN
Mounting Angle (UNITY) 22.0000

Fits the following John Deere models:
Combine: 9860STS, S690, 9870STS, S680, S680H, S690, S690HM, S780, S790.
Cotton Picker: 9996.
Harvester: CH570, CH670, 1270E, 1270G, 1270H 1470E, 1470G, 1470H, 853MH, 859MH, 953MH, 959MH.
Forwarder: 1910G, 2010H.
Sprayer: DPS16, STS14, STS16.
Articulated Dump Truck: 250D, 260 P, 260E, 300D, 310P, 310E.
Forwarder: 2510H.
Forestry Swing Machine: 3154G, 3156G, 3754G, 3756G.
Excavator: 350GLC, 350G, 380GLC, E330, E360, E380, E400.
Four-Wheel Drive Loader: 644K, 724P, 724K, 724L, 744P, 744X, 744K, 744L, 768L-II, 768L-III, 824P, 824X, 824L.
Ensilage and Forage Harvester: 6650, 6750, 6850, 6950, 7700, 7800, QSX15.
Motor Grader: 670G, 670P, 670GP, 672G, 672P, 672GP, 770G, 770P, 770GP, 772G, 772P, 772GP, 870GP, 870G, 872GP, 872G.
Track Feller Buncher: 803M, 803MH, 853M, 859M, 903M, 953M, 959M.
Log Skidder: 848L, 848L-II, 848L-III, 948L, 948L-II, 948L-III.
Crawler Dozer: 850P, 850X, 850L, 850L PL, 950 P, 950K.
Logger: 953ML, 959ML.

This is an O.E.M. John Deere part.
