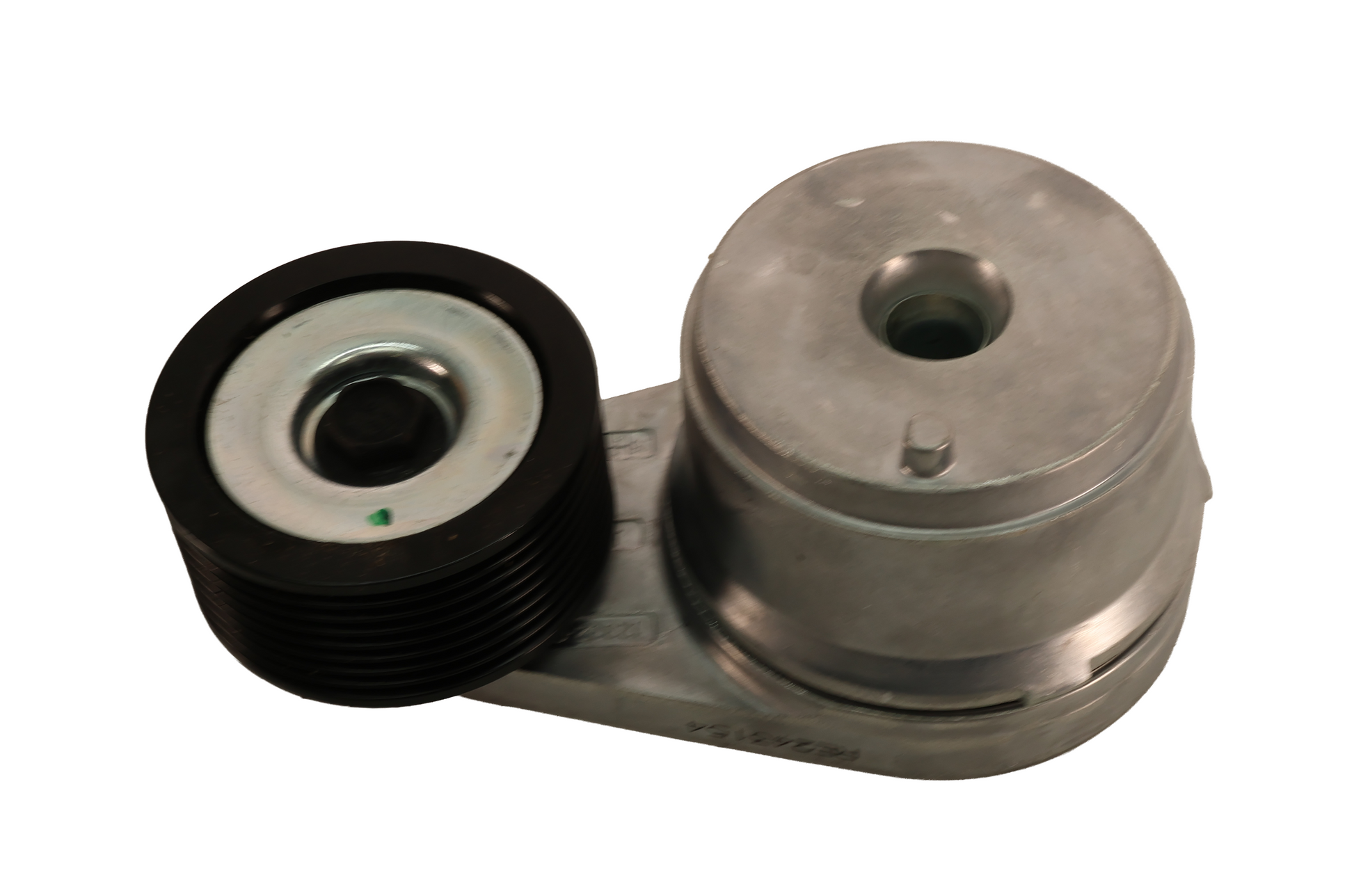

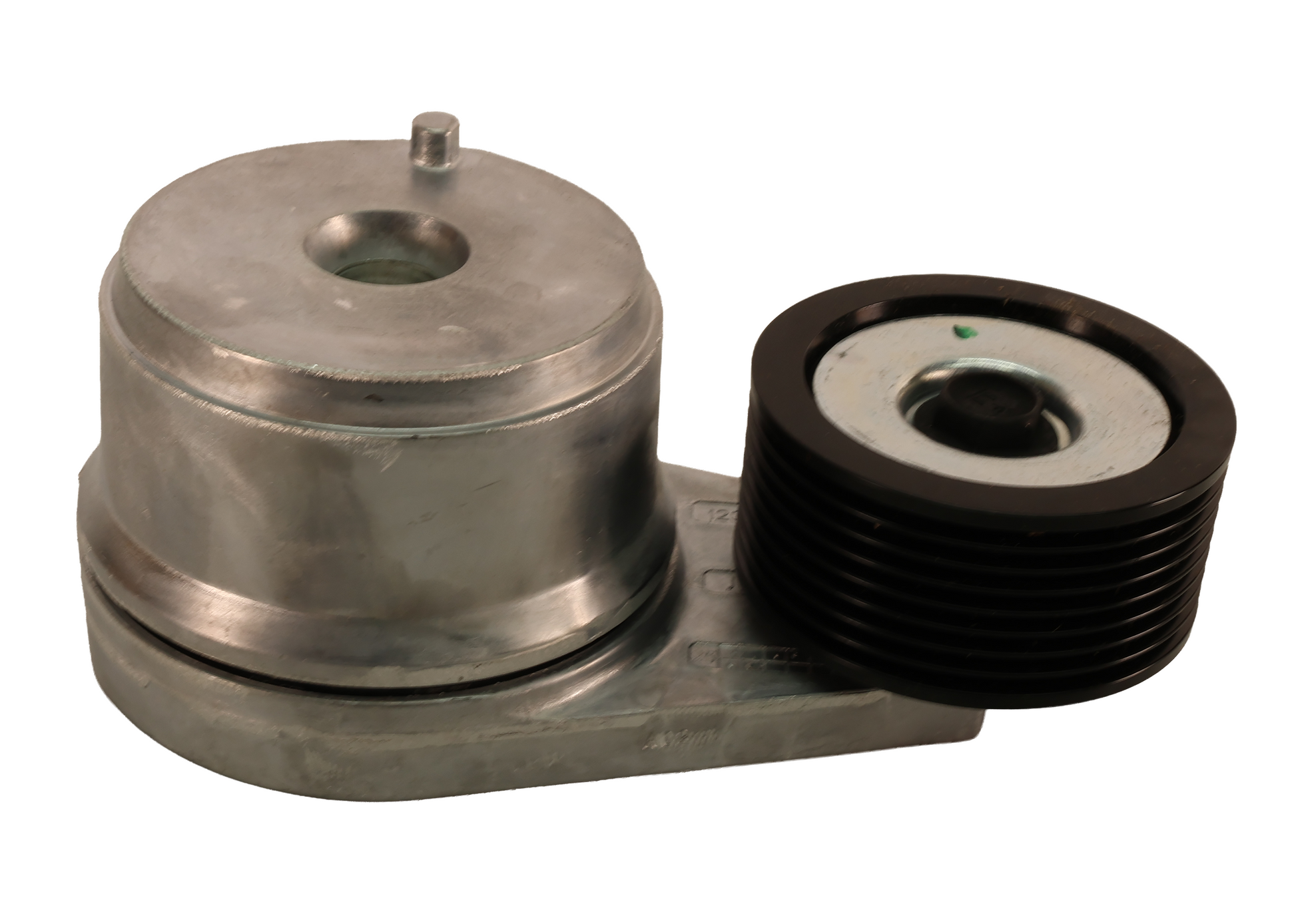

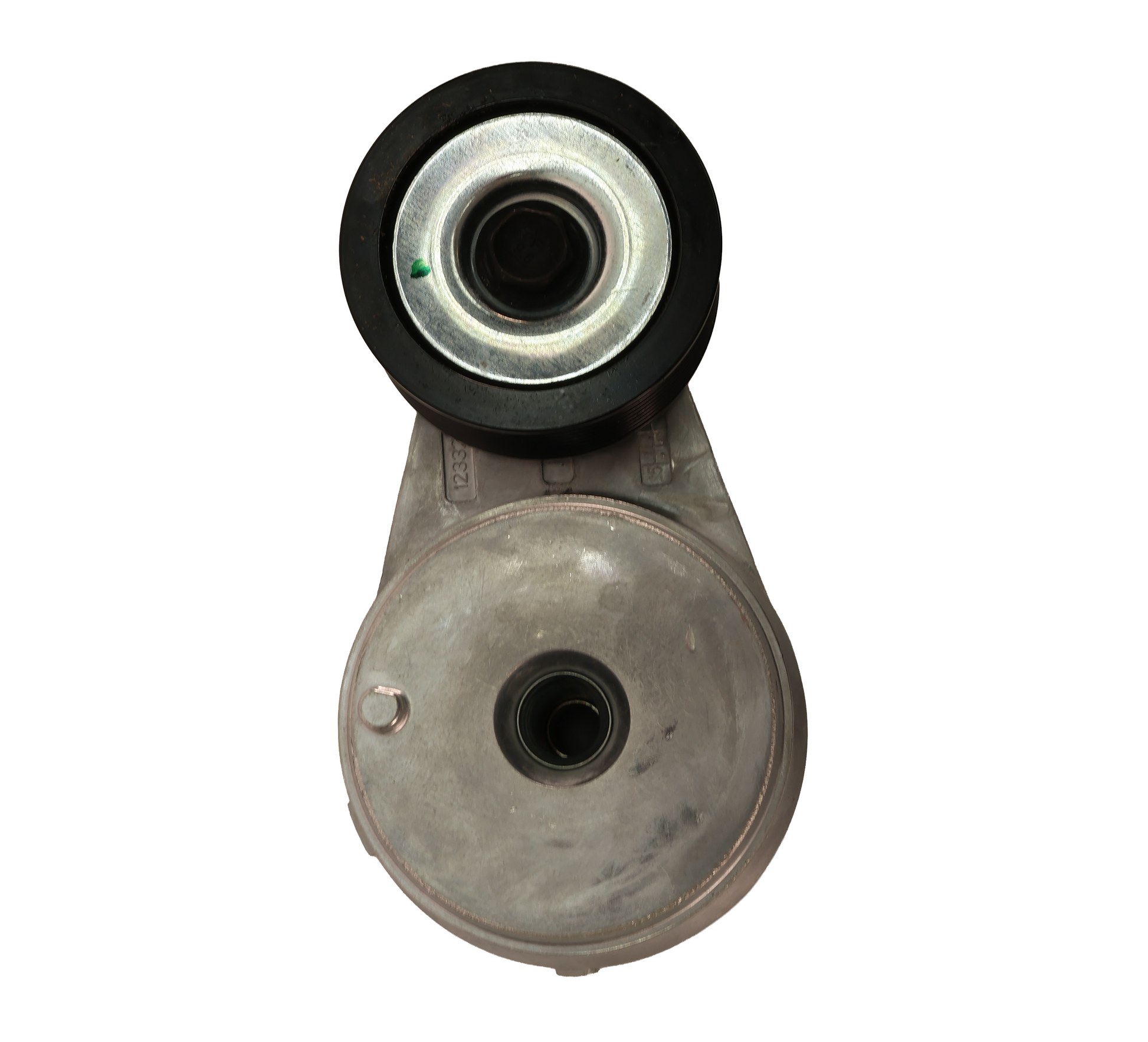

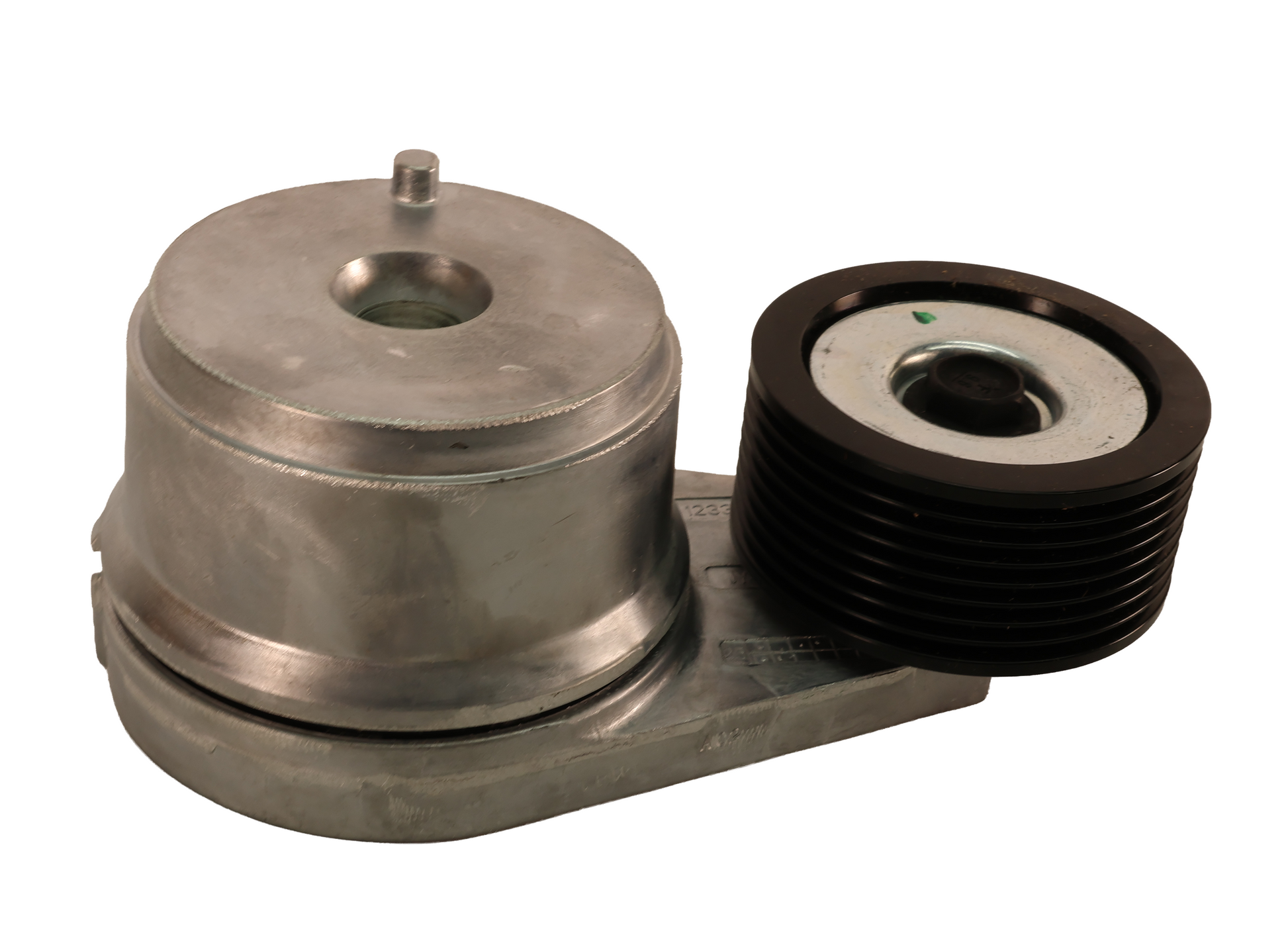

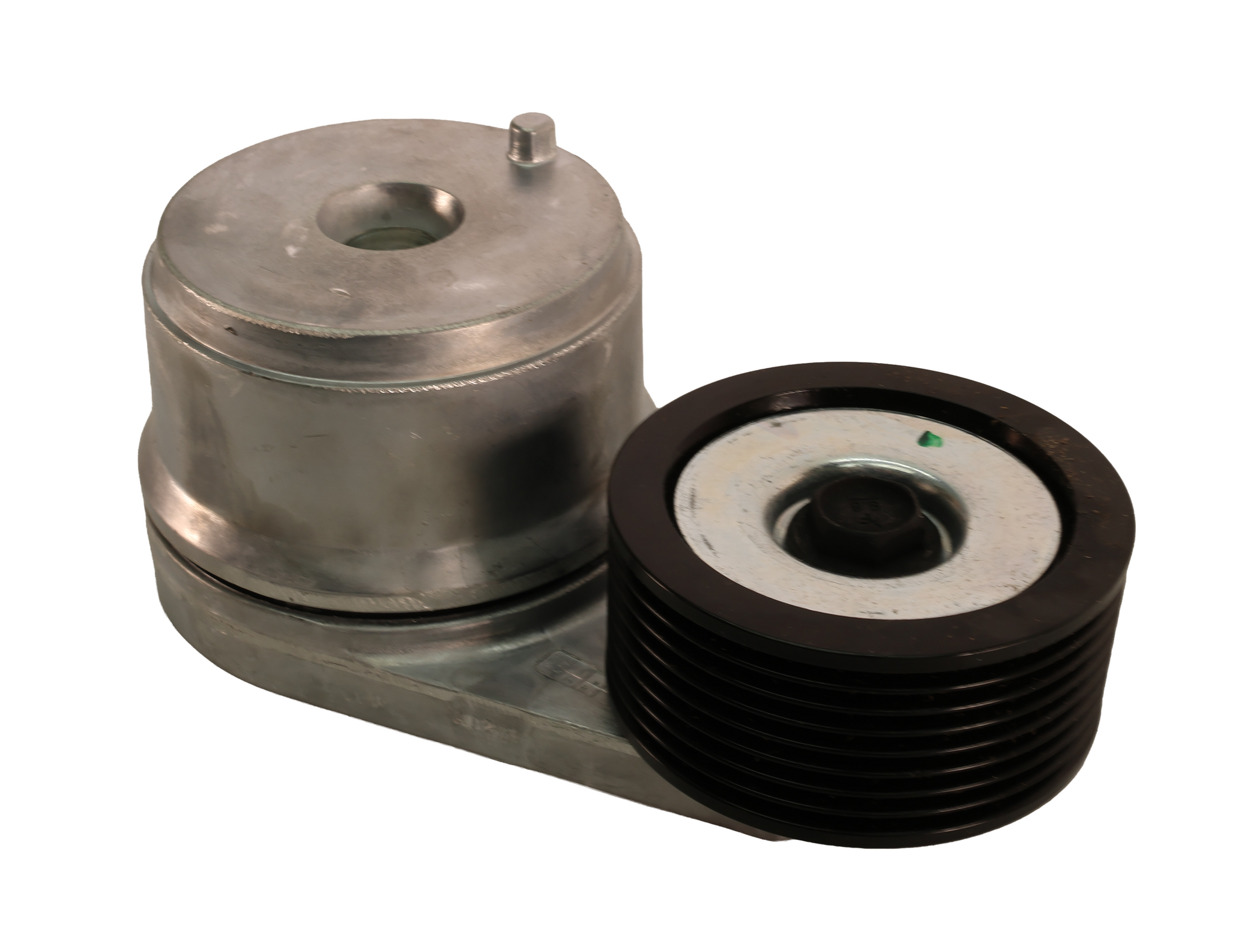

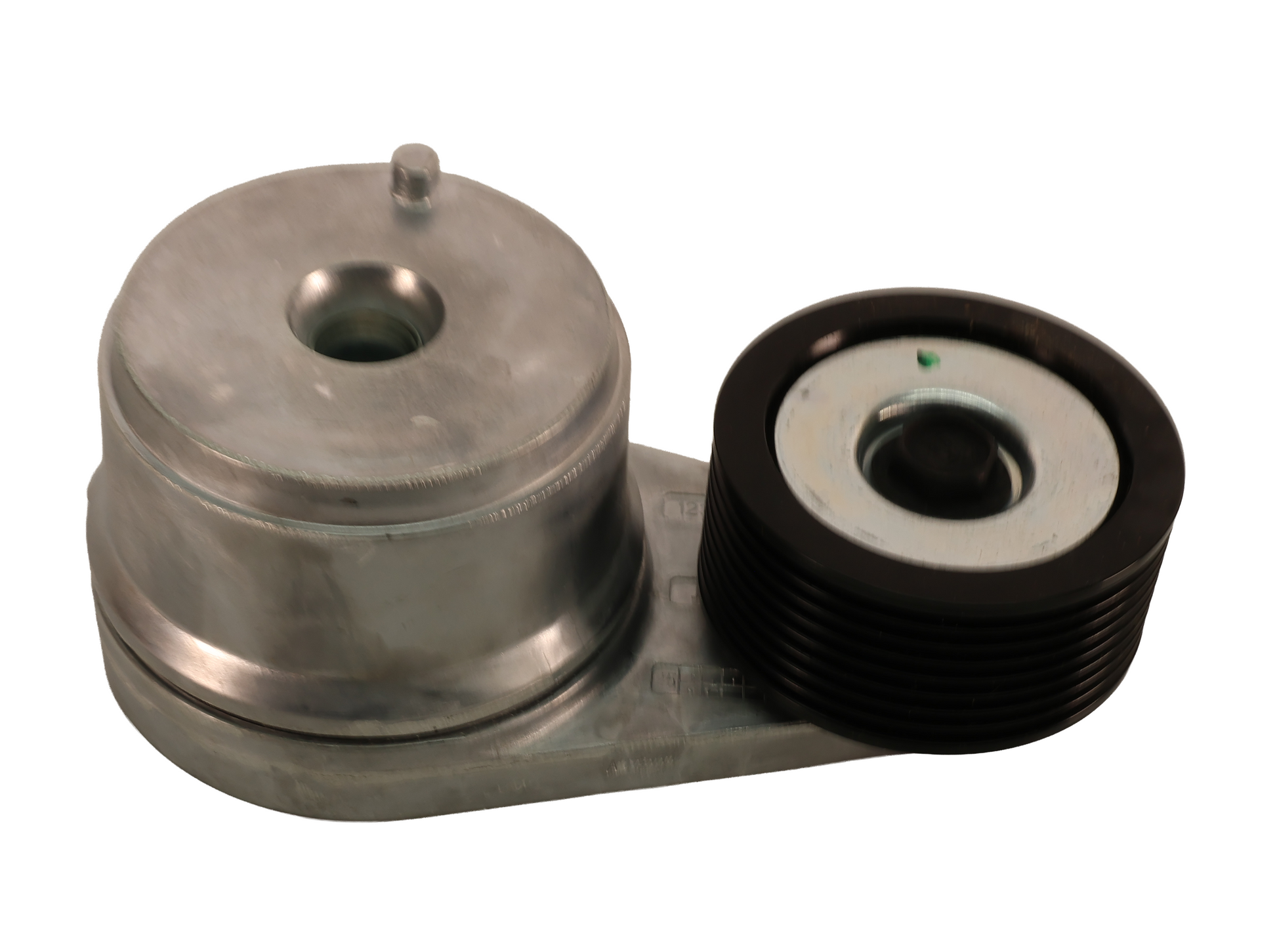

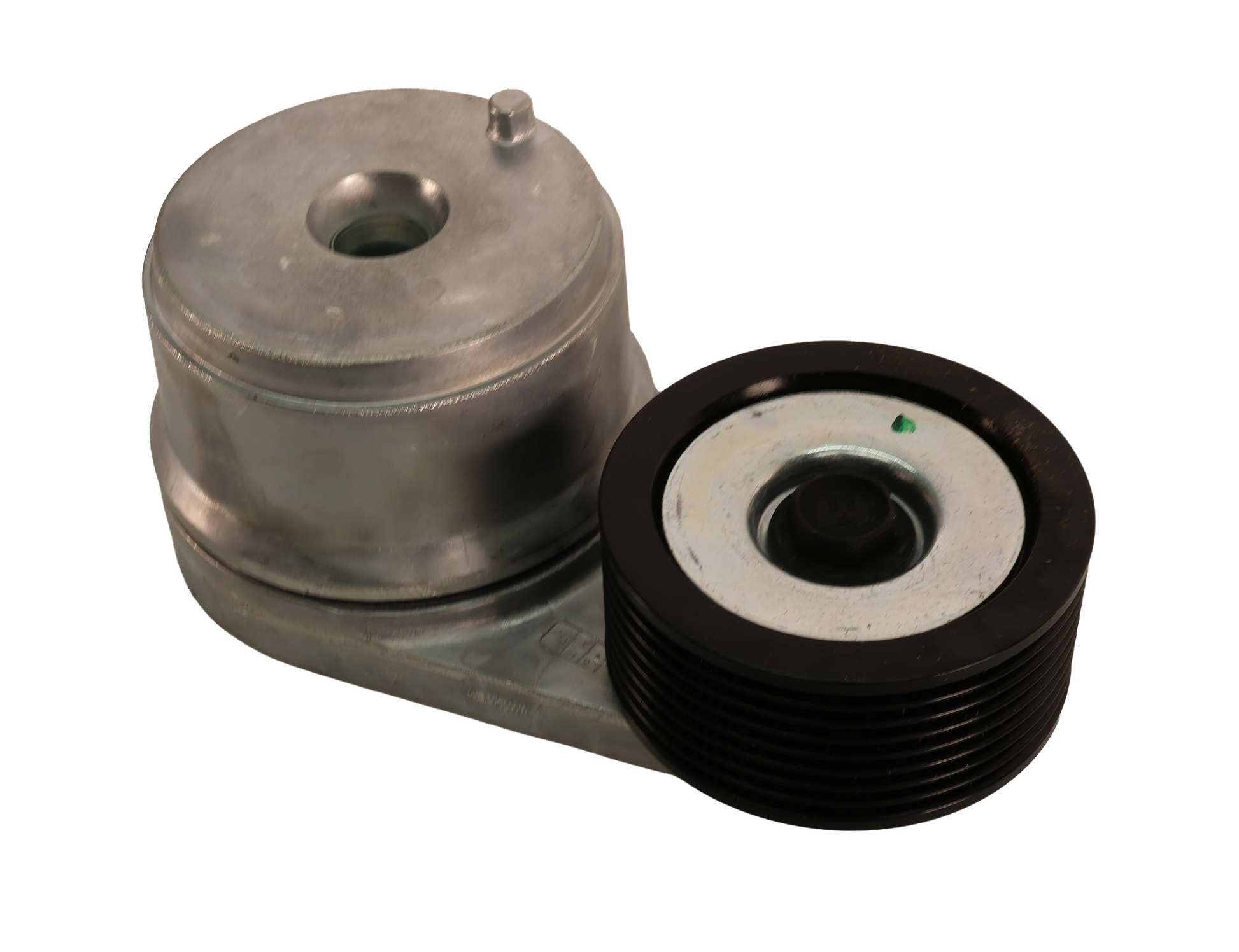

John Deere Original Equipment Belt Tensioner - RE243154

John Deere Original Equipment Belt Tensioner - RE243154

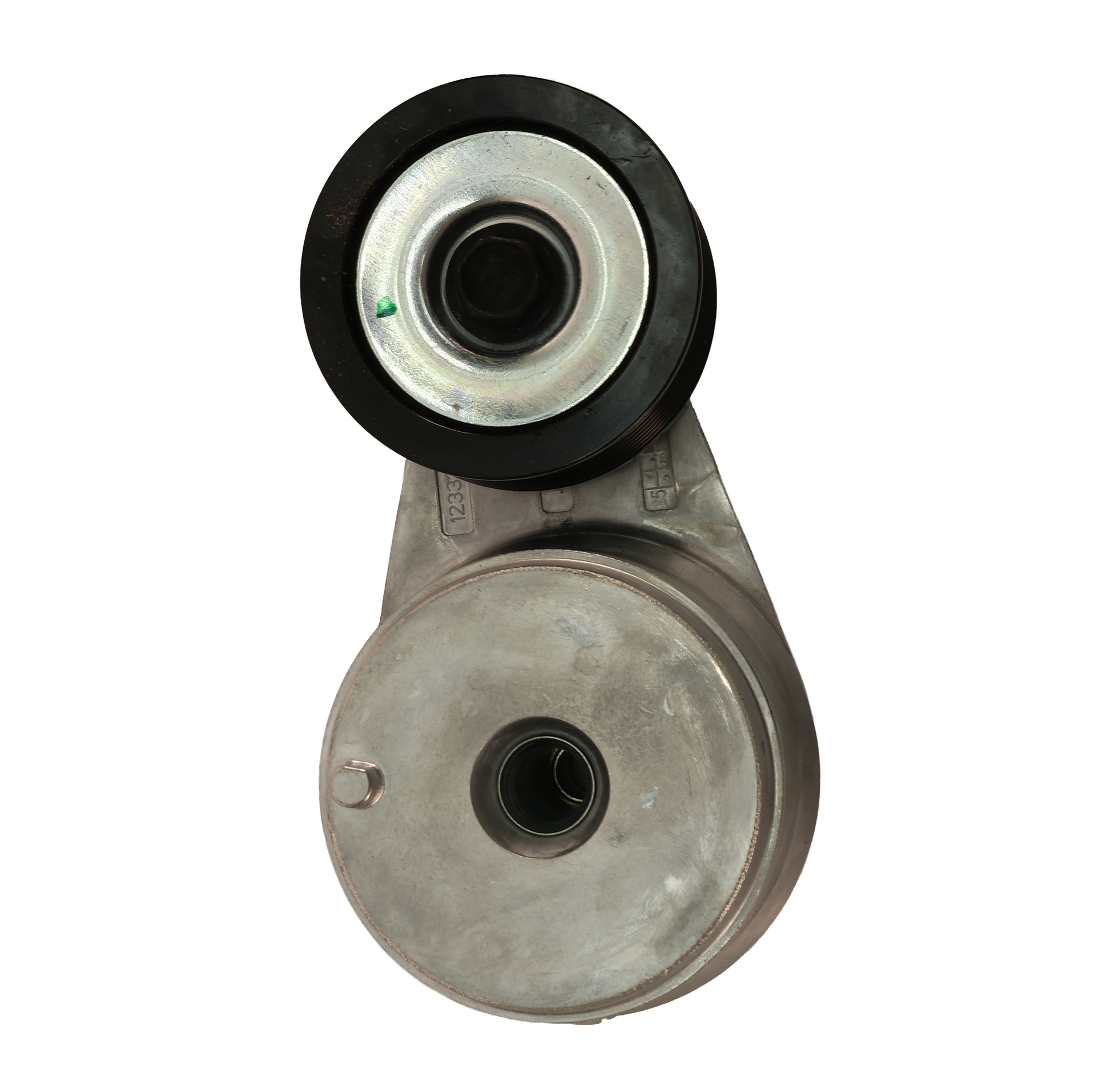

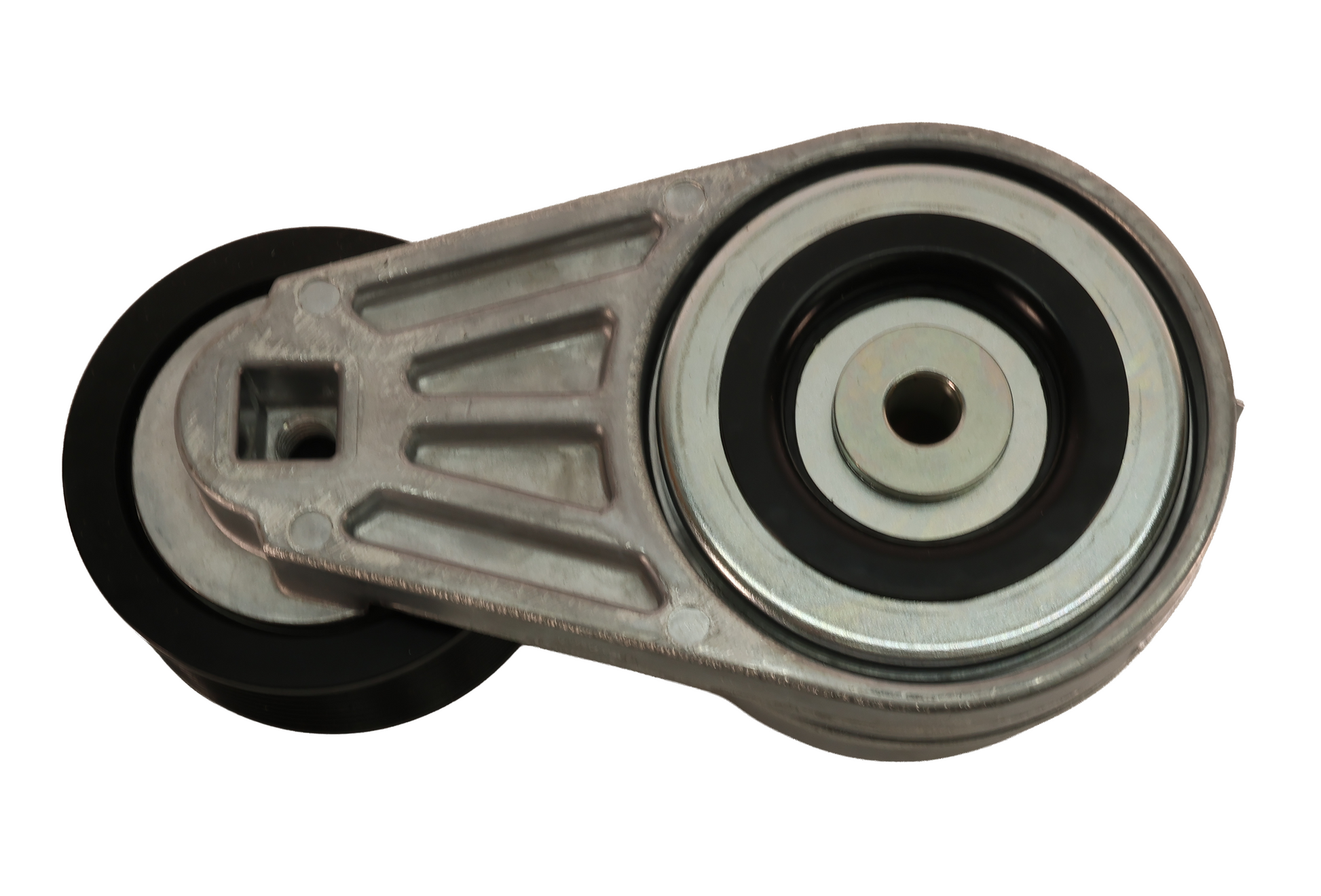

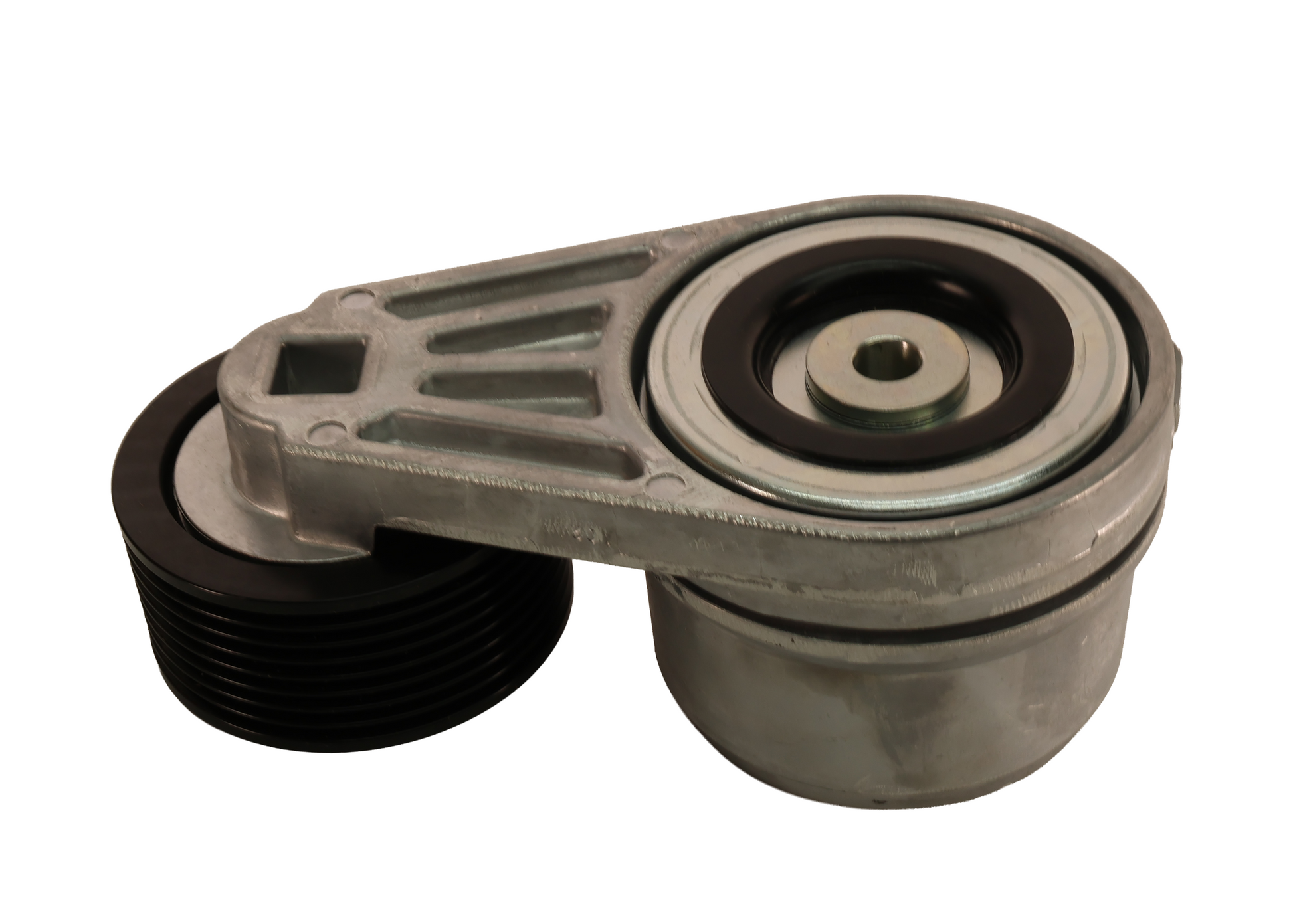

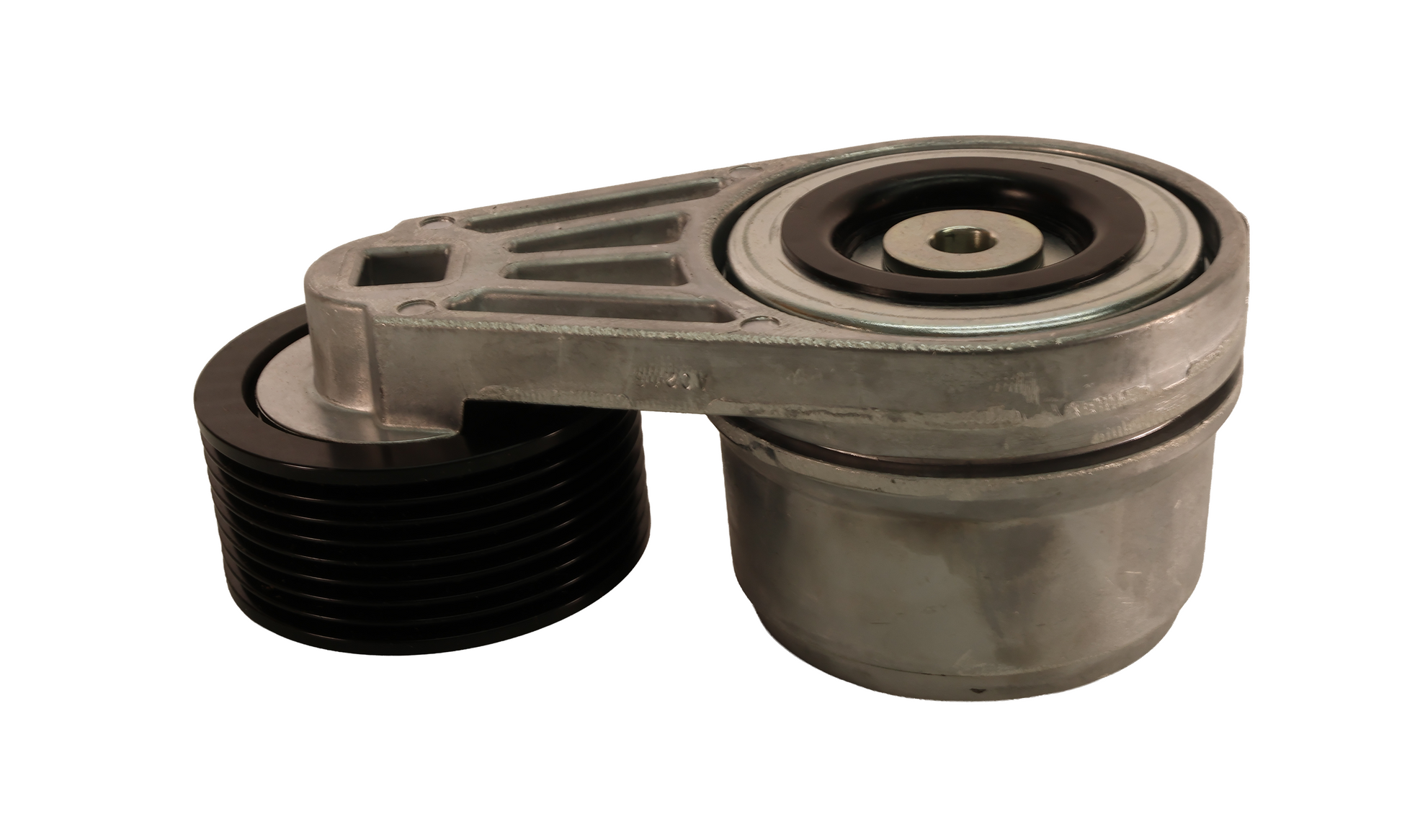

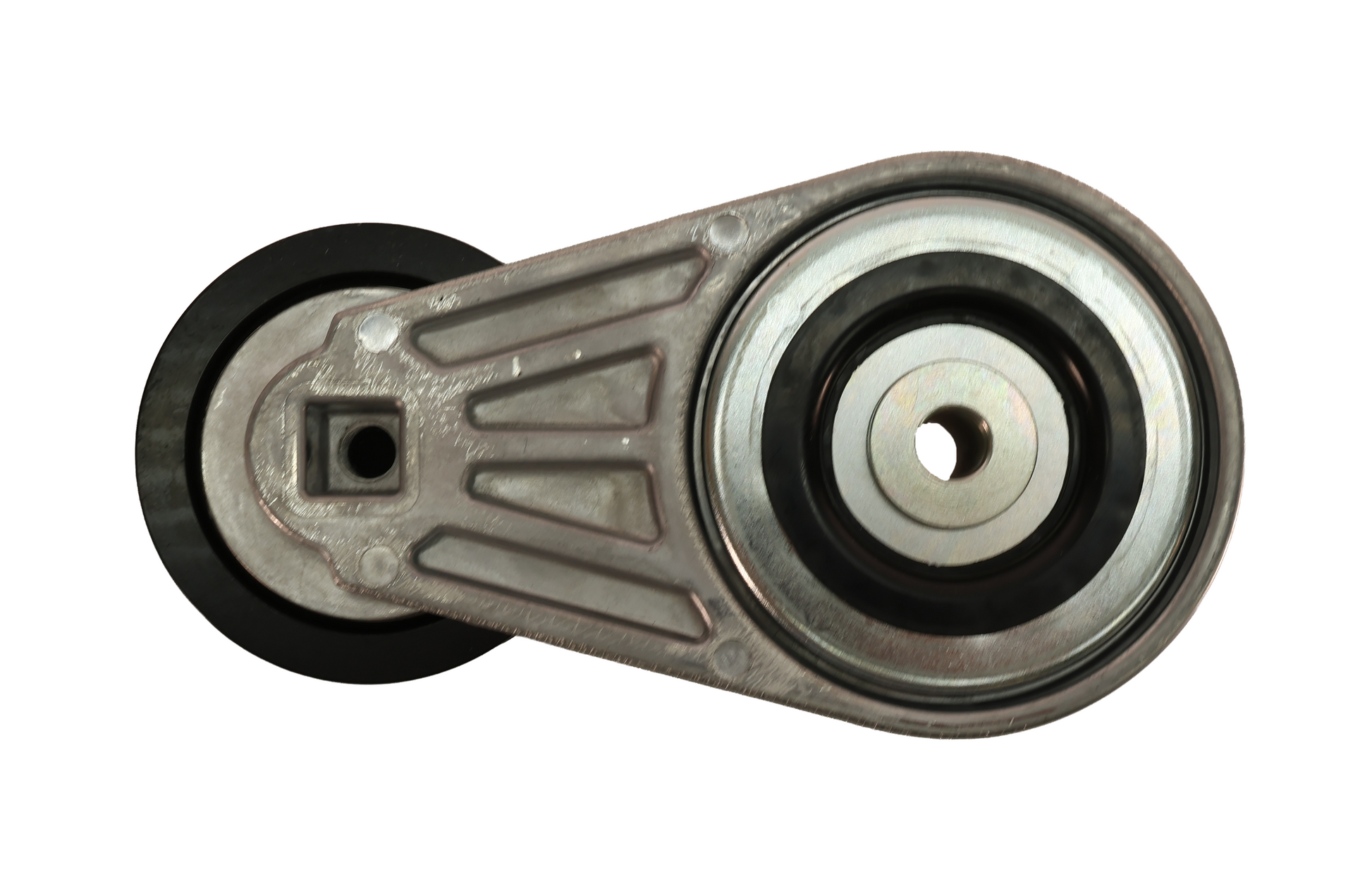

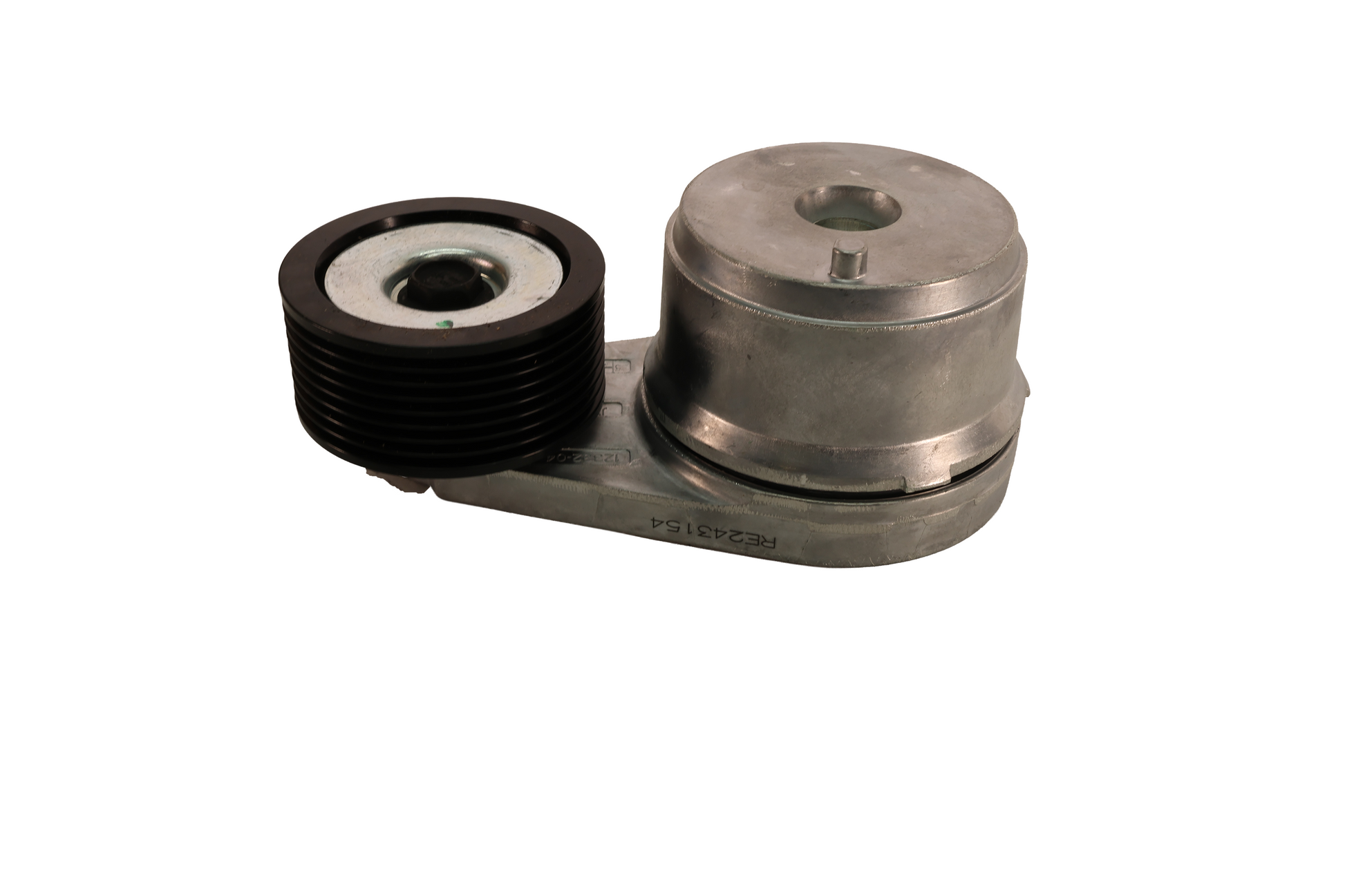

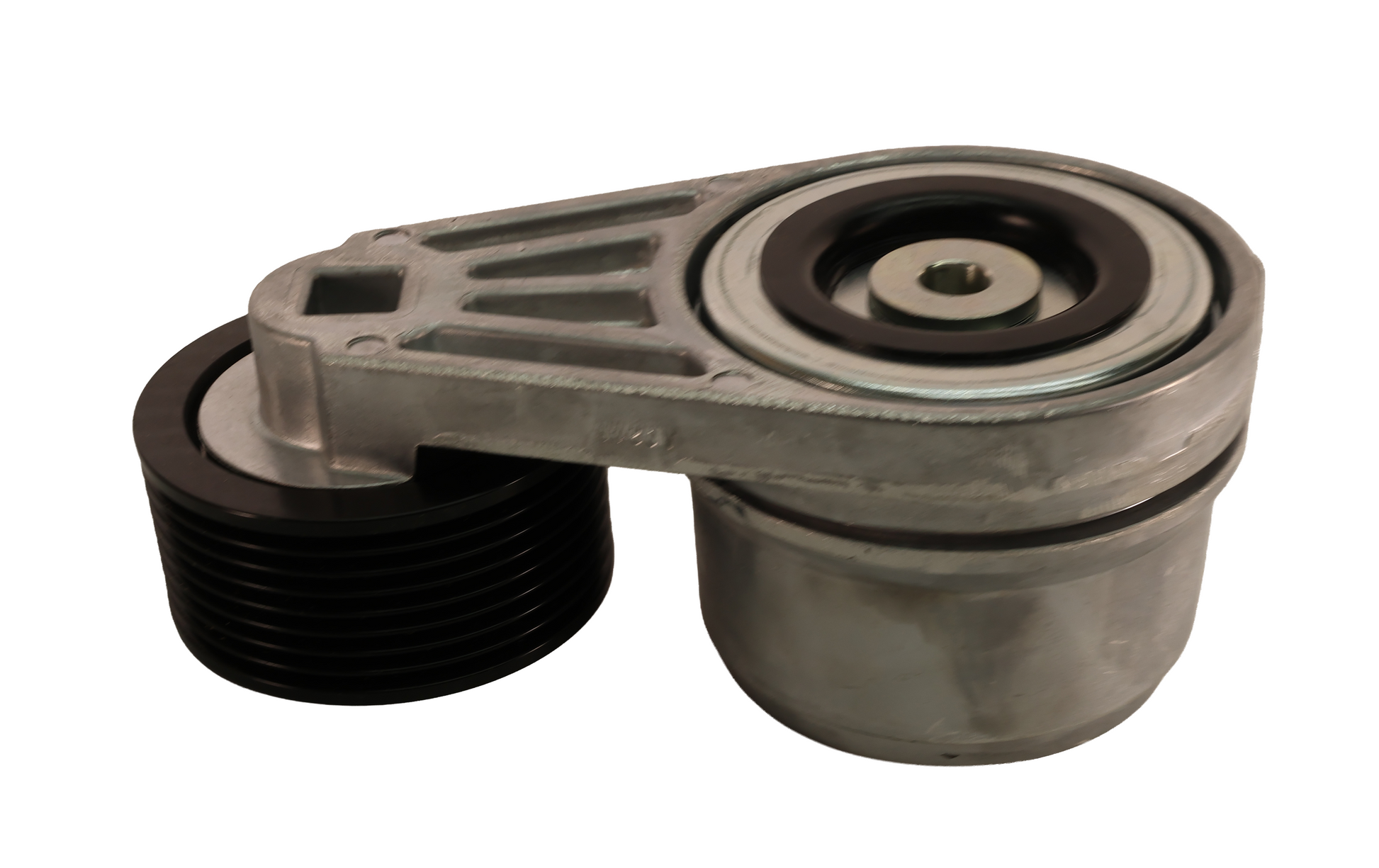

Engine Auxiliary Drive Belt Tensioner

Part Specifications:
Style (ALPHA) C
Number of Groove (UNITY) 8
Idler Diameter (IN) 2.8504
Width (IN) 1.3110
Assembly Spring Torque (IN-LBF) 269.9478
Minimum Arm Travel - Degrees (UNITY) 74.0000
Mounting Style (ALPHA) PIN
Mounting Angle (UNITY) 58.0000

Fits the following John Deere models:
Tractor: 9370R, 9330, 9360R, 9430, 9430T, 9530, 9530T, 9630, 9630T.
Combine: S660, S670, S7 600, S7 700, S760, S770.

This is an O.E.M. John Deere part.
