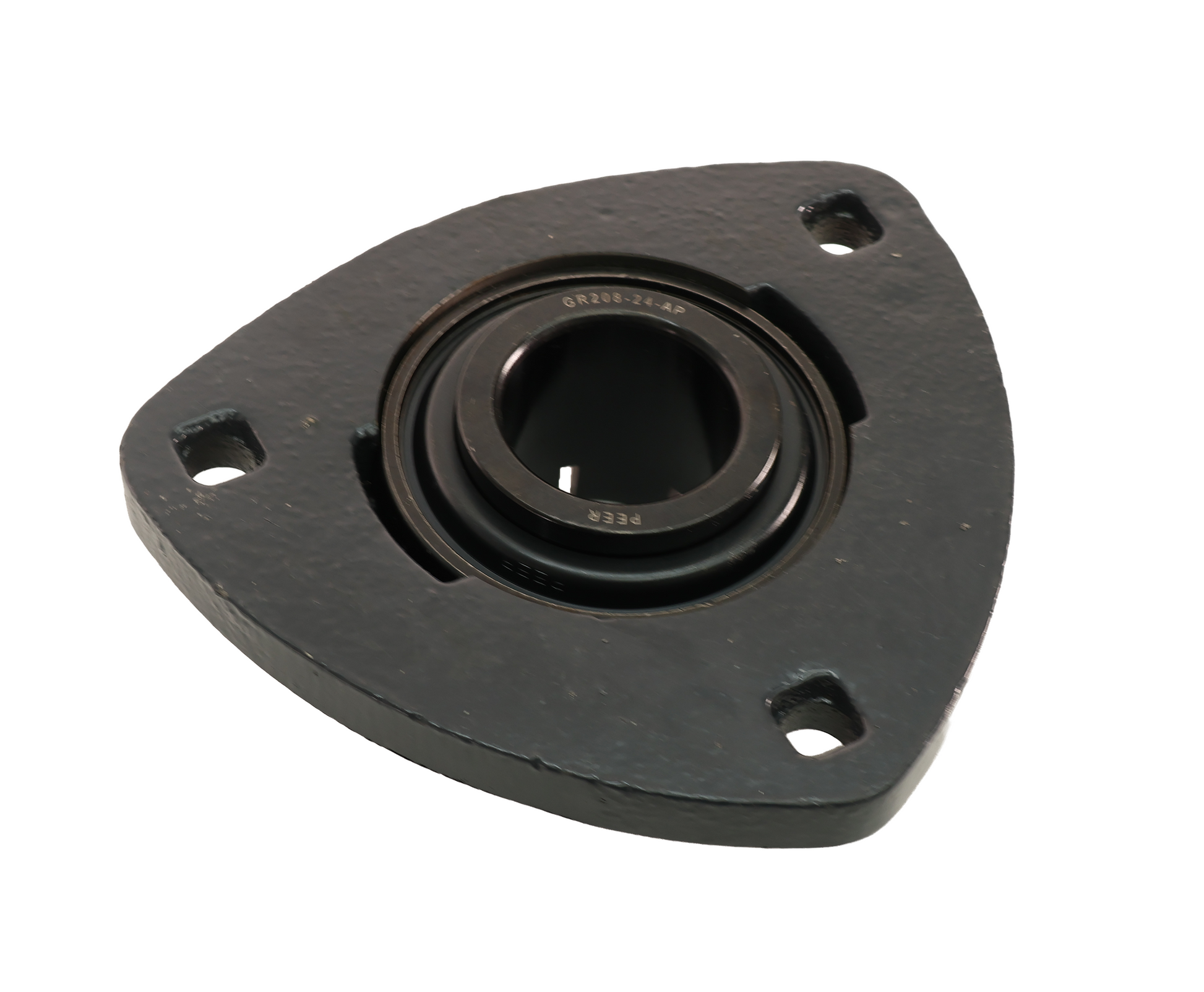

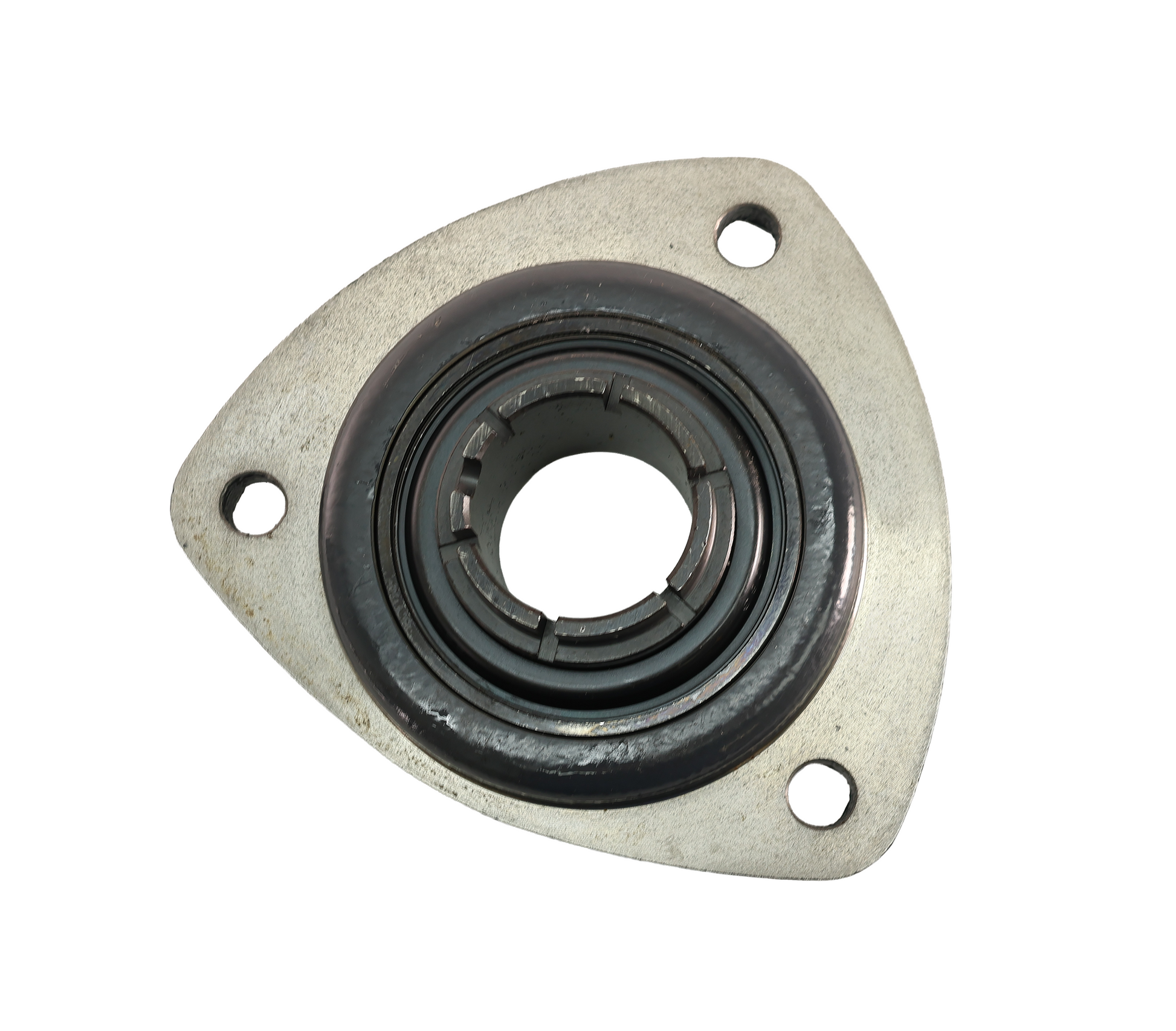

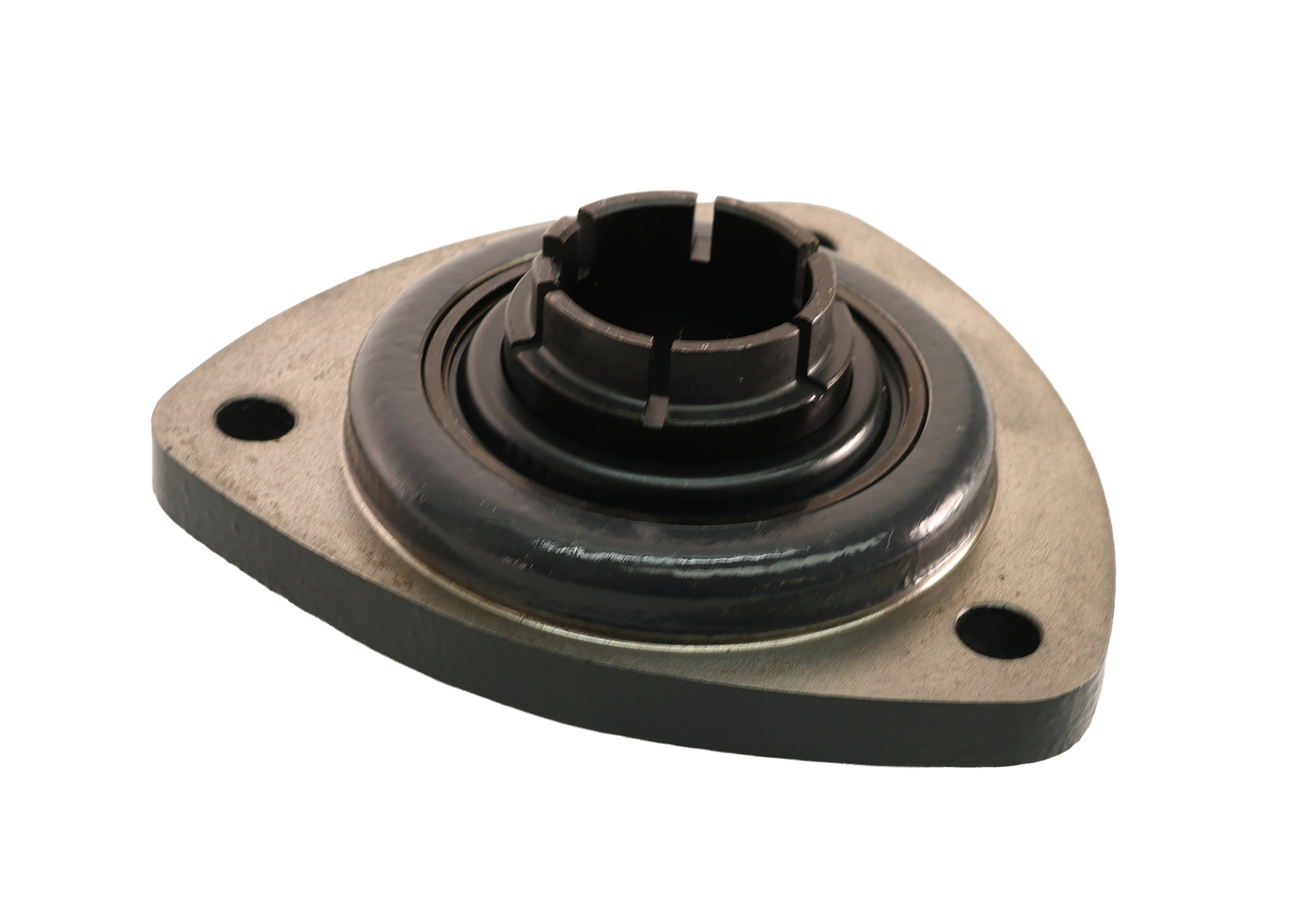

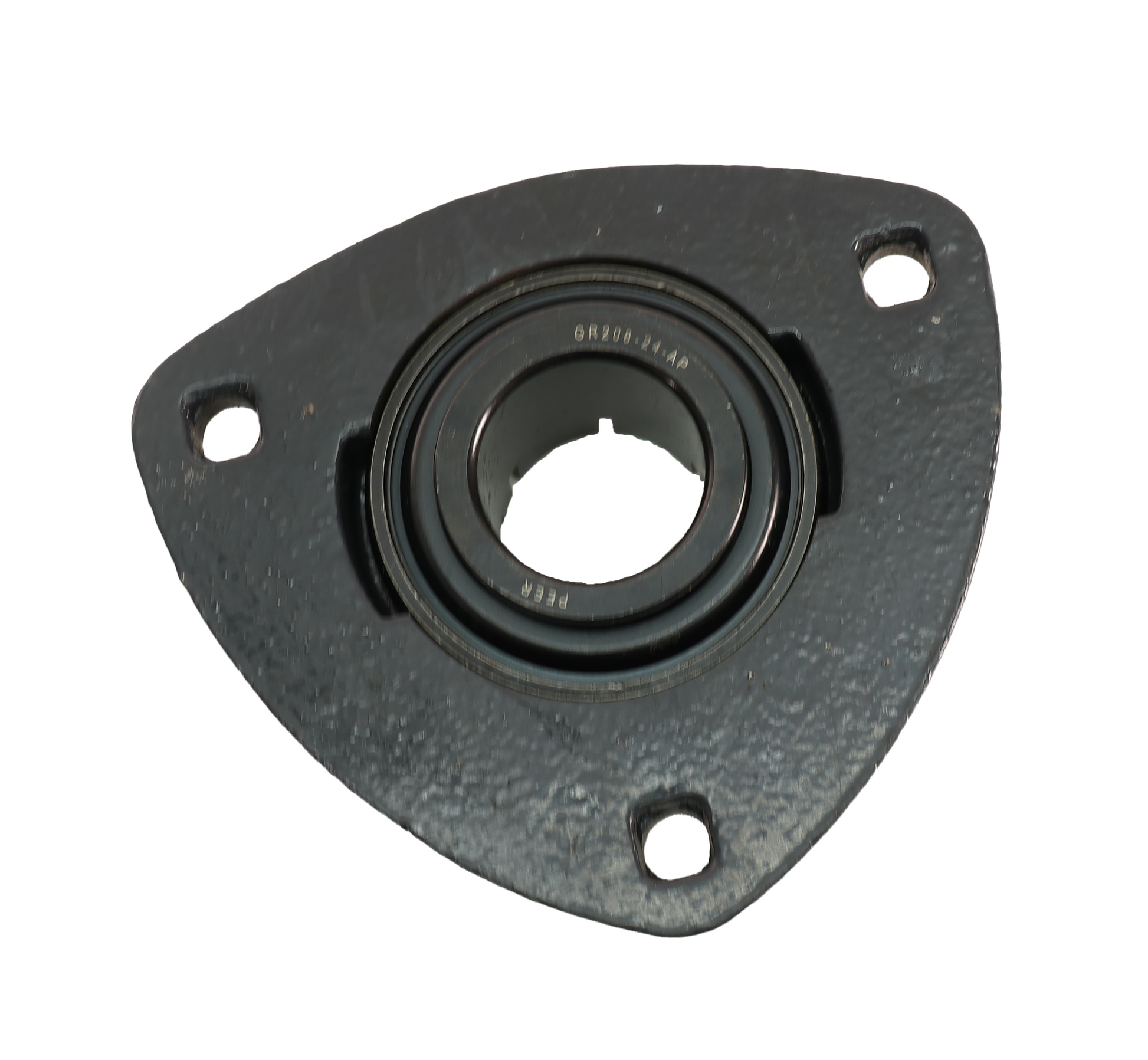

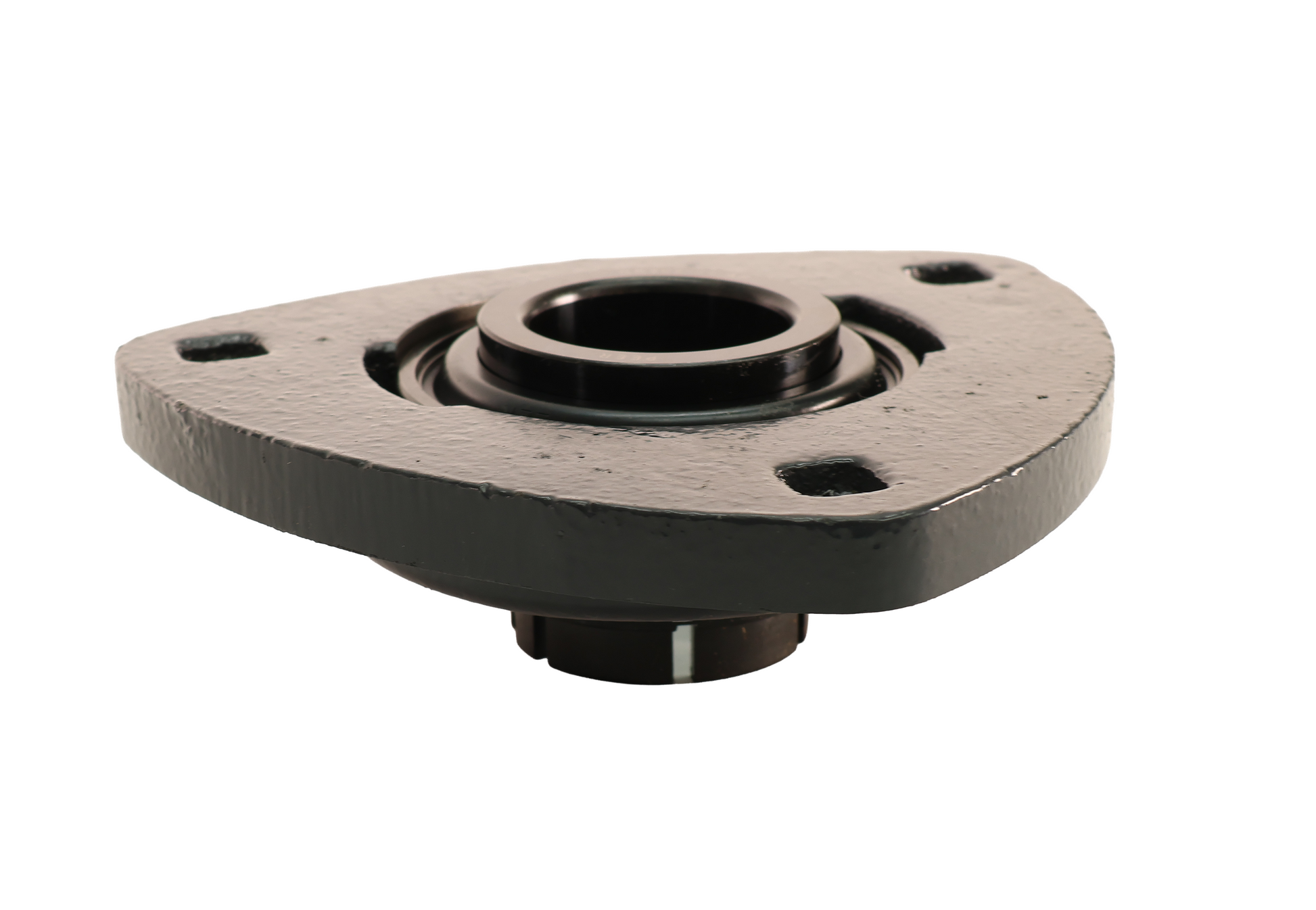

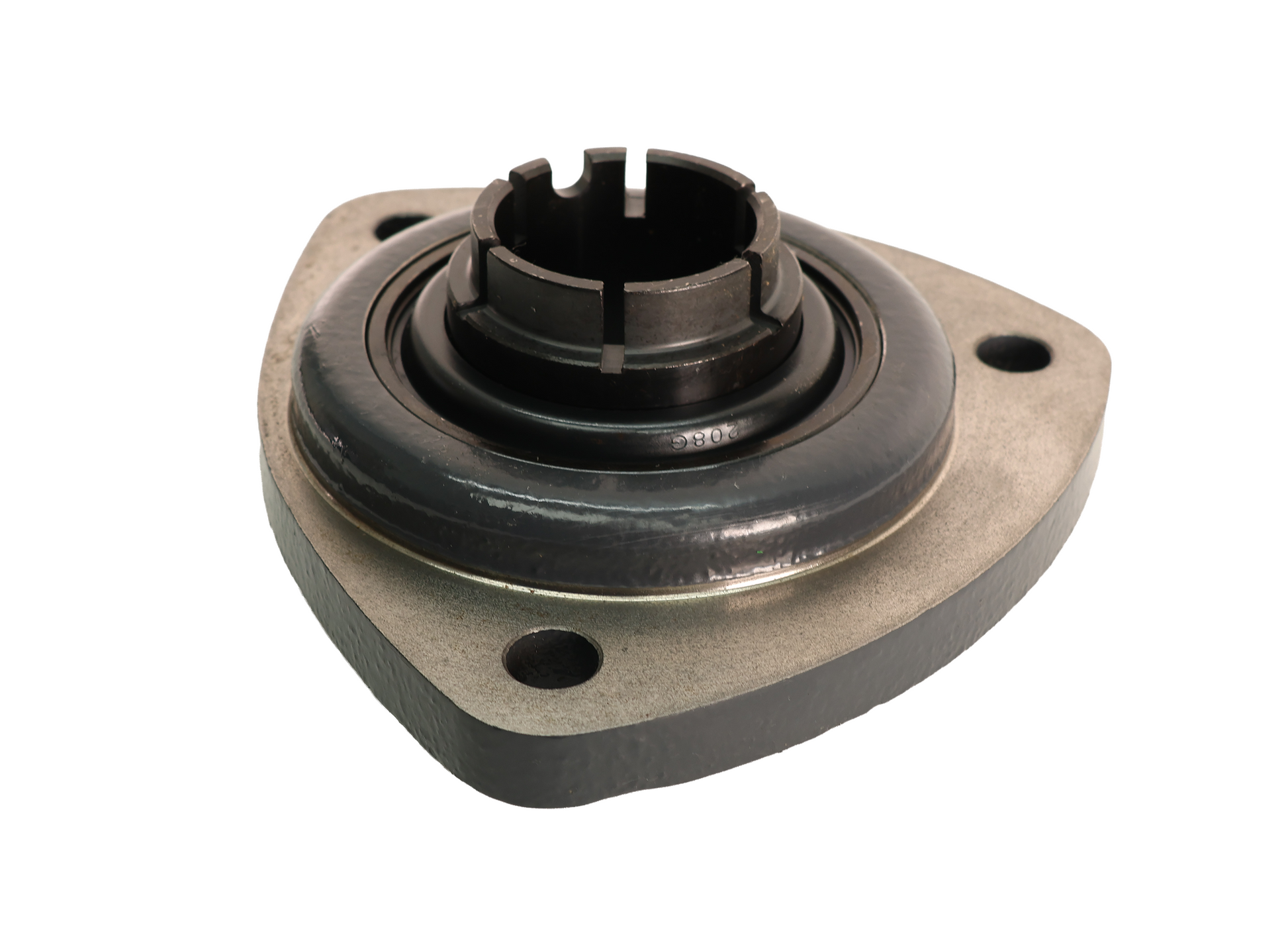

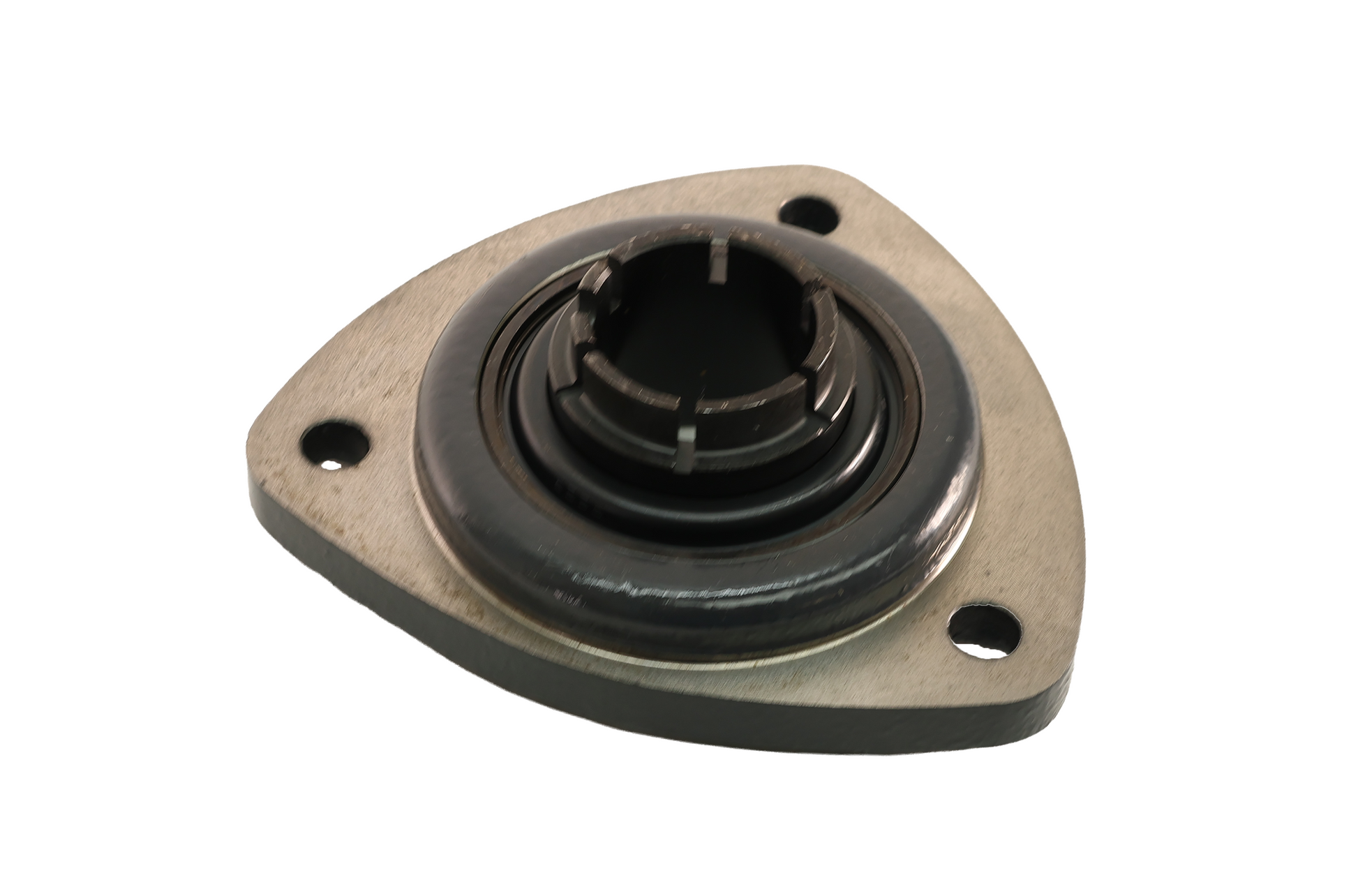

John Deere Original Equipment Bearing With Housing - AH231479
Part Specifications:
Inside Dimension (IN) 1.5000
Bearing Outside Diameter (IN) 3.1496
Overall Width (IN) 1.9370
Bolt Circle/Length (IN) 5.0000
Hole Space (IN) 0.0000
Hole Size (IN) 0.4094
Bore Style (ALPHA) ROUND
Mounting Style (ALPHA) C
Finish (ALPHA) K-Painted
Note (C) Single Spherical Ball
Fits the following John Deere models:
Combine: 9570STS, S550, S660, S670HM, S690, T560, W540, 9670STS, 9770STS, 9870STS, S650, S660, S670, S680, S680H, S690, S690HM, S760, S770, S780, S785, S790, T 5 400, T5 500, T5 600, T5 700, T550, T560, T6 500, T6 600, T6 700, T6 800, T660, T670, W540, W550, W650, W660.
This is an O.E.M. John Deere part.
