John Deere Original Equipment Ball Bearing - JD39103

John Deere Original Equipment Ball Bearing - JD39103

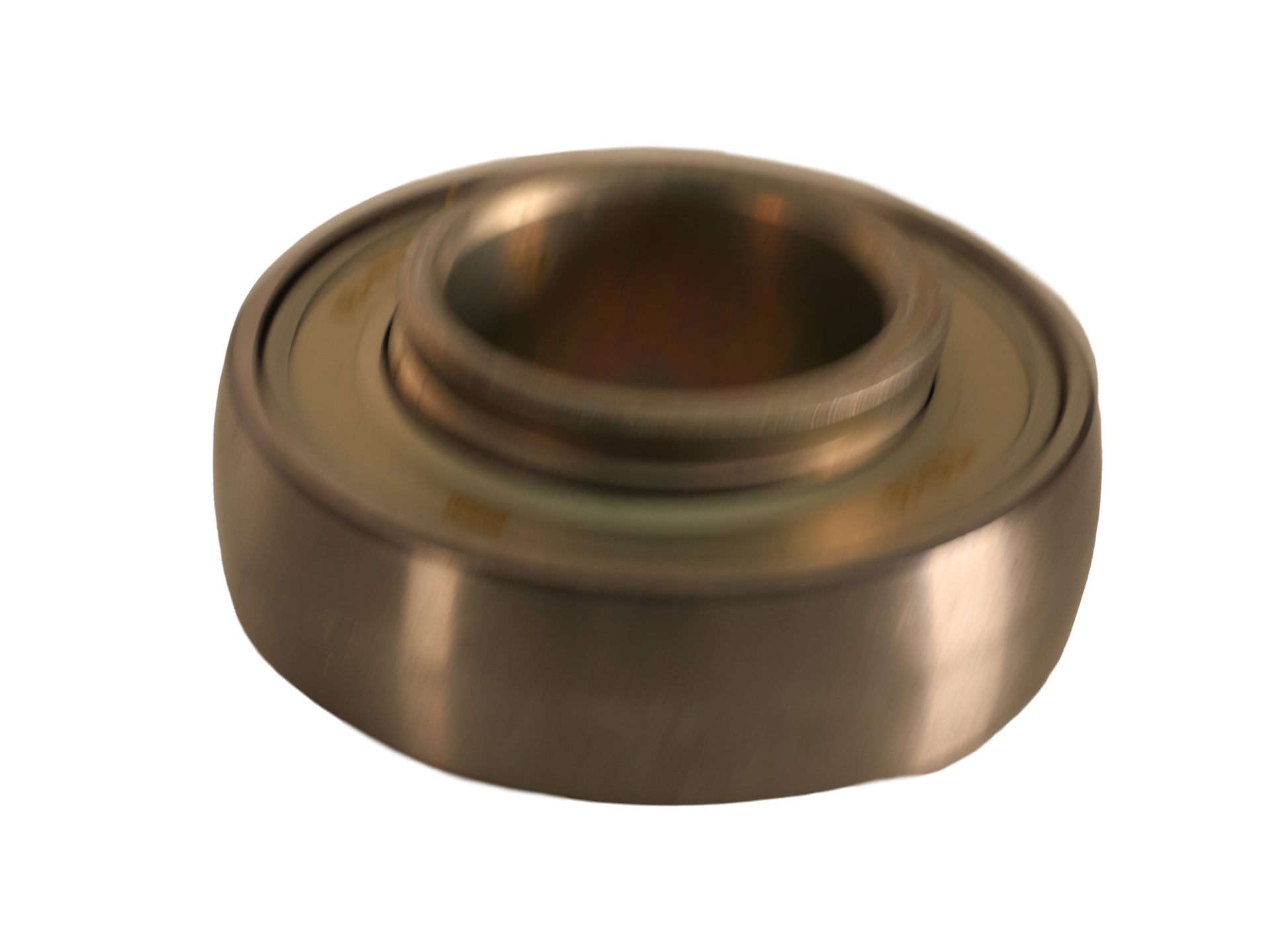

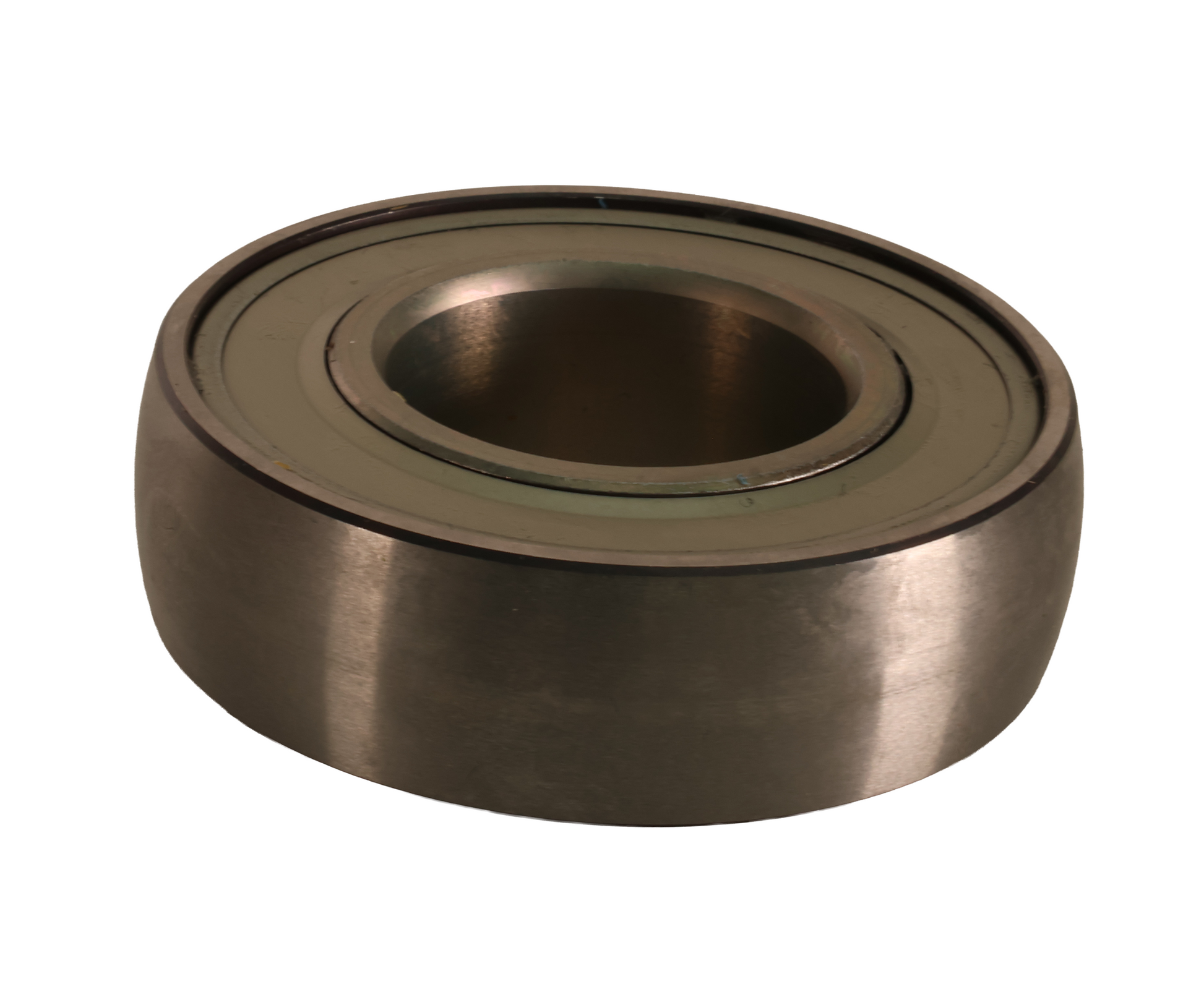

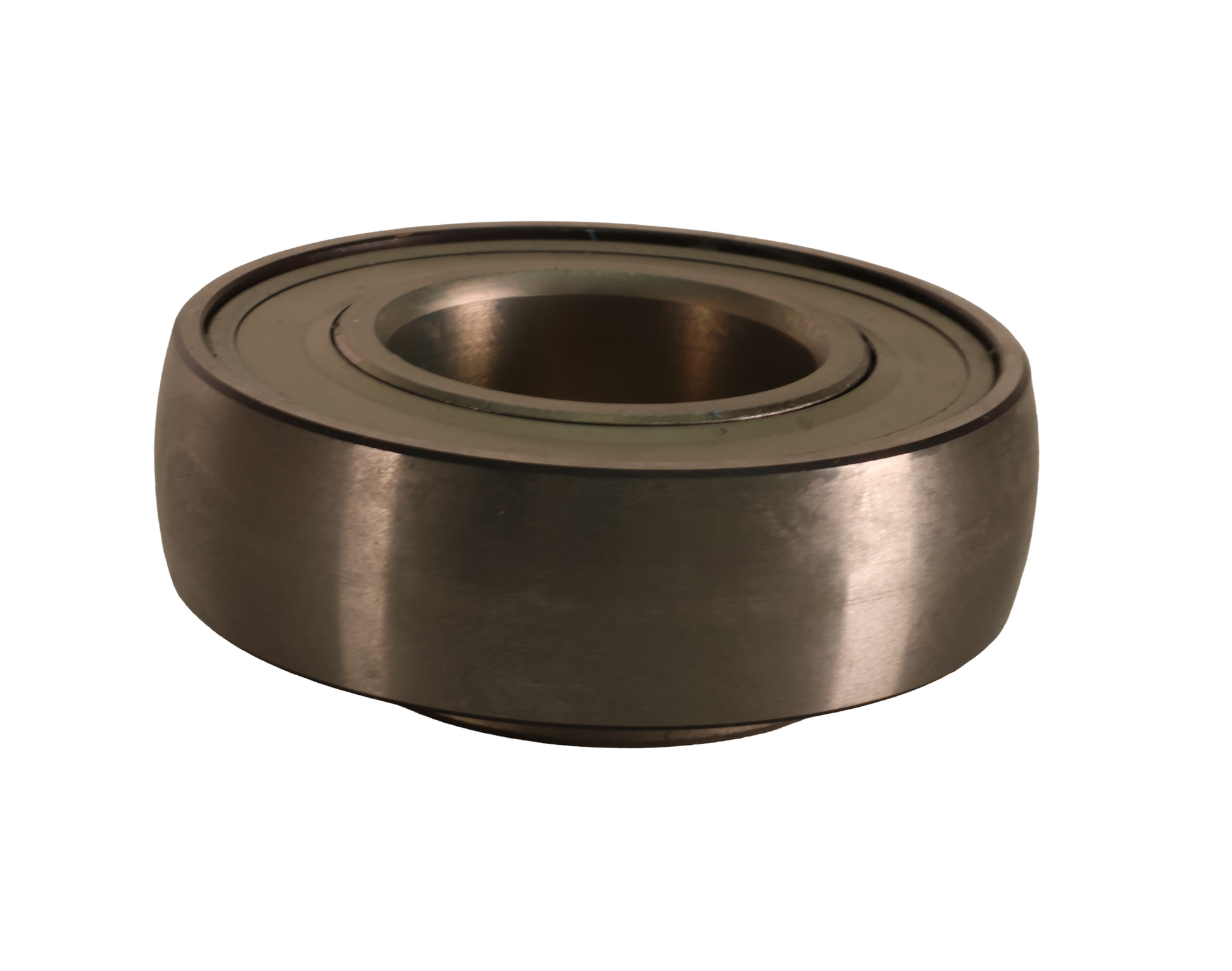

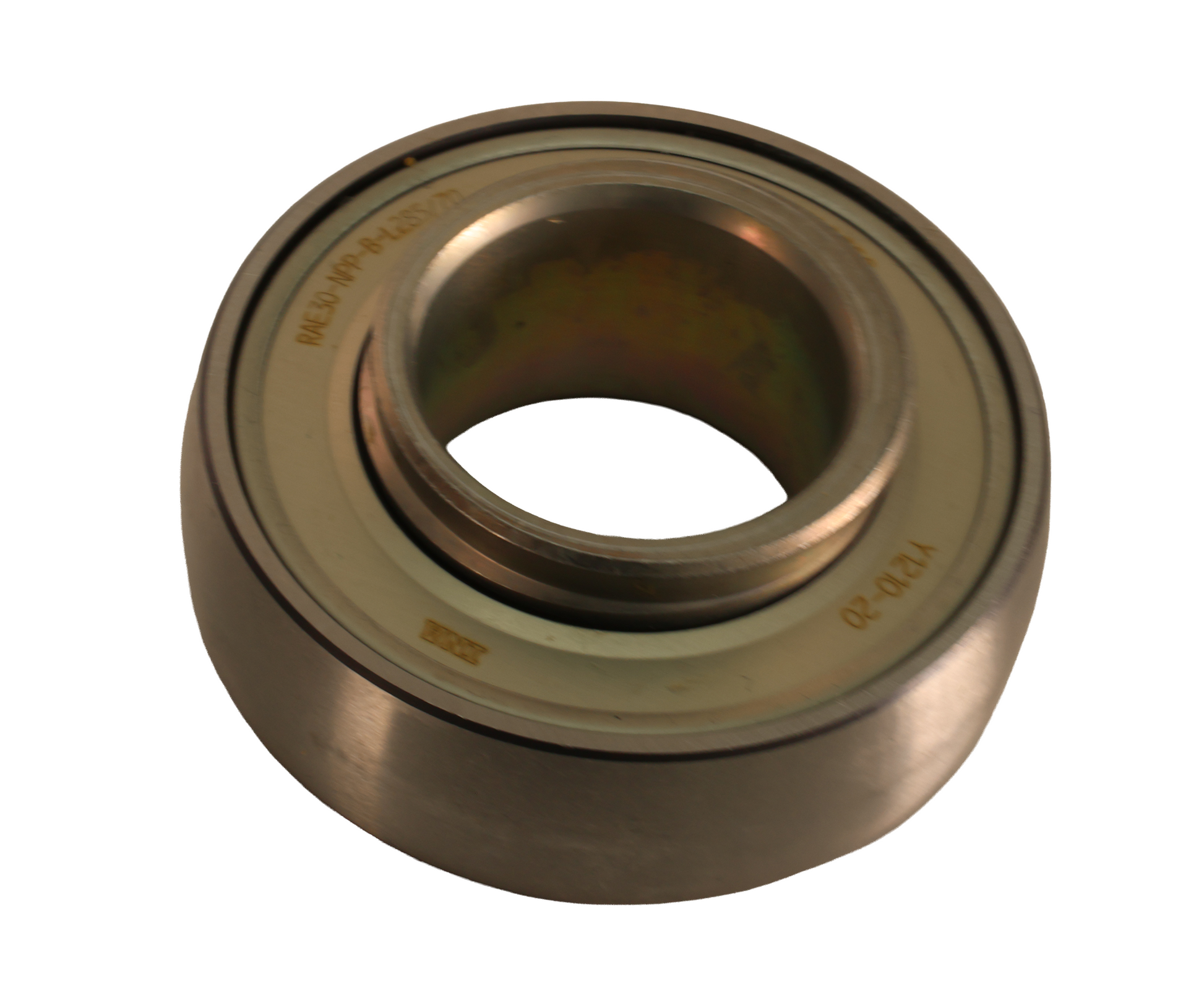

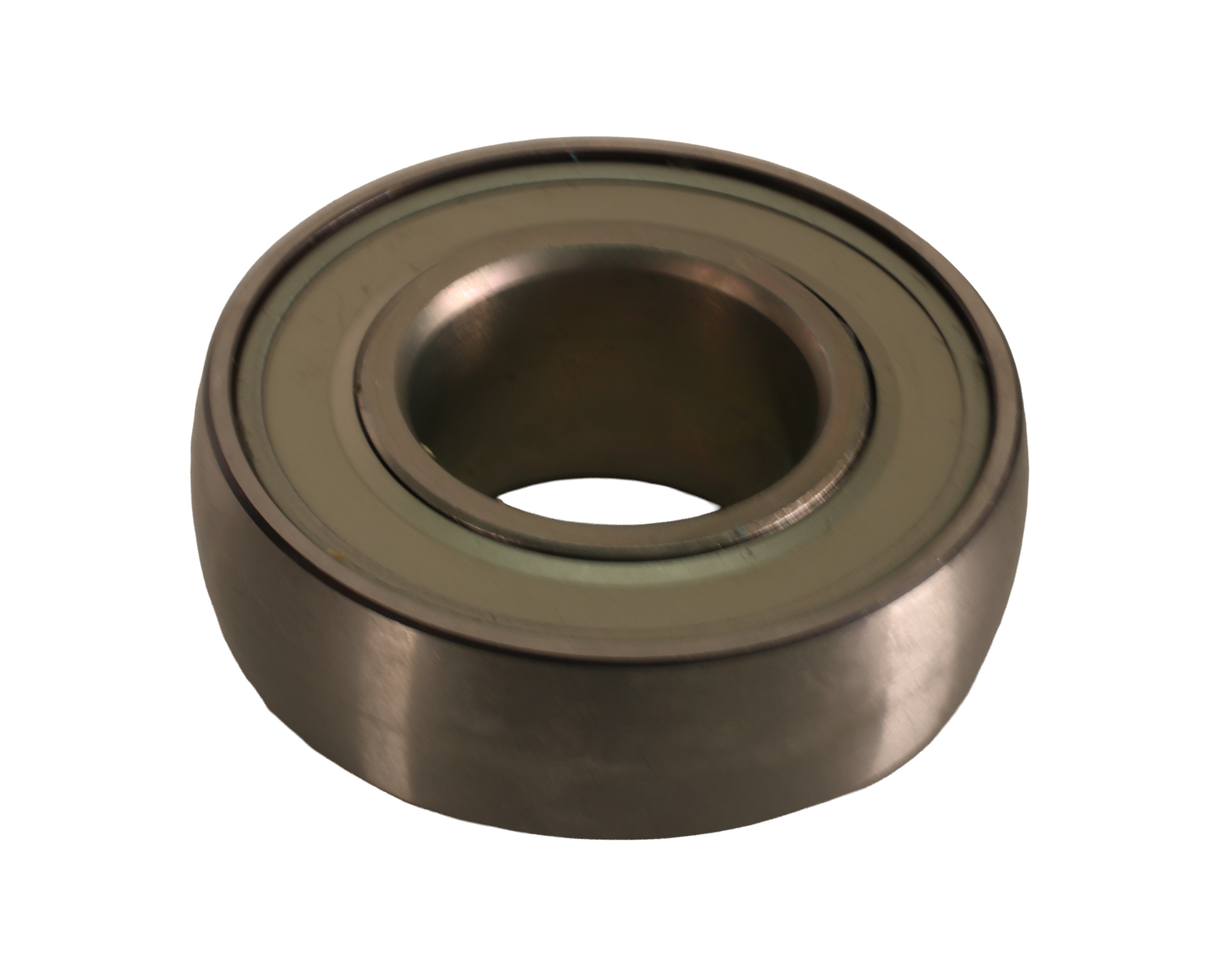

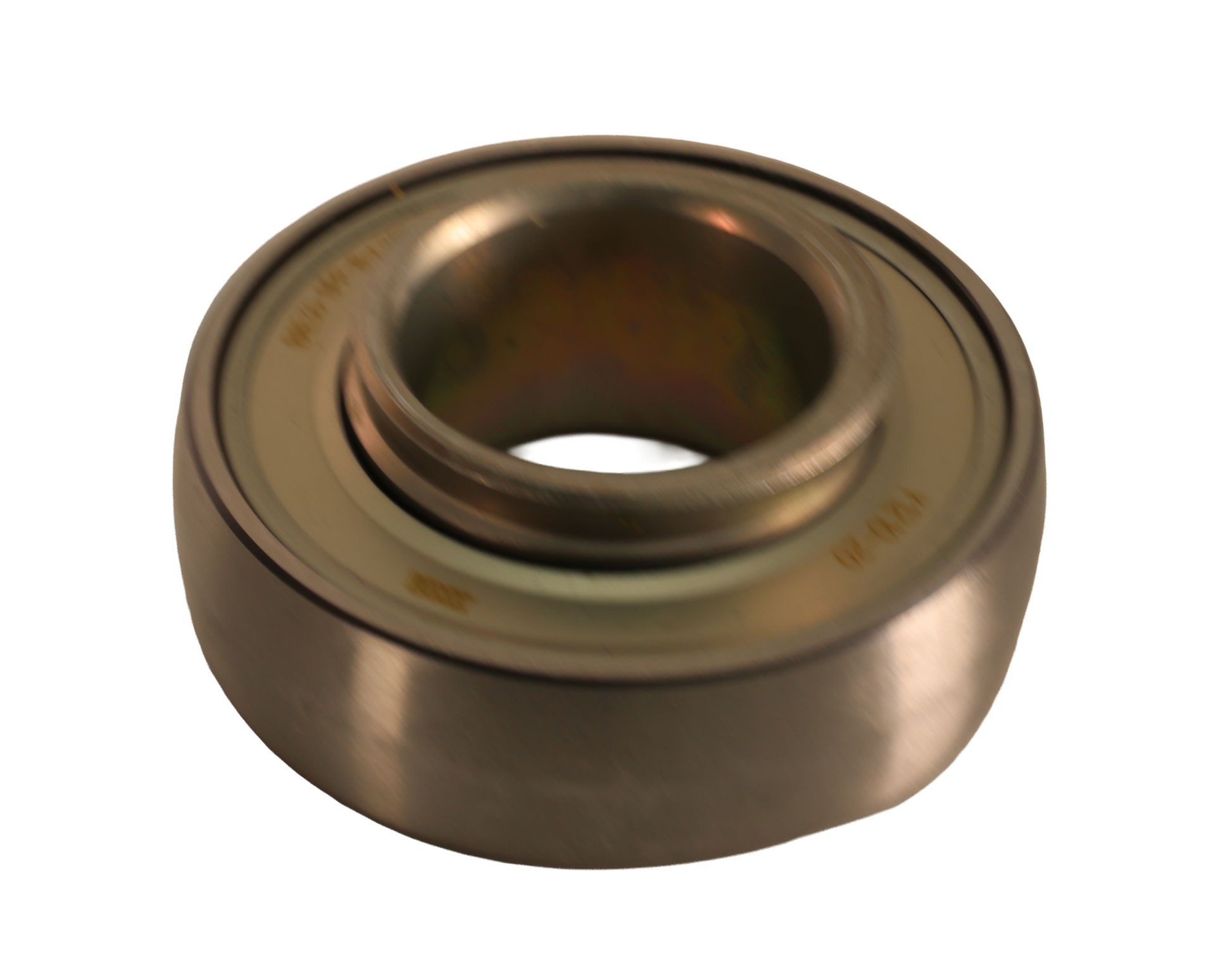

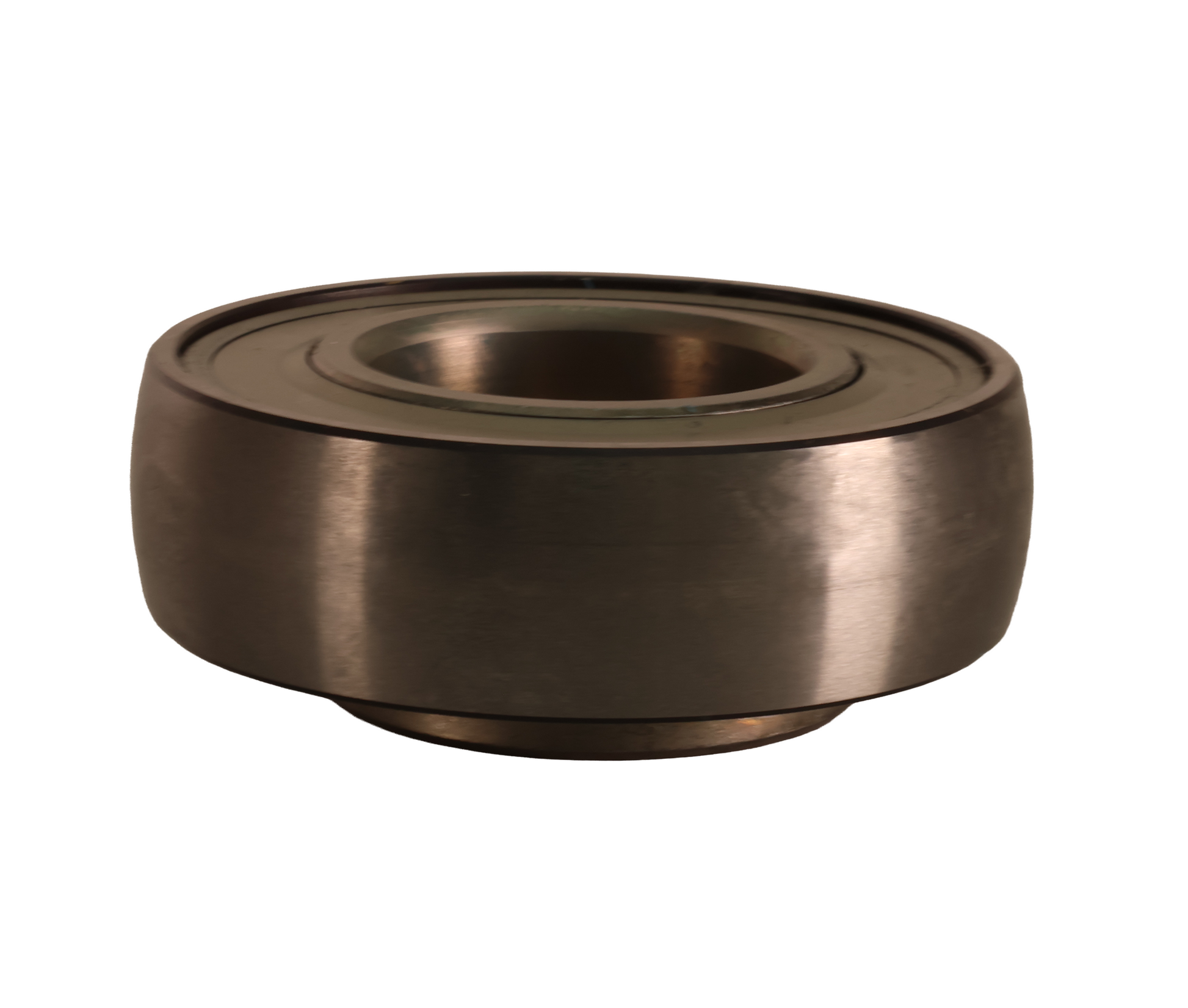

Spherical Ball Bearing

Part Specifications:
Inside Dimension (MM) 30.0000
Outside Dimension (MM) 62.0000
Width Outer Race (MM) 18.0000
Width Inner Race (MM) 23.8000
Dynamic Rating (N) 19400.0000
Static Rating (N) 11300.0000
Inner Corner Radius (MM) 0.5000
Note (F) Seal - Both Sides

Fits the following John Deere models:
Baler: 100.
Manure Spreader: 780, 785.
Combine: 9400, 9410, 9450, 95500SH, 9500, 9501, 9510, SH9510, 9550SH, 9550, 9560SH, 9560, 9600, 9610, 9650CTS, 9650, 9660CTS, 9660, T560, W540, 1032, 1042, 1052, 1055, 1065, 1068H, 1065, 1068H, 1072, 1075HY/4, 1075, 1085HY/4, 1085, 1133, 1144, 1155, 1157, 1158, 1166HY/4, 1166, 1169HY/4, 1169, 1174HY/4, 1174, 1177HY4, 1177, 1188HY/4, 1188, 4425, 4435, 932, 942, 952, 955, 9640WTS, 9640i WTS, 9660WTS, 9660i WTS, 9680WTS, 9680iWTS, 965H, 965, 968H, 975HY/4, 975, 9780CTS, 9780i CTS, 985HY/4, C1 200, C1200, C2 300, C2300, C670, 925, 935, 945, 930, 940, 950, 960, 970, T5 400, T5 500, T5 600, T5 700, T550, T560, T6 500, T6 600, T6 700, T6 800, T660, T670, W2 400, W540, W550, W650, W660.
Ensilage and Forage Harvester: 630A, 640A, 645A, 630B, 640B, 645B, 630C, 640C, 645C.
Cutting Platform: 10FT, 8.5FT.
Platform Combine: 1000, 900.
Forage Harvester Pickup: 5FT2.

This is an O.E.M. John Deere part.
