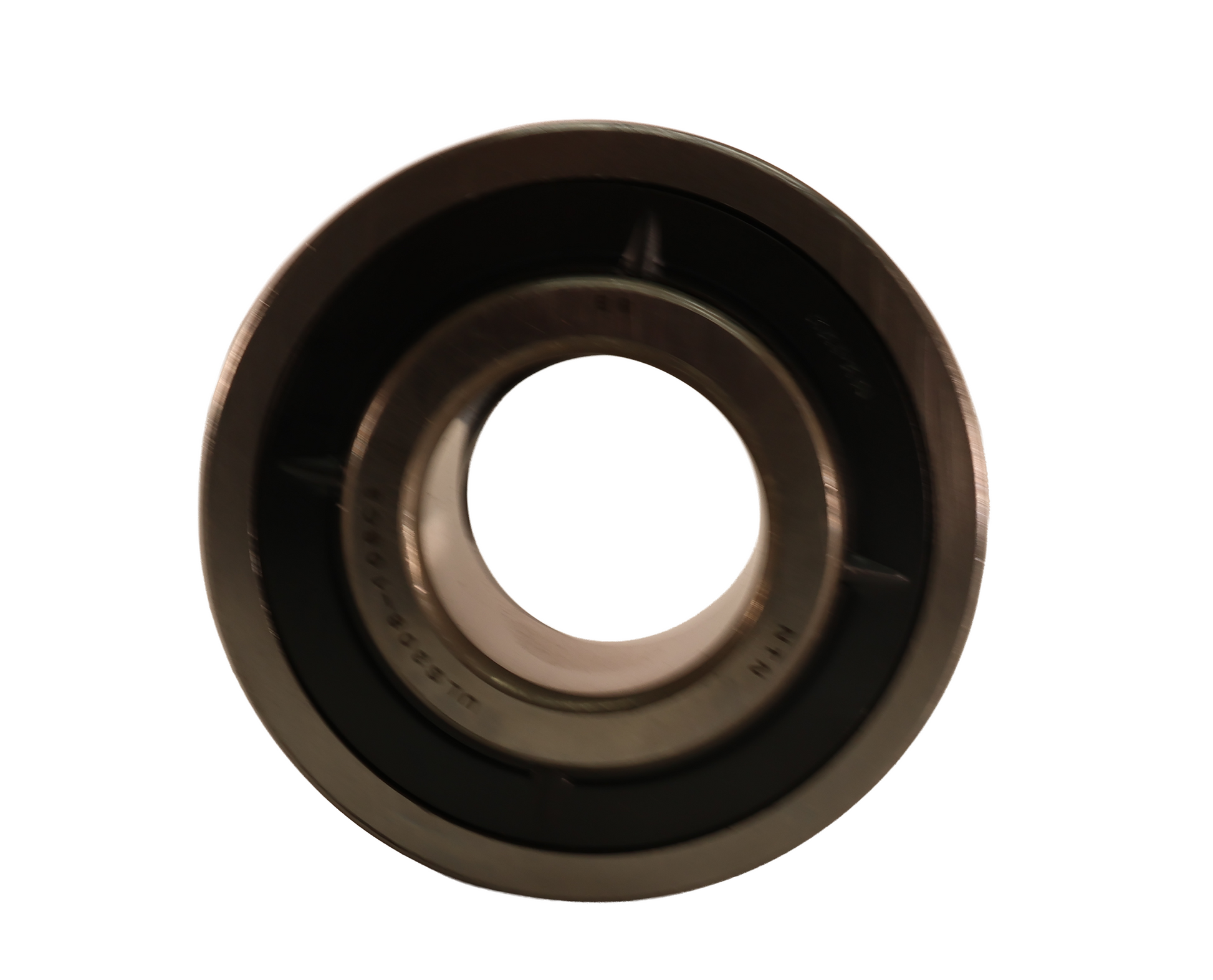

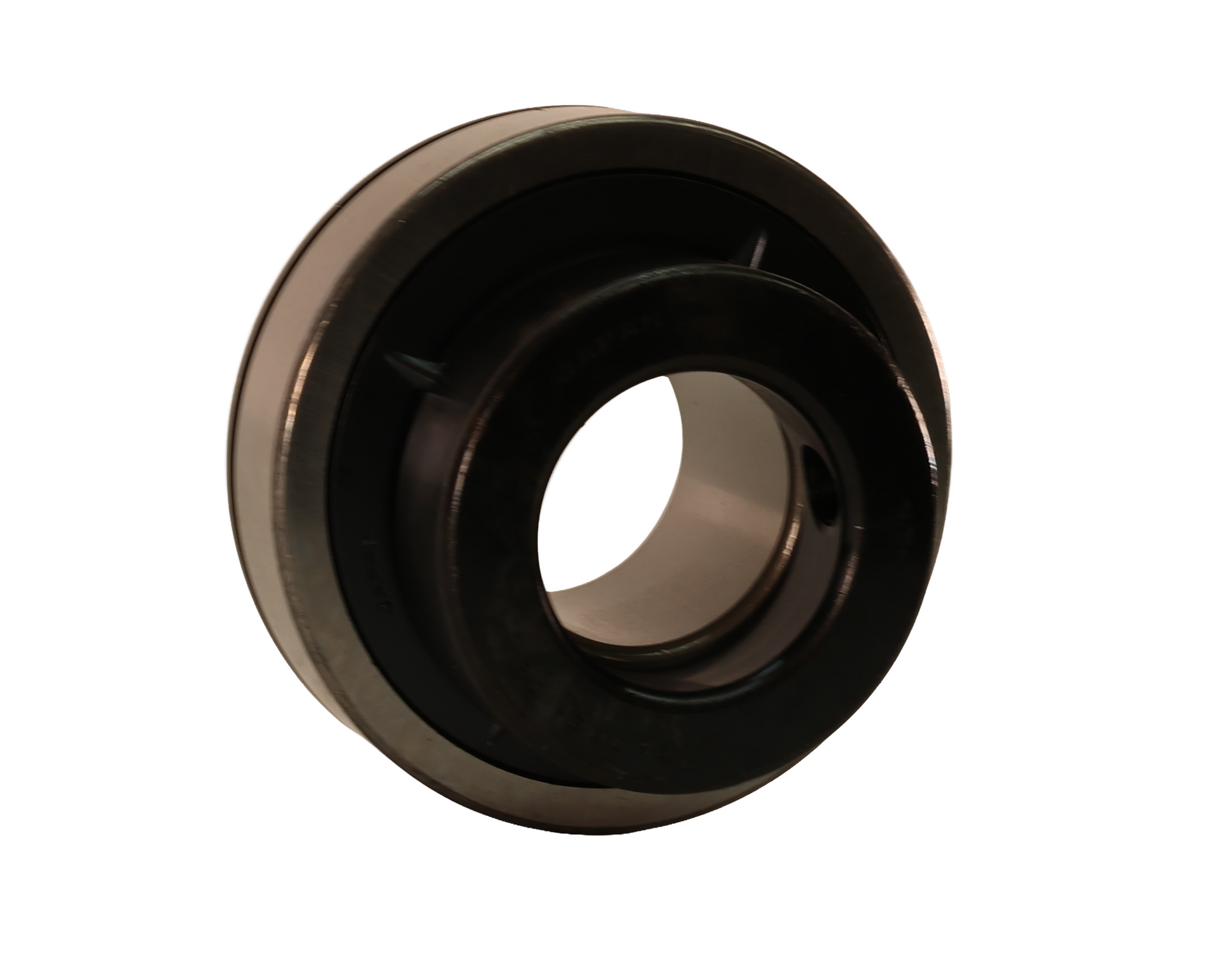

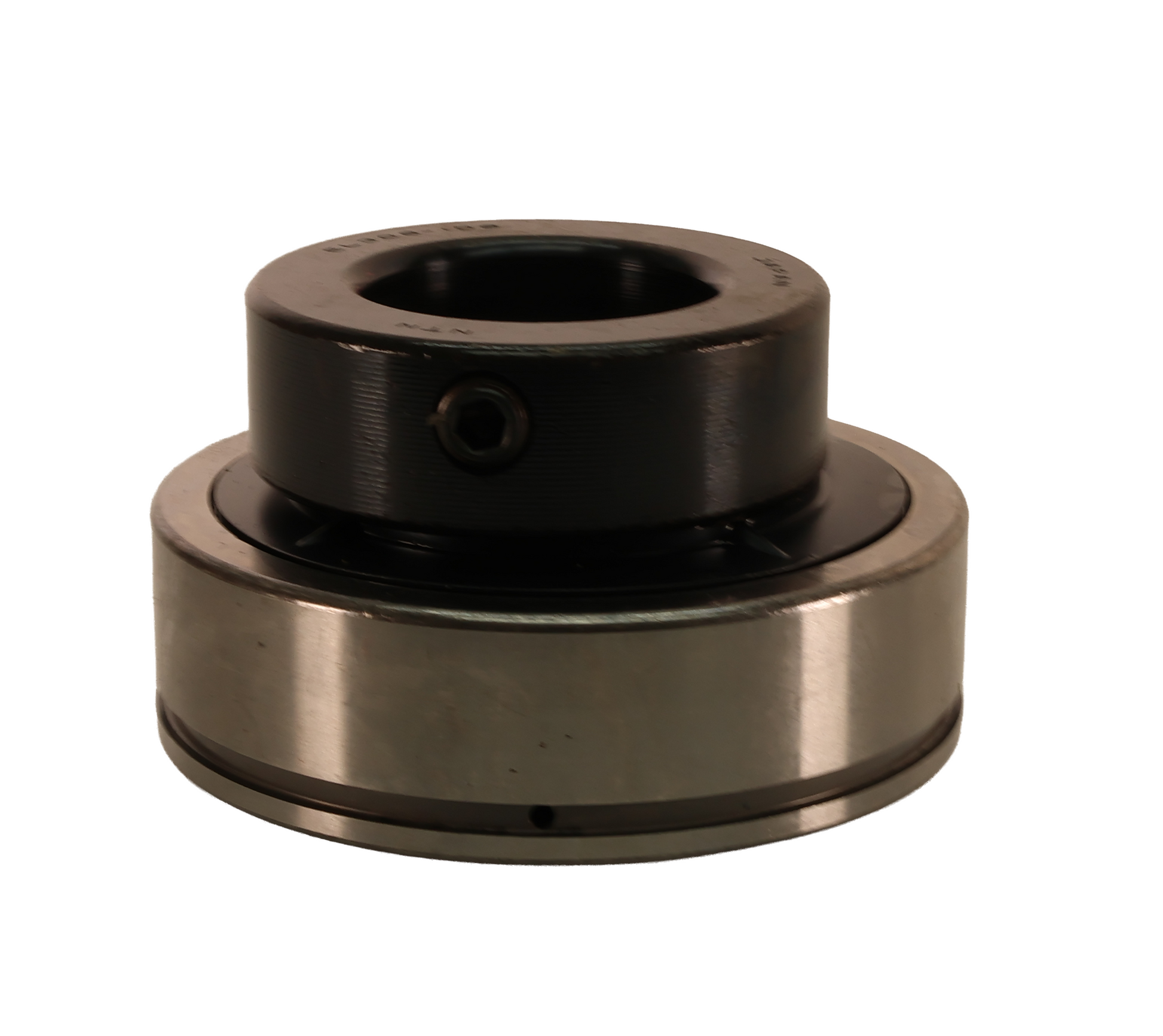

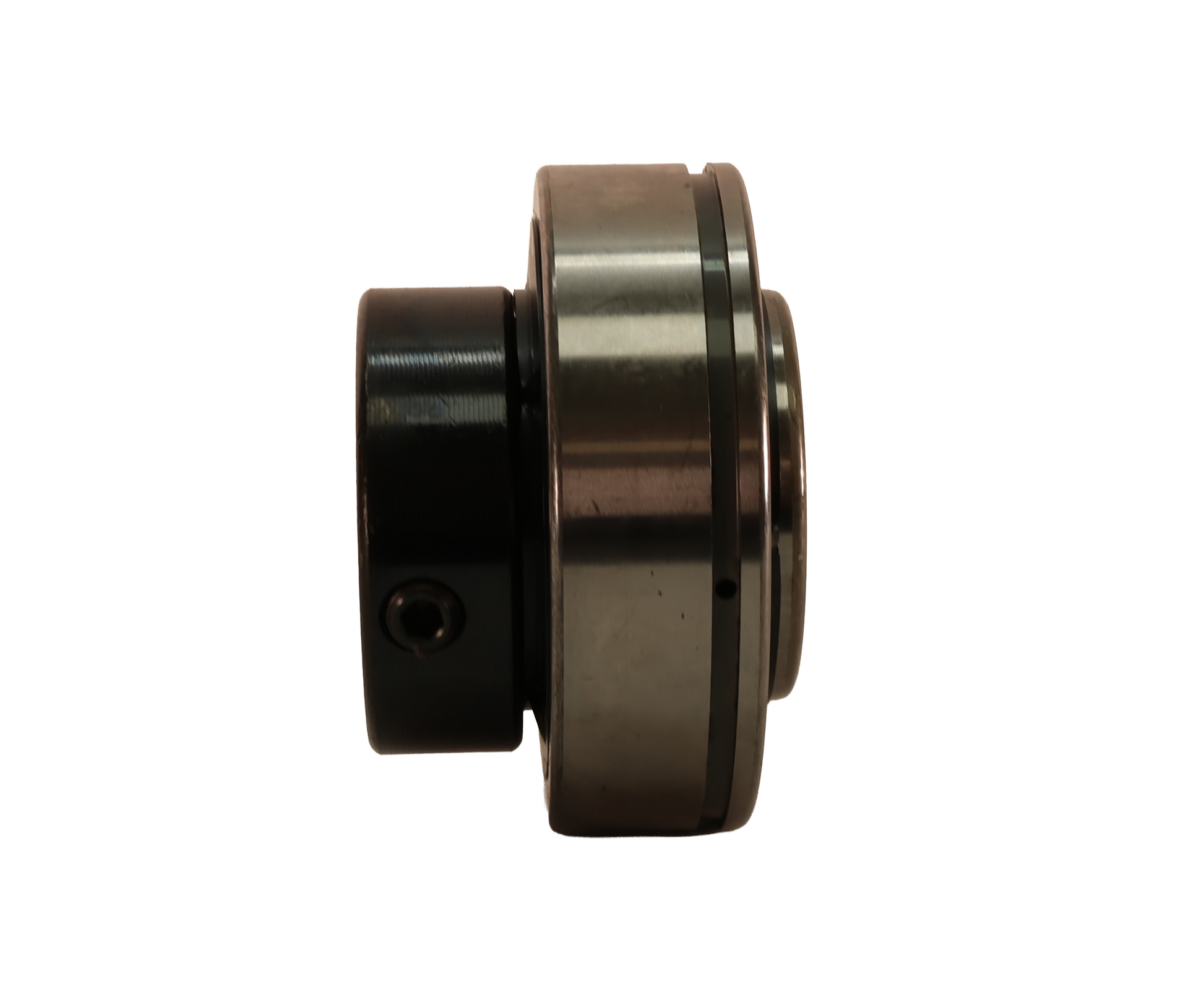

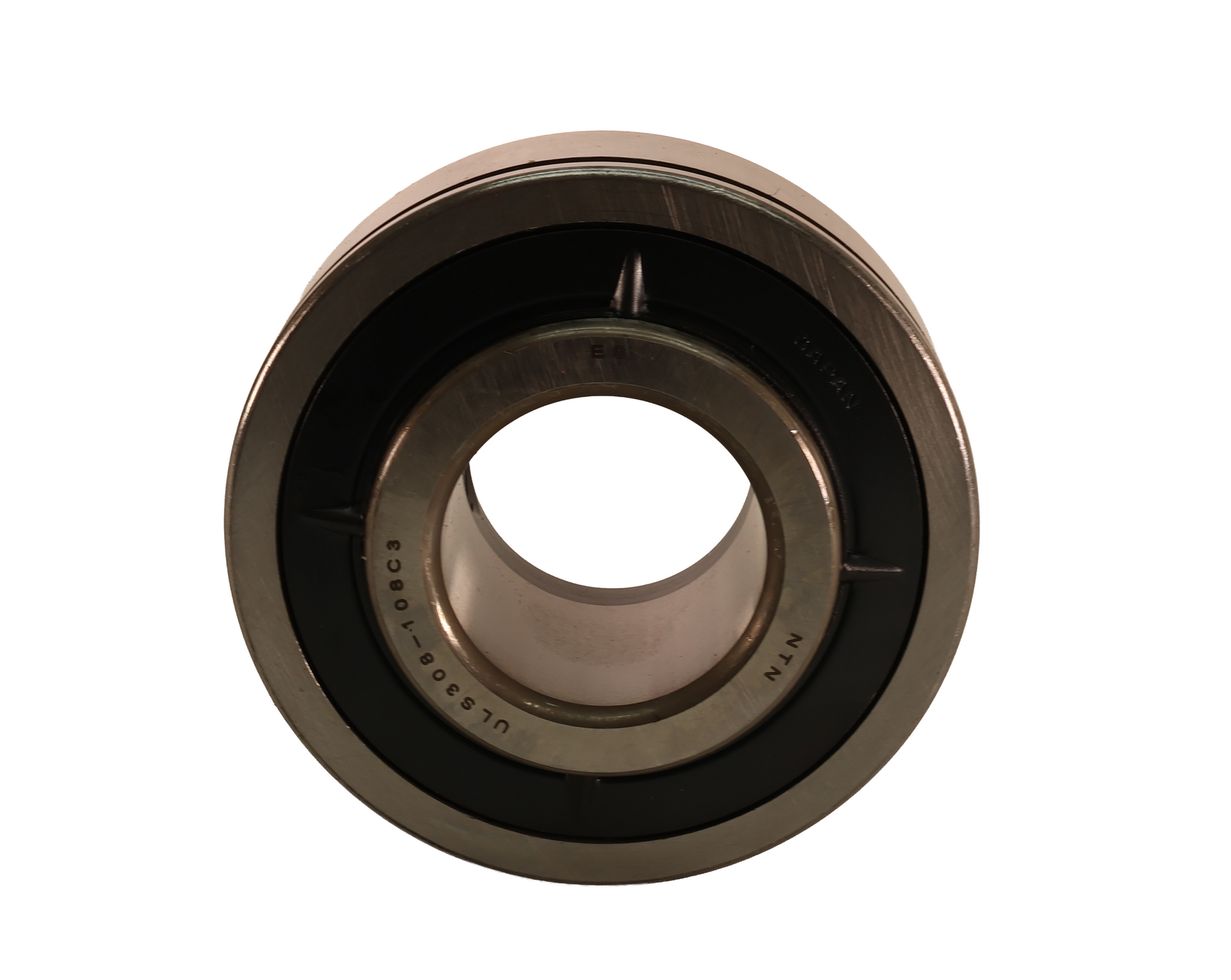

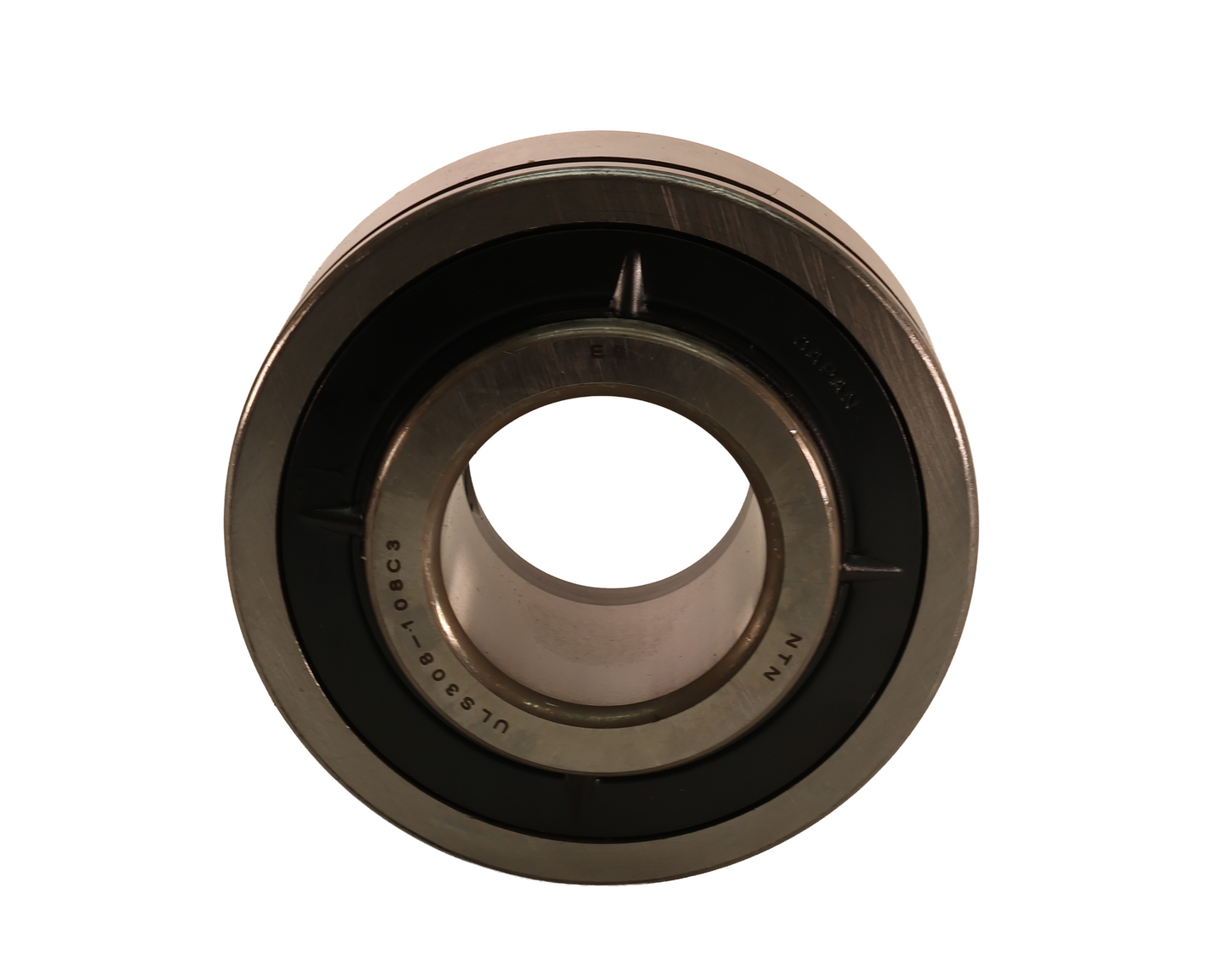

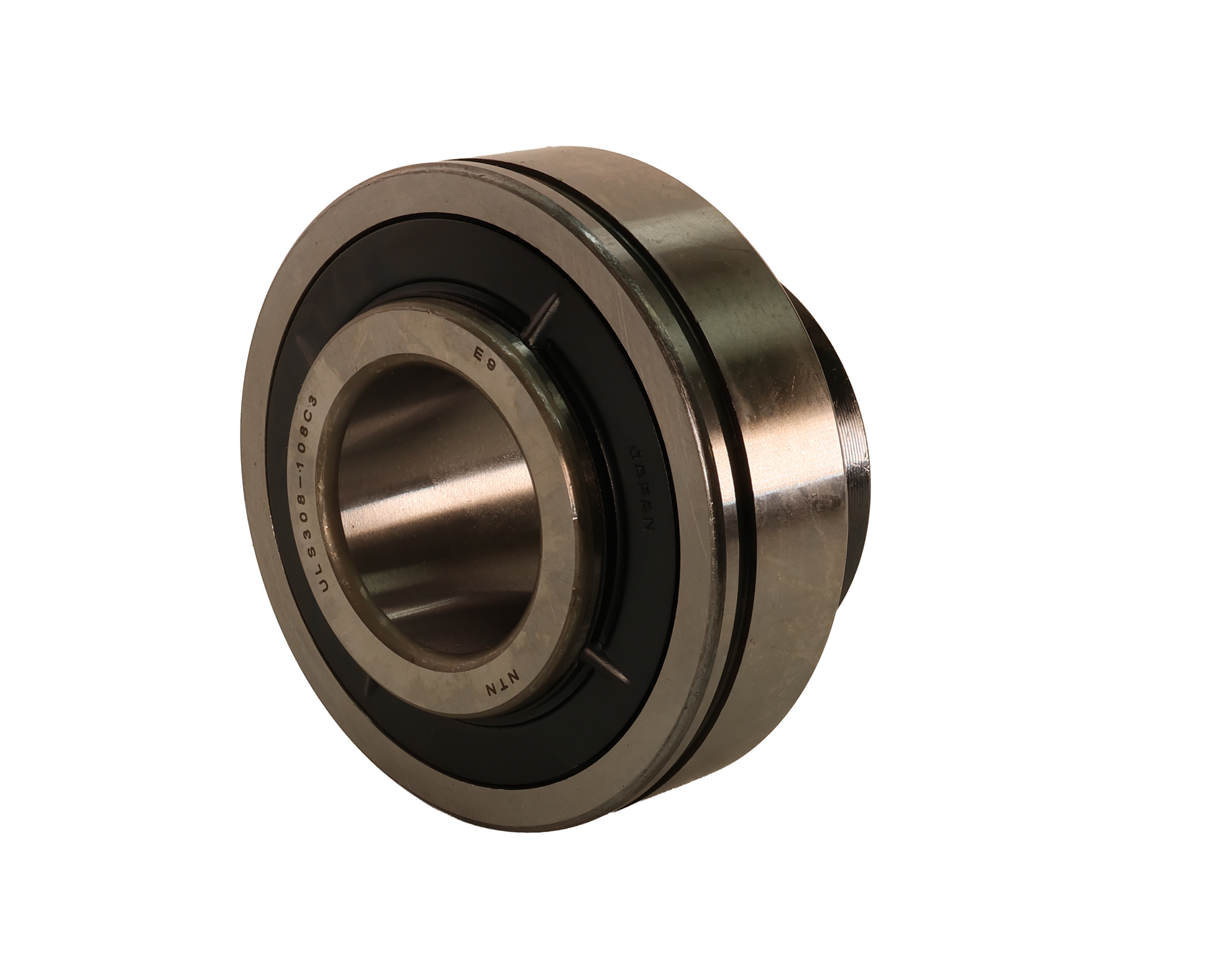

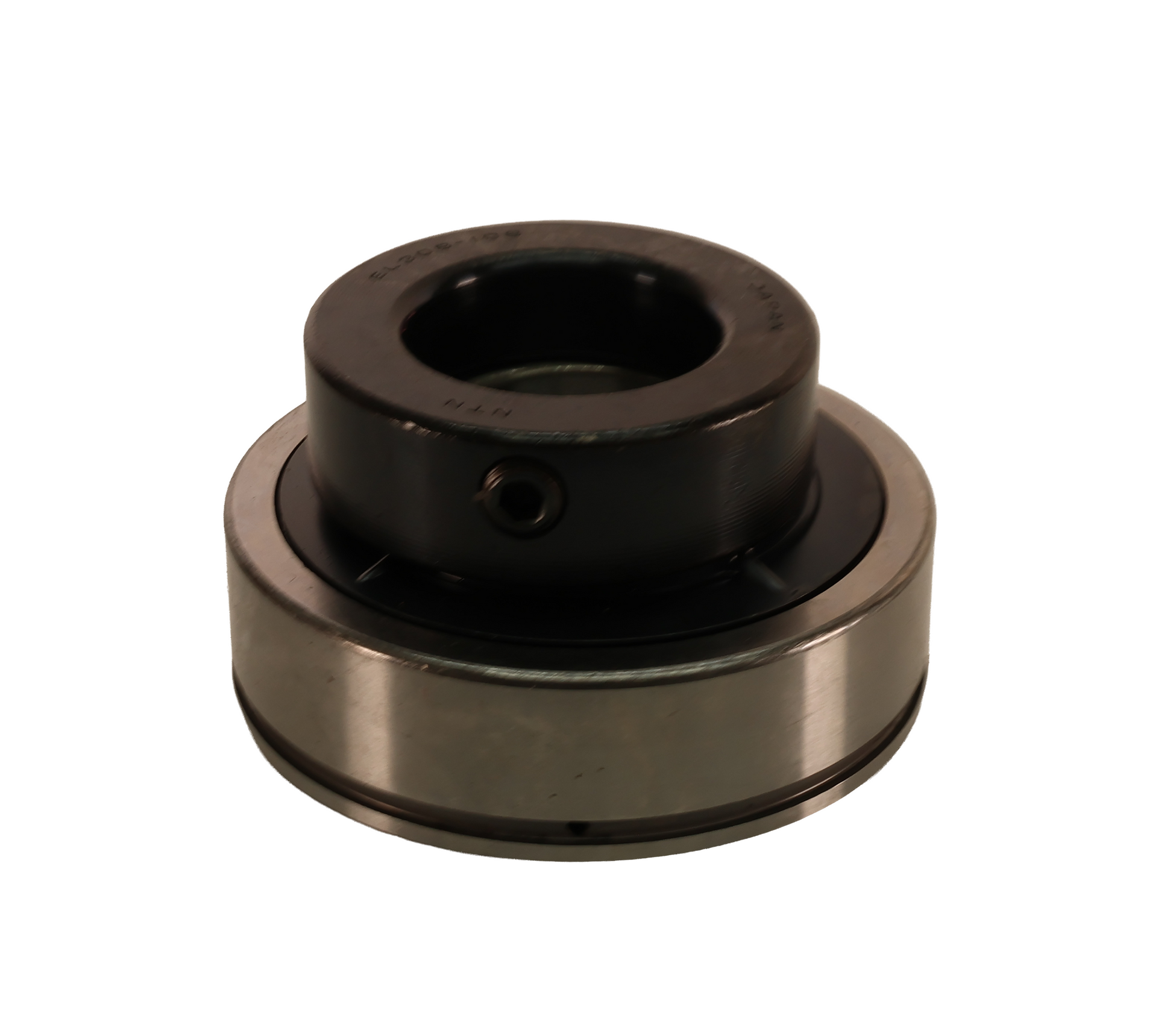

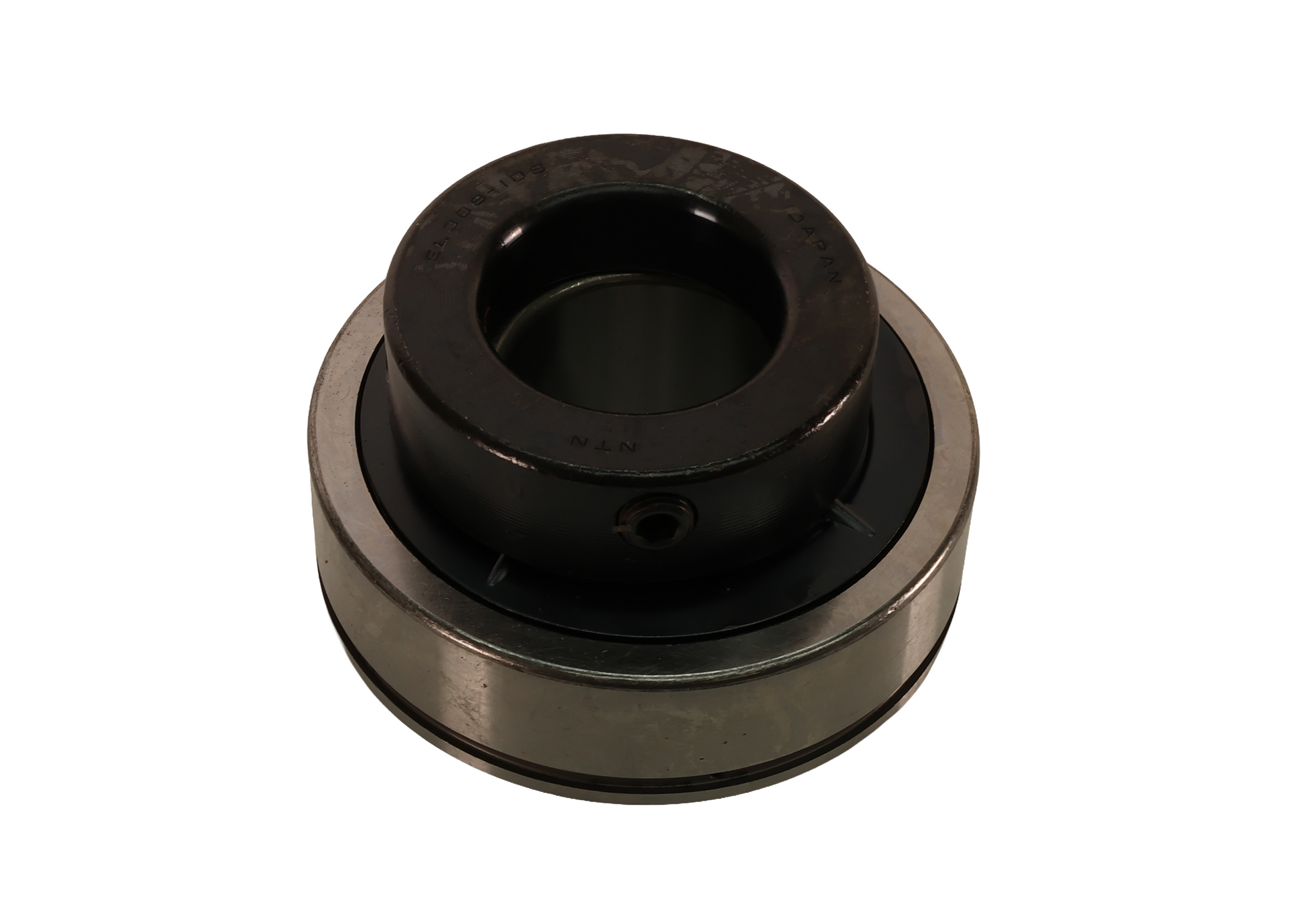

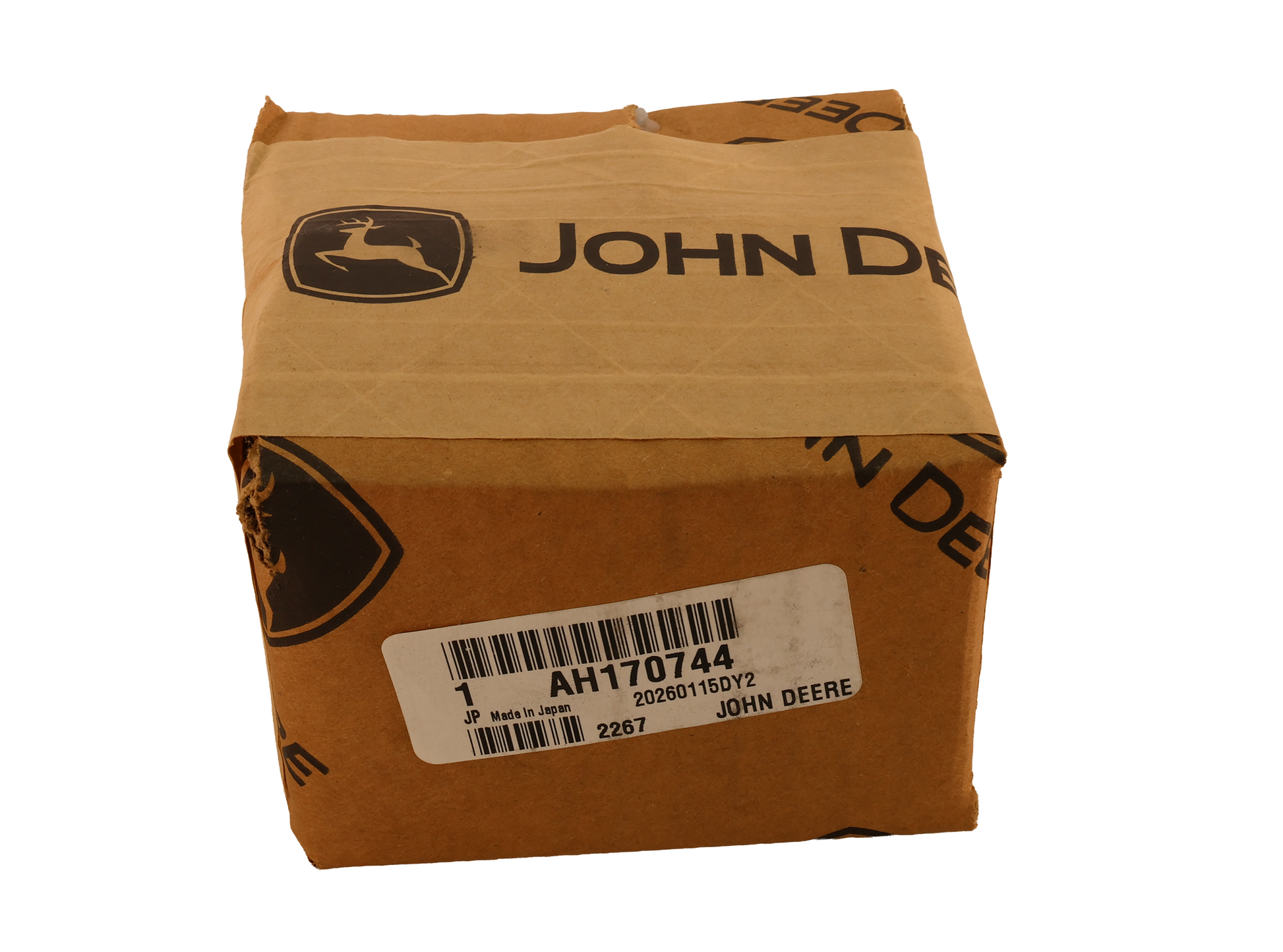

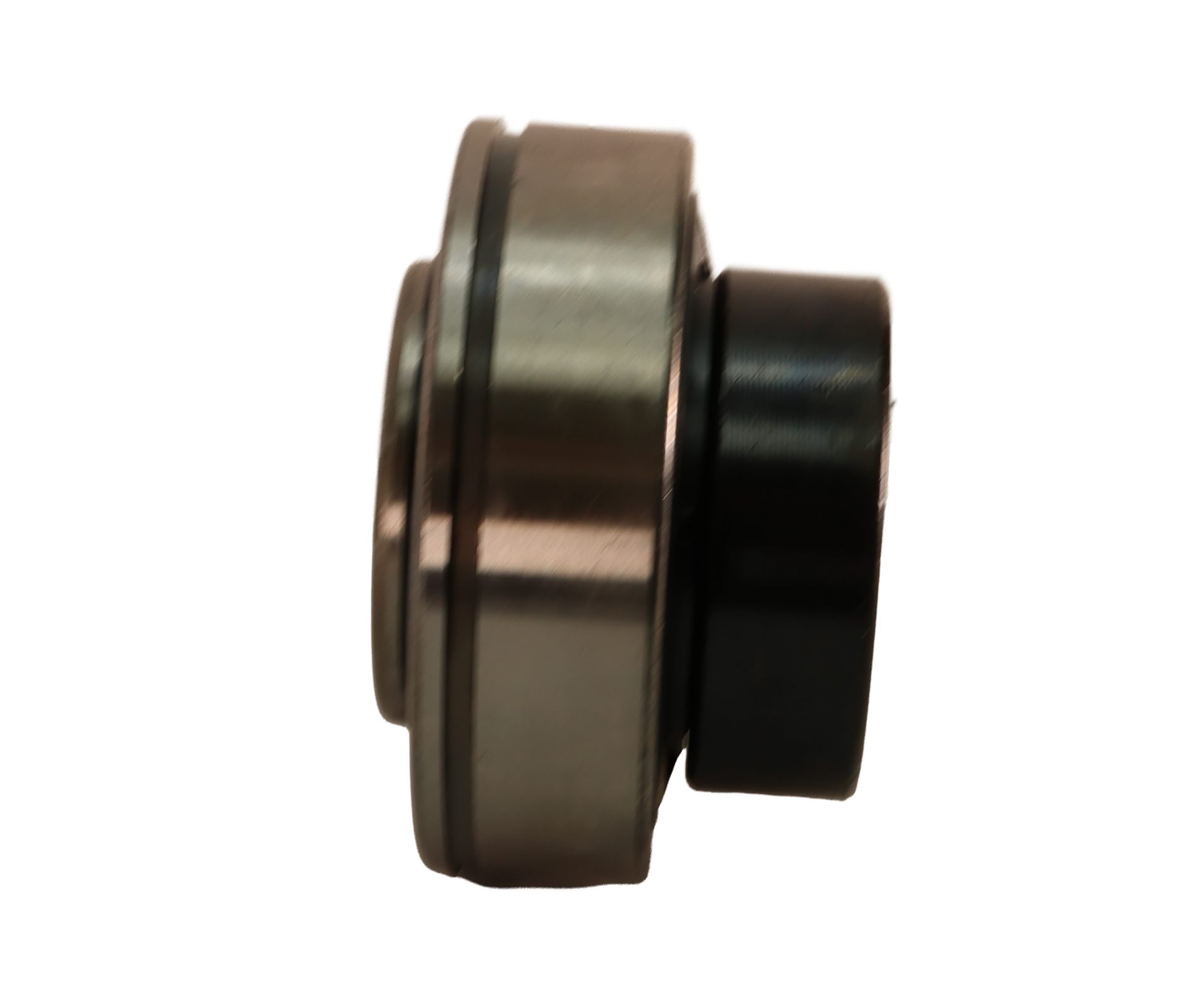

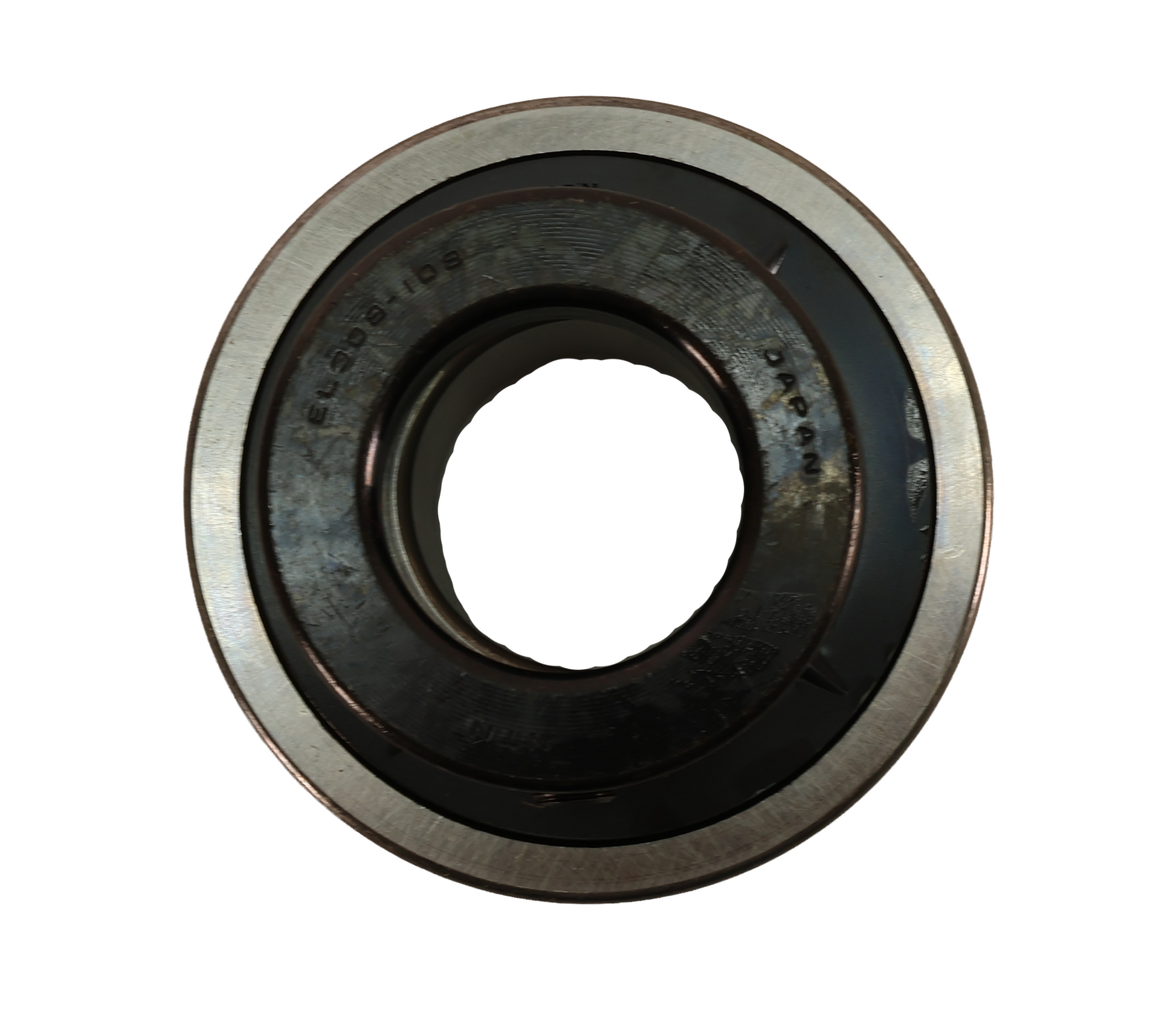

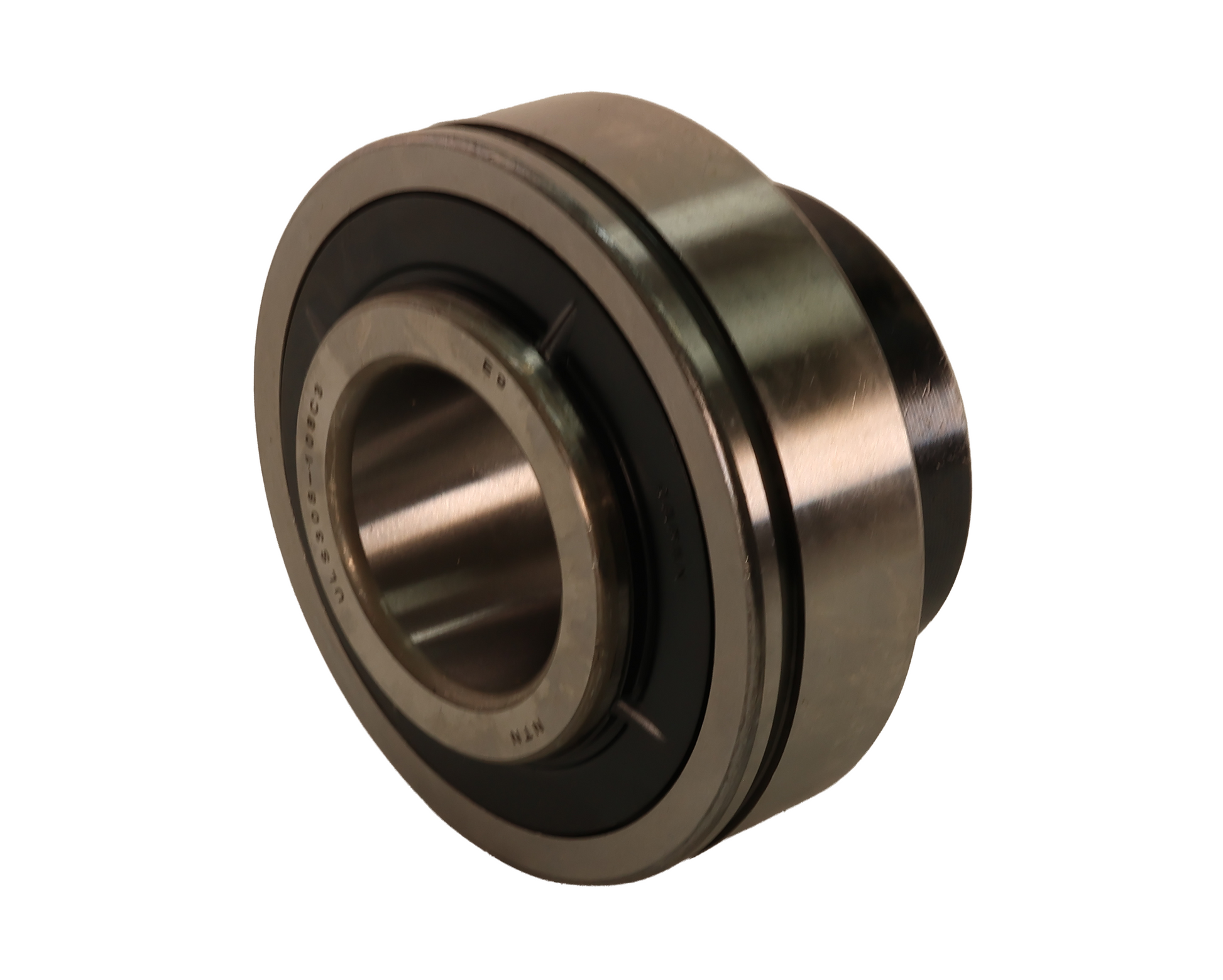

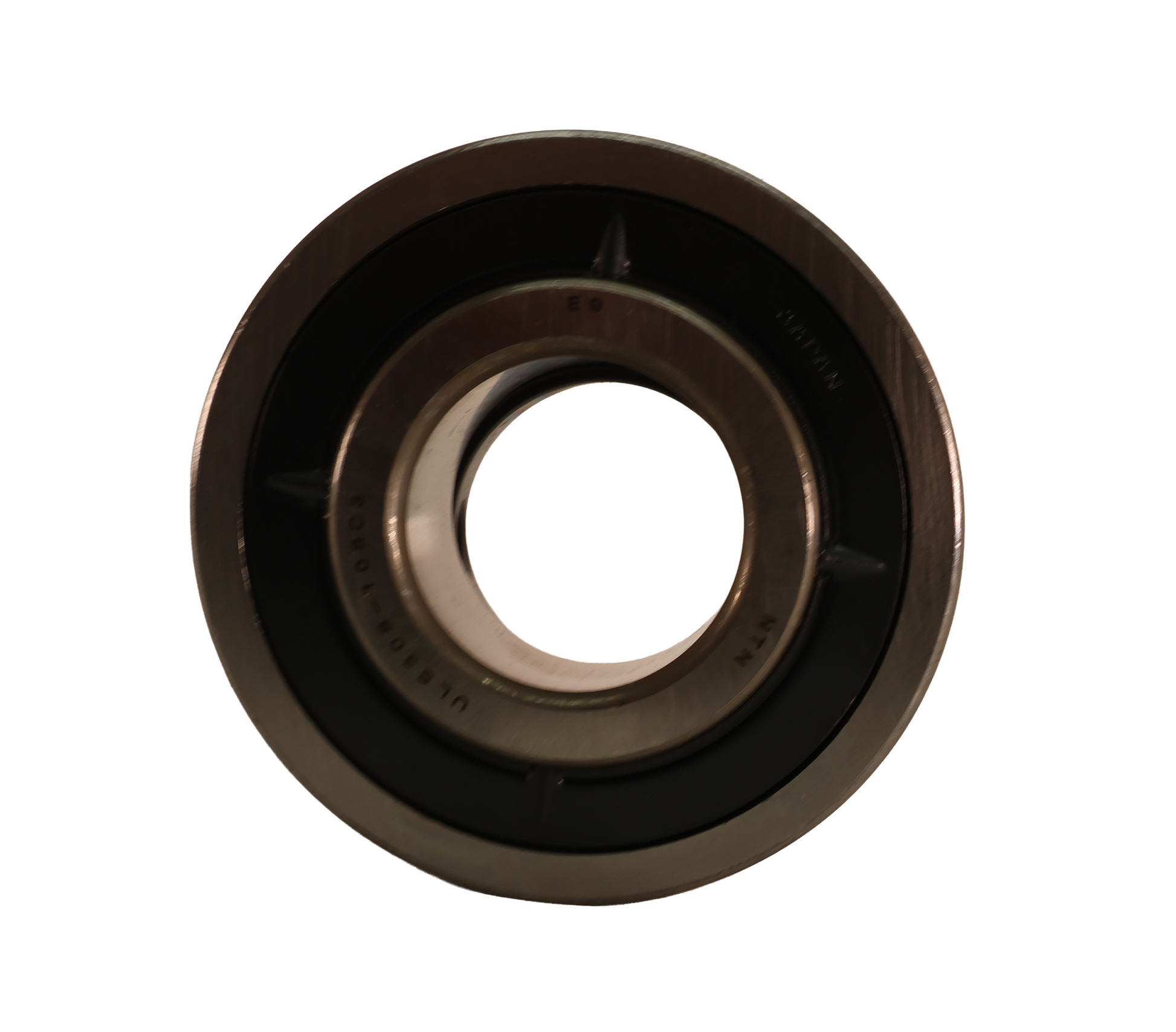

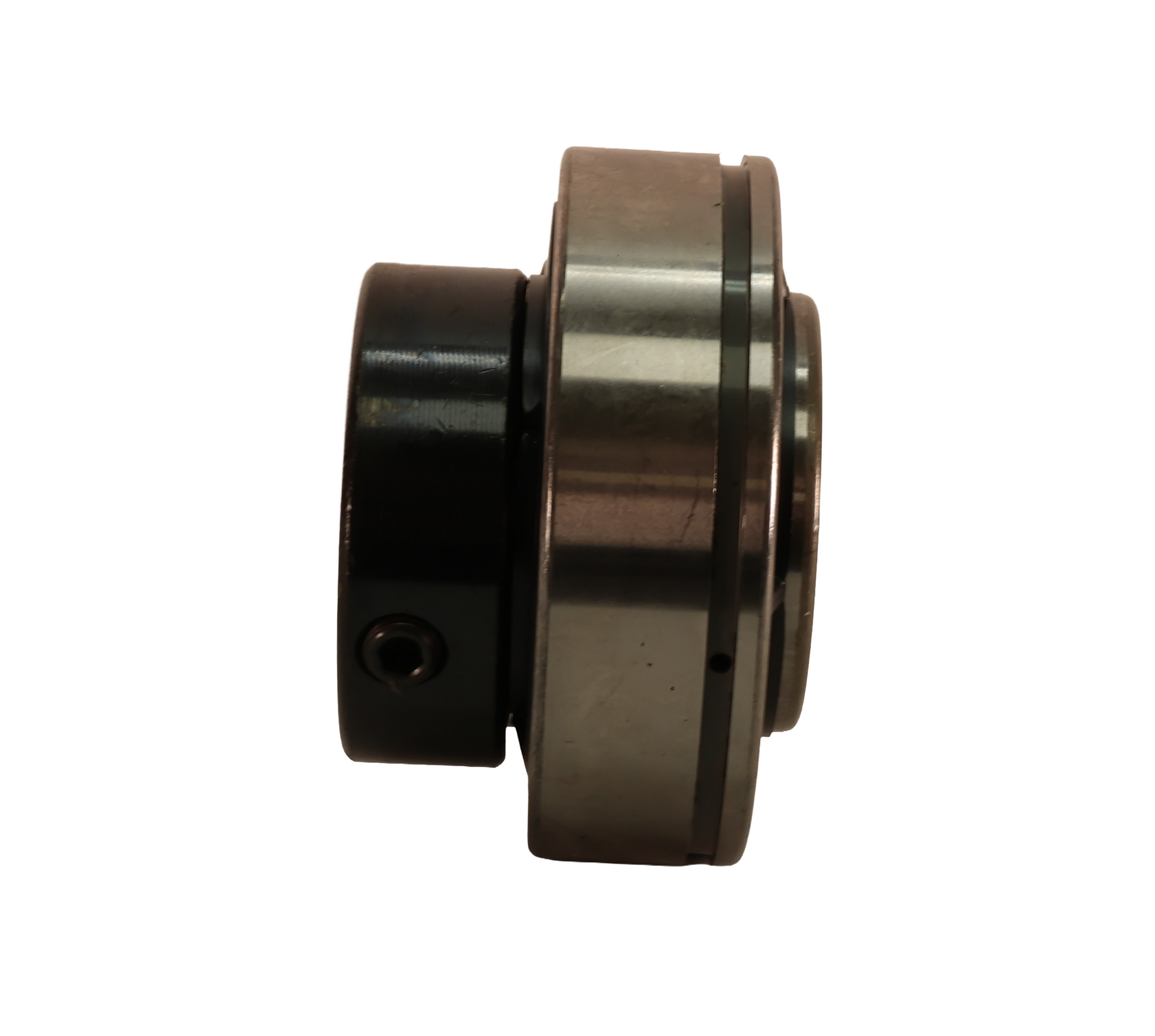

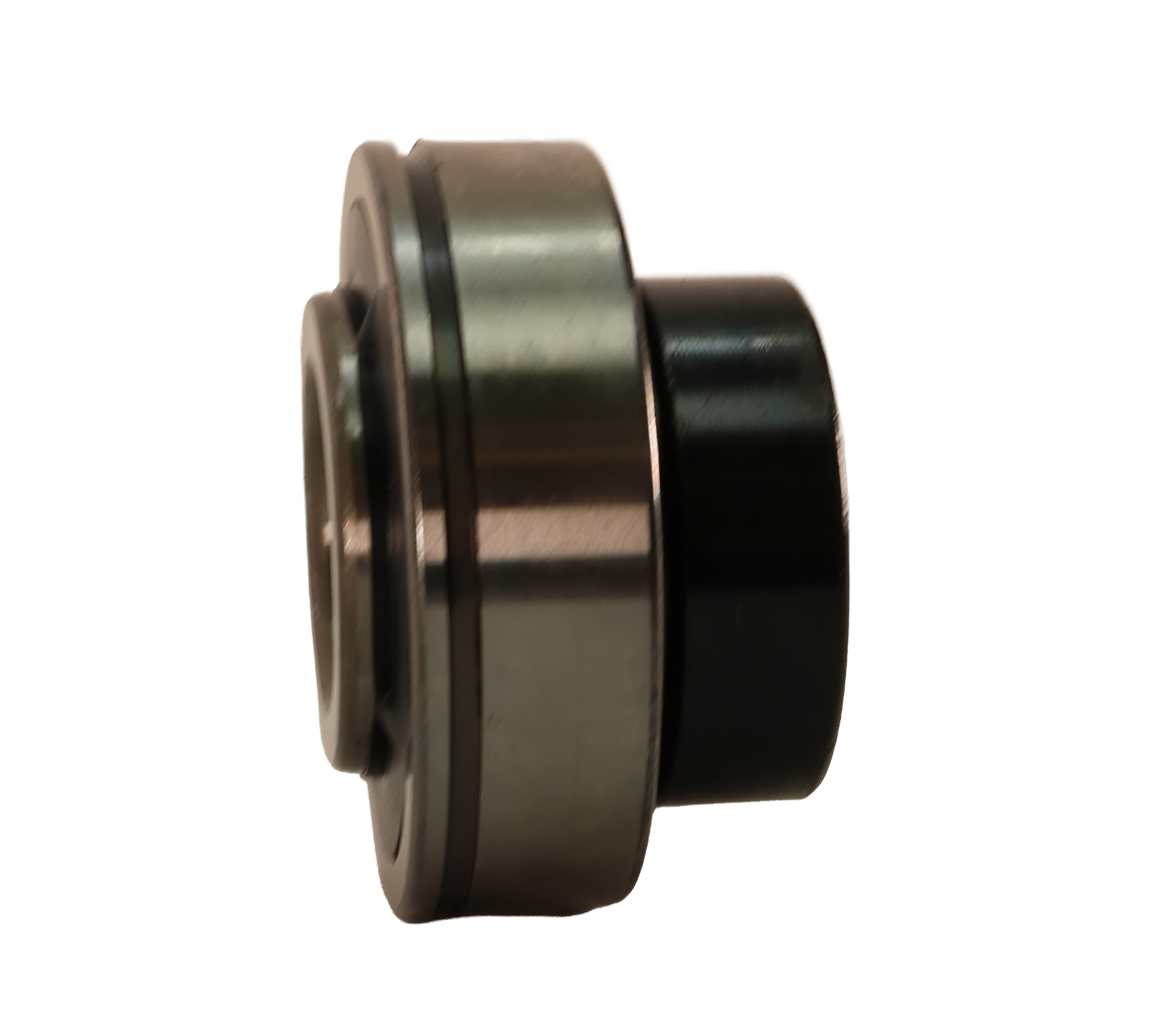

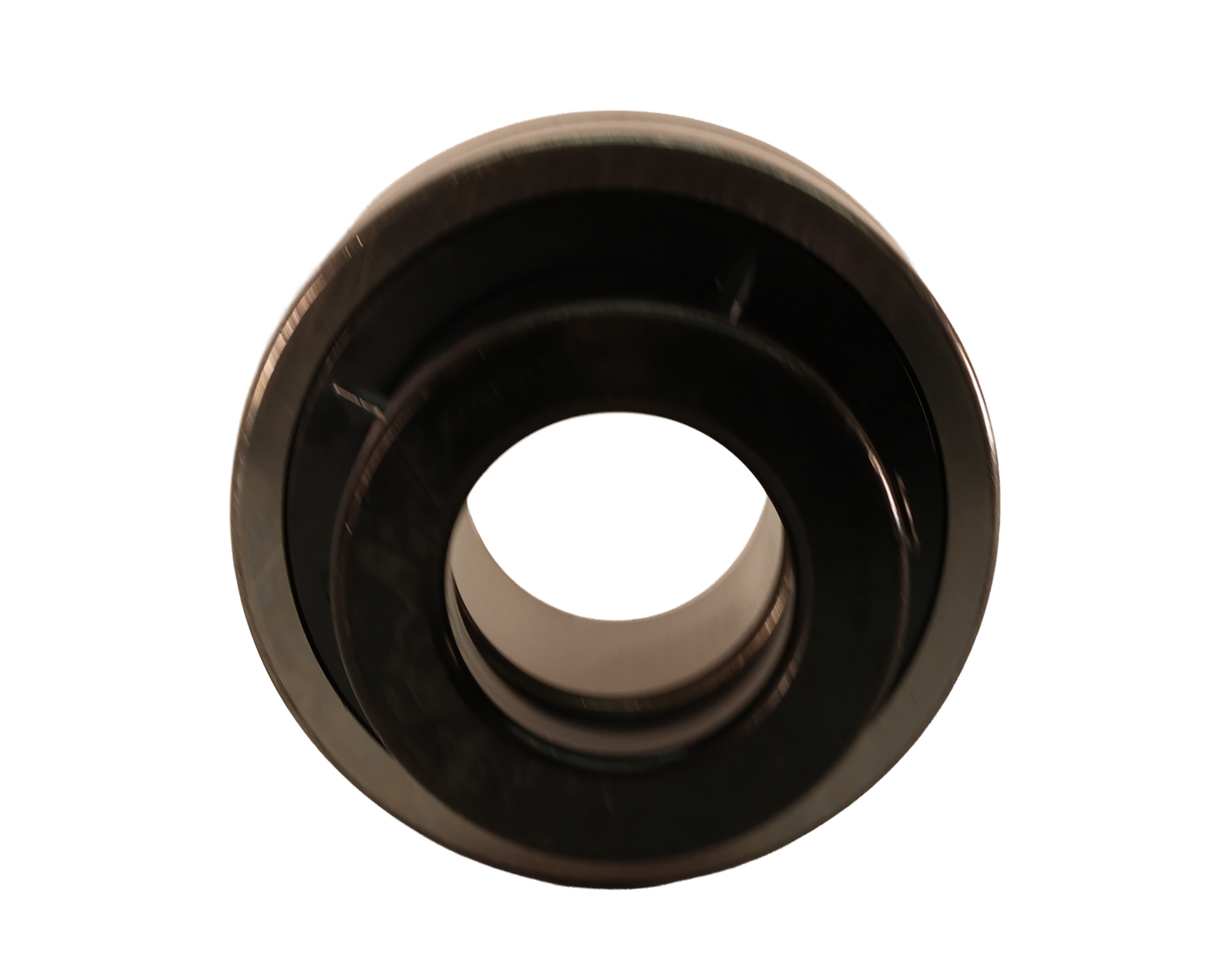

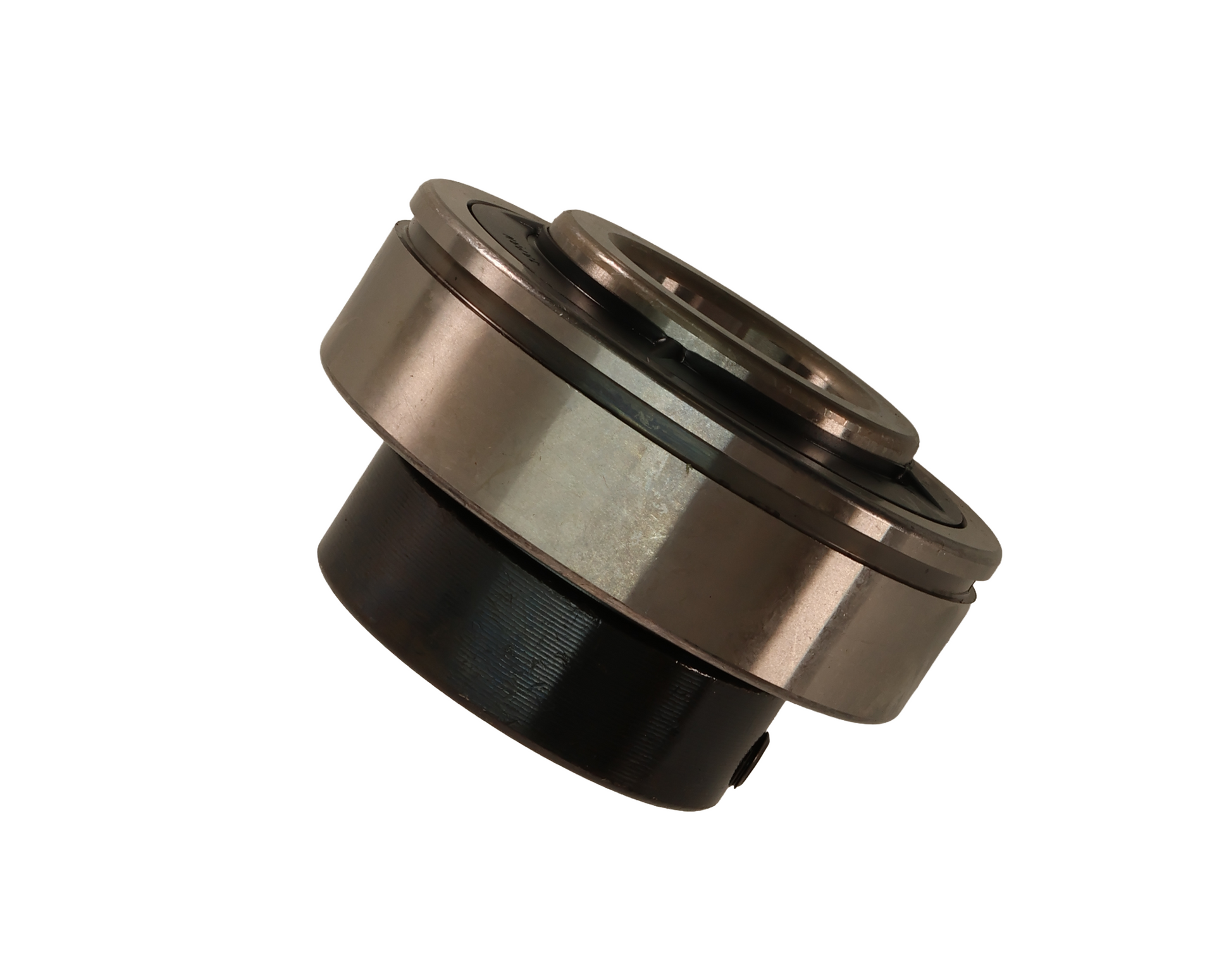

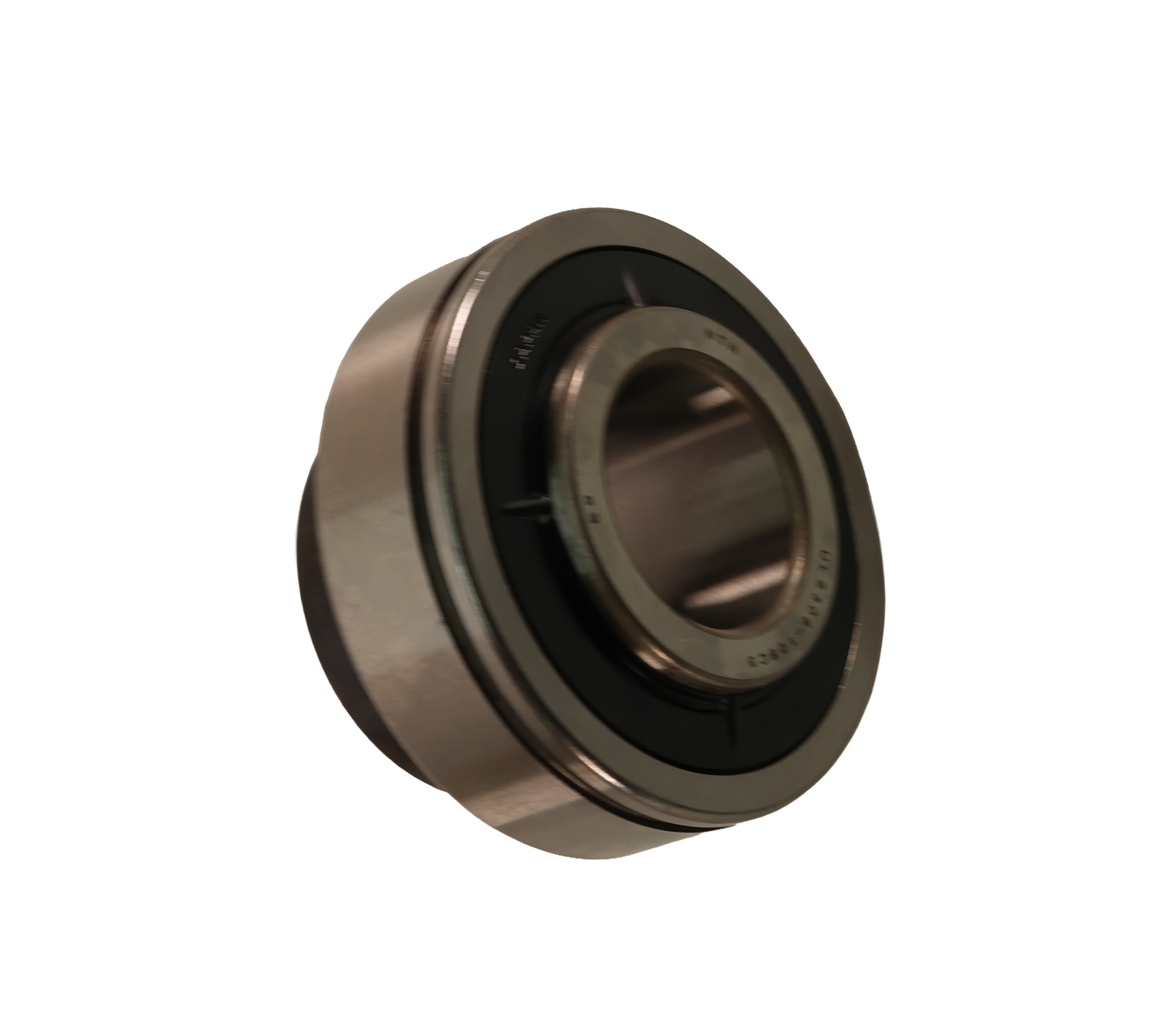

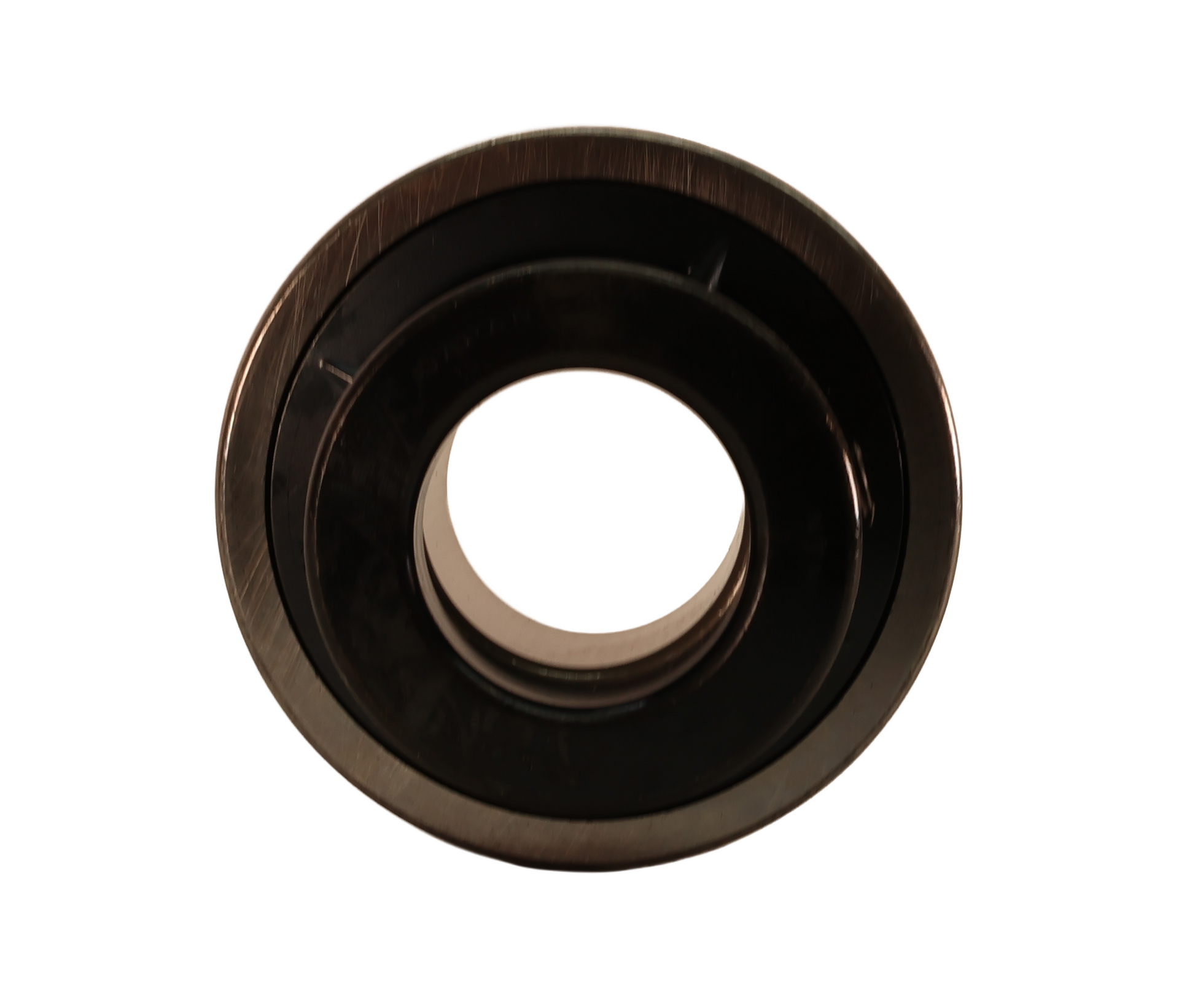

John Deere Original Equipment Ball Bearing - AH170744
Part Specifications:
Inside Dimension (MM) 38.1000
Outside Dimension (MM) 90.0000
Width Outer Race (MM) 27.0000
Width Inner Race (MM) 41.3000
Dynamic Rating (N) 40500.0000
Static Rating (N) 24000.0000
Outer Corner Radius (MM) 1.0000
Inner Corner Radius (MM) 1.0000
Note (L) With Locking Collar
Inside Dimension (MM) 38.1000
Outside Dimension (MM) 90.0000
Width Outer Race (MM) 27.0000
Width Inner Race (MM) 41.3000
Dynamic Rating (N) 40500.0000
Static Rating (N) 24000.0000
Outer Corner Radius (MM) 1.0000
Inner Corner Radius (MM) 1.0000
Note (L) With Locking Collar
Fits the following John Deere models:
Combine: 9550SH, 9550, 9560SH, 9560, 9560 STS, 9570 STS, 9650, 9650 STS, 9750 STS, 9660, 9660 STS, 9760 STS, 9750 STS, 9860 STS, S550, T560, W540, 9640WTS, 9640i WTS, 9660i WTS, 9680WTS, 9680i WTS, 9670 STS, 9870 STS, T550, T560, T660, T670, W540, W550, W650, W660.
This is an O.E.M. John Deere part.
