An oil ring on the driveway usually starts the same way. The mower ran fine all season, and now fresh oil pools under the engine, or a wet streak shows along the deck. The good news: most mower oil leaks trace back to a handful of causes, and the fix often costs 10 minutes and a rag.
Most oil leaks start with 3 things: too much oil, oil in the wrong place after a tilt, or a worn seal or gasket. A useful check: work top to bottom. Oil above the engine means a loose fill cap or dipstick. Oil below the engine points to the drain plug, the sump gasket, or the crankshaft seal.
This guide covers each cause, its mechanism, diagnosis, and the fix. Match the replacement part to the mower's model number before ordering. For a fuller parts overview, see the Lawn Mower Parts guide.
Key Takeaways
- Most lawn mower oil leaks trace to 5 causes: an overfilled crankcase, oil that migrated during a tilt, a worn gasket, a tired crankshaft seal, or a loose drain plug.
- Overfilling after an oil change is the most common cause. Excess oil escapes past the seals and breather tube, and a soaked air filter confirms it.
- A mower tipped the wrong way leaks from the air filter side. Tip a push mower with the carburetor side up, and oil stays away from the air filter.
- White or blue smoke right after a leak appears usually means oil has reached the combustion chamber or the exhaust, not a failed engine.
- Gasket and seal repairs are straightforward mechanical fixes. Parts matched by model number fit without modification, and you can ask fitment questions at (636) 366-2336 or CustomerSupport@agnlawn.com.
Why a Lawn Mower Leaks Oil
A lawn mower leaks oil because pressurized or spilled oil finds the path of least resistance out of the engine. During operation, the piston's pumping action pressurizes the crankcase, and that pressure vents through a breather tube. When the oil level runs too high, or a seal wears thin, that system pushes oil out wherever resistance is lowest.
Seals and gaskets harden with age, drain plugs work loose from vibration, and a tilt sends oil into places meant to stay dry. The leak location is the diagnosis. Two mowers can show the same symptom from 2 different causes.
Why Is Oil Leaking From My Lawn Mower Air Filter?
Oil in the lawn mower air filter means oil traveled there, and 2 routes explain it: crankcase pressure or a tilt spill. In a 4-cycle engine, the crankcase breather tube vents into the air box behind the filter. Excess oil, or oil carried by crankcase pressure, rides that breather into the housing. The paper element soaks it up.
A tipped mower moves oil the same way. Tilting it carburetor-side down lets oil run into the air box directly. The engine then draws oil mist into the intake, where it burns as blue or white smoke.
The Fix for Oil in the Air Filter
Set the mower level and let it sit 10 minutes. Wipe out the housing and replace the soaked paper filter. You can wash a foam pre-filter with detergent, dry it, and lightly oil it before putting it back in. If the filter was dry and the housing was wet, the leak came from above; check the fill cap and the oil level next.
Why Is My Riding Lawn Mower Leaking Oil?
A riding mower leaking oil usually points to 2 parts: the drain plug and the sump gasket. The leak shows along the engine base or on the frame behind the engine. Vibration over a season of mowing can back out a drain plug. A cross-threaded or over-tightened plug can crack the sump, and that repair is a sump replacement, not a new gasket.
The other common riding-mower leak is the crankshaft seal behind the blade spindle or engine pulley. That seal can also leak onto the deck on a push mower, which is why lawn mower oil streaks on the deck deserve a look at the seal before anything else.
Oil on the Frame Is Not Always Engine Oil
Grease flung from a spindle sits in a paste and does not drip. Fuel leaks smell like gas and feel thinner than oil. Wipe the fluid with a clean rag before ordering lawn mower parts, and if a mower was tilted for blade work, remember that a post-tilt leak is often just migrated oil settling back down.
Why Is My Lawn Mower Smoking and Leaking Oil?
Smoke plus a leak means oil is reaching the combustion chamber or hot exhaust parts. White or blue smoke means oil is burning. Black smoke signals a fuel problem, not oil. Fresh oil on the heat shield or muffler burns off as smoke within a few minutes of running.
A hot muffler over a fresh oil drip creates a fire hazard. Stop mowing and clean the oil off before the next run.
Common Causes of Lawn Mower Oil Leaks and How to Fix Each One
Six causes cover nearly every oil leak on a gas mower. Overfilling leads the list because it follows every oil change done in a hurry. The table pairs each cause with its mechanism and fix.
|
Cause |
Mechanism |
Fix |
|
Overfilled crankcase |
Excess oil escapes past the seals and breather tube |
Drain to the dipstick line; recheck after a run |
|
Tilt spill |
Oil ran into the air box or cylinder while tipped |
Level the mower; replace a soaked air filter only |
|
Valve cover gasket |
A flattened gasket lets oil seep around the cover |
Replace the gasket; torque bolts in a cross pattern |
|
Crankshaft seal |
A worn seal drips along the blade spindle or pulley |
Blade-side seal: replace after blade removal; upper seal: shop job |
|
Loose drain plug |
Vibration backs the plug out; oil drips from the base |
Snug the plug; replace a stripped or cracked plug |
|
Fill cap / dipstick O-ring |
A hardened O-ring lets oil splash out at running speed |
Replace the cap or O-ring |
How to Prevent the Most Common Causes
Fill to the dipstick line, not above it. Tip a push mower with the carburetor side up. Snugly tighten the drain plug, and inspect the fill cap O-ring at each oil change. These 3 habits prevent most of the issues above.
How to Find the Leak: A 10-Minute Diagnosis
Set the mower on a flat, hard surface, and let the engine cool before starting.
- Disconnect the spark plug wire before hands go near the blade.
- Wipe the whole engine down with a clean rag so old oil cannot confuse the search.
- Check the oil level on level ground, and correct it to the dipstick line.
- Open the air filter housing and look for a soaked element.
- Check the fill cap and dipstick seat for oil weeping down the engine.
- Look at the drain plug and the seams around the sump for fresh wetness.
- Reconnect the plug wire, run the engine for 2 minutes, shut it off, and look for fresh oil at 1 spot.
If fresh oil appears at 1 spot, the table above gives the fix. If the engine is uniformly wet, start with the oil level, because overfilling smears oil across the whole engine.
How to Fix the Leak, Cause by Cause
- Overfilled crankcase: Drain to the dipstick line. If the level is far over, a small second drain is better than pulling everything at once. If the drained oil smells like gasoline, gas has raised the level on its own, and the oil needs a full change.
- Tilt spill: Set the mower level and wait. If the air filter stayed dry, nothing needs replacing. Replace a soaked paper filter, and the smoke should clear within a few minutes of running.
- Valve cover gasket: Remove the cover, clean the mating surface, and fit a new gasket. Tighten the bolts to spec in a cross pattern; over-torque can crack the valve cover.
- Crankshaft seal: The blade-side seal can be replaced after the blade comes off. The upper seal sits behind the flywheel, and that job is best left to a dealer or repair shop.
- Drain plug: Snug the plug with a wrench; over-torque can crack the sump. Replace a plug with rounded or damaged threads, and use a new sealing washer if the design uses one.
- Fill cap or dipstick O-ring: Replace a cap with a cracked or flattened O-ring. This cheap part stops the slow film of oil that coats the top of the engine.
In most published guides, a persistent leak gets solved with a seal or gasket order. In practice, half of the fixes above cost less than a gasket.
When to Stop and Get Help
Stop using the mower when oil loss is rapid, or smoke is heavy. Also stop when oil reaches the exhaust, or the leak comes from an upper crankshaft seal or a cracked sump. Running an engine that keeps losing oil ends in a spun rod bearing or a seized engine. A seal or gasket costs a fraction of an engine replacement.
For an upper-seal job, or if the leak source is unclear after the diagnosis, a dealer or repair shop has the pullers and presses needed.
Ordering the Right Parts

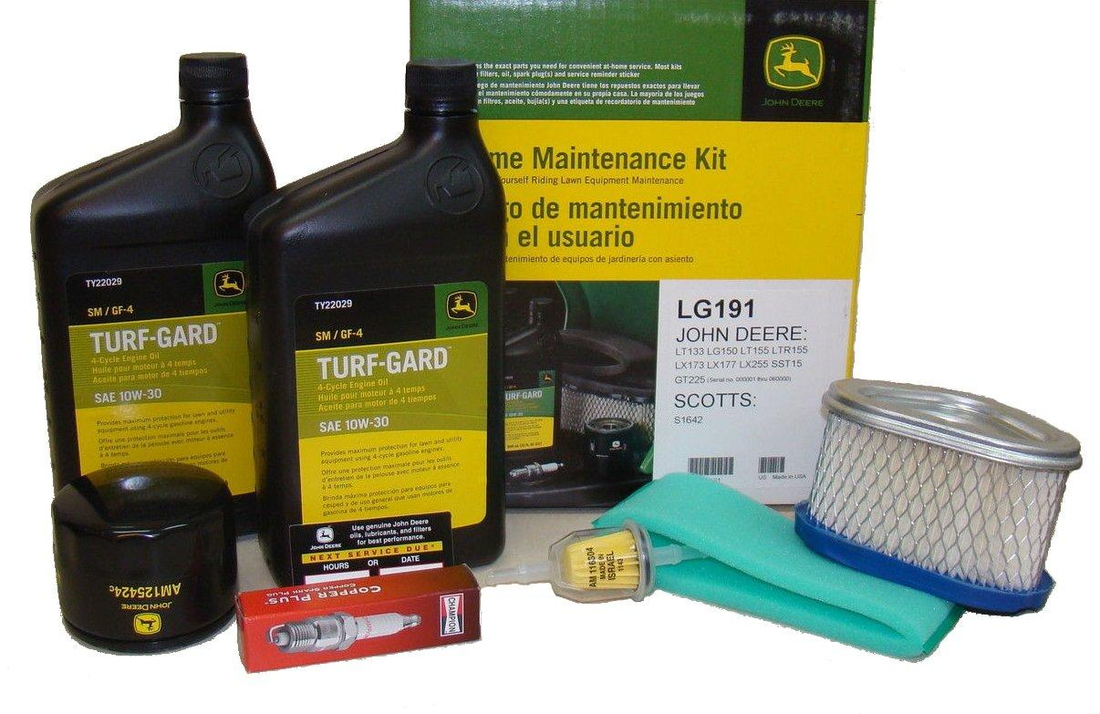

Match gaskets, seals, and plugs to the mower's model number, not to a look-alike photo. AGnLAWN stocks maintenance kits and individual parts matched by model number, with same-day shipping on orders placed before 2:00 PM CST. Fitment questions go to (636) 366-2336 or CustomerSupport@agnlawn.com.
Closing: Catch the Leak While It Is Small
Catching a leak early keeps a small job small.
- A loose plug is a 60-second fix.
- A crankshaft seal on a push mower is an afternoon.
- A seized engine is a mower replacement.
The payoff for a 10-minute diagnosis is years of mower life. Shop lawn mower parts matched by model number at AGnLAWN.
FAQs
Why is my lawn mower leaking oil from the bottom?
Usually, the drain plug, sump gasket, or crankshaft seal can cause your mower to leak oil from the bottom. Wipe the engine clean, run it for 2 minutes, and see which spot turns wet first.
Does an oil leak mean the engine is bad?
No. Most leaks trace to overfilling, a loose plug, or a worn gasket, and all are minor fixes. Rapid oil loss is the real danger, because running low damages the engine.
Can I still mow with a small oil leak?
Yes, if the level holds steady and no oil reaches the exhaust. Check the dipstick before each use, top up as needed, and clean oil off the deck so it cannot reach hot parts.
Why does my mower smoke after an oil change?
Excess oil is burning off. Drain to the dipstick line, and the smoke should clear within a few minutes of running. Replace a soaked air filter before the next mow.
How do I stop the leak after tilting my mower?
Set it level and let the oil settle. Next time, tip a push mower with the carburetor side up. Replace a soaked filter, and if the leak continues after cleanup, it points to a gasket or seal.
